Okamoto 1224DX - Surface Grinders (Recip.)

Share Machine
Specifications Print Specs
Model: 1224DX
Year: 2005
Stock #: 3822 Sold
Highlights:

12
Machine Specifications
Incremental Downfeed
yes
Chuck Size
12" X 24"
X-Axis Travel
29.5"
Y-Axis Travel
13.5"
Z-Axis Travel
13.6"
Max Table Load
925 pounds
Main Motor
5 Horsepower
Grinding Wheel Speed RPM
1,800
Spindle (Horz/Vert)
horizontal
Grinding Wheel Width
1.5"
Grinding Wheel Dia.
12"
CNC Control
no
Weight
5,280 pounds

Equipped With:

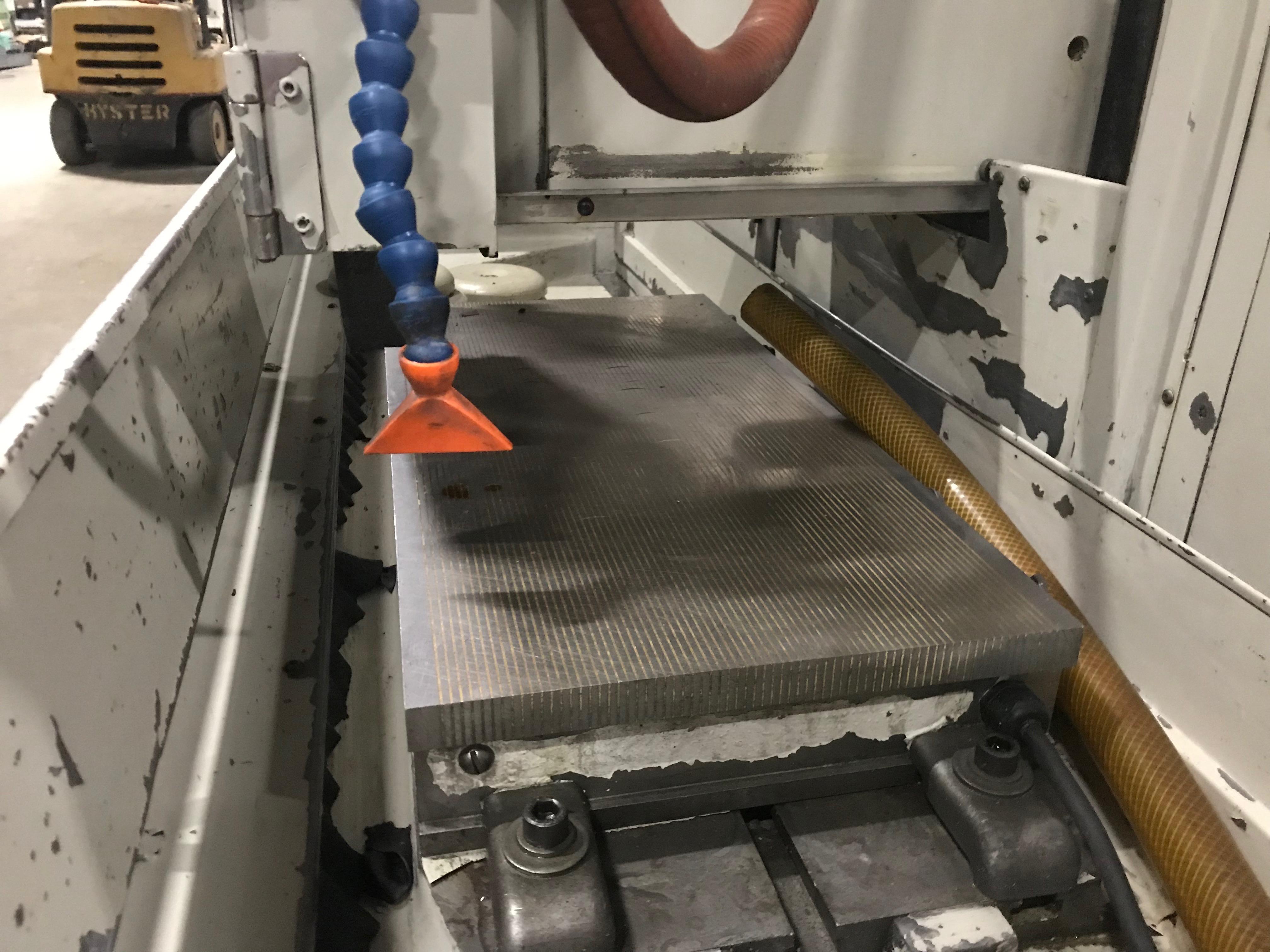

12" x 24" Electromagnetic Chuck
Chuck Controls

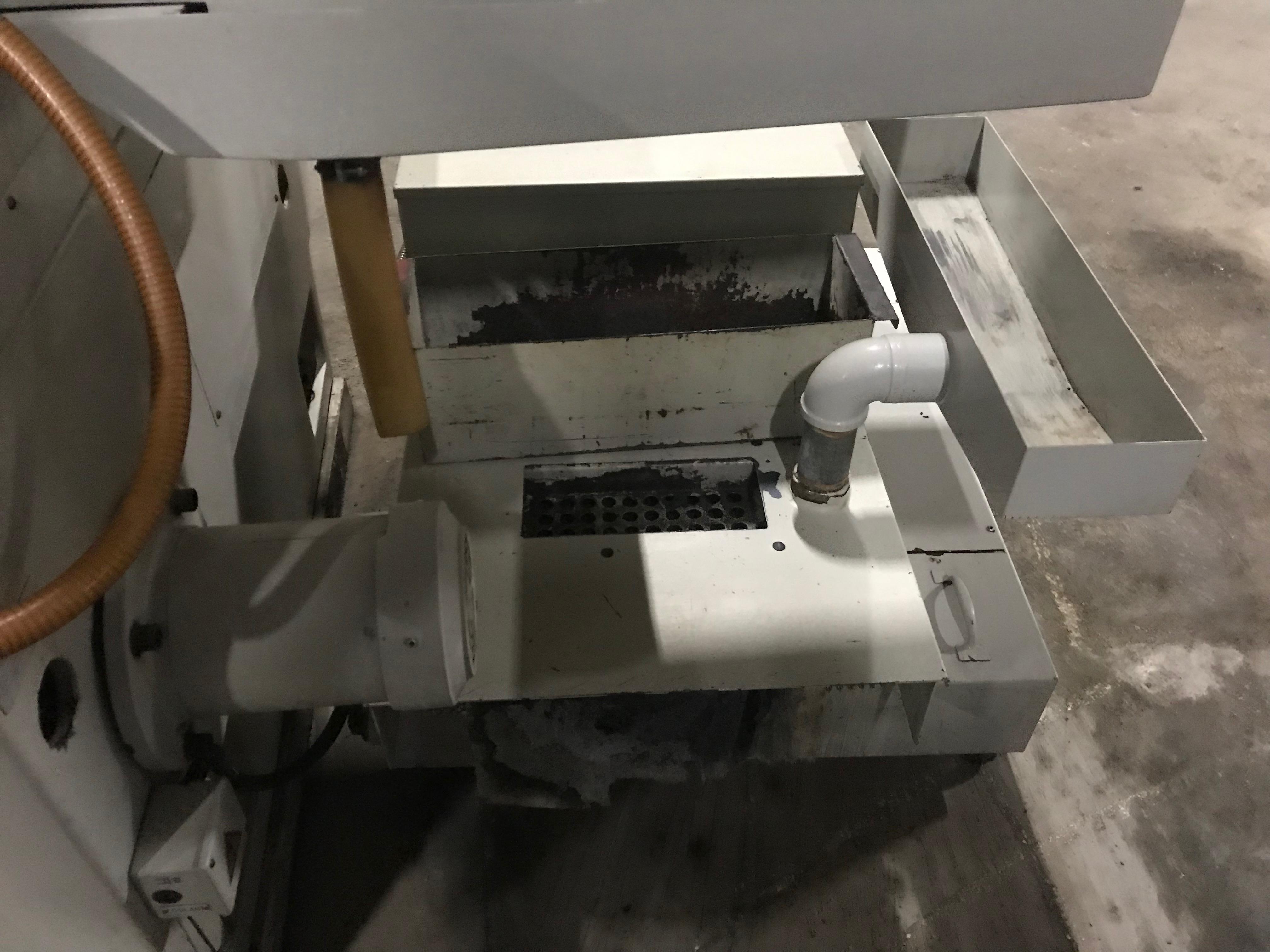

Coolant Tank and Pump
Paper Filtration Unit
Servo Driven Vertical Feed with DRO
********See Attached Brochure for More Specs********

The Okamoto 1224DX is an exclusive part of our Surface Grinders (Recip.) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
