Okamoto ACC-820DX - Surface Grinders (Recip.)

Share Machine
Specifications Print Specs
Model: ACC-820DX
Year: 1996
Stock #: 12460 Sold
Highlights:
DX2 controller with digital vertical position display
Saddle position display
Programmable cycles for step
Criss-cross and plunge auto-saddle movements

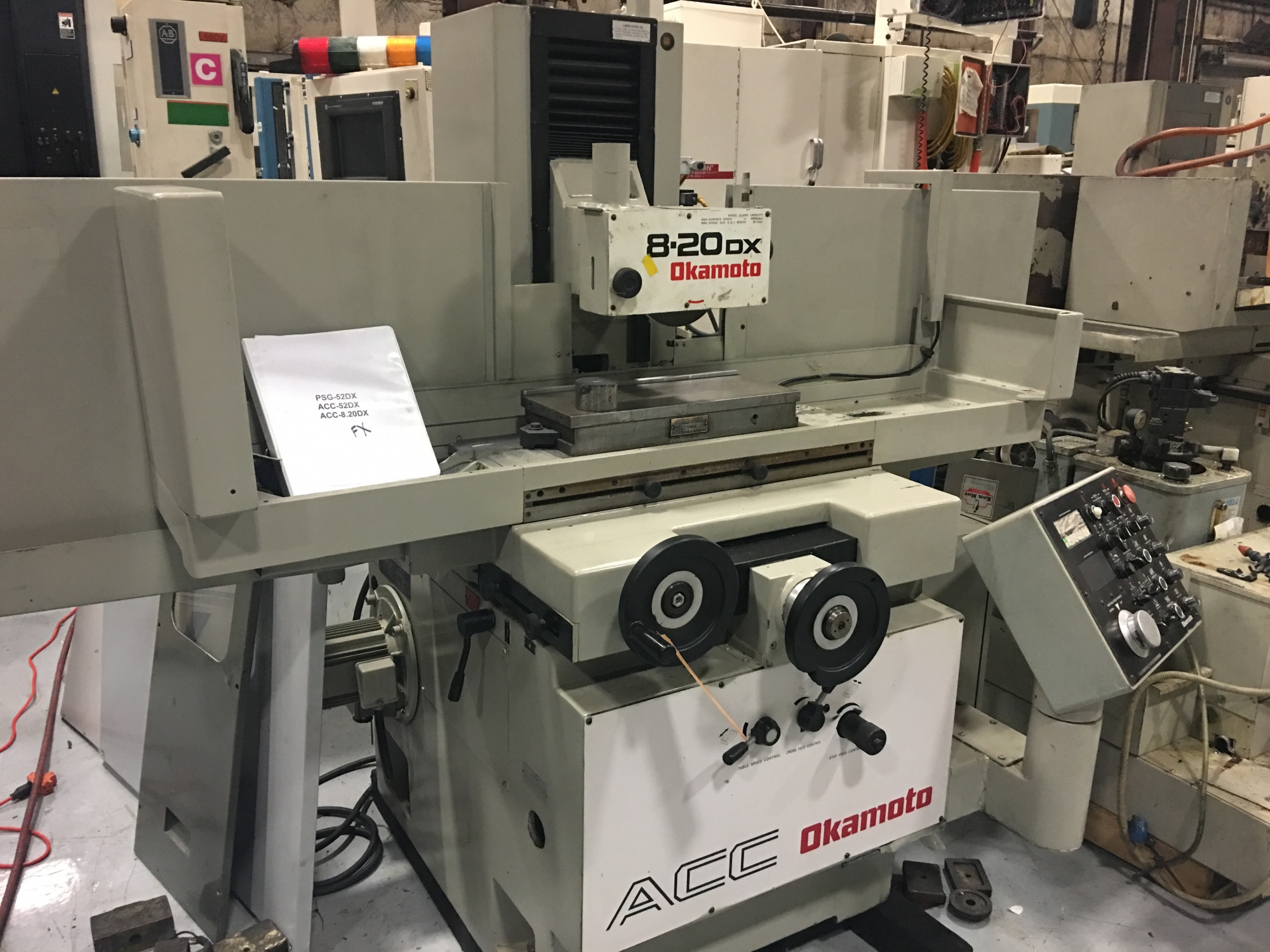

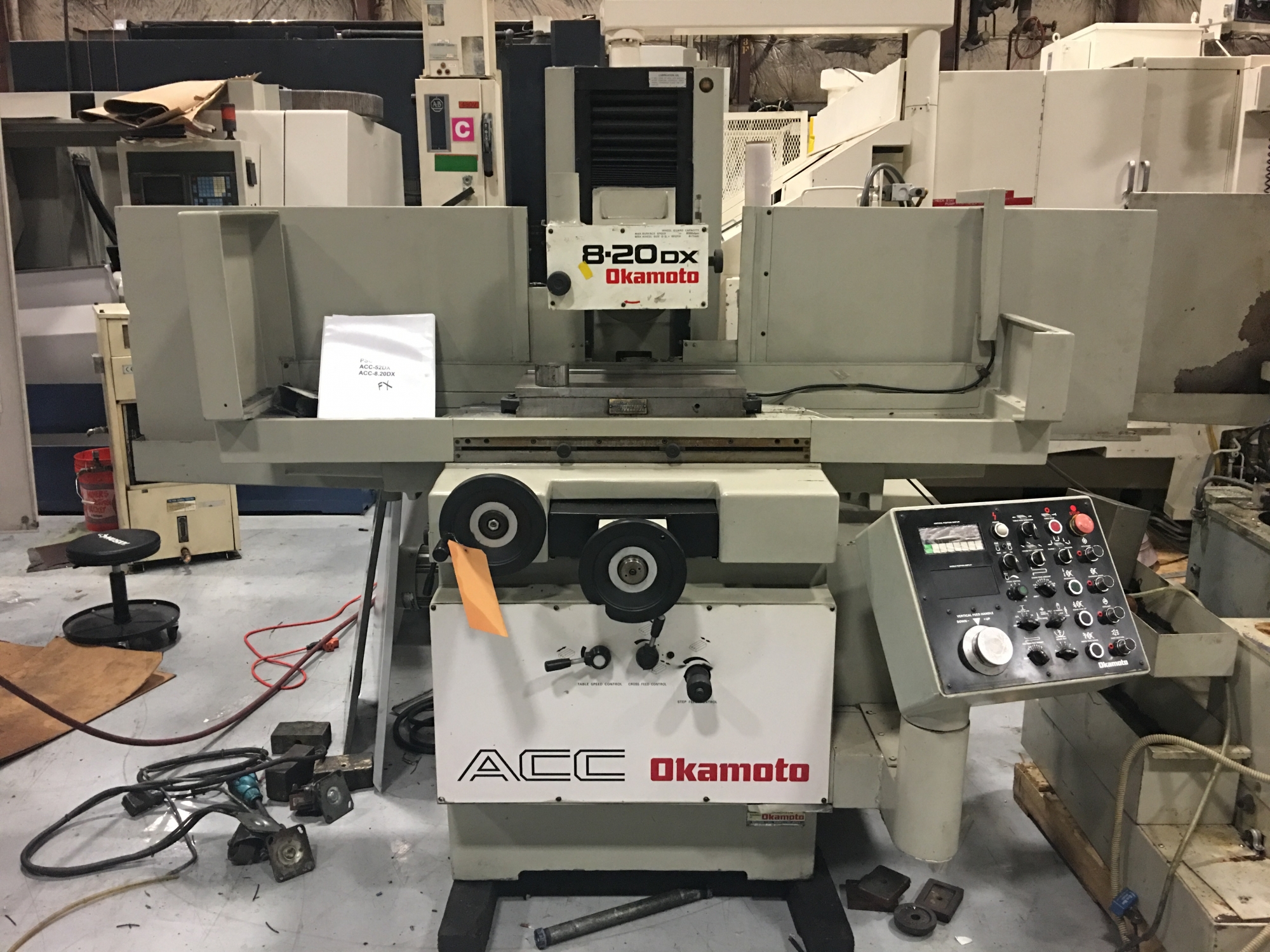

1996 OKAMOTO ACC-820DX
Machine Specifications
Year
1996

Equipped With:

Equipped With:

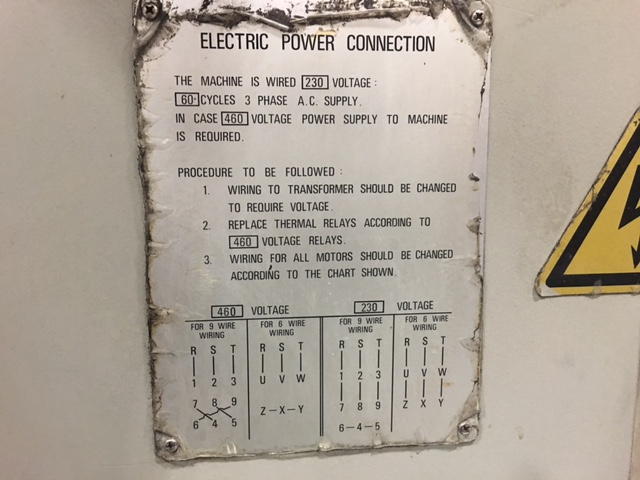

- Motor driven spindle (2HP, 3 Phase, 60 Cycle, 440VAC)
- MD hydraulics
- Complete electrical control

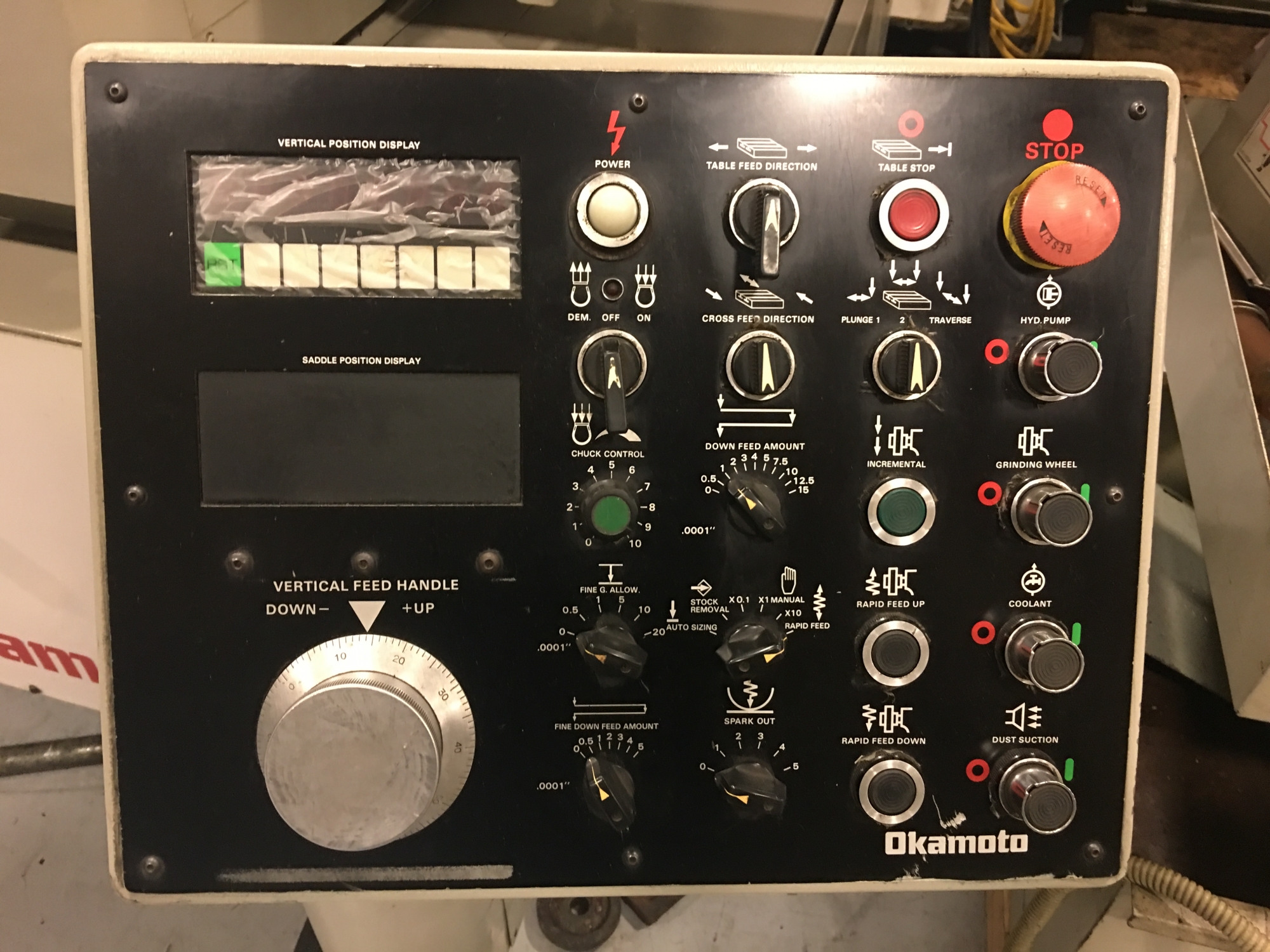

- DX2 controller with digital vertical position display
- Manual Pulse Generator for setting
- Saddle position display
- Programmable cycles for step
- Criss-cross and plunge auto-saddle movements
- Rough, Finish and Sparkout Grinding Cycles modes

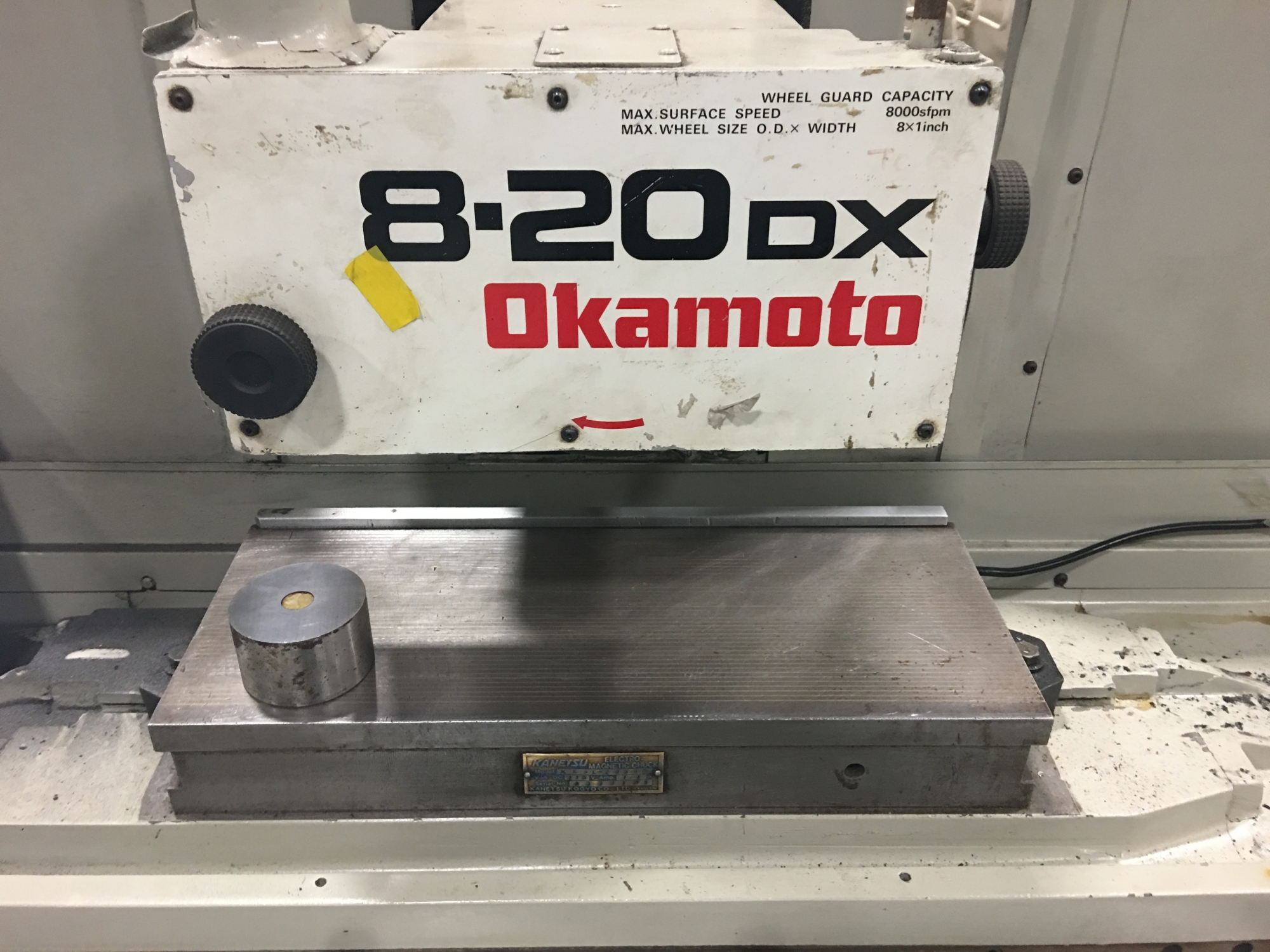

- Electromagnetic Chuck (8" x 20")

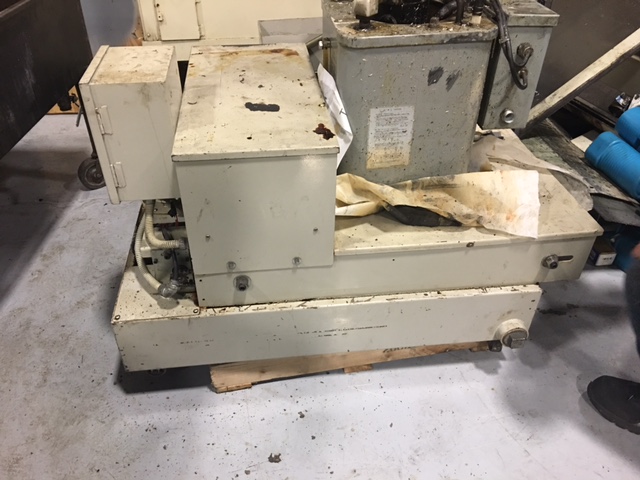

- Cooling System with Filtration


Control DX2
Cross Table Travel 9.05
Grinding Wheel Dimensions 8 x 1 x 1.25
Grinding Wheel Speed 3000/3600 RPM
Longitudinal Table Travel 25.6
Machine Dimensions 95 x 63 x 70
Machine Weight 4000
Max Table Load 440
Maximum Height Under Wheel 1.9 - 15.7
Motor HP 2
Table Size 21.65 x 7.9

The Okamoto ACC-820DX is an exclusive part of our Surface Grinders (Recip.) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
