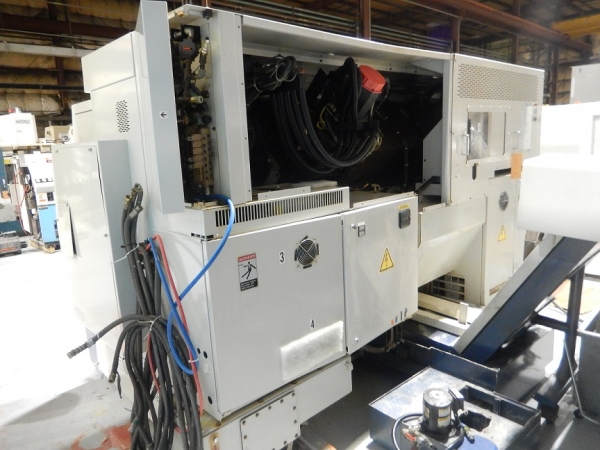

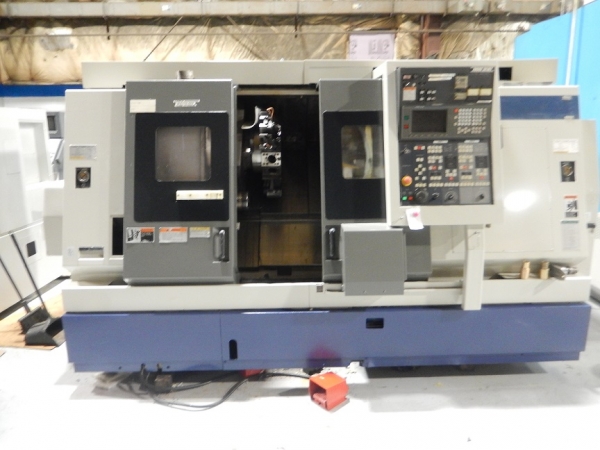

Mori Seiki DL-20MC - Horizontal Lathes

Model: DL-20MC
Year: 1997
Stock #: 12345 Sold
Highlights:

1997 MORI SEIKI DL-20MC
Machine Specifications
Year
1997

Equipped With:

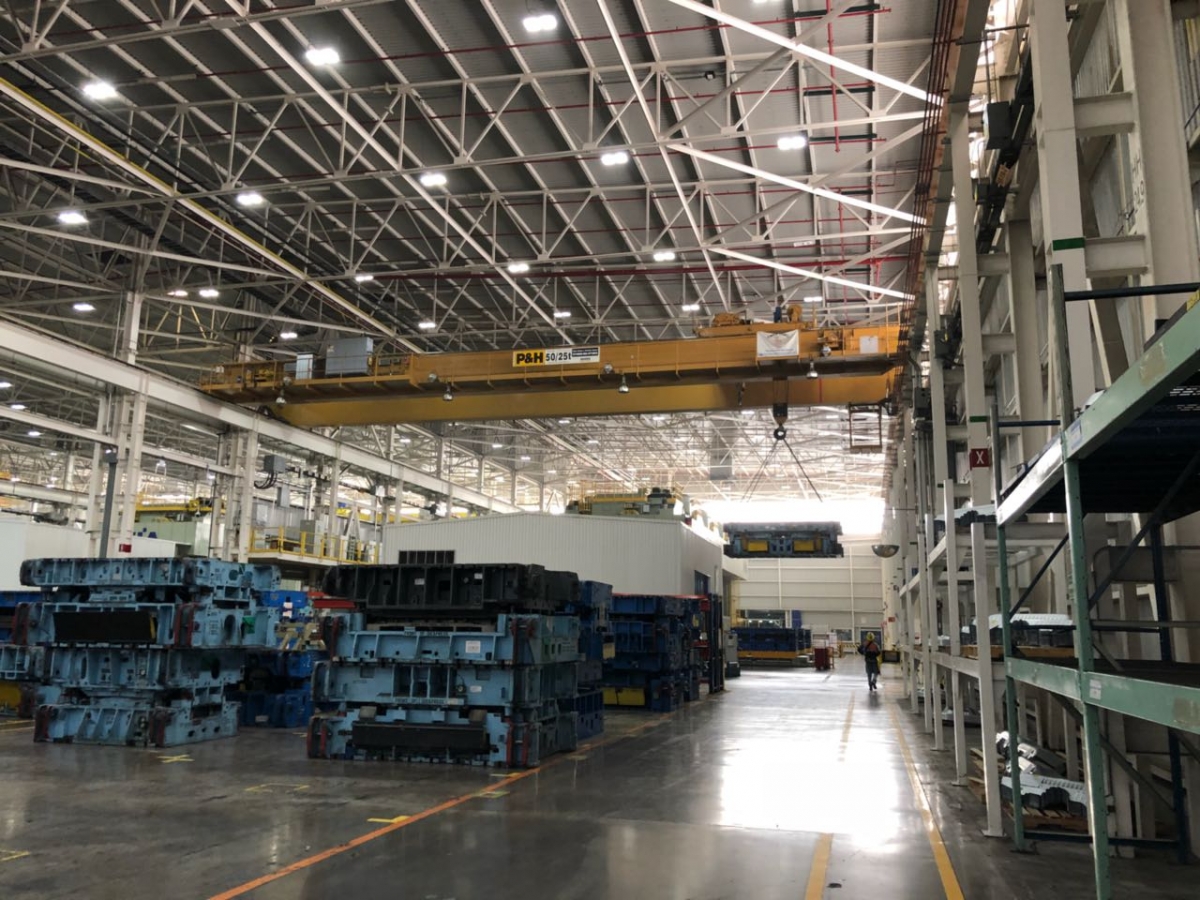

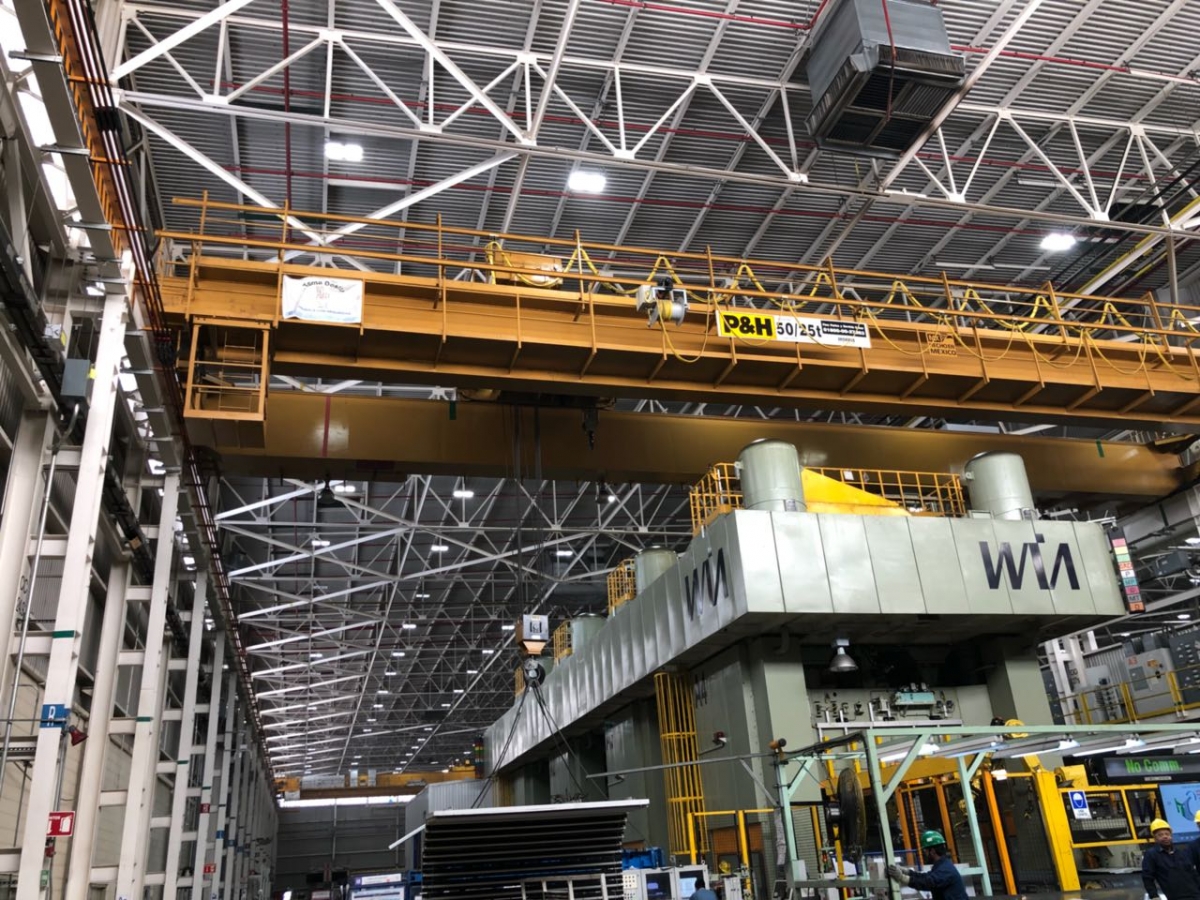

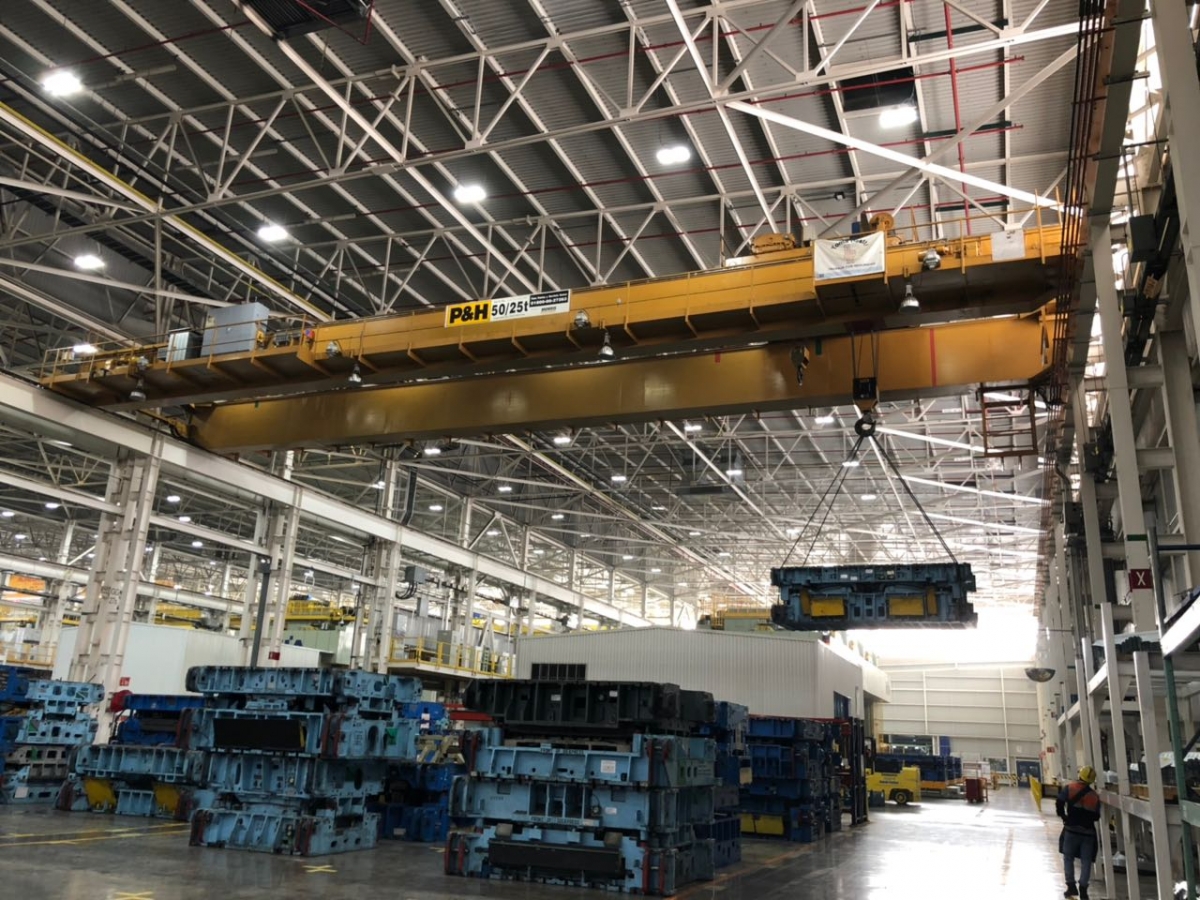

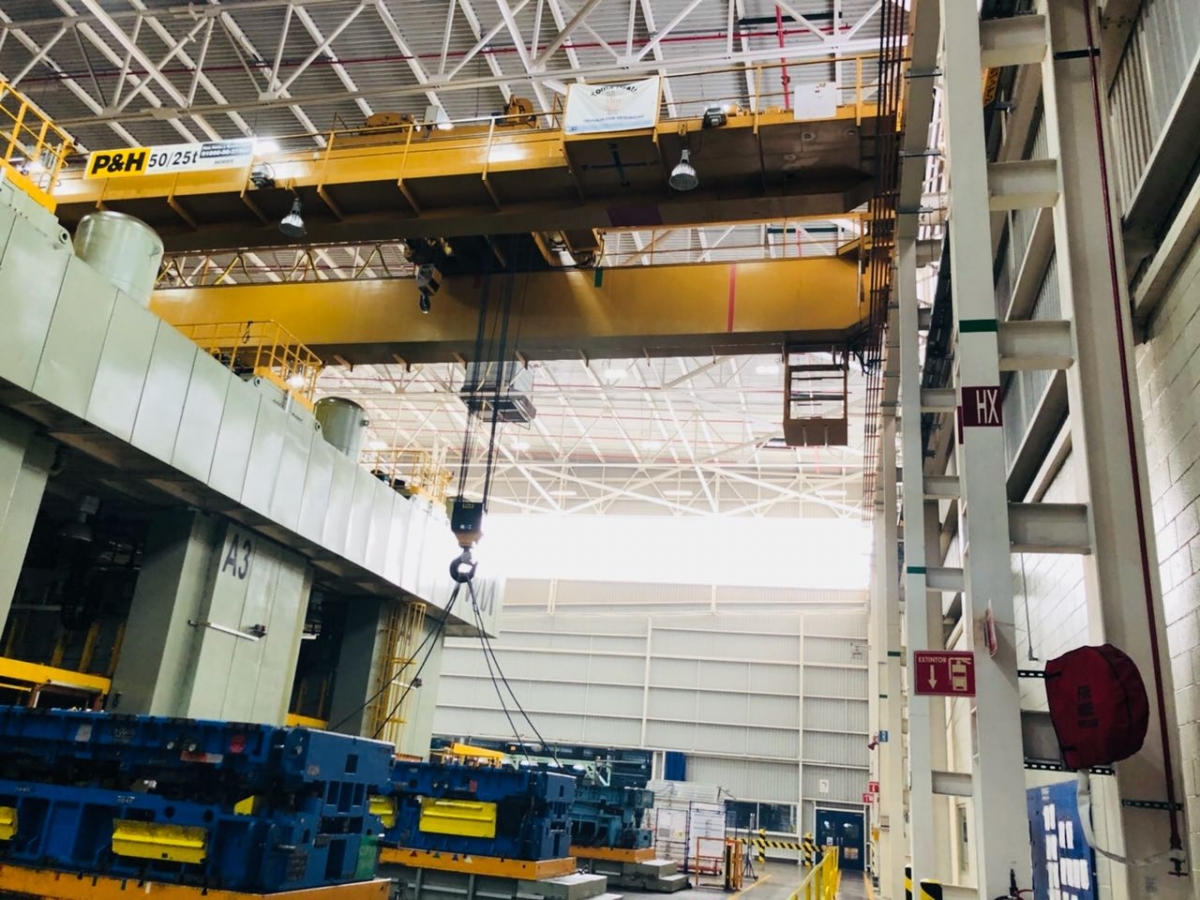

P&H 50/25T OVERHEAD BRIDGE CRANE


MACHINE SPECIFICATIONS:

SERIAL ...................... CJX-36366-HH
YEAR ........................ 2008
CLASS ....................... D
CAPACITY MAIN HOIST ......... 50 TON
CAPACITY AUX HOIST .......... 25 TON
SPAN  ....................... 94'
AVAILABLE LIFT .............. 56'
8 WHEEL BRIDGE DESIGN ....... YES
MAX WHEEL LOAD .............. 43,431 LBS
TROLLEY WEIGHT .............. 23,148 LBS
CRANE WEIGHT ................ 94,798 LBS

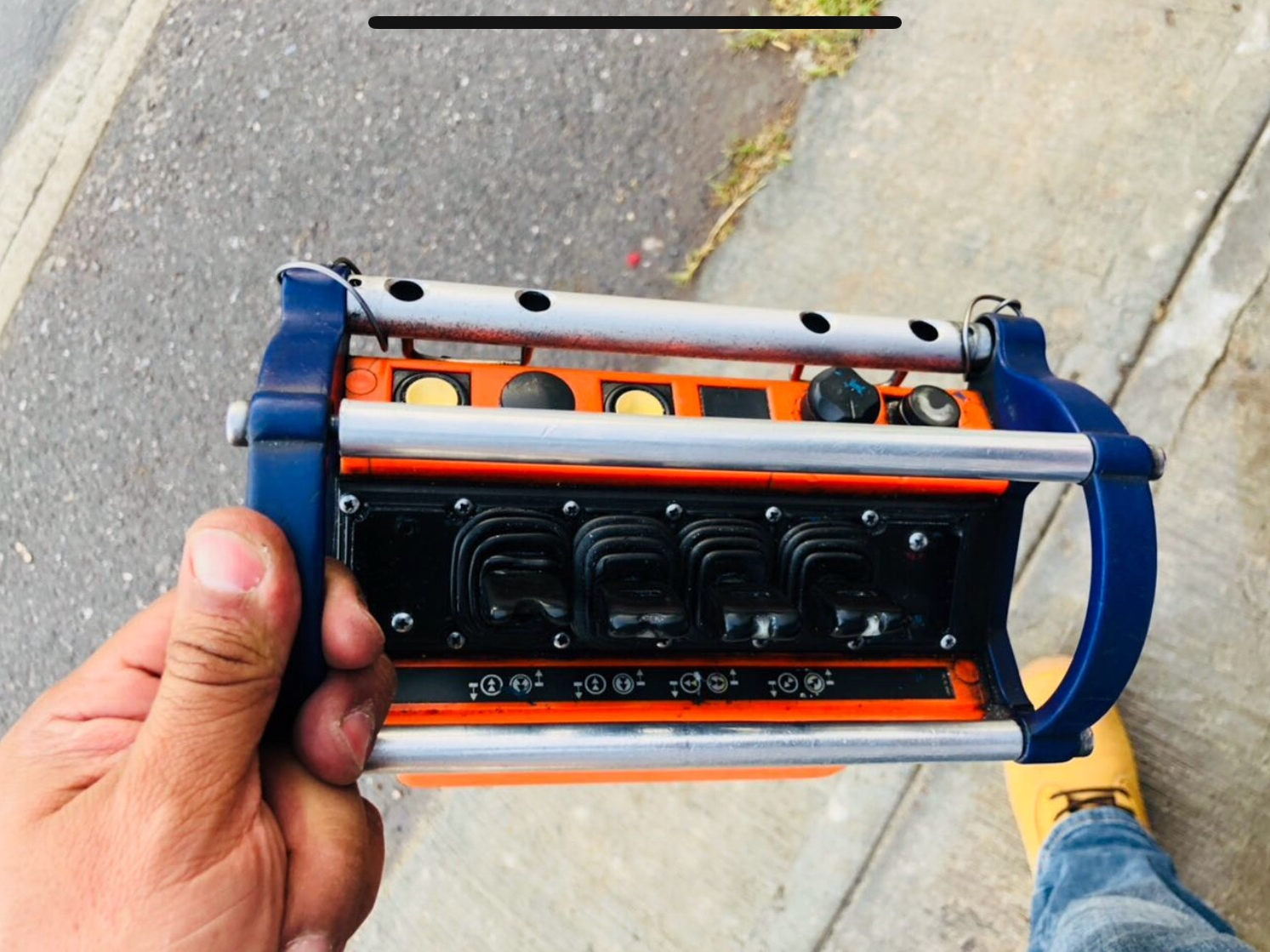

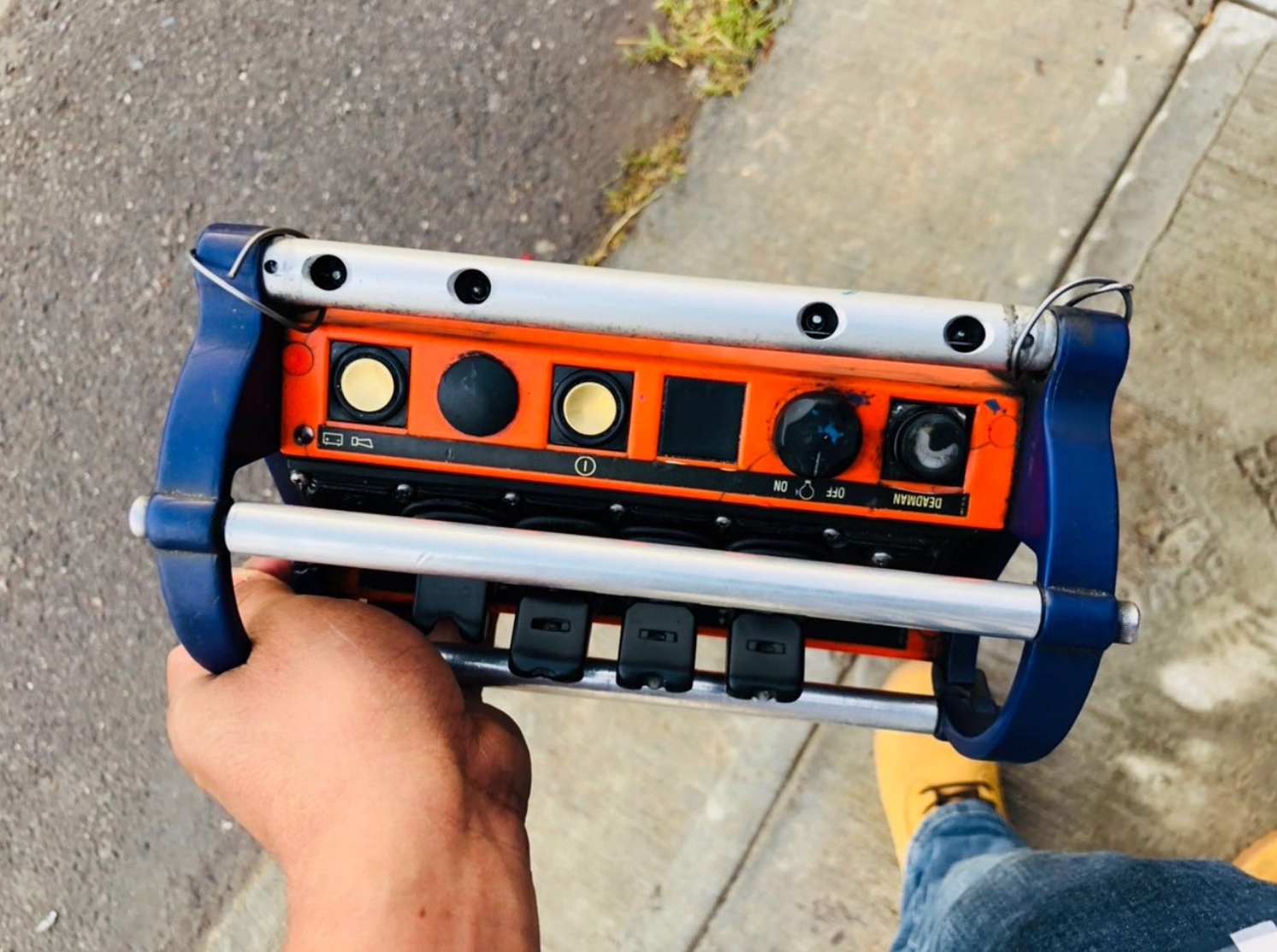

CONTROL ..................... HBC-RADIOMATIC

SPEEDS:
MAIN HOIST .................. 23 FPM
AUX HOIST ................... 23 FPM
TROLLEY ..................... 128 FPM
CRANE ....................... 200 FPM

MOTORS:
MAIN HOIST MOTOR ............ 100 HP
AUX HOIST MOTOR ............. 40 HP
TROLLEY ..................... 128 HP
(2) CRANE MOTORS ............ 15 HP

ELECTRICAL CLASSIFICATION ... NEMA-12
VOLTAGE ..................... 440/3/60









Equipped With:
Coolant Tank
Chip Conveyer
Live Tooling
Parts Catcher

Bar Capacity 2
Center Distance 43

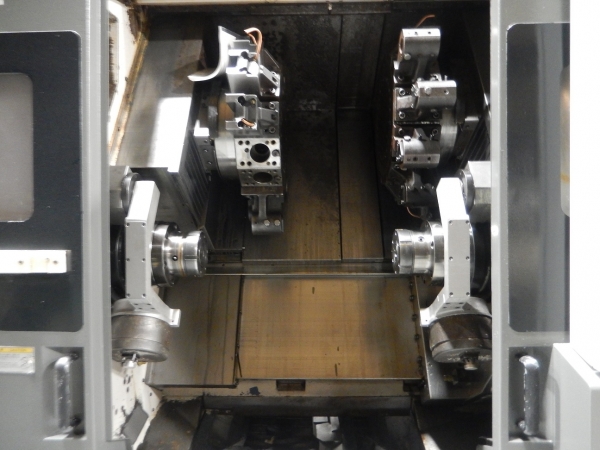

Chuck Size Dual 8

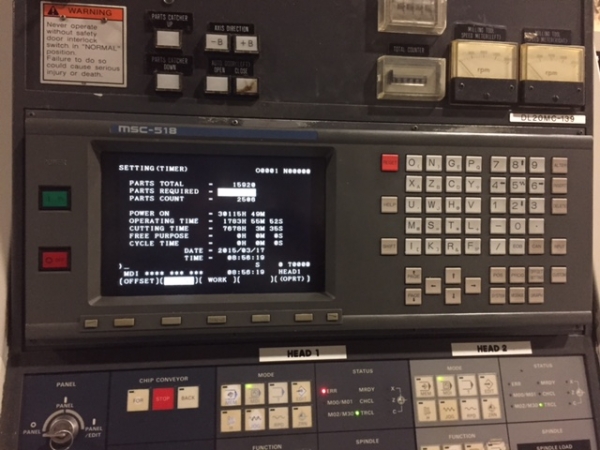

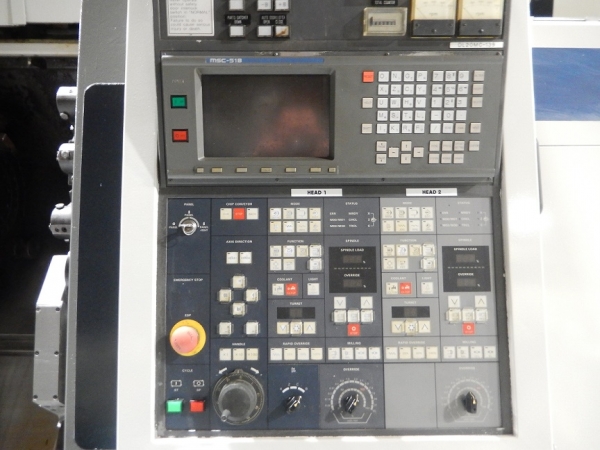

Control Fanuc MSC-518
MIn Indexing Angle 0.001 Deg
Machine Dimensions 142x73x83
Machine Weight 16500
Number of Axes 6
Spindle Motor Cont. 15 HP
Spindle Nose A2-6
Spindle Speed 4000
Sub Spindle Motor 15 HP
Swing 12.4/11.8
Turning Diameter 11.4

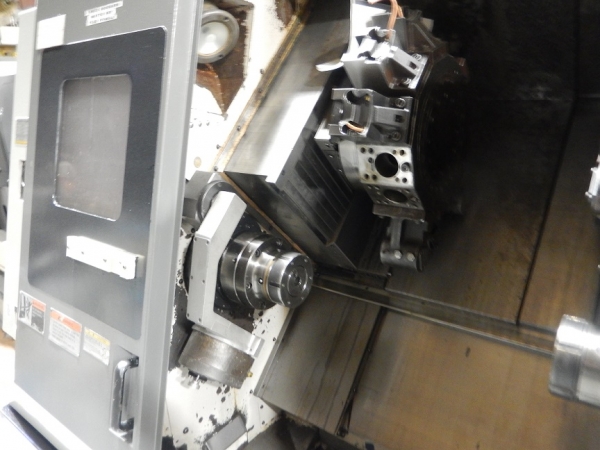

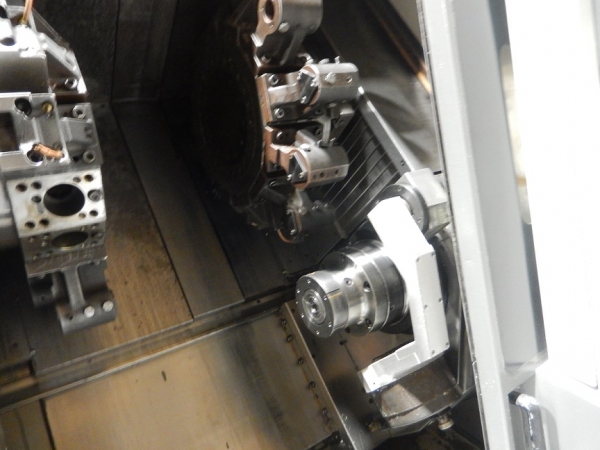

Turret Stations 12

The Mori Seiki DL-20MC is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
