Mazak MTV-655/60 - Vertical Machining Centers

Share Machine
Specifications Print Specs
Model: MTV-655/60
Year: 1999
Stock #: 13156 Sold
Highlights:

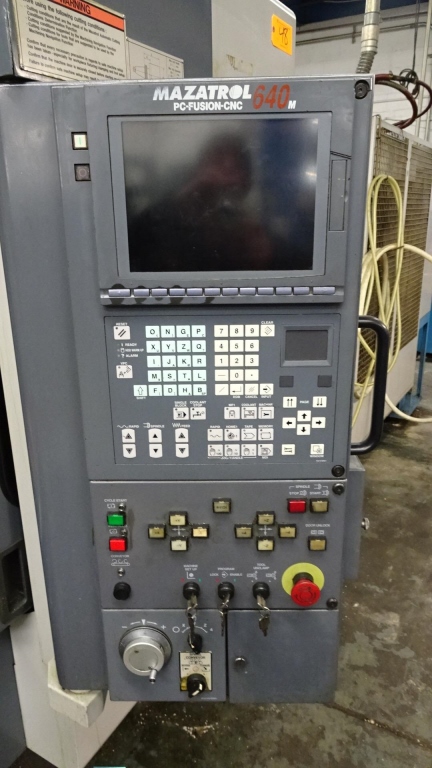

Mazatrol Fusion 640M CNC Control
Auto Tool Length Measurement
Table Size: 68.5" x 25.5"
Travel (X/Y/Z): 59" / 25.6" / 25.6"
6,000 RPM | 25 HP | 30 Station ATC

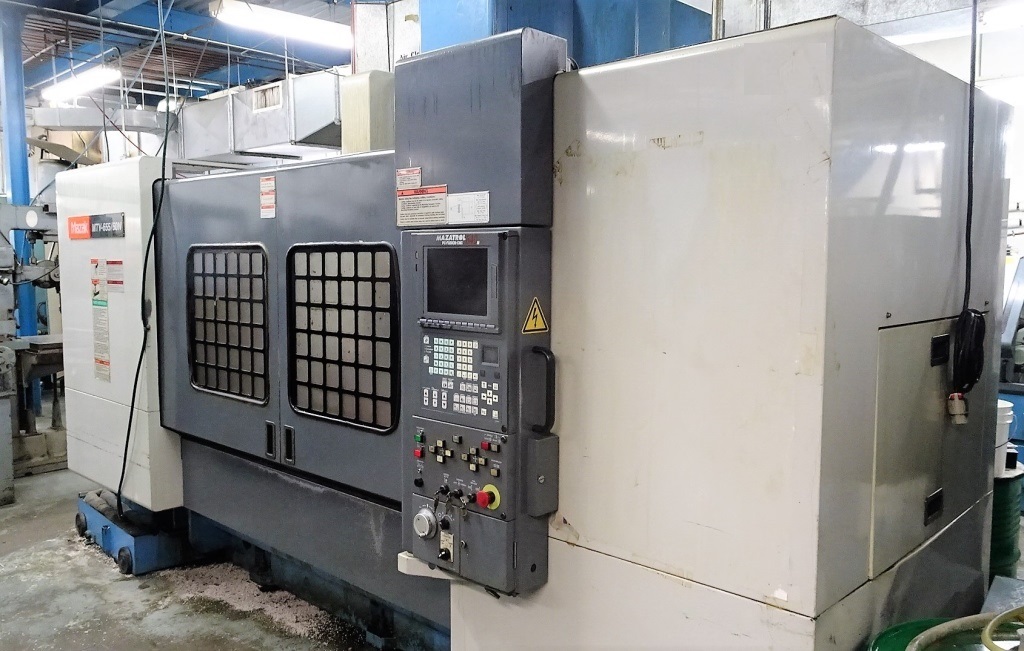

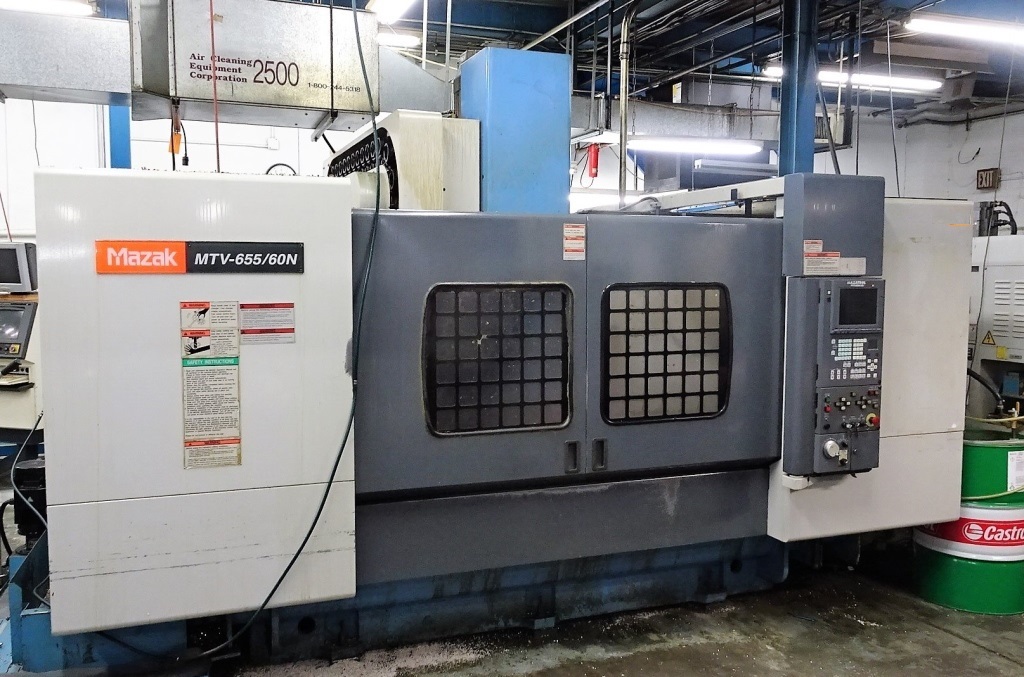

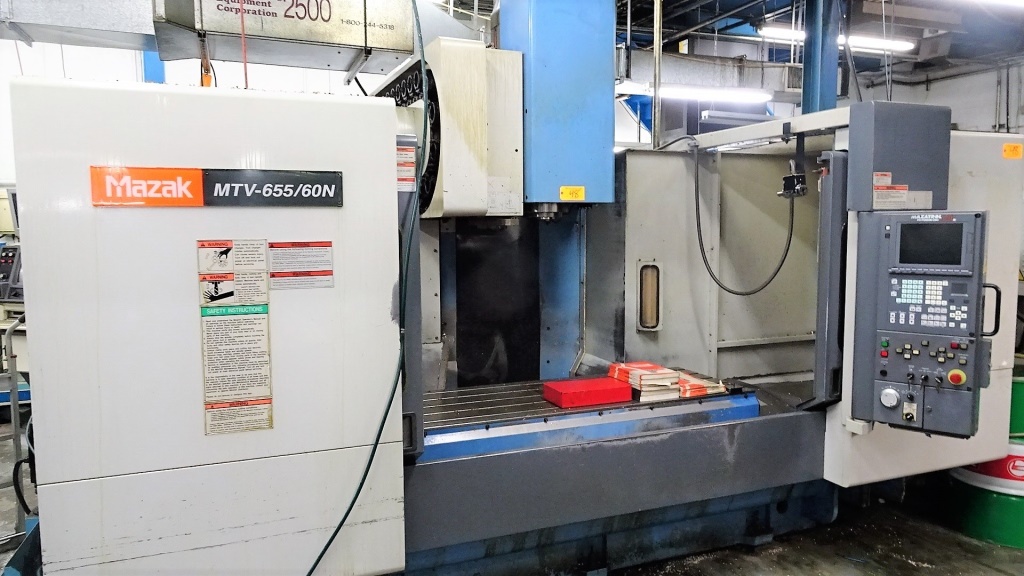

1999 MAZAK MTV-655/60 - Vertical Machining Center
Machine Specifications
Year
1999
Control Type
Mazatrol Fusion 640M
# Axis
3
Table Size
68.5" x 25.5"
Table Capacity
4,400 pounds
X-Axis Travel
59"
Y-Axis Travel
25.6"
Z-Axis Travel
25.6"
Rapid Traverse Rate (X/Y/Z)
945/945/708 ipm
Spindle Taper
CAT 50
Spindle Speed
6,000
Main Motor
25 hp
Tool Changer Capacity
30
Coolant Thru Spindle
yes
Weight
23,200 pounds
Dimensions
165" x 40" x 118"

Equipped With:

- Mazatrol Fusion 640M Control
- Chip Conveyor
- Coolant Tank & Pumps
- Side Mount Tool Changer
- Automatic Tool Length Measurement



The Mazak MTV-655/60 is an exclusive part of our Vertical Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
