Okuma LB35II 1SC/2000 - Horizontal Lathes

Request Quote
Specifications Print Specs
Model: LB35II 1SC/2000
Year: 2001
Stock #: 13293
Highlights:

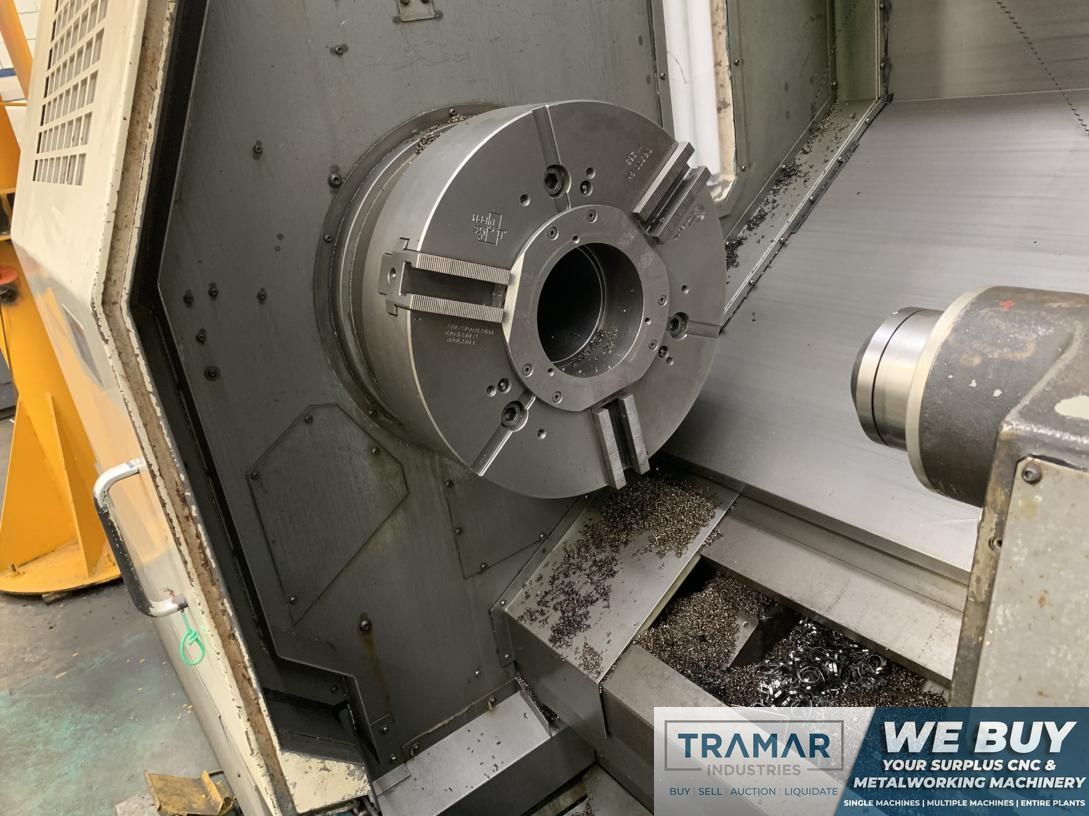

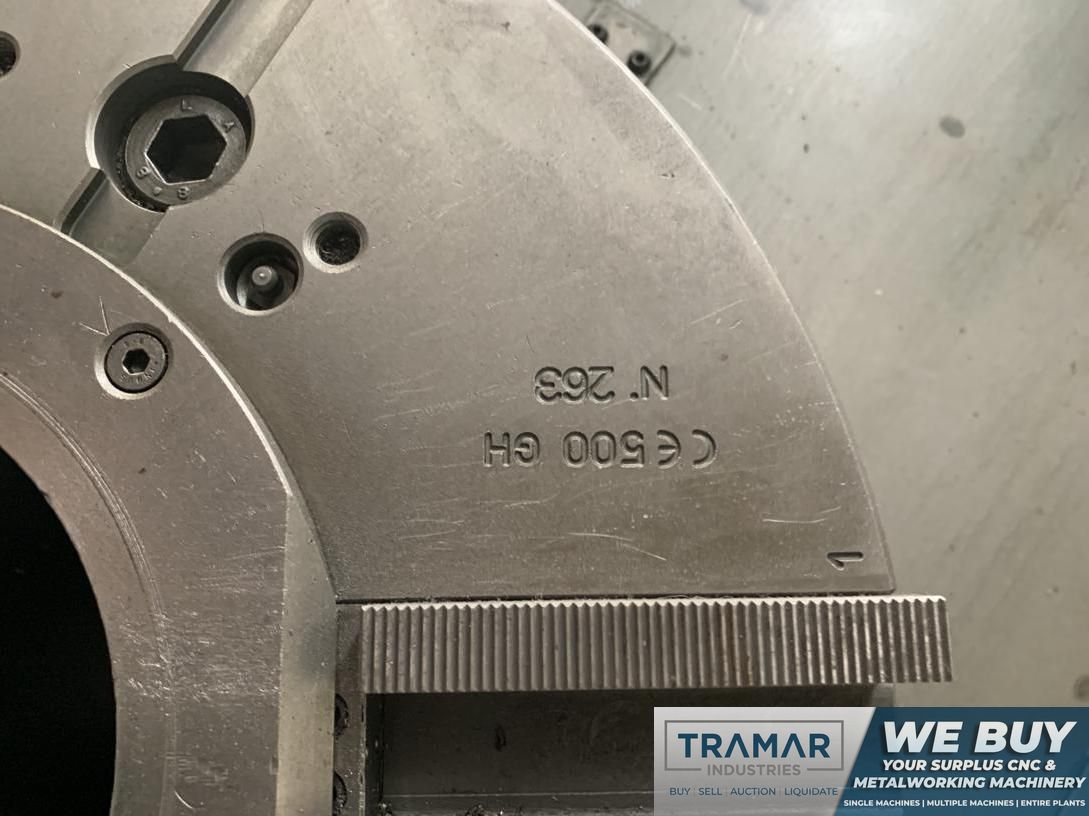

- 20" SMW Autoblok 500 BH Hydraulic Chuck

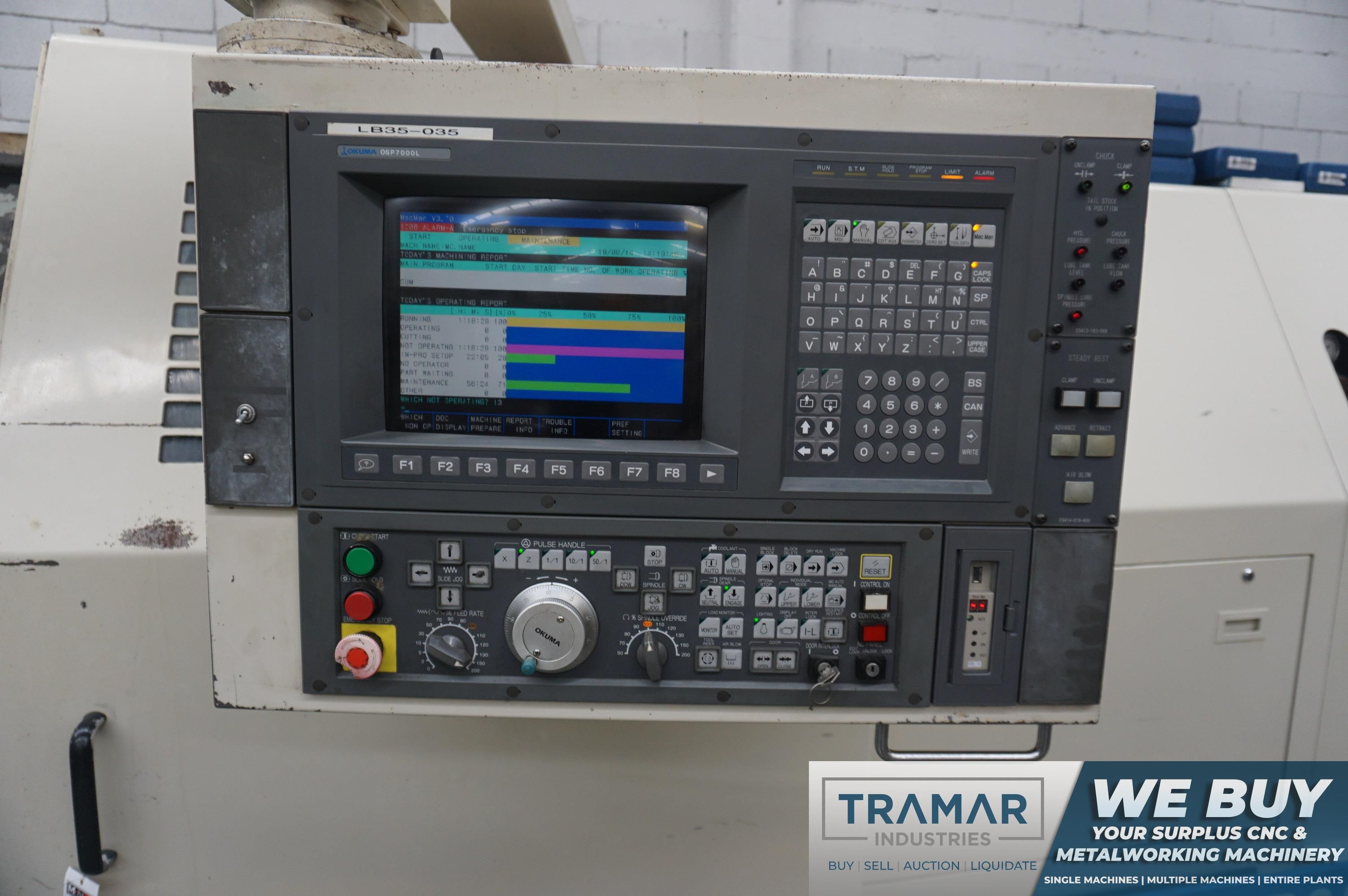

- Okuma OSP-P7,000L Control
- Chip Conveyor
- Tailstock

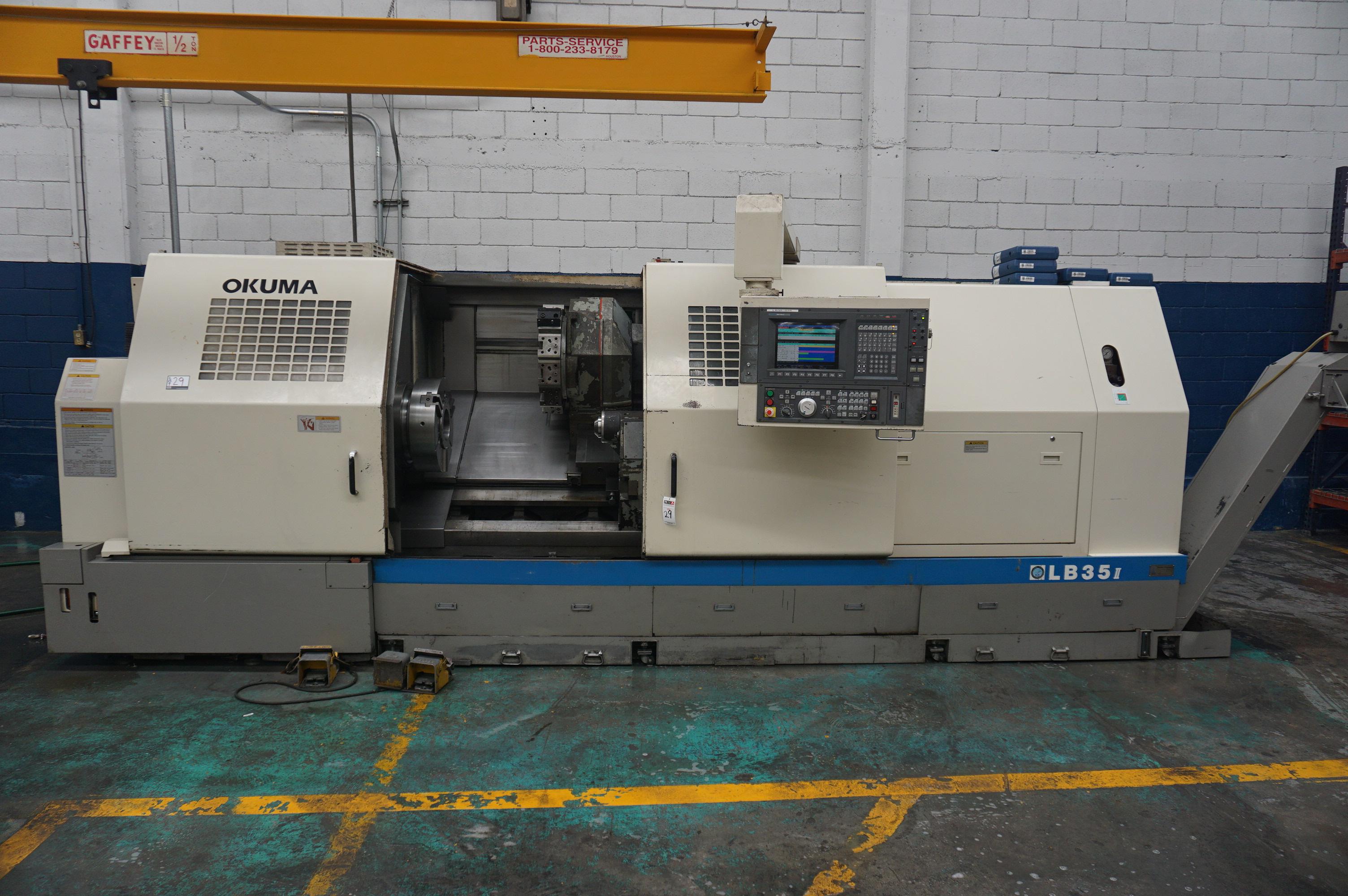

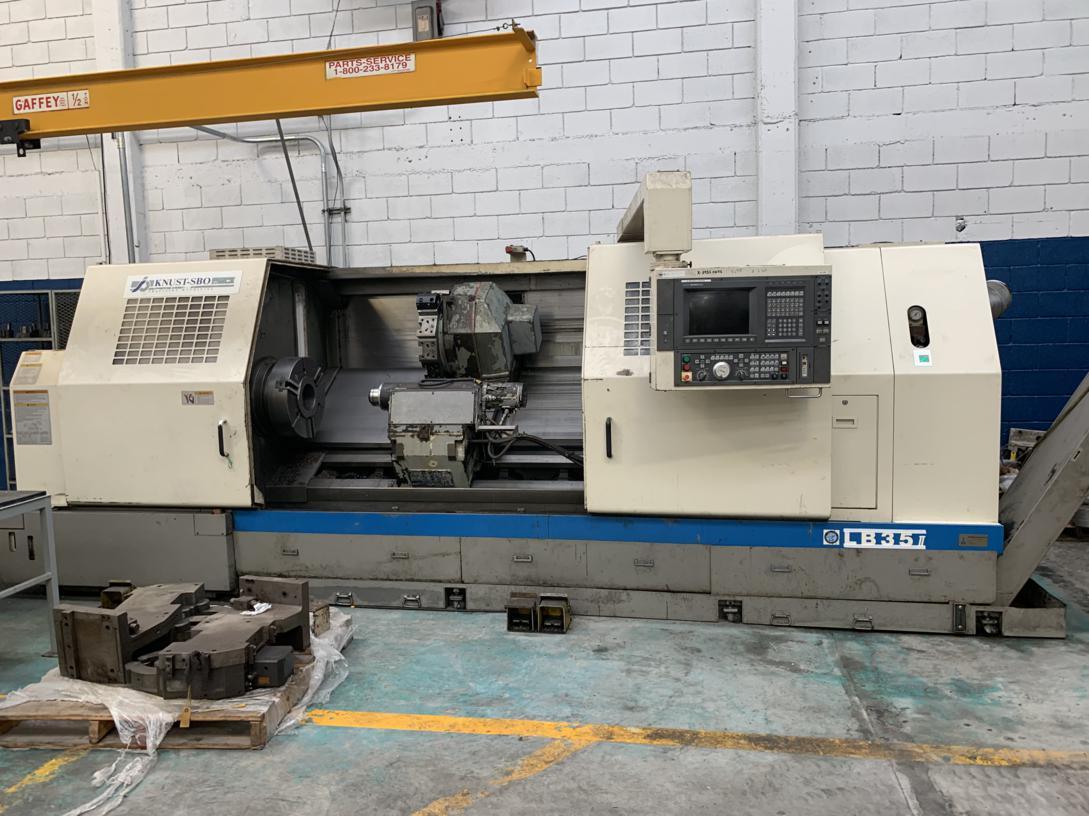

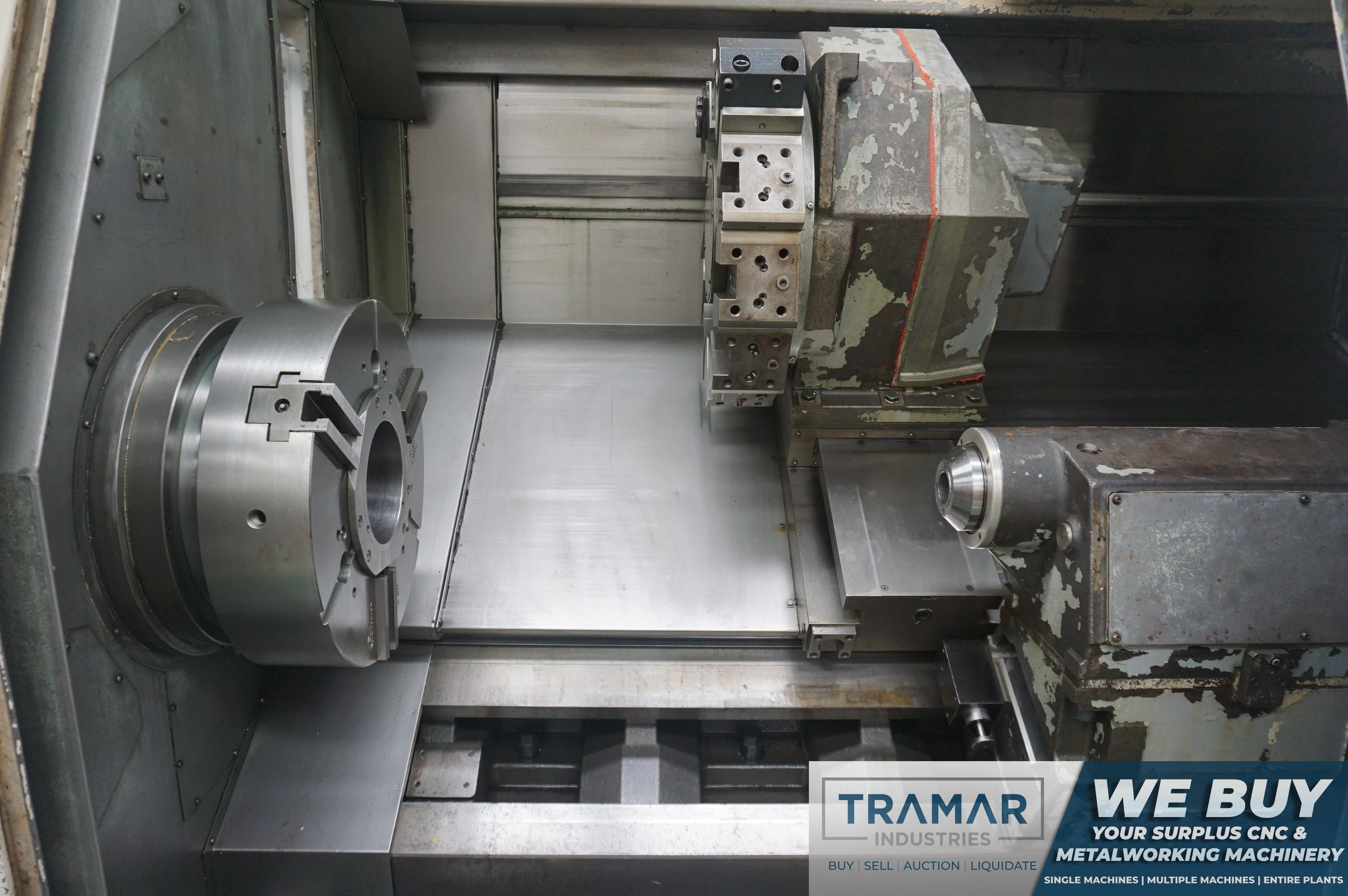

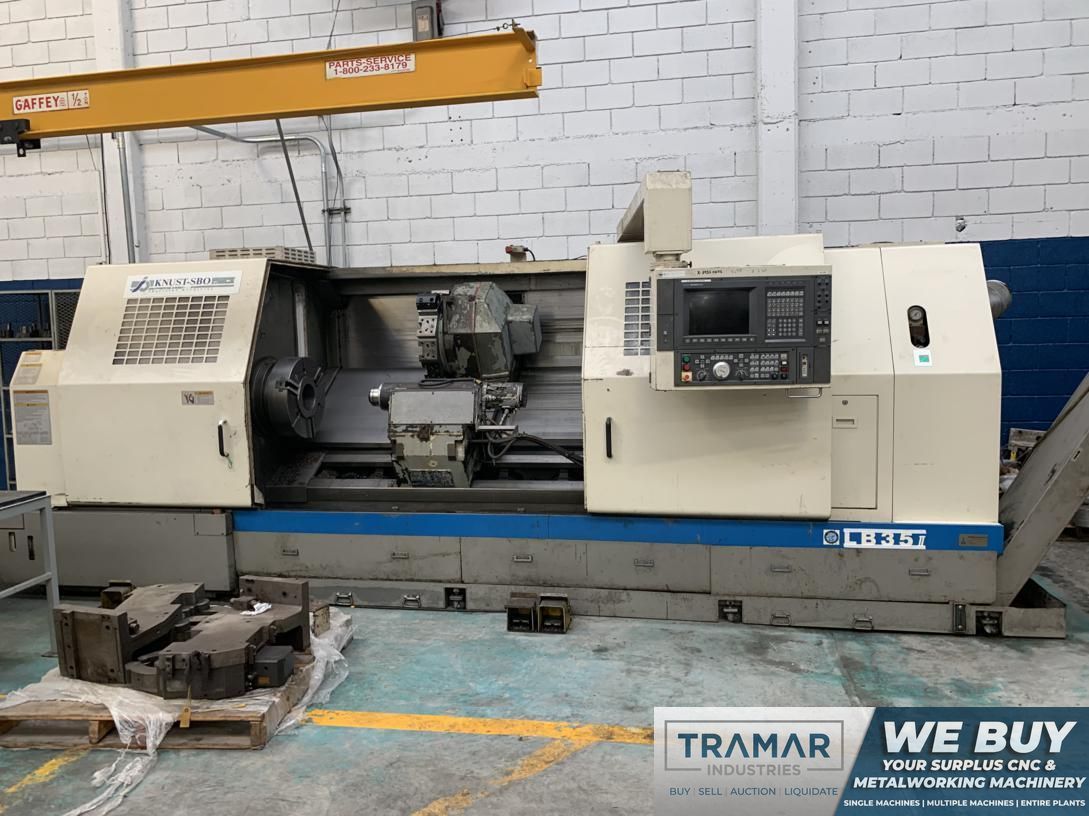

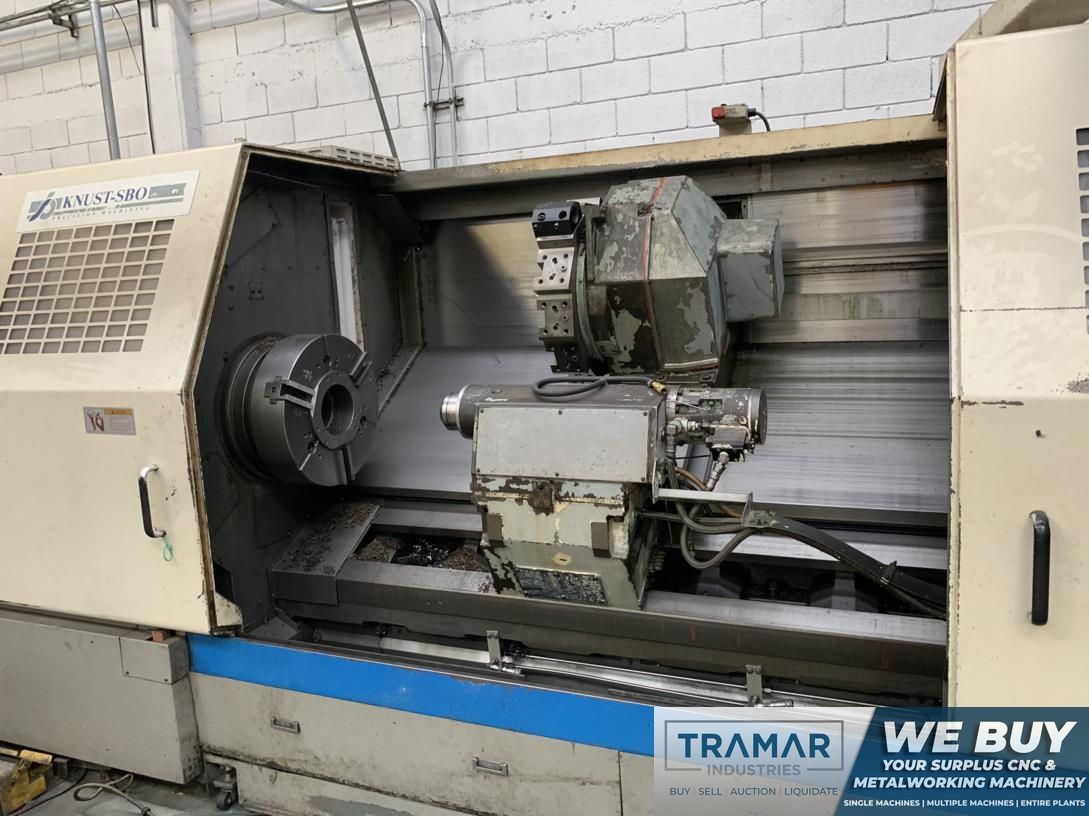

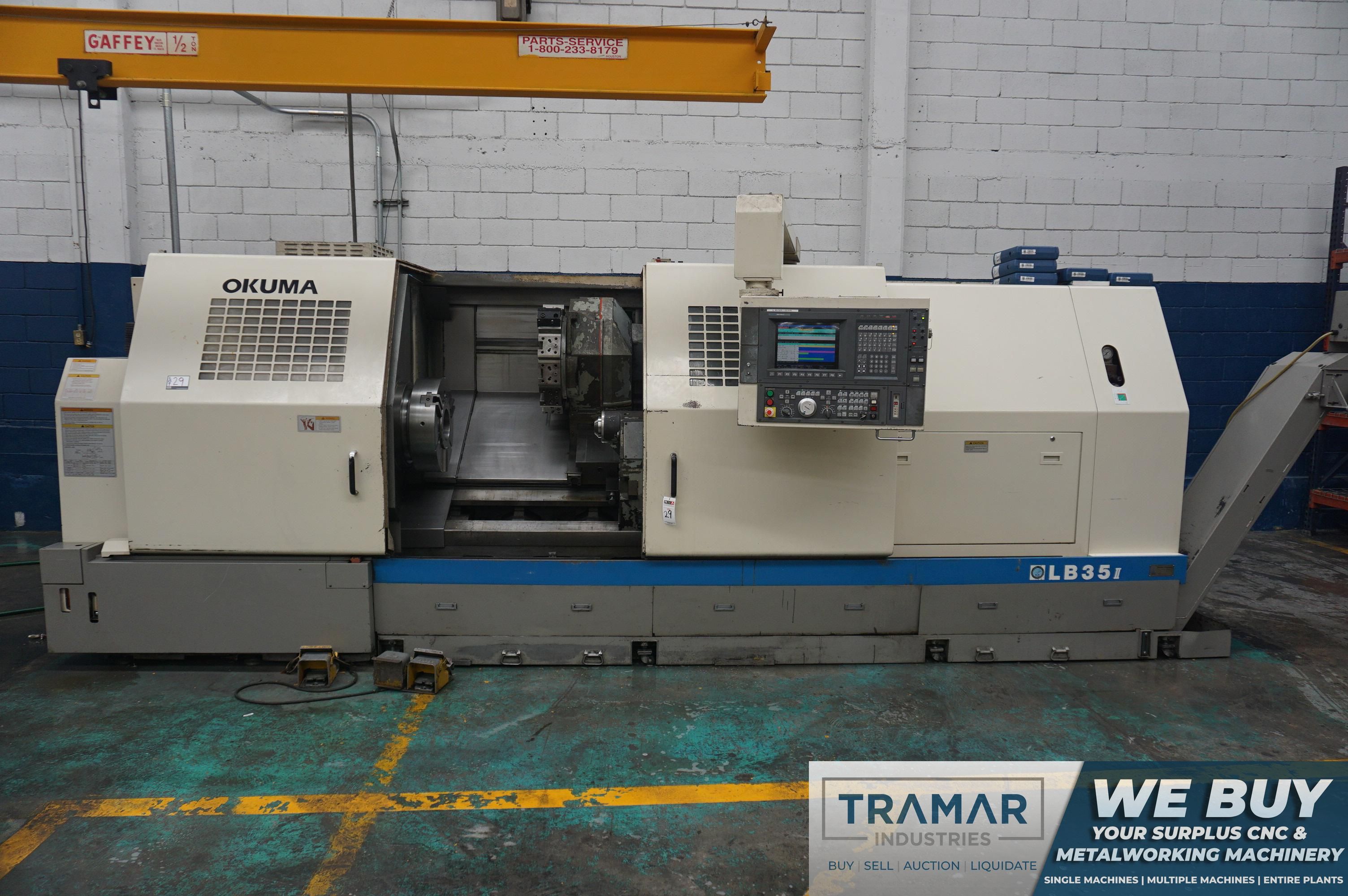

2001 Okuma LB35II 1SC/2000 - CNC Horizontal Lathe
Machine Specifications
Year
2001
Control Type
OSP-P7,000L
Turning Diameter
19.29"
Center Distance
78.74"
Chuck Size
20"
Spindle Bore
7.08"
Bar Capacity
6.5"
X Axis Travel
17"
Z Axis Travel
78.74"
Spindle Speed (RPM)
1,400
Main Motor
40 hp

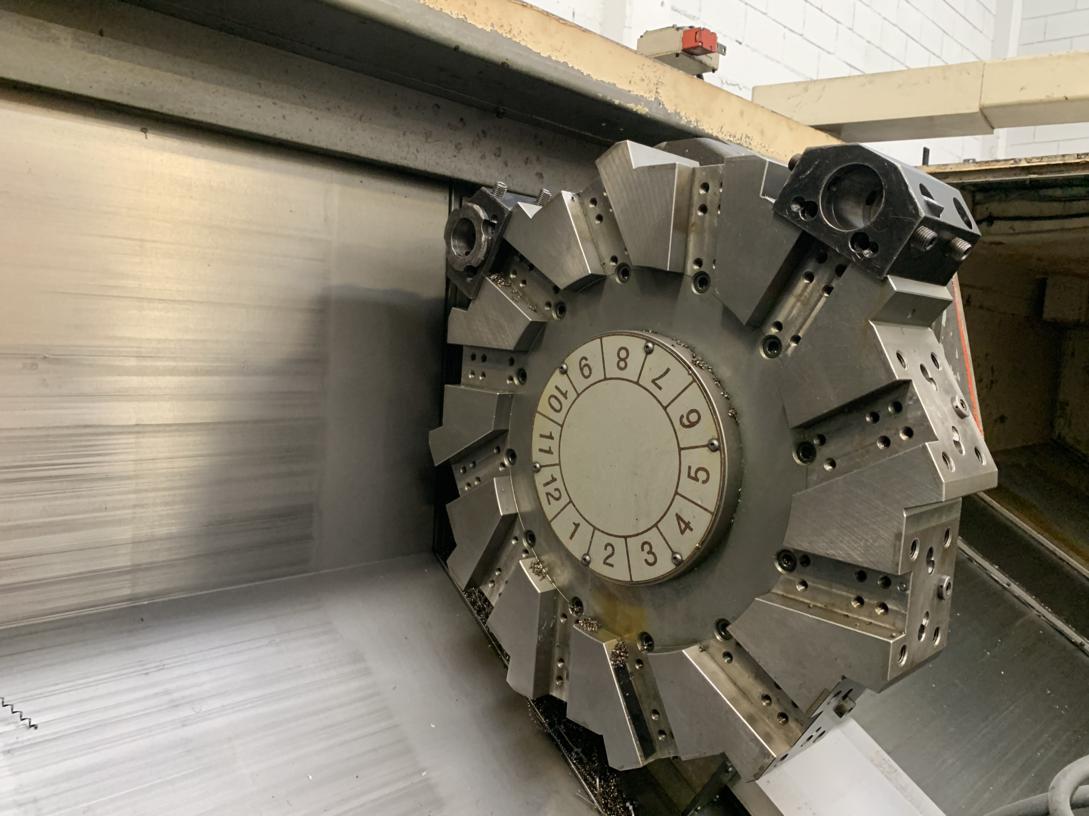

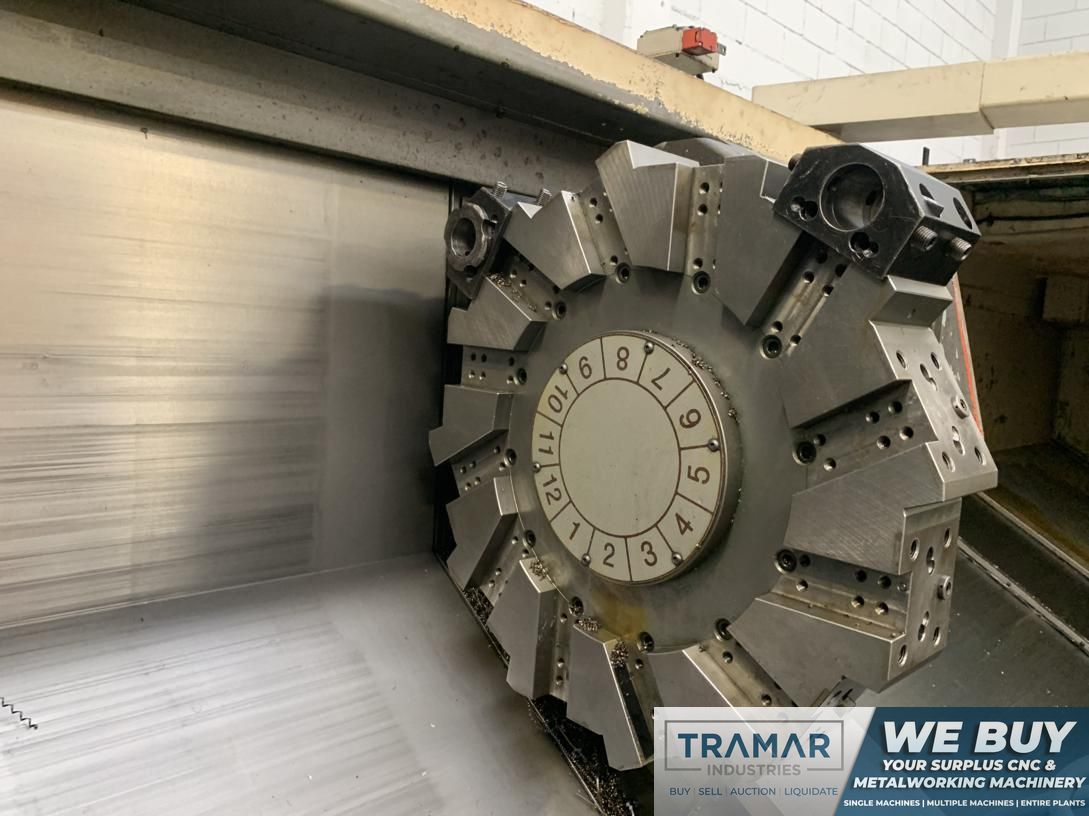

Turret Capacity
12
Tailstock
yes
Live Tooling
no
Y Axis
no
Sub Spindle
no
Weight
28,400 pounds

Equipped With:

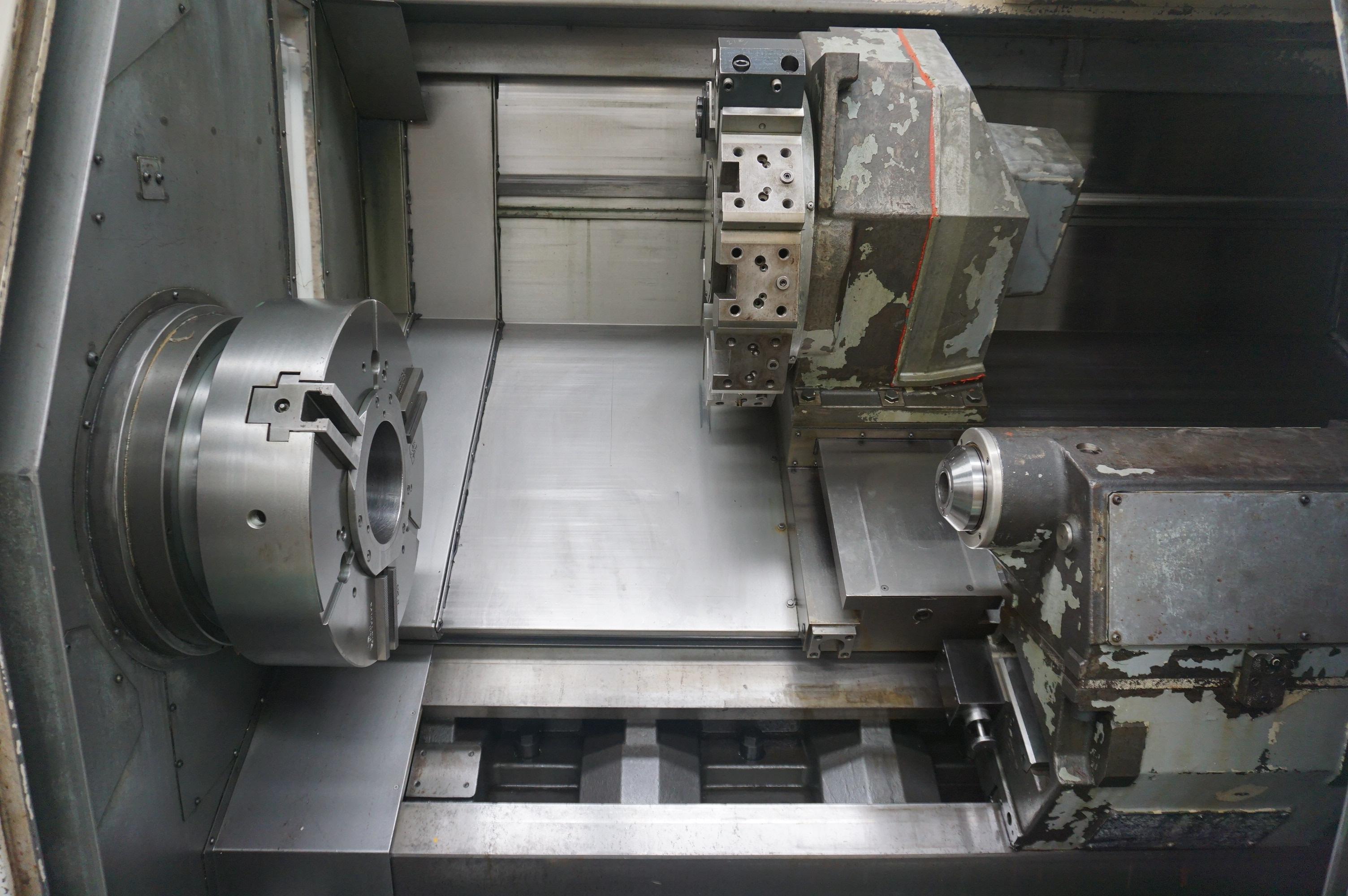

- 20" SMW Autoblok Hydraulic 3 Jaw Chuck

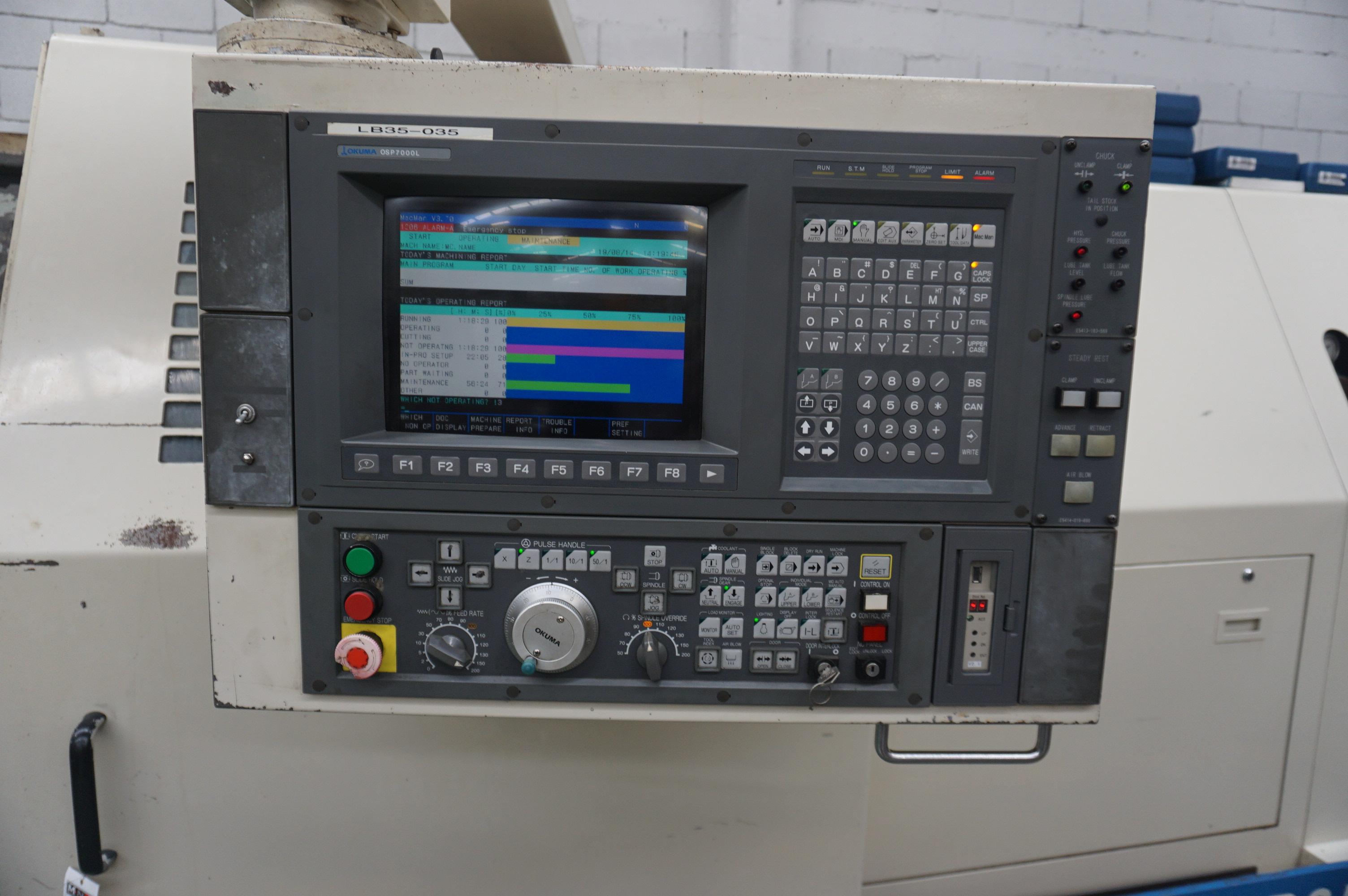

- Okuma OSP-P7000L Control

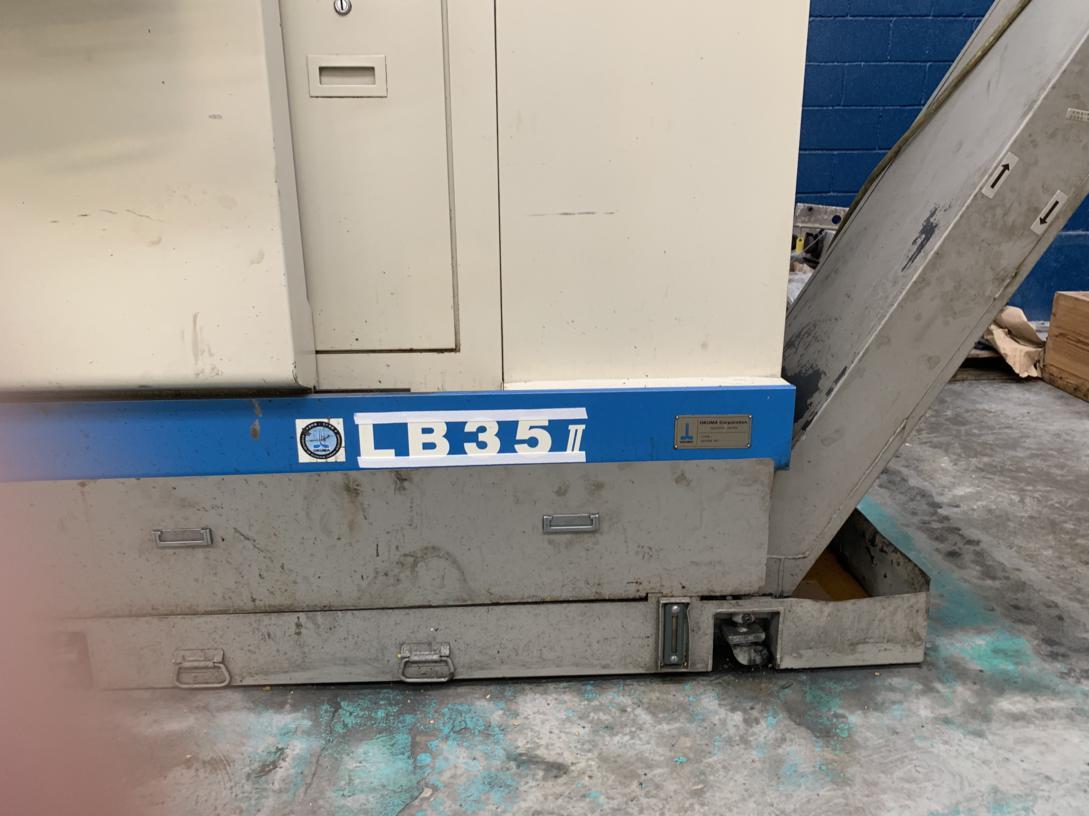

- Chip Conveyor

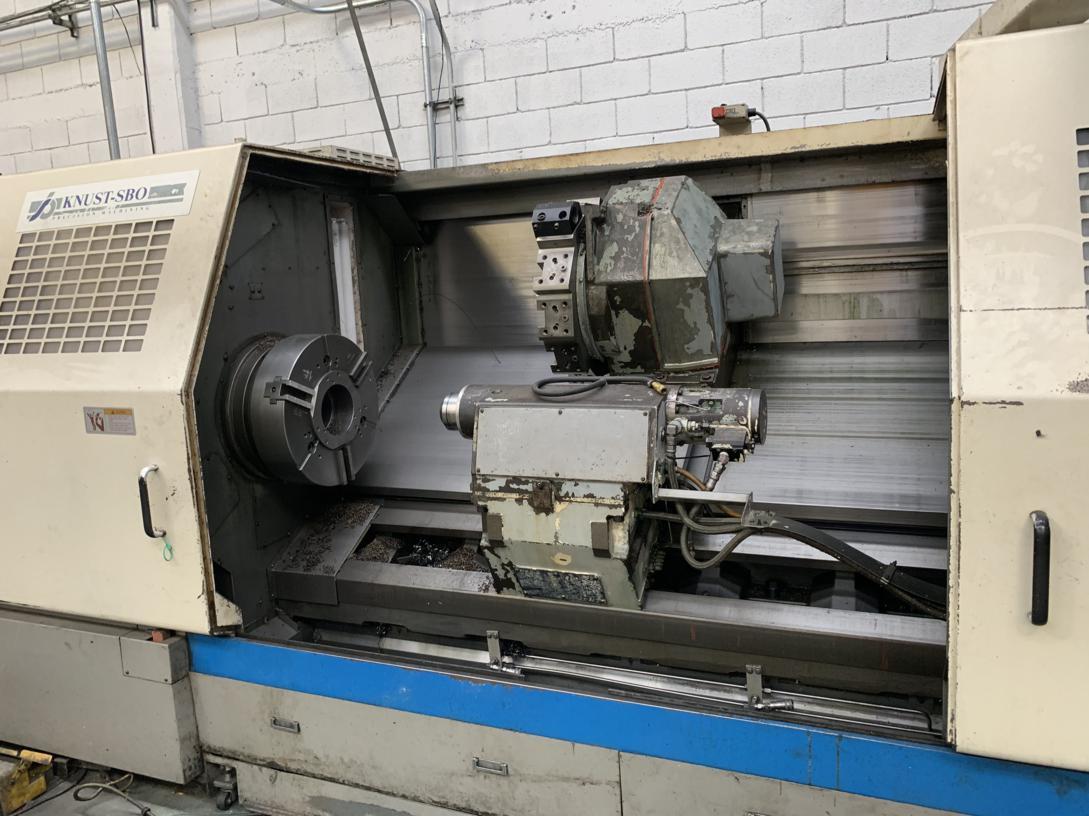

- Programmable Tailstock


The Okuma LB35II 1SC/2000 is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
