Makino A55e - Horizontal Machining Centers

Share Machine
Specifications Print Specs
Model: A55e
Year: 2002
Stock #: 12842 Sold
Yes
Highlights:

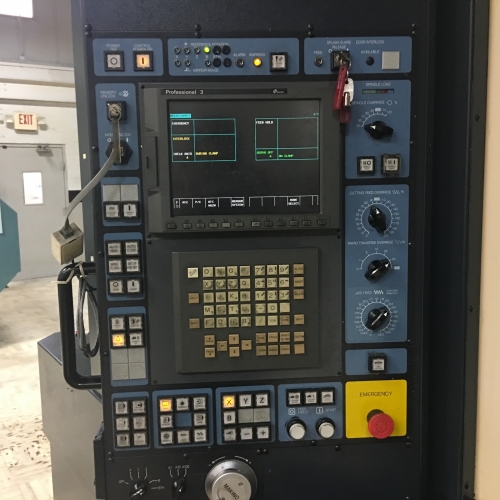

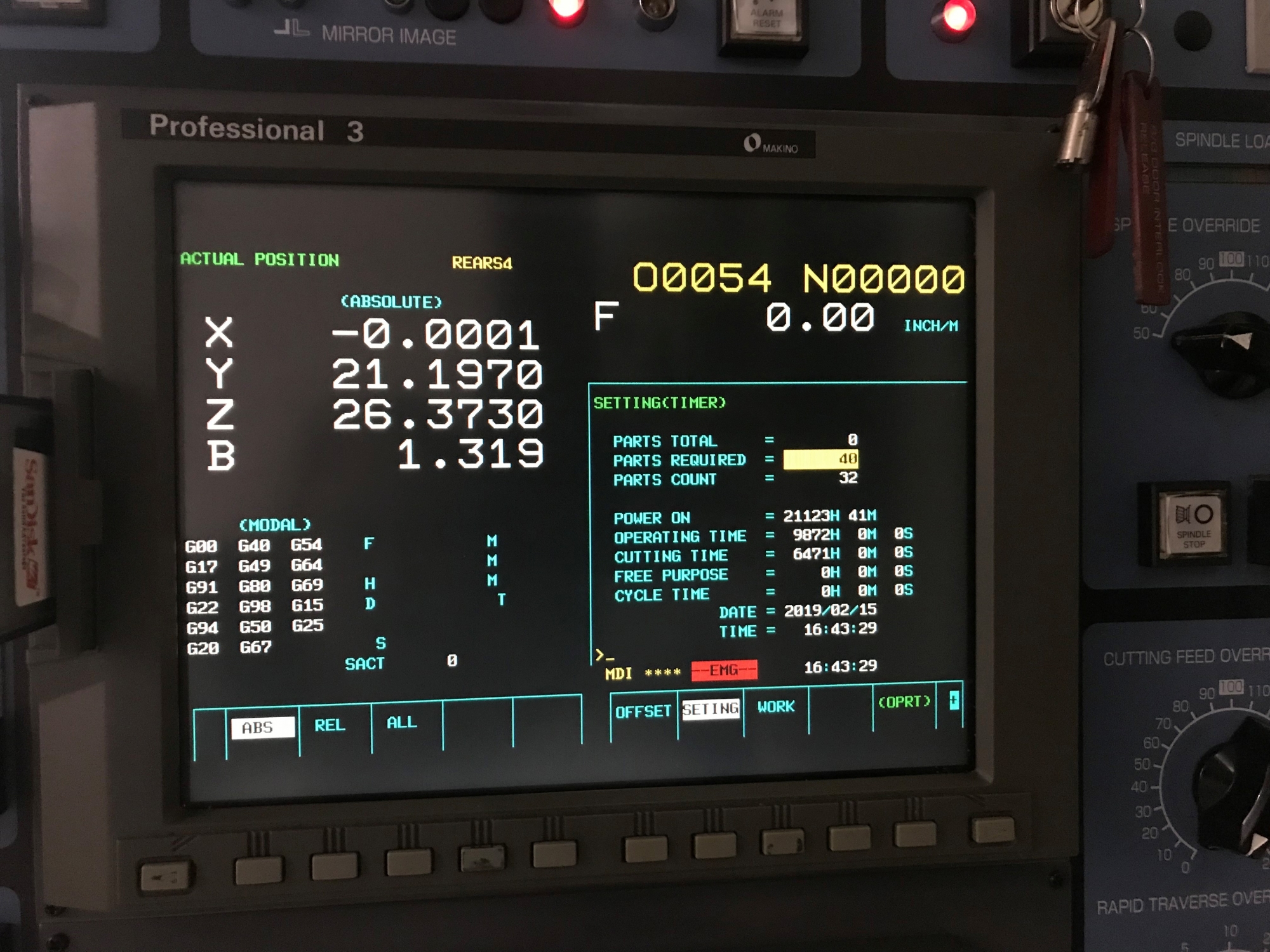

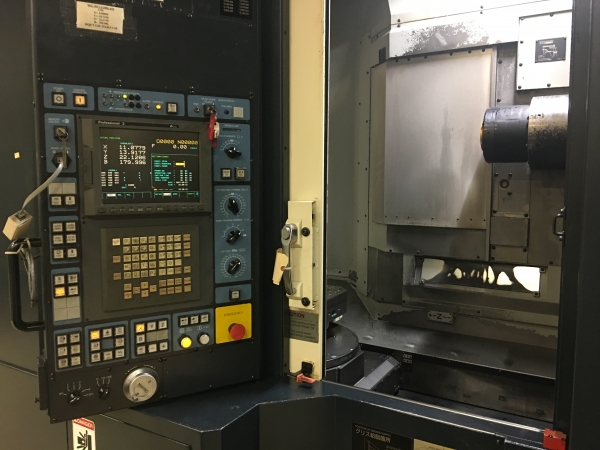

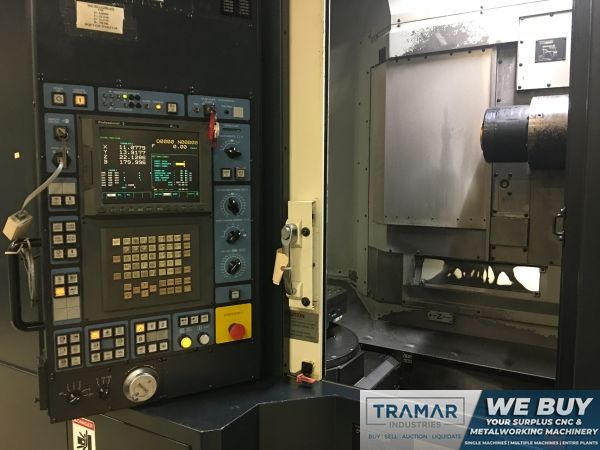

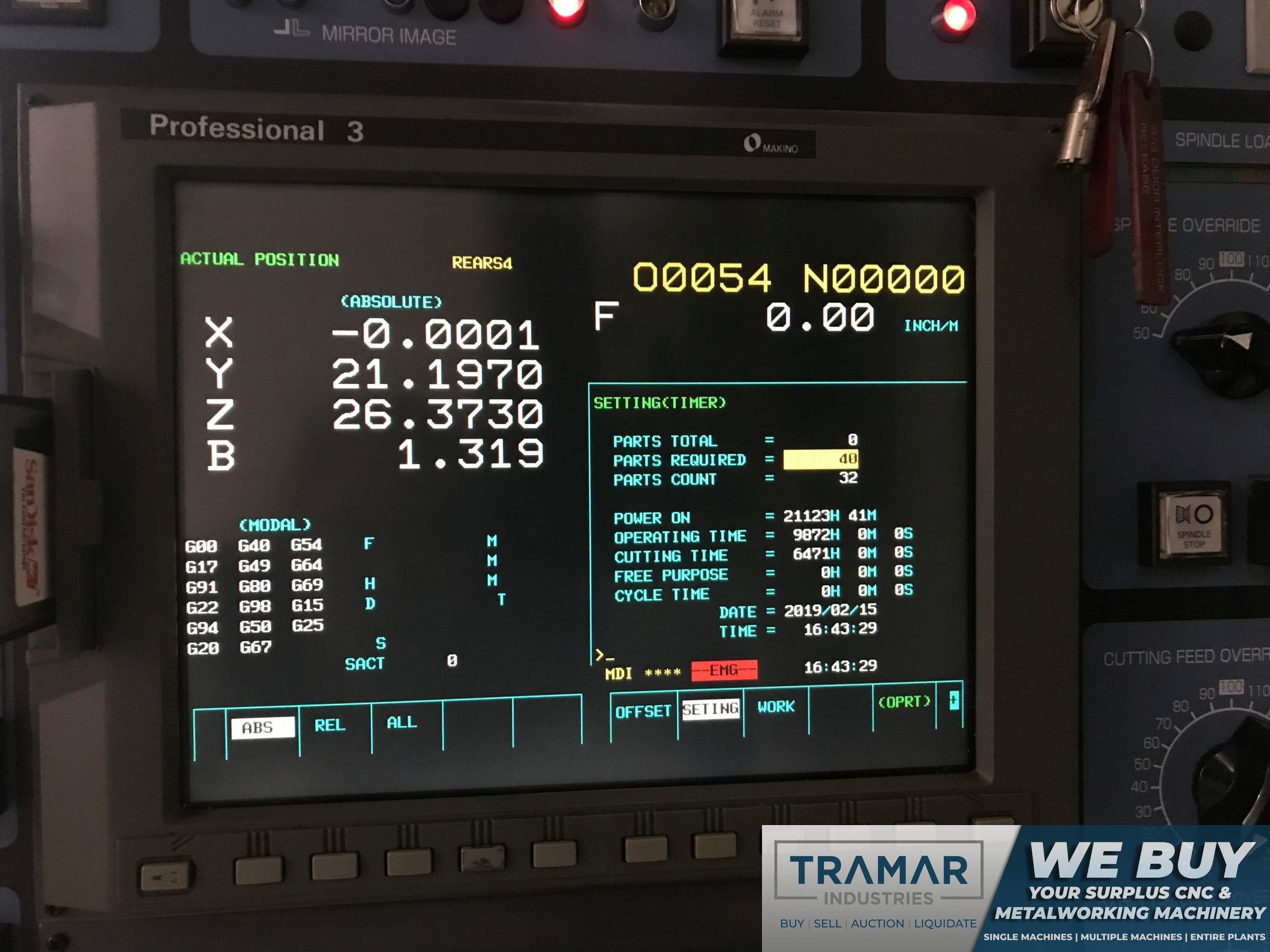

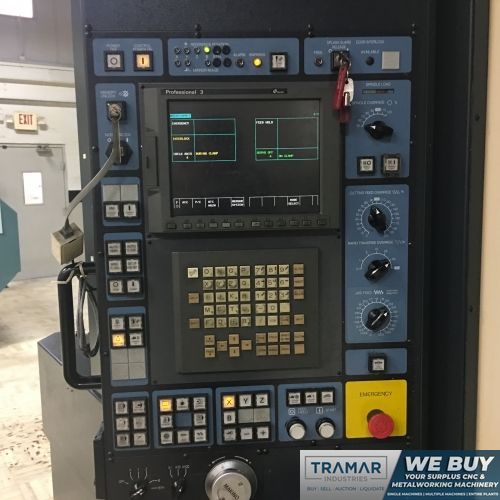

Professional 3 (Fanuc 16iM) Control
Full 4th Axis Contouring
Coolant Thru Spindle (Hi-Pressure 1000psi)
90 Station Tool Changer

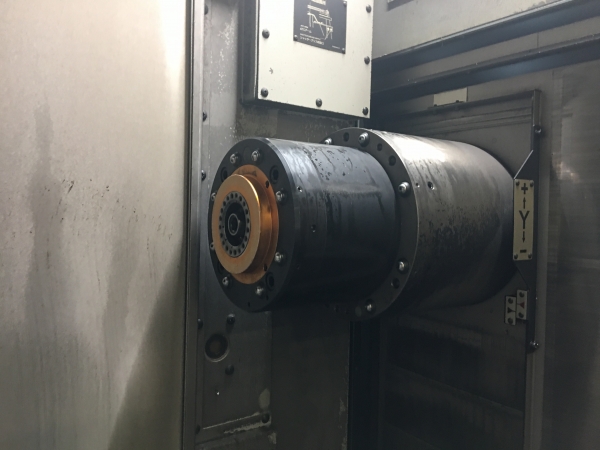

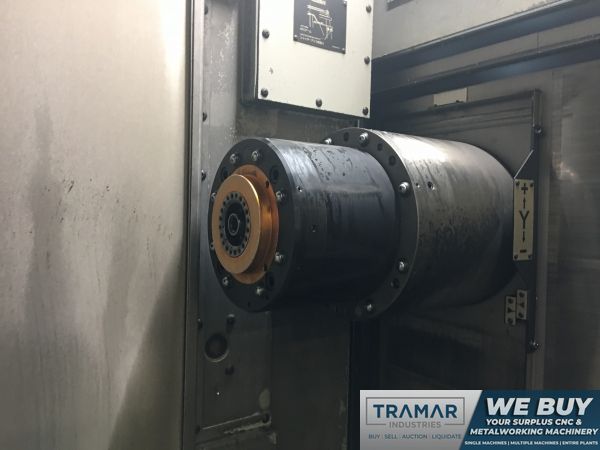

HSK 63A Spindle | 14,000 RPM

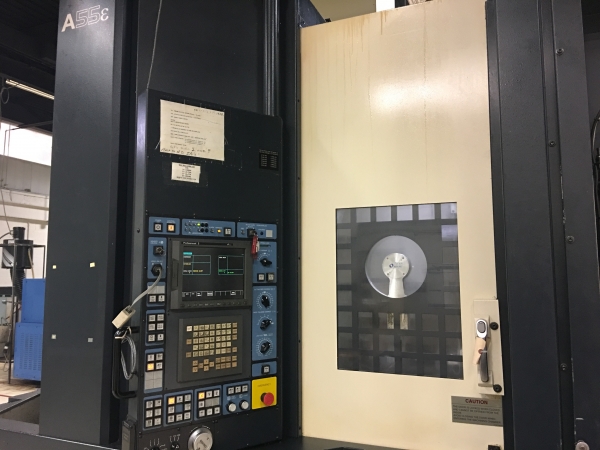

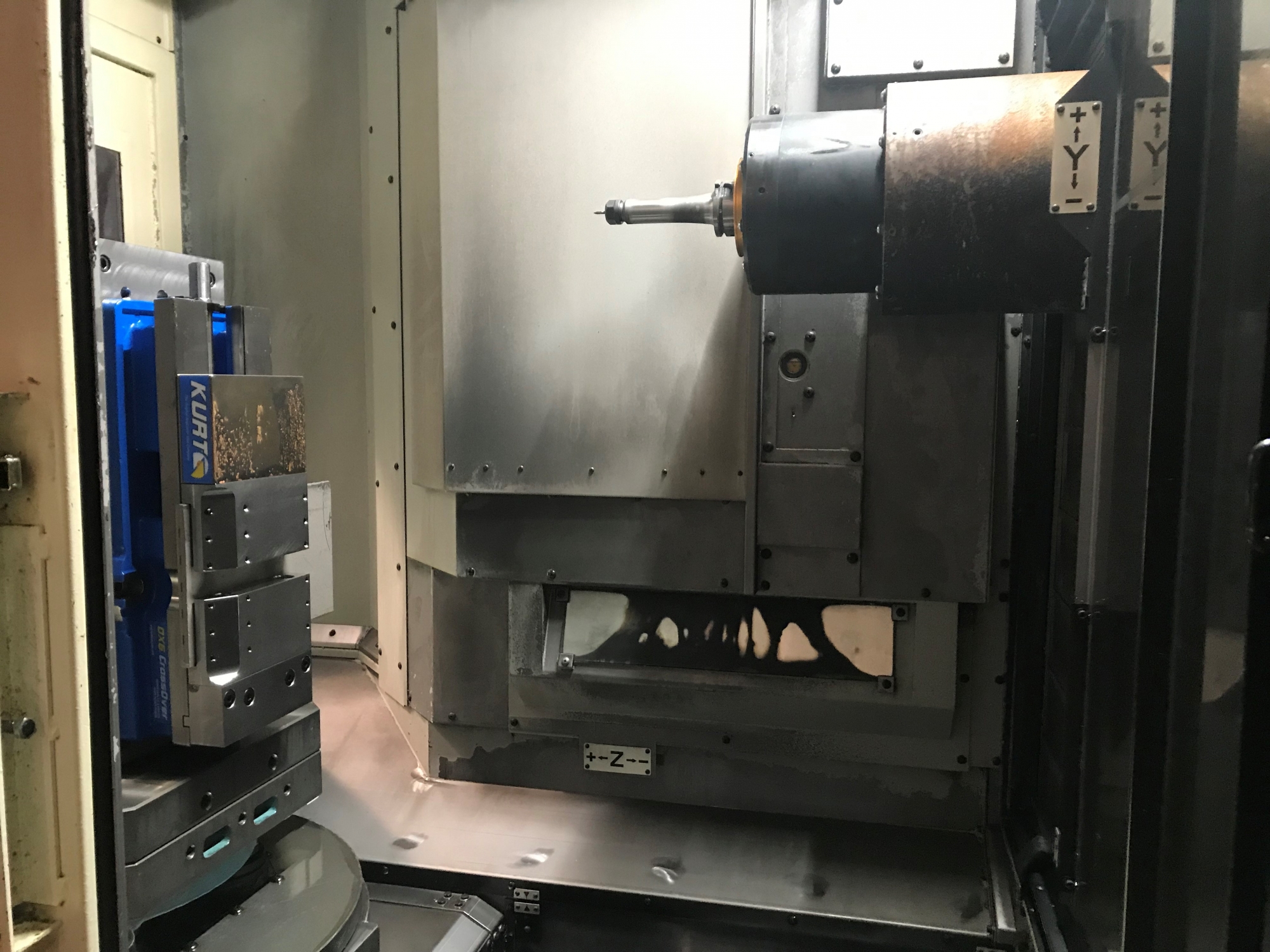

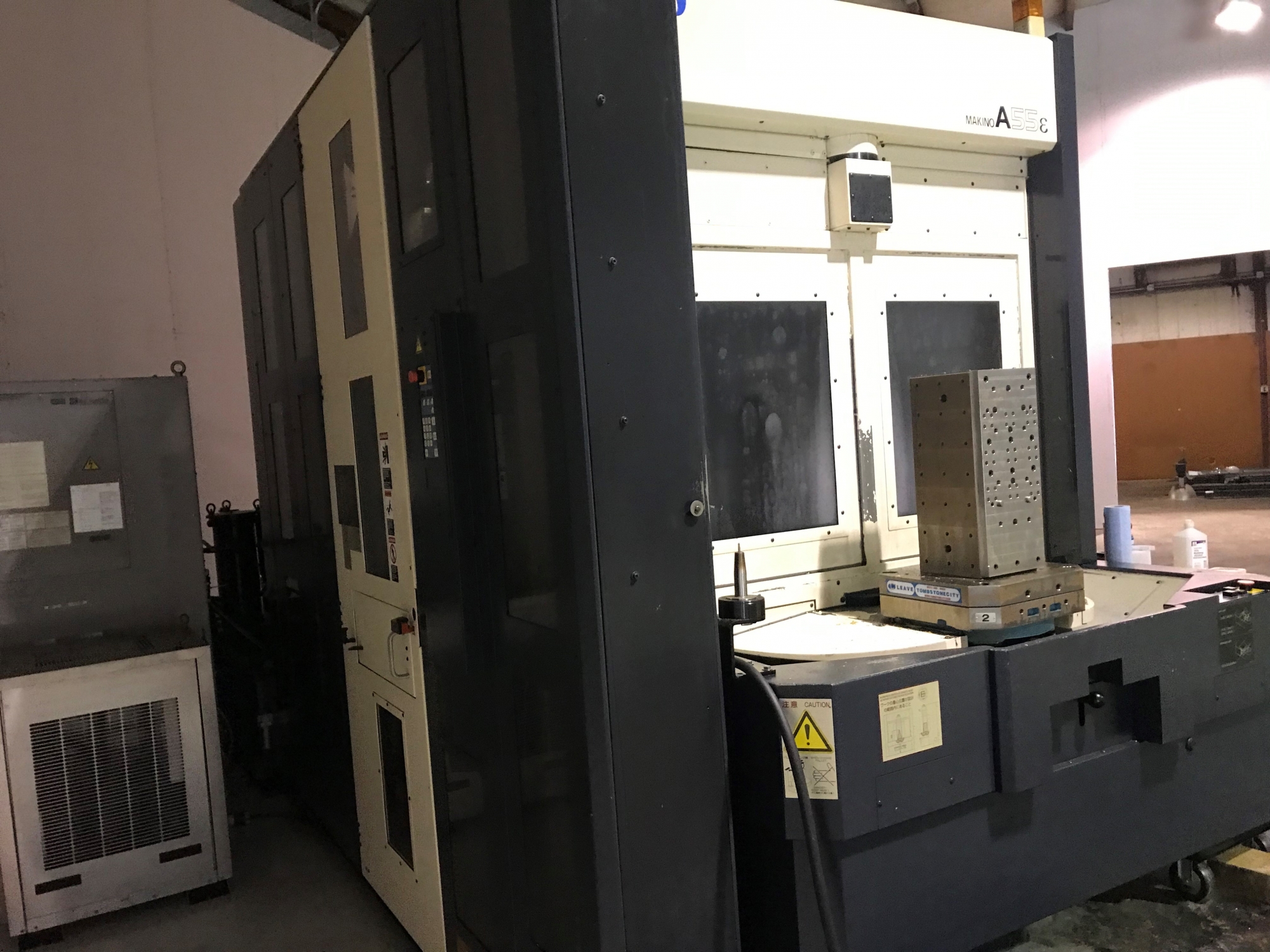

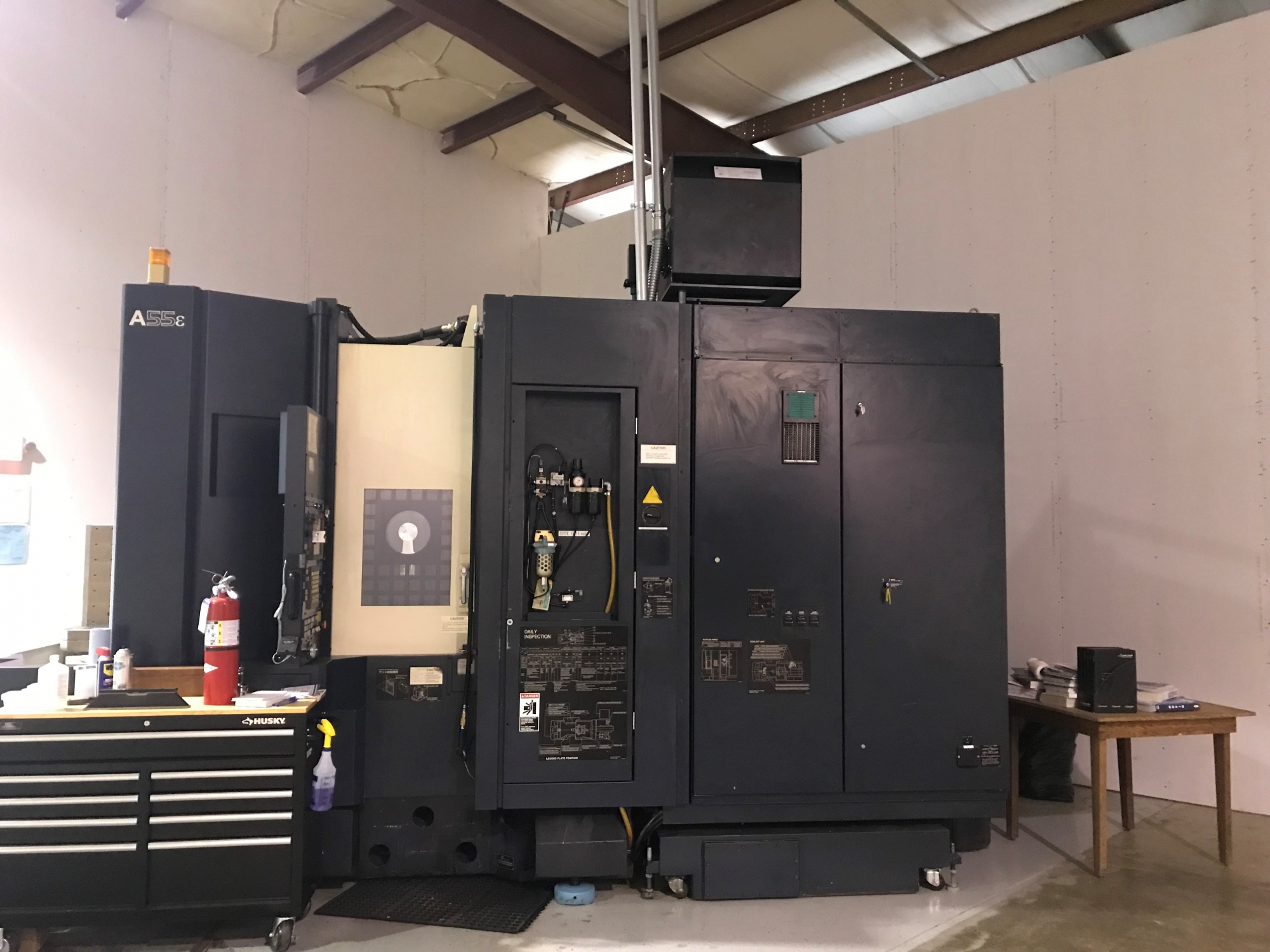

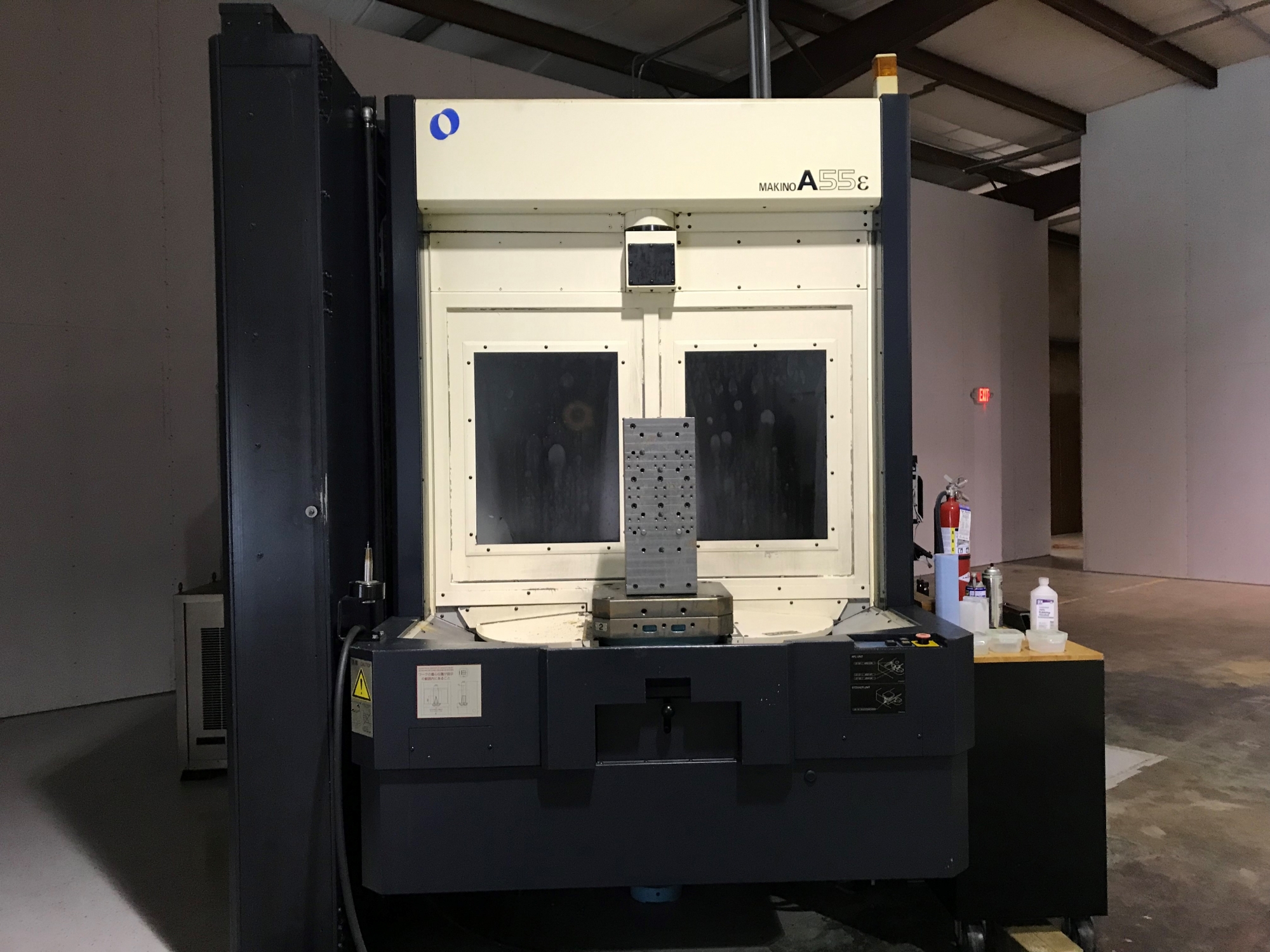

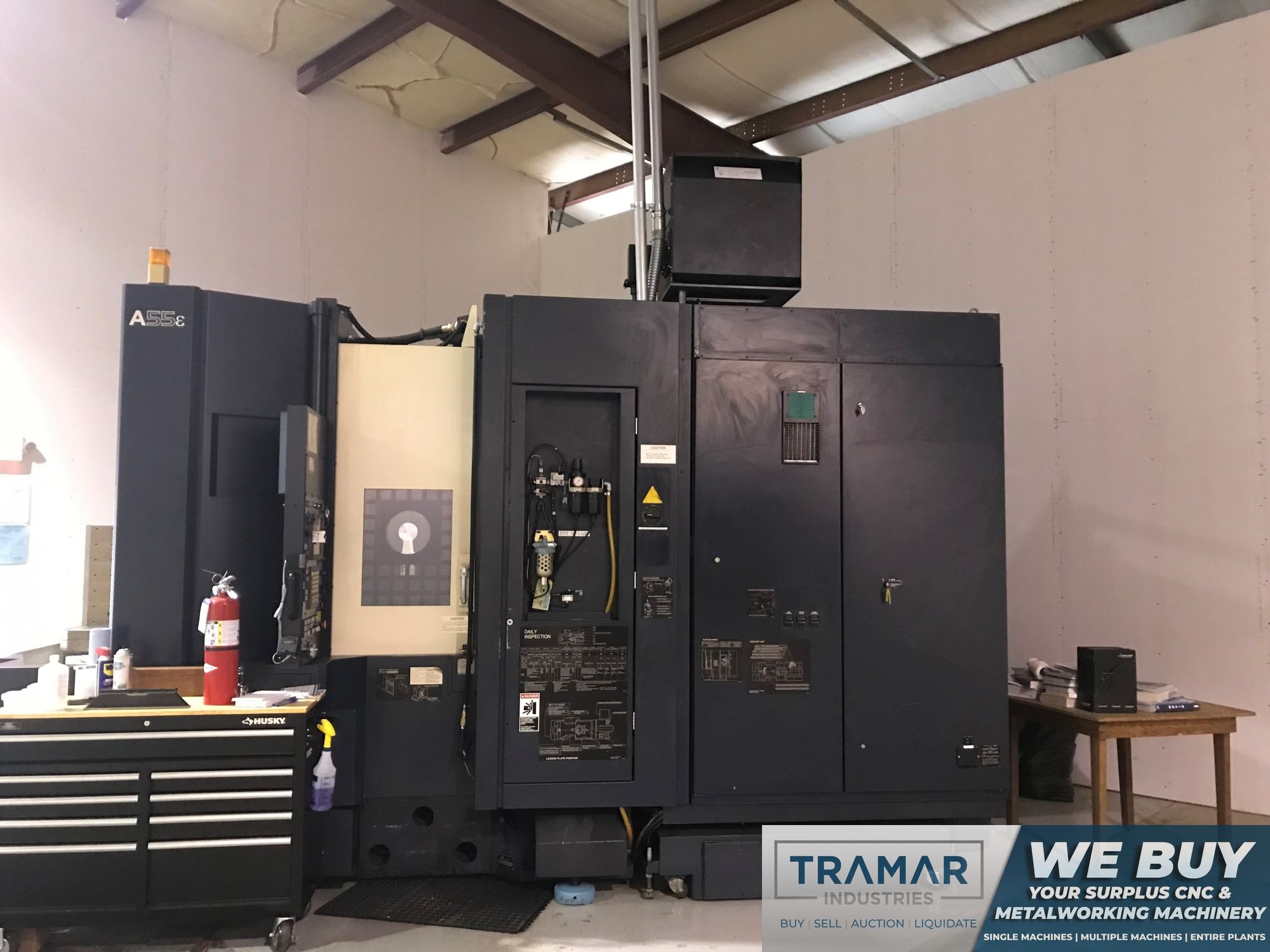

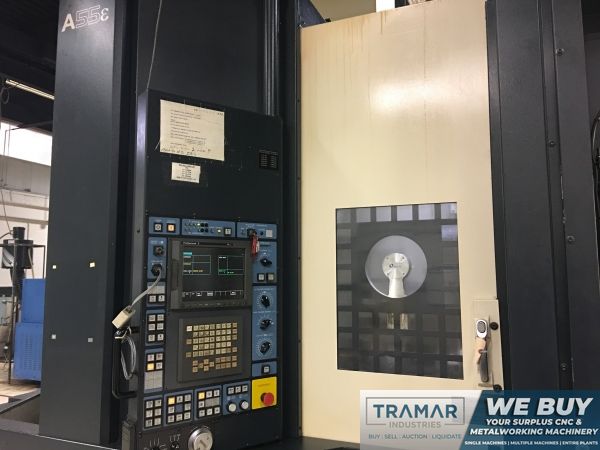

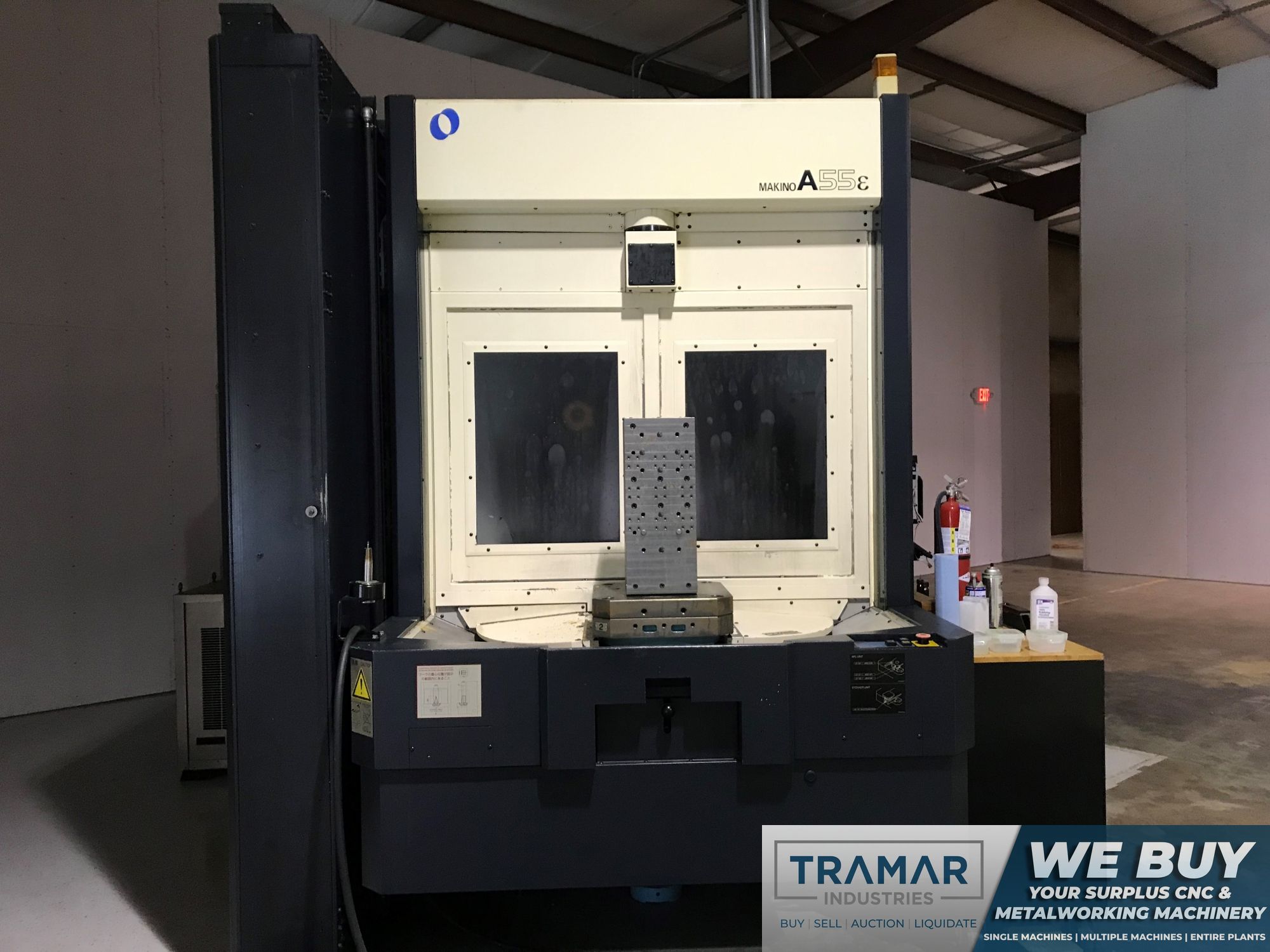

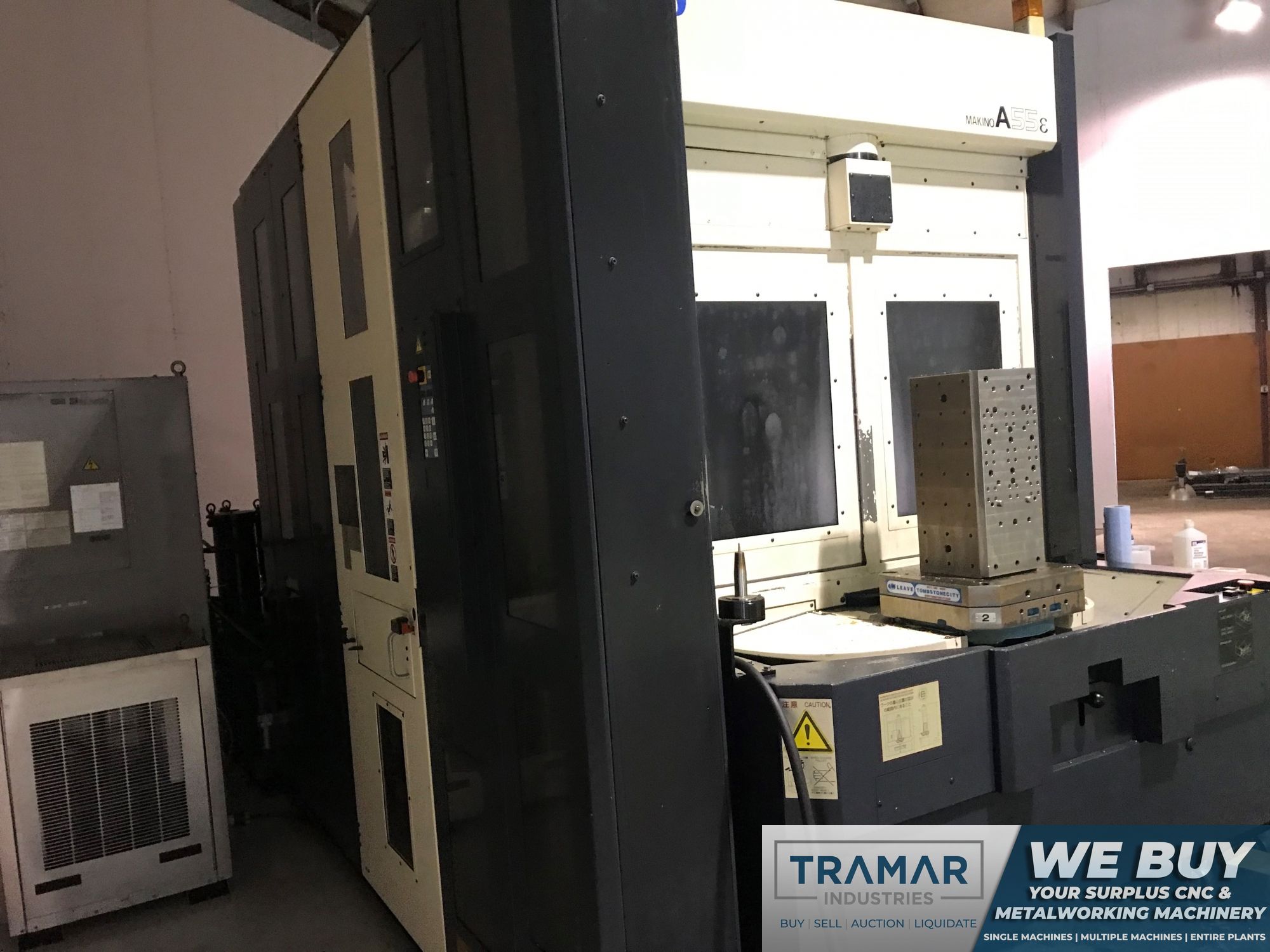

2002 MAKINO A55e - Horizontal Machining Center
Machine Specifications
CNC Control
yes
Control Type
Professional 3
# Axis
4

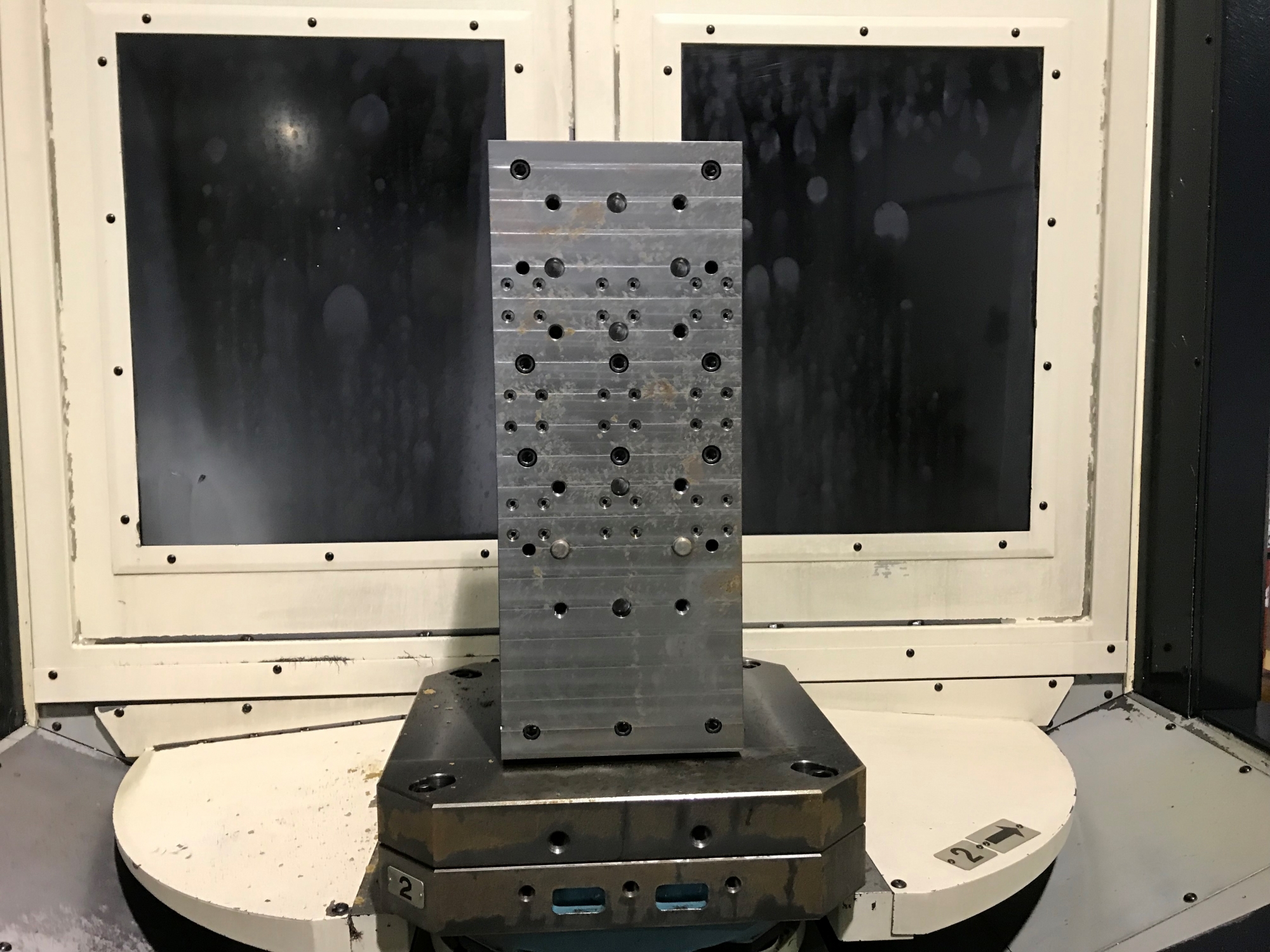

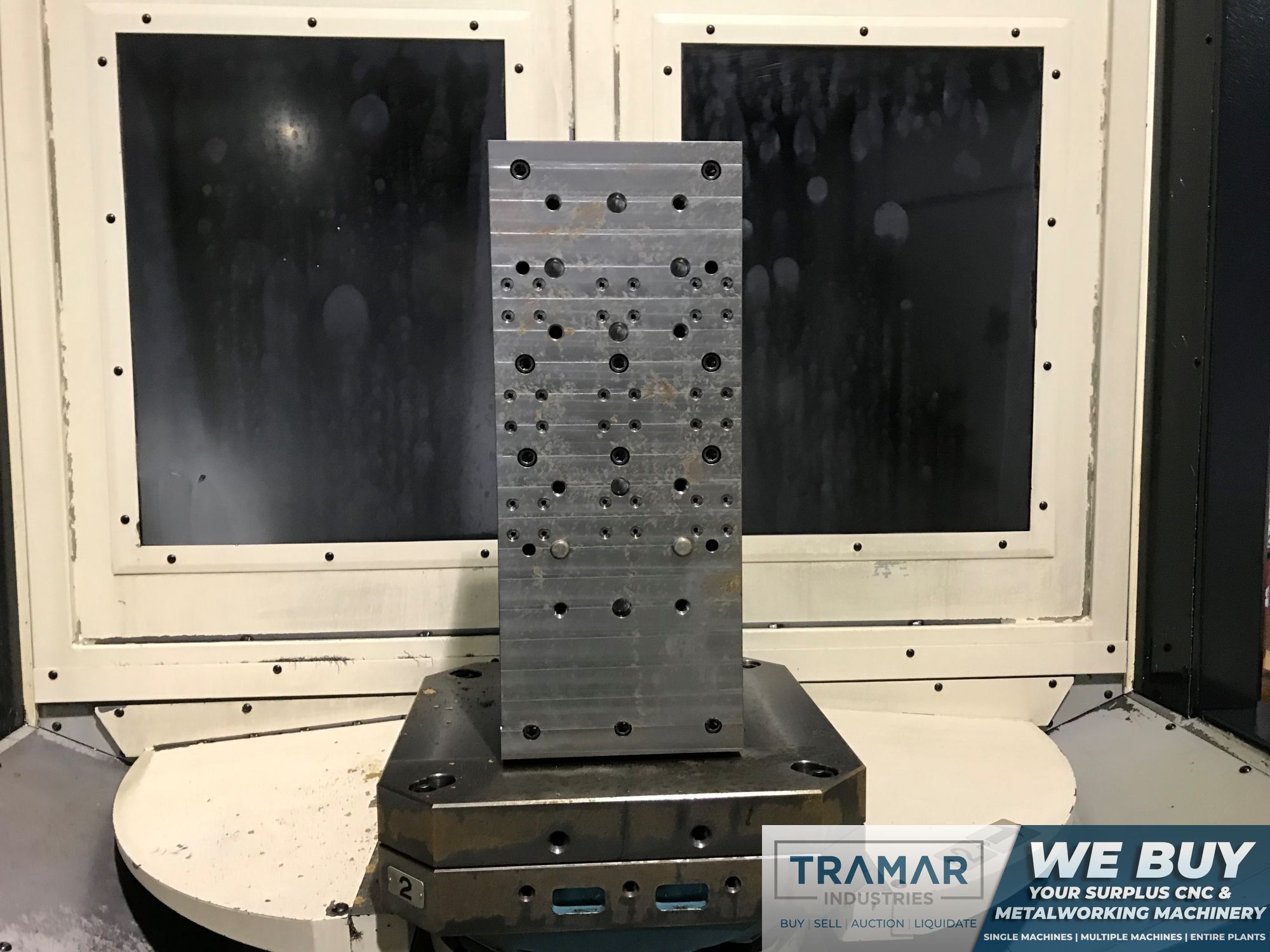

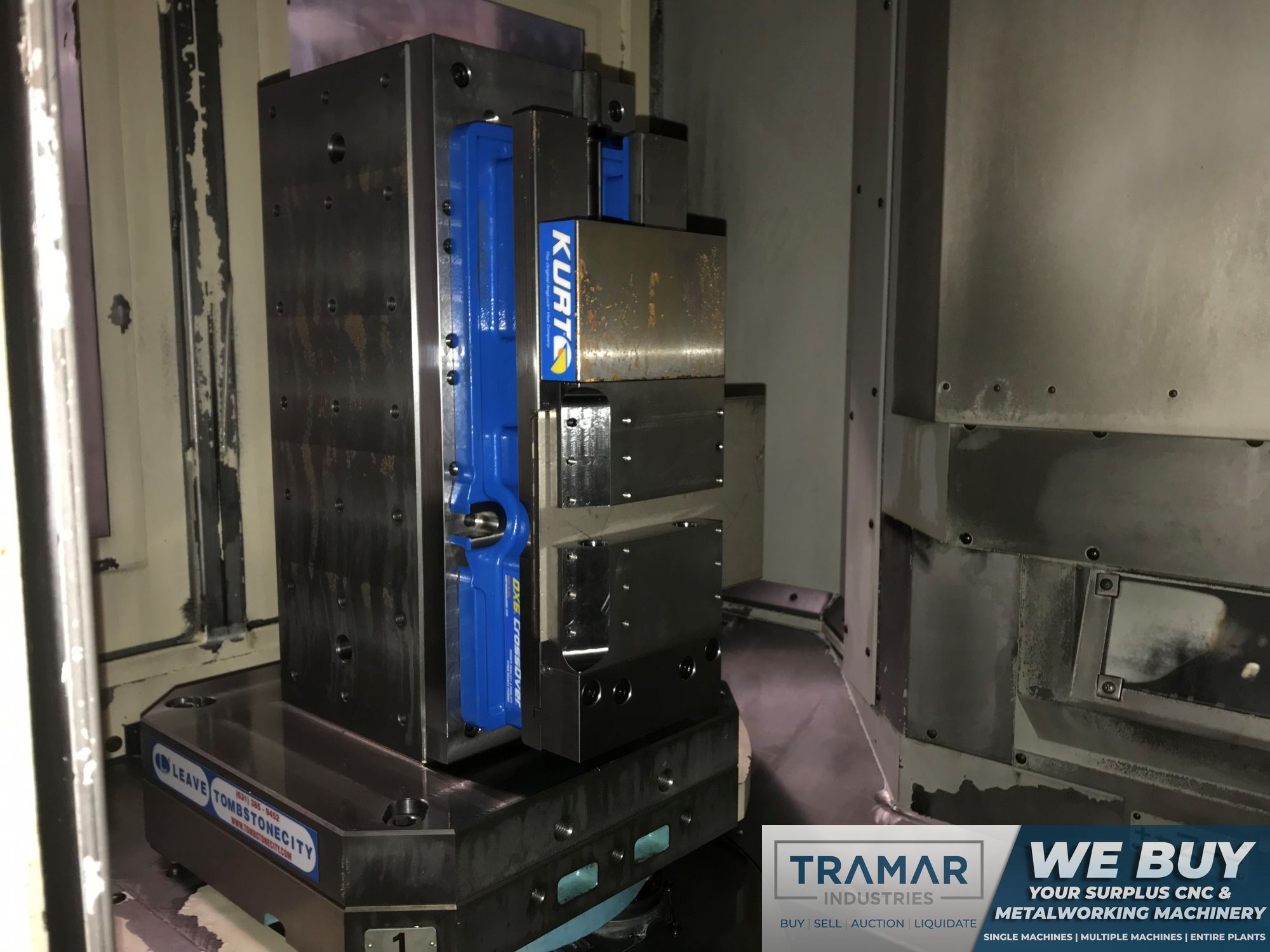

Pallet-W
15.75"
Pallet-L
15.75"
Pallet Capacity
1,102 pounds

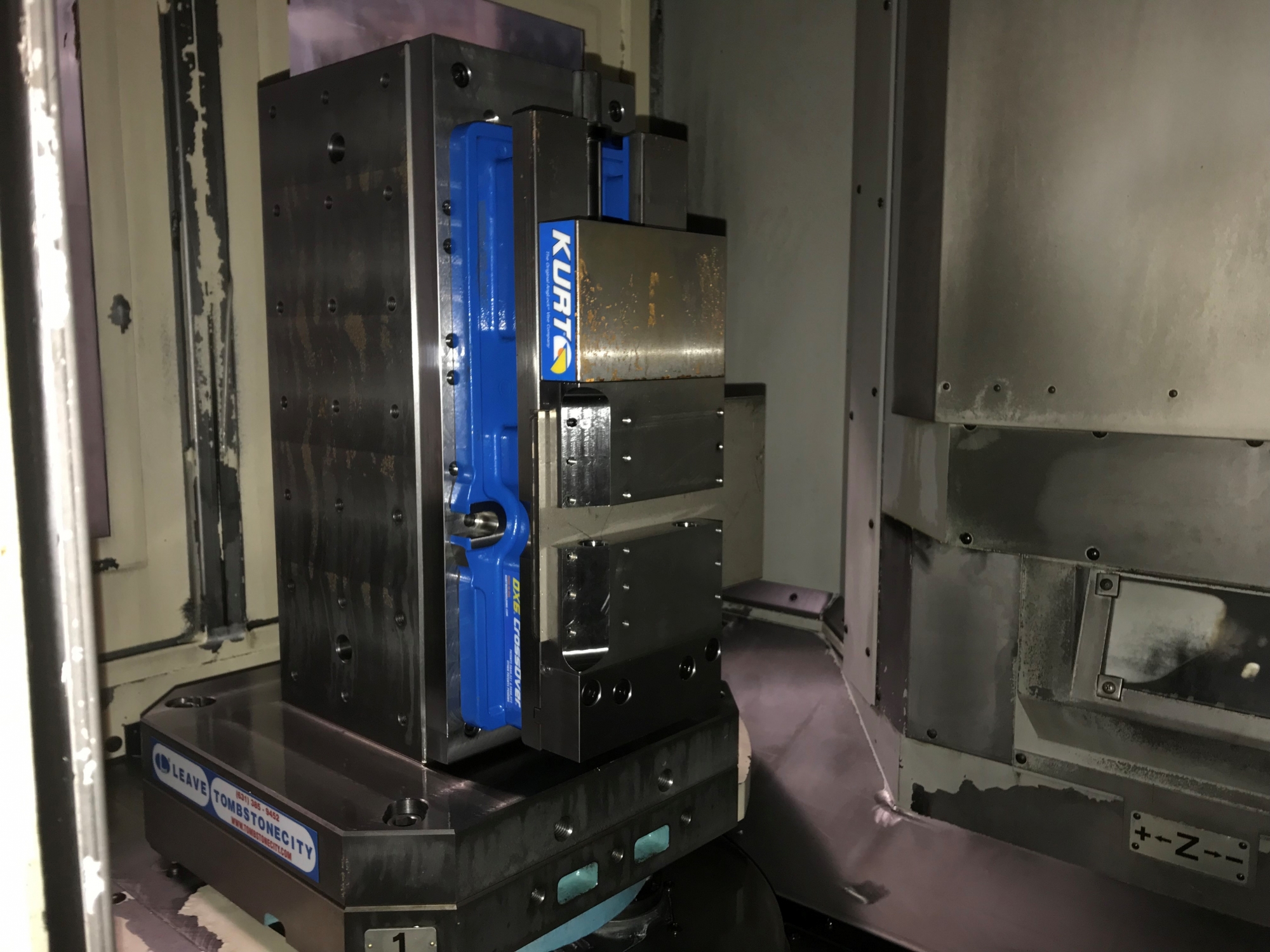

Pallet Indexing (B-Axis)
0.001°
X
22"
Y
22"
Z
23"
X-Axis Rapid Feedrate
3,307
Y-Axis Rapid Feedrate
3,307
Z-Axis Rapid Feedrate
3,307
Spindle Speed
14,000
Spindle Taper
HSK 63
Main Motor
30
Tool Changer Capacity
90
Coolant Through Spindle
yes
Dimensions
180" x 75" x 118"
Weight
19,000 pounds

Equipped With:

- Professional 3 (Fanuc 16iM) Control
- Full 4th Axis Contouring

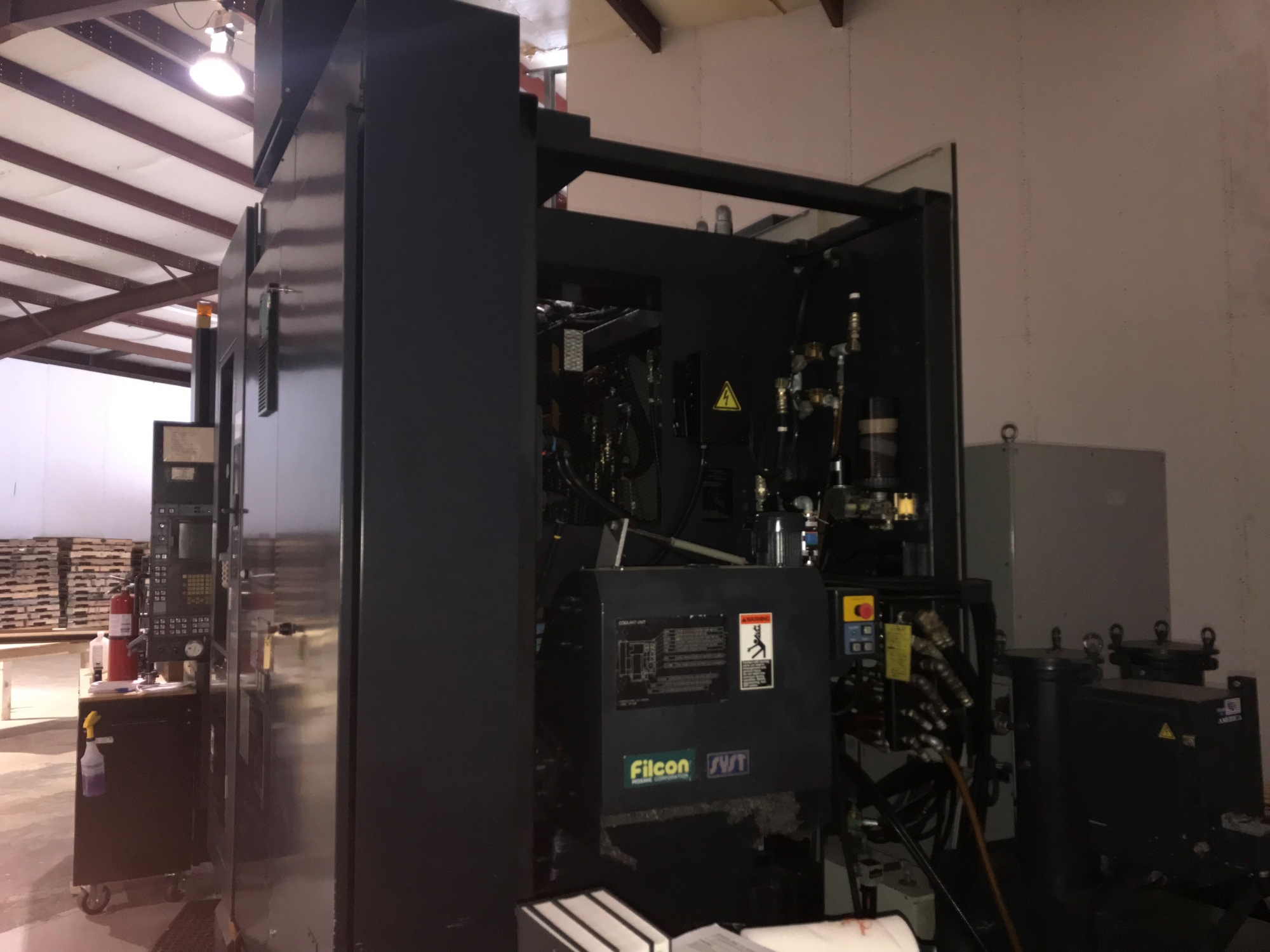

- Chiller Unit
- 90 Station Tool Changer
- HSK 63A Spindle Taper
- Air Dryer
- Data Server
- Embedded Ethernet
- Coolant Thru Spindle (Hi-Pressure 1000psi)
- Coolant Tank & Pumps

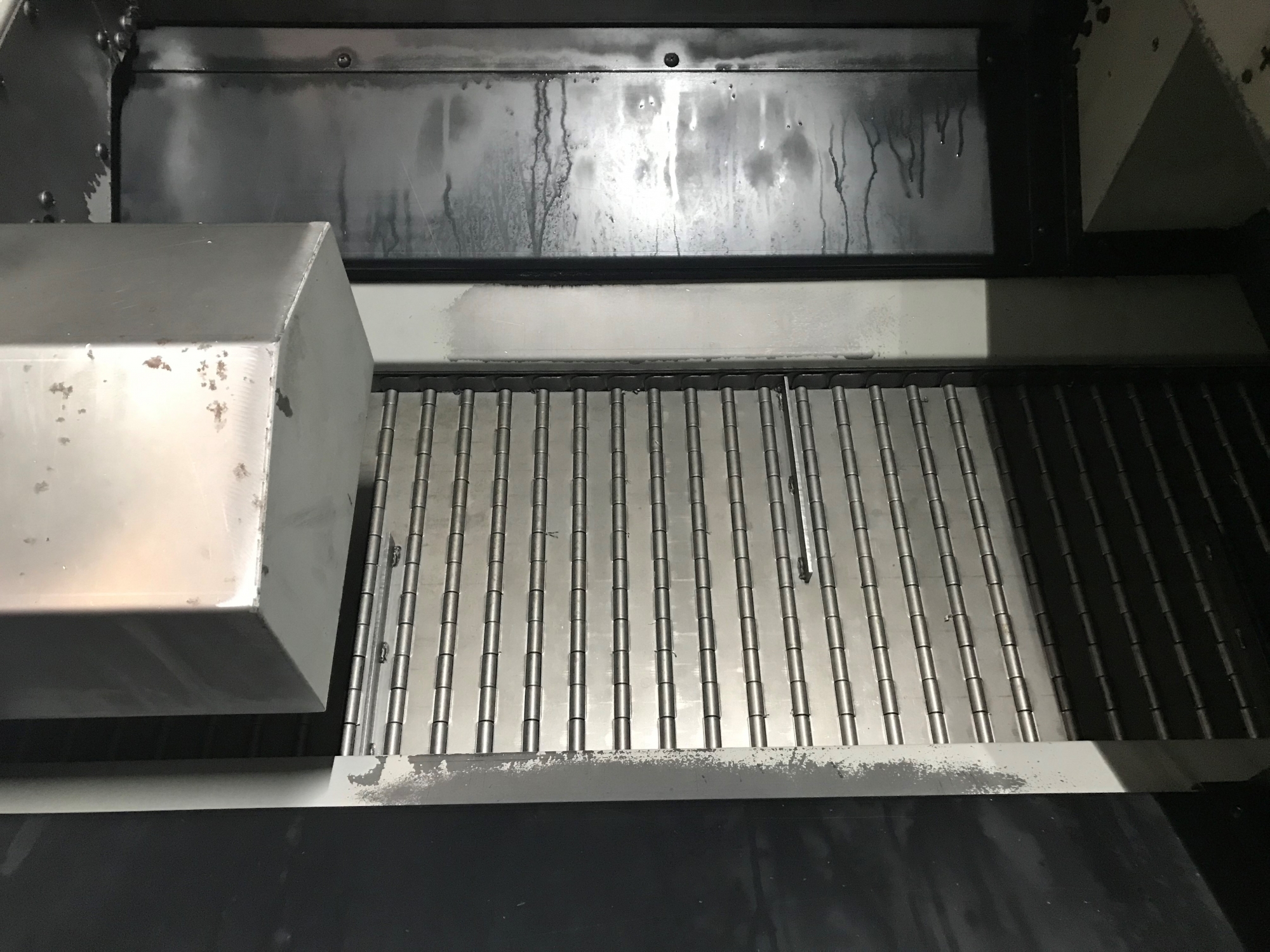

- Chip Conveyor (Rear D/C)
- Auto Tool Length Measurement


The Makino A55e is an exclusive part of our Horizontal Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
