Hwacheon Hi-Tech 200C - Horizontal Lathes

Share Machine
Specifications Print Specs
Model: Hi-Tech 200C
Year: 2003
Stock #: 13055 Sold
Highlights:

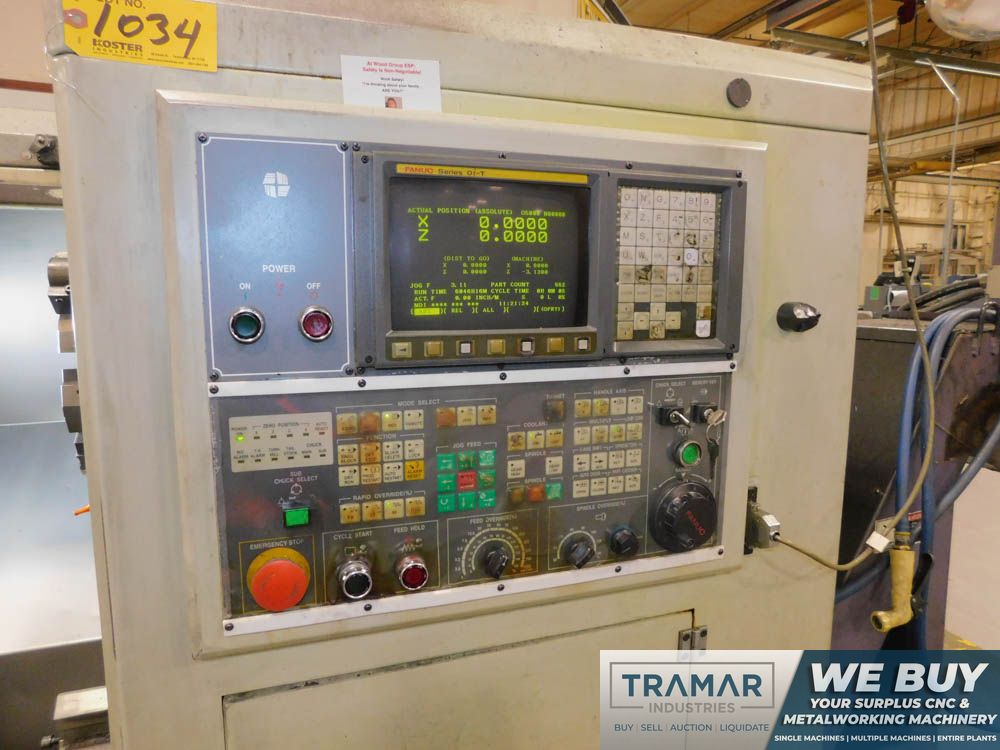

Fanuc 0i-T Control

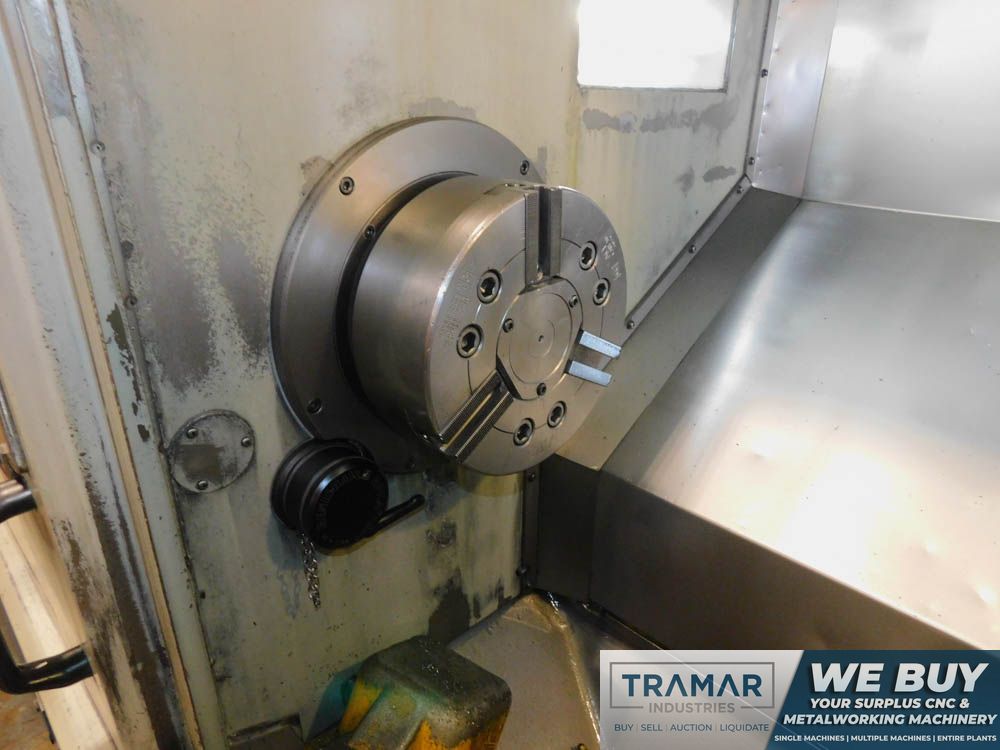

8" Hydraulic 3 Jaw Chuck
Tailstock

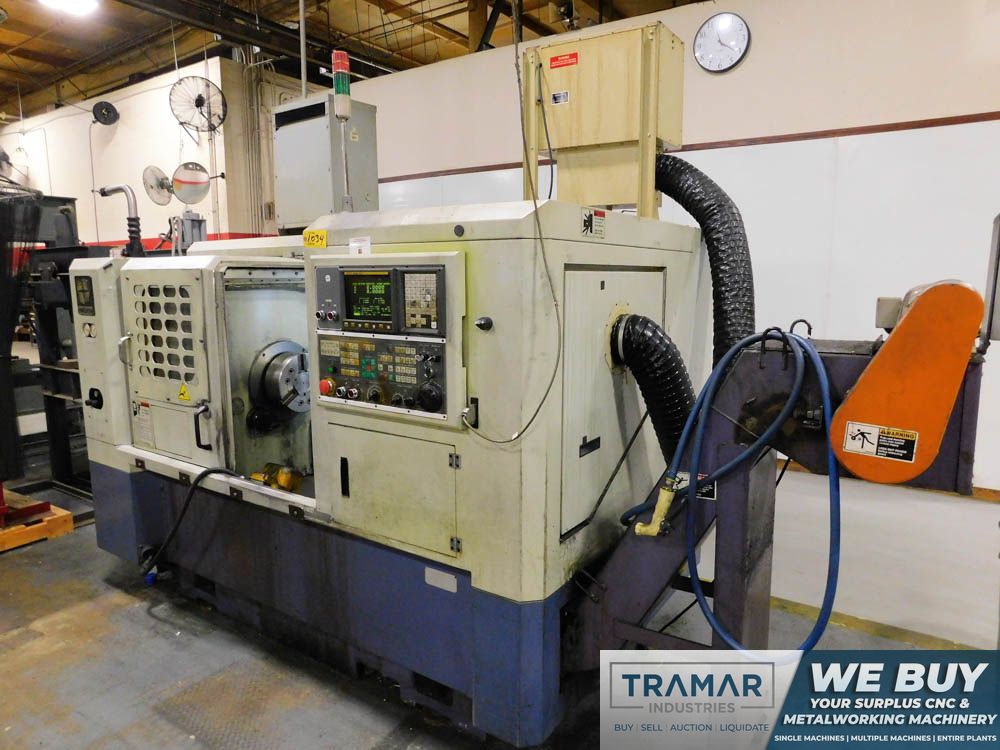

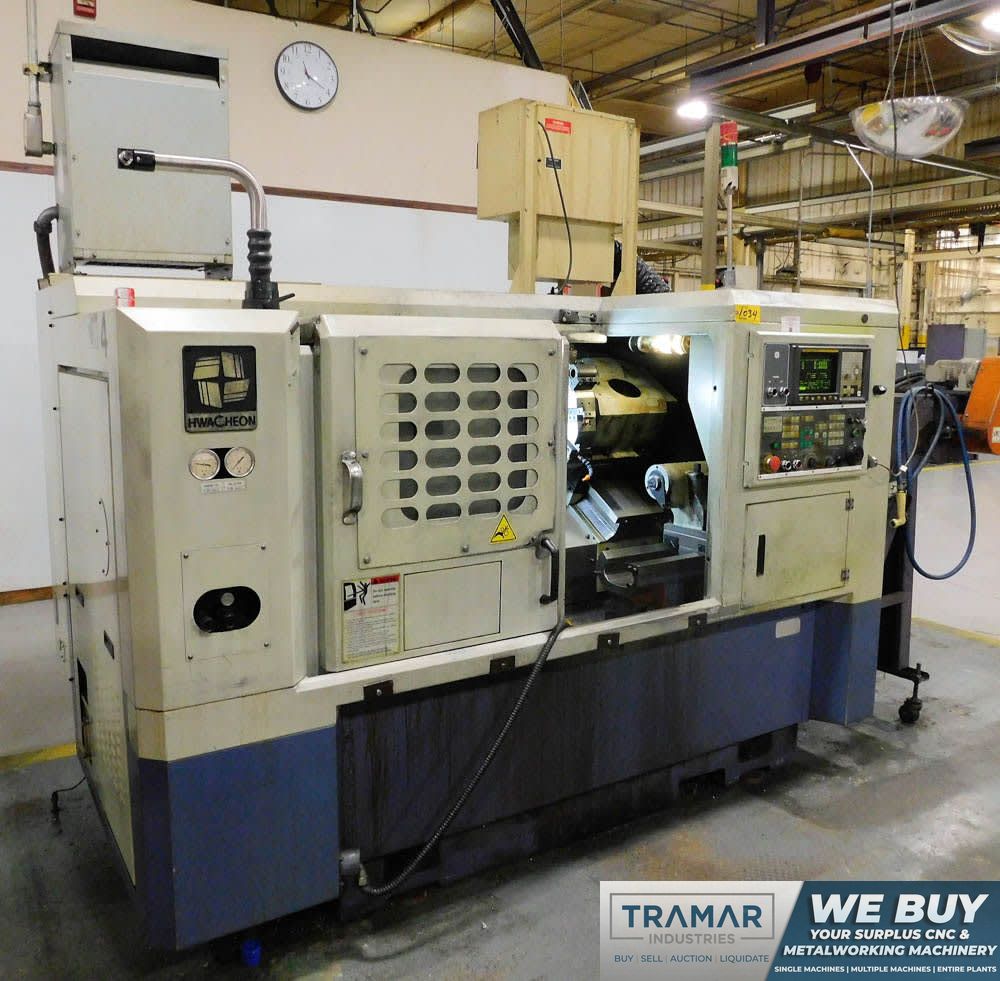

2003 HWACHEON Hi-Tech 200C - CNC Horizontal Lathe
Machine Specifications
CNC Control
yes
Control Type
Fanuc 0i-T
Chuck Size
8"
Swing
19.69"
Turning Diameter
13.78"
Center Distance
24.05"
Bar Capacity
3"
X Axis Travel
7.68"
Z Axis Travel
25.98"
Rapid Traverse (X/Z)
1,181 IPM
Spindle Speed (RPM)
3,500
Main Motor
20 HP

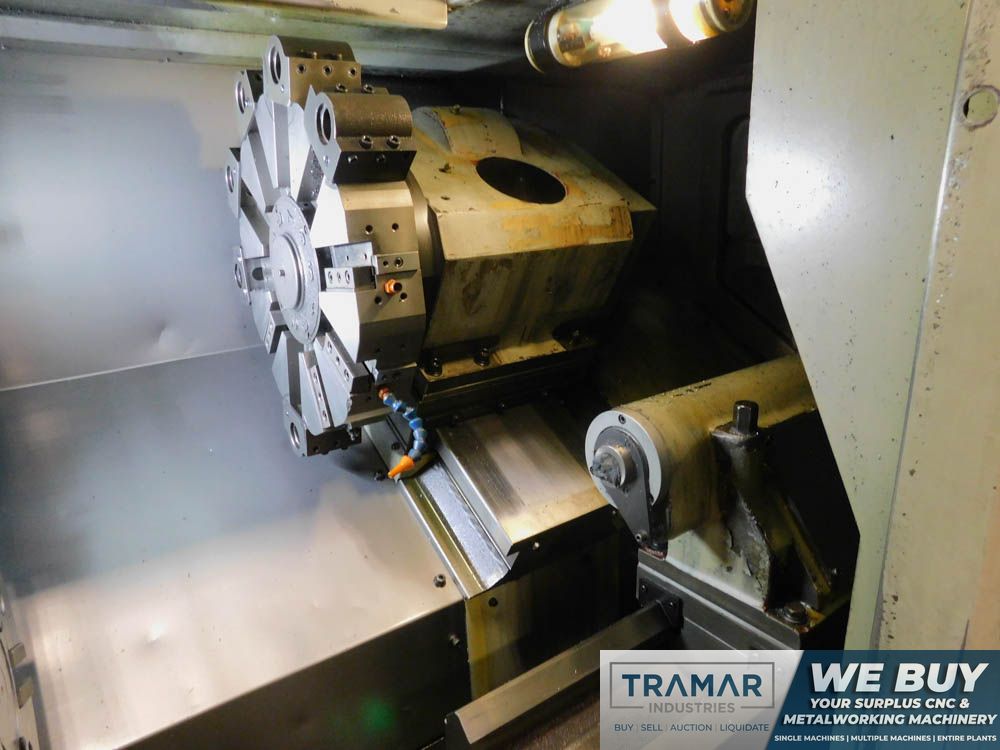

Turret Capacity
10
Tailstock
yes
Y Axis
no
Dimensions
108" x 69" x 69 "
Weight
10,000 pounds
Live Tooling
no
Sub Spindle
no

Equipped With:

- Fanuc 0i-T Control
- Chip Conveyor
- Coolant Tank
- 8" Hydraulic 3 Jaw Chuck
- Tailstock




The Hwacheon Hi-Tech 200C is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
