Mazak Integrex 100-III ST - Horizontal Lathes

Share Machine

Specifications Print Specs

Model: Integrex 100-III ST

Year: 2004

Stock #: 13016 Sold

Type: Horizontal Lathes

Manufacturer: Used Mazak Machines

Highlights:

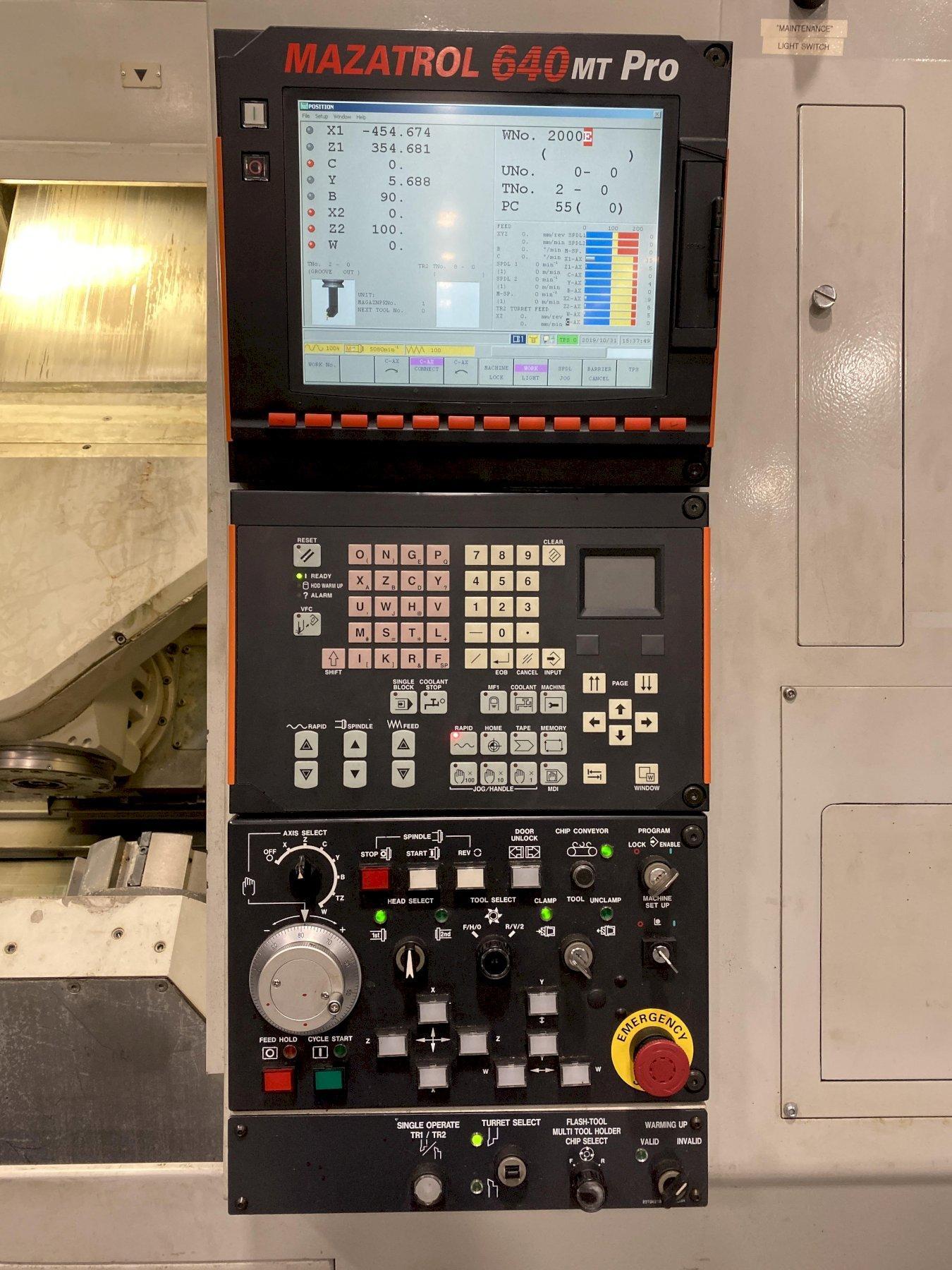

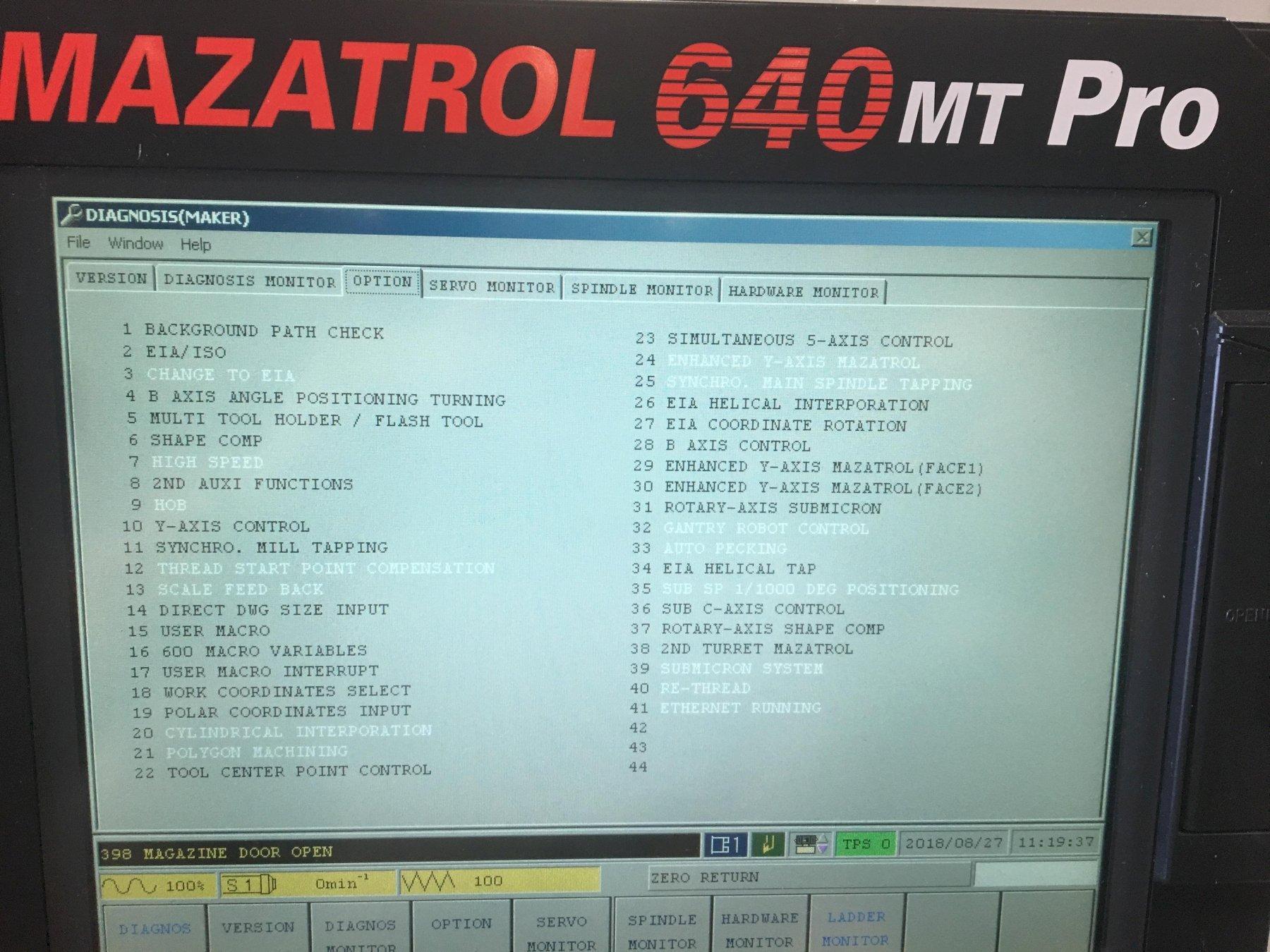

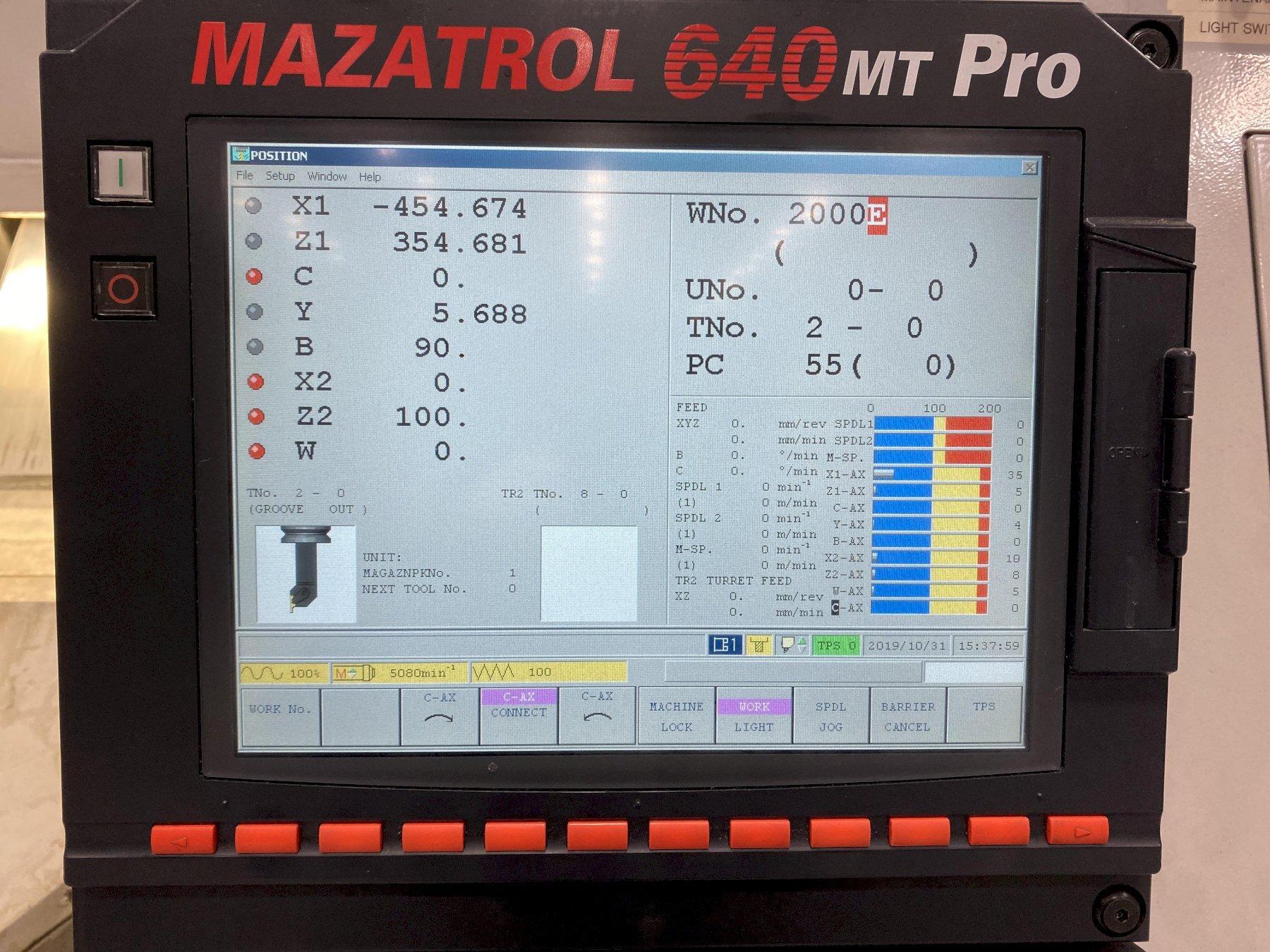

Mazatrol 640MT Pro Control

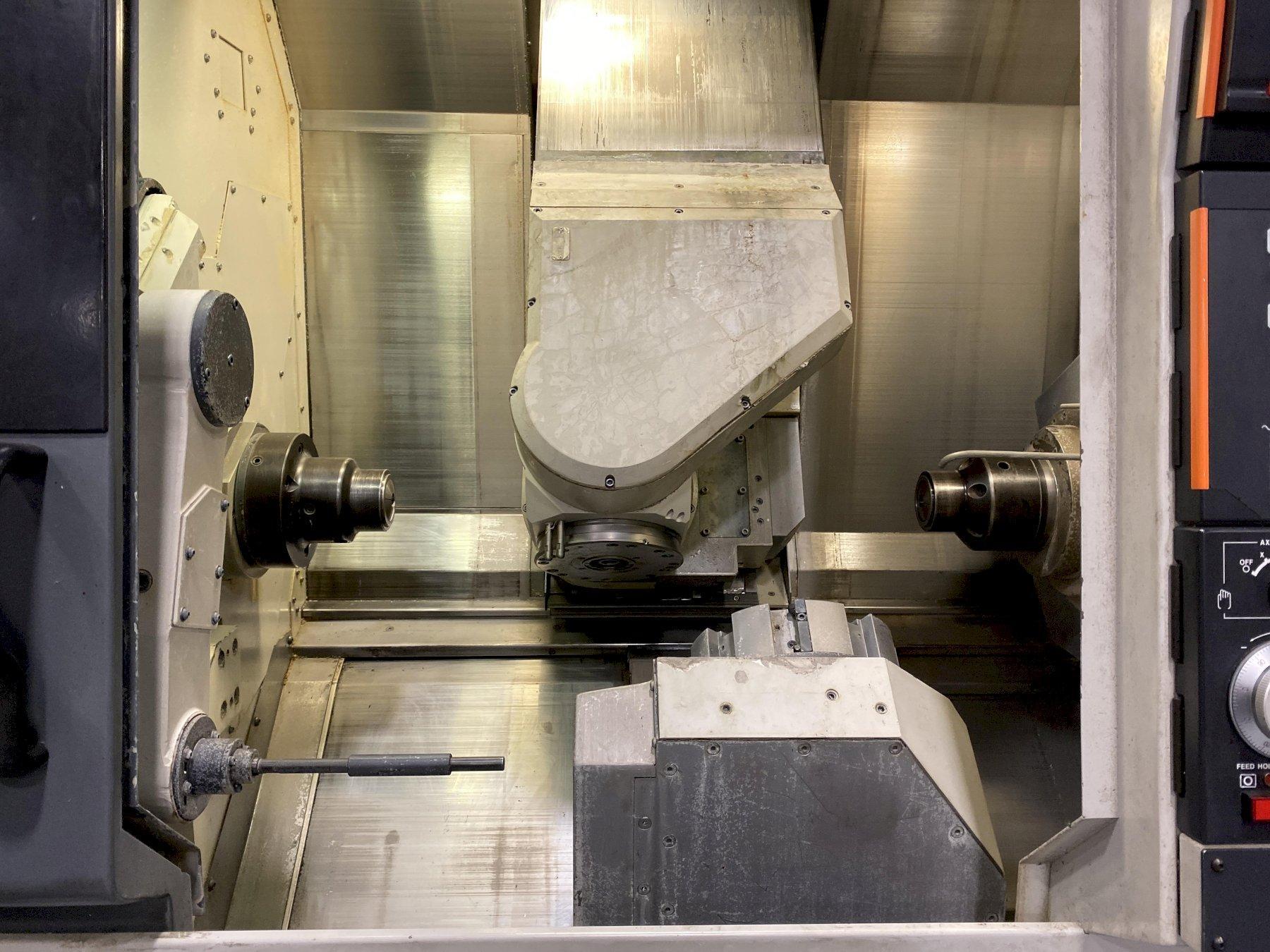

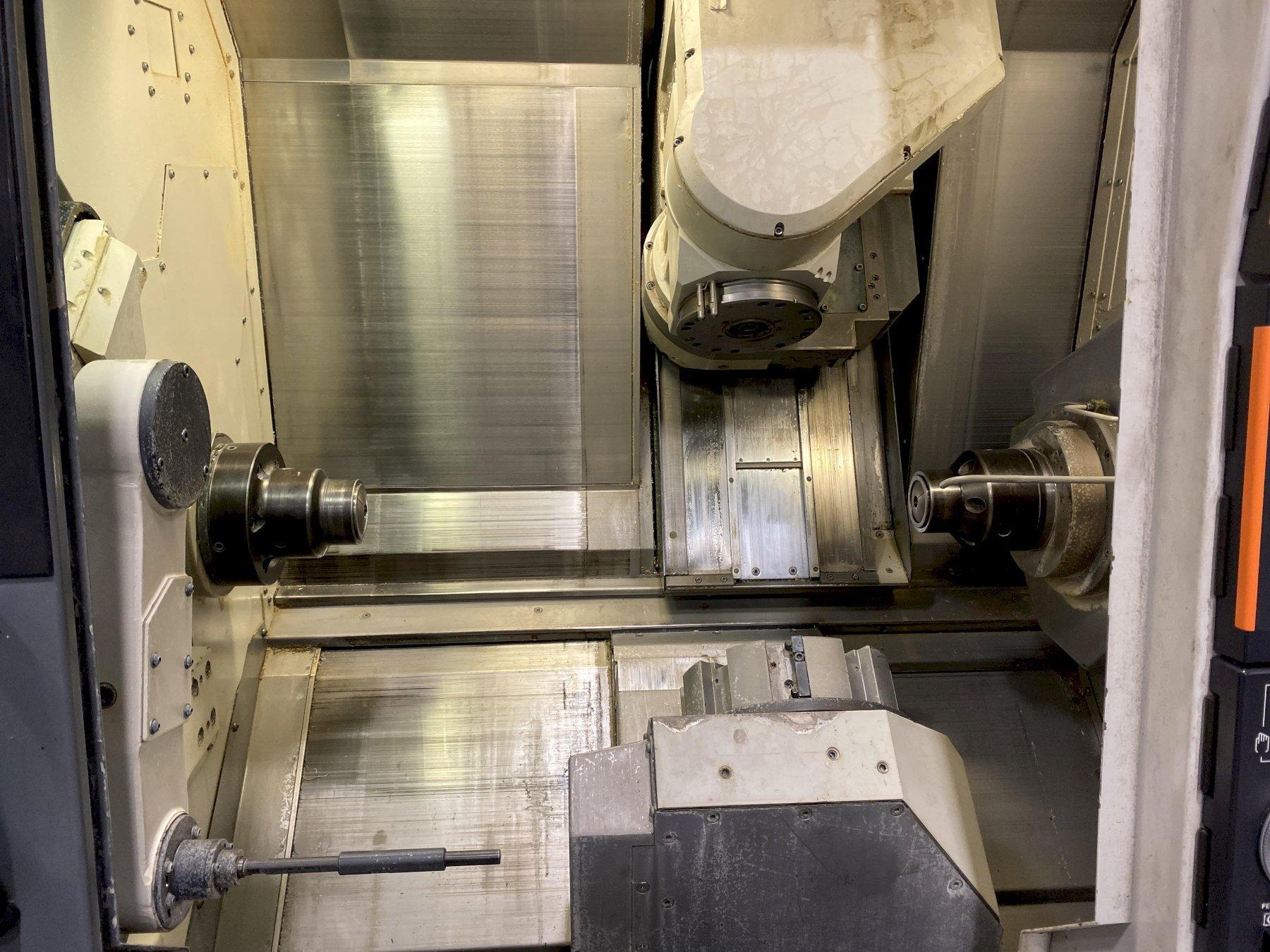

Live Tooling | Y Axis | Sub Spindle

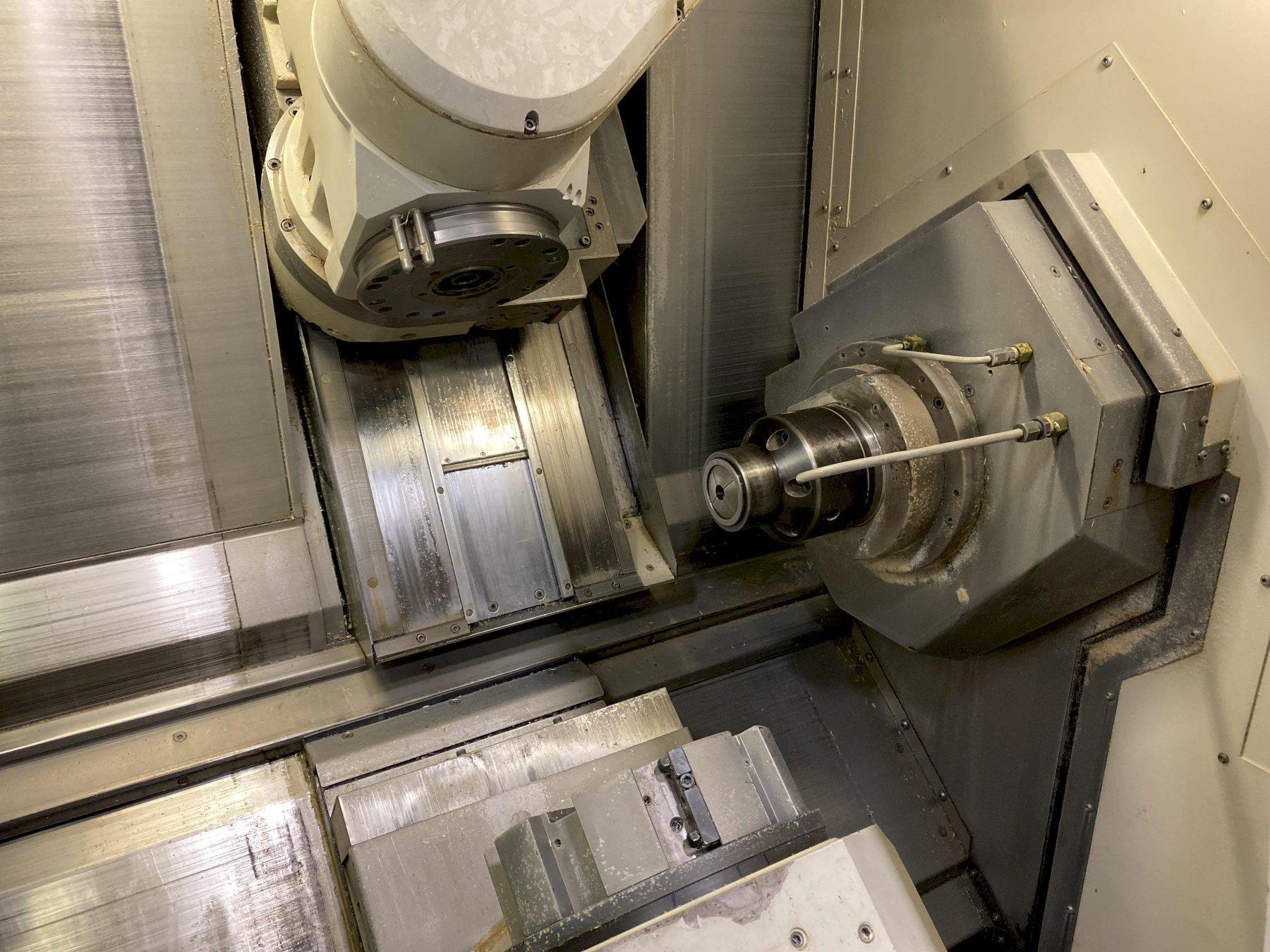

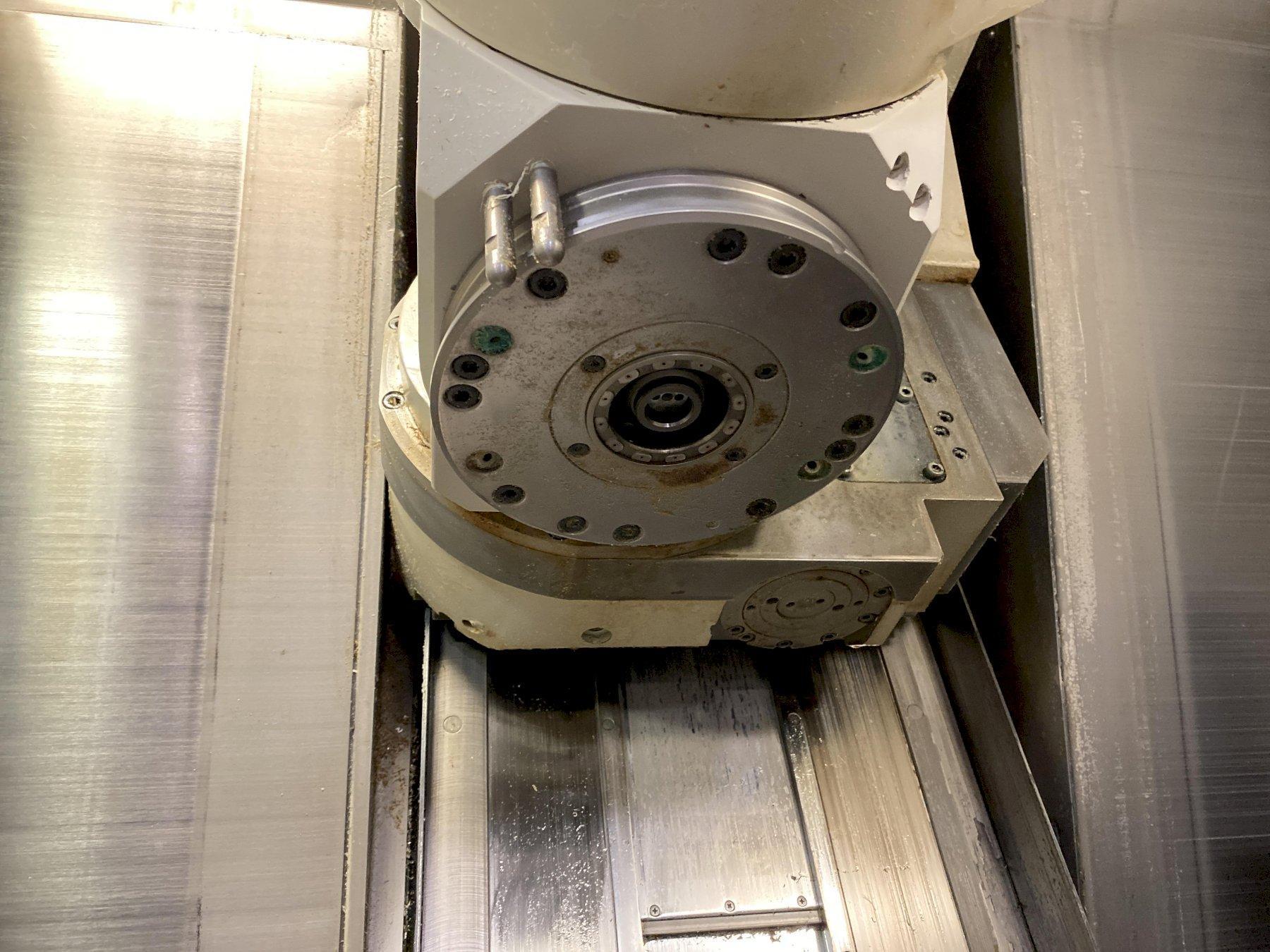

KM-63 Milling Spindle

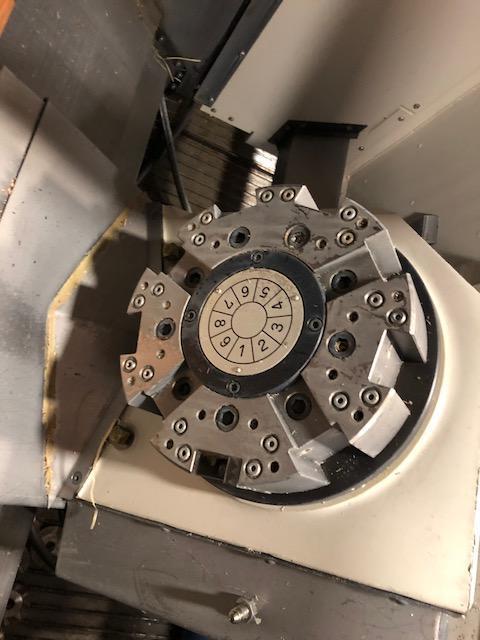

(40) Station ATC Upper | (8) Station Lower Turret

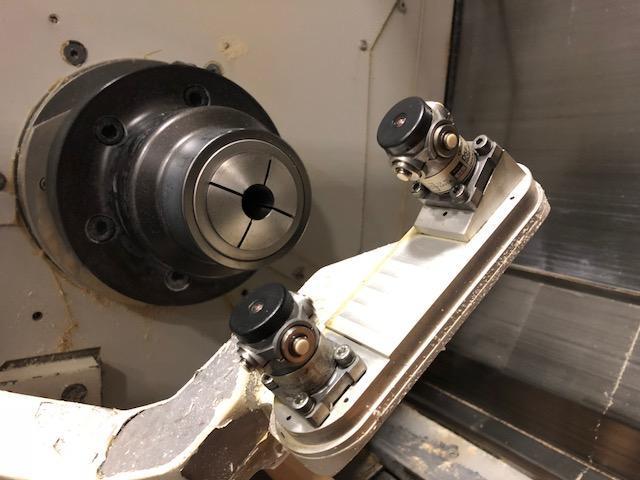

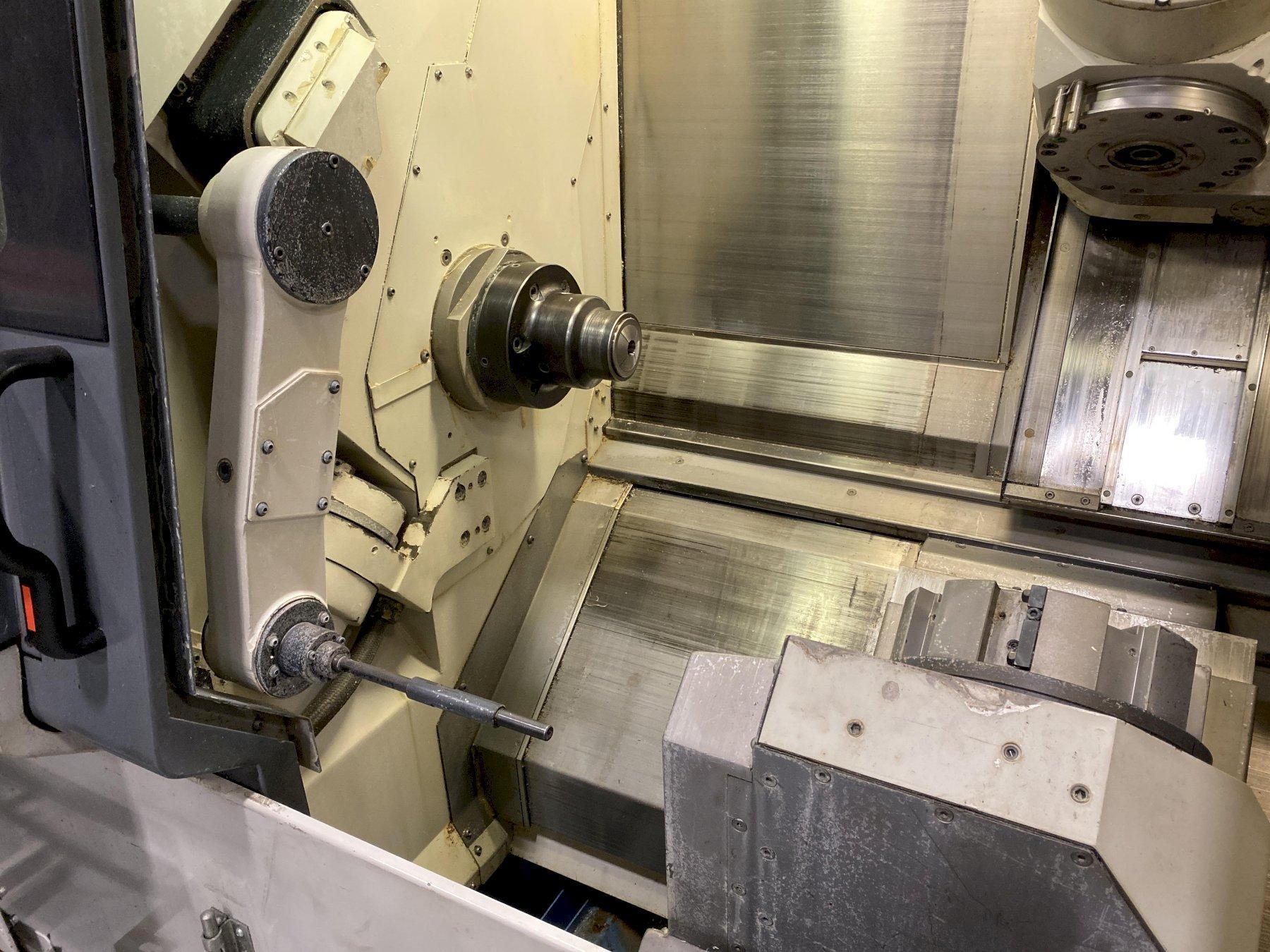

Tool Presetter | Parts Catcher
Excellent Condition

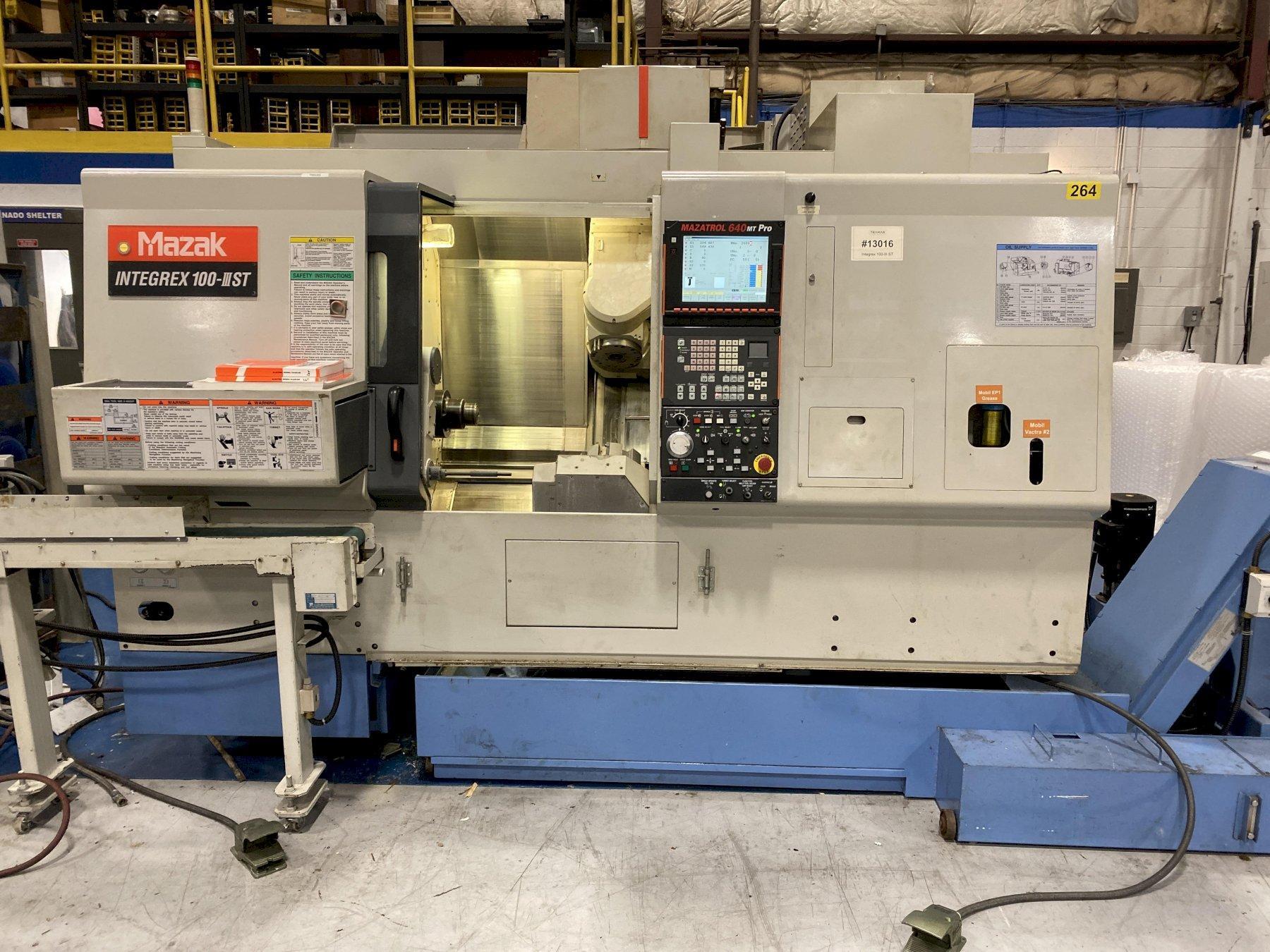

2004 MAZAK Integrex 100-III ST - CNC Horizontal Lathe

Equipped With:

- Mazatrol 640 MT Pro control

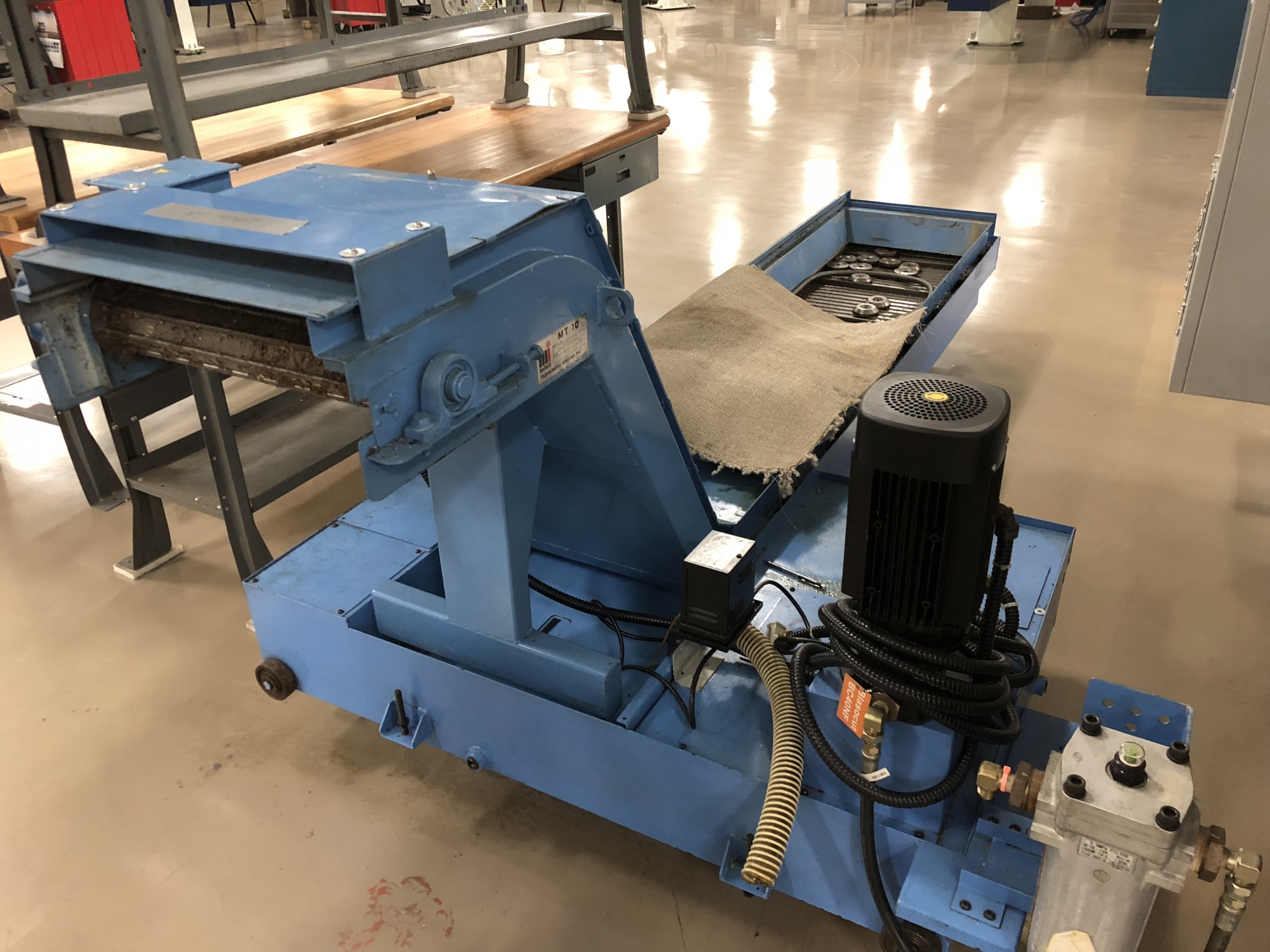

- Chip Conveyor

- Coolant Tank

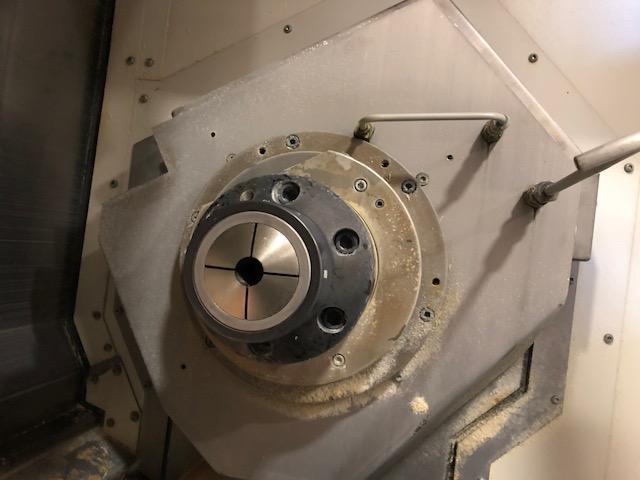

- Collet Chuck Main & Sub

- Tool Presetter

- Parts Catcher

*** Video - Click Here ***

Machine Videos

Machine Specifications

Inch

Metric

Machine Specifications:

CNC Control

yes

# Axis

Control Type

Mazatrol 640 MT Pro

Swing

18.5"

Turning Diameter

18.5"

Center Distance

28.9"

Chuck Size

Collet

Bar Capacity

X Axis Travel

14.17"

Y-Axis Travel

+/- 2.36"

Z Axis Travel

30.87"

W Axis Travel

31.3"

X-Axis Travel Lower Turret

8.66"

Z-Axis Travel Lower Turret

30.71"

B Axis Head Tilt

225°

C Axis Index

0.001°

Rapid Traverse (X/Z)

1,299 ipm

Spindle Nose

A2-5

Spindle Speed (RPM)

6,000

Spindle Motor

Live Tooling

yes

Live Tooling Speed

12,000 rpm

Live Tooling Motor

7.5 hp

Tailstock

Y Axis

yes

Sub Spindle

yes

Sub Spindle Speed

6,000 rpm

Automatic Tool Changer Capacity

40 Stations

Lower Turret Stations

9 Stations

Dimensions

121" x 84" x 97"

Weight

16,500 pounds

Equipped With:

- Mazatrol 640 MT Pro control

- Chip Conveyor

- Coolant Tank

- Collet Chuck Main & Sub

- Tool Presetter

- Parts Catcher

*** Video - Click Here ***

The Mazak Integrex 100-III ST is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
