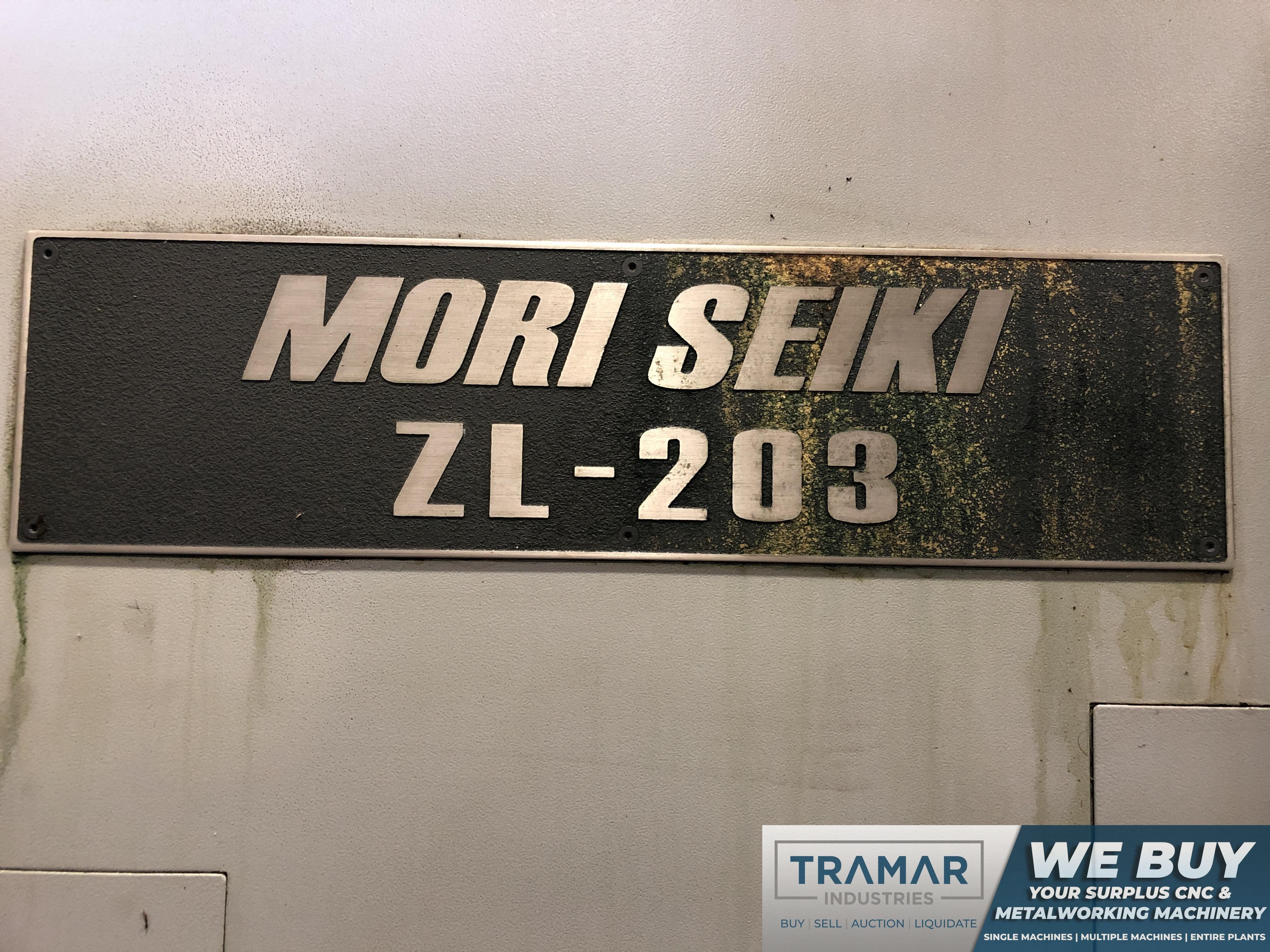

Mori Seiki ZL-203SMC - Horizontal Lathes

Share Machine
Specifications Print Specs
Model: ZL-203SMC
Year: 2003
Stock #: 13257 Sold
Highlights:

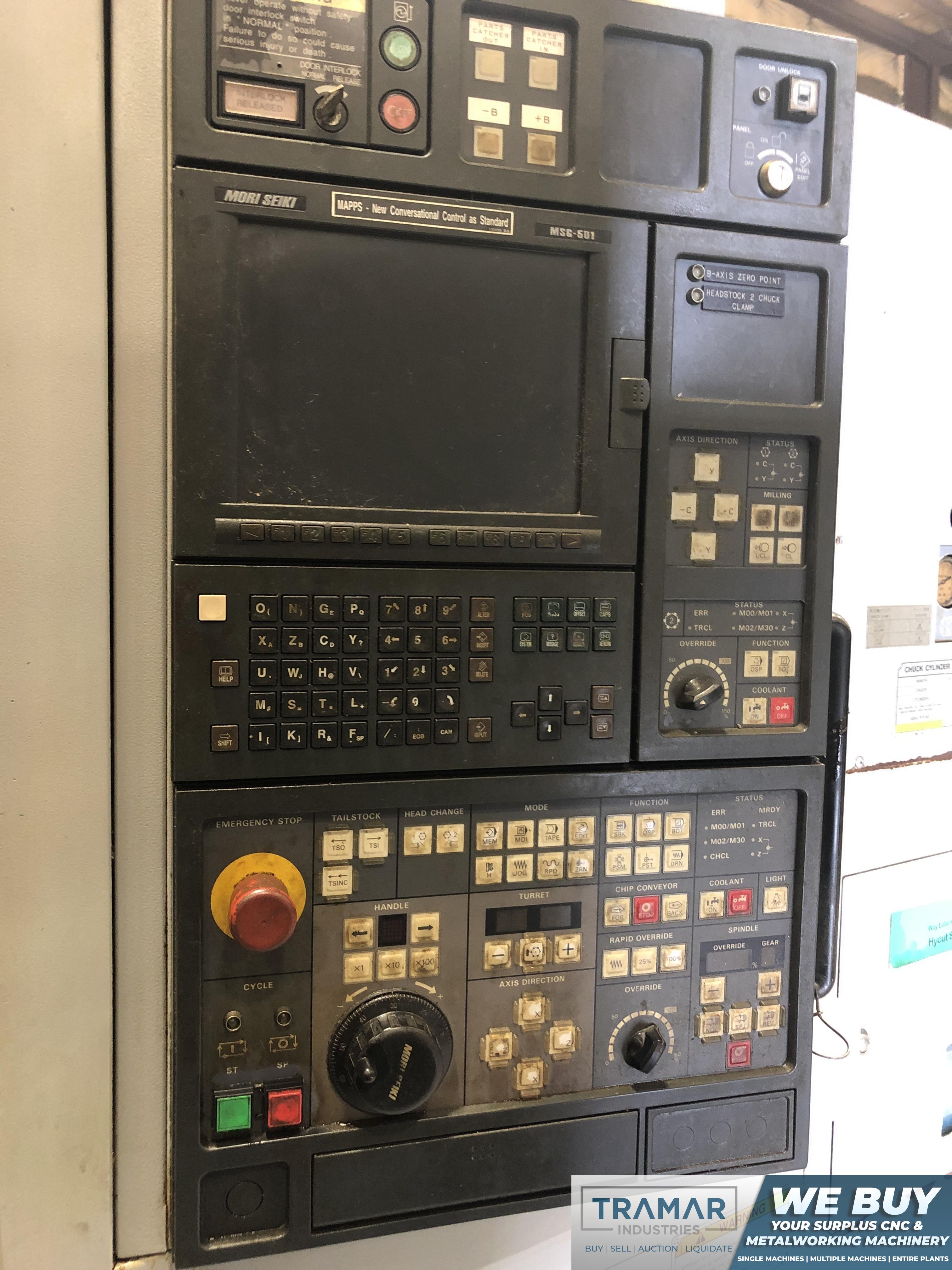

MSG 501 Control
Main & Sub Spindle
Upper & Lower Turrets
Live Tooling
LNS Bar Feeder

2004 MORI SEIKI ZL-203SMC - CNC Horizontal Lathe
Machine Specifications
Year
2003
Control Type
MSG-501
Swing
26.8"
Turning Diameter
15.3"
Bar Capacity
2.3"
X Axis Travel
9.3"
Z Axis Travel
19.3"
Spindle Speed (RPM)
4,000
Main Motor
15 HP
Tailstock
no
Y Axis
no
Dimensions
157" x 85" x 83"
Weight
14,000 pounds
Live Tooling
yes
Sub Spindle
yes
# Axis
7

Equipped With:

- MSG 501 Control

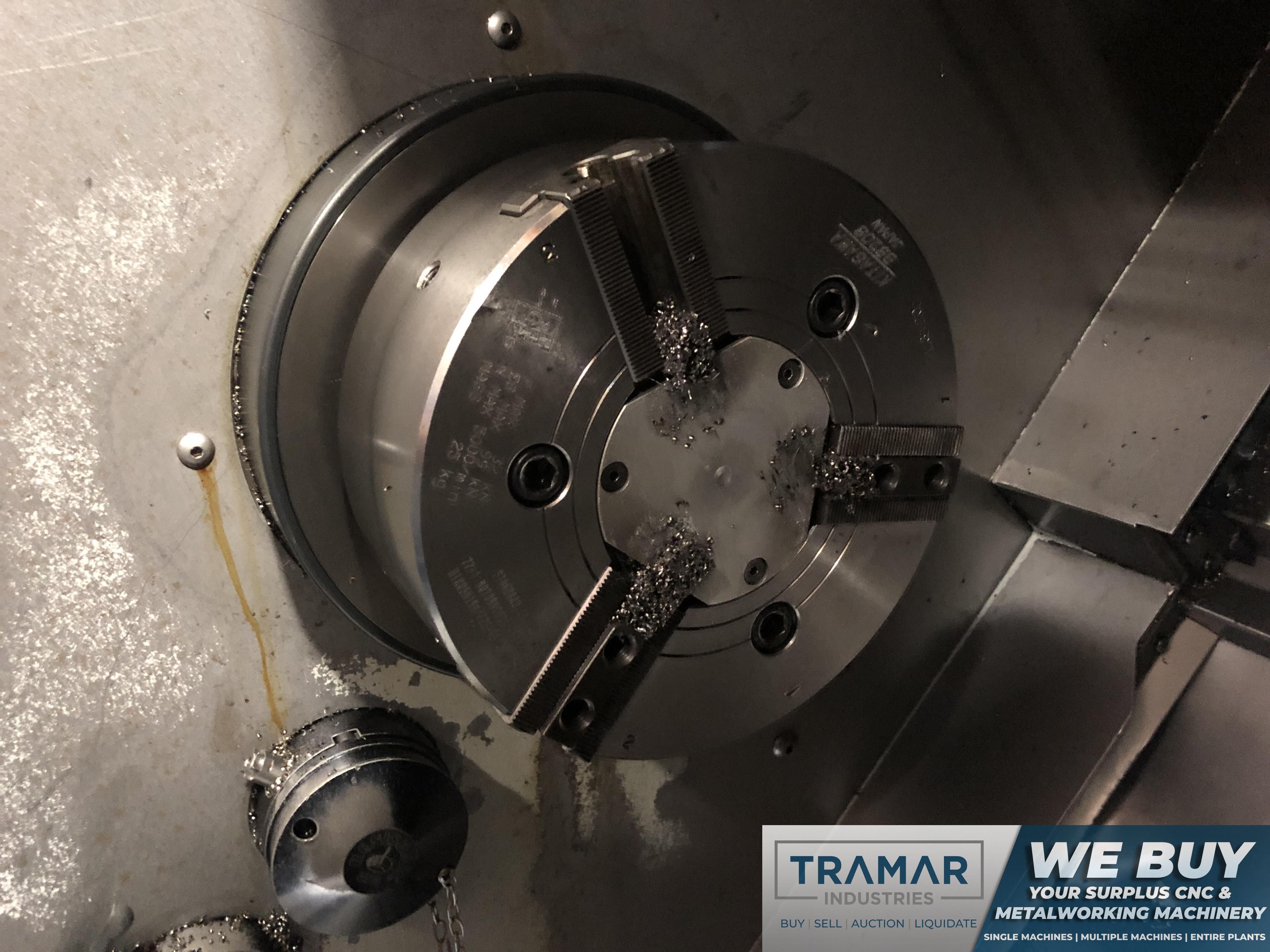

- Collet Chuck on Main Spindle & Sub Spindle
- Coolant Tank
- Chip Conveyor
- Live Tooling
- Full C axis on Main & Sub Spindle

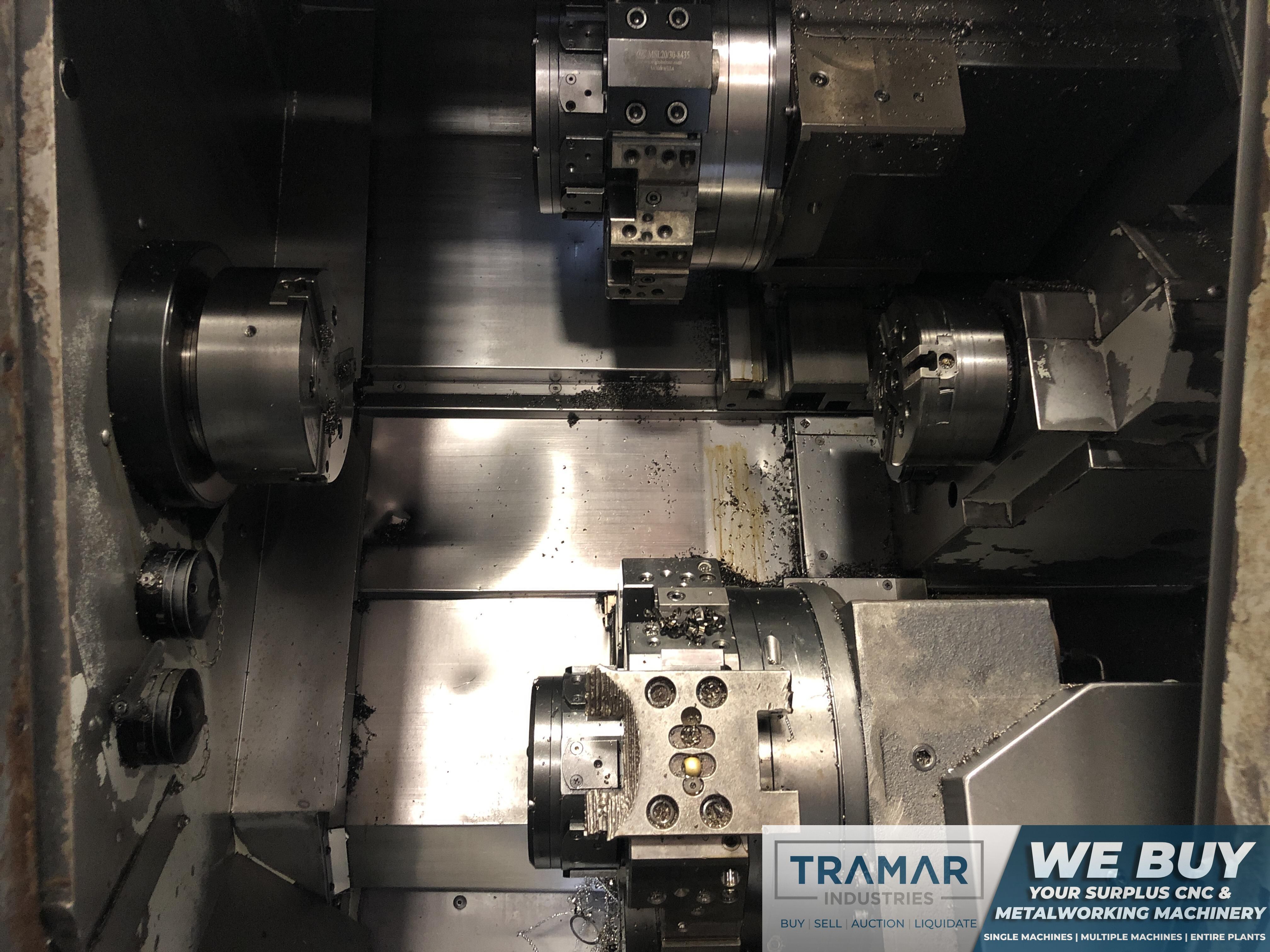

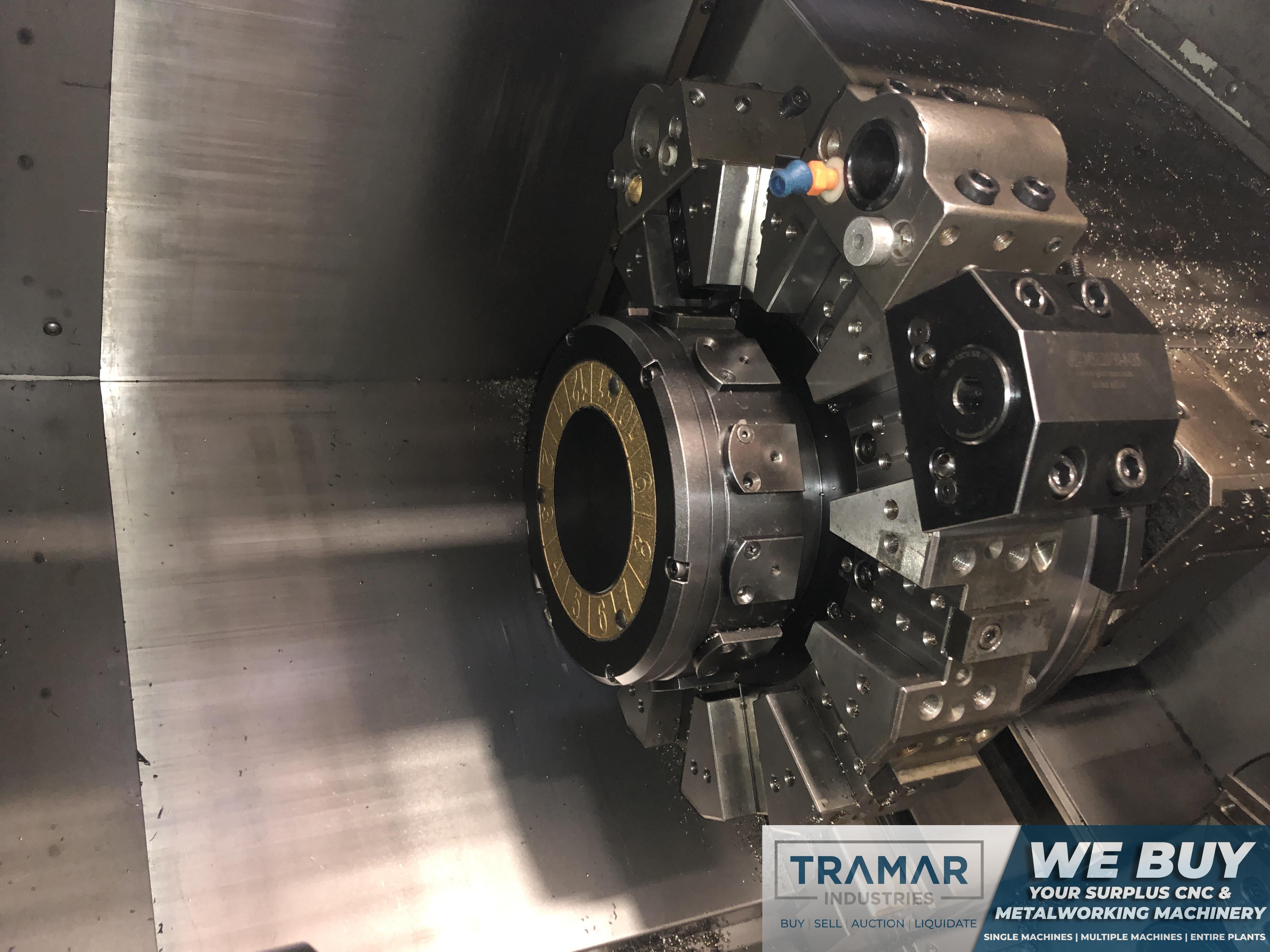

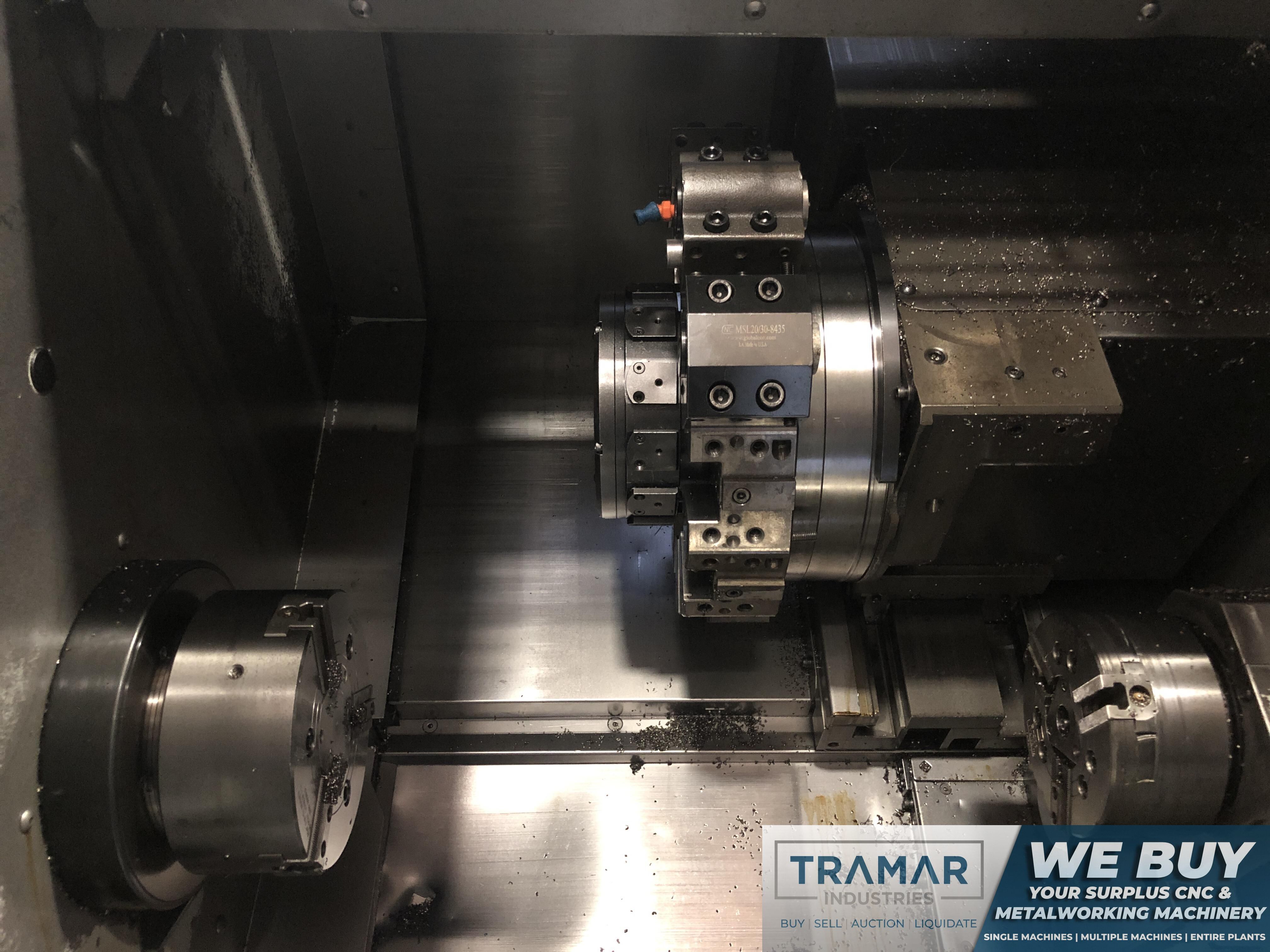

- Upper & Lower Turret
- Bar Feeder (LNS)


C Axis Index 0.001°
Live Tooling Yes
Live Tooling Motor 6 HP
Live Tooling Speed 3500 RPM
Spindle Nose A2-6

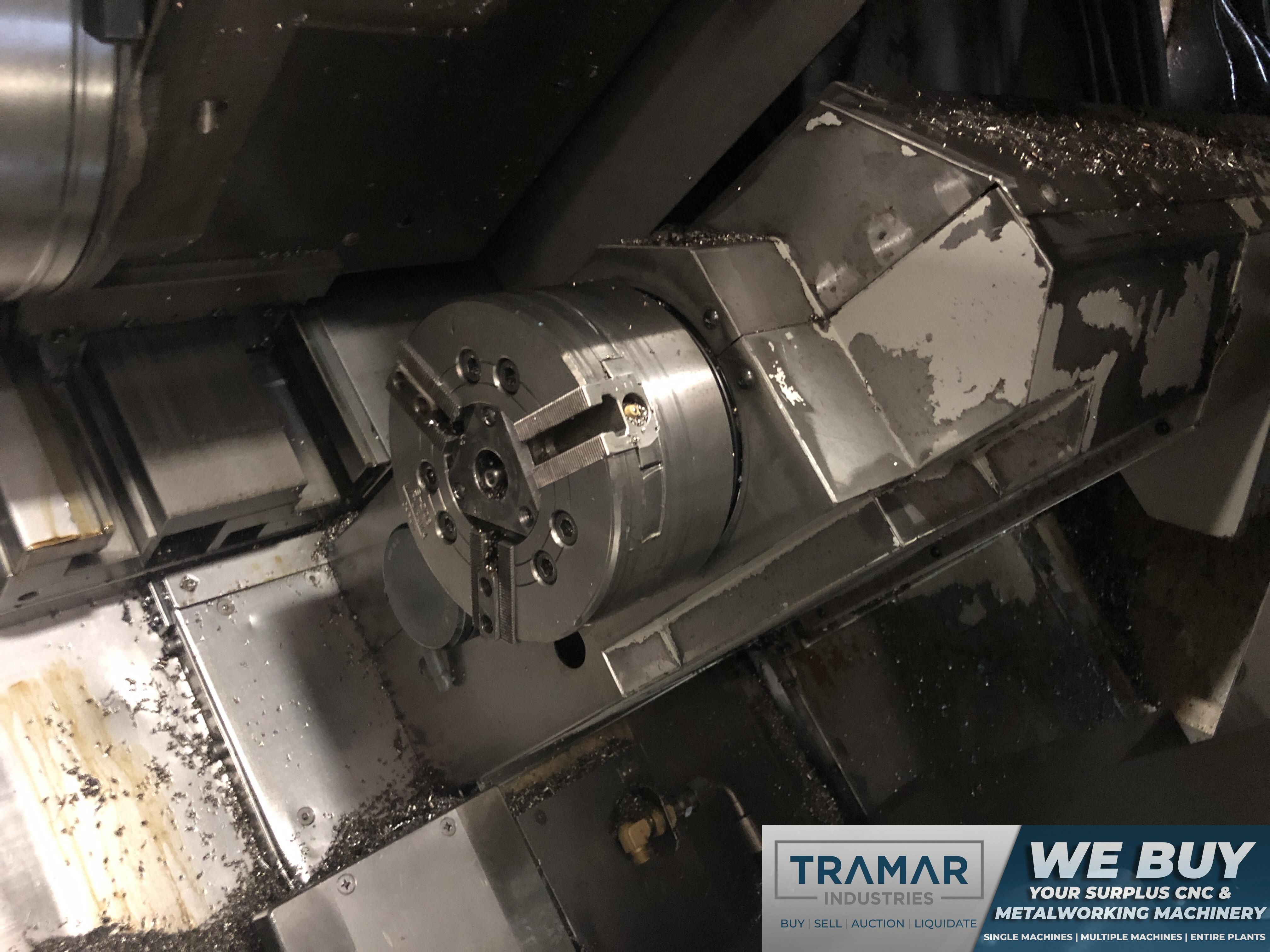

Sub Spindle Collet
Sub Spindle Speed 6000 RPM
Swing over Cross Slide 20.1"
Travel (B) 21.9"
Travel (X) Lower Turret 6.9"
Travel (Z) Lower Turret 19.3"
Turret Stations 12 (Upper) + 8 (Lower)

The Mori Seiki ZL-203SMC is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
