Mazak QTN-300M - Horizontal Lathes

Share Machine
Specifications Print Specs
Model: QTN-300M
Year: 2005
Stock #: 13213 Sold
Highlights:
Mazatrol Fusion 640T

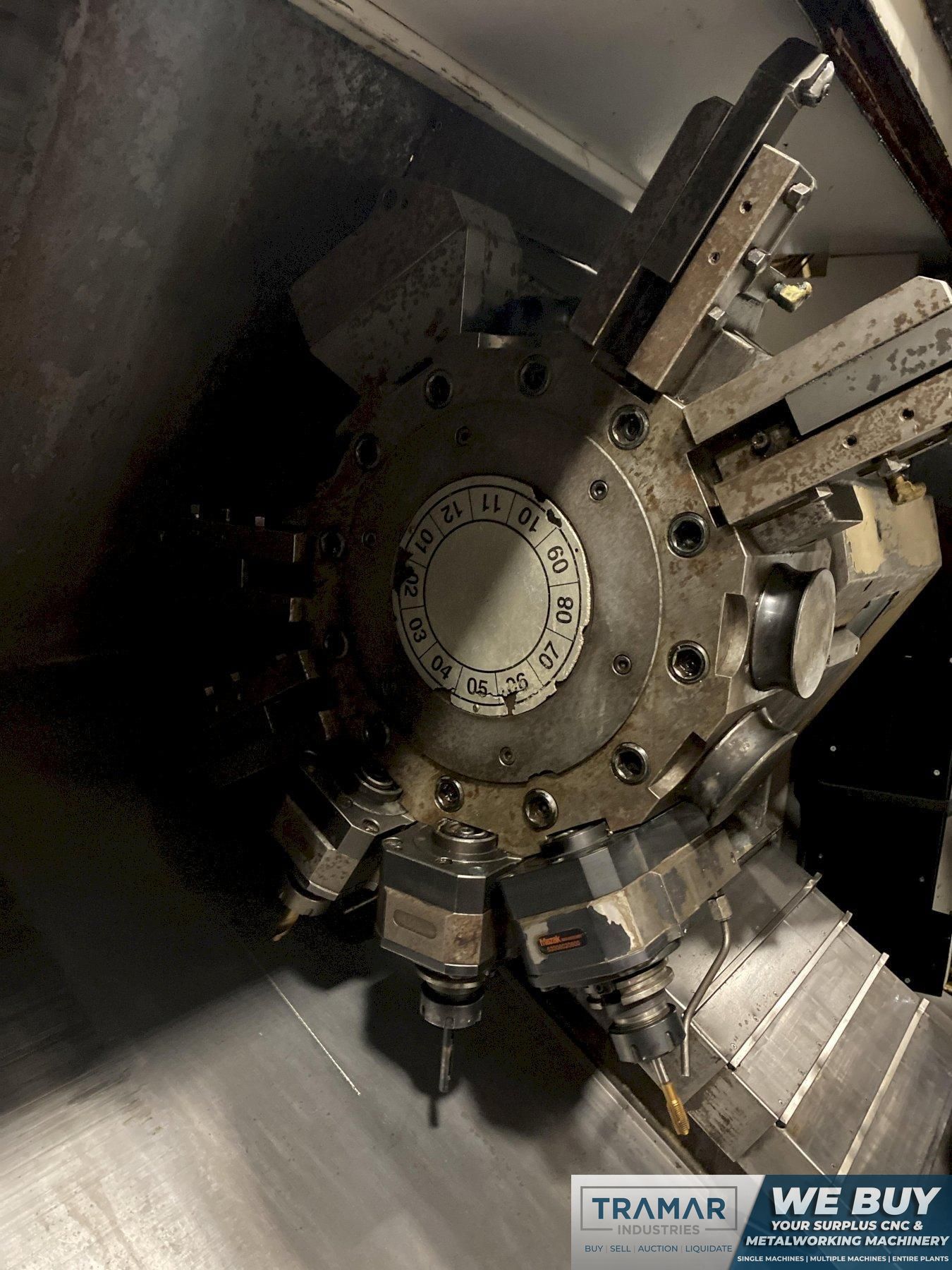

Live Tooling

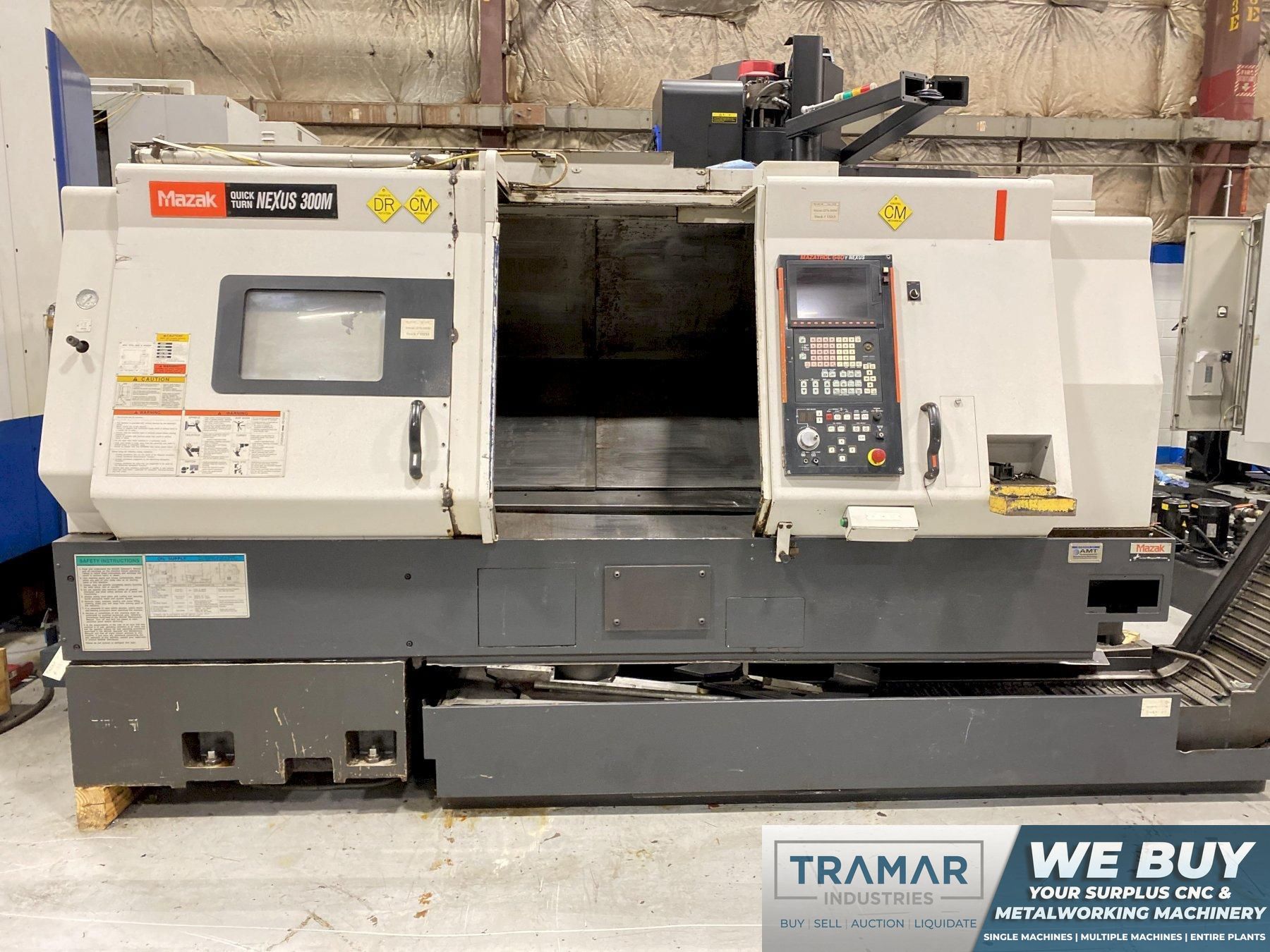

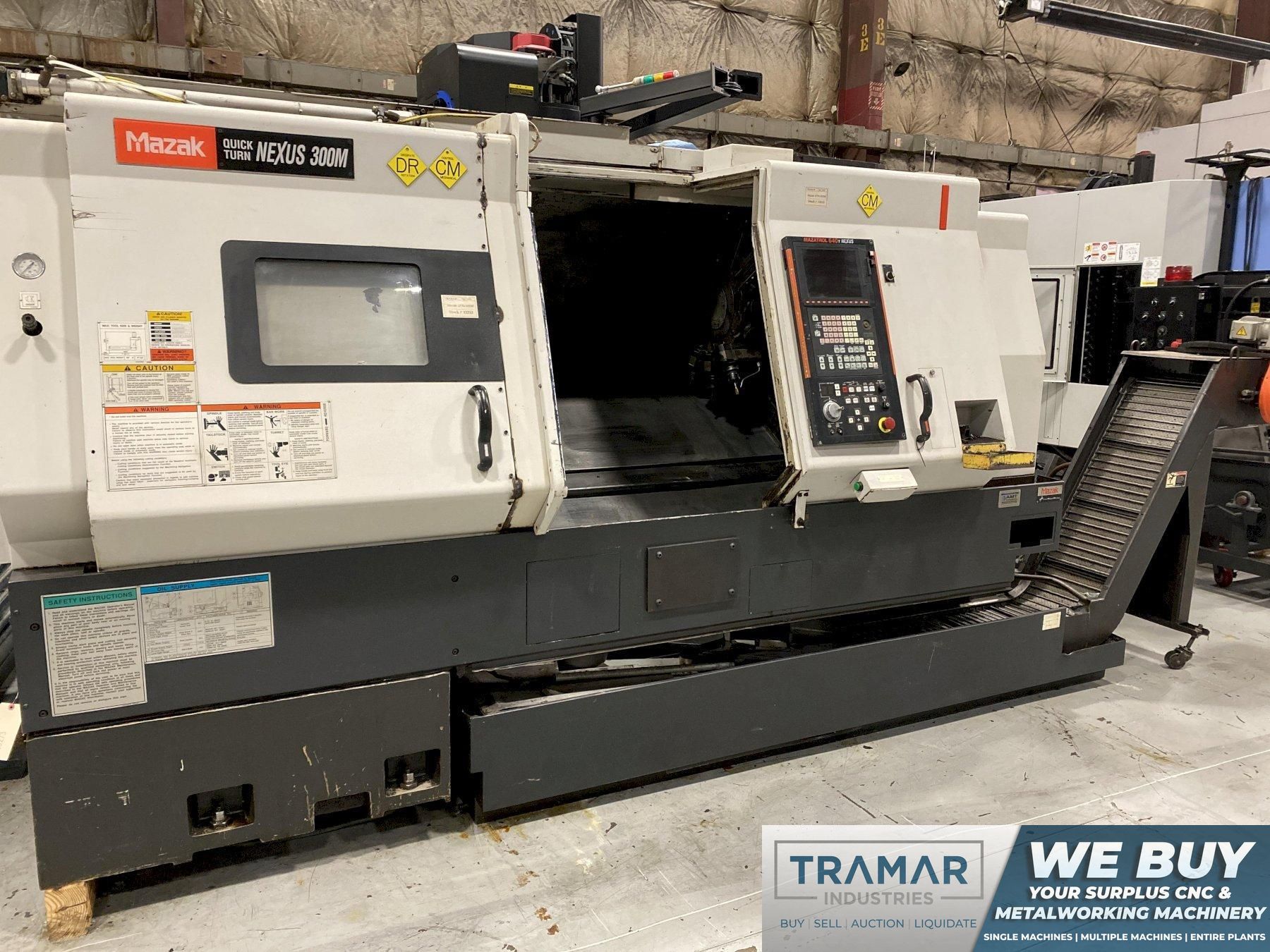

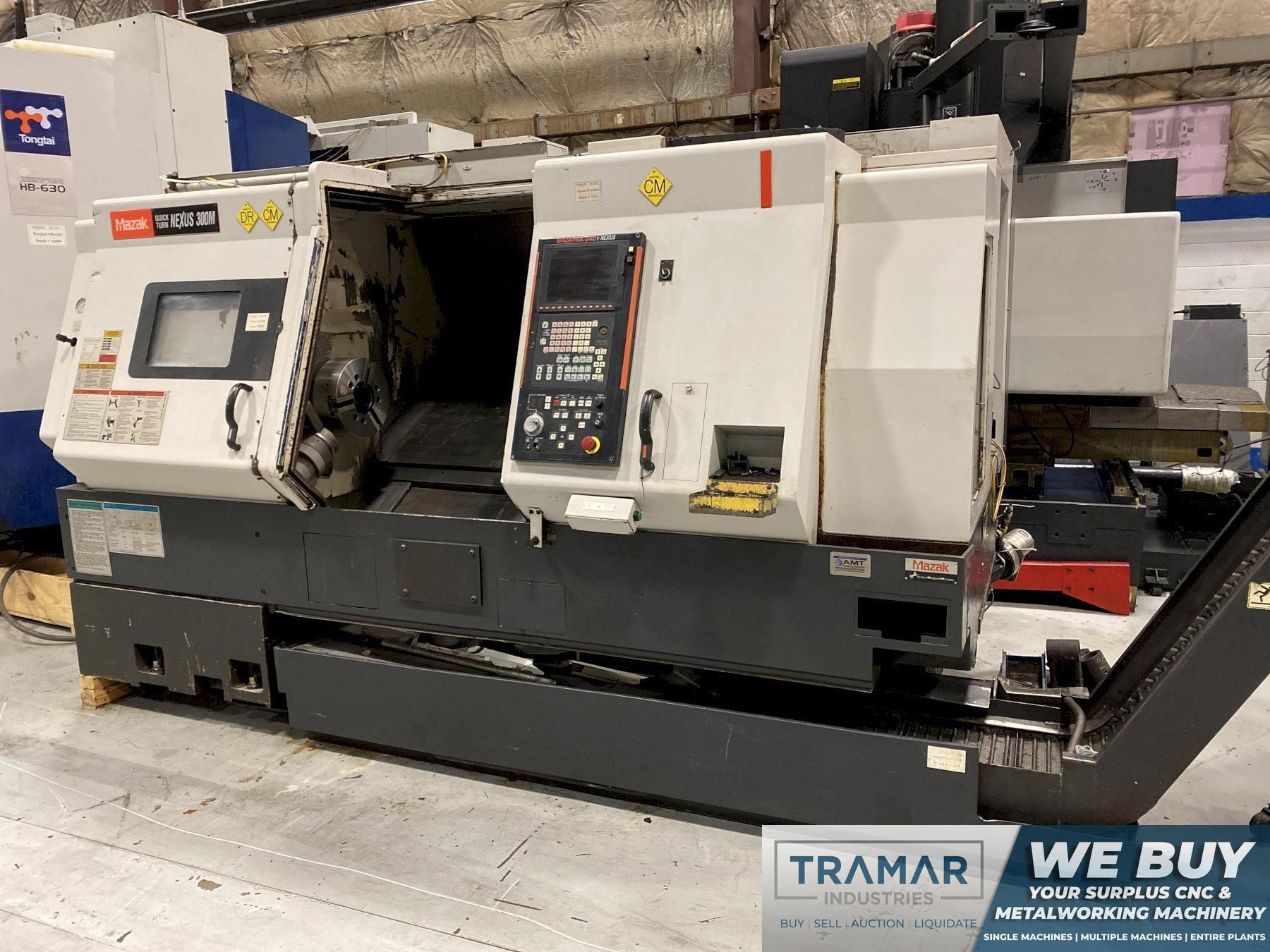

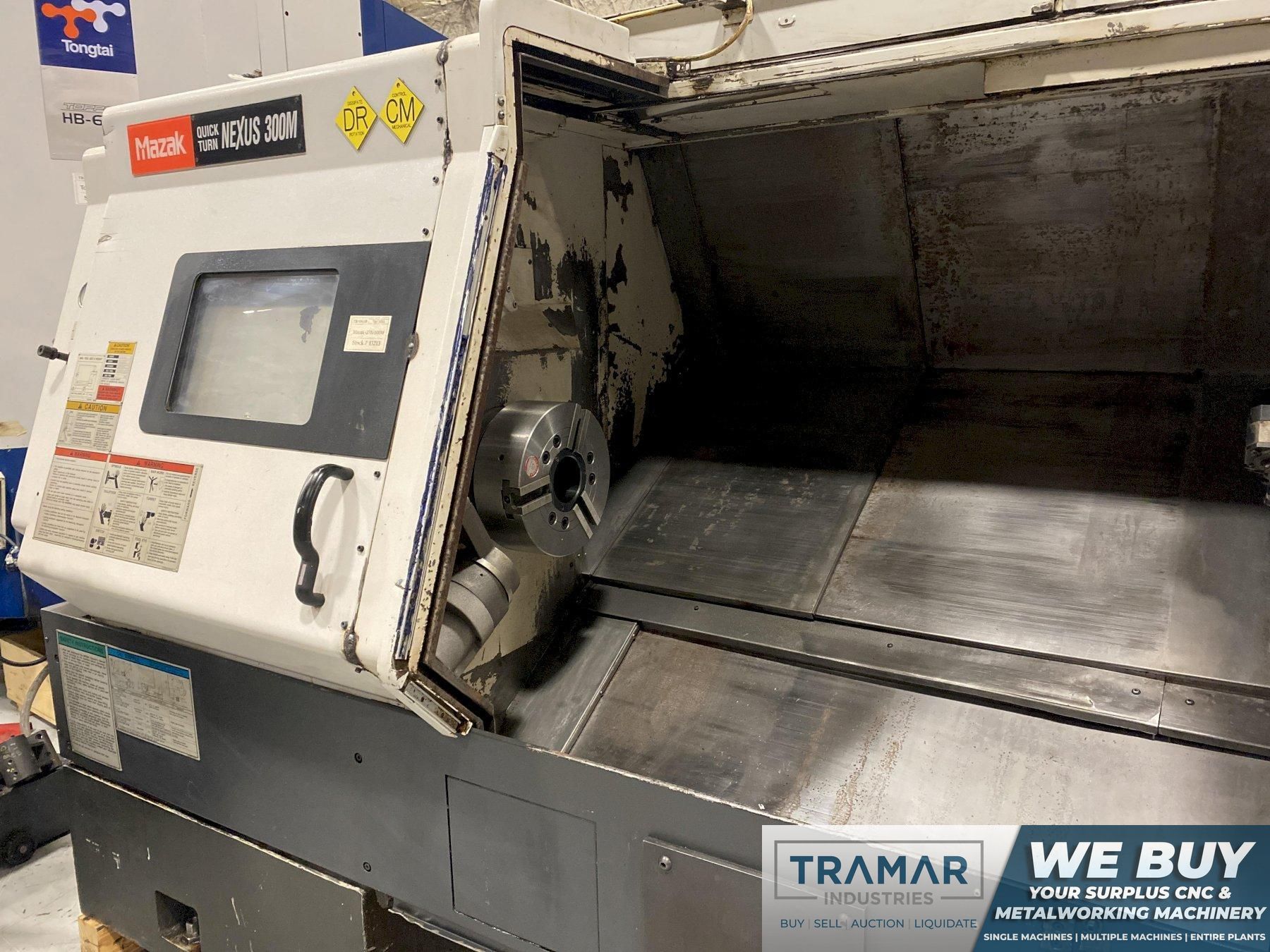

2005 Mazak QTN-300M - CNC Horizontal Lathe
Machine Specifications
Year
2005
# Axis
3
Control Type
Mazatrol 640T Nexus
Swing
29.5"
Turning Diameter
16.54"
Center Distance
50"

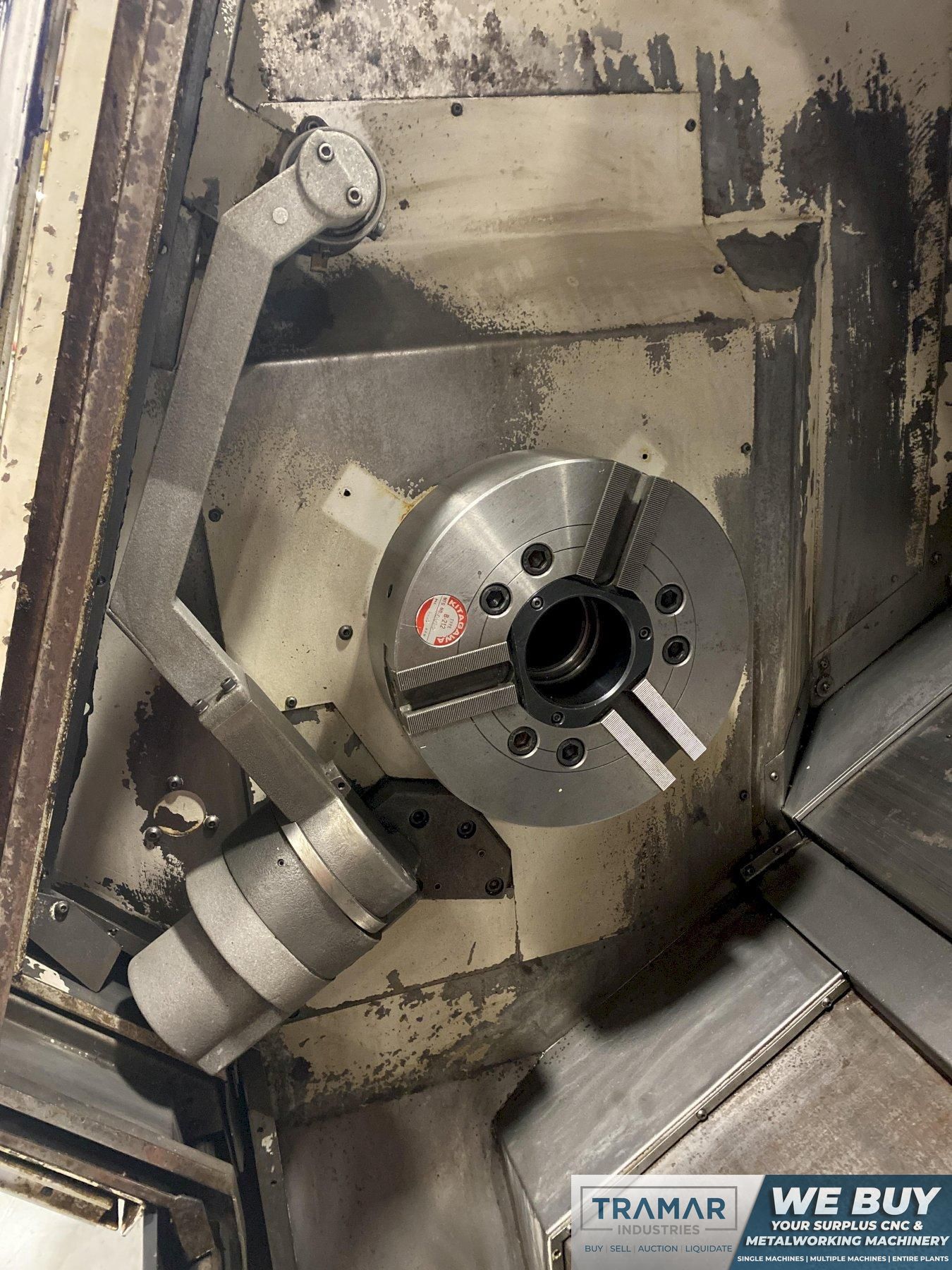

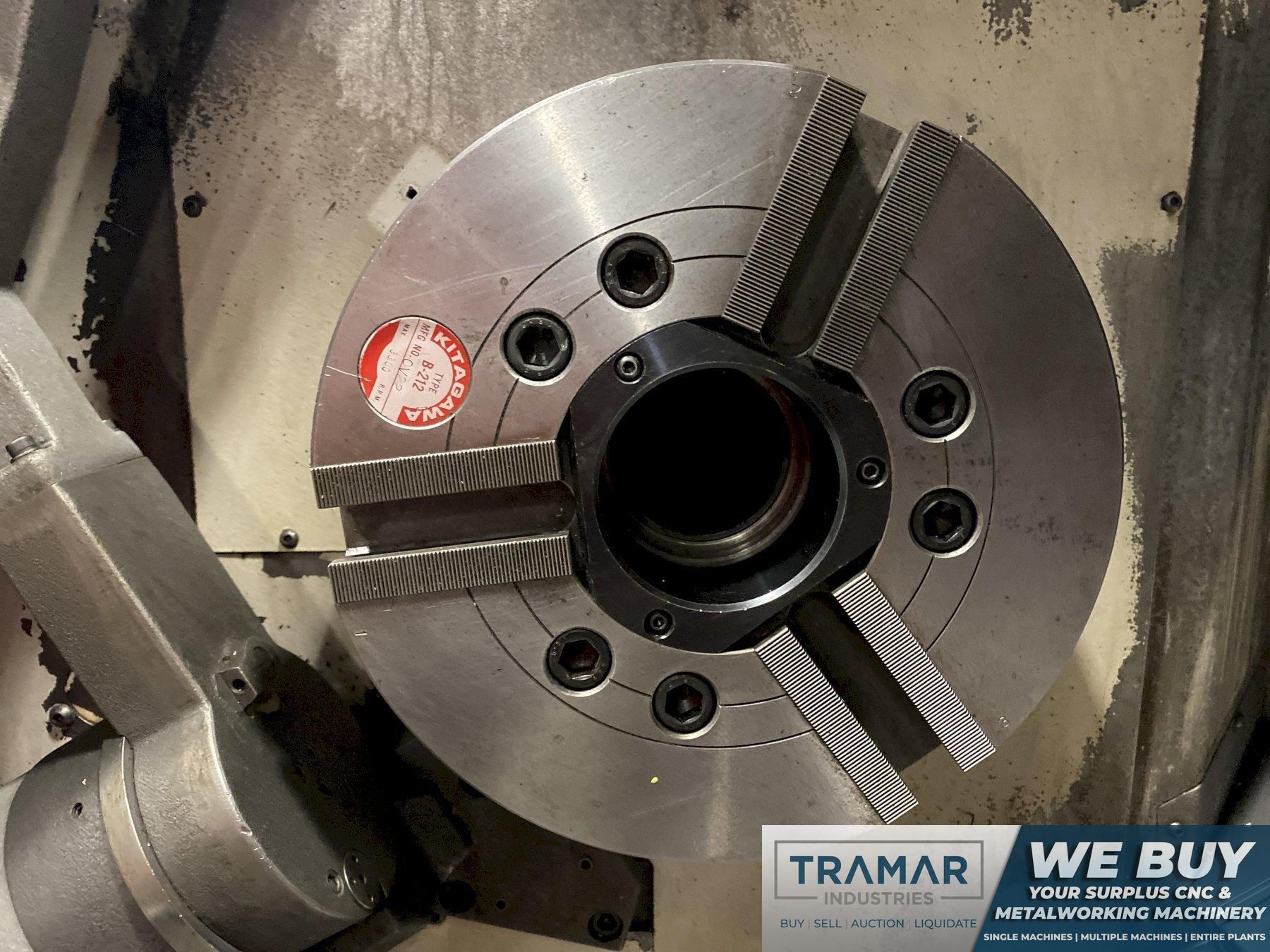

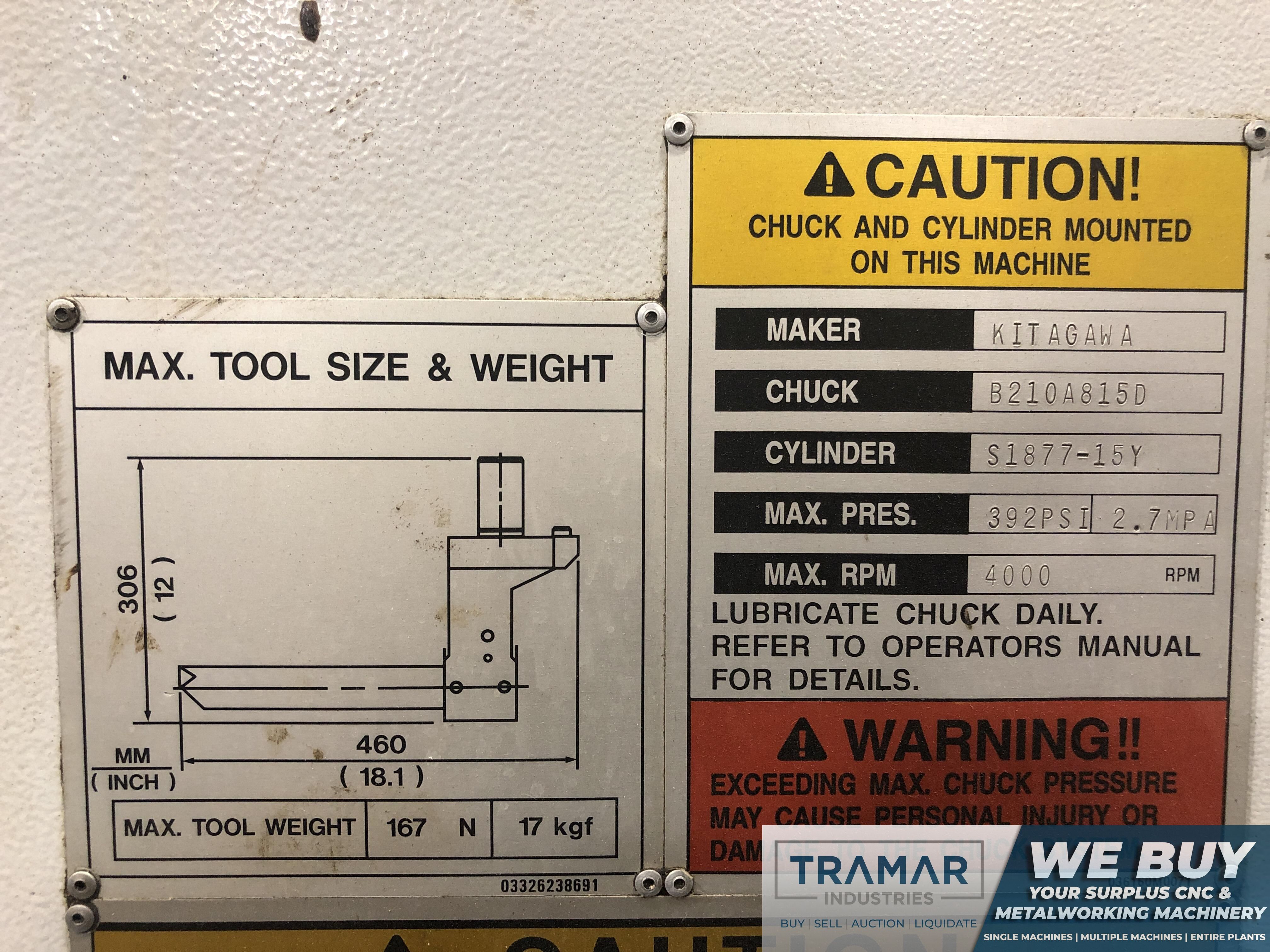

Chuck Size
10"
Bar Capacity
3"
X Axis Travel
10.13"
Z Axis Travel
53.25"
C Axis Index
0.001°
Spindle Speed (RPM)
4,000
Spindle Motor
35 HP
Turret Capacity
12
Tailstock
yes
Live Tooling
yes
Y Axis
no
Sub Spindle
no
Machine Dimensions
117" x 73" x 73"
Machine Weight
16,500 pounds

Equipped With:

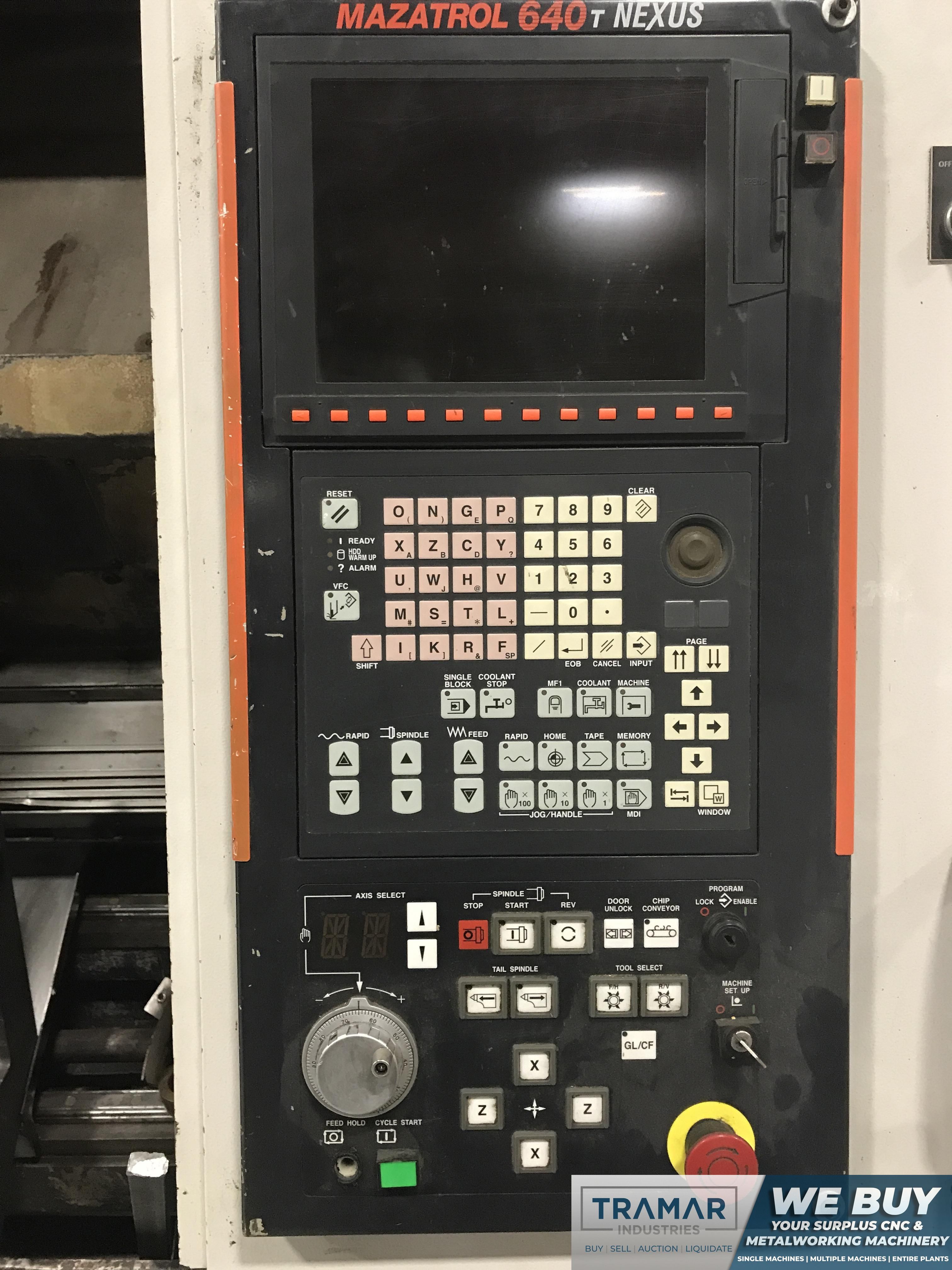

- Mazatrol 640T Nexus CNC Control
- Live Tooling
- Conversational Programming
- Coolant Tank & Pump
- Chip Conveyor
- Auto Tool Length Measurement
- (2) USB Ports
- Available Manuals

The Mazak QTN-300M is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
