Mori Seiki NL2500MC/700 - Horizontal Lathes

Share Machine
Specifications Print Specs
Model: NL2500MC/700
Year: 2005
Stock #: 13048 Sold
Highlights:
MSX-850 CNC Control
Live Tooling
Tool Presetter

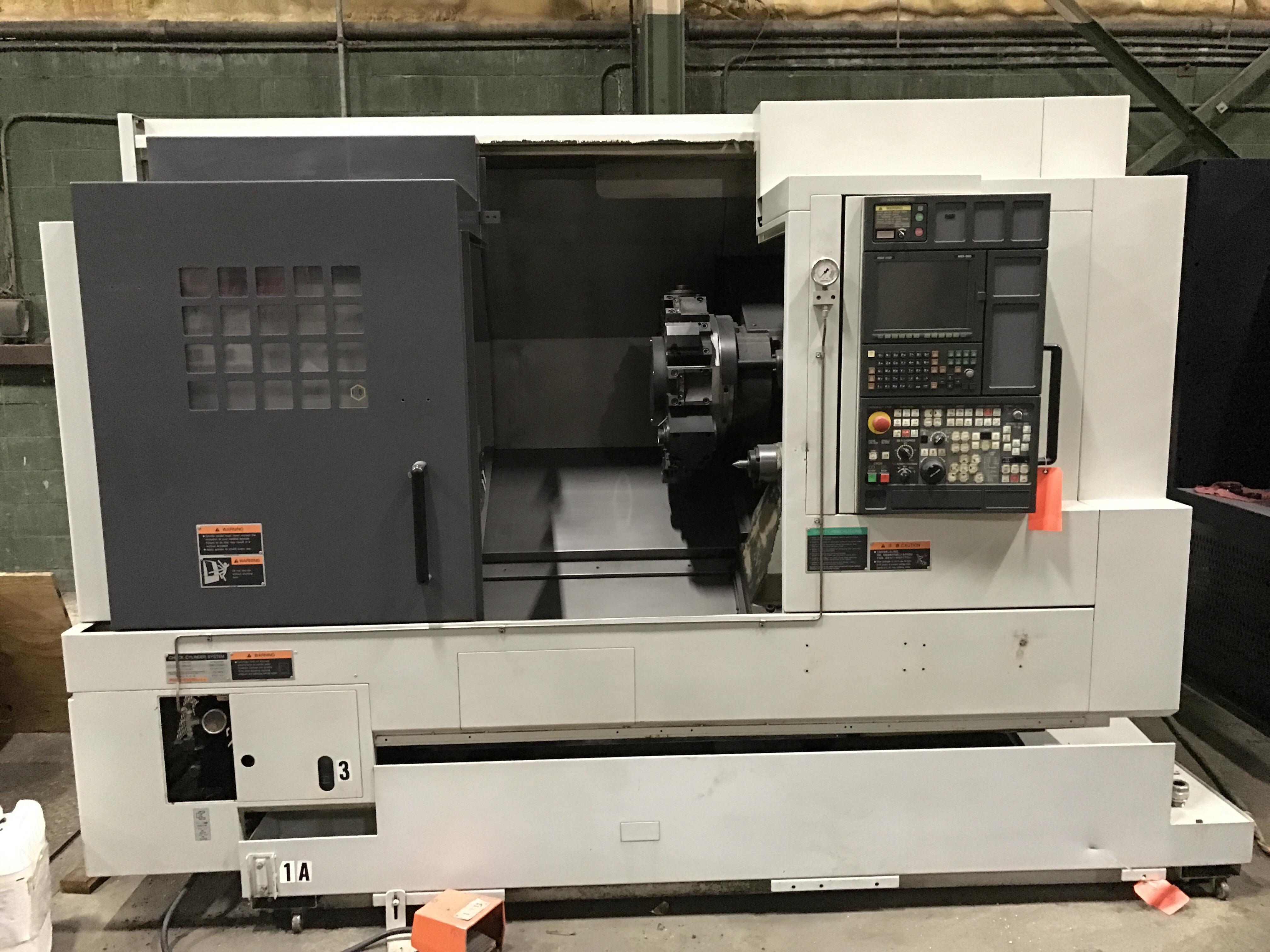

2005 MORI SEIKI NL2500MC/700 - CNC Horizontal Lathe
Machine Specifications
Year
2005
Control Type
Mitsubishi MSX-850
# Axis
3
Swing
36.4"
Turning Diameter
14"
Center Distance
31"
Chuck Size
10"
Bar Capacity
3.1"
X Axis Travel
10.2"
Z Axis Travel
31"
Rapid Traverse (X/Z)
1,181 ipm
Spindle Speed (RPM)
4,000
Main Motor
20 hp
Live Tooling
yes
Live Tooling Speed
6,000 rpm
Live Tooling Motor
7.5 hp
Tailstock
yes
Y Axis
no
Sub Spindle
no

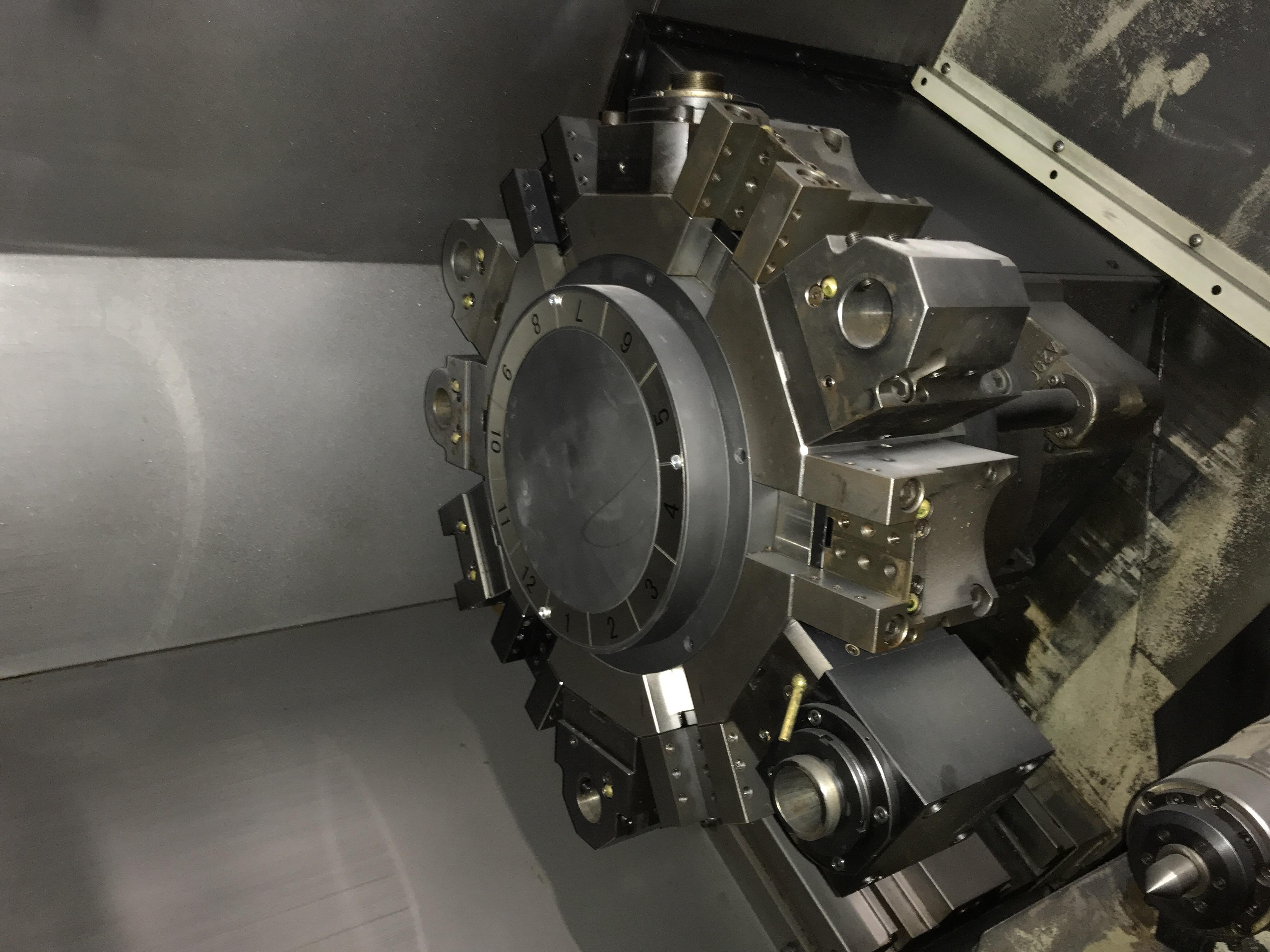

Turret Capacity
12
Dimensions
170" x 85" 88"
Weight
12,800 pounds

Equipped With:

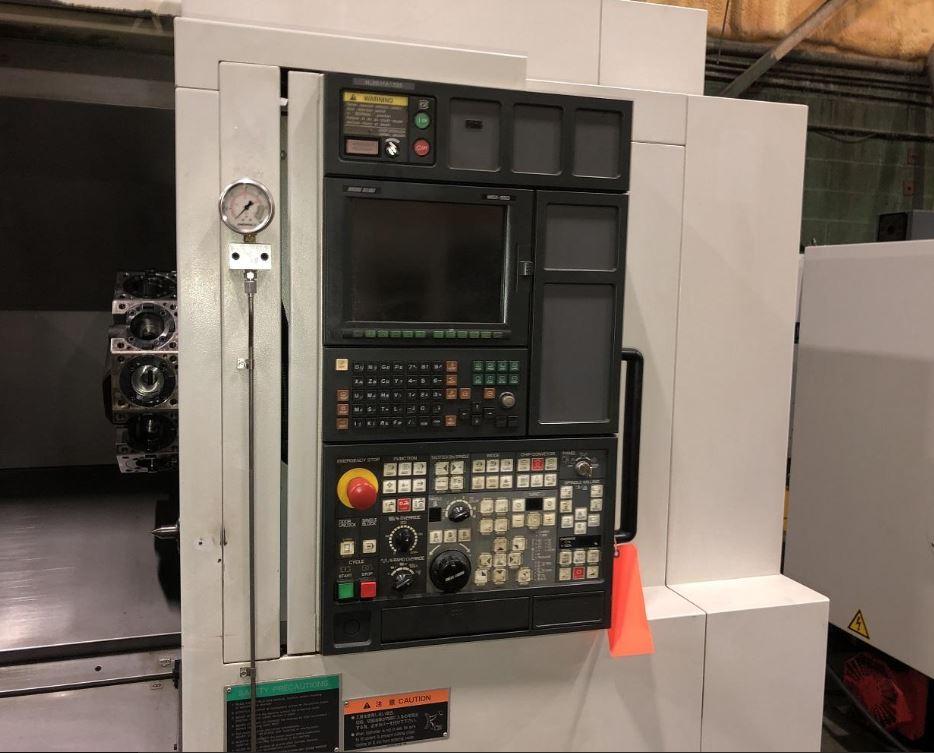

- MSX-850 CNC control
- Chip Conveyor
- Coolant Tank

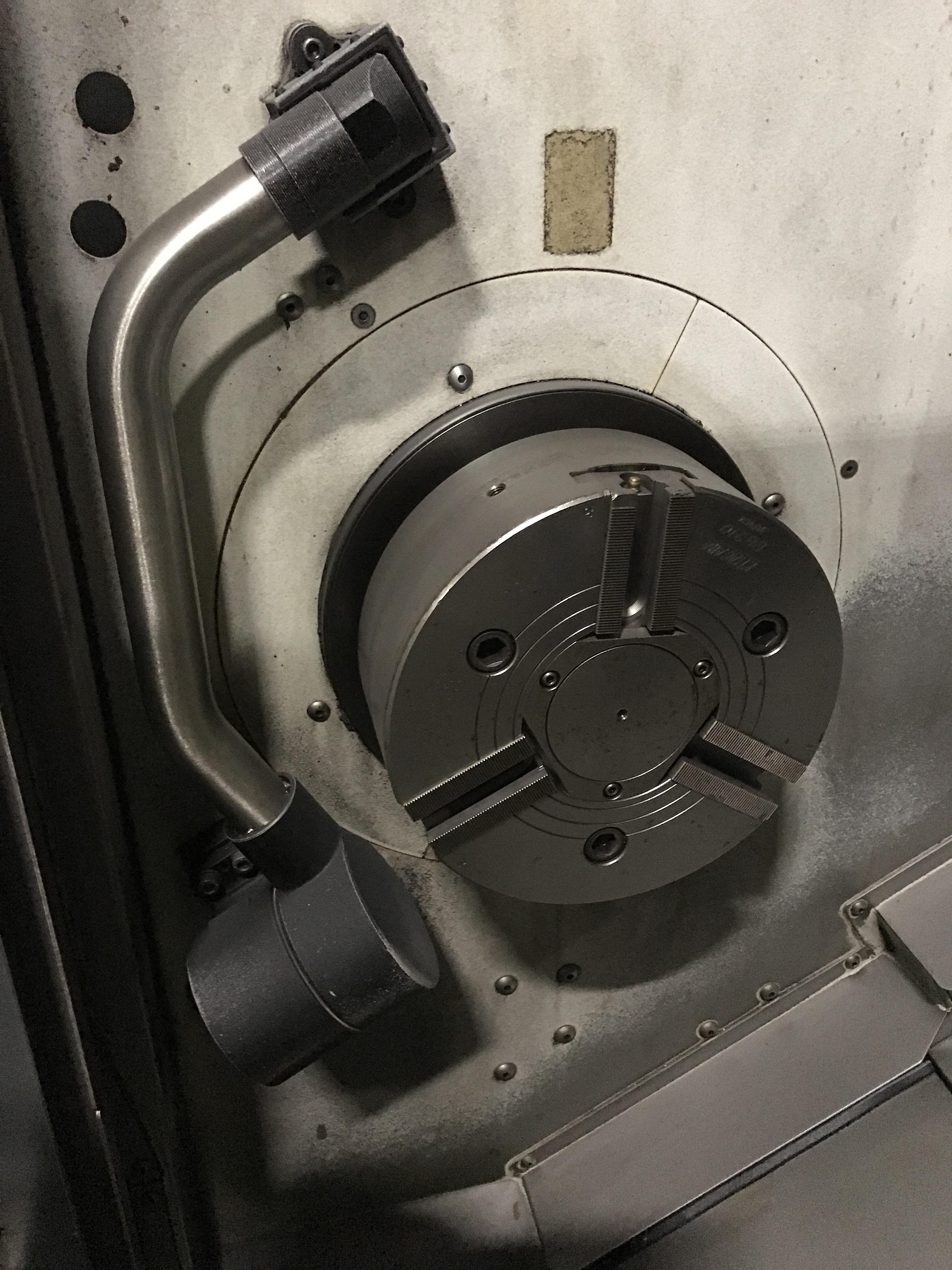

- 10" Hydraulic Chuck
- Tool Presetter
- Miscellaneous ID/OD Tooling
- Live Tooling
- Two (2) Live Holders




The Mori Seiki NL2500MC/700 is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
