Fadal VMC-6030 HT - Vertical Machining Centers

Share Machine
Specifications Print Specs
Model: VMC-6030 HT
Year: 2006
Stock #: 13646 Sold
Highlights:
2,006 Fadal VMC-6,030

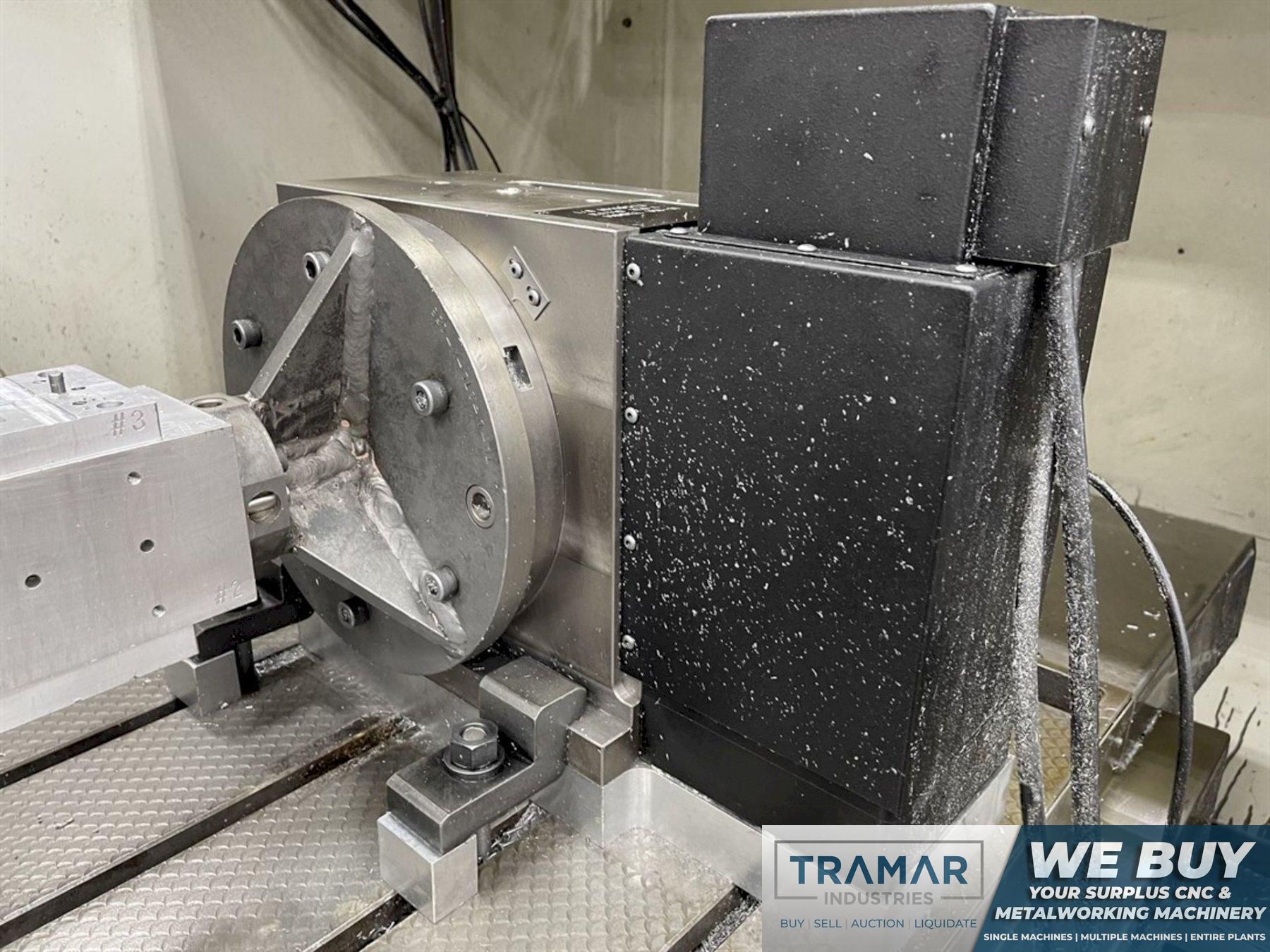

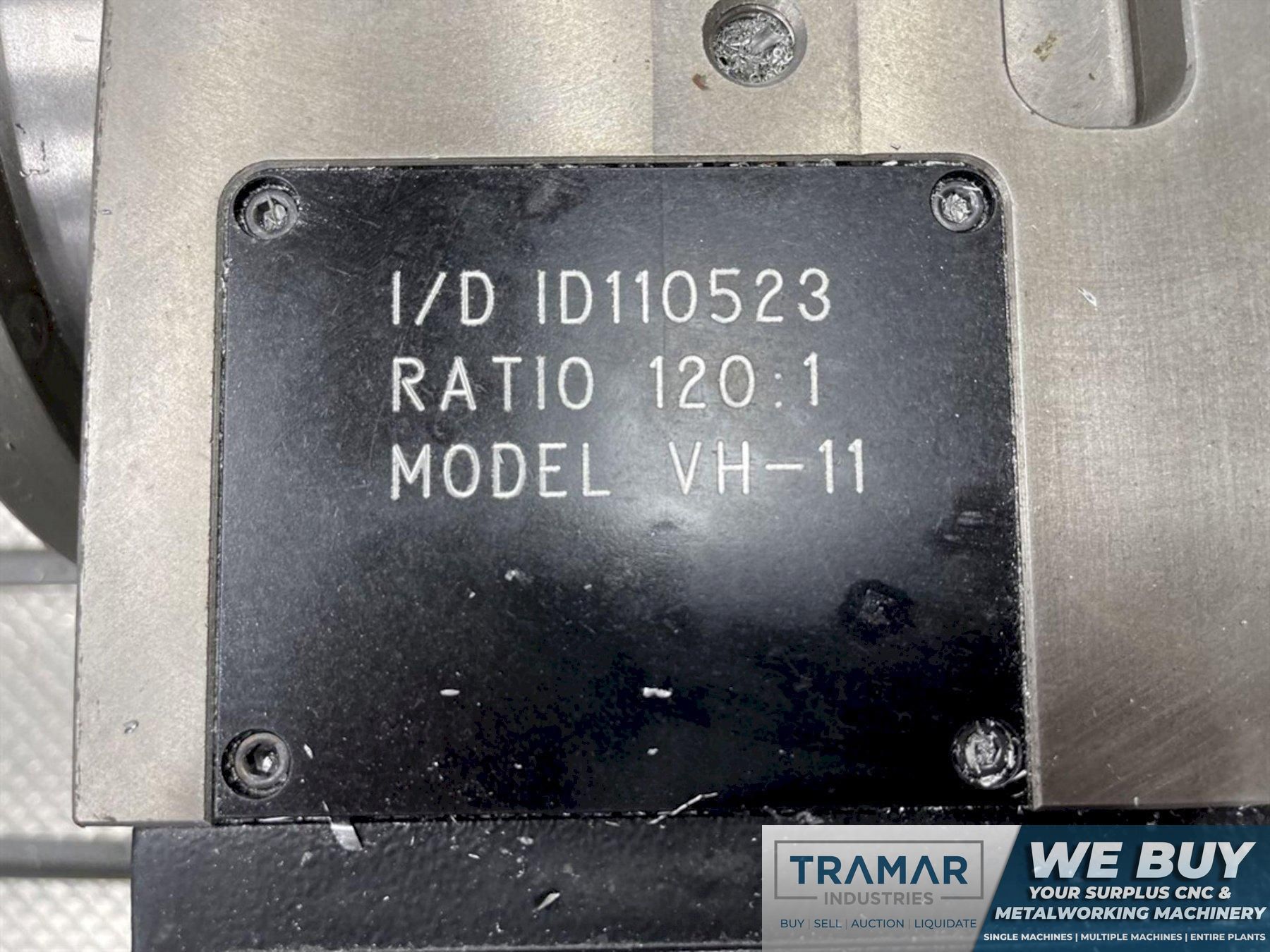

VH-11 Fadal Rotary Table
Chip Conveyor

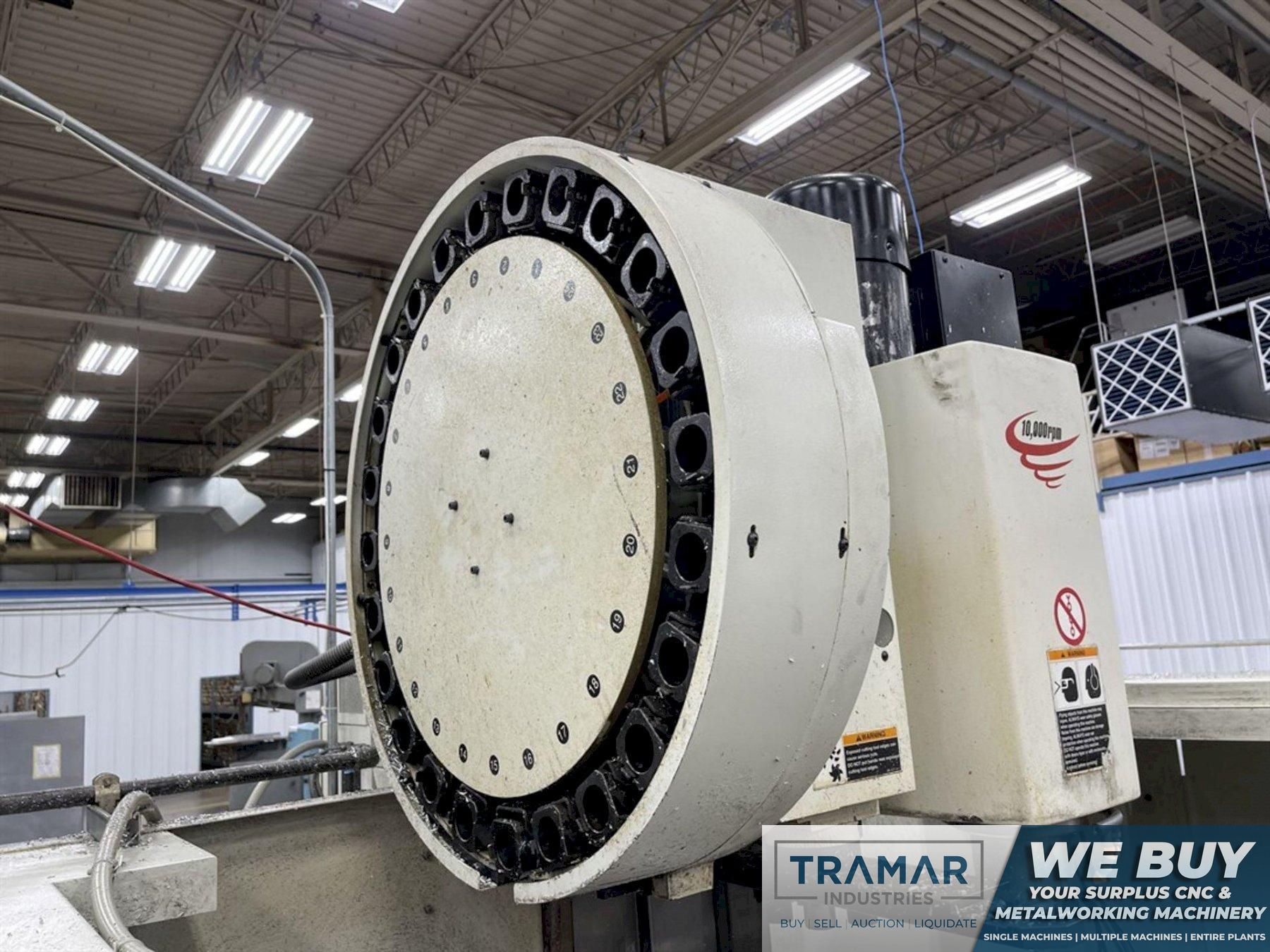

Side Mount ATC

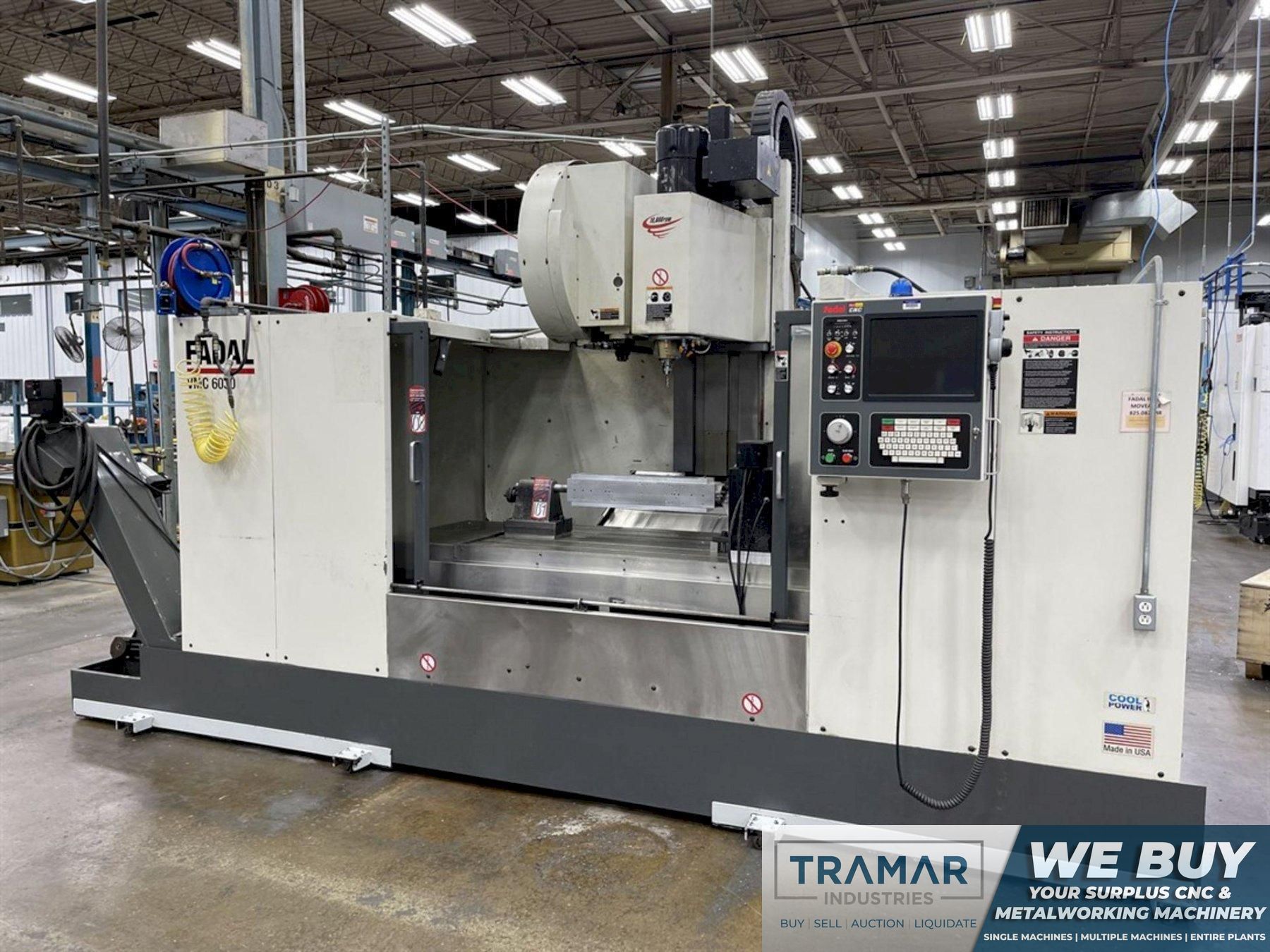

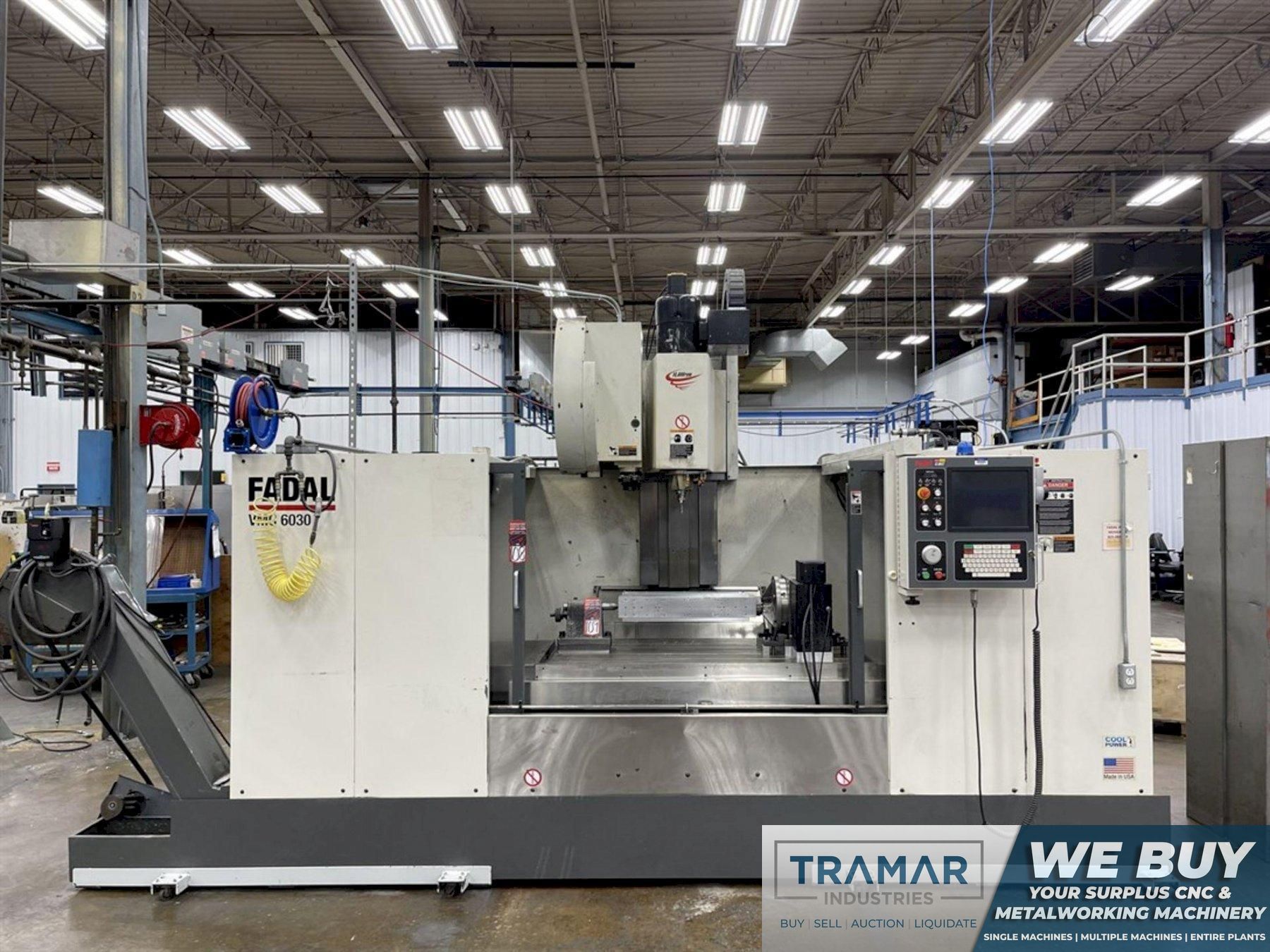

2006 FADAL VMC-6030HT - Vertical Machining Center
Machine Specifications

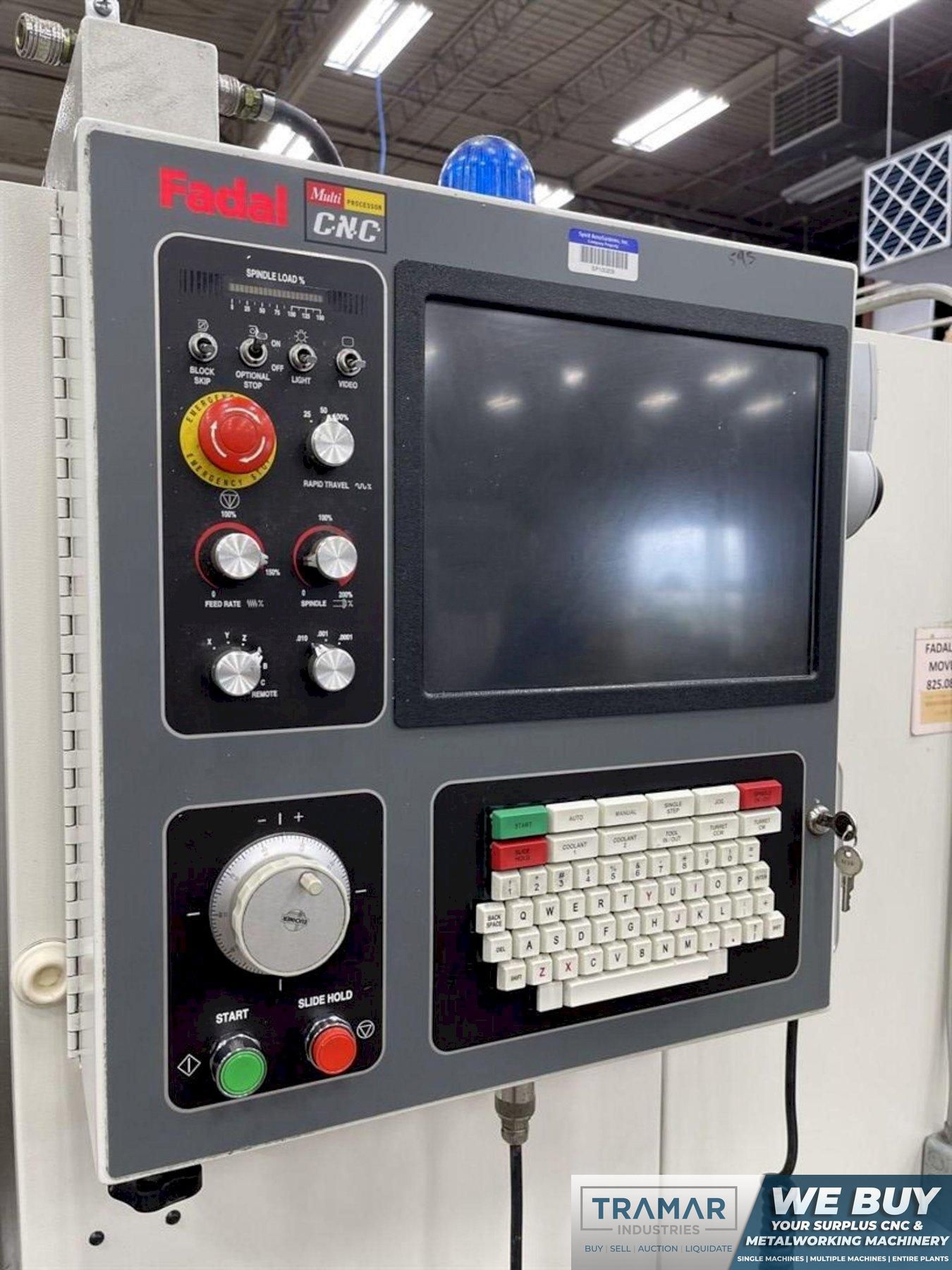

CNC Control
yes
Control Type
Fadal CNC Multiprocessor
# Axis
4
Table Size
60" x 30"
Table Capacity
3,300 pounds
X-Axis Travel
60"
Y-Axis Travel
30"
Z-Axis Travel
30"

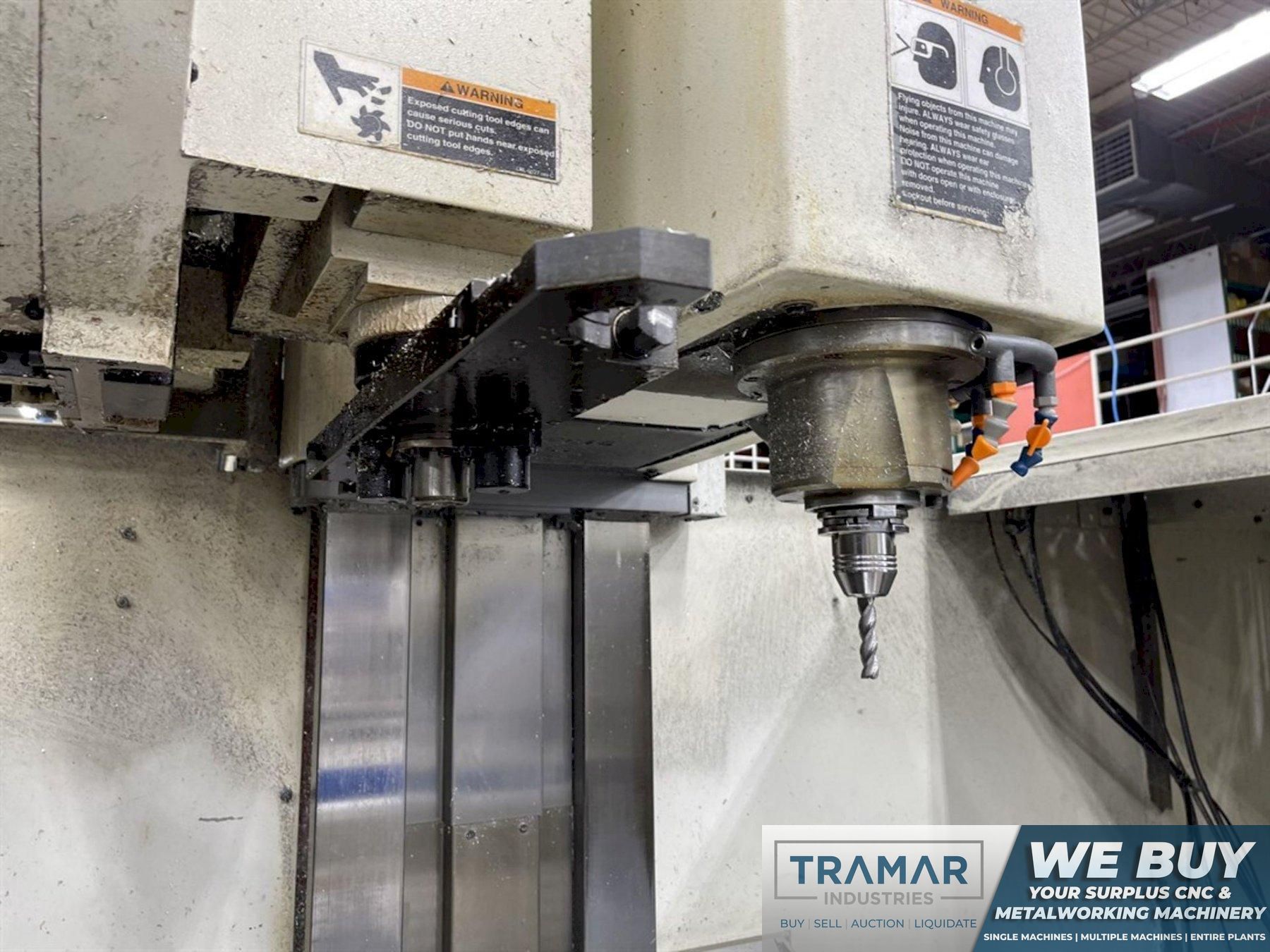

Spindle Taper
CAT 40
Spindle Speed
10,000 rpm
Main Motor
20 hp
Tool Changer Capacity
24
Coolant Thru Spindle
no
Machine Weight
20,000 pounds

Equipped With:

Fadal Multi Processor CNC Control VH-11 Fadal Rotary Table Chip Conveyor Side Mount ATC

The Fadal VMC-6030 HT is an exclusive part of our Vertical Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
