Mori Seiki NL2500Y/700 - Horizontal Lathes

Share Machine
Specifications Print Specs
Model: NL2500Y/700
Year: 2006
Stock #: 13133 Sold
Highlights:
- Mistubishi MSX-850 Control
- Live Tooling
- Y-Axis
- Kitagawa BB210 Hydraulic Chuck
- 36.4" Swing
- 27.6" Center Distance

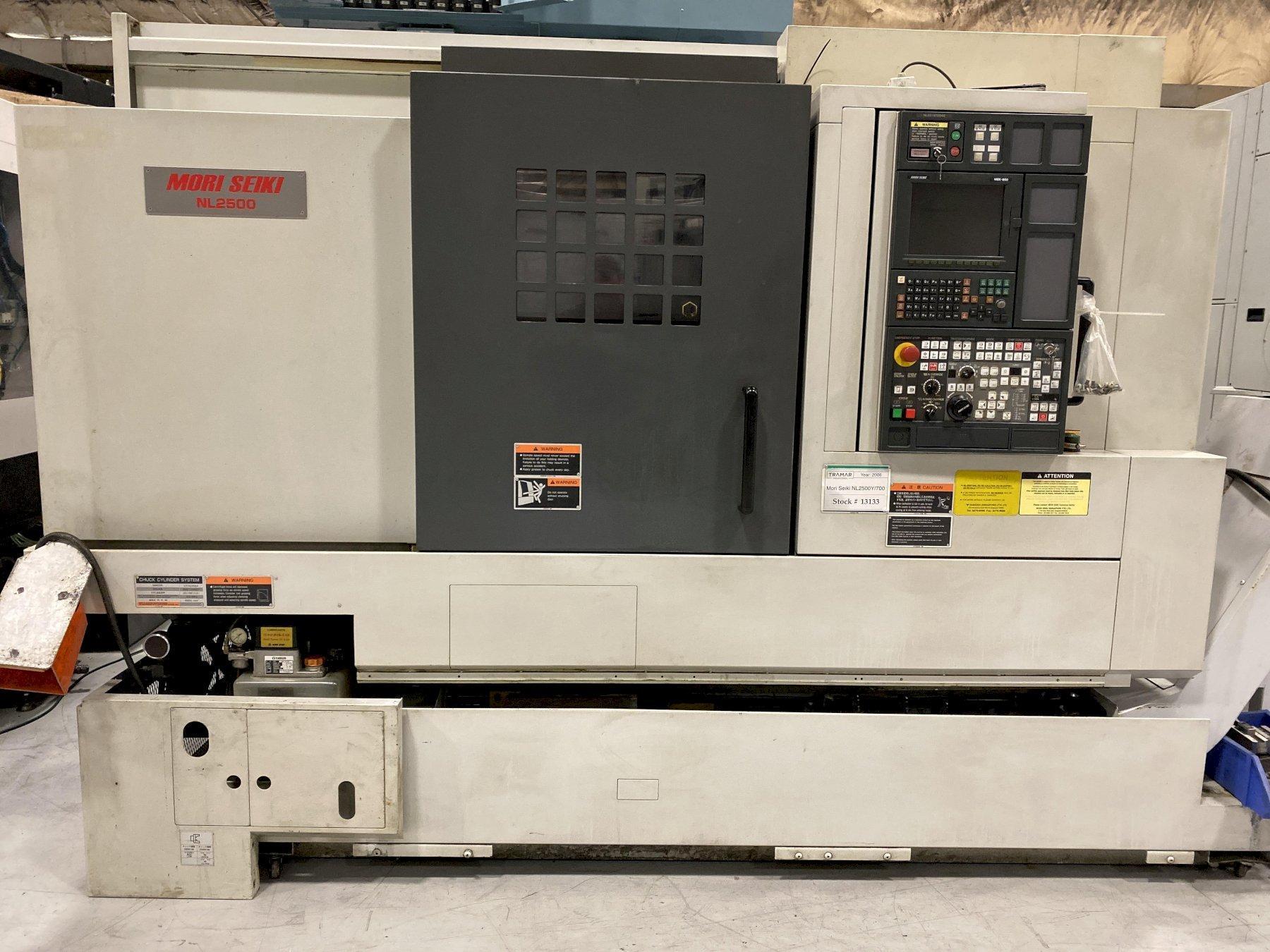

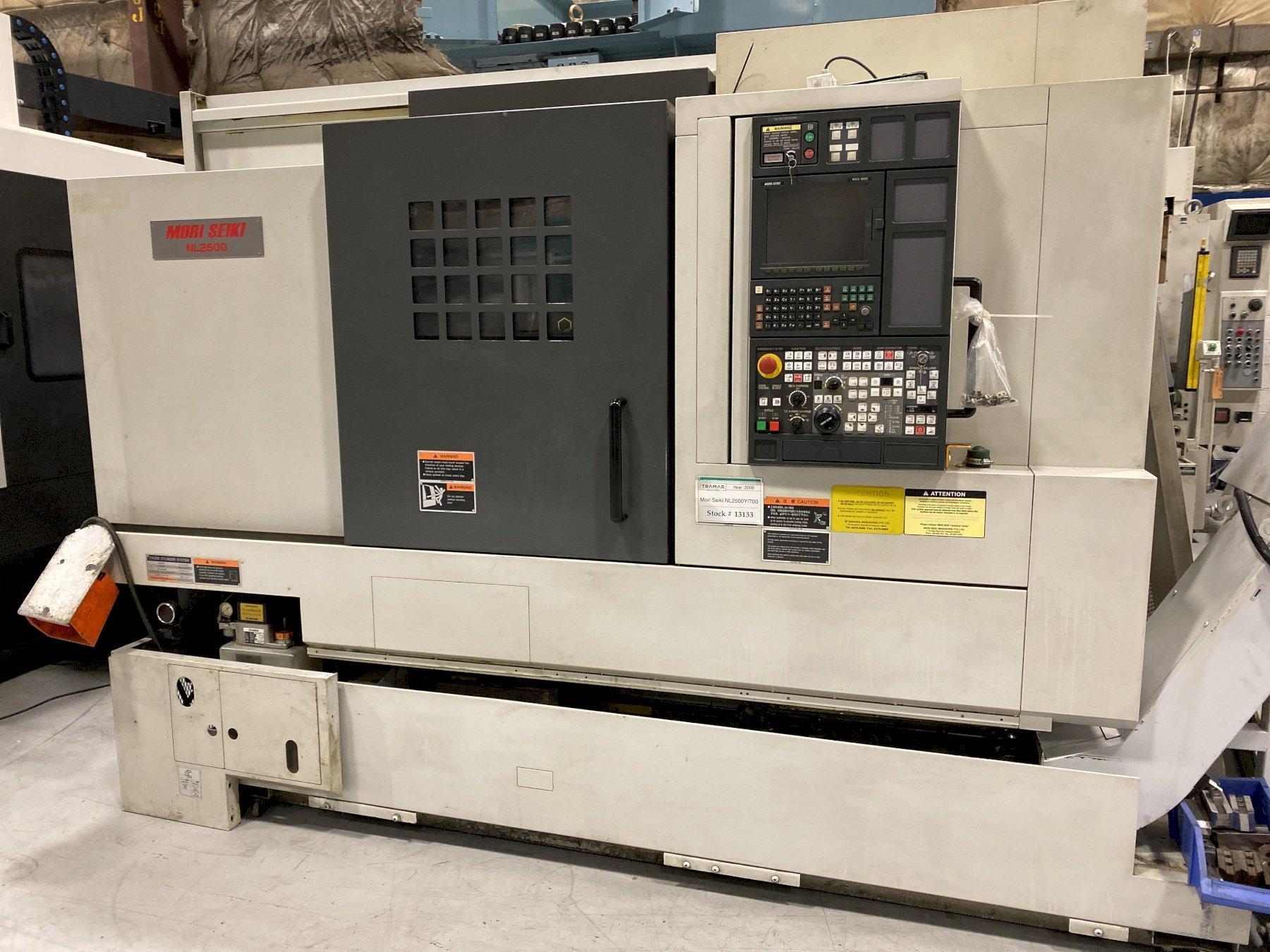

2006 MORI SEIKI NL2500Y/700 - CNC Horizontal Lathe
Machine Videos
Machine Specifications
CNC Control
yes
Control Type
MSX-850III
# Axis
4
Swing
36.4"
Turning Diameter
14"
Center Distance
27.7"
Chuck Size
10"
Bar Capacity
3.1"
X Axis Travel
10.2"
Y Axis Travel
3.9"
Z Axis Travel
31.3"
C Axis Index
0.001°
Rapid Traverse (X/Z)
1,181 ipm
Rapid Traverse Y-Axis
394 ipm
Spindle Nose
A2-8
Spindle Speed (RPM)
4,000 rpm
Main Motor
25 hp
Turret Capacity
12
Live Tooling
yes
Live Tooling Speed
6,000 rpm
Live Tooling Motor
7.5 hp
Tailstock
yes
Y Axis
yes
Sub Spindle
no
Dimensions
122" x 76" x 84"
Weight
13,420 pounds

Equipped With:

- Mitsubishi MSX 850III Control
- Chip Conveyor
- Coolant Tank
- Kitagawa BB210 3-Jaw Chuck
- Tool Presetter
- Mist Collector
- Tailstock
- Available Manuals

** Video - Click Here **

The Mori Seiki NL2500Y/700 is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
