Mori Seiki NL3000/700 - Horizontal Lathes

Request Quote
Specifications Print Specs
Model: NL3000/700
Year: 2006
Stock #: 15748
Highlights:

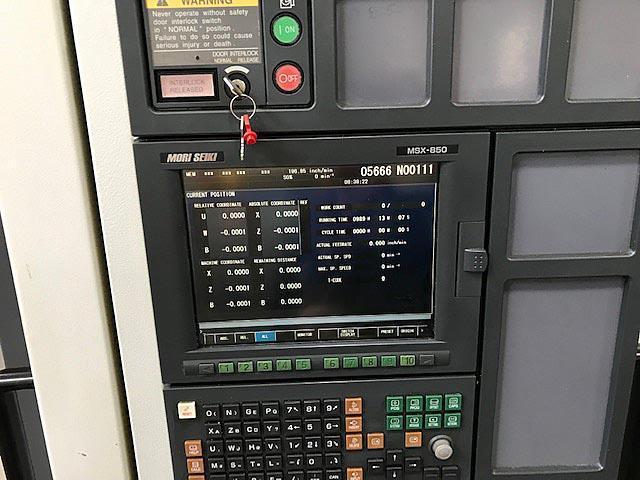

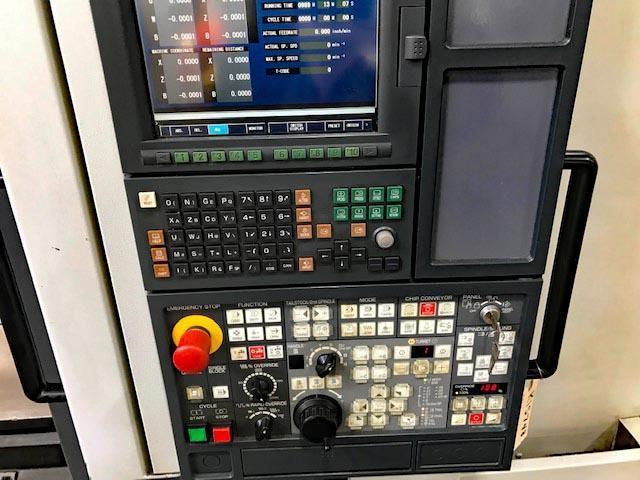

MSX-850 CNC Control
15" 3-Jaw Chuck
Tool Presetter
Programmable Tailstock

2006 Mori Seiki NL3000/1250 - CNC Horizontal Lathe
Machine Specifications
Year
2006
Control Type
MSX-850
# Axis
2
Swing
39.2"
Swing Over Cross Slide
32.5"
Turning Diameter
16.5"
Center Distance
49.6"
Chuck Size
15"
Bar Capacity
3.5"
X Axis Travel
11"
Z Axis Travel
53.9"
Rapid Traverse (X/Z)
1,181 ipm
Spindle Nose
A2-8
Spindle Speed (RPM)
3,000
Main Motor
30 hp
Turret Capacity
12
Tailstock
yes
Y Axis
no
Live Tooling
no
Sub Spindle
no
Dimensions
168" x 98" x 90"
Weight
17,000 pounds

Equipped With:

- Mori Seiki MSX-850 CNC Control
- Multiple Part Program Storage - RS-232 Port
- Ethernet Port
- Background Edit

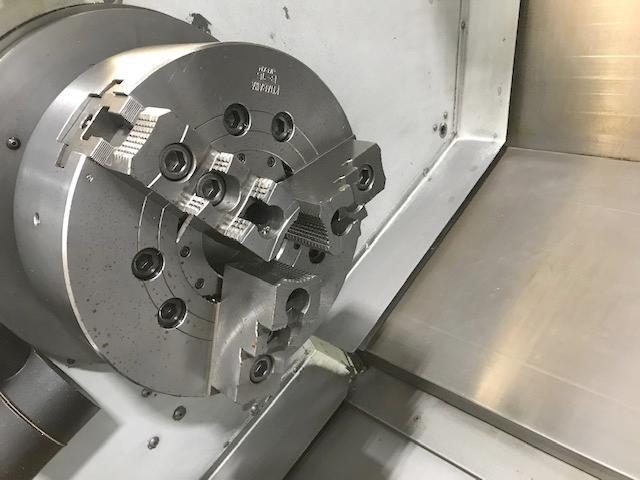

- Chiller - 15" 3-Jaw Kitagawa Hydraulic Chuck
- 2-Range Geared Spindle, - Automatic Tool Presetter, - Tailstock with Programmable Slide
- Chip Conveyor - Coolant System
- Misc. Tooling Available
- Available Manuals.


The Mori Seiki NL3000/700 is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
