Okuma Captain L-370 - Horizontal Lathes

Request Quote
Specifications Print Specs
Model: Captain L-370
Year: 2006
Stock #: 13295
Highlights:

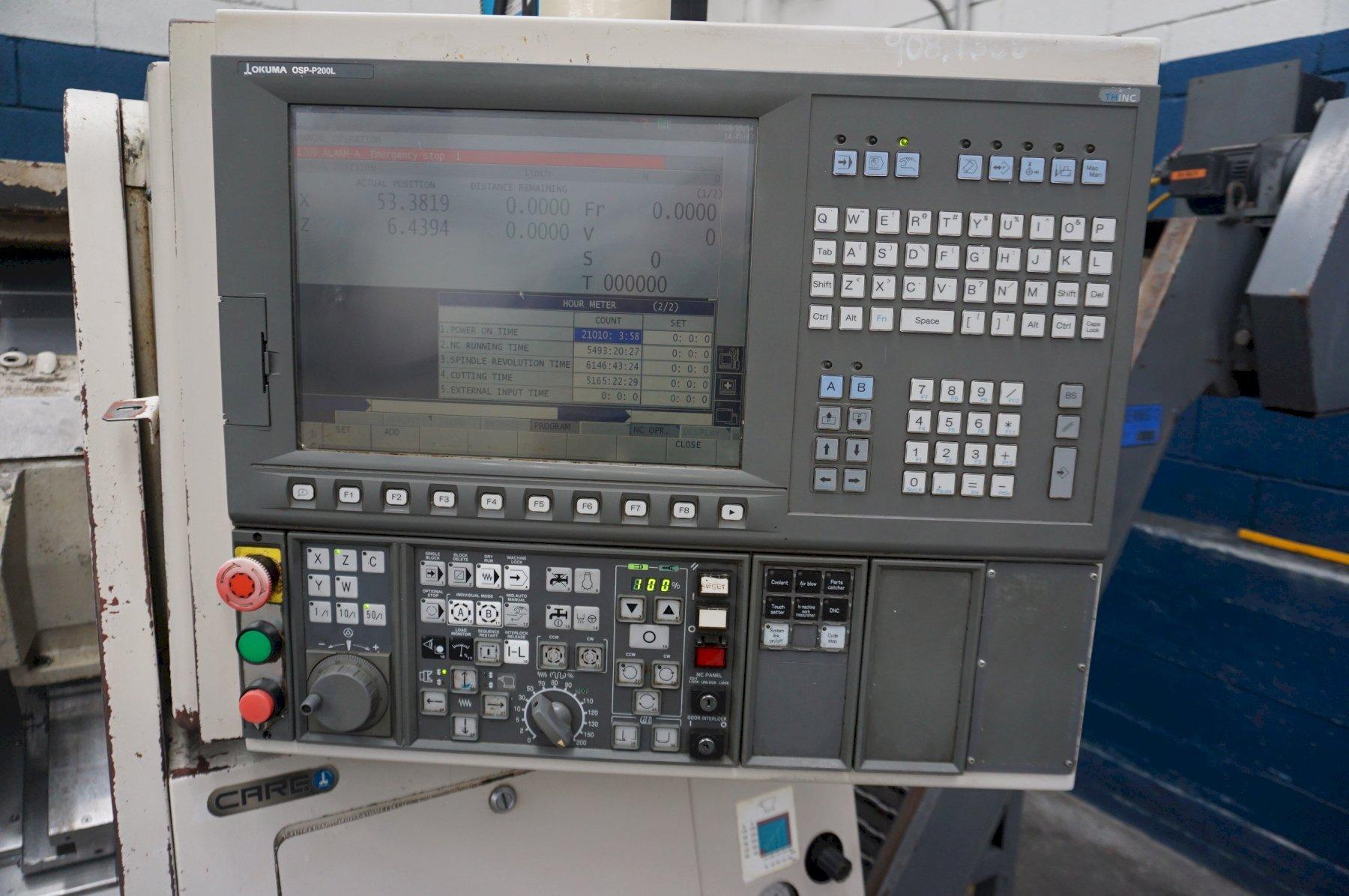

OSP-P200L Control

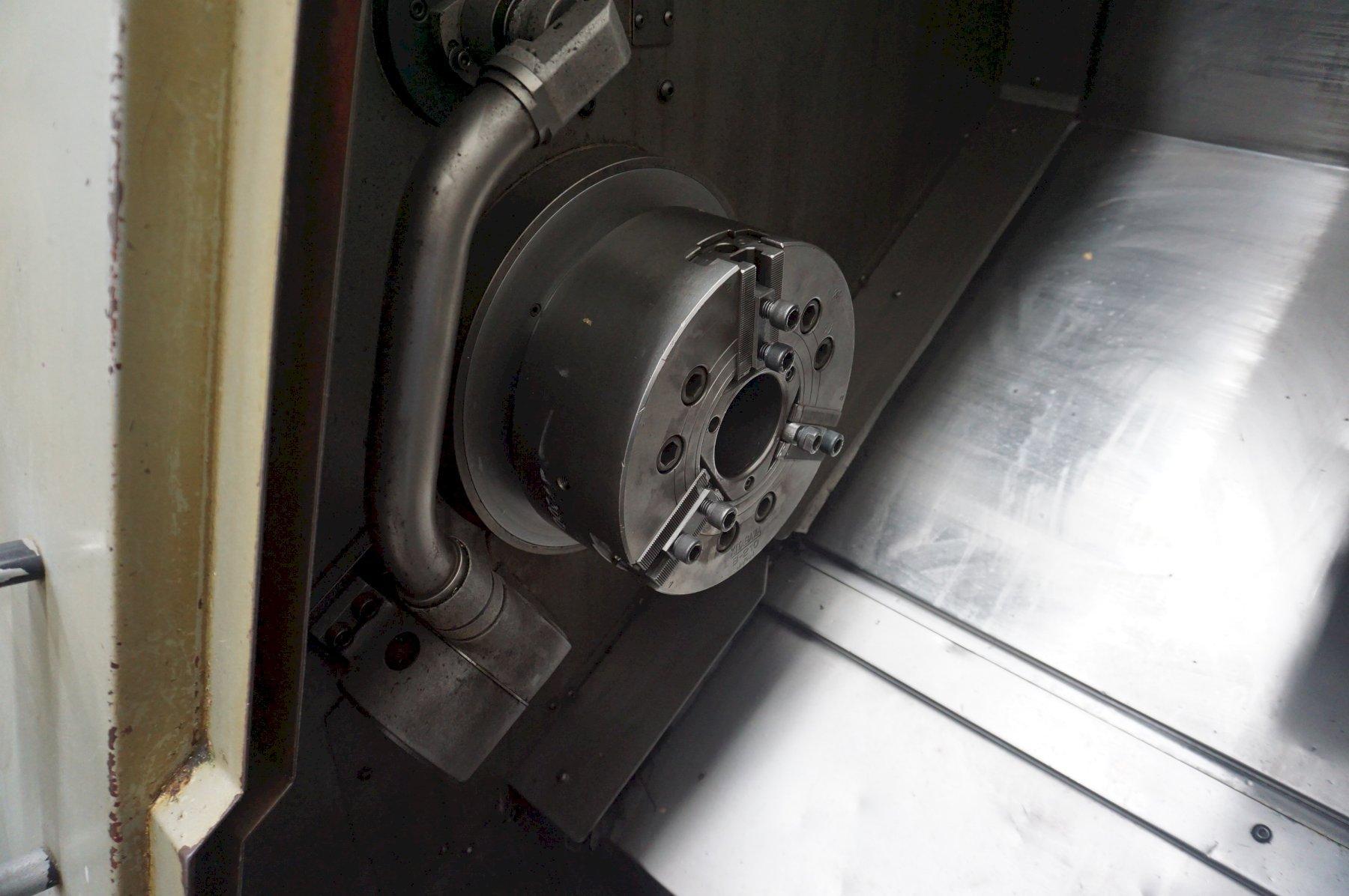

Kitagawa B-210 Hydraulic Chuck
Tool Presetter
Tailstock
Chip Conveyor

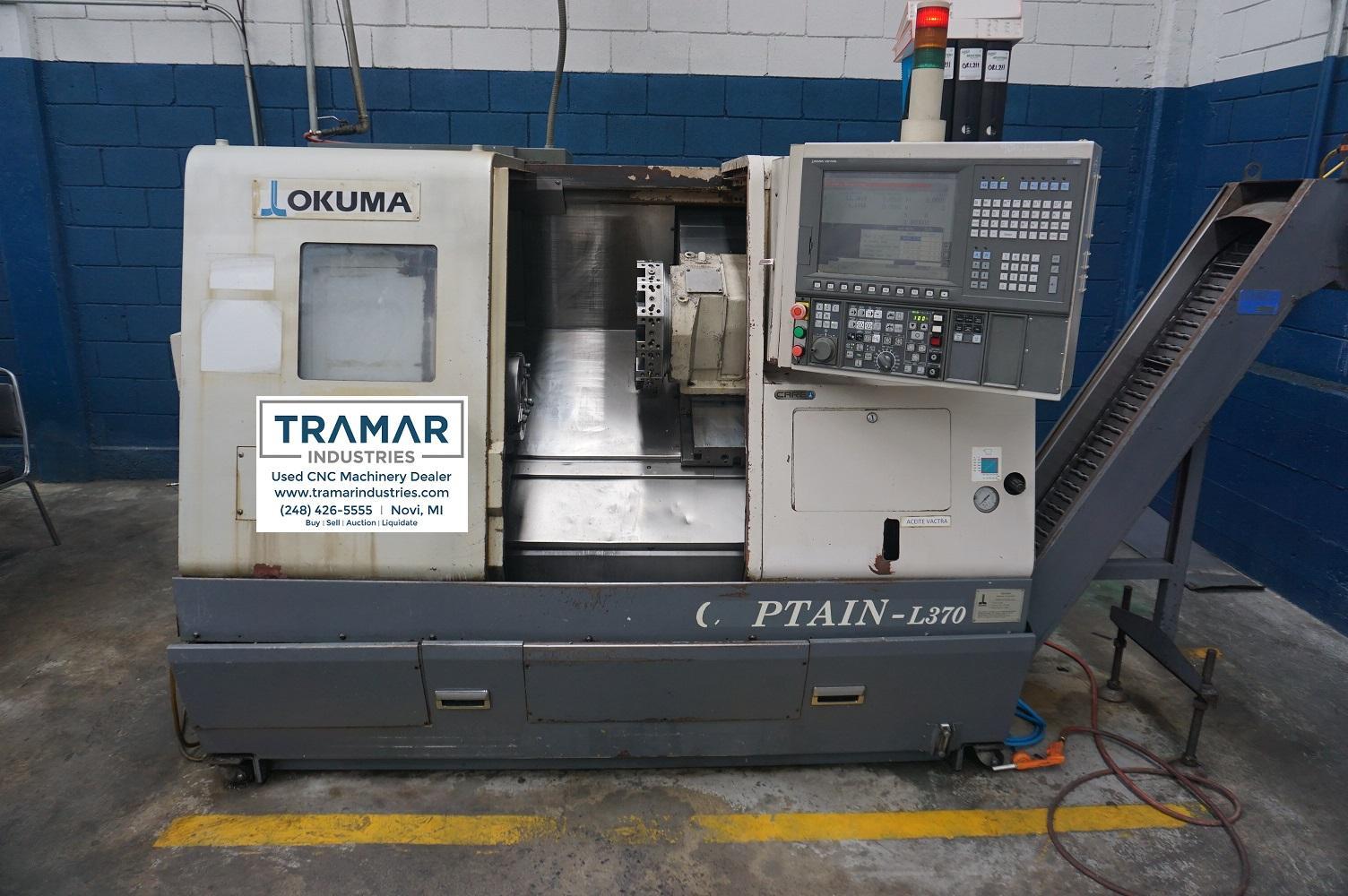

2006 Okuma Captain L-370 CNC Horizontal Lathe
Machine Specifications
Year
2006
# Axis
2
Swing
20.86"
Turning Diameter
14.57"
Center Distance
19.68"
Chuck Size
10"
Bar Capacity
2.04"
X Axis Travel
10.23"
Z Axis Travel
20.47"
Rapid Traverse (X/Z)
787/944 ipm
Spindle Speed (RPM)
4,500
Spindle Motor
20 hp
Spindle Nose
A2-6
Turret Capacity
12
Y Axis
no
Live Tooling
no
Tailstock
yes
Sub Spindle
no
Dimensions
88" x 68" x 70"
Weight
9,500 pounds

Equipped With:

- Okuma OSP-P200L Control
- Kitagawa B-210 Hydraulic Chuck
- Tool Presetter
- Chip Conveyor
- Tailstock

The Okuma Captain L-370 is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
