Okuma Multus B400 - Horizontal Lathes

Share Machine
Specifications Print Specs
Model: Multus B400
Year: 2006
Stock #: 13318 Sold
Highlights:

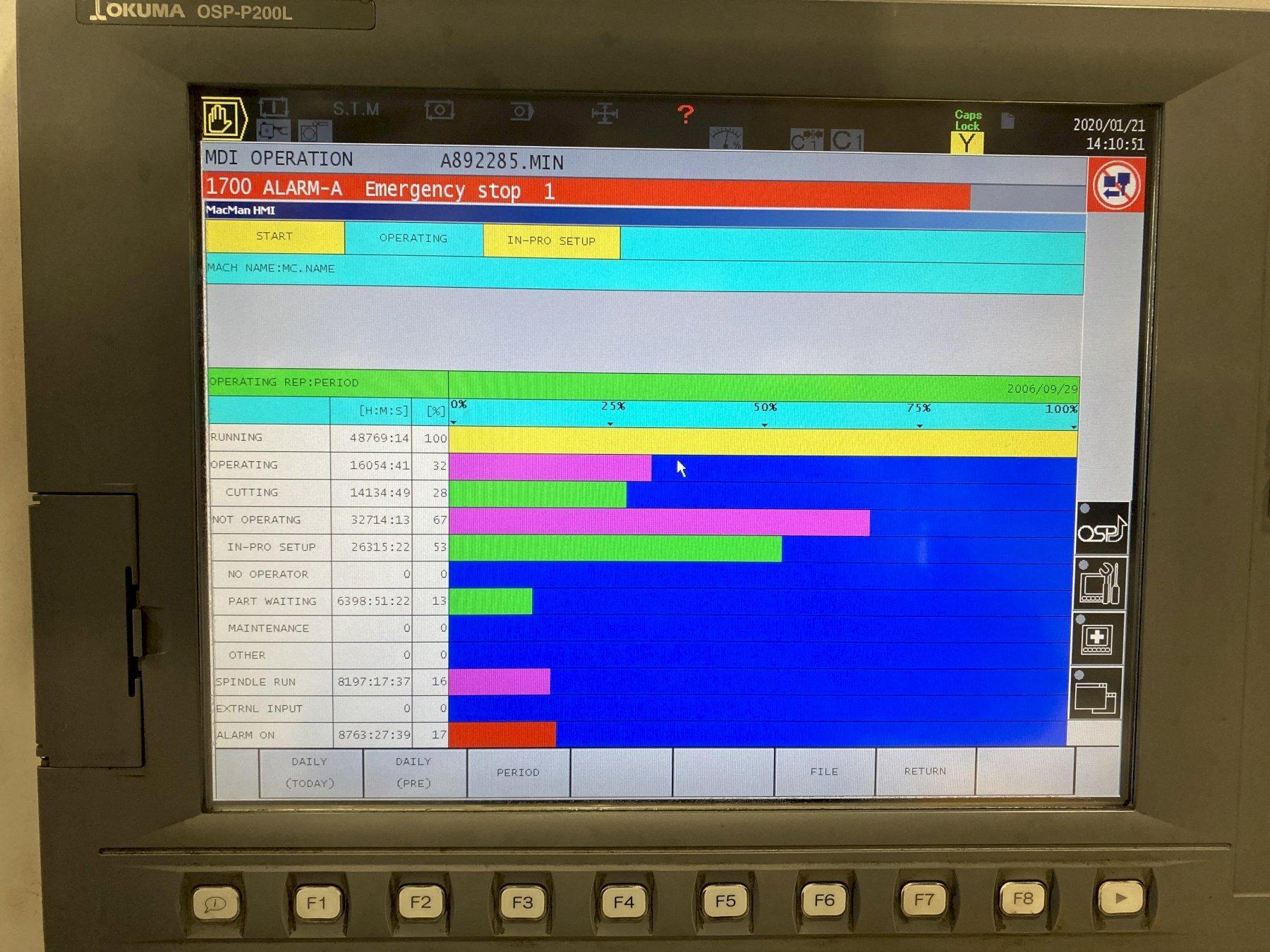

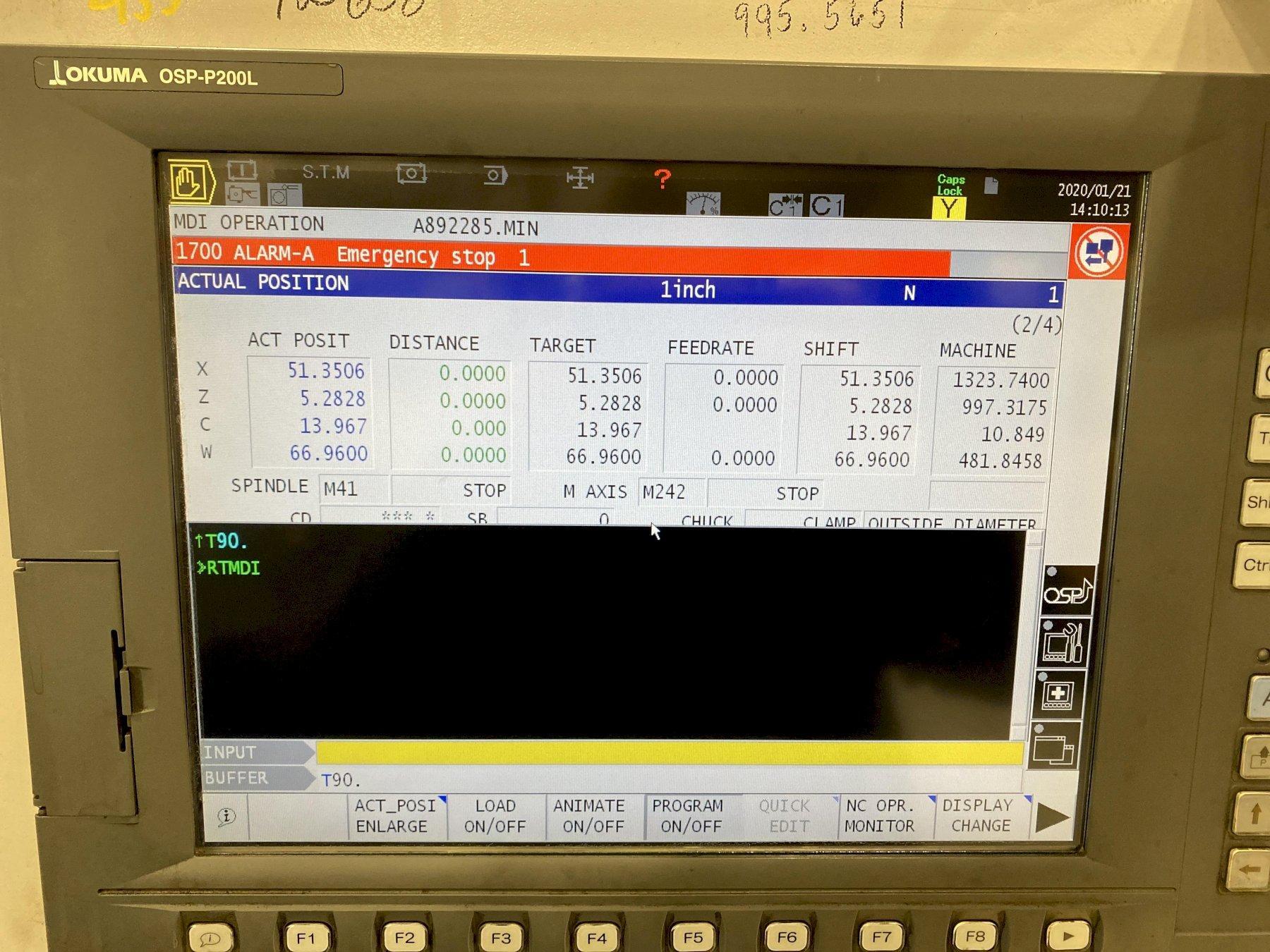

Okuma OSP-P200L Control
Tool Presetter
Live Tooling
Milling Spindle
Y Axis | Renishaw Probing
ProgrammableTailstock

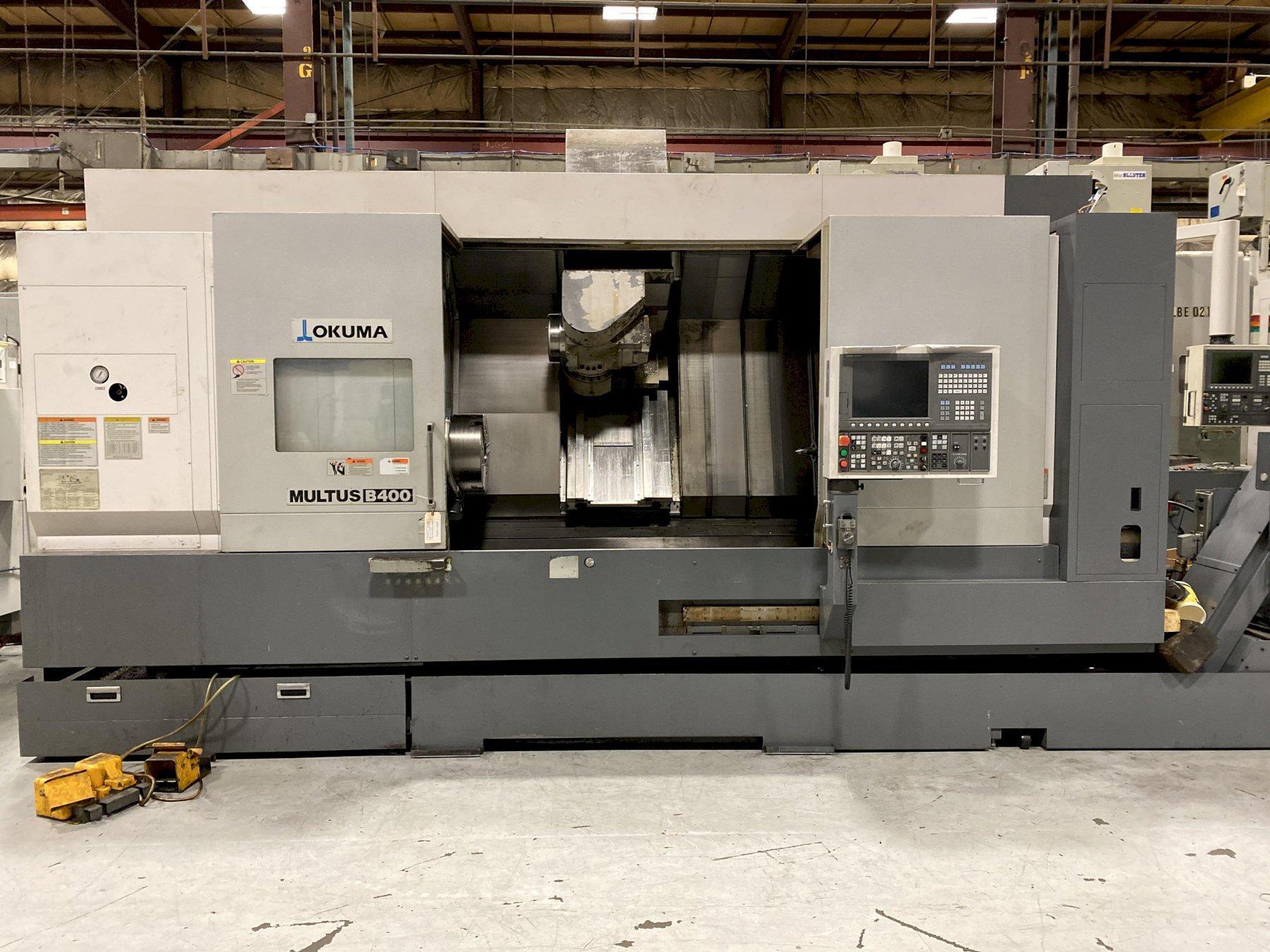

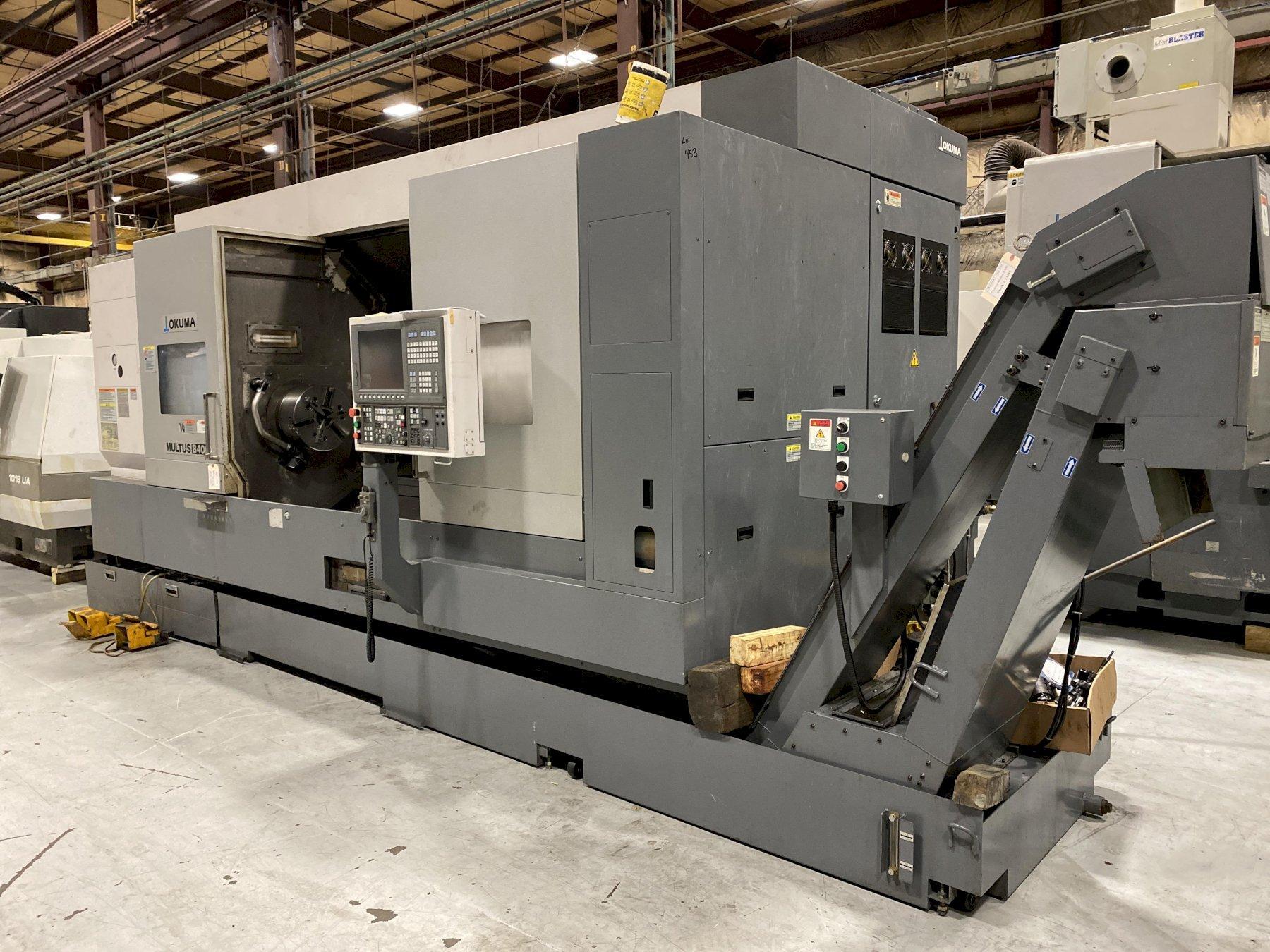

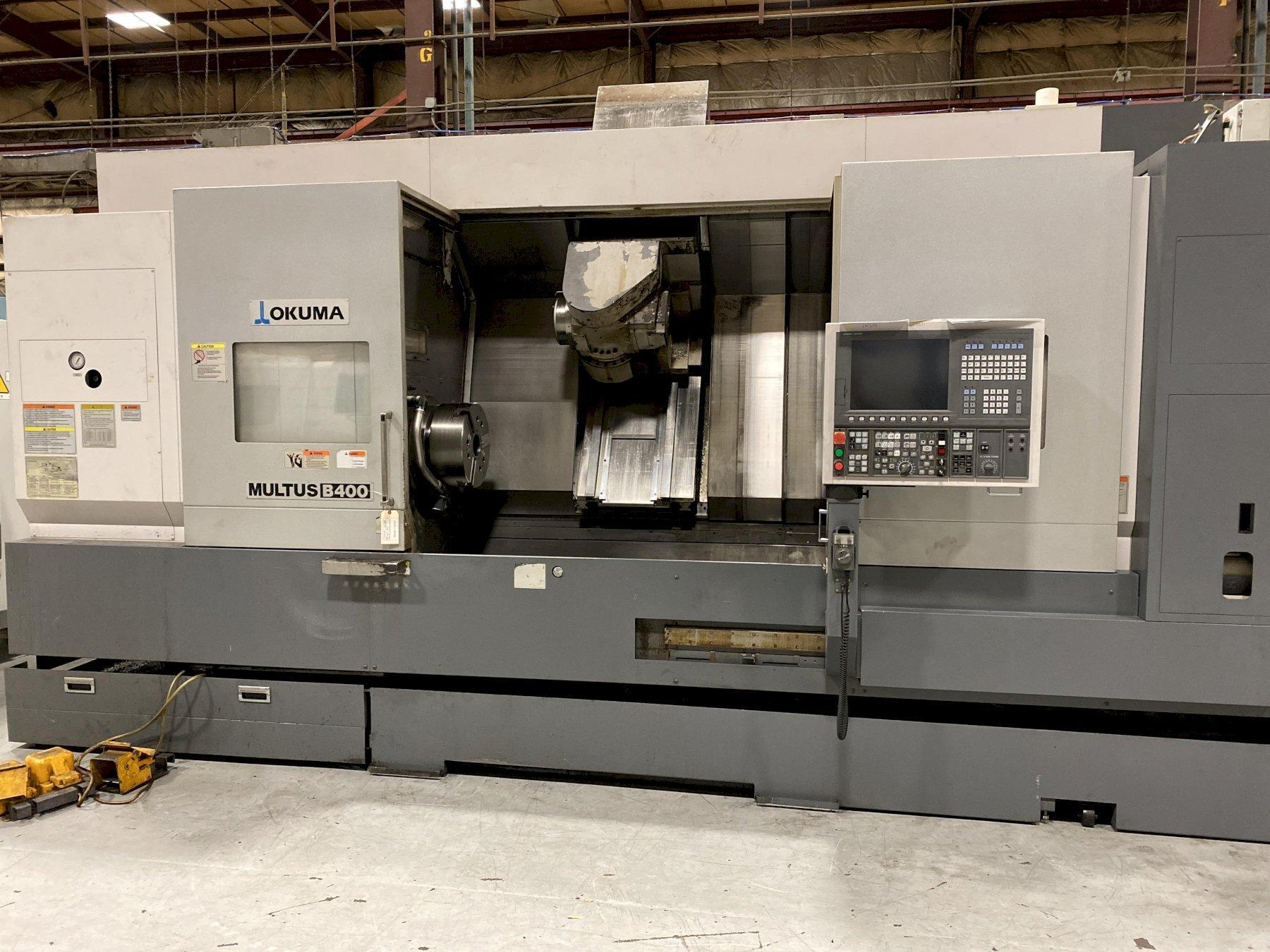

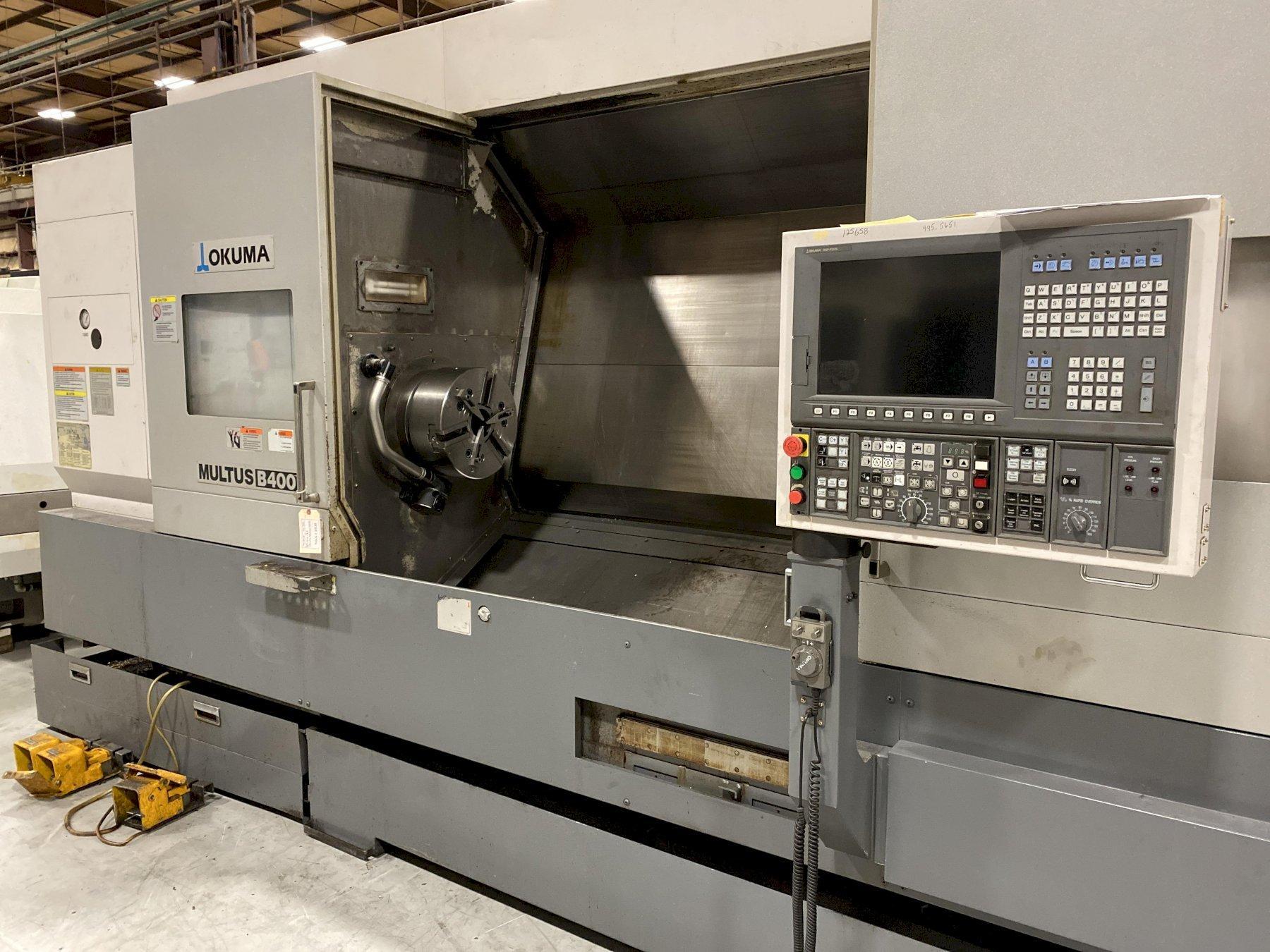

2006 Okuma Multus B400 - CNC Horizontal Lathe
Machine Specifications
CNC Control
yes
Control Type
OSP-P200L
# Axis
6
Swing
27.95"
Turning Diameter
27.95"
Center Distance
59.06"

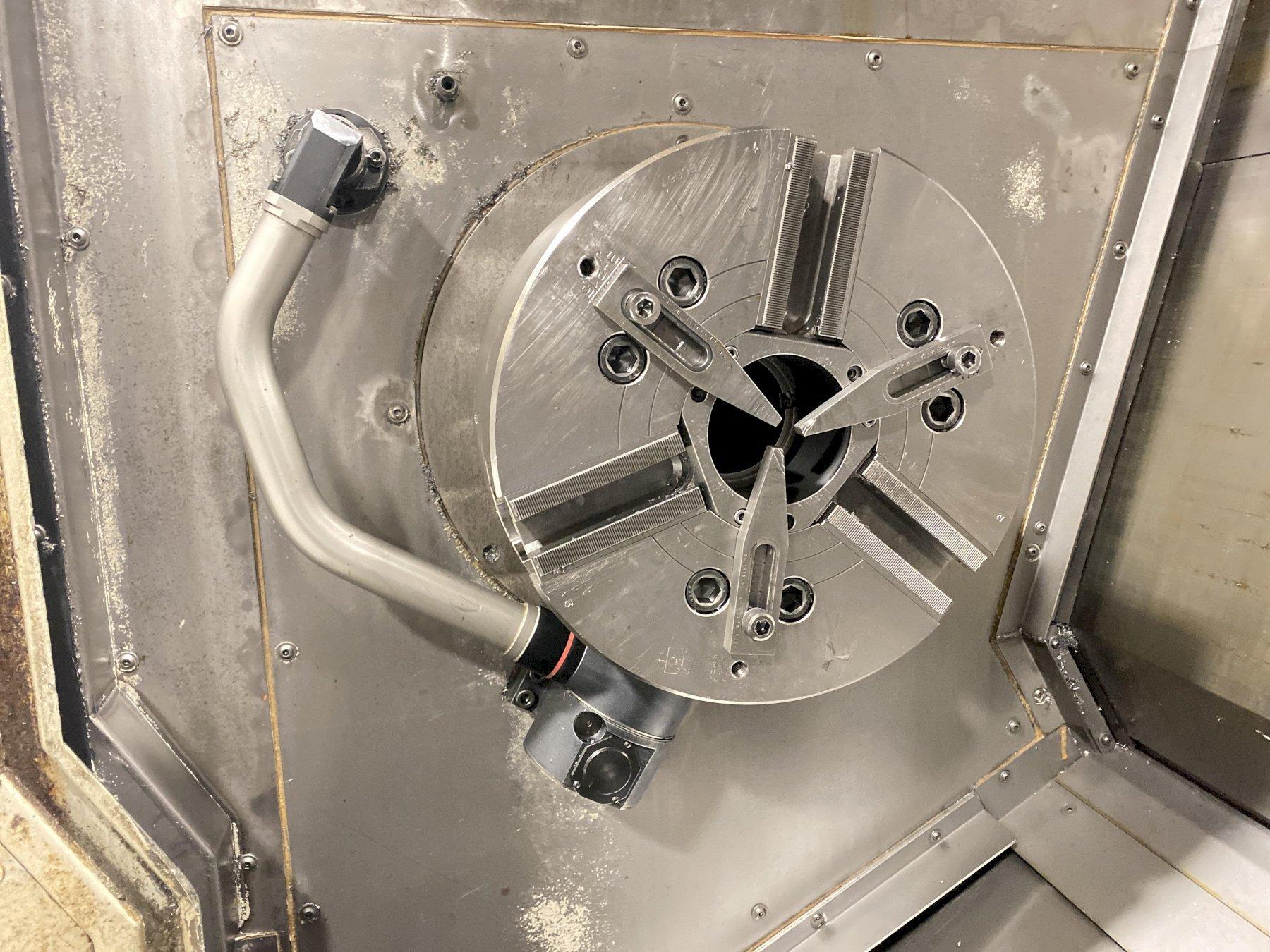

Chuck Size
15"
Bar Capacity
4.33"
X Axis Travel
27.17"
Y Axis Travel
9.06"
Z Axis Travel
60.83"
W Axis Travel
61.06"
B Axis Head Tilt
-30° to 195°
C Axis Index
0.001°
Rapid Traverse (X/Z/)
1,575 ipm
Rapid Traverse Y-Axis
1,024 ipm
Spindle Nose
A2-11
Spindle Speed (RPM)
2,800
Main Motor
40 hp
Live Tooling
yes
Live Tooling Spindle Taper
CAPTO C6
Live Tooling Speed
10,000 RPM
Live Tooling Motor
27 hp
Tailstock
yes
Y Axis
yes
Sub Spindle
no
Coolant Thru Spindle
yes
ATC Capacity
40
Dimensions
227" x 107" x 118"
Weight
31,250 pounds

Equipped With:

- Okuma OSP-P200L Control
- Programmable Tailstock
- Tool Presetter
- Chip Conveyor
- Coolant Tank & Pumps
- CAPTO C6 Milling Spindle
- Upgraded Milling Spindle - 10,000 RPM
- Big Bore Option (4.33" Bar Capacity)
- Coolant Thru Spindle

- B Axis 0.001°
- High G Control
- Collision Avoidance
- Renishaw Probing
- Misc. Tooling Available

The Okuma Multus B400 is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
