Doosan Puma 400LB - Horizontal Lathes

Request Quote
Share Machine
Specifications Print Specs
Model: Puma 400LB
Year: 2007
Stock #: 12597-1
Highlights:

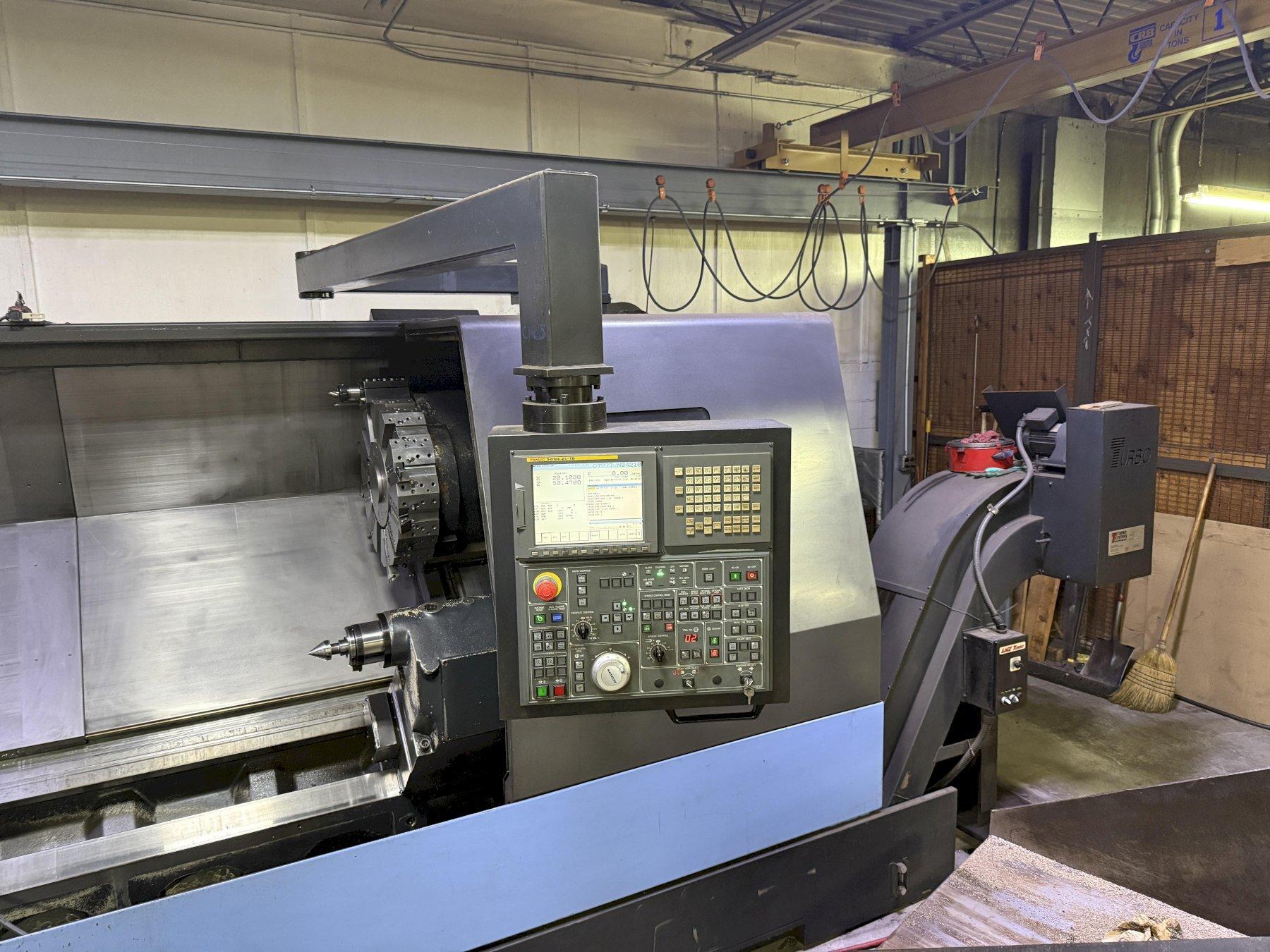

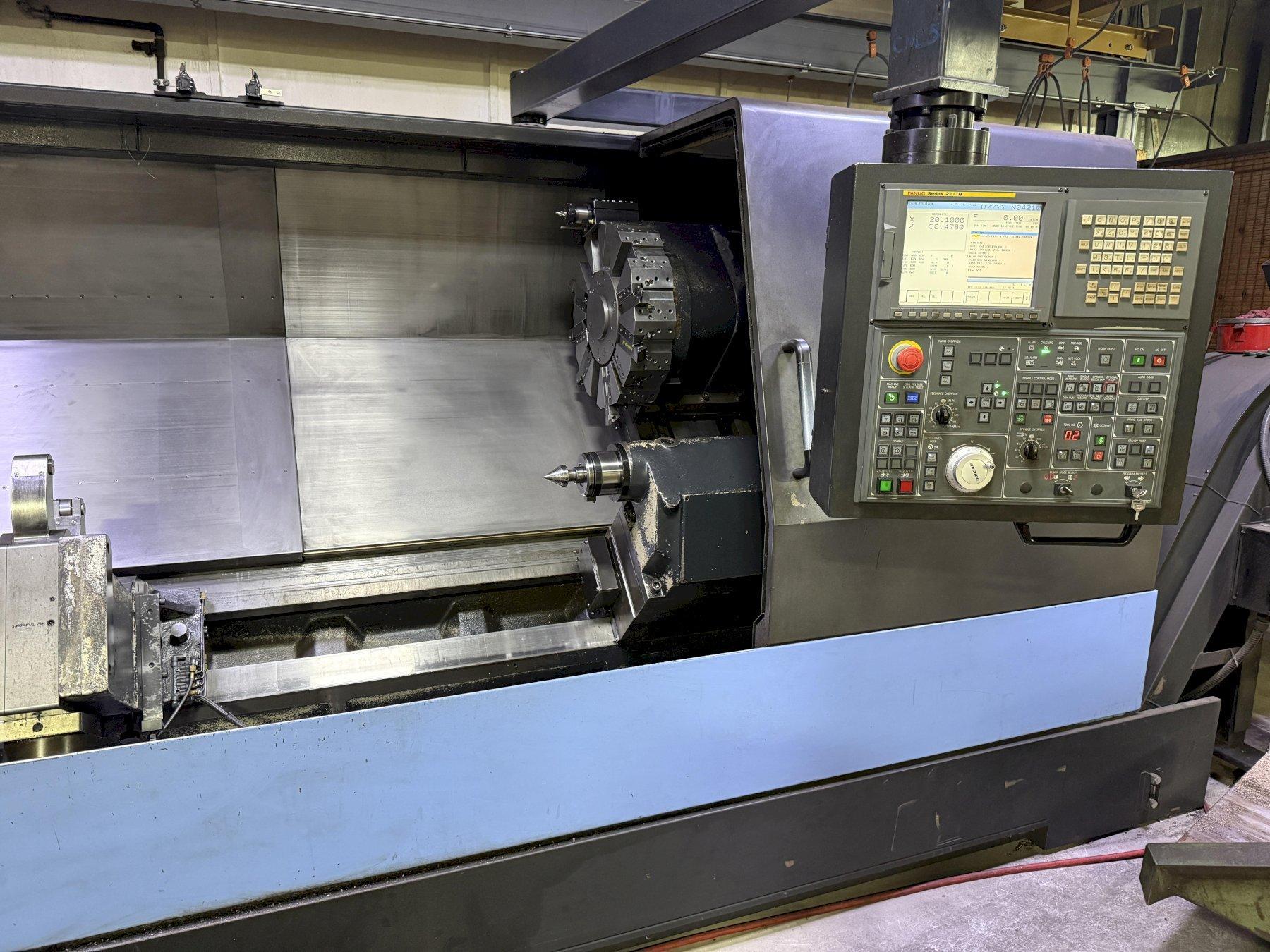

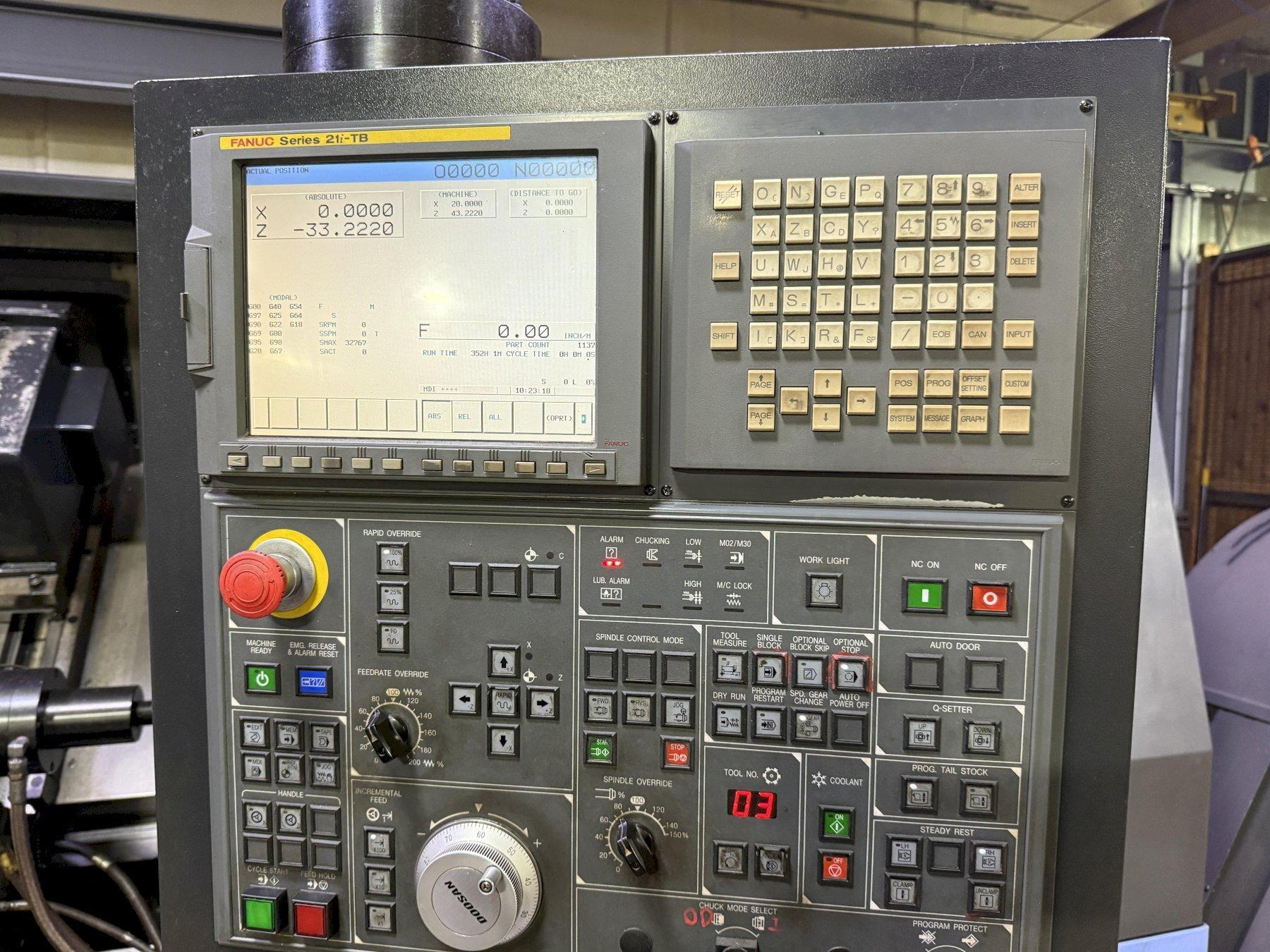

Fanuc 21i-TB CNC Control
Center Distance - 82.4"

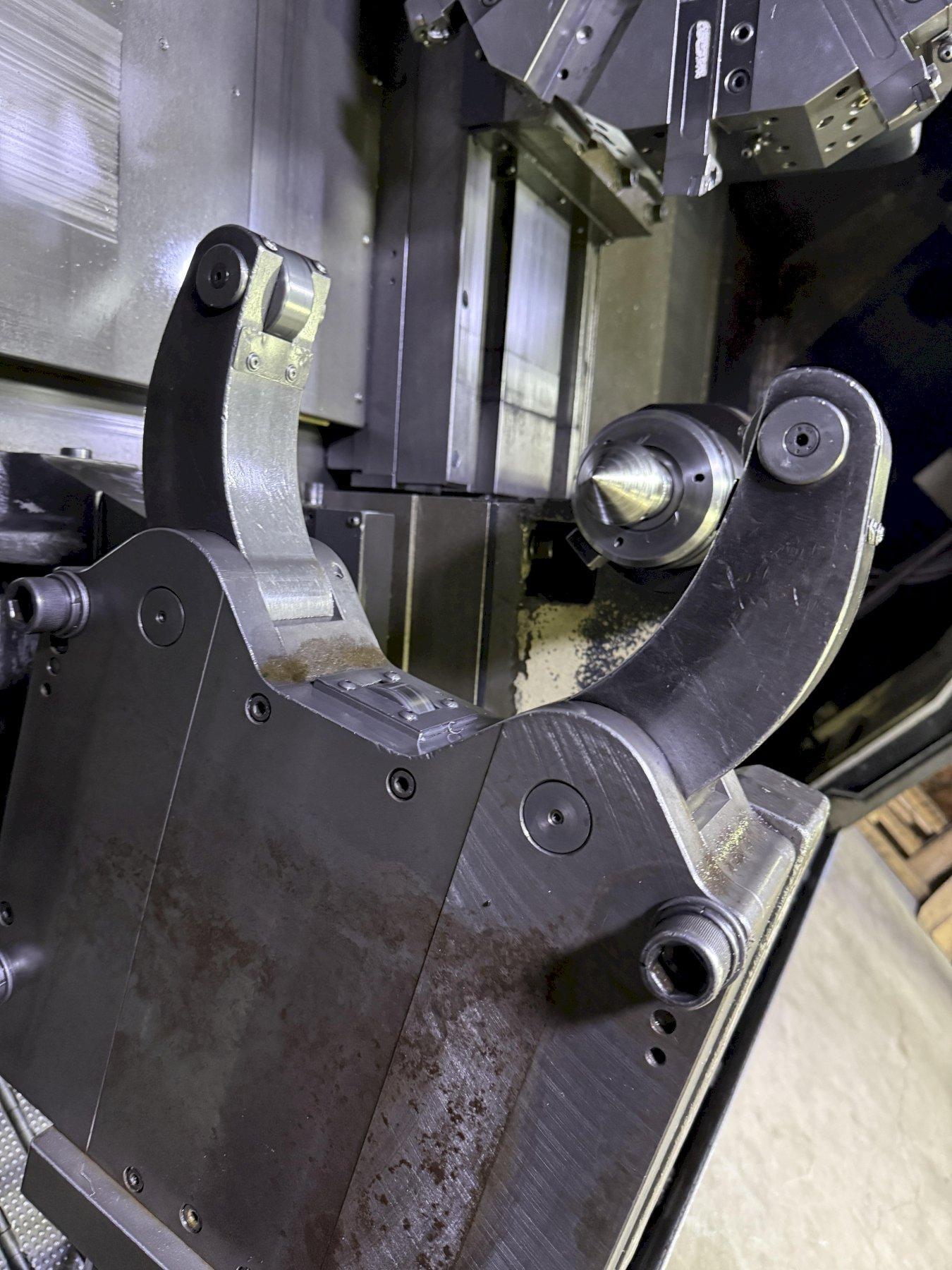

Hydraulic Steady Rest
Tailstock

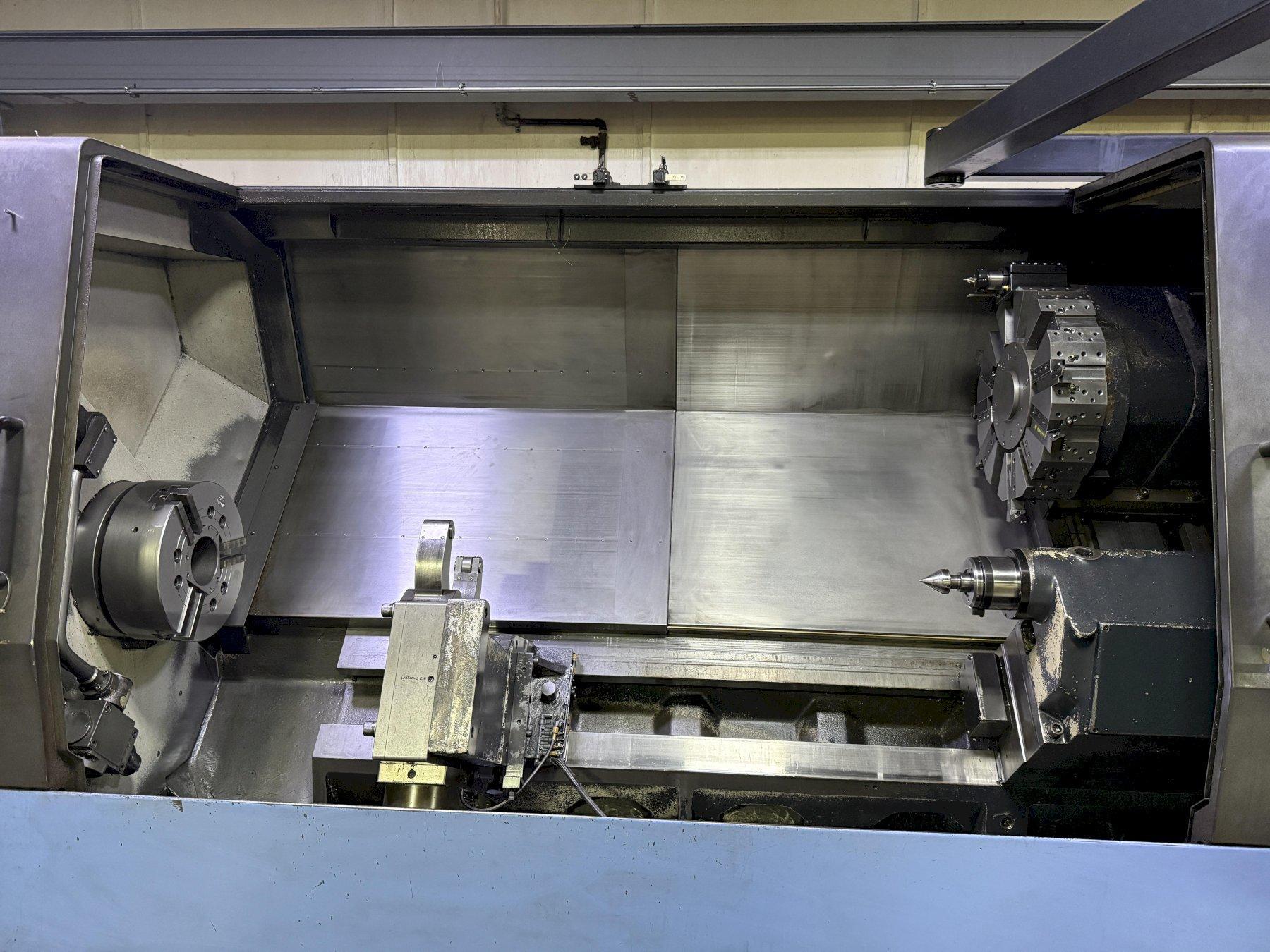

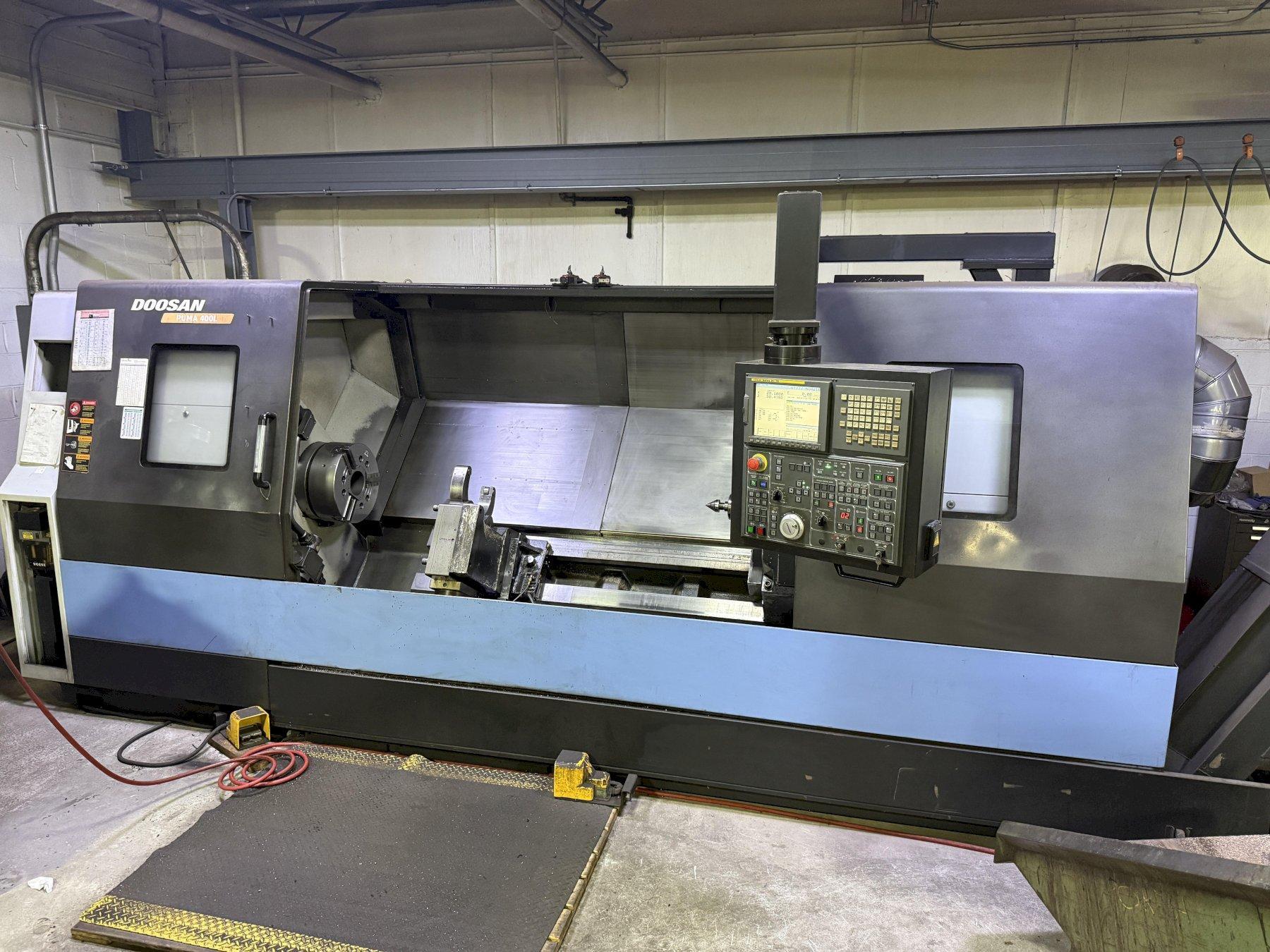

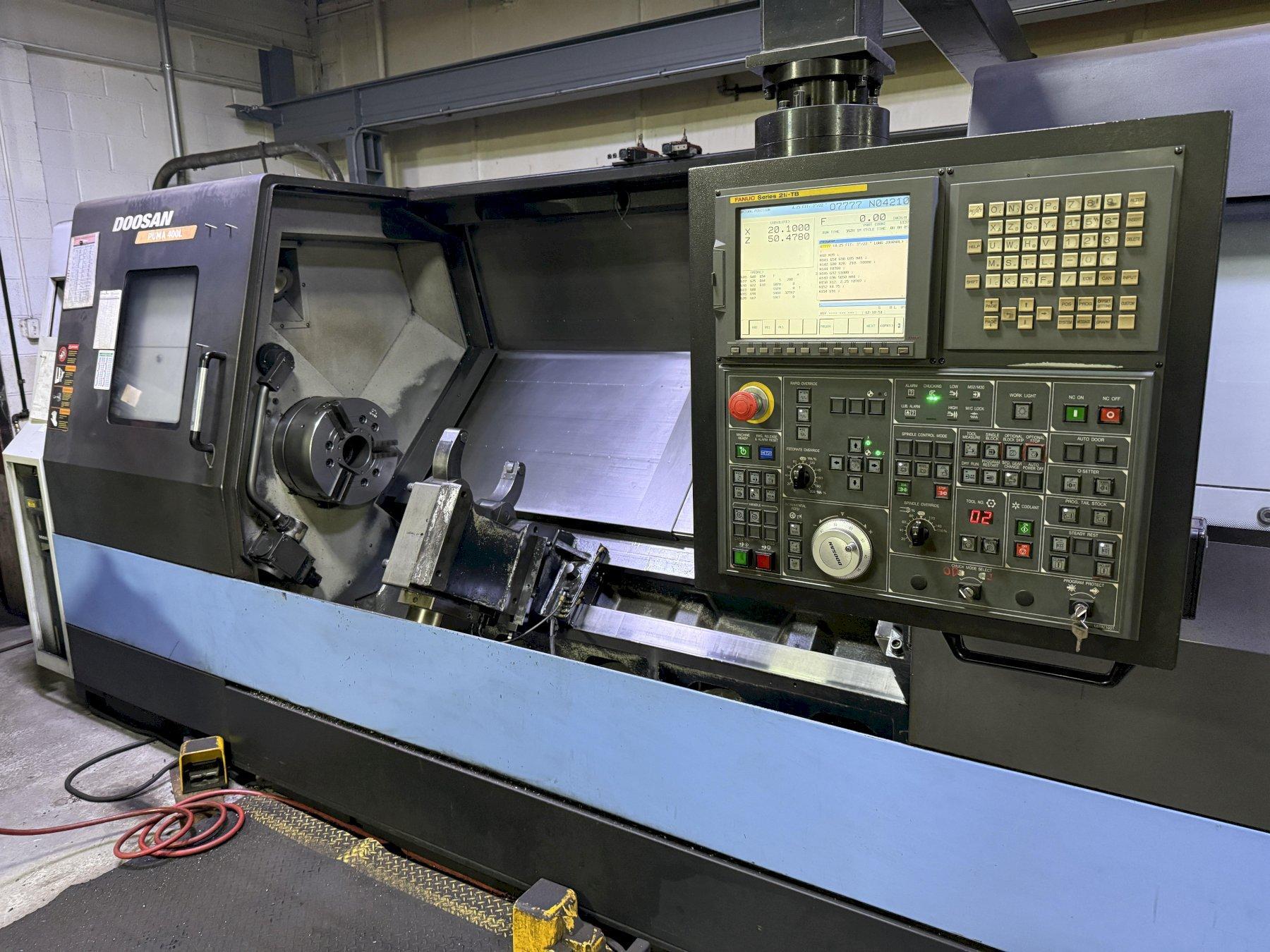

2007 Doosan Puma 400LB CNC Lathe For Sale
Machine Specifications
CNC Control
yes
Control Type
Fanuc 21i-TB
# Axis
2
Swing
30.3"
Turning Diameter
21.7"
Center Distance
82.4"
Chuck Size
15"
Bar Capacity
4.6"
X-Axis Travel
14.3"
Z-Axis Travel
84.8"
Rapid Traverse (X/Z)
630/787 ipm
Spindle Nose
A2-11
Spindle Speed
2,000 rpm
Main Motor
35 hp

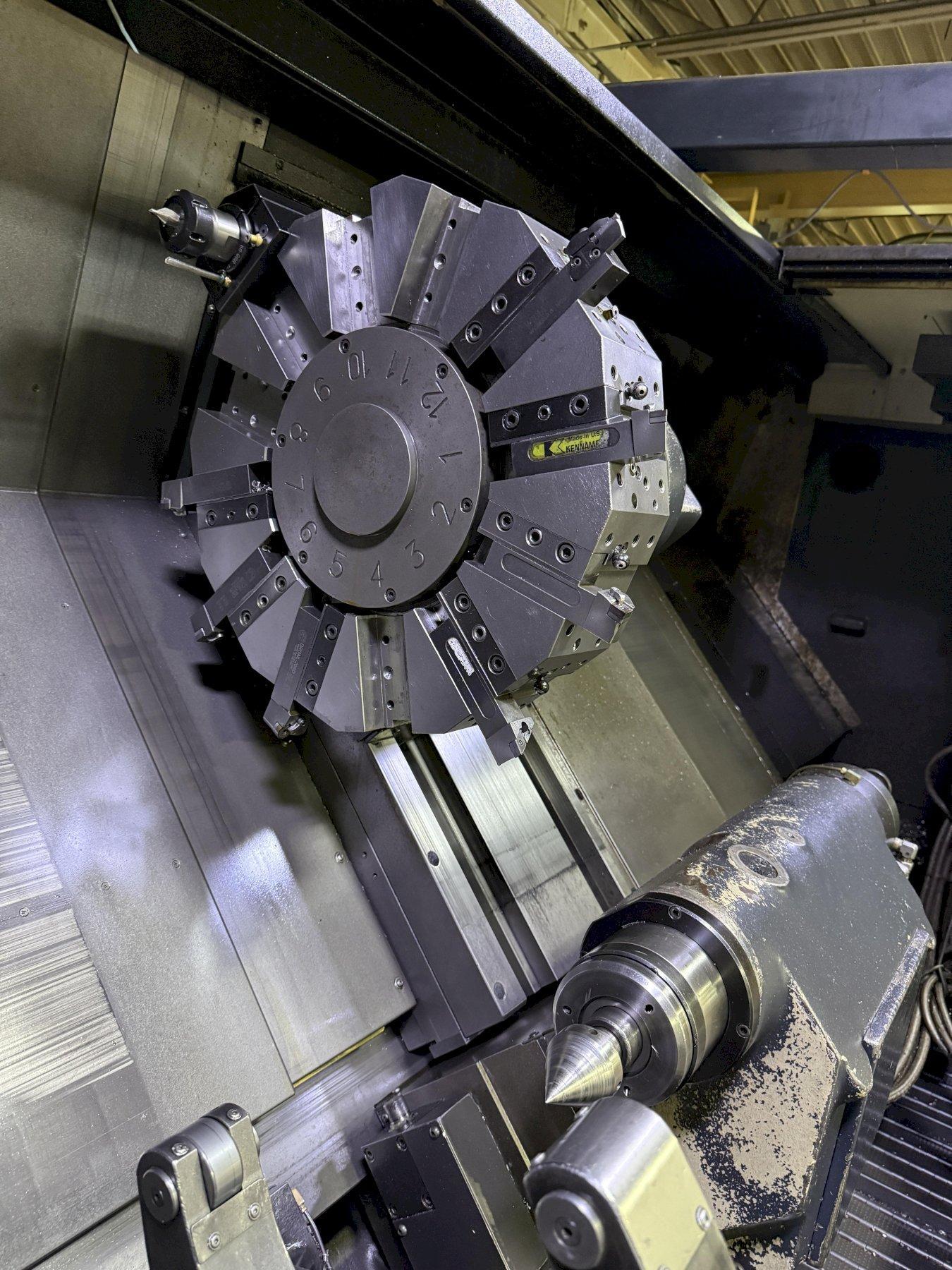

Turret Capacity
12
Tailstock (Yes/No)
yes
Steady Rest
yes
Live Tooling
no
Y Axis (Yes / No)
no
Sub Spindle
no
Machine Dimensions
225" x 96" x 91"
Machine Weight
24,250 pounds

Equipped With:

- Fanuc 21i-TB CNC Control

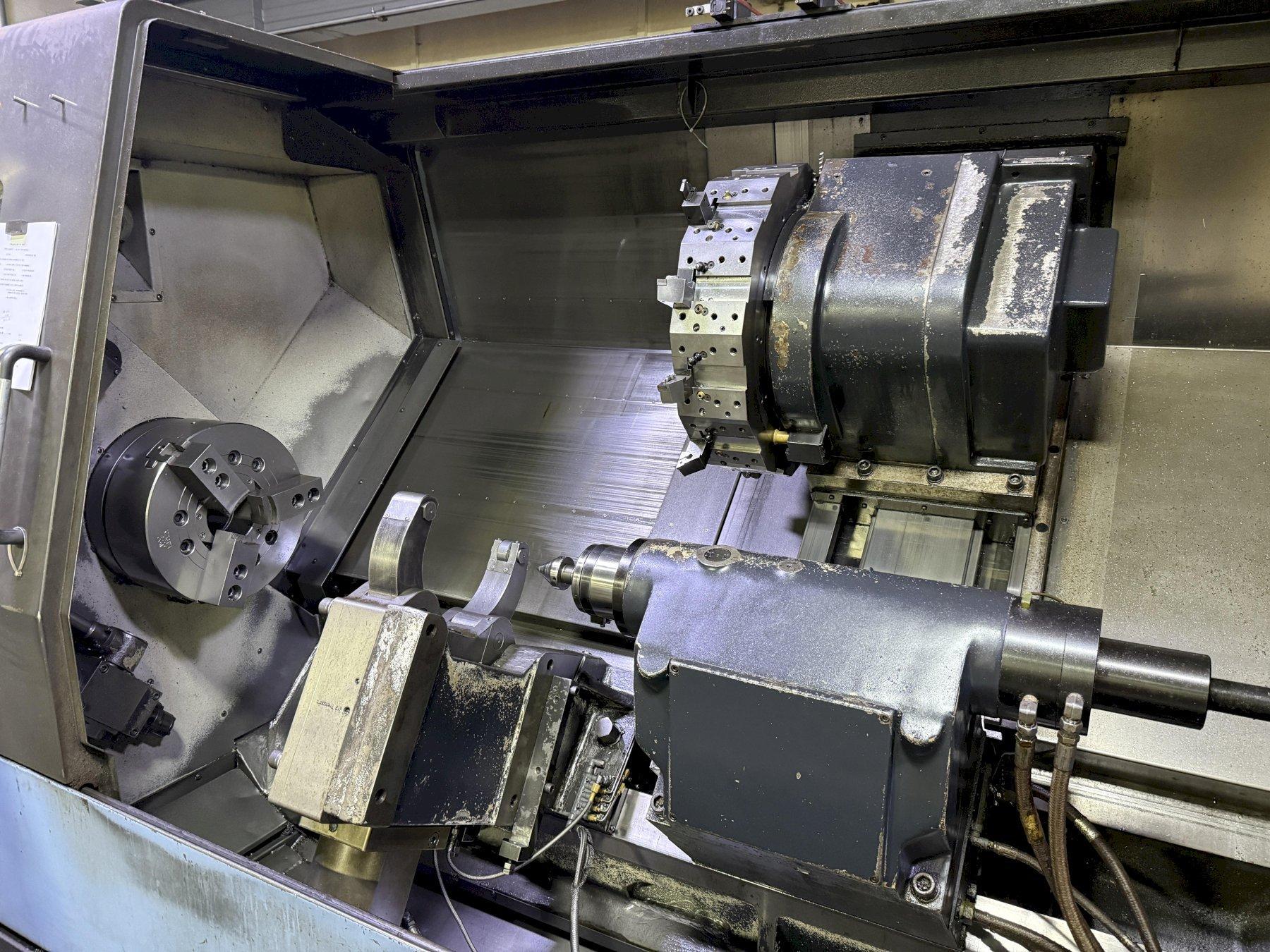

- Hydraulic Steady Rest
- Programmable Tailstock

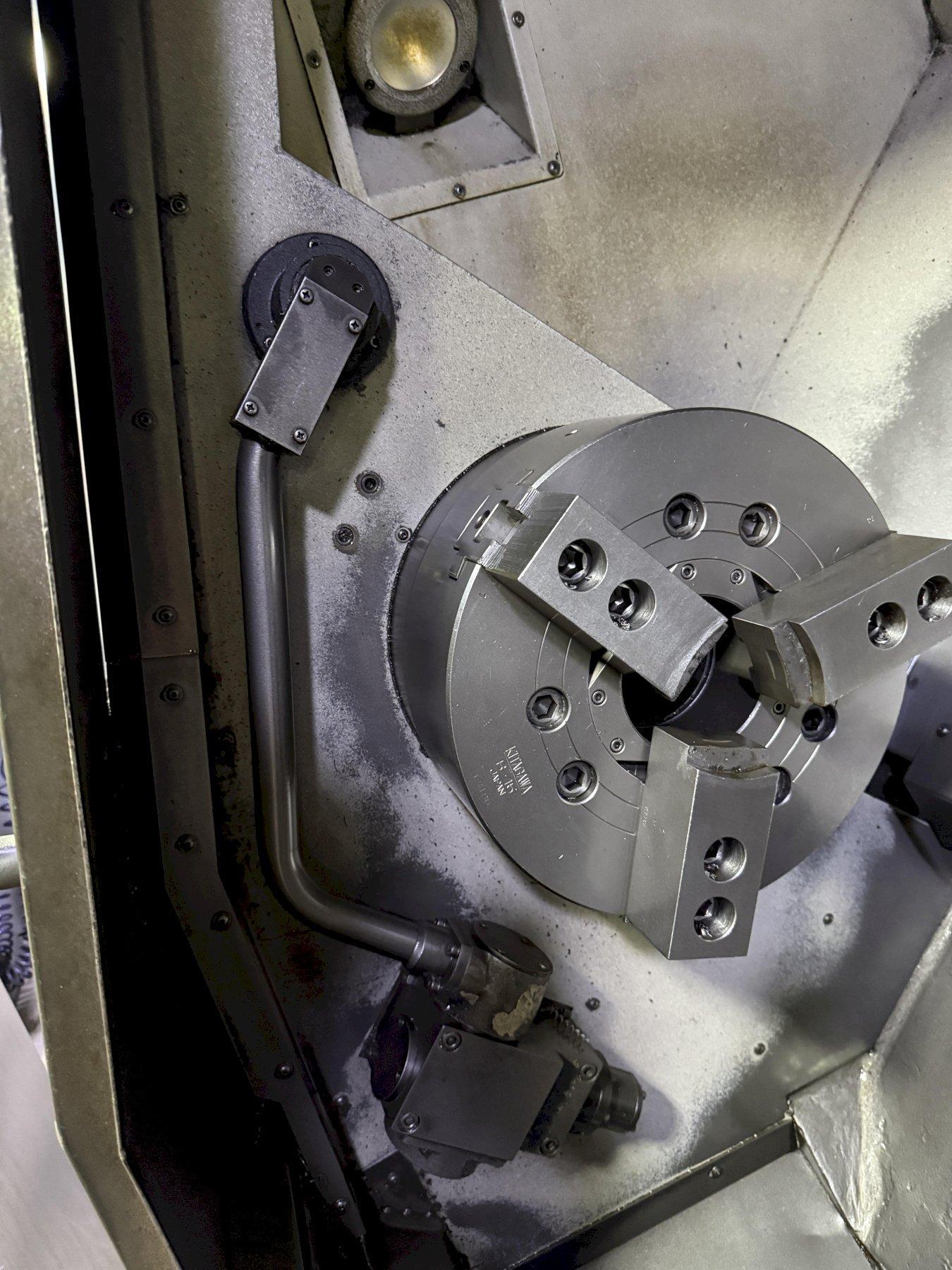

- 15" Hydraulic 3 Jaw Chuck
- Chip Conveyor
- Tool Presetter

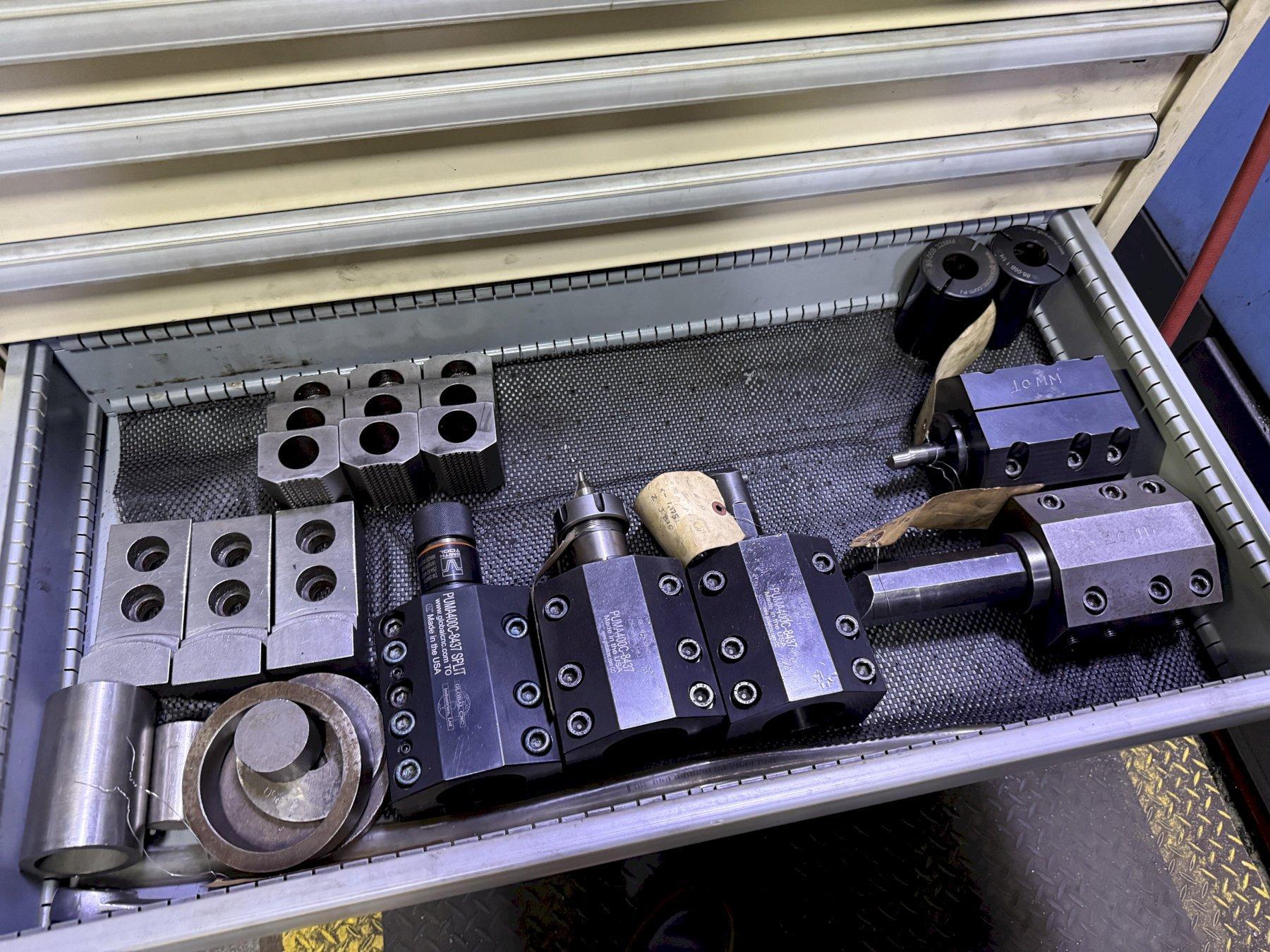

- Misc Tool Holders



The Doosan Puma 400LB is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
