Dmg Gildemeister CTX-410 - Horizontal Lathes

Share Machine
Specifications Print Specs
Model: CTX-410
Year: 2007
Stock #: 13167 Sold
Highlights:
DMG Gildemeister
Fanuc 32i-A Control
LNS Quick Load Servo S3 Bar Feeder
Fast Data Server | Ethernet
Manual Guide i (Conversational Programming)

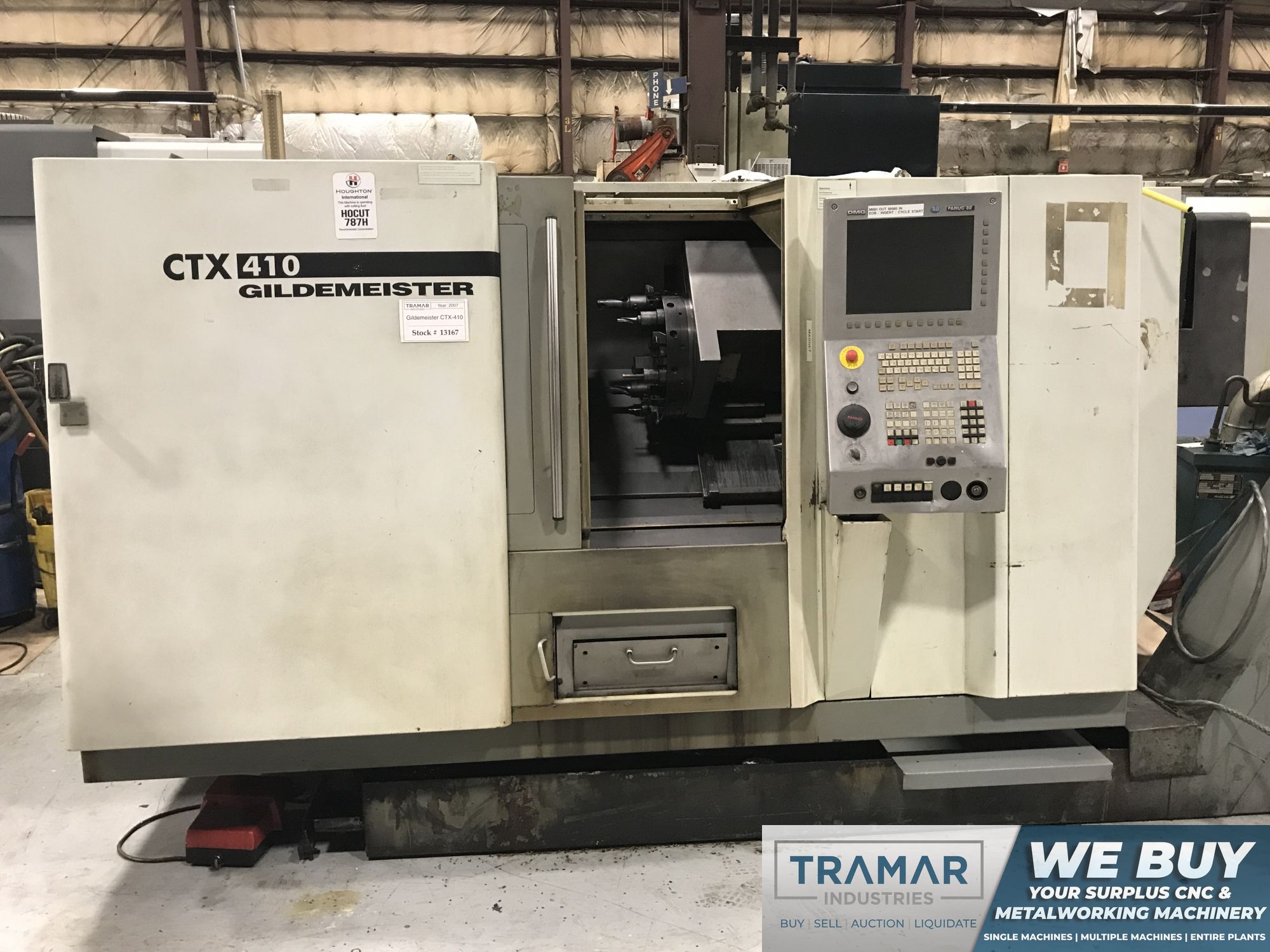

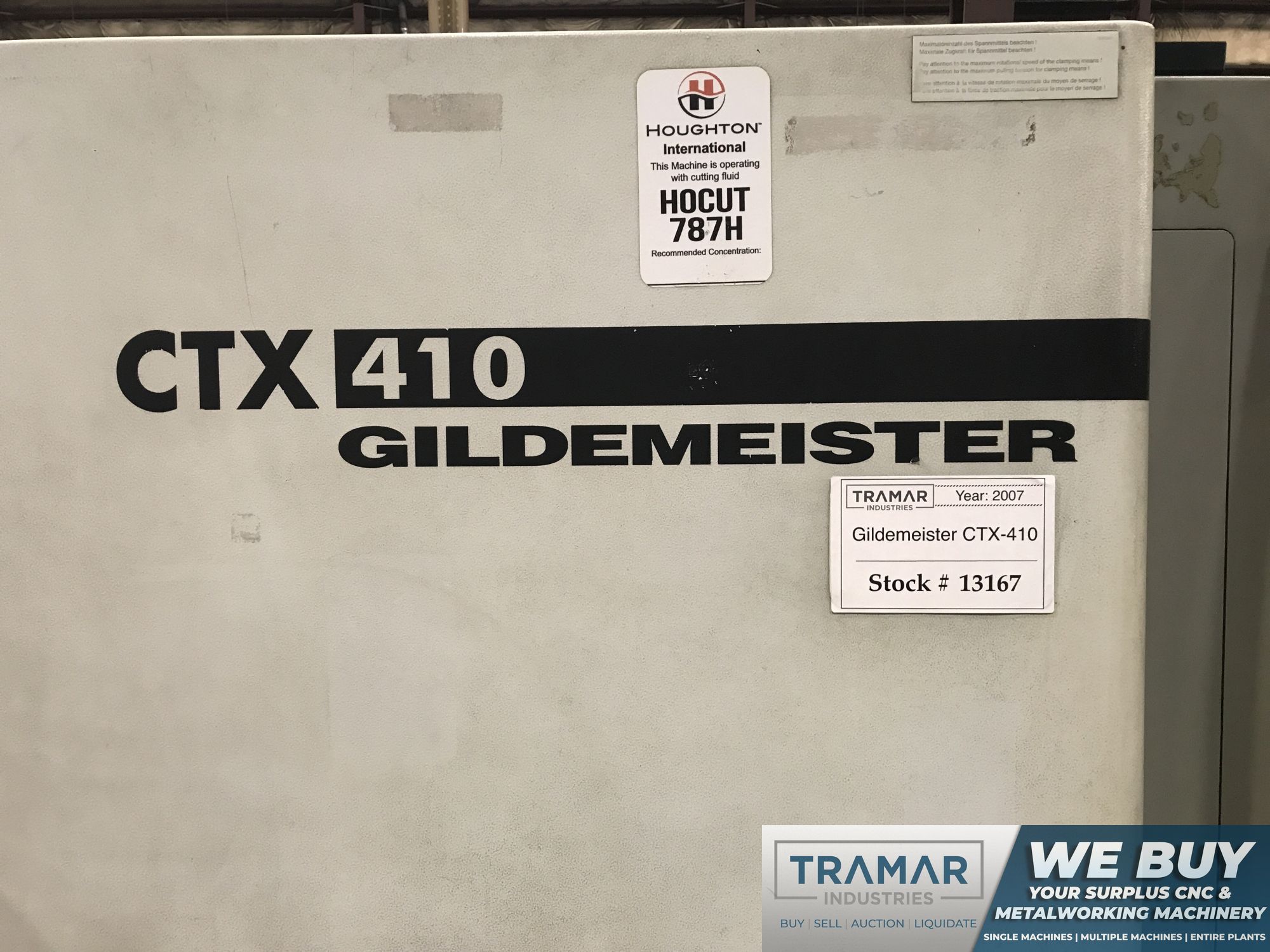

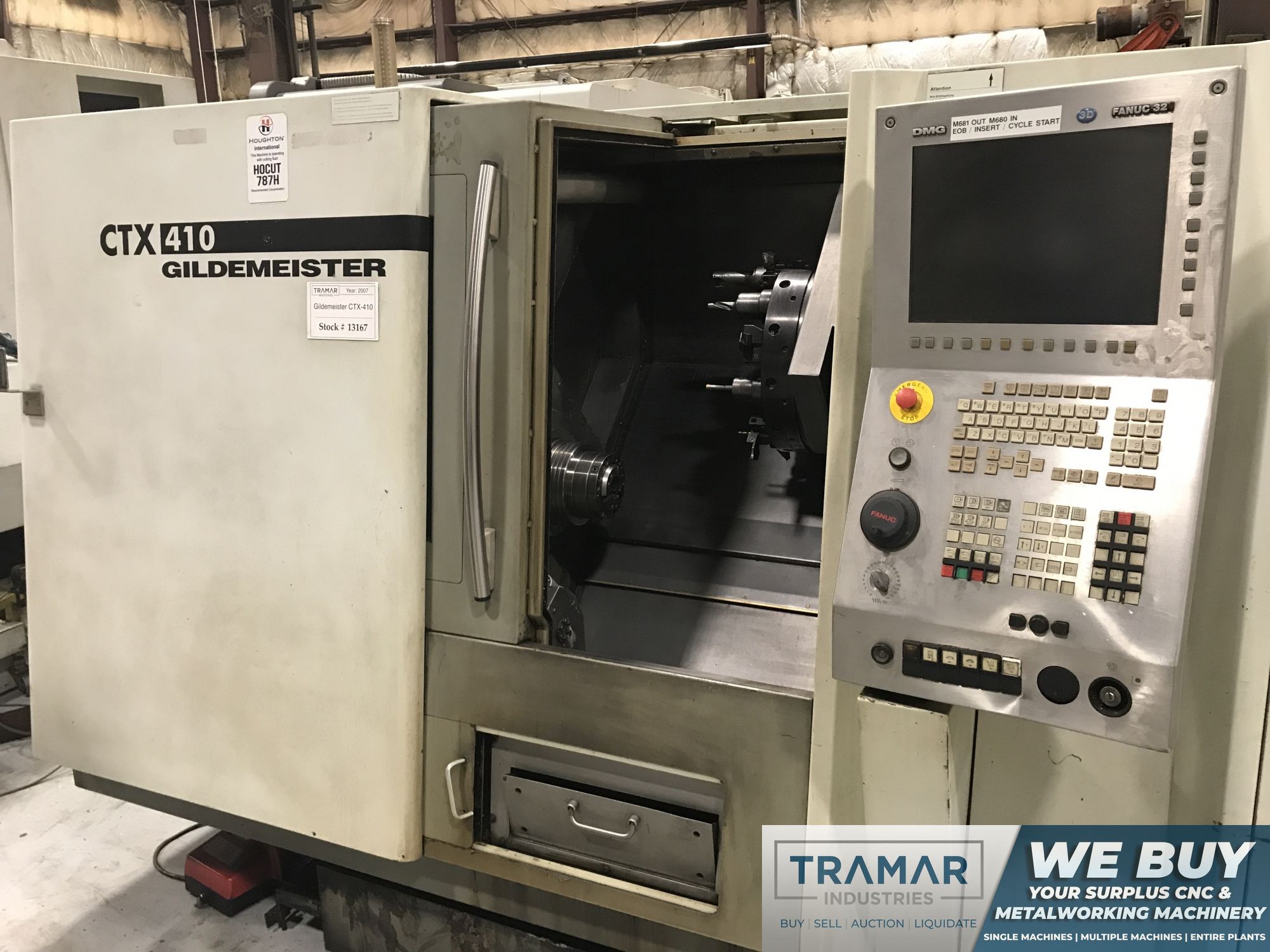

2007 GILDEMEISTER CTX-410 - CNC Horizontal Lathe
Machine Specifications
Year
2007
Control Type
Fanuc 320is-A
# Axis
3
Swing
20"
Turning Diameter
11"
Center Distance
24"

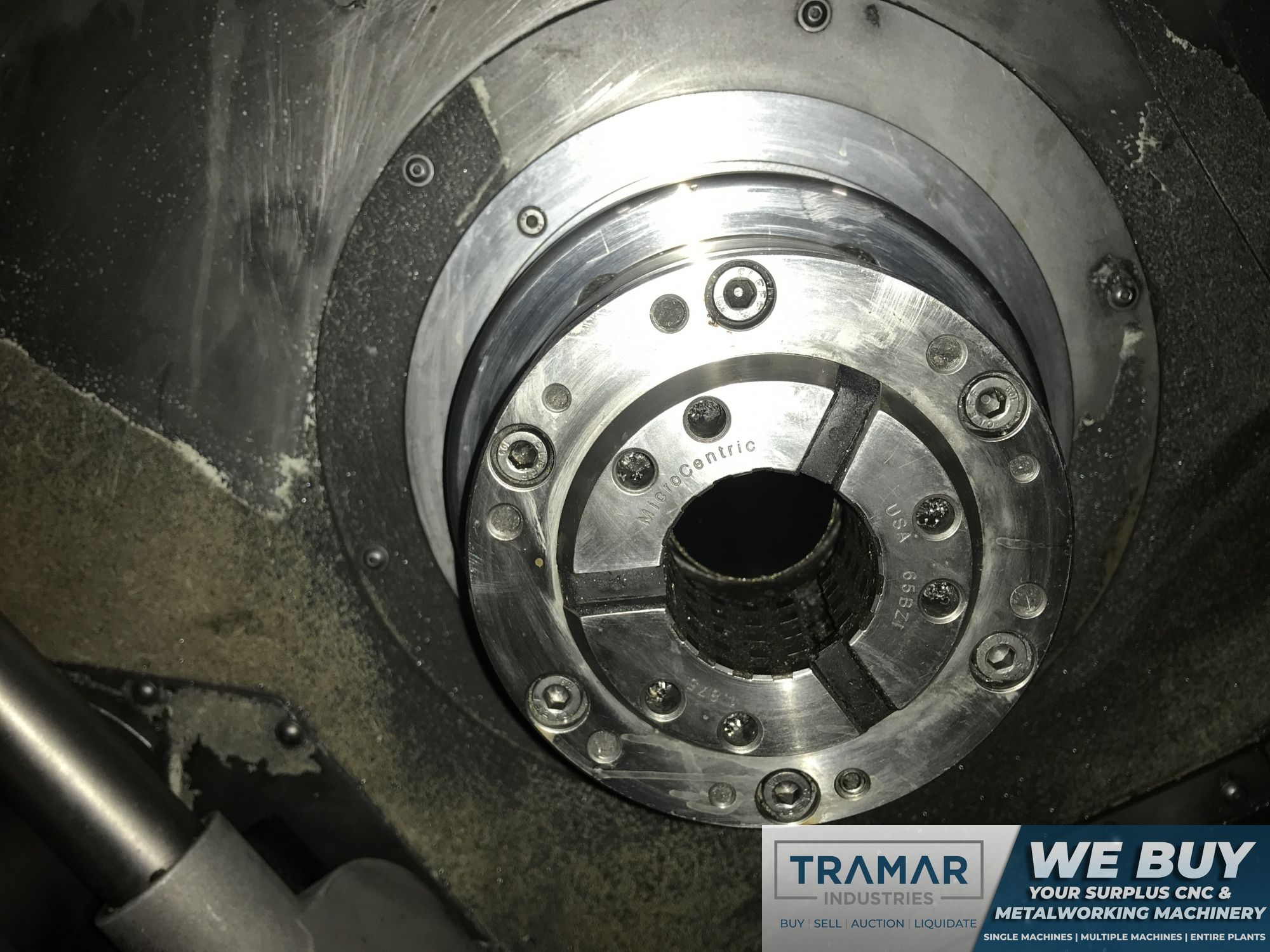

Chuck Size
Collet
Bar Capacity
2.65"
X Axis Travel
12.59"
Z Axis Travel
23.62"
C Axis Index
0.001°

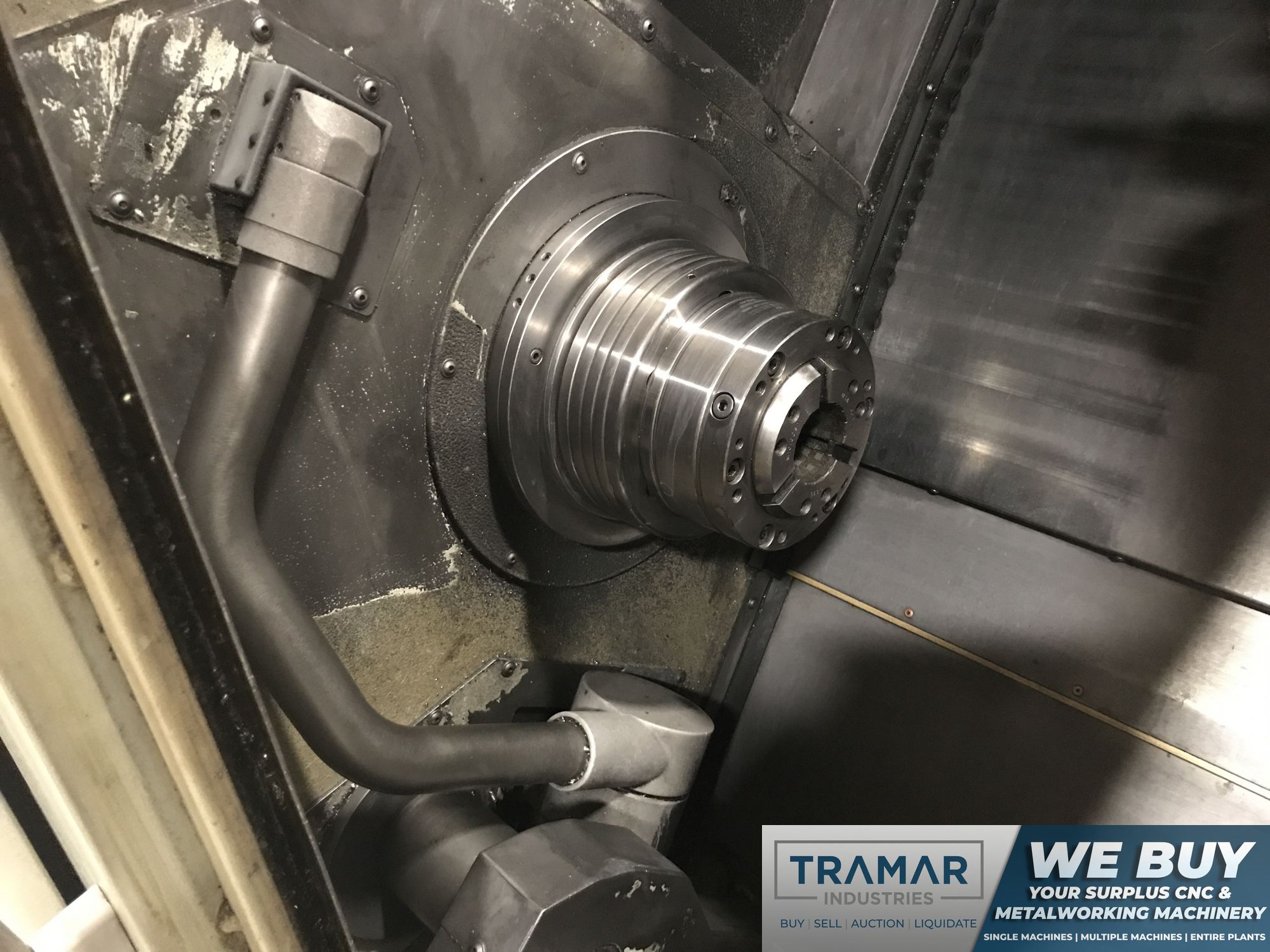

Spindle Speed (RPM)
5,000
Main Motor
28 HP

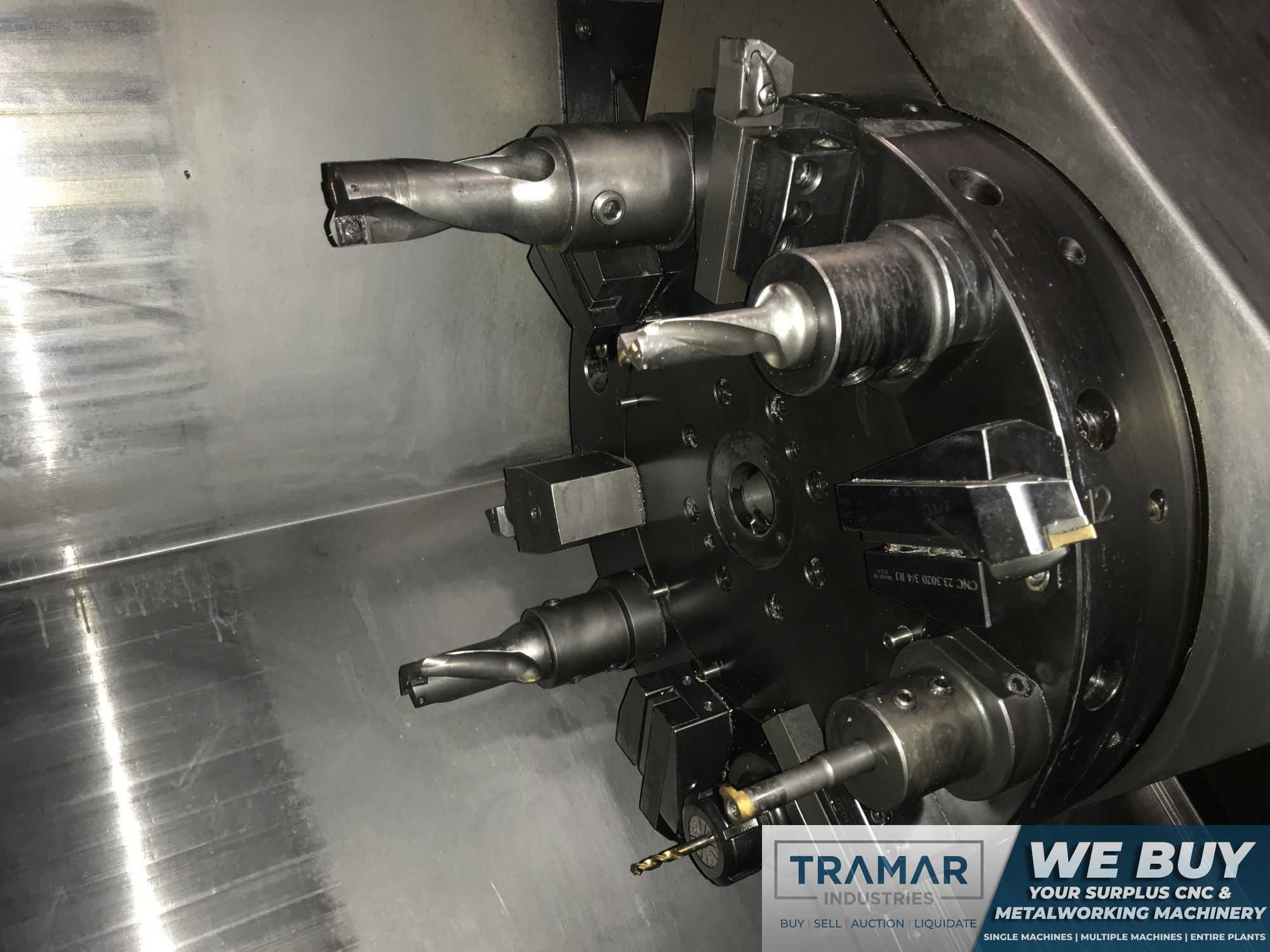

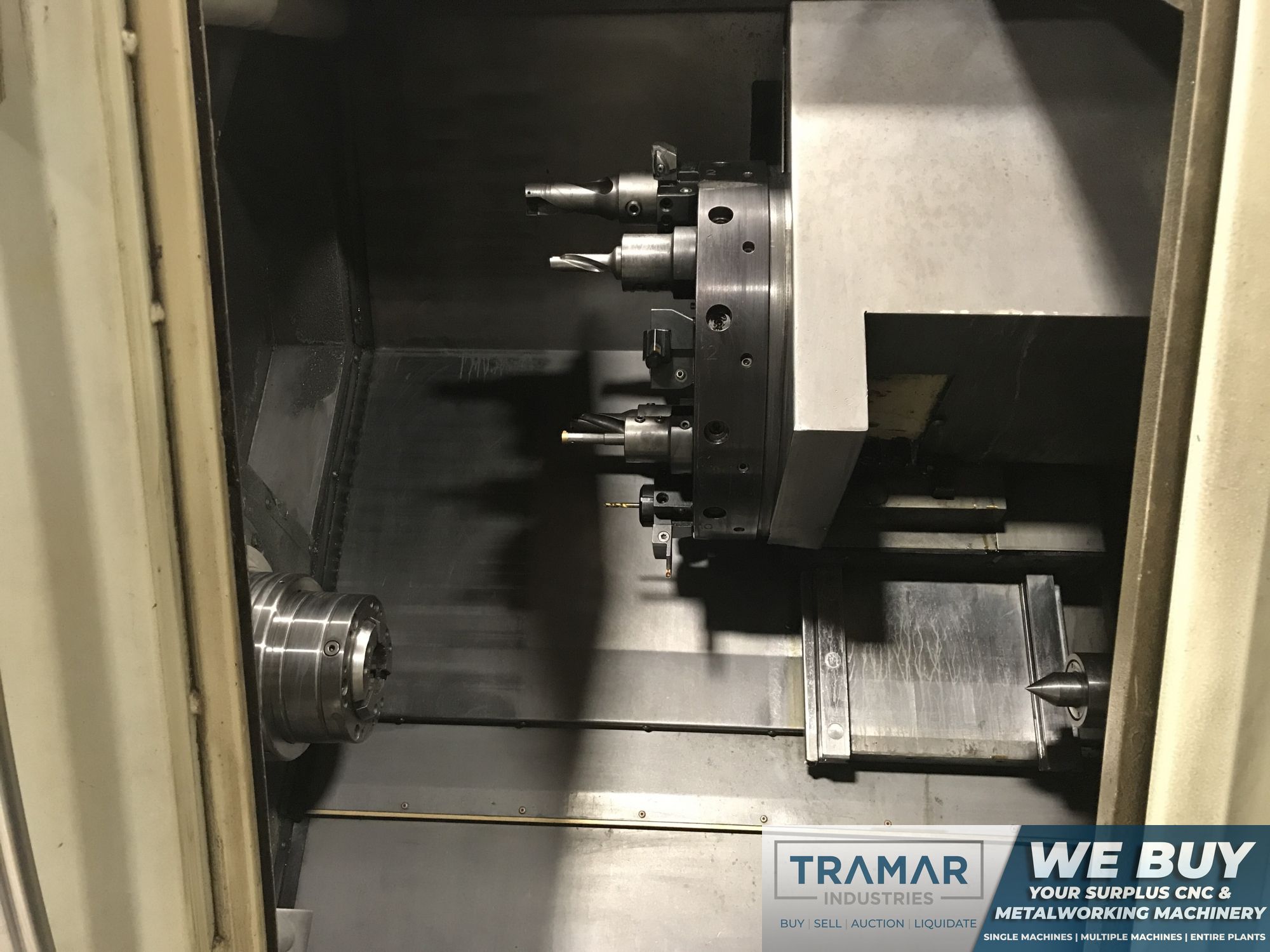

Turret Capacity
12

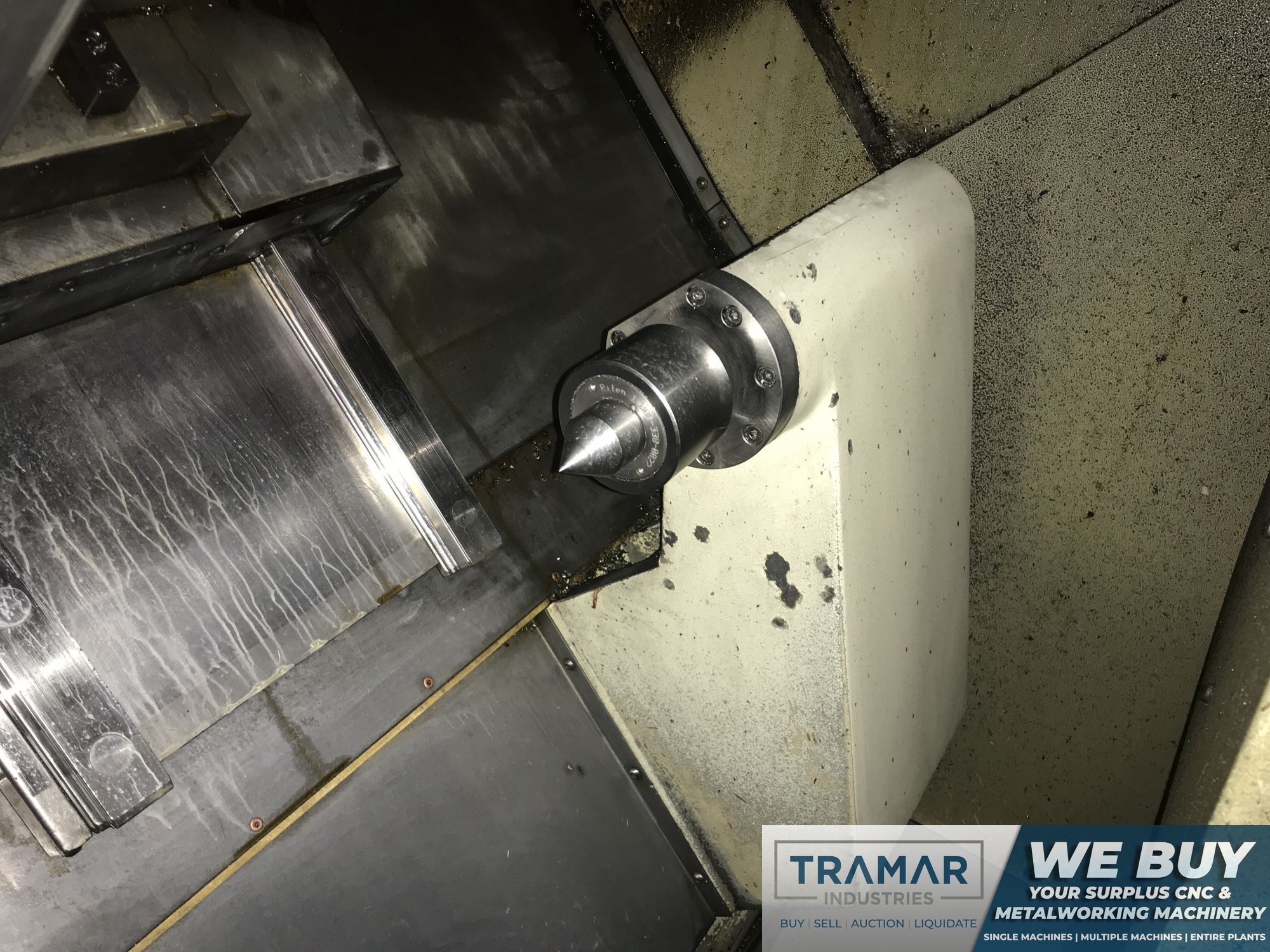

Tailstock
yes
Live Tooling
yes
Live Tooling Speed
4,000 RPM
Live Tooling Motor
5 hp
Y Axis
no
Sub Spindle
no
Dimensions
169" x 68" x 72"
Weight
11,600 pounds

Equipped With:

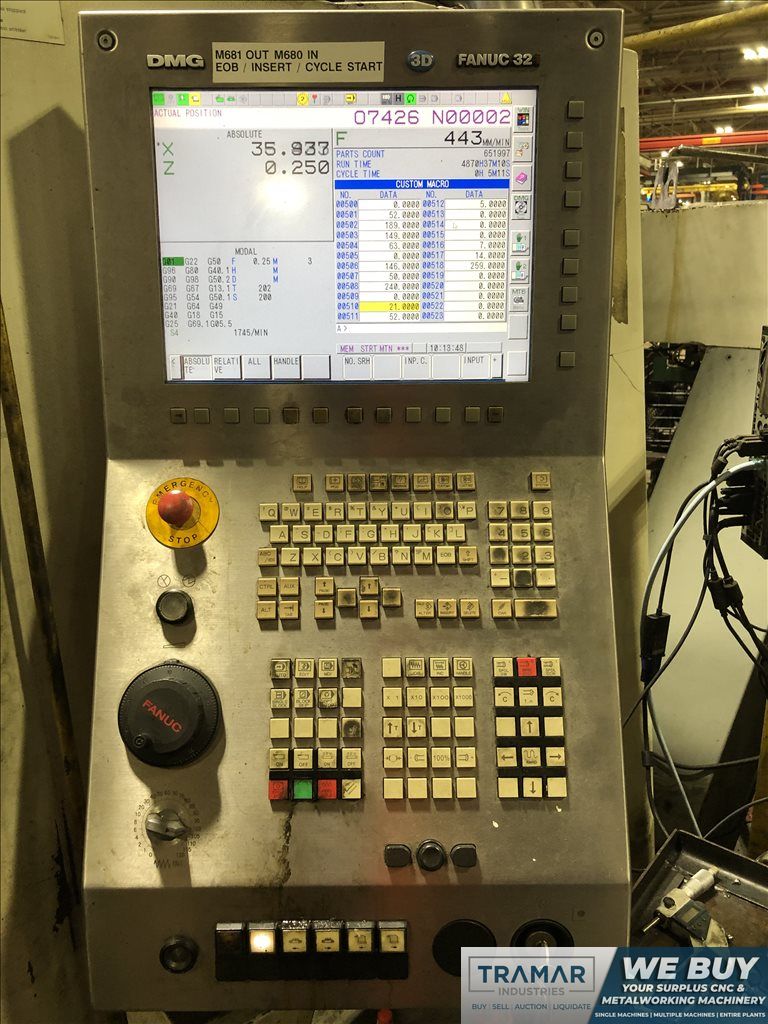

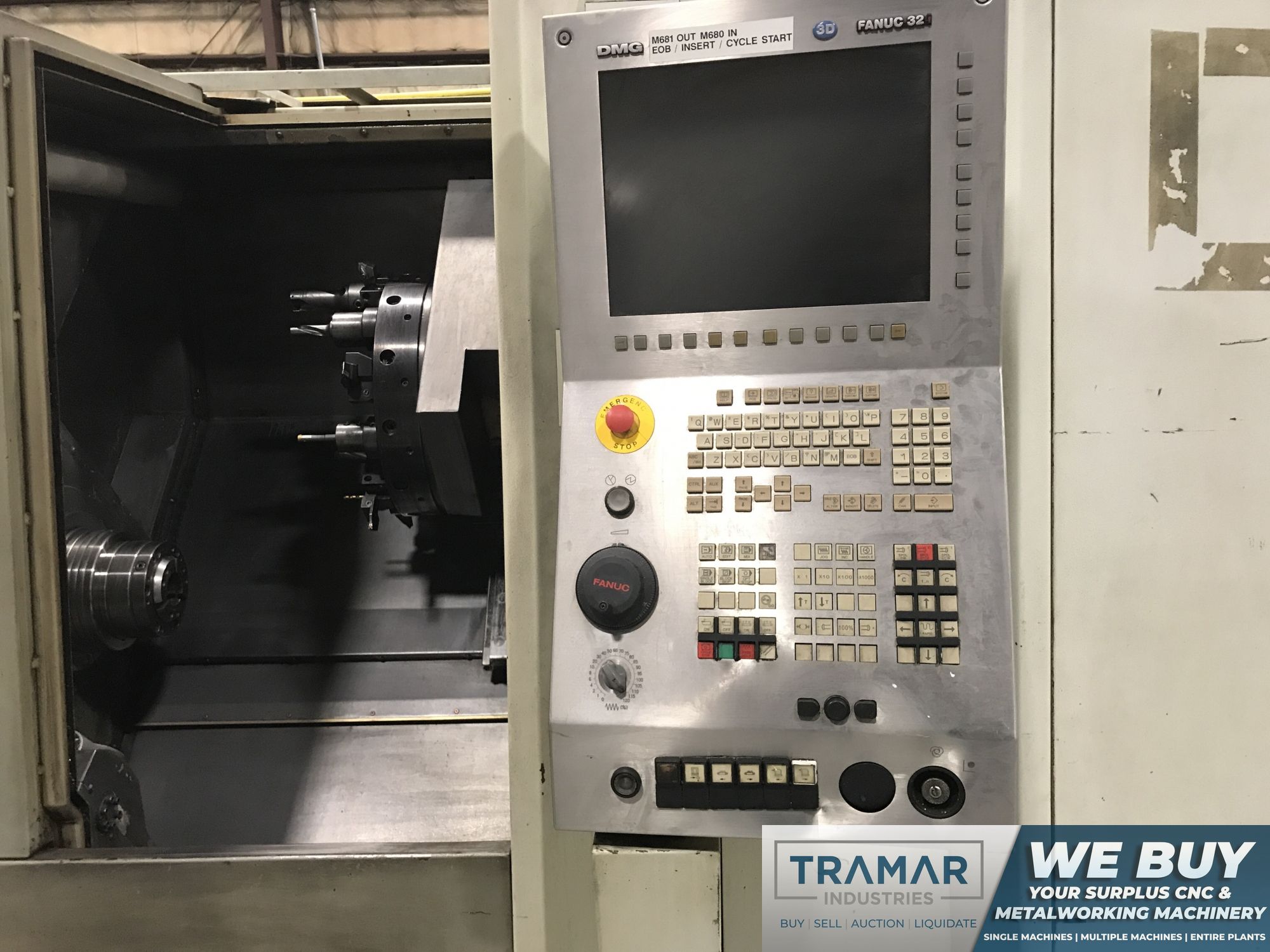

- Fanuc 320is-A CNC Control

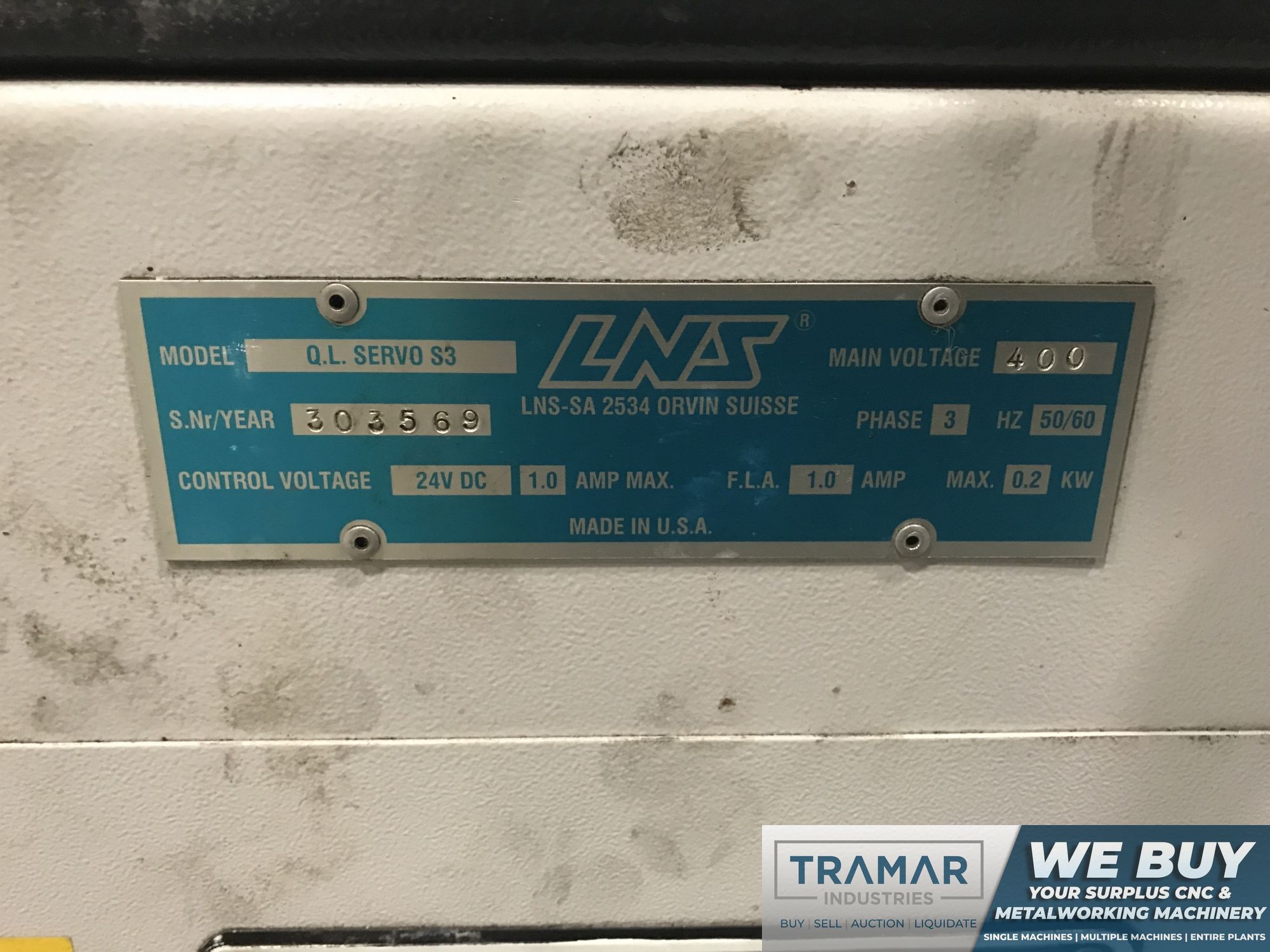

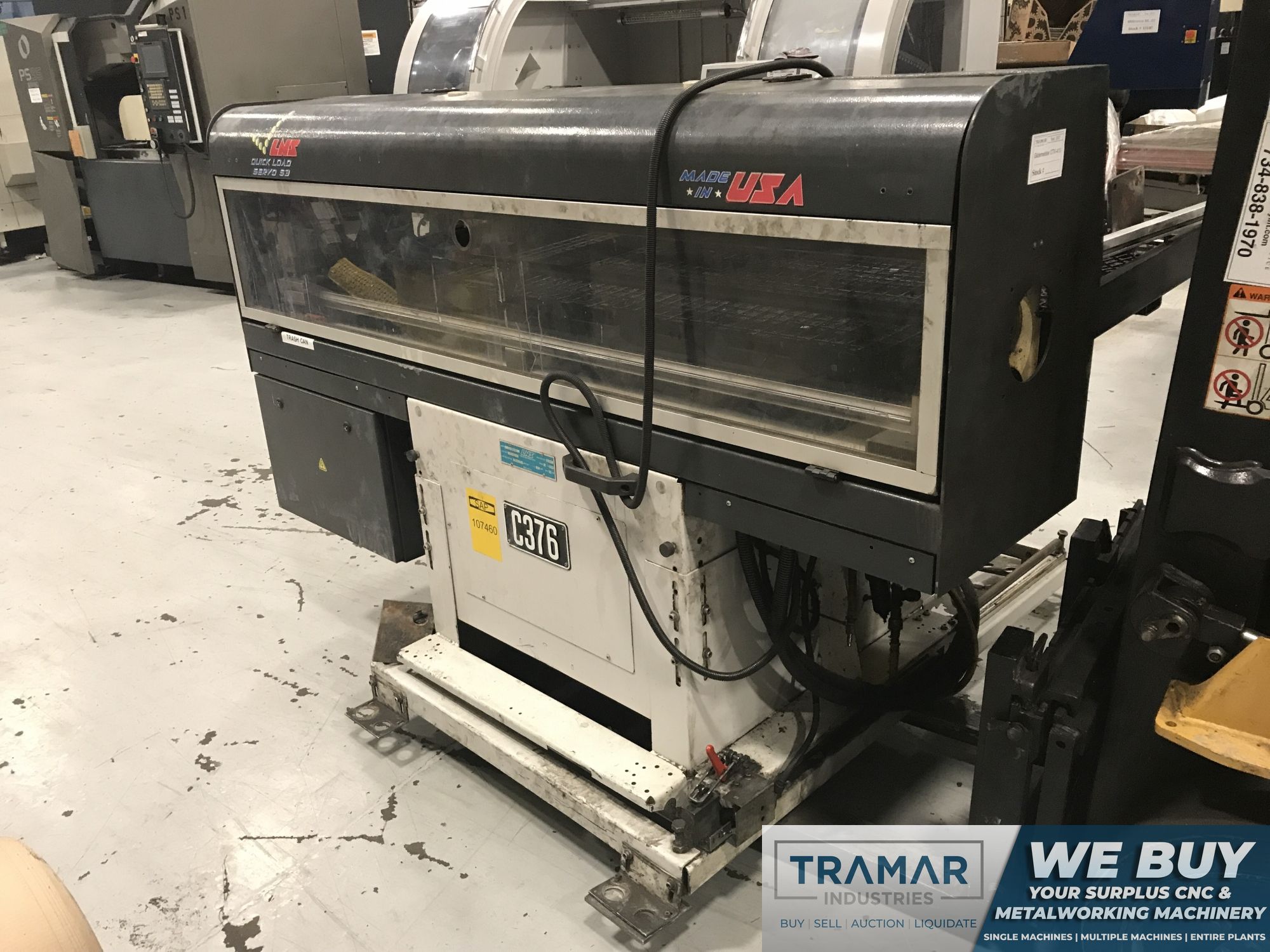

- LNS Quick Load Servo S3 Bar Feeder
- Chip Conveyor
- Coolant Tank
- Fast Data Server
- Manual Guide i (Conversational Programming)
- Rigid Tapping
- High Speed Skip
- Multi Step Skip
- Custom Macro B
- Workpiece Coordinate System (48 Pairs)
- Tool Offset Pairs (64 Pairs)
- Tool Nose Radius Compensation
- Tool Geometry/Wear Compensation
- Tool Life Management
- Parts Program Storage (1MB)
- Graphic Display
- Ethernet Interface

The Dmg Gildemeister CTX-410 is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
