Hyundai Kia HS630 - Horizontal Machining Centers

Request Quote
Share Machine
Specifications Print Specs
Model: HS630
Year: 2007
Stock #: 300107
Highlights:

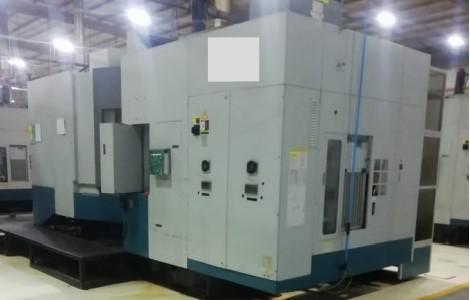

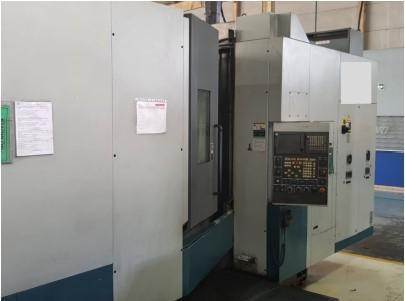

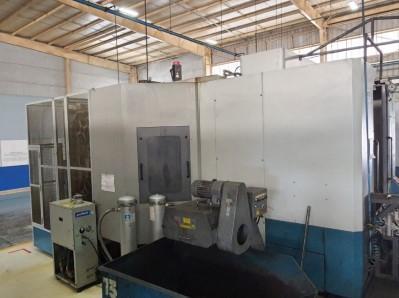

2007 Hyundai Kia HS630 Horizontal Machining Center
Machine Specifications
Year
2007
Control Type
Fanuc 18i-MB
# Axis
4
Pallet Length
24.8"
Pallet Width
24.8"
Pallet Load Capacity
2,646 pounds
X-Axis Travel
41.4"
Y-Axis Travel
34.4"
Z-Axis Travel
34.4"
Rapid Traverse Rate (X/Y/Z)
1,969 ipm
Spindle Taper
CAT 50
Spindle Speed
8,000 rpm
Spindle Motor (HP)
30 hp

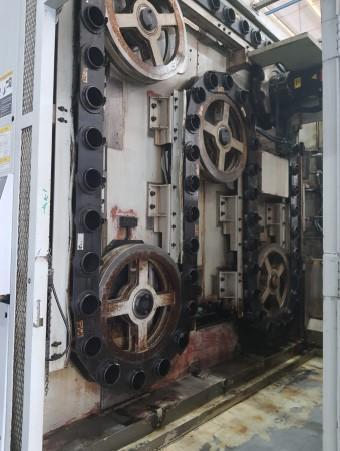

Tool Changer Capacity
60
Machine Dimensions
228" x 141" x 139 - Floor Space
Machine Weight
55,160 pounds

Equipped With:

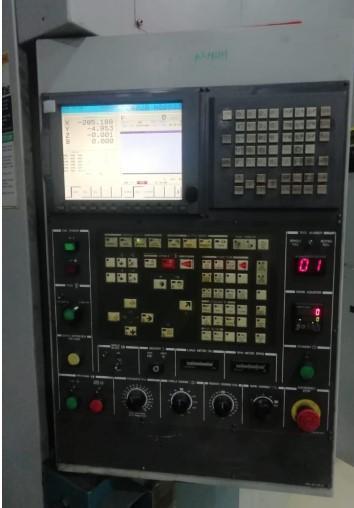

- Fanuc 18i-MB Control
- 2 Speed Gear Box
- Chip Conveyor
- Coolant Tank & Pump

The Hyundai Kia HS630 is an exclusive part of our Horizontal Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
