Hyundai Kia SKT200TTSY - Horizontal Lathes

Share Machine
Specifications Print Specs

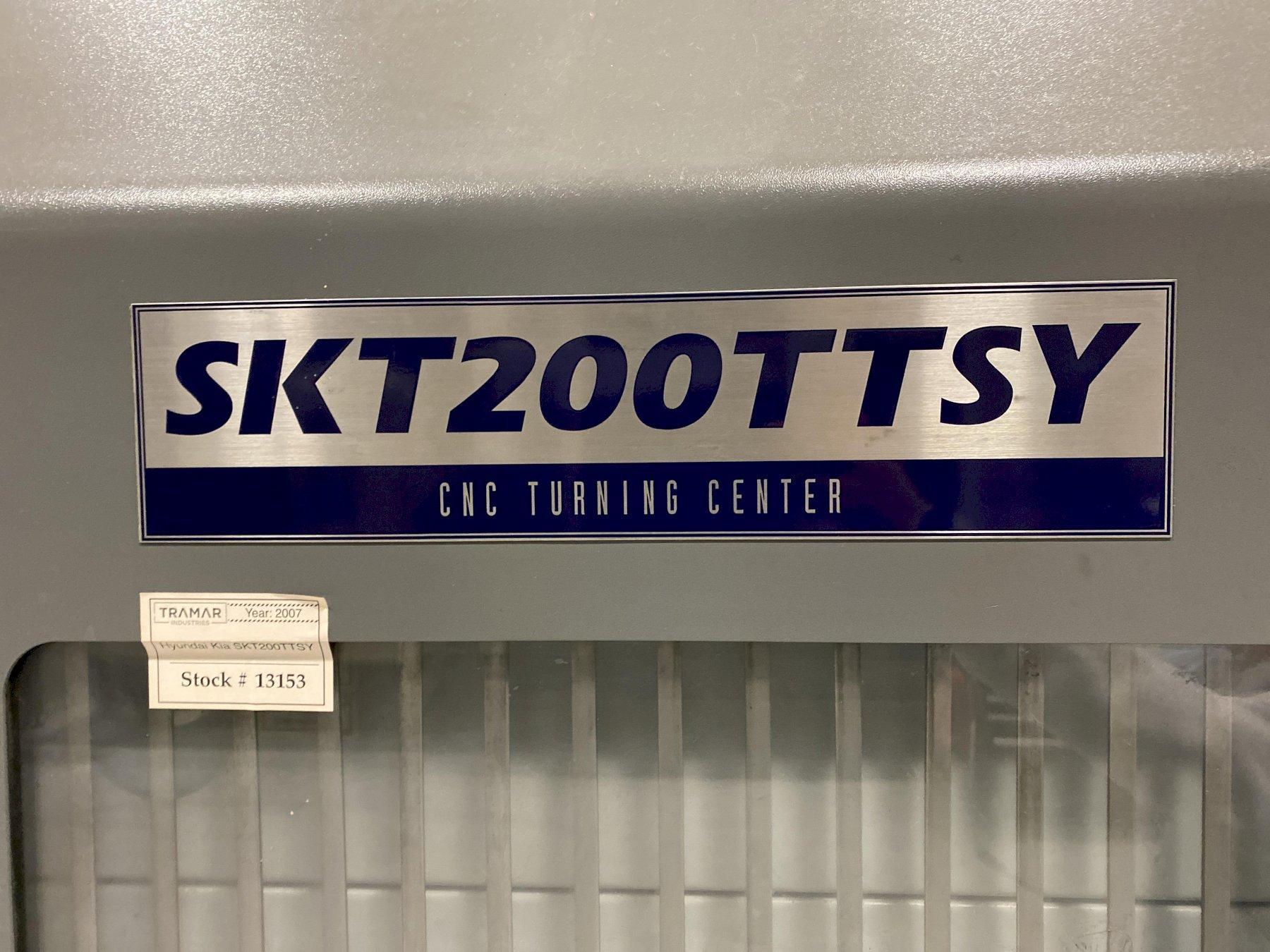

Model: SKT200TTSY
Year: 2007
Stock #: 13153 Sold
Highlights:

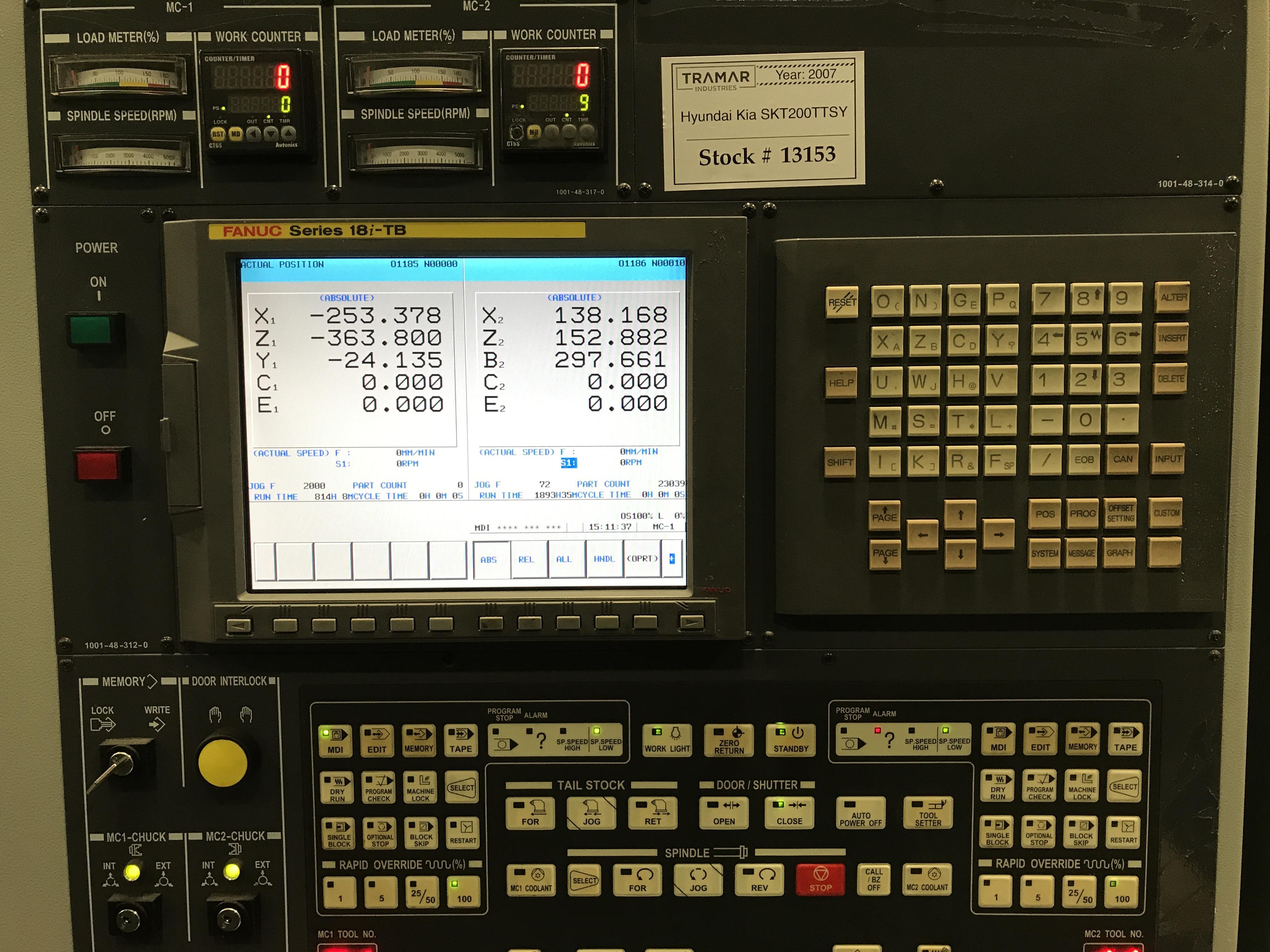

Fanuc 18i-TB CNC Control
Live Tooling & Y Axis

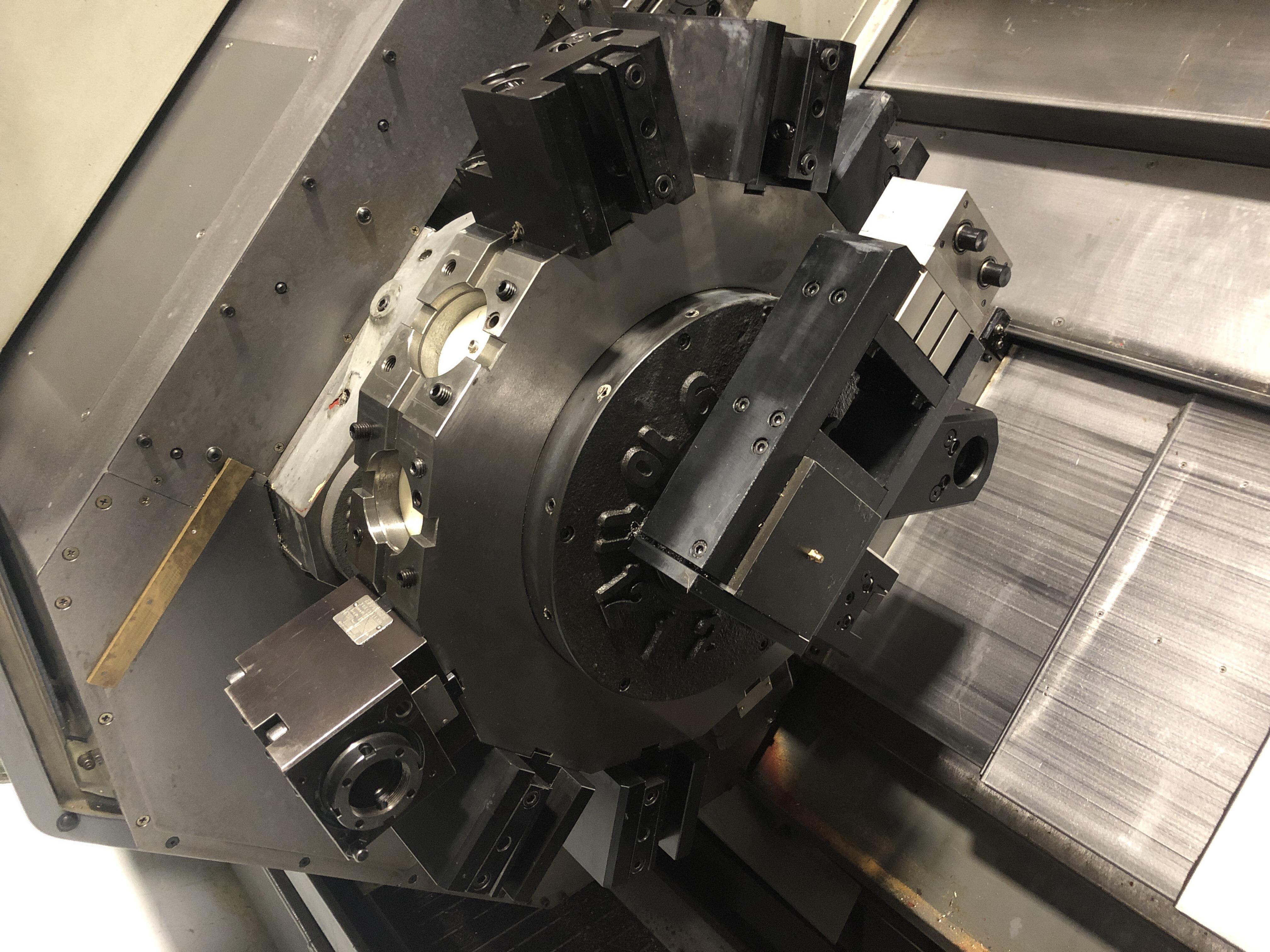

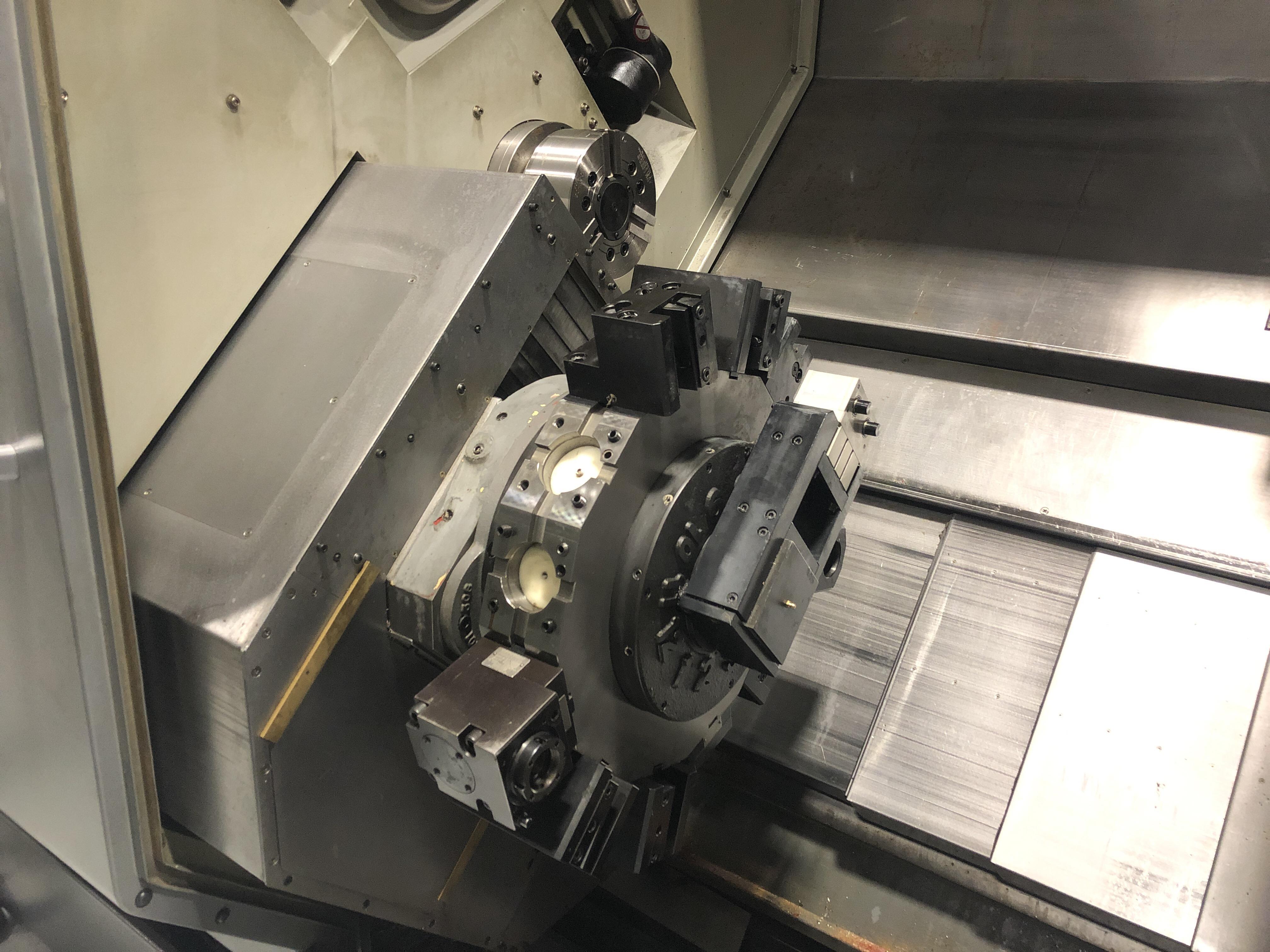

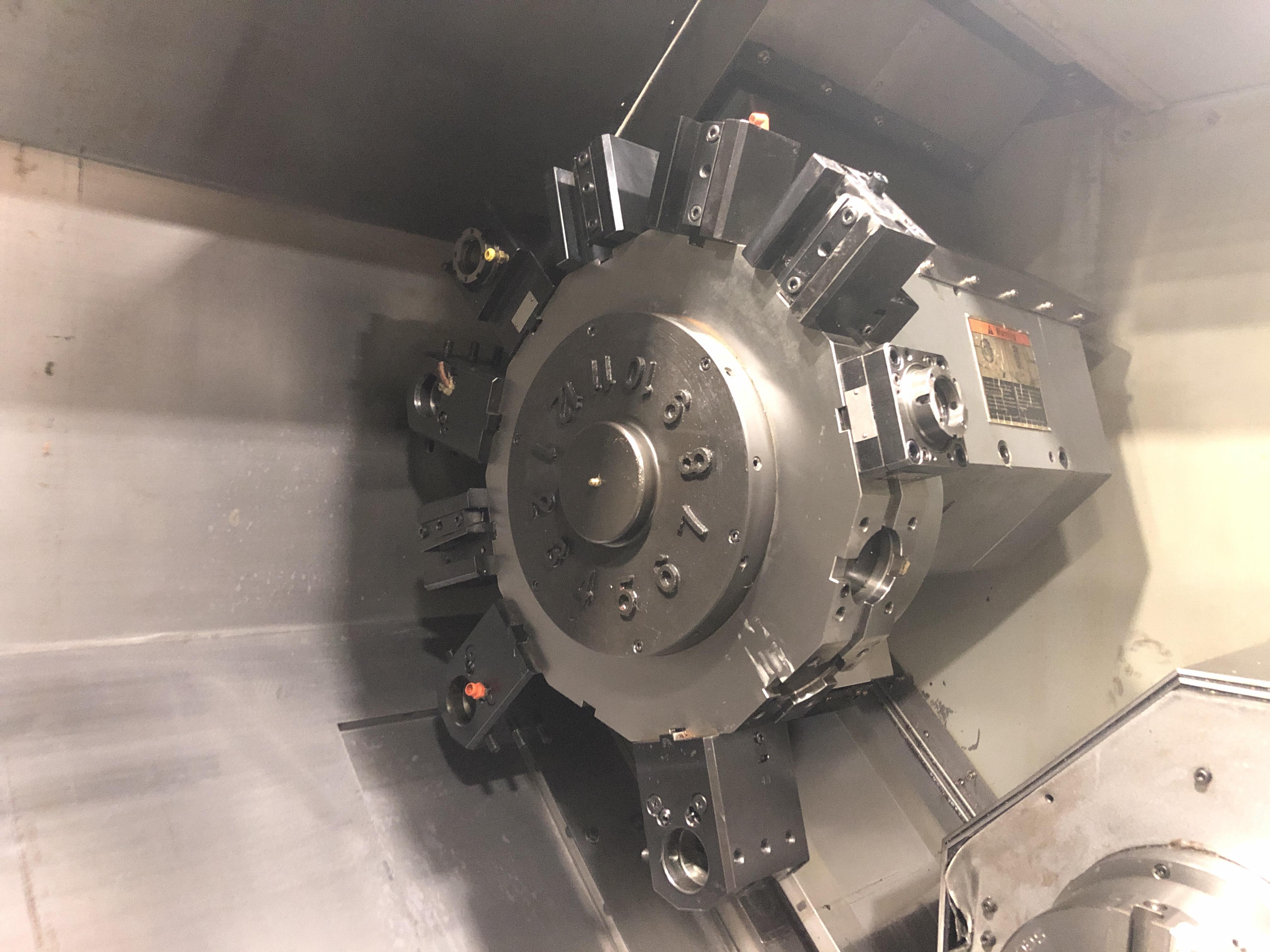

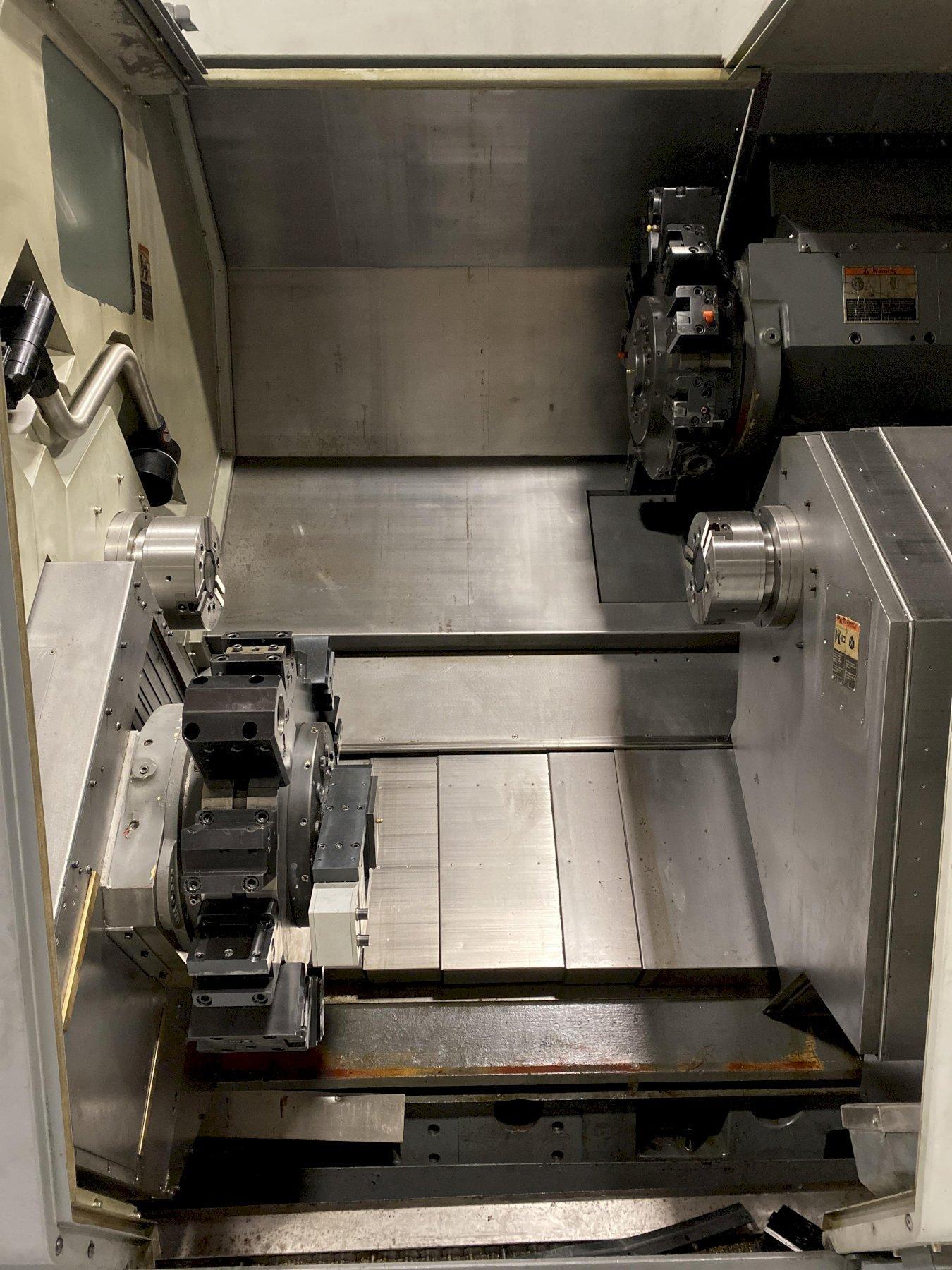

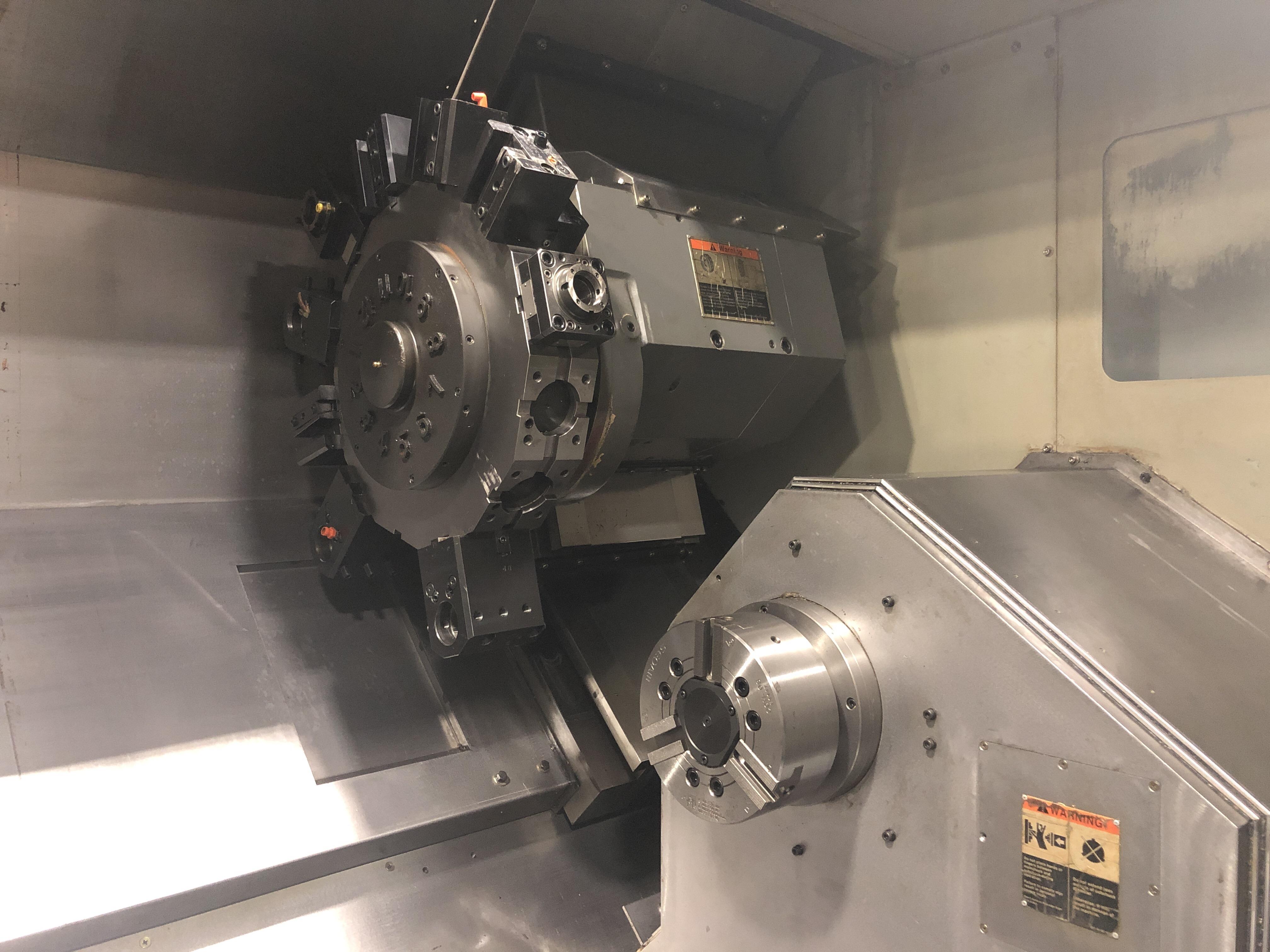

Twin Spindle / Twin Turret

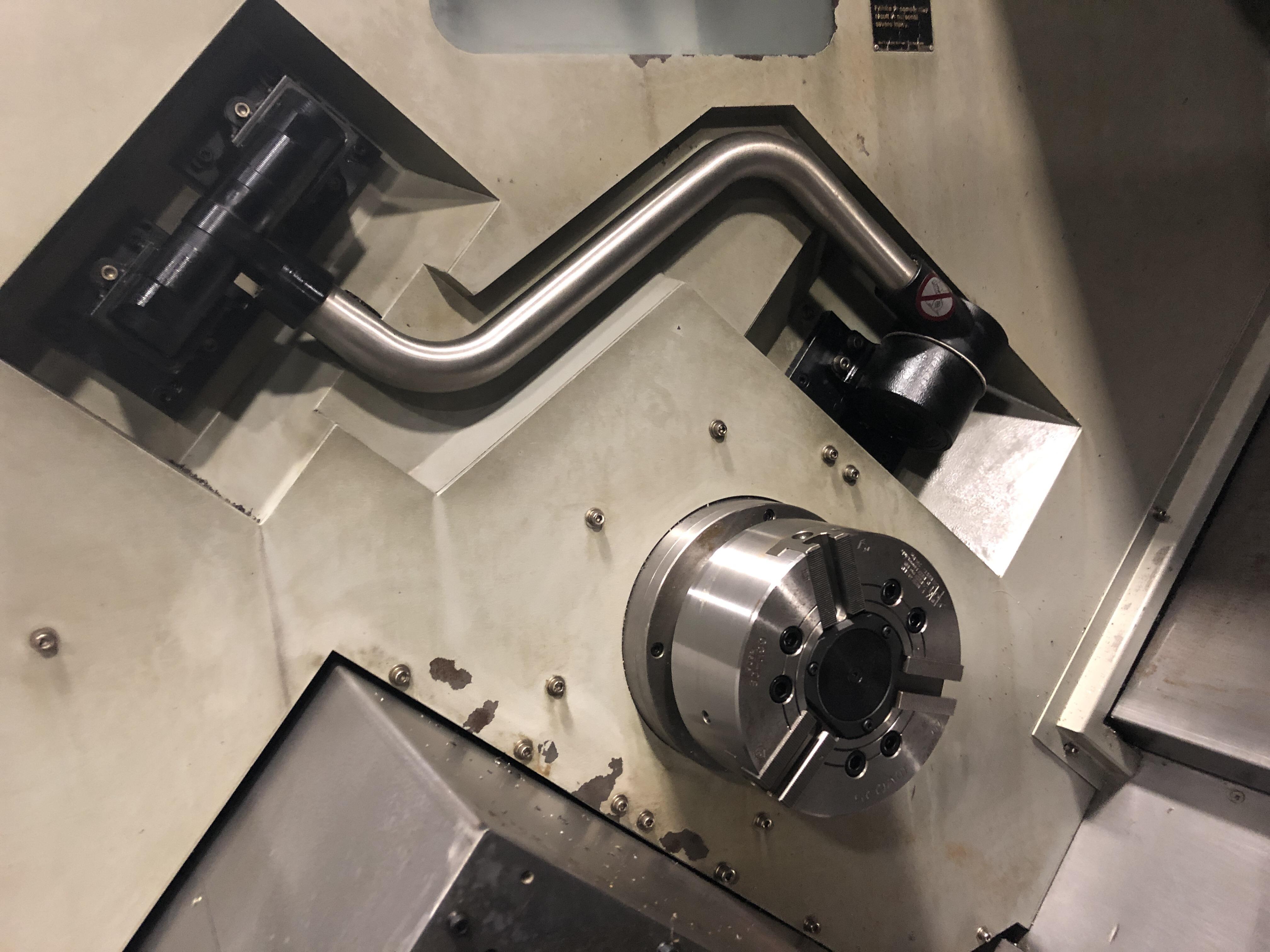

Tool Presetter
(2) Machines Available

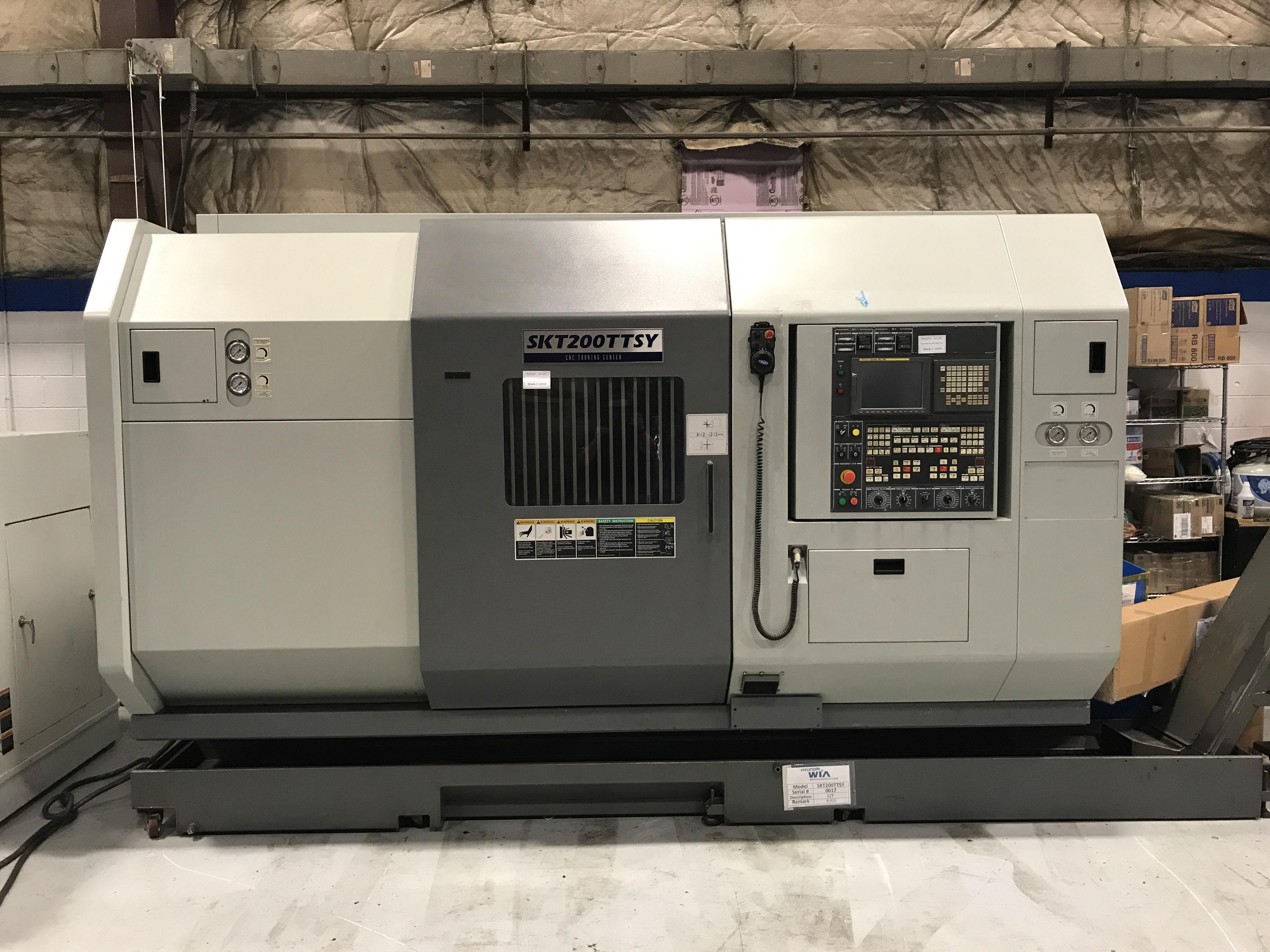

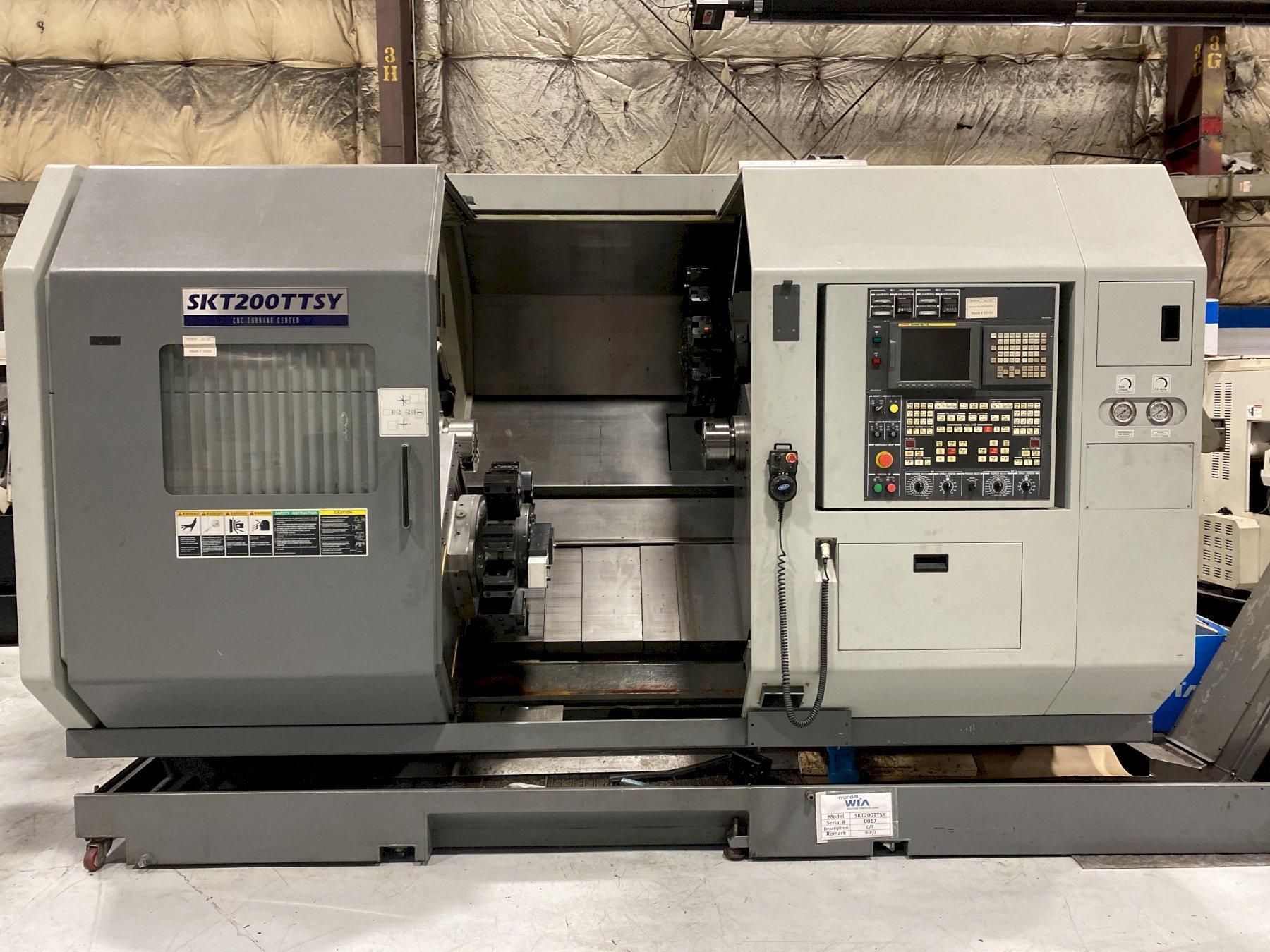

2007 HYUNDAI KIA SKT200TTSY - CNC Horizontal Lathe
Machine Videos
Machine Specifications
CNC Control
yes
Control Type
Fanuc 18i-TB

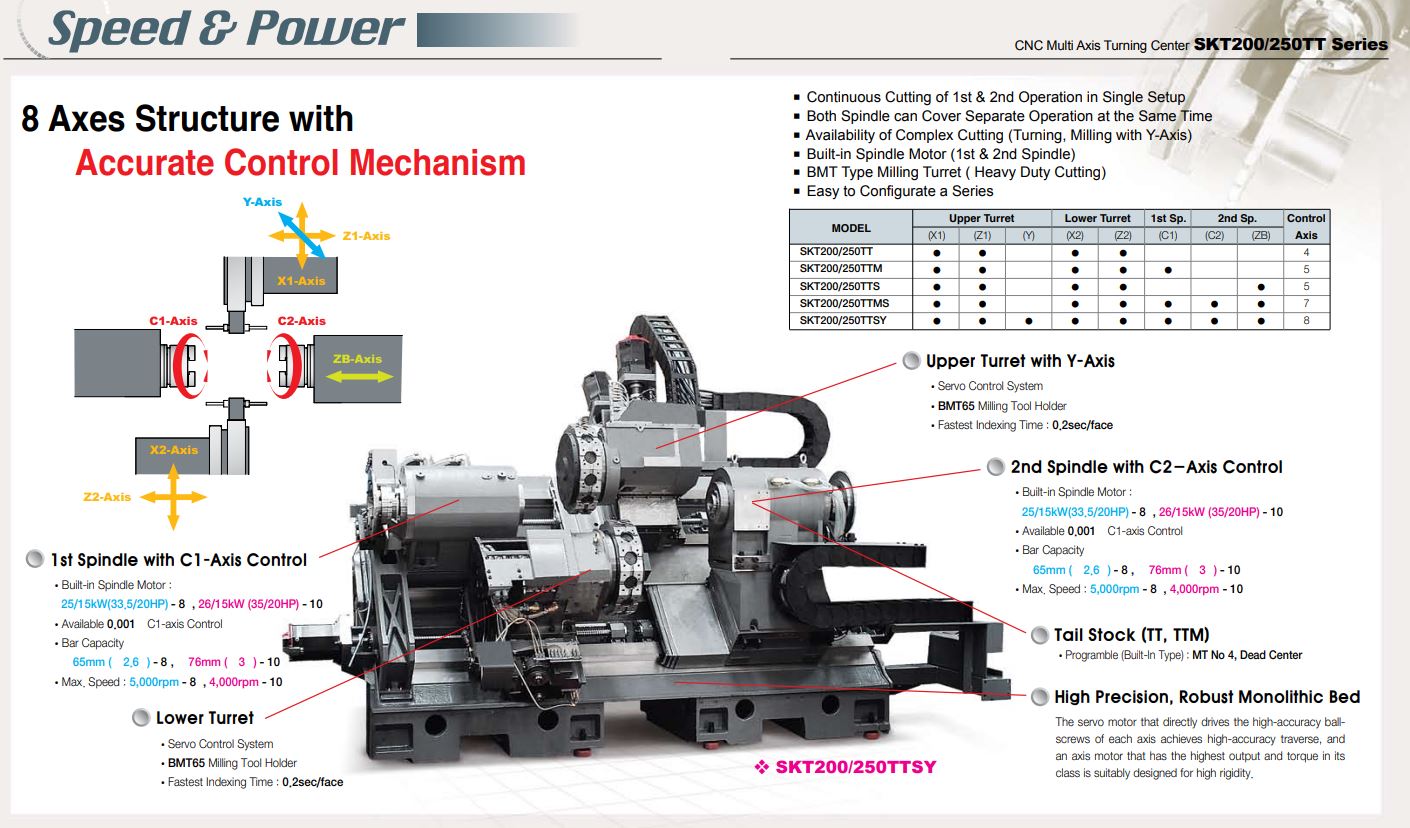

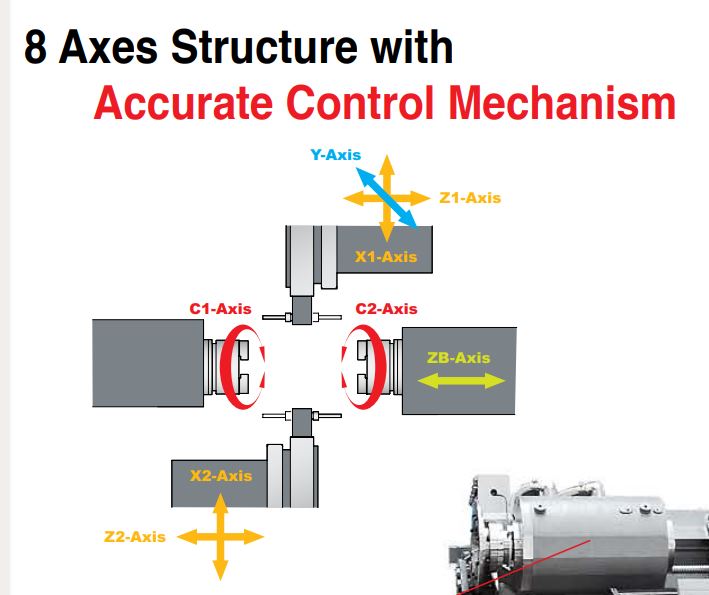

# Axis
8
Swing
30.7"
Turning Diameter
15.4"
Turning Diameter Lower Turret
11.8"
Center Distance
48.42"

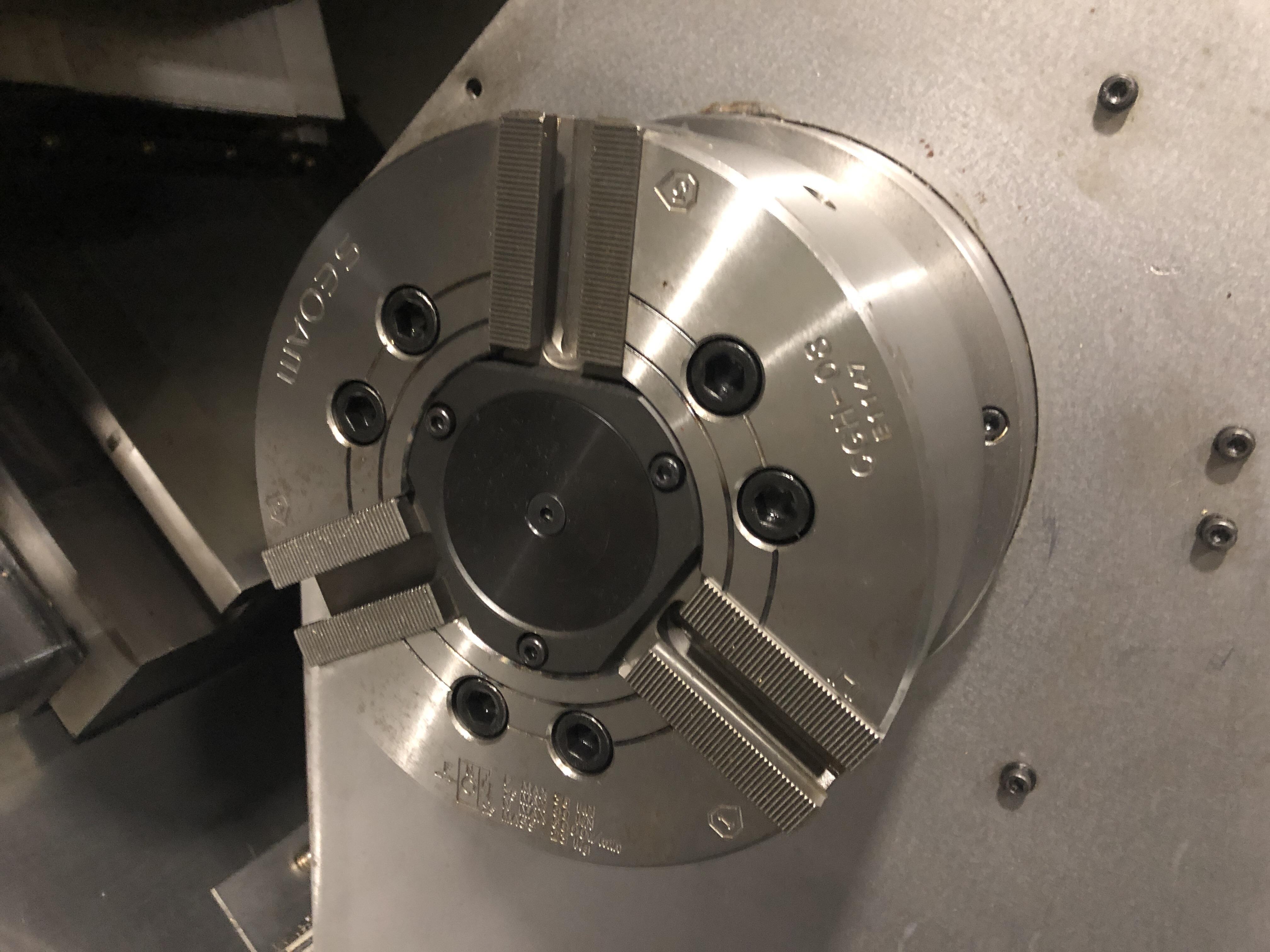

Chuck Size
8"
Bar Capacity
2.6"
X Axis Travel
10.6"
Z Axis Travel
36.2"
X2 Travel
7.5"
Z2 Travel
36.2"
Y Axis Travel
+/-2.4"
B Axis Travel (Sub Spindle)
36.2"
C Axis Index
0.001°
Rapid Traverse (X/Z)
945 IPM
Spindle Nose
A2-6
Spindle Speed (RPM)
5,000
Main Motor
33.5 HP
Sub Spindle
yes
Sub Spindle Nose
A2-6
Sub Spindle Chuck
8"
Sub Spindle Bar Capacity
2.56"
Sub Spindle Speed
5,000 rpm
Sub Spindle Motor (HP)
33.5 hp
Live Tooling
yes
Live Tooling Speed
4,000 rpm
Live Tooling Motor
7.5 hp
Tailstock
no
Y Axis
yes
Turret Capacity
12 Upper / 12 Lower
Dimensions
145" x 86" x 101"
Weight
24,500 pounds

Equipped With:

- Fanuc 18i-TB CNC Control
- Chip Conveyor
- Coolant Tank & Pump
- Live Tooling
- Y Axis (Upper Turret Only) +/- 2.4"
- Twin Spindle
- Twin Turret
- Tool Presetter
- Available Manuals



The Hyundai Kia SKT200TTSY is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
