Hyundai WIA SKT-250Y - Horizontal Lathes

Share Machine
Specifications Print Specs
Model: SKT-250Y
Year: 2007
Stock #: 13155 Sold
Highlights:
Fanuc 21i-TB CNC Control
Live Tooling
Y Axis
Manual Guide i

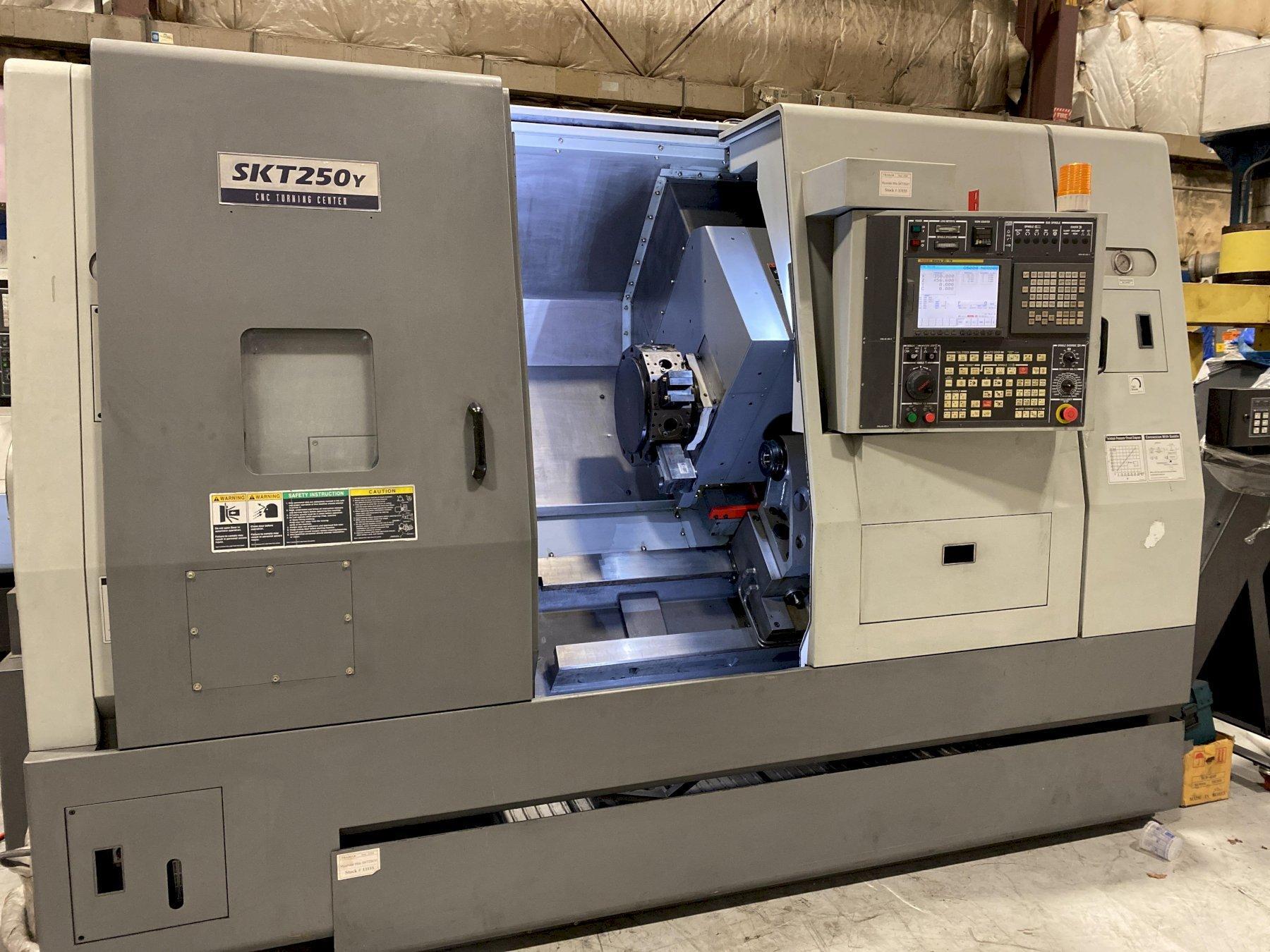

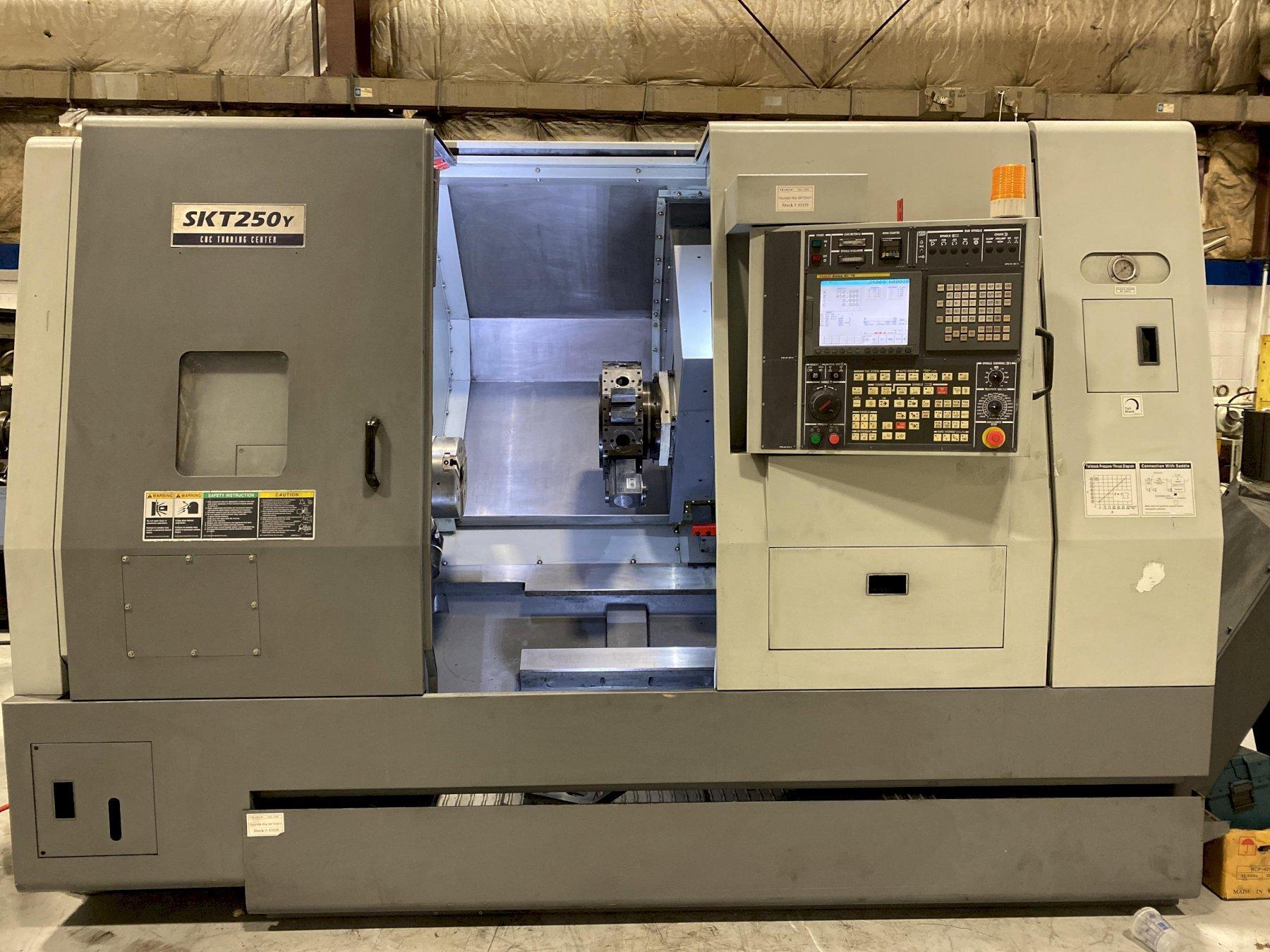

2007 HYUNDAI WIA SKT-250Y - Horizontal Lathe
Machine Specifications
# Axis
4
CNC Control
yes
Control Type
Fanuc 21i-TB
Chuck Size
10"
Swing
24.4"
Turning Diameter
12.2"
Center Distance
24.4"
Bar Capacity
3"
X Axis Travel
9.1"
Y Axis Travel
4.3"
Z Axis Travel
26.6"
Rapid Traverse (X/Z)
945 IPM
Spindle Speed (RPM)
3,500
Main Motor
30 HP

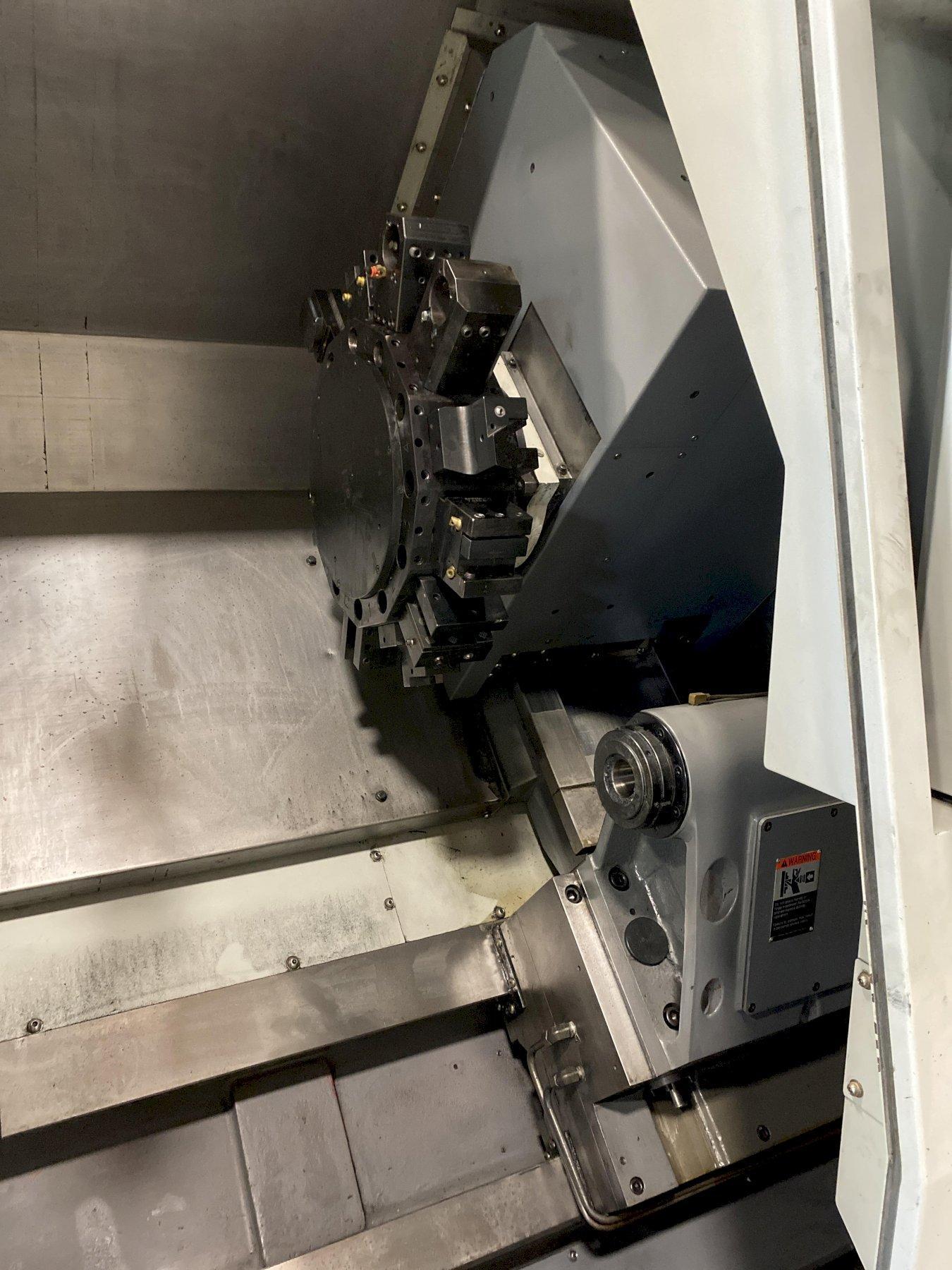

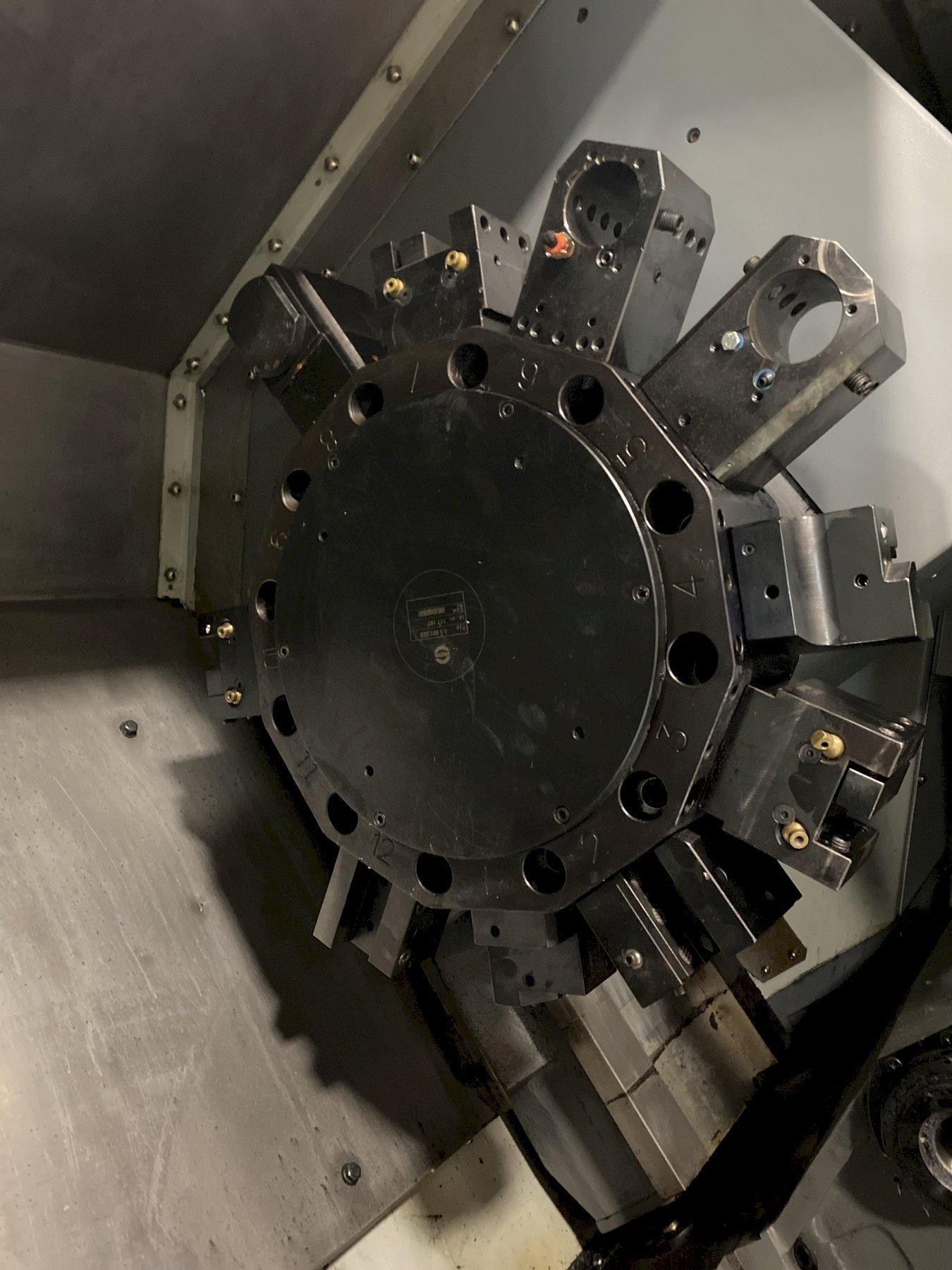

Turret Capacity
12
Tailstock
yes
Y Axis
yes
Live Tooling
yes
Live Tooling Speed
4,000 rpm
Live Tooling Motor
7.4 hp
Sub Spindle
no
Dimensions
137" x 77" x 88"
Weight
14,500 pounds

Equipped With:

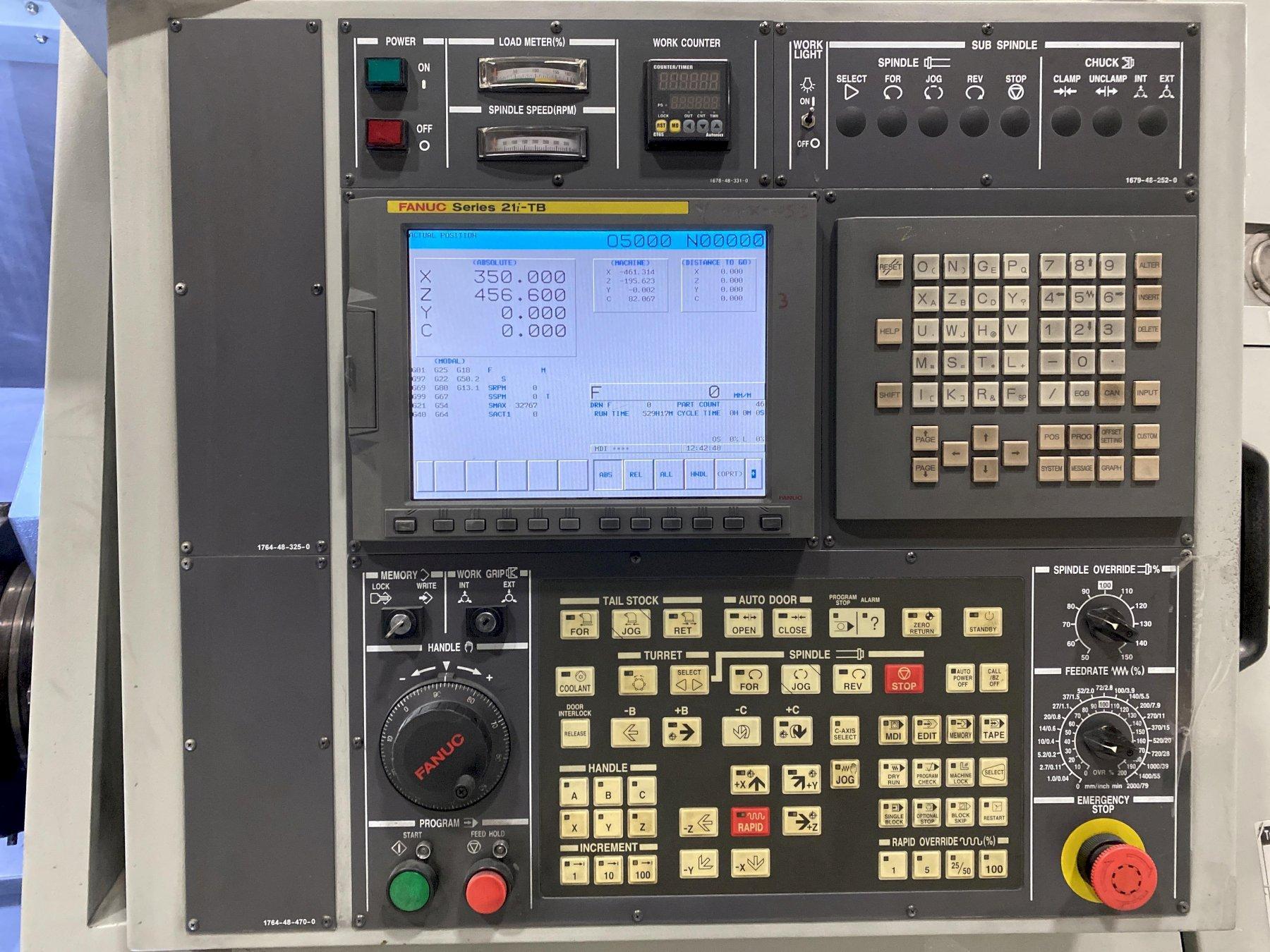

- Fanuc 21i-TB Control

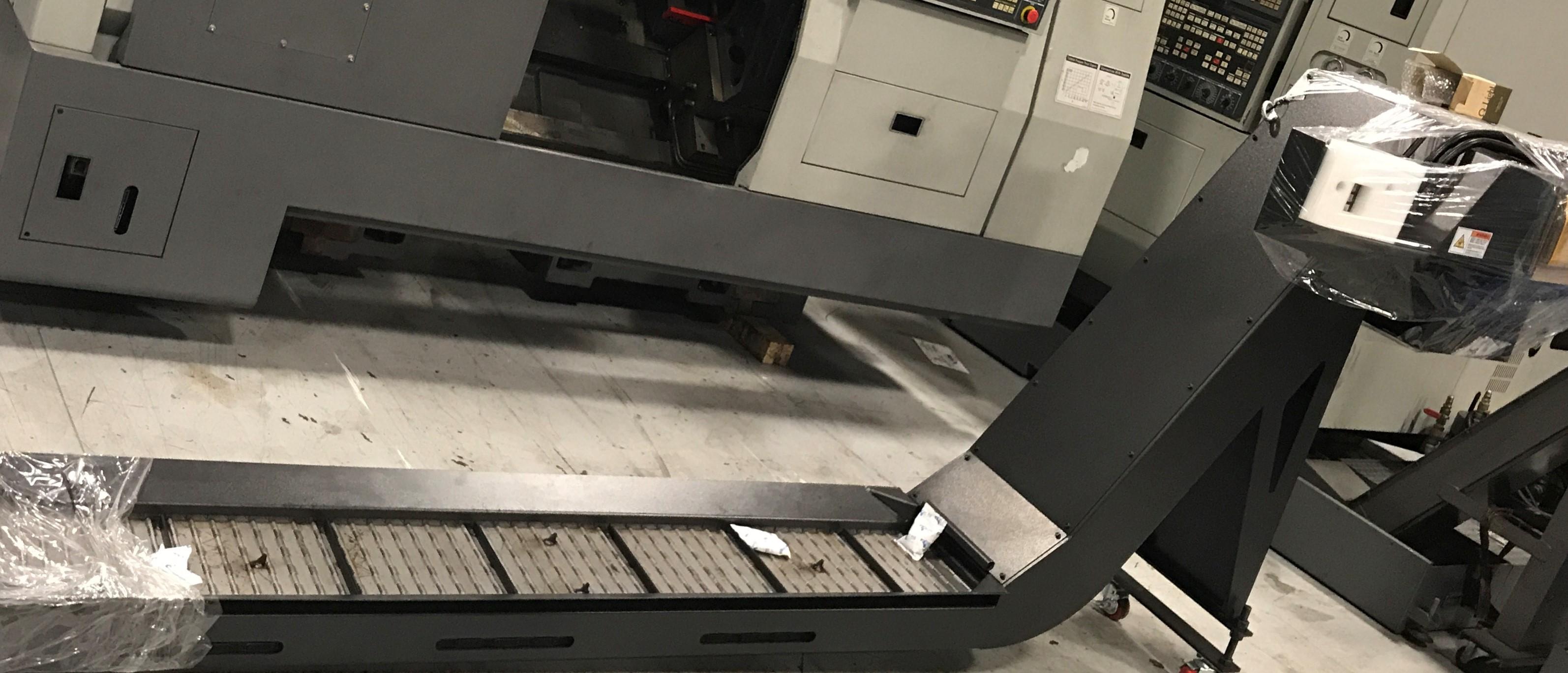

- Chip Conveyor

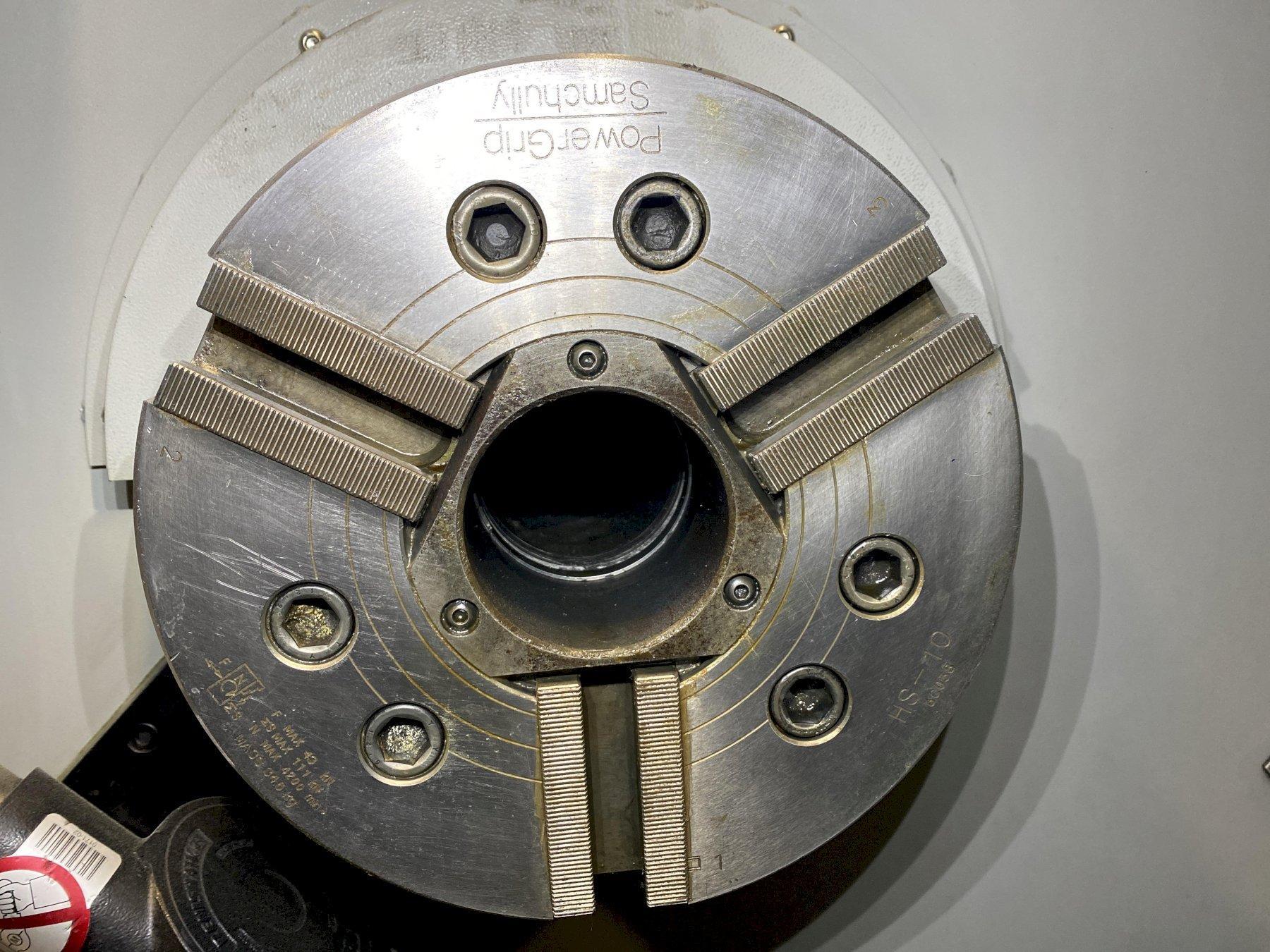

- 10" Samchully HS-10 Chuck
- Coolant Tank & Pump
- Tailstock
- Live Tooling & Y Axis
- Manual Guide i

- Available Manuals

The Hyundai WIA SKT-250Y is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
