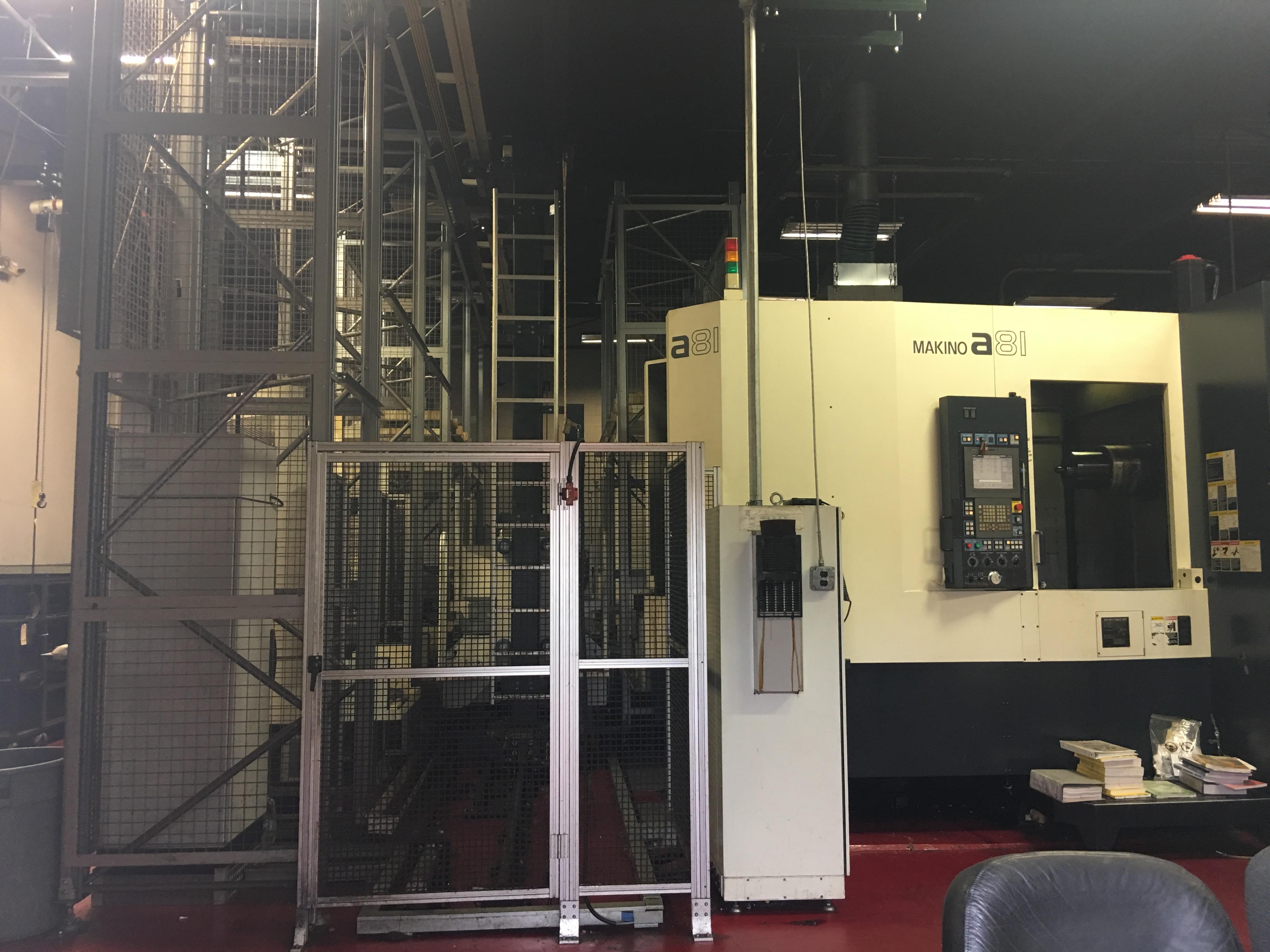

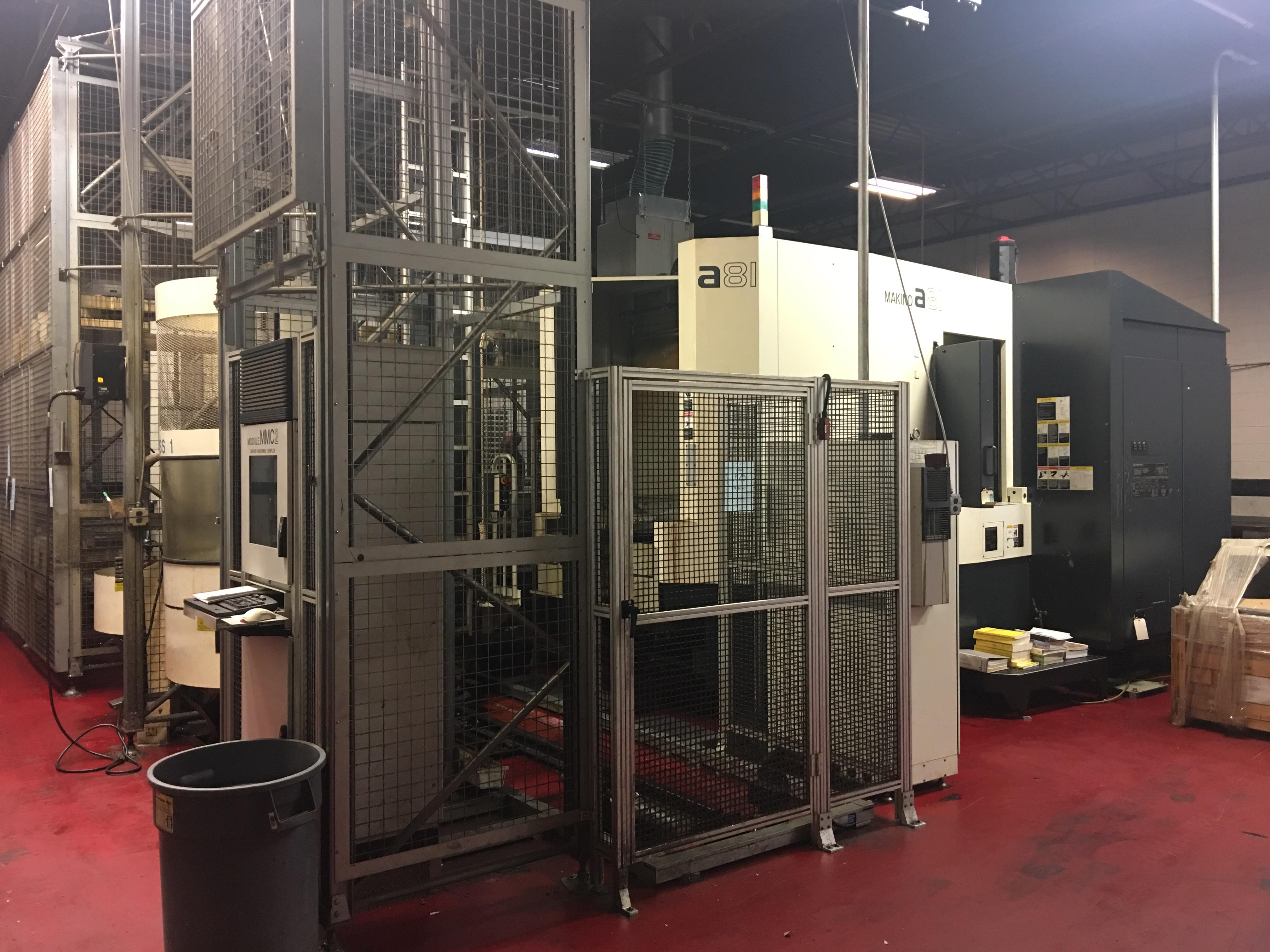

Makino MMC2 Machining Cell with (1) A81 & (1) A81M - Horizontal Machining Centers

Share Machine
Specifications Print Specs
Model: MMC2 Machining Cell with (1) A81 & (1) A81M
Year: 2007
Stock #: 12849 Sold
Highlights:

2007 MAKINO MMC2 Machining Cell with (1) A81 & (1) A81M
Machine Specifications
Year
2007

Equipped With:

MMC2 Package Includes:

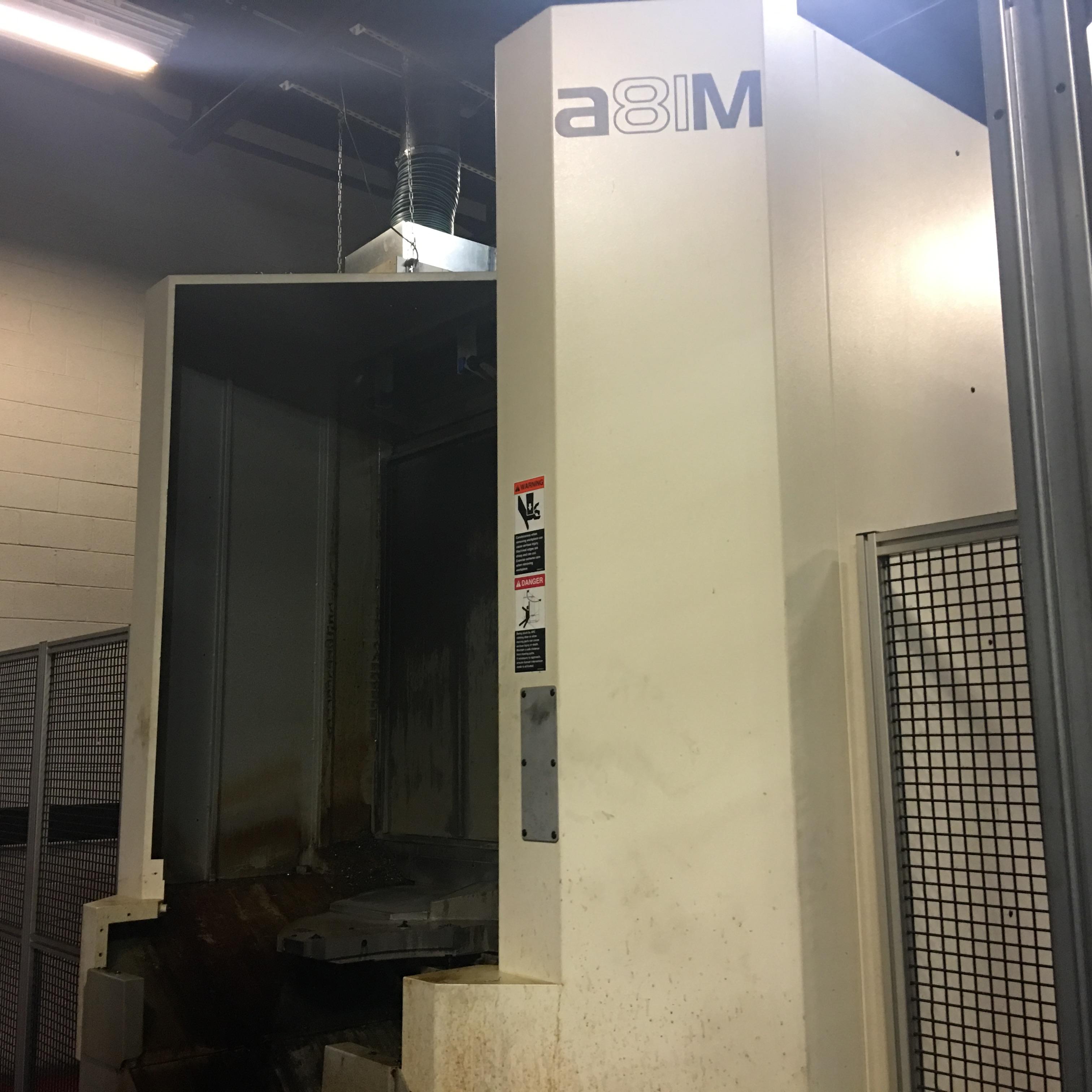

(1) Makino A81M (#12847)
- 8,000 RPM (High Torque Spindle)
- 300 Station Tool Changer

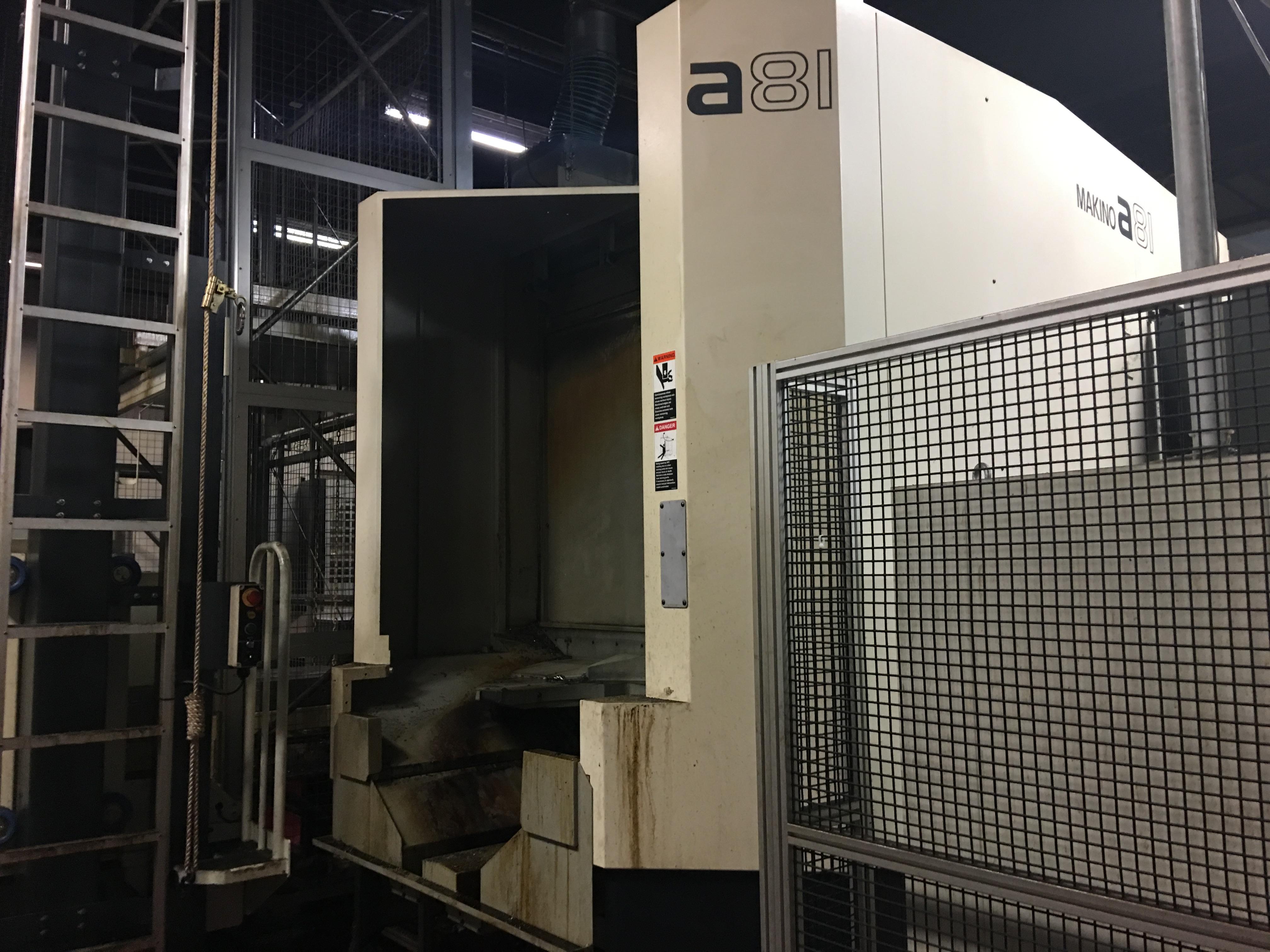

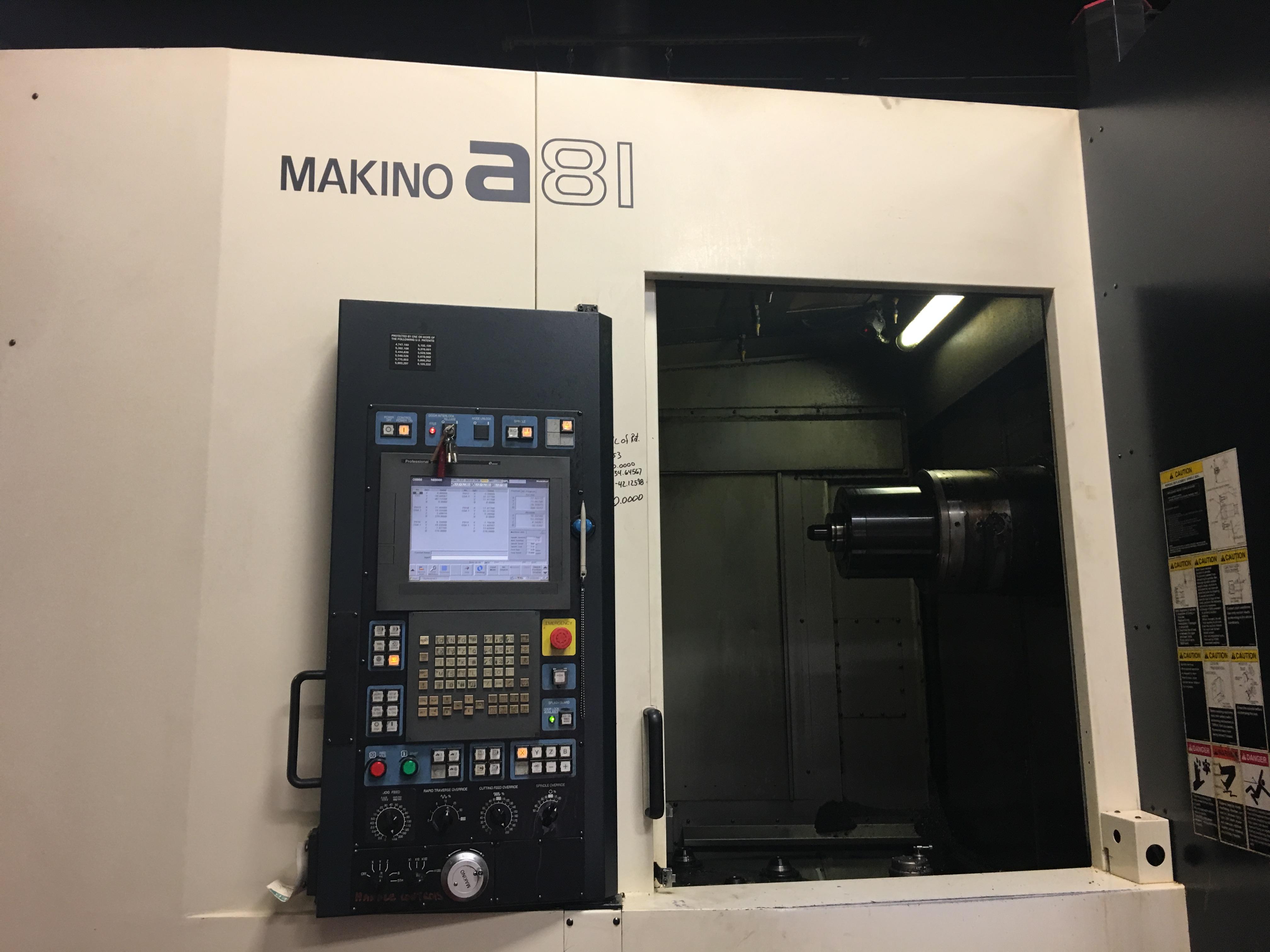

(1) Makino A81 (#12848)
- 10,000 RPM Spindle
- 300 Station Tool Changer

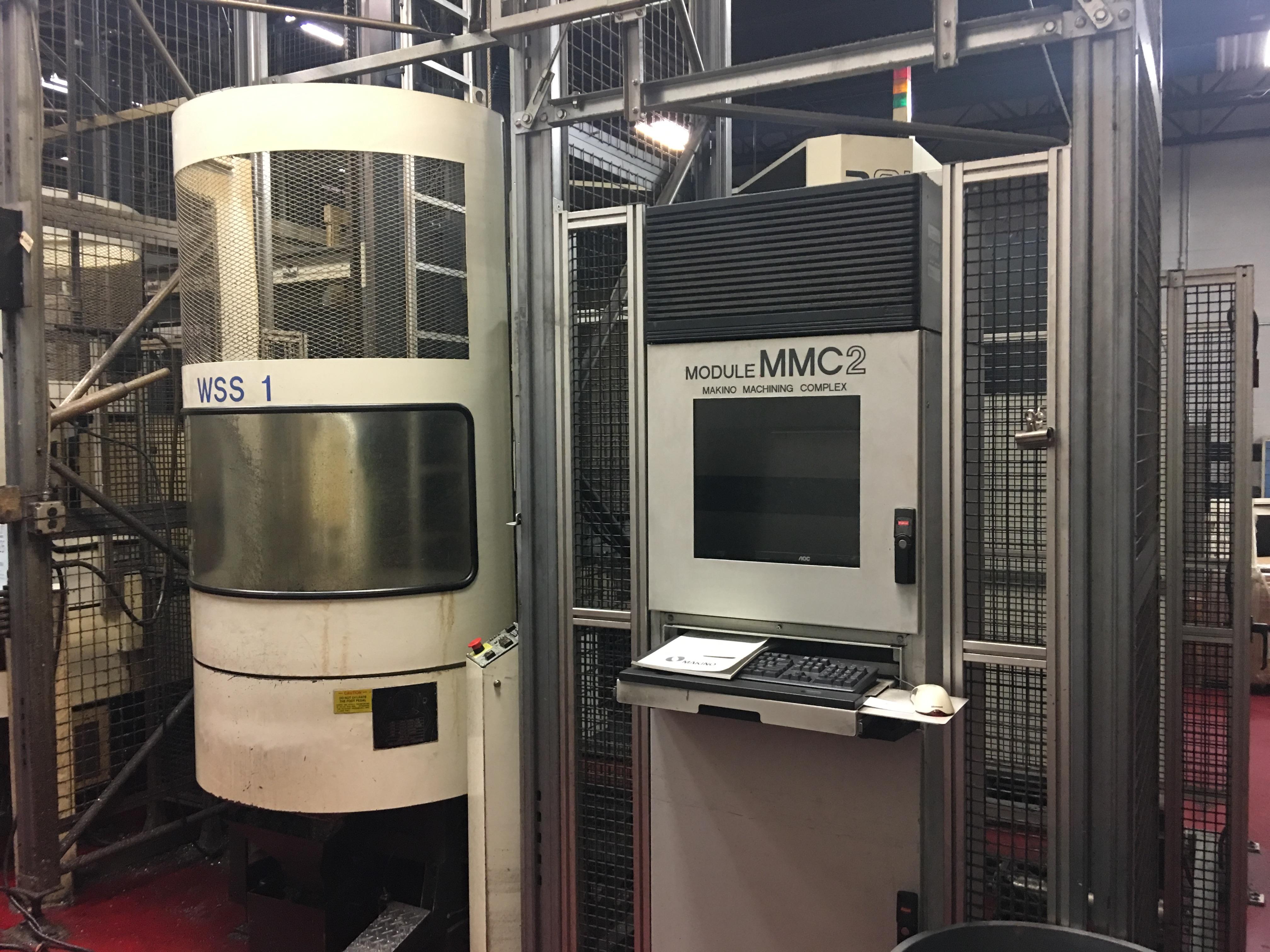

(1) Makino Machining Cell - 14 Station Modular Pallet System w/(2) Work Setting Stations (#12849)




Equipped With:

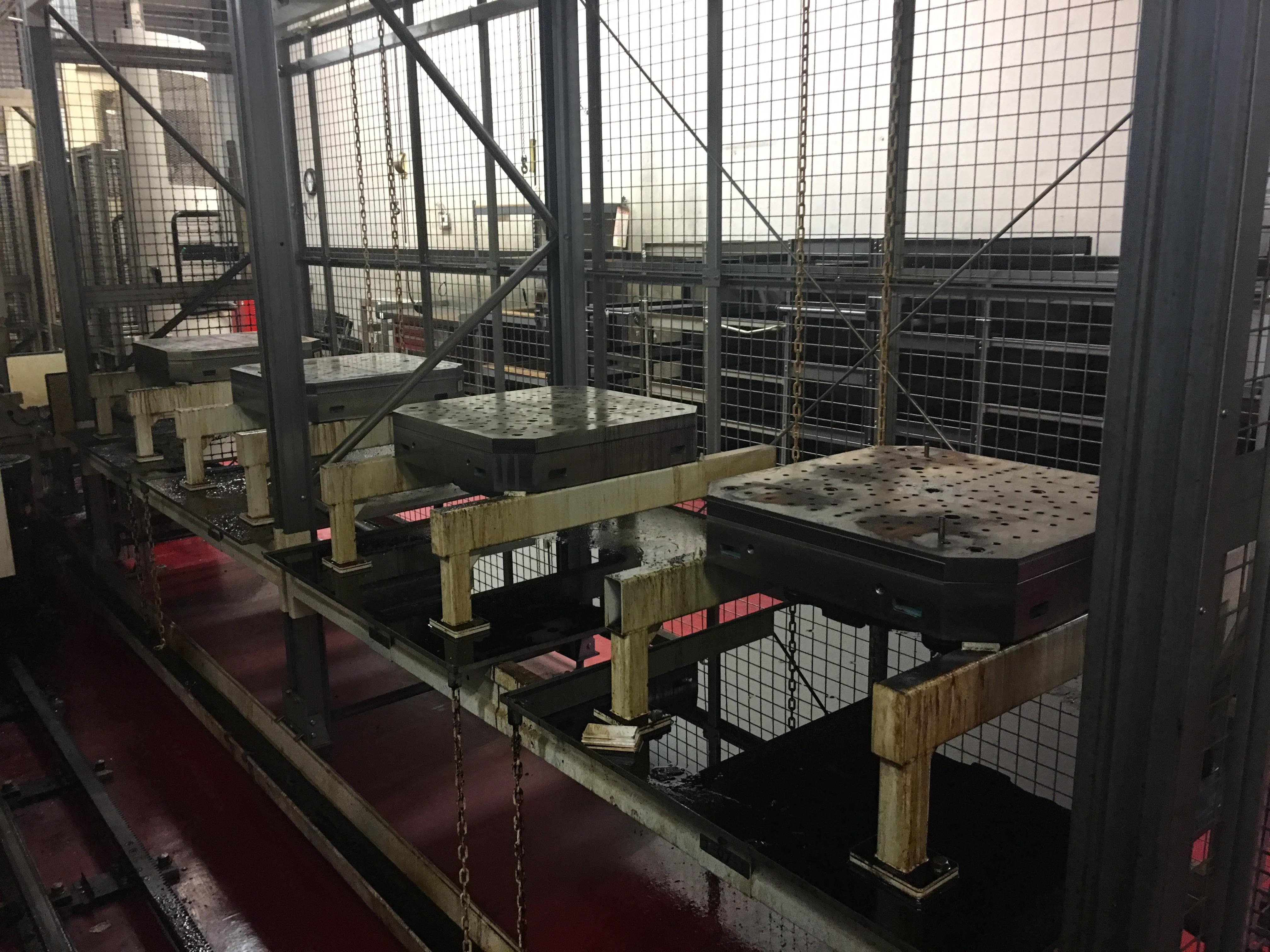

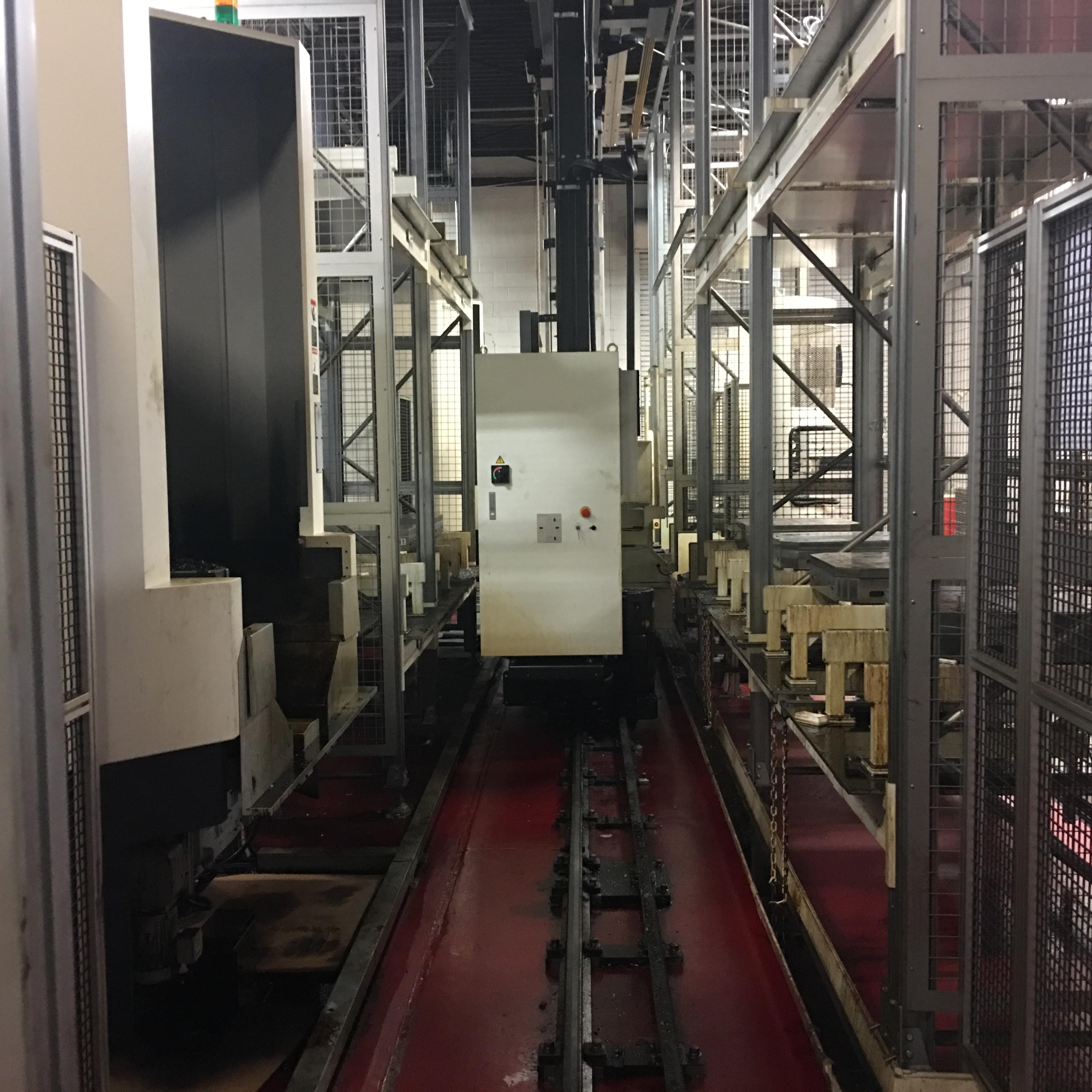

- Makino Machining Complex (MMC2) 14 Station Pallet Pool (12 Pallets Available)
- (2) Makino A81 Horizontal Machining Centers (A81M & A81)
- Makino Professional 5 Control
- Full 4th Axis Contouring
- Coolant Thru Spindle High Pressure (1000psi)
- Spindle Oil Chiller
- Chip Blaster
- 300 Station Tool Changer
- Chip Conveyor
- Super GI.4
- Tool Break Detection
- Misc. Tooling Available
- All Available Manuals

ATC 300
Control Professional 5 (Fanuc 31iM)
Machine Dimensions 146x216x115
Machine Weight 41000
Max Pallet Load 2640 Lbs
Pallet Indexing (B) Full 4th
Pallet Size 24.8 x 24.8
Spindle Motor 50
Spindle Motor Cont. 40
Spindle Speed 10000/8000
Spindle Taper HSK 100
Travel (X) 35.4
Travel (Y) 31.5
Travel (Z) 40.1

The Makino MMC2 Machining Cell with (1) A81 & (1) A81M is an exclusive part of our Horizontal Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
