Mazak Integrex 200-IVS - Horizontal Lathes

Share Machine
Specifications Print Specs
Model: Integrex 200-IVS
Year: 2007
Stock #: 13396 Sold
Highlights:
Mazatrol Matrix CNC Control
Live Tooling & Y Axis
40 Station Tool Changer KM63
Tool Presetter | Sub Spindle
Simultaneous 5 Axis Machining
CNC Milling/Turning Center

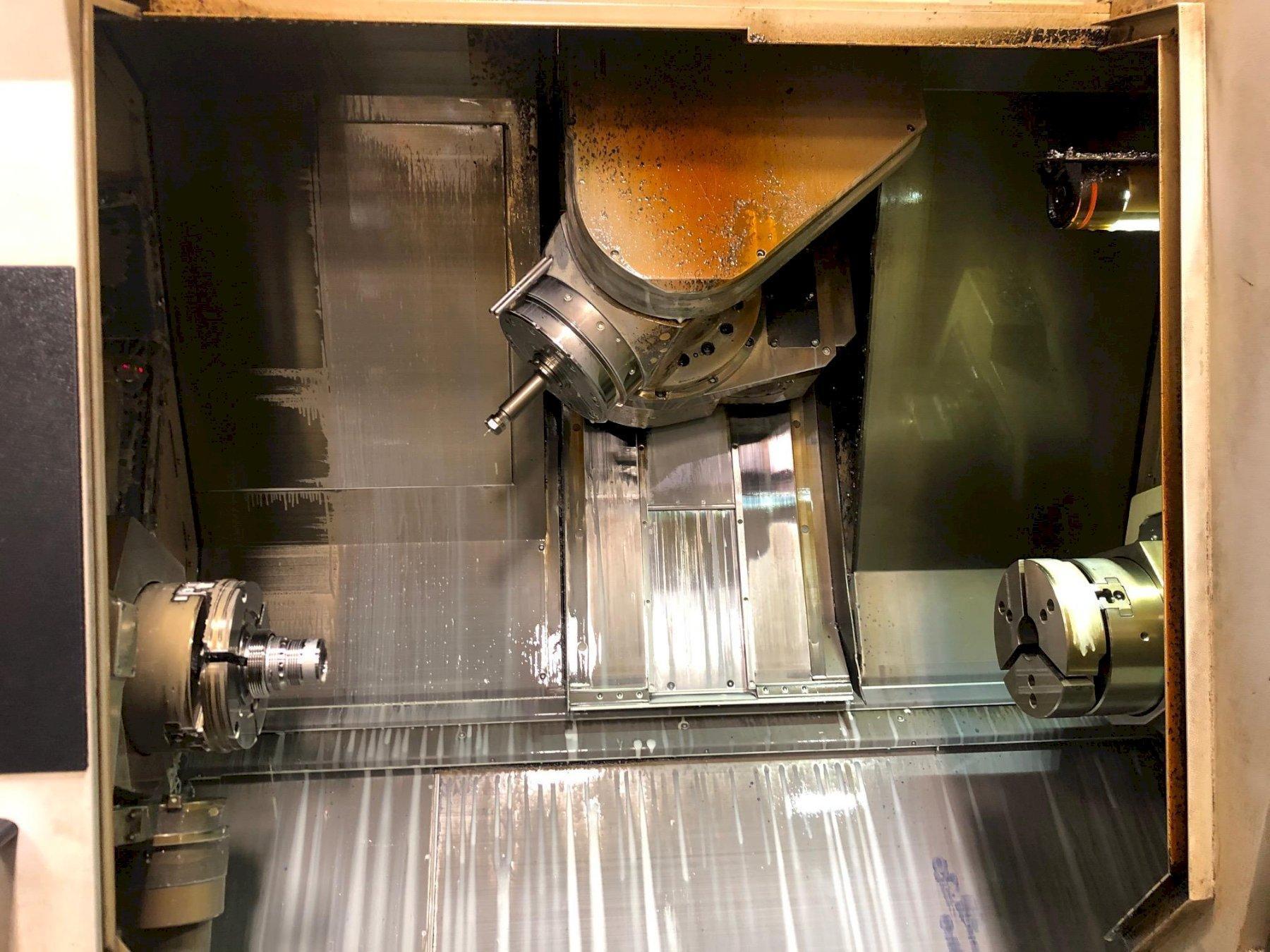

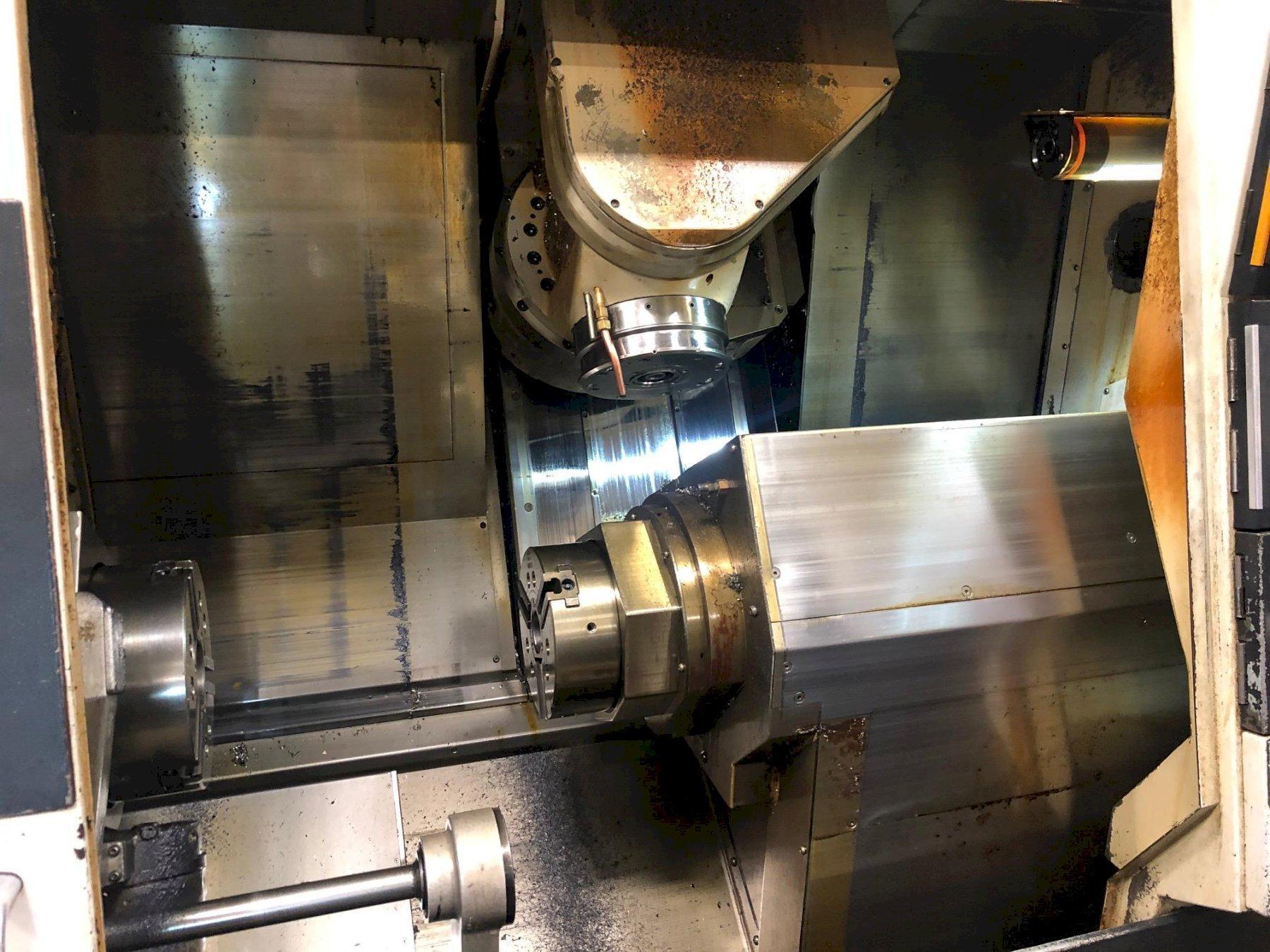

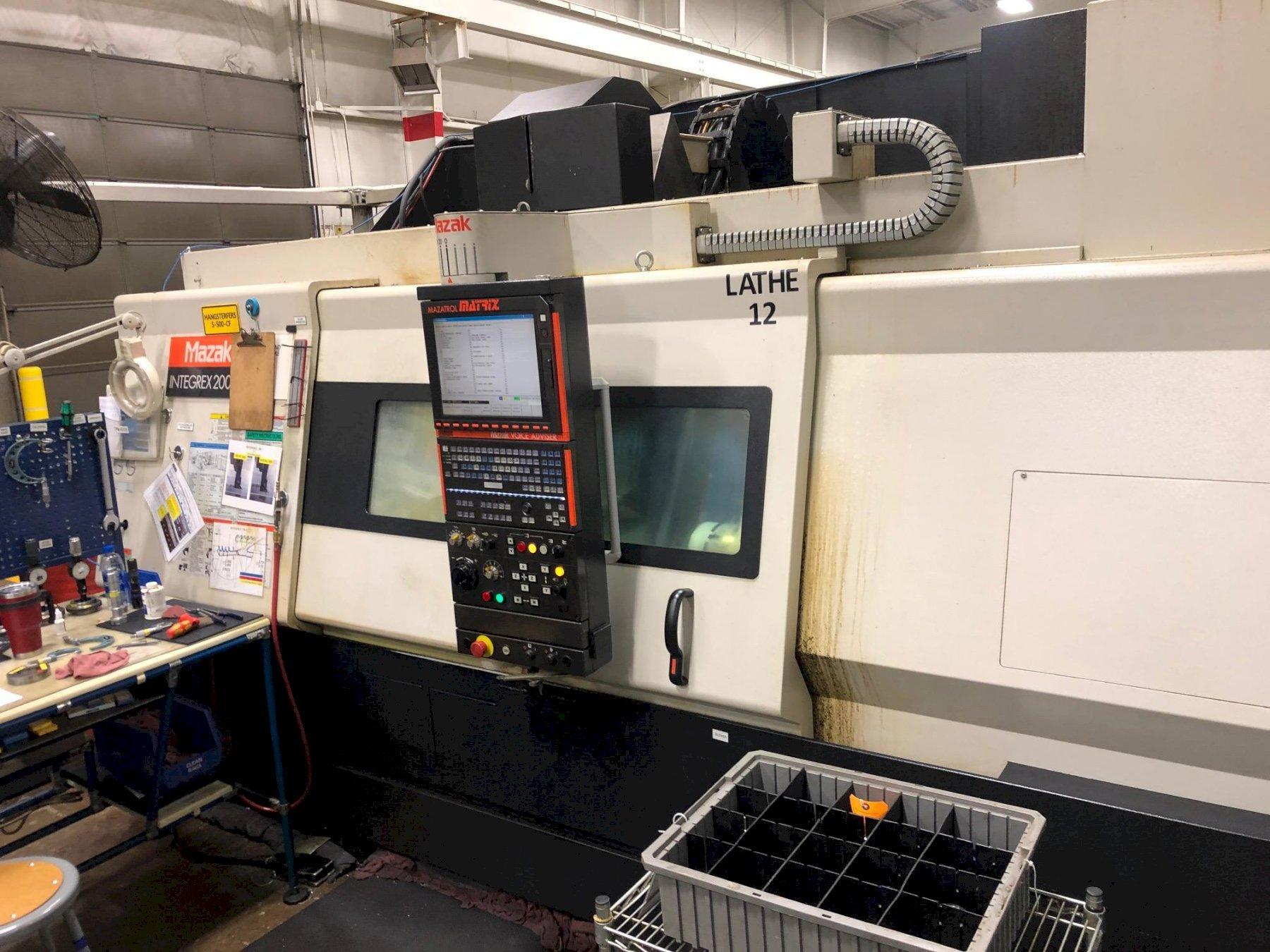

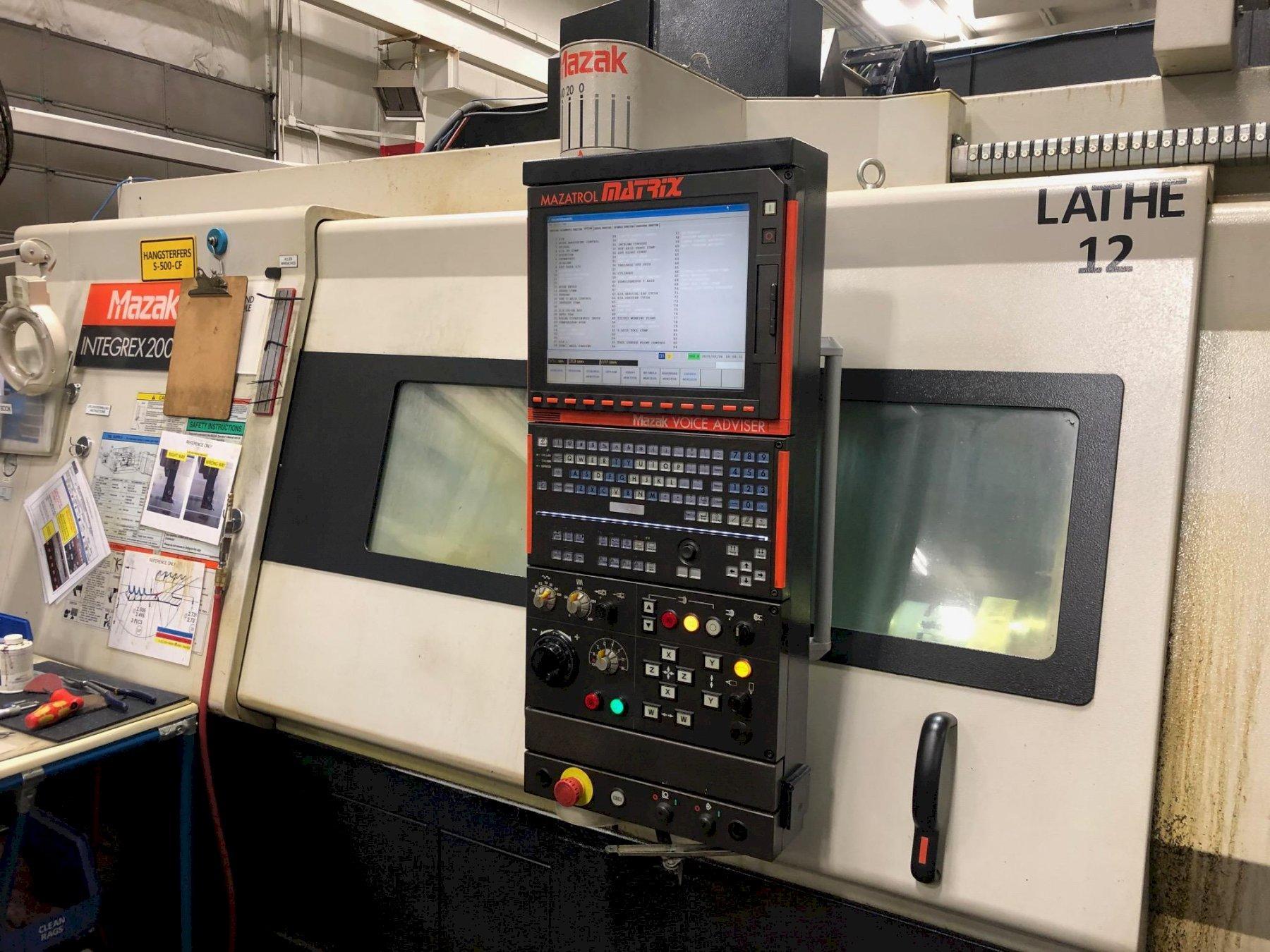

2007 Mazak Integrex 200-IVS - CNC Horizontal Lathe
Machine Specifications
Control Type

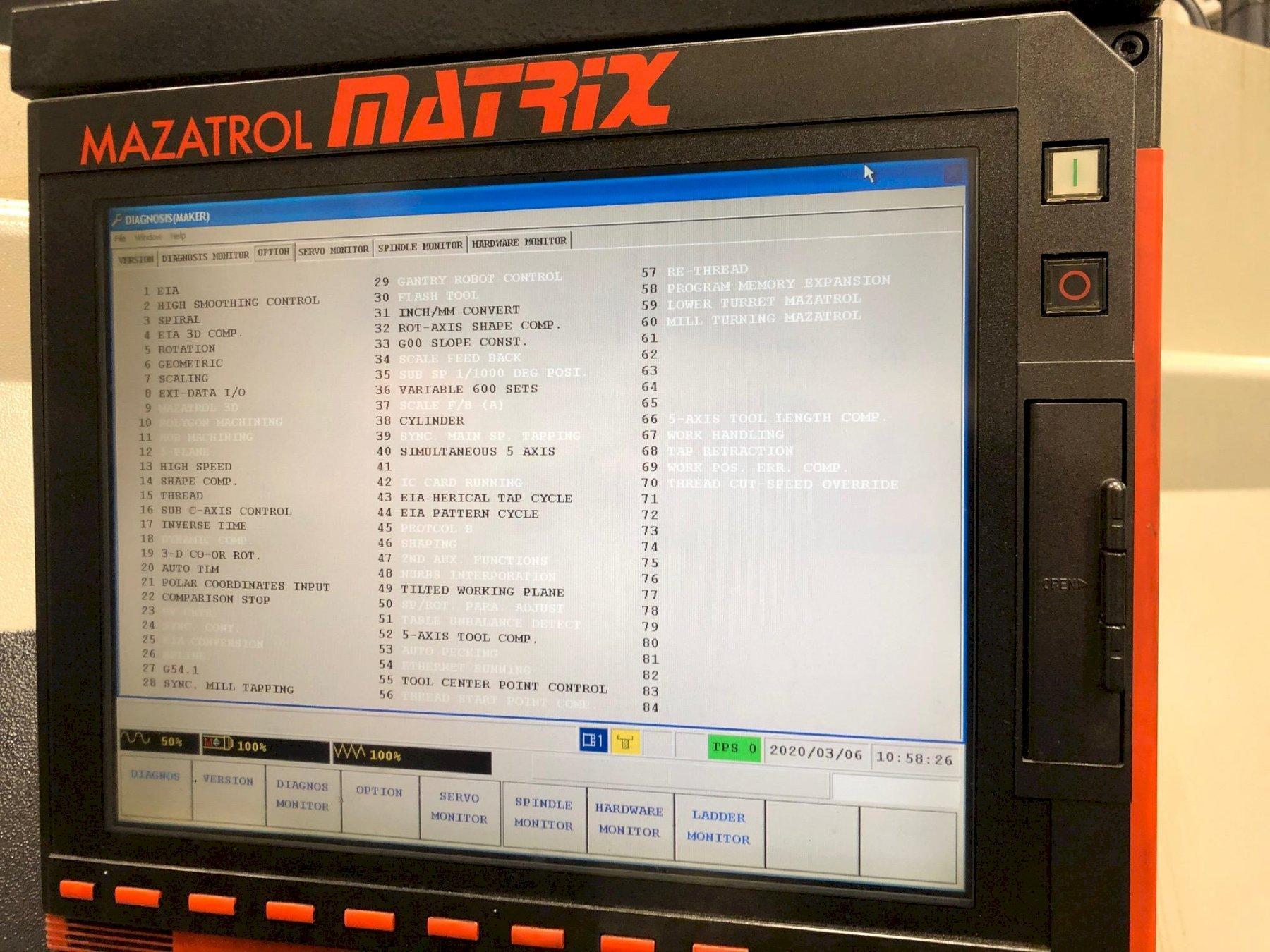

Mazatrol Matrix CNC Control
Chuck Size
10"
Swing
26"
Turning Diameter
26"
Turning Diameter Lower Turret
10.6"
Center Distance
40"
X-Axis Travel
22.83"
Y Axis Travel
6.3"
Z-Axis Travel
41.14"
B Axis Head Tilt
225°
C Axis Index
0.001°
W Axis Travel
41.34"
Rapid Traverse (XZ/Y/W)
1,496/1,024/1,181 ipm
Spindle Nose
A2-6
Spindle Speed (RPM)
5,000
Main Motor
30 HP
Sub Spindle
yes
Sub Spindle Speed
5,000 RPM
Sub Spindle Motor (HP)
25/20 HP
Live Tooling
yes
Live Tooling Spindle Taper
KM63
Live Tooling Speed
12,000 RPM - Milling Spindle
Live Tooling Motor
25 HP
Tailstock
no
Y Axis
yes
ATC Capacity
40 stations
Dimensions
151" x 93" x 103"
Weight
21,120 pounds

Equipped With:

- Mazatrol Matrix CNC Control
- Chip Conveyor
- Coolant Tank
- Tool Presetter
- Coolant Thru Spindle
- Spindle Chillers

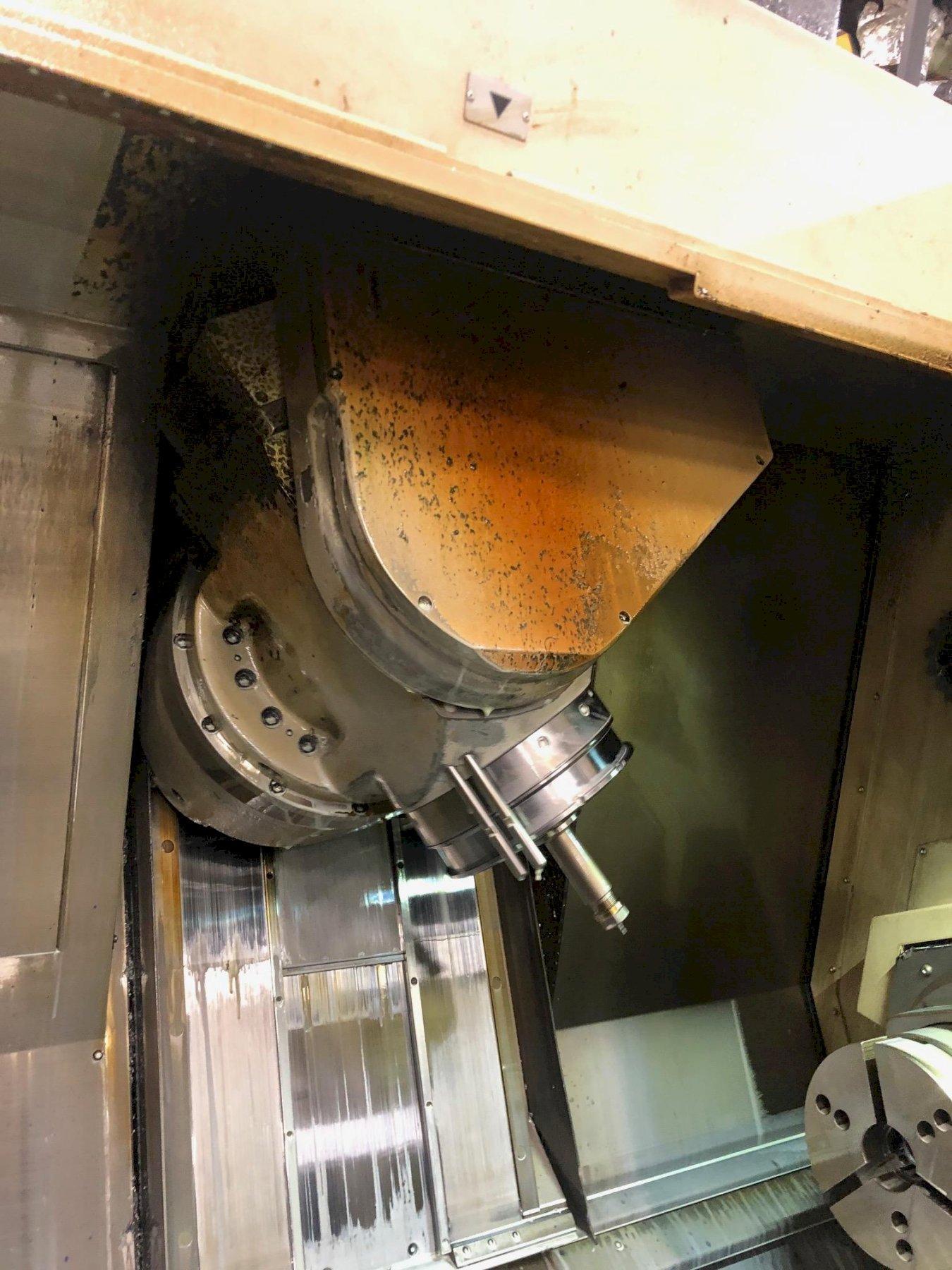

- Live Milling Spindle

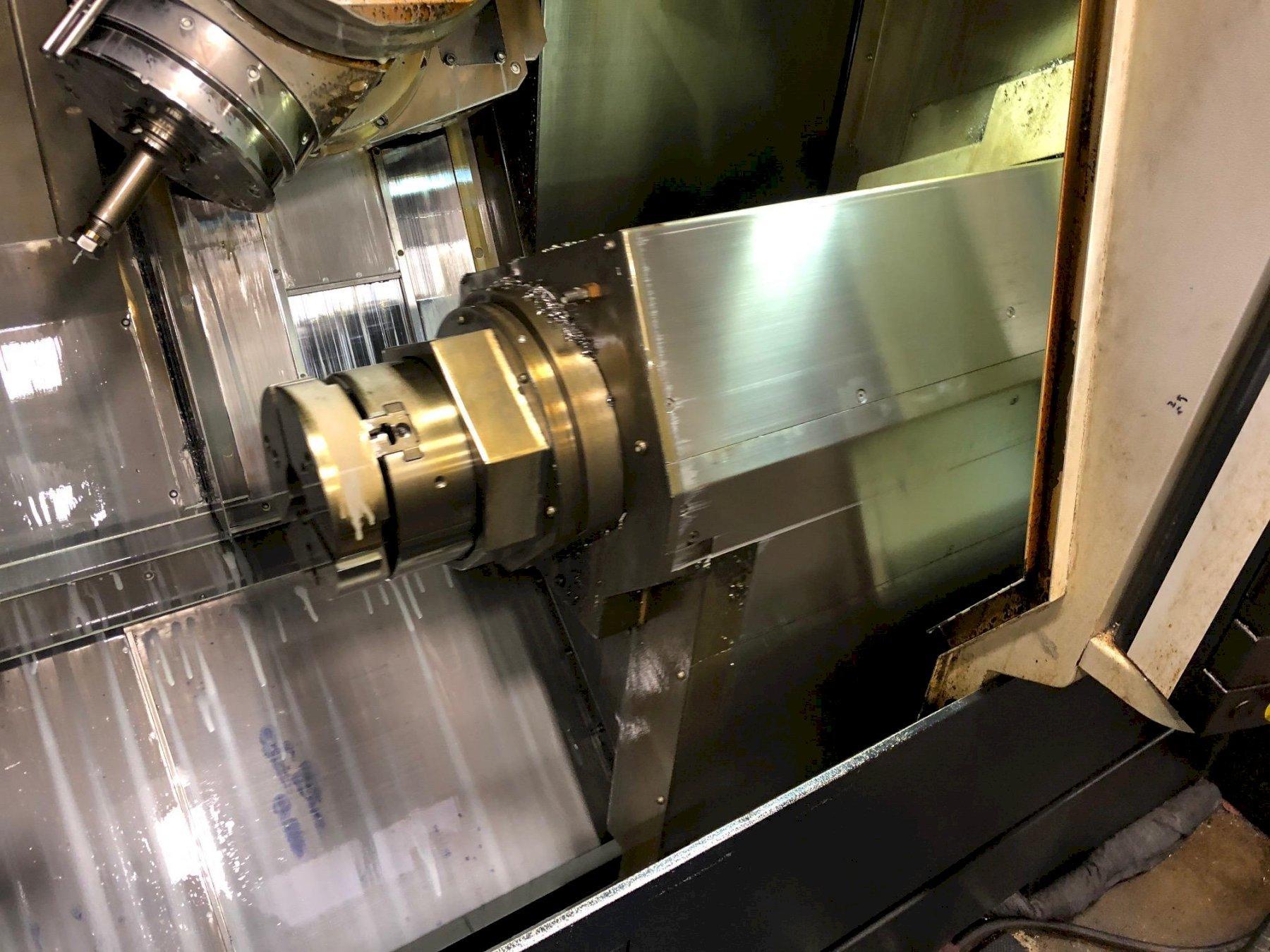

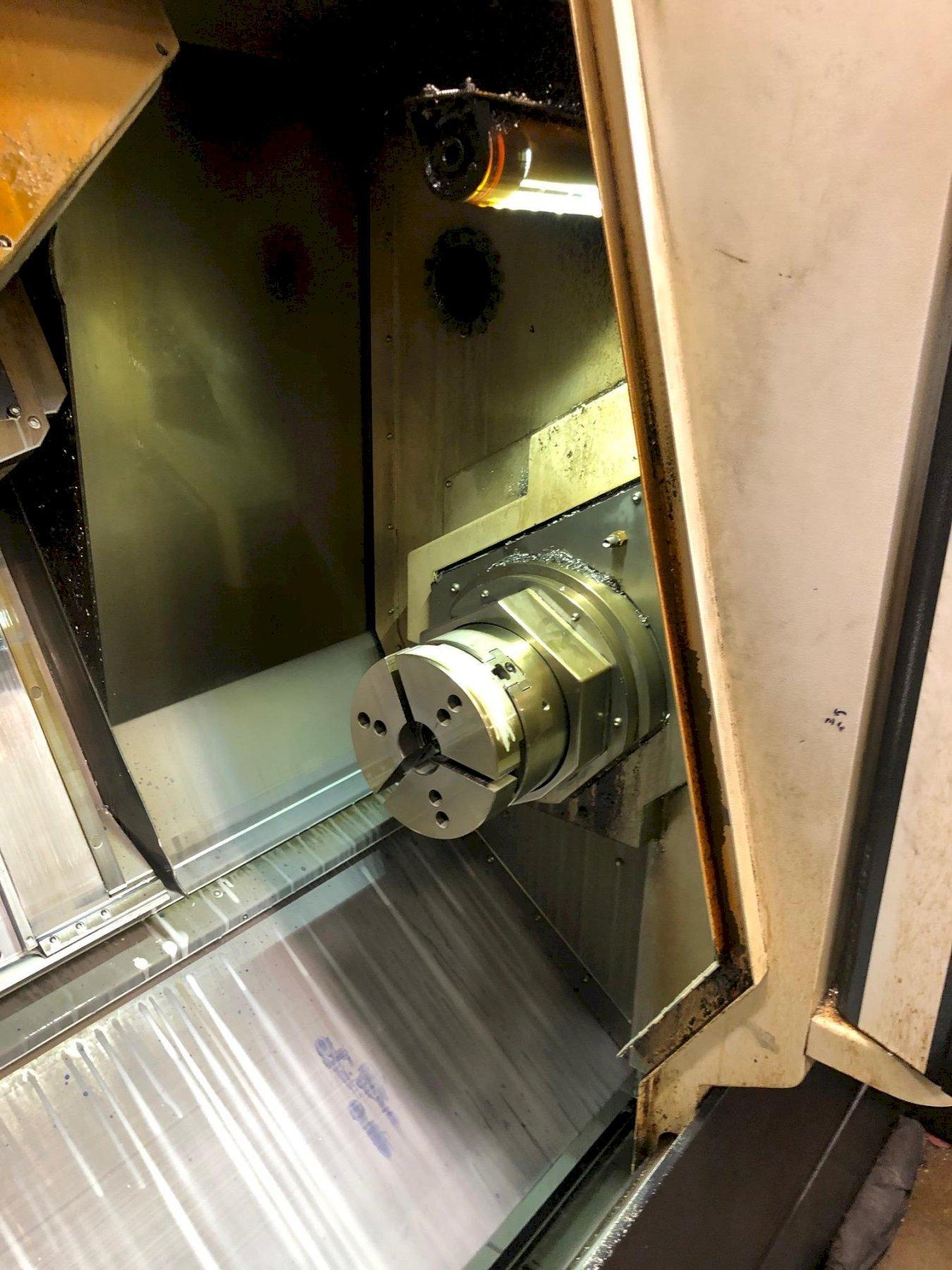

- Sub Spindle
- Y Axis

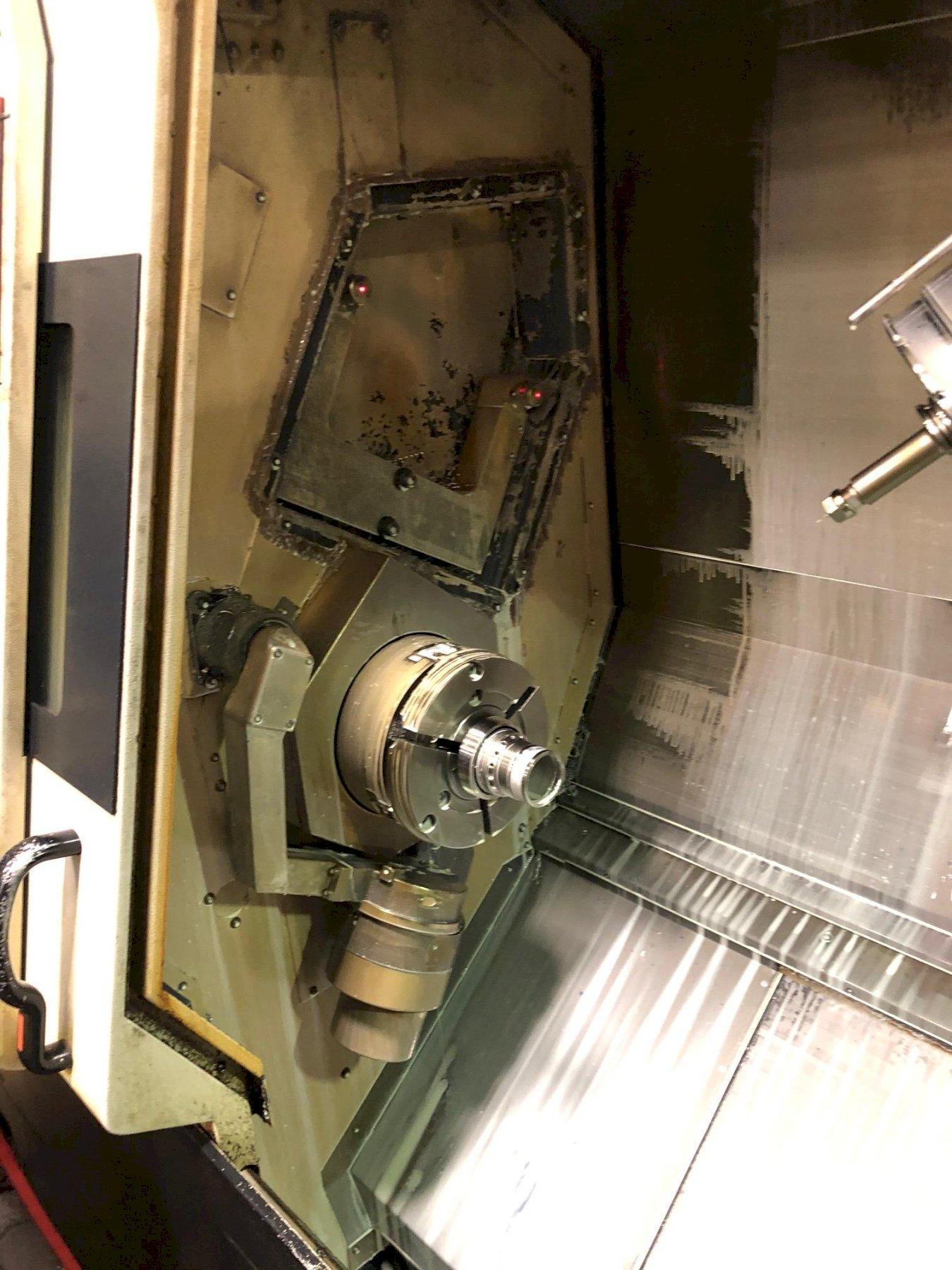

- Kitagawa B210 (main spindle)
- Kitagawa B208 (sub spindle)

Simultaneous 5 Axis Machining


The Mazak Integrex 200-IVS is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
