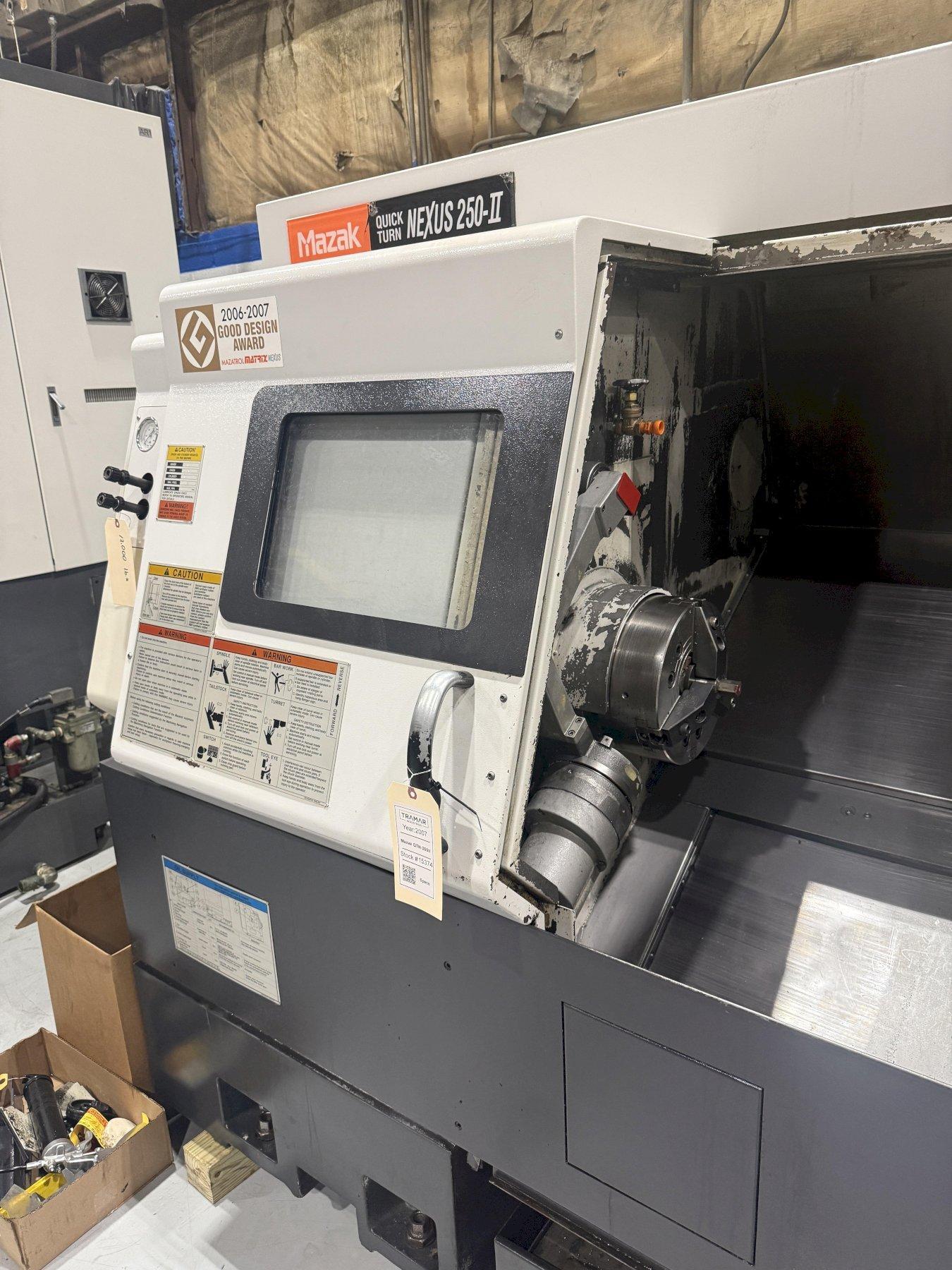

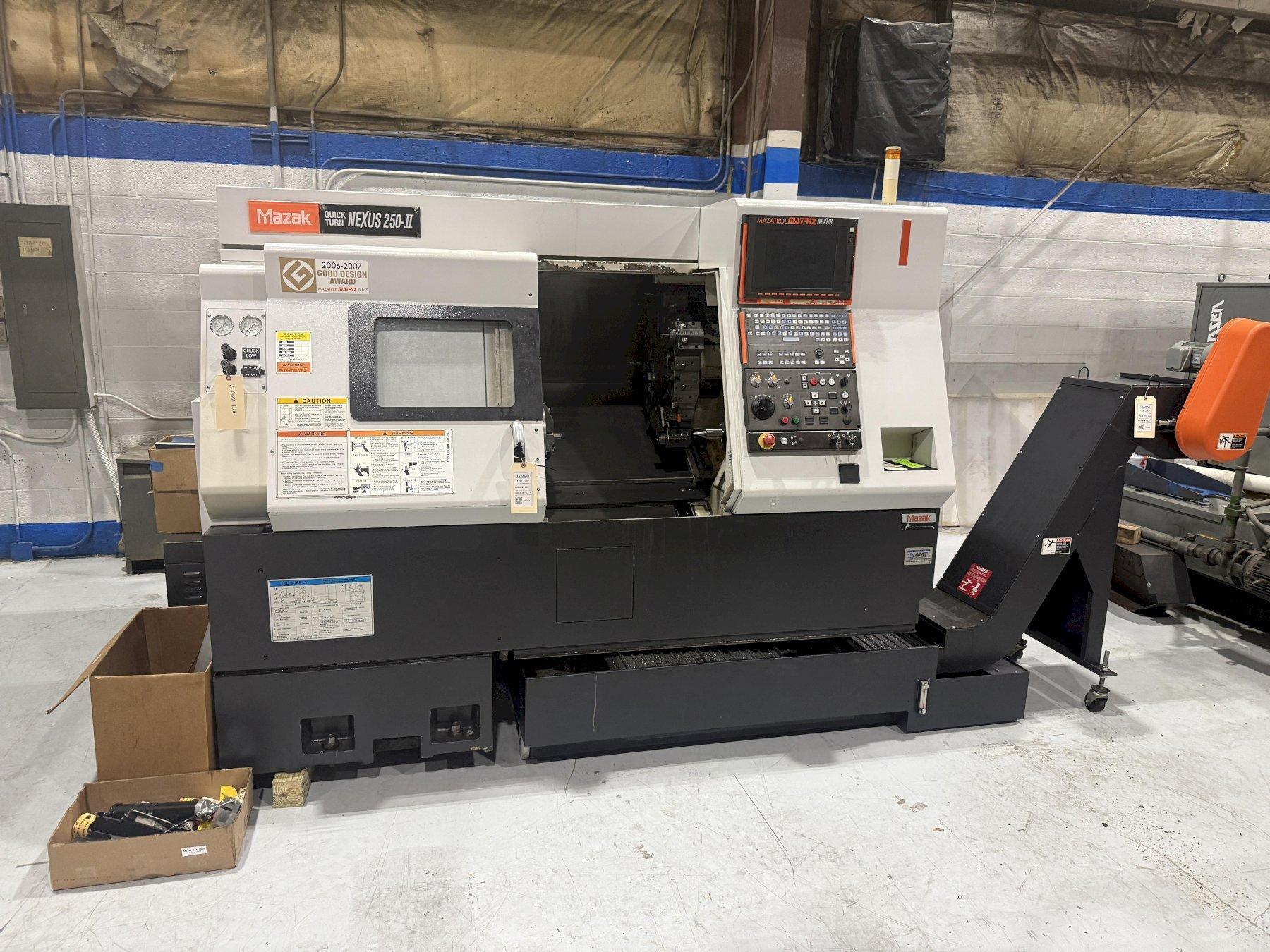

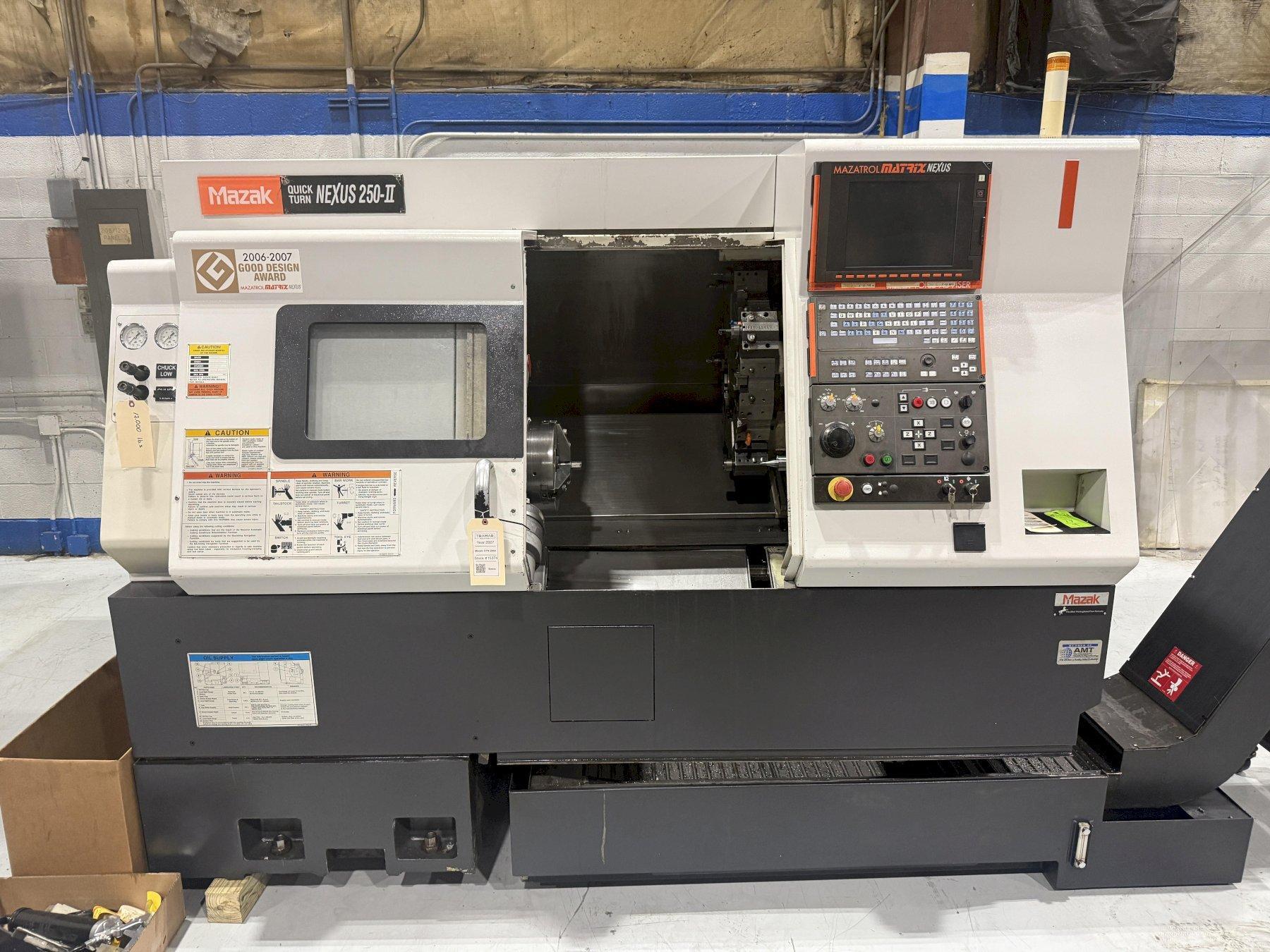

Mazak QTN 250-II - Horizontal Lathes

Request Quote
Share Machine
Specifications Print Specs
Model: QTN 250-II
Year: 2007
Stock #: 15374
Highlights:
Mazatrol Matrix Nexus CNC Control
Mazak Quick Turn Nexus 250

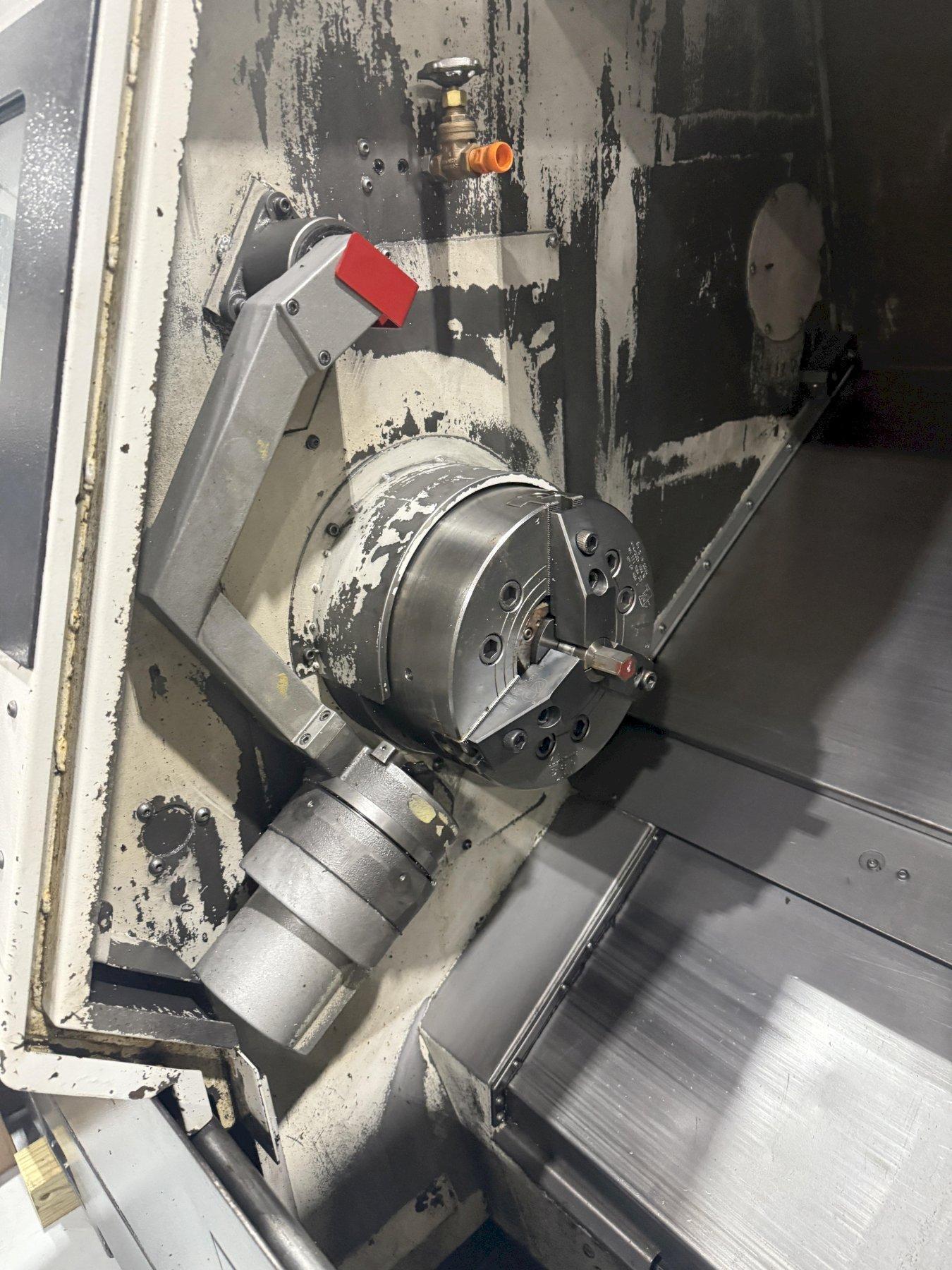

Tailstock

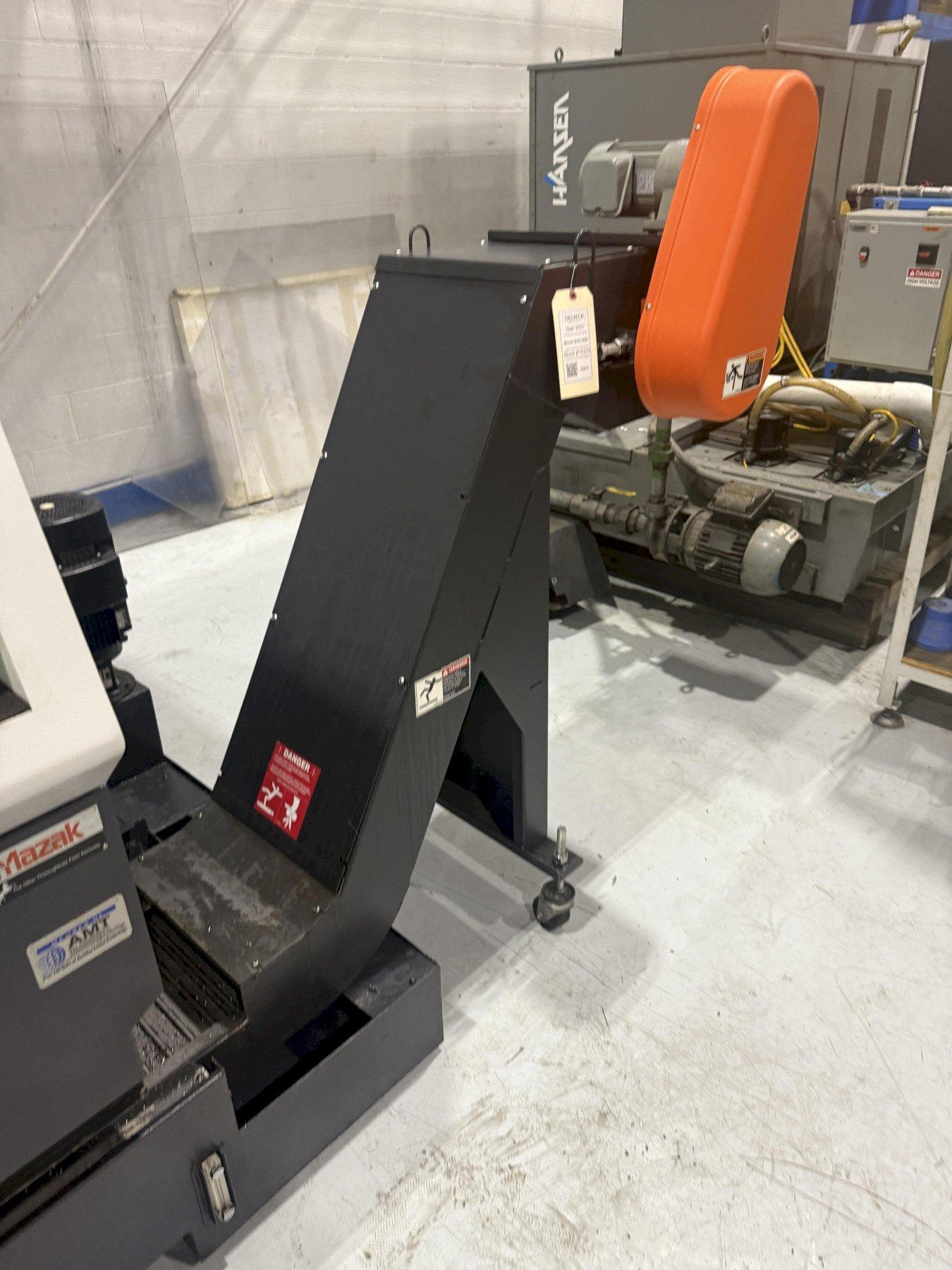

Chip Conveyor
Coolant Tank

2007 Used Mazak QTN 250-II CNC Lathe For Sale
Machine Specifications
CNC Control
yes
Control Type
Mazatrol Matrix Nexus
# Axis
2
Swing
24.04
Turning Diameter
13.78
Center Distance
22"

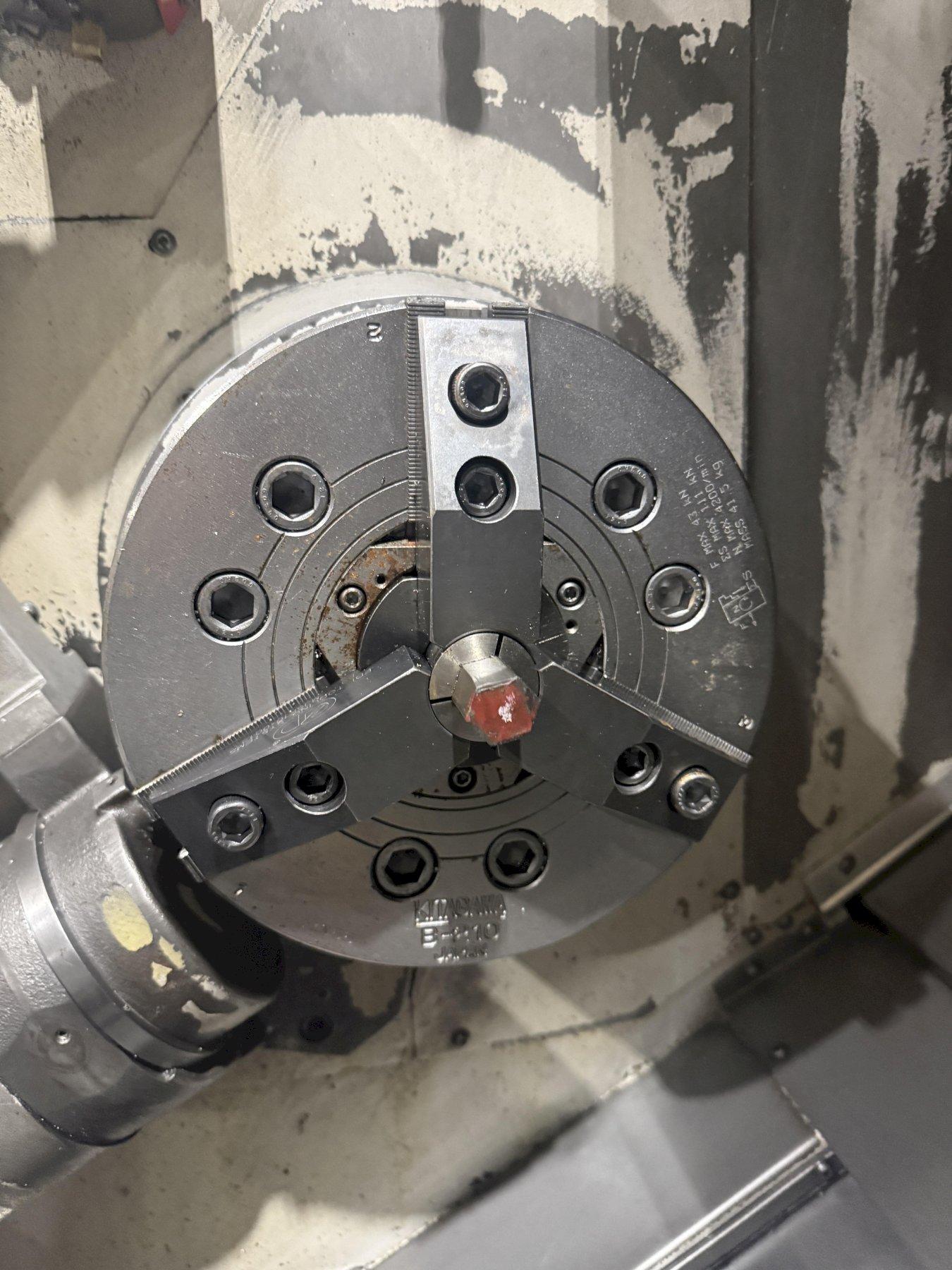

Chuck Size
10"
Bar Capacity
3"
X-Axis Travel
8.75"
Z-Axis Travel
22.75"
Rapid Traverse (X/Z)
1,181 ipm
Spindle Nose
A2-8
Spindle Speed
4,000 rpm
Main Motor
35 hp
Turret Capacity
12
Tailstock (Yes/No)
yes
Live Tooling
no
Y Axis (Yes / No)
no
Sub Spindle
no
Machine Dimensions
135" x 70" x 73"
Machine Weight
16,000 pounds

Equipped With:

- Mazatrol Matrix Nexus CNC Control
- Tailstock
- Chip Conveyor
- Coolant Tank & Pump
- Tool Presetter

The Mazak QTN 250-II is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
