Doosan NM 510 - Vertical Machining Centers

Model: NM 510
Year: 2008
Stock #: 13047 Sold
Highlights:
Fanuc 0i-MC CNC Control
Nikken 4th Axis Rotary Table
Coolant Thru Spindle (290 psi)
Chip Conveyor

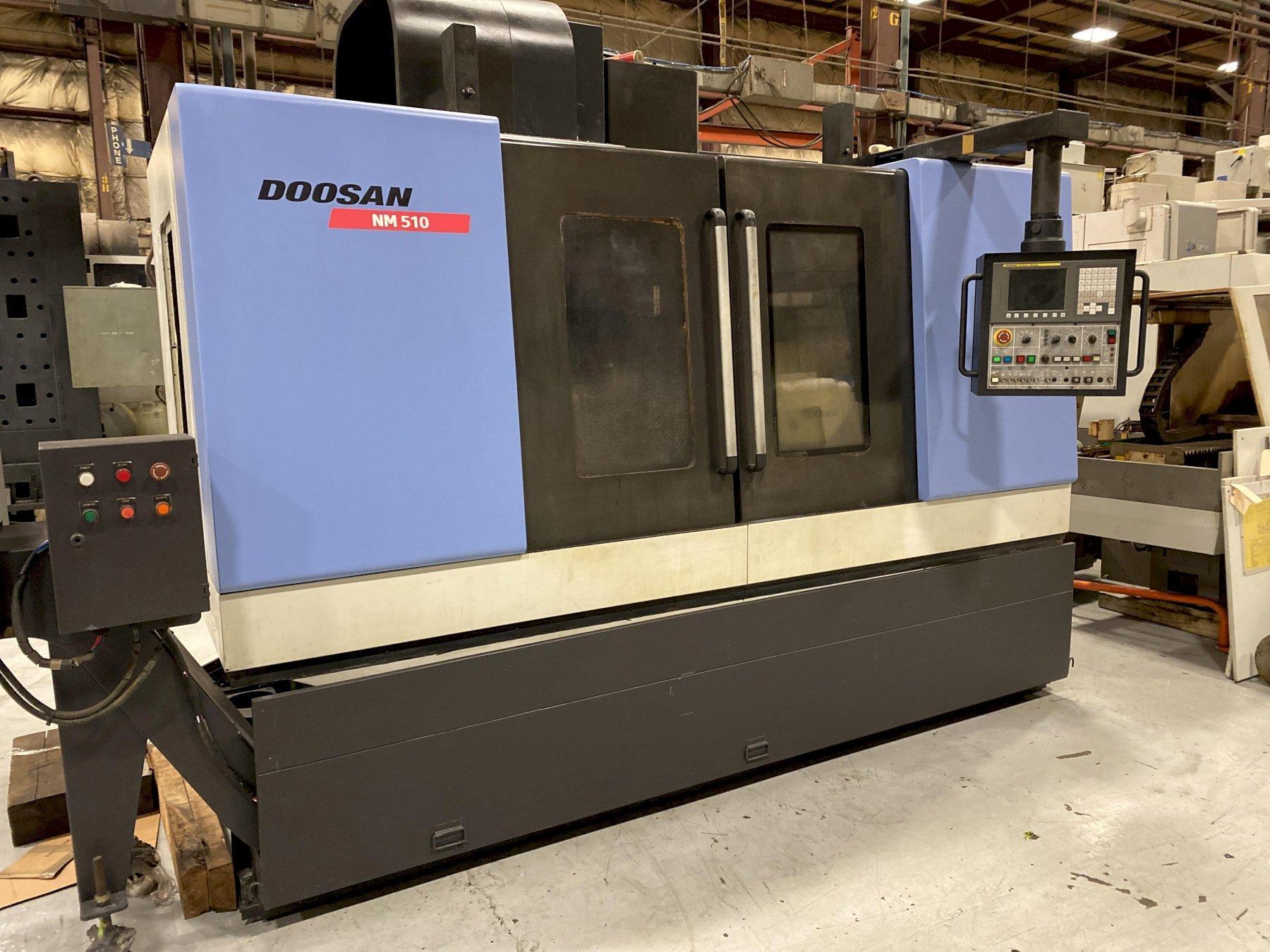

2008 DOOSAN NM 510 - Vertical Machining Center
Machine Specifications
Year
2008
Control Type
Fanuc 0i-MC
# Axis
4
Table Size
47.3" x 19.7"
Table Capacity
1,763 pounds
X-Axis Travel
40"
Y-Axis Travel
20"
Z-Axis Travel
24.6"
Spindle Speed
8,000
Spindle Taper
CAT 40
Main Motor
20
Tool Changer Capacity
24
X-Axis Rapid Traverse Rate
1,417 IPM
Y-Axis Rapid Traverse Rate
1,417 IPM
Z-Axis Rapid Traverse Rate
1,181 IPM
Coolant Thru Spindle
yes
Dimensions
131" x 87" x 107"
Weight
15,500 pounds

Equipped With:

- Fanuc 0i-MC CNC Control
- Chip Conveyor
- Coolant Thru Spindle (290 psi)
- Nikken 4th Axis Rotary Table






The Doosan NM 510 is an exclusive part of our Vertical Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
