Doosan Puma 300LC - Horizontal Lathes

Request Quote
Specifications Print Specs
Model: Puma 300LC
Year: 2008
Stock #: 15676
Highlights:

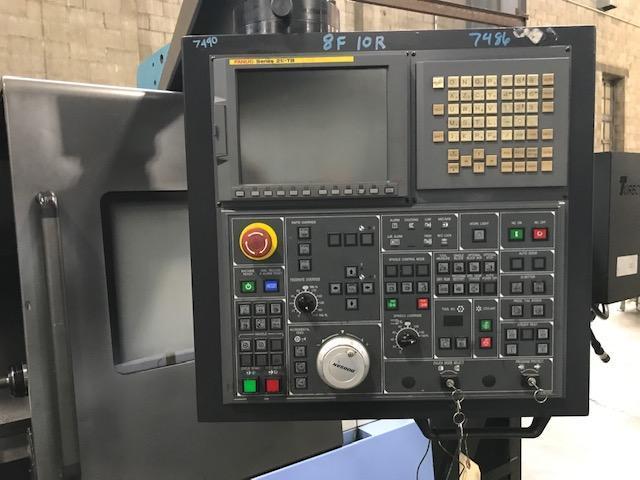

Fanuc 21i-TB CNC Control
Tailstock
Box Way Machine
Tool Presetter
4" Bar Capacity

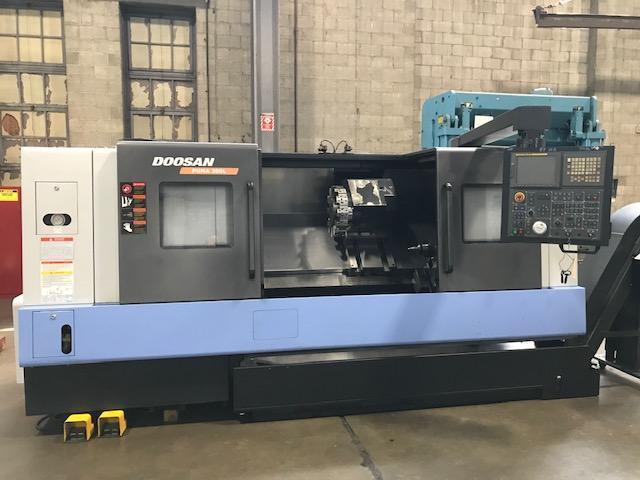

2008 Doosan Puma 300LC - CNC Horizontal Lathe
Machine Videos
Machine Specifications
Year
2008
# Axis
2
Control Type
Fanuc 21i-TB
Swing
23"
Turning Diameter
14.5"
Center Distance
50.4"
Chuck Size
12"
Bar Capacity
4"
X Axis Travel
11.1"
Z Axis Travel
52.4"
Rapid Traverse (X/Z)
800/945 ipm
Spindle Speed (RPM)
2,800
Spindle Motor
35
Turret Capacity
12
Tailstock
yes
Live Tooling
no
Sub Spindle
no
Y Axis
no
Machine Dimensions
168" x 77" x 80"
Machine Weight
16,000 lbs

Equipped With:

- Fanuc 21i-TB Control
- Coolant Tank & Pump
- Tailstock
- Tool Presetter

- Embedded Ethernet
- Manual Guide i
- Available Manuals
- Box Way Machine
- Chip Conveyor



The Doosan Puma 300LC is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
