Model: HVR 3100 10 CNC Shear
Year: 2008
Stock #: 12995
Highlights:
Free standing overhead bridge crane system with hoist for loading sheets (1,000 Lbs capacity)included.

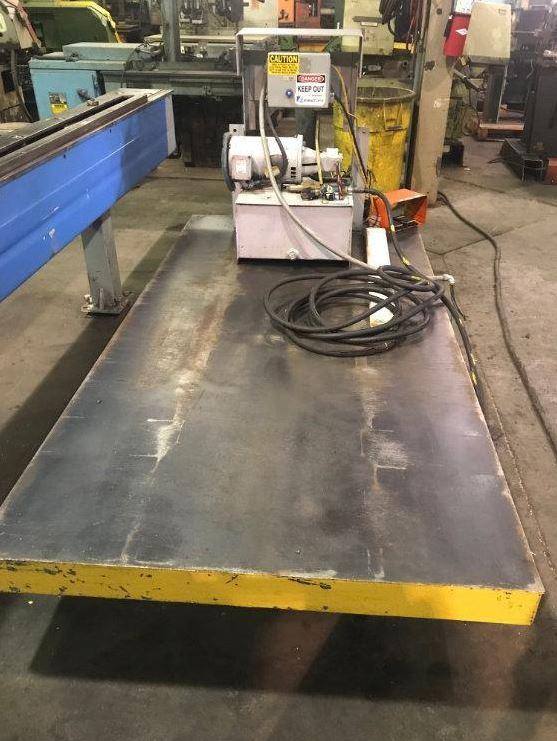

A 10,000 lbs (96" x 48") hydraulic lift table for lifting sheets to the shear table

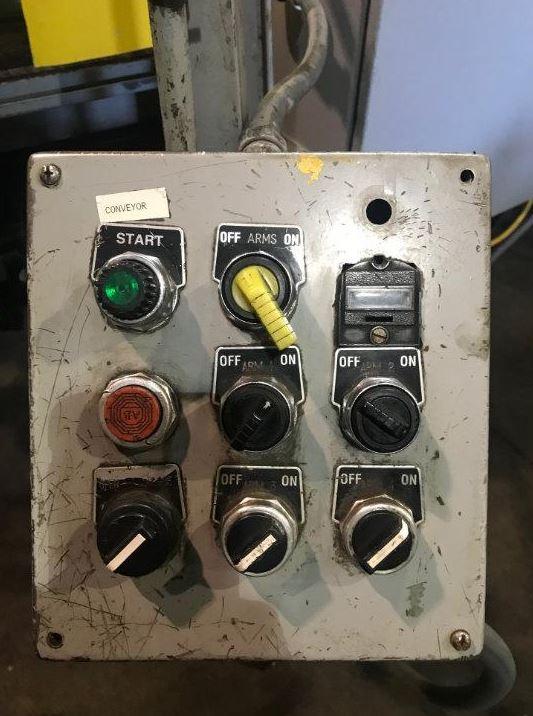

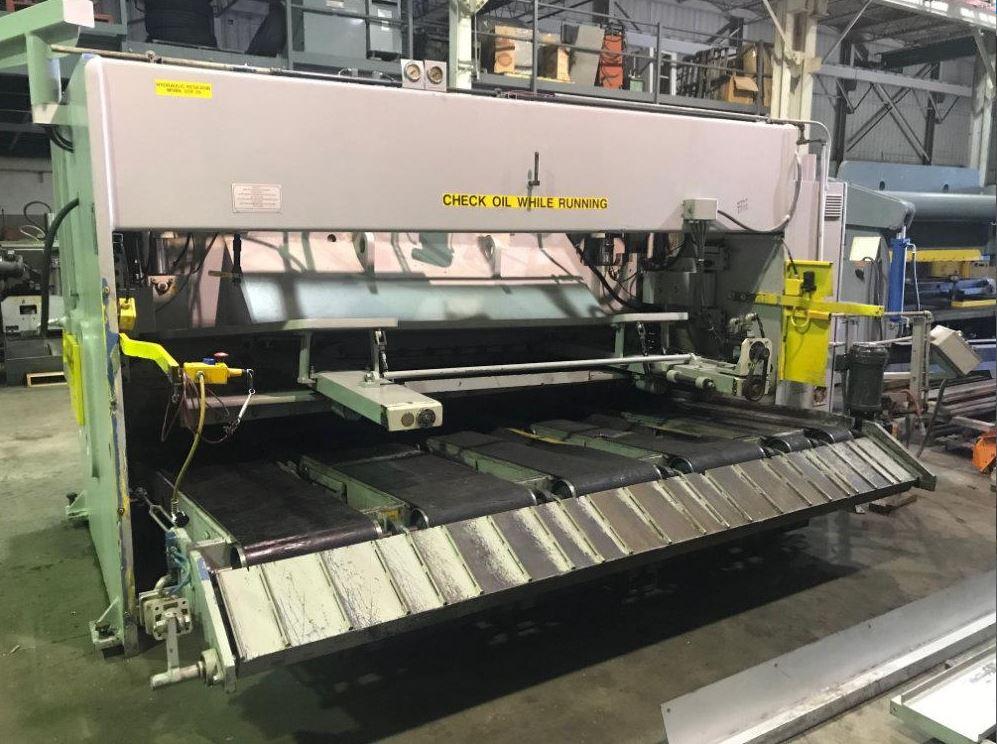

Powered rear transfer conveyor to unload cut parts
CNC front gauging system
Spare parts (Conveyor belts, hold downs, etc.)

2008 ERMAK HVR 3100 10 CNC Shear
Machine Specifications
Year
2008

Equipped With:

Specifications:

Capacity: 3/8”
Maximum Cutting Length: 10’
Throat Depth: 13-3/4”
Rake Angle: .5 - 2 degrees variable
Gap adjustment: .02” - .05” variable
Strokes Per Minute: 12 full / 22 short
Number of Holddowns: 14
Hold down force: 26 tons
Backgauge range: 40”
Main Motor: 30 H.P.
Electrics: 220 / 440 volt 3 phase
Currently Wired: 440 volt 3 phase
Oil capacity: 69 gallons
Approximate Dimensions without gauges: 164” x 101” x 98”
Approximate Weight: 25,000lbs. (machine only)



Equipped With:
40” CNC controlled backgauge system with swing up at end of travel and retract
CNC controlled hydraulic blade gap adjustment
CNC controlled hydraulic rake angle adjustment
CNC controlled stroke length

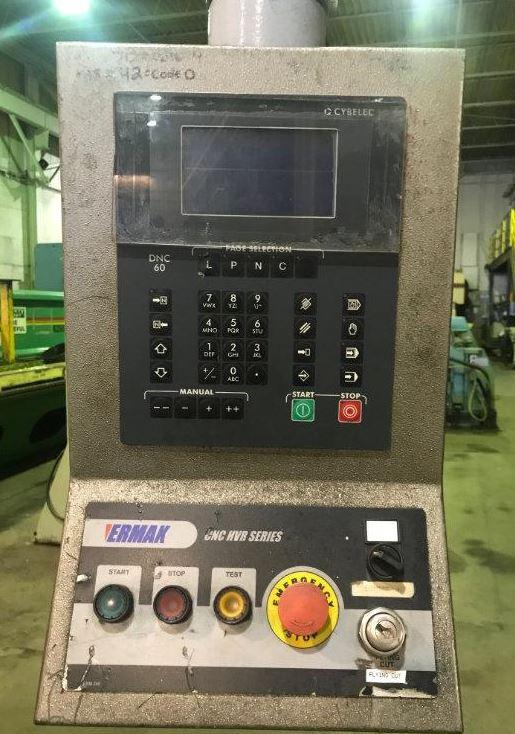

Cybelec DNC 60 CNC control
CNC front gauging system consisting of (1) 140” stationary squaring arm and (1) 100” support
arm (adjusts left to right) with ball transfers
Rear slide plates for cut parts
Ball transfers in table
Wear resistant 4-sided blades
Pendant control arm
Sick model M2000 rear safety light barrier
Siemens electric system
Hoerbiger hydraulic system
Portable foot pedals

The Ermak HVR 3100 10 CNC Shear is an exclusive part of our Shears, Power Squaring (Ga) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
