Fadal VMC 4525HT - Vertical Machining Centers

Request Quote
Share Machine
Specifications Print Specs
Model: VMC 4525HT
Year: 2008
Stock #: 15190
Highlights:
45"/25"/28" Travels
Calmotion 527F upgrade to Fadal CNC88HS
24 Station Side-Mounted Tool Changer

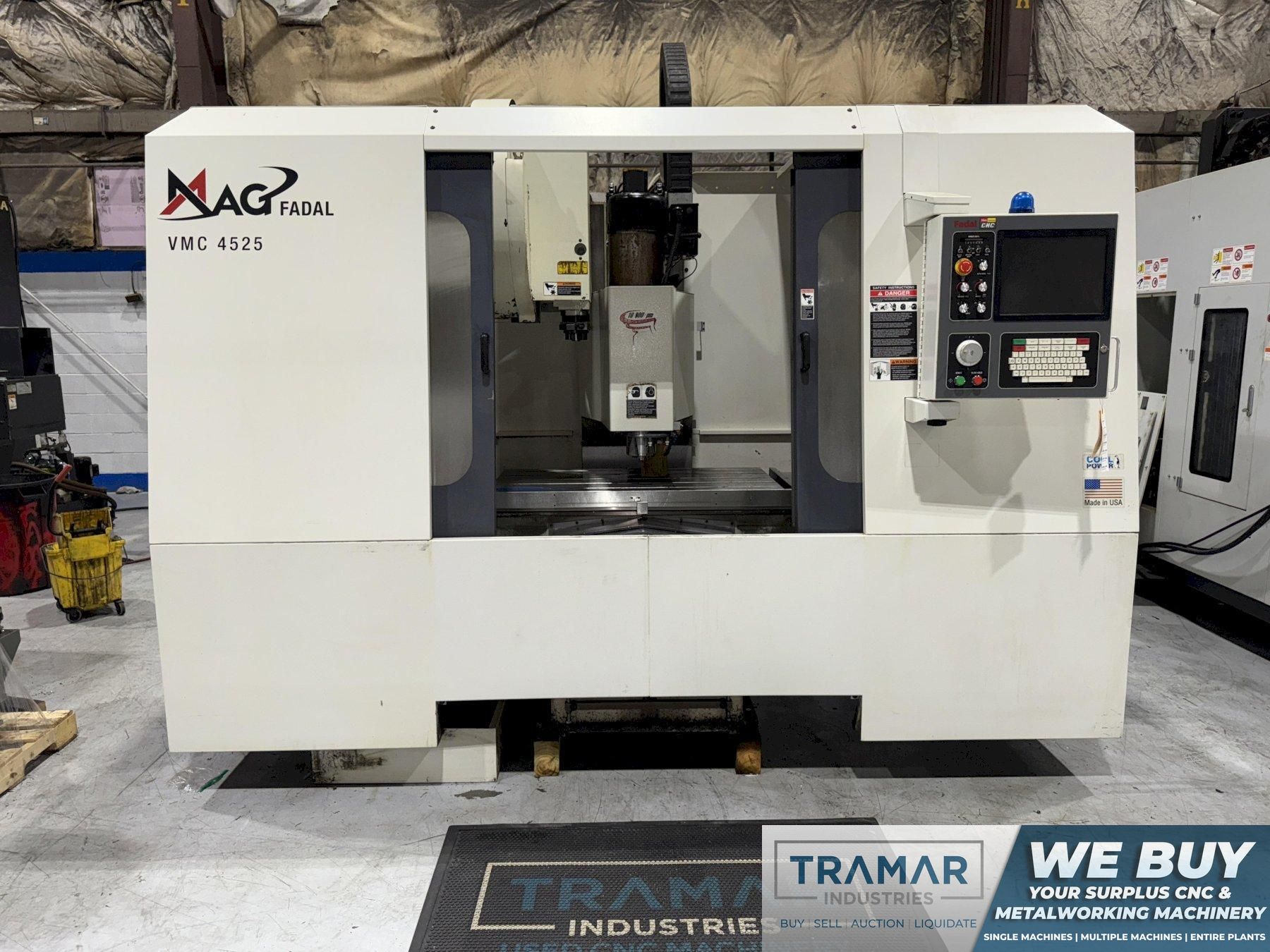

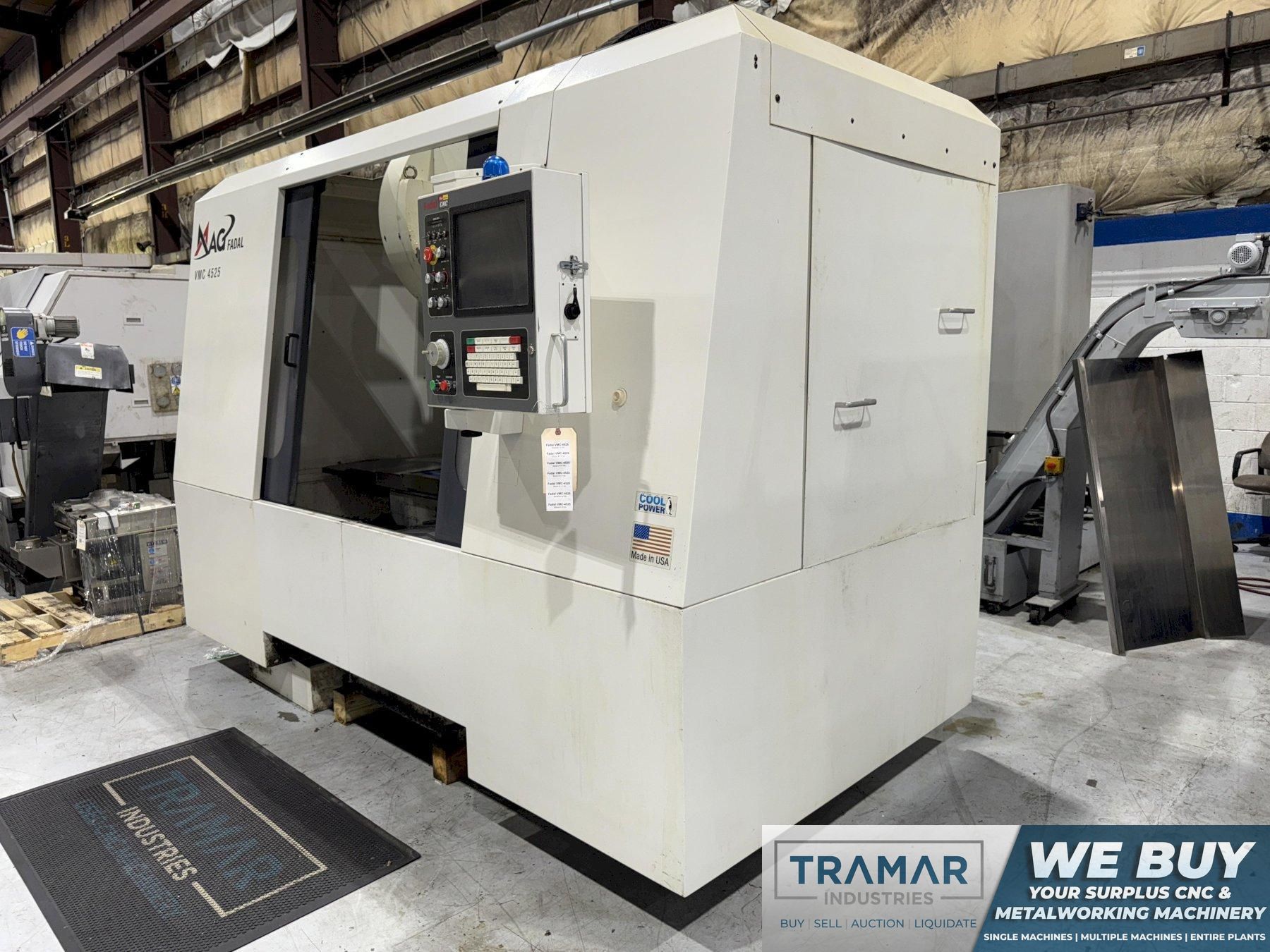

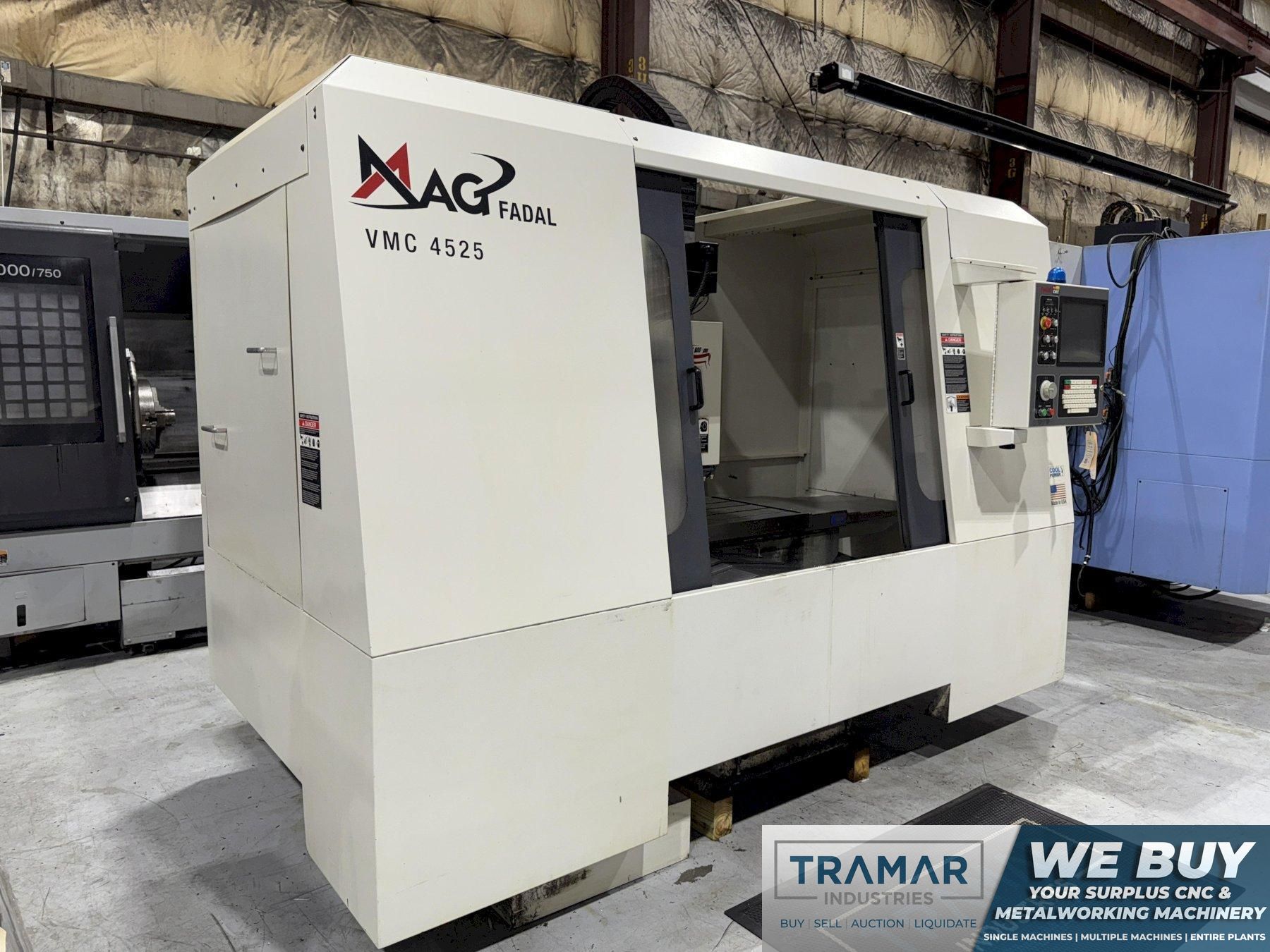

2008 MAG Fadal VMC-4525HT CNC Vertical Machining Center For Sale
Machine Specifications
CNC Control
yes
Control Type
Fadal/Calmotion
# Axis
3
Table Size
53" x 25"
X-Axis Travel
45"
Y-Axis Travel
25"
Z-Axis Travel
28"
Spindle Taper
CAT 40
Spindle Speed
10,000 rpm
Main Motor
15 hp
Tool Changer Capacity
24

Equipped With:

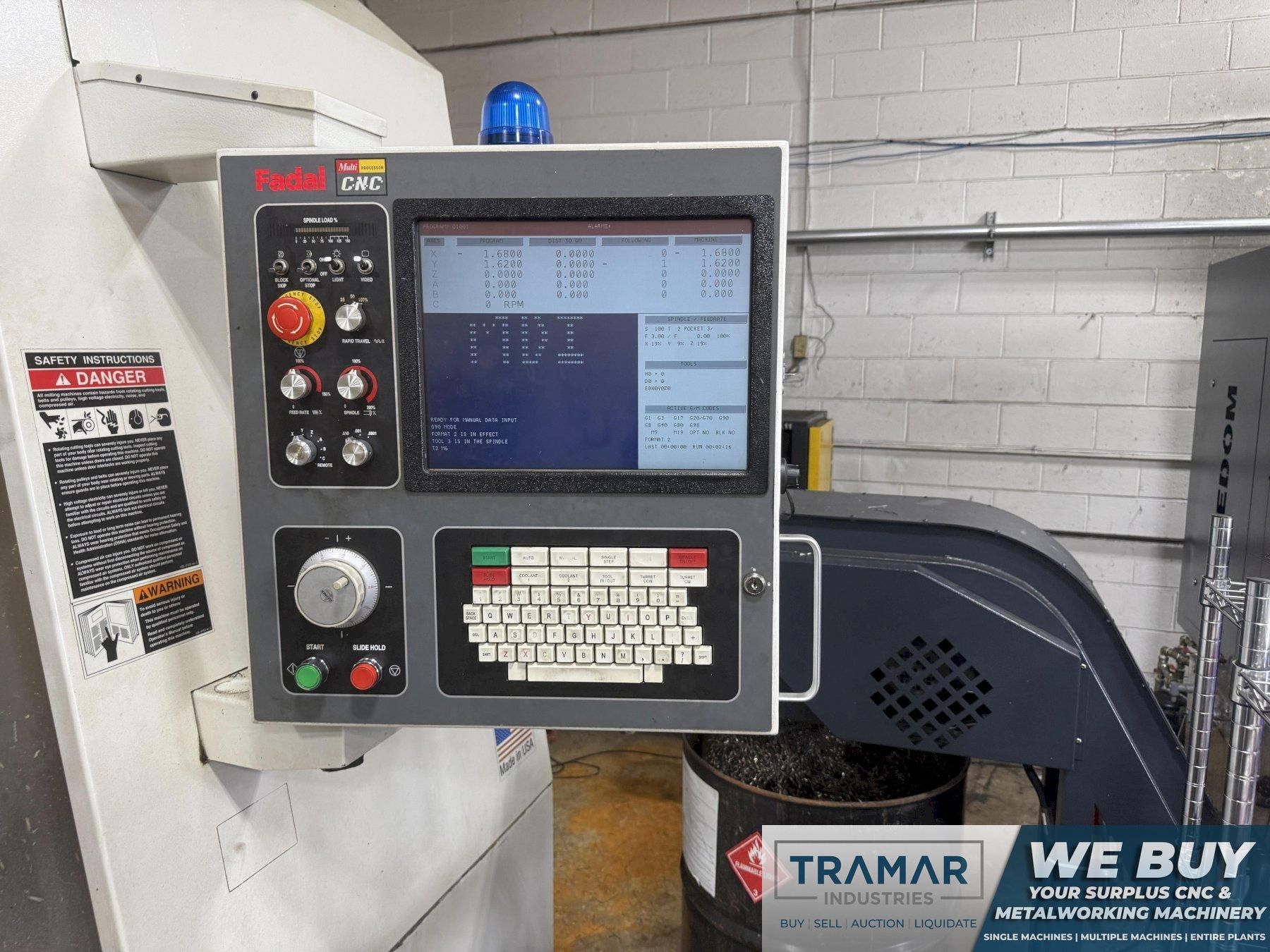

- Calmotion 527F Fadal CNC Control Upgrade (Same Screens and Commands as CNC88HS Control)
- Prepped for CTS

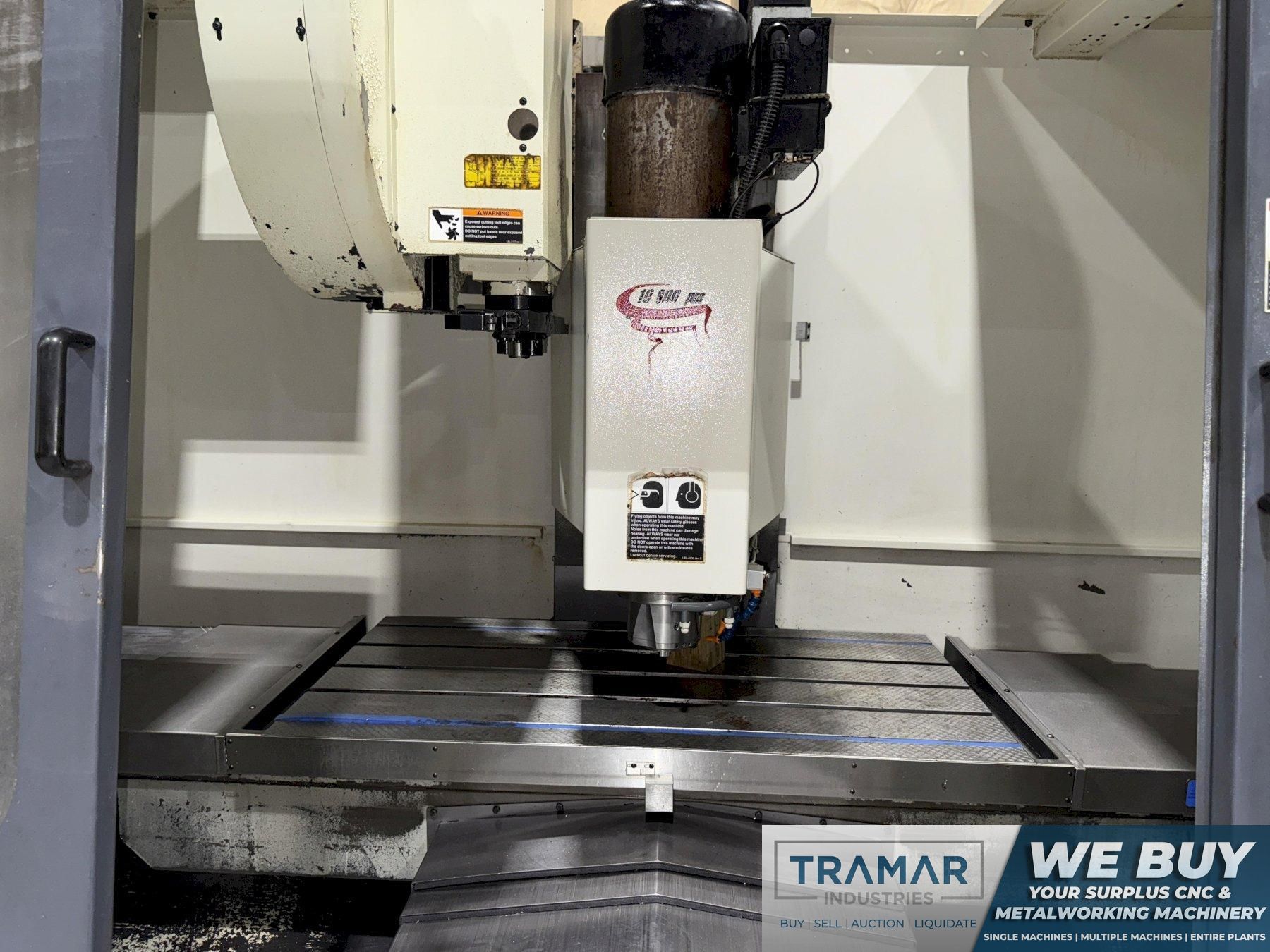

- Air/Oil Spindle
- Coolant tank & Pumps

The Fadal VMC 4525HT is an exclusive part of our Vertical Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
