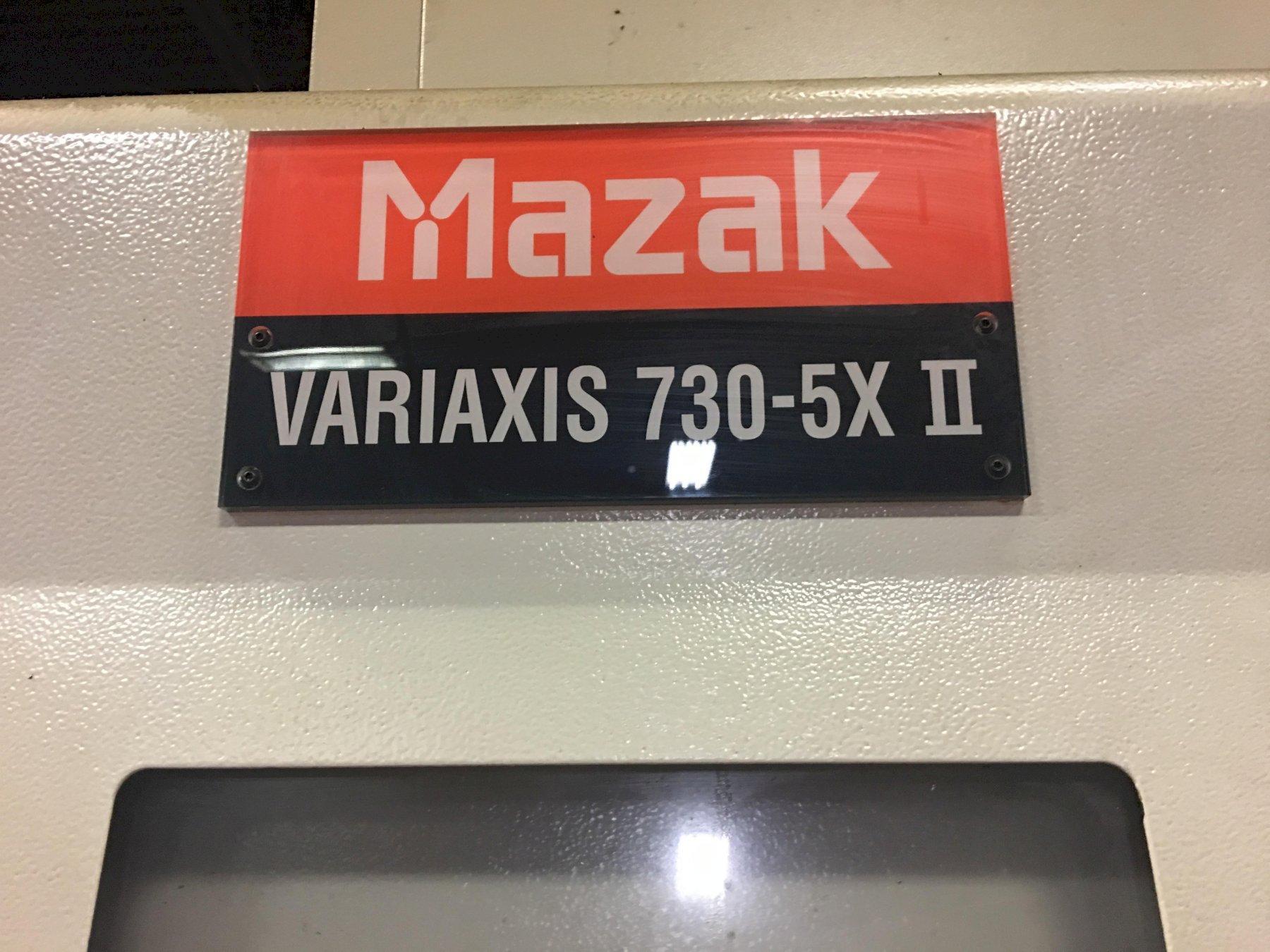

Model: Variaxis 730-5x II

Year: 2008

Stock #: 12845-1 Sold

Type: Vertical Machining Centers

Manufacturer: Used Mazak Machines

Highlights:
Simultaneous 5 Axis Machining
Mazak Superflow V8-1000 Hi-Pressure CTS
Twin Pallet Shuttle System (Pallet Changer)
HSK 100 | 10,000 rpm | 40hp | 80 Station ATC

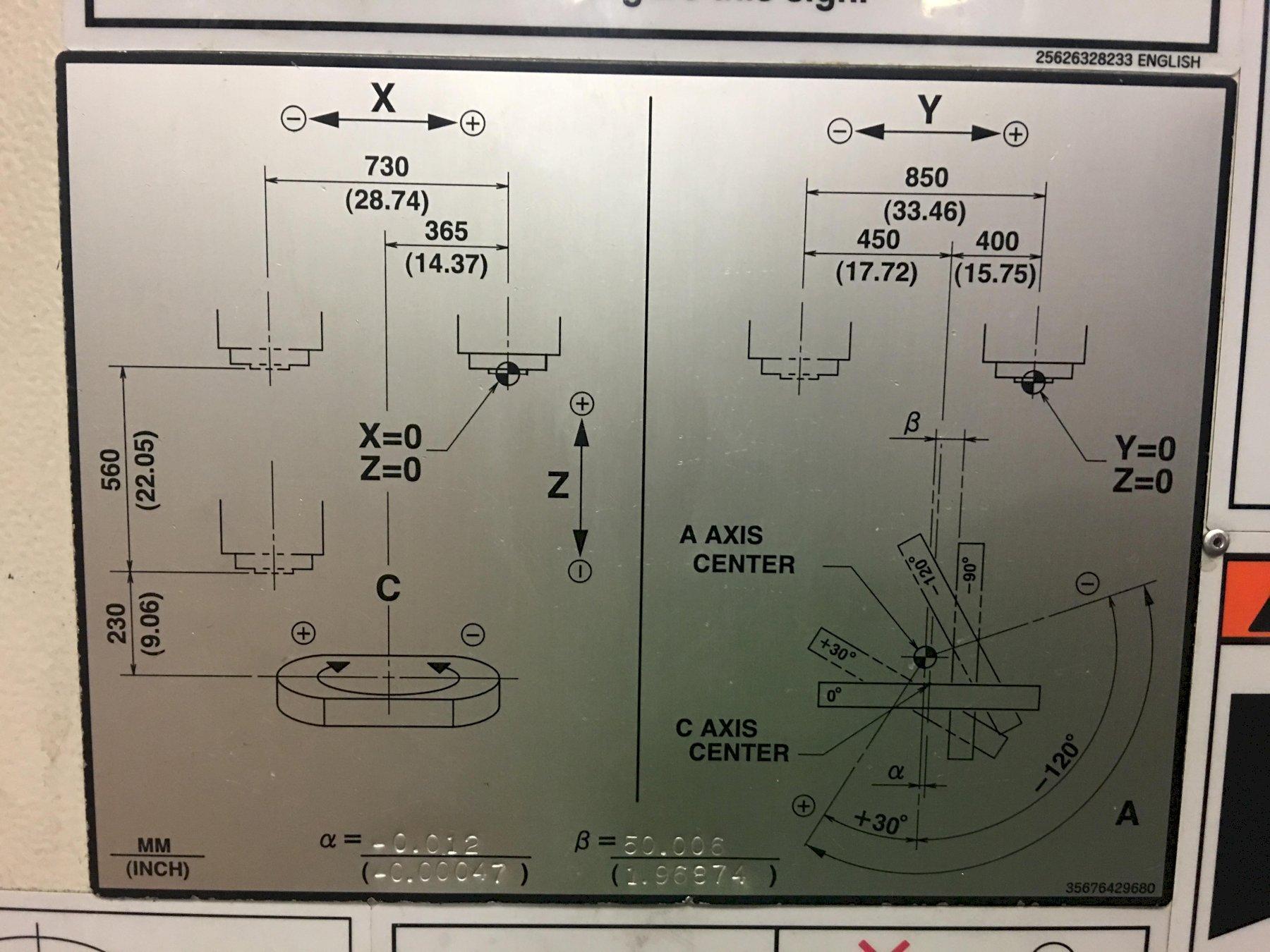

Travels (X/Y/Z): 28.74"/33.46"/22"

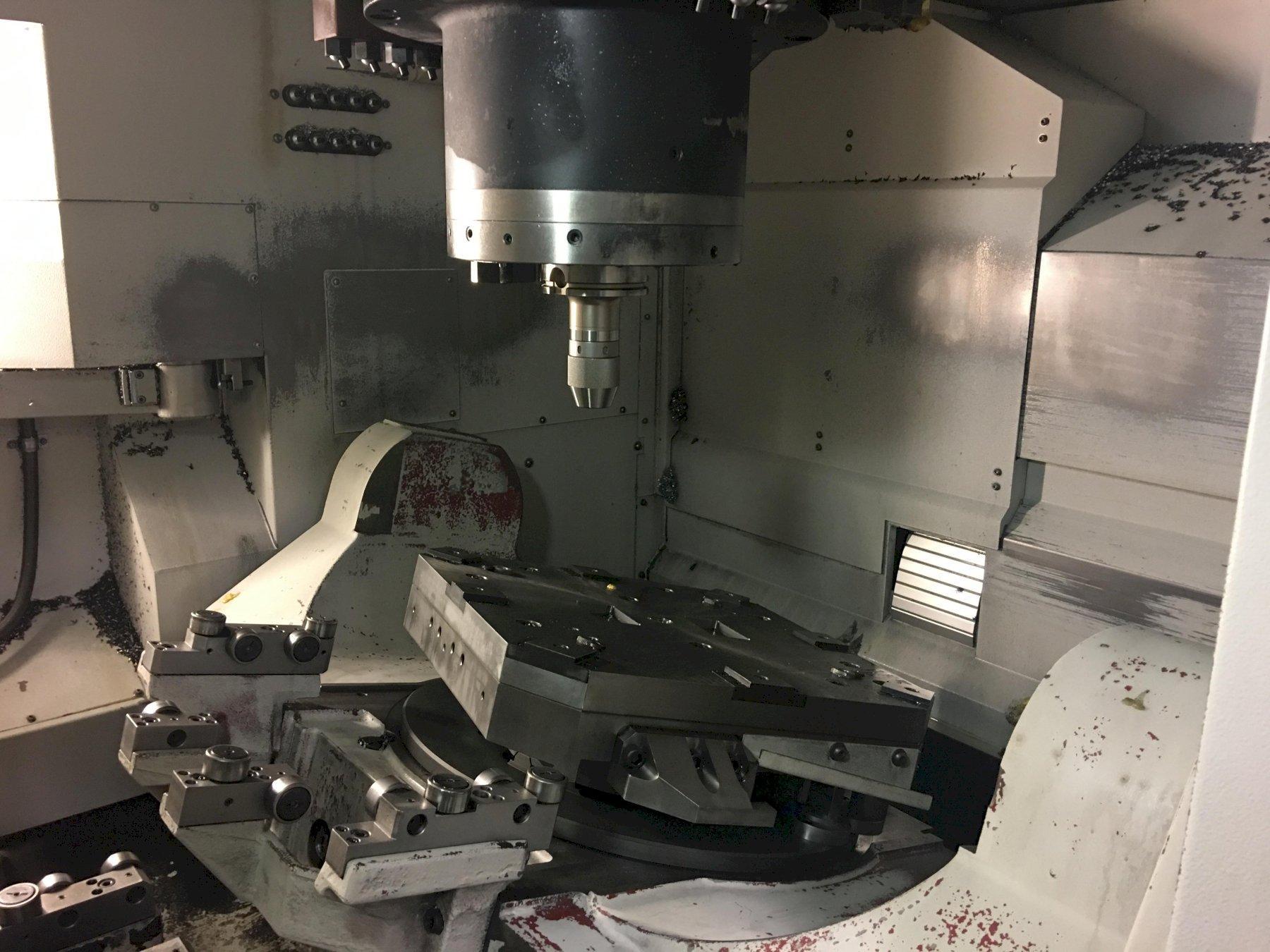

A-axis: 150° | C-axis: +/-360°

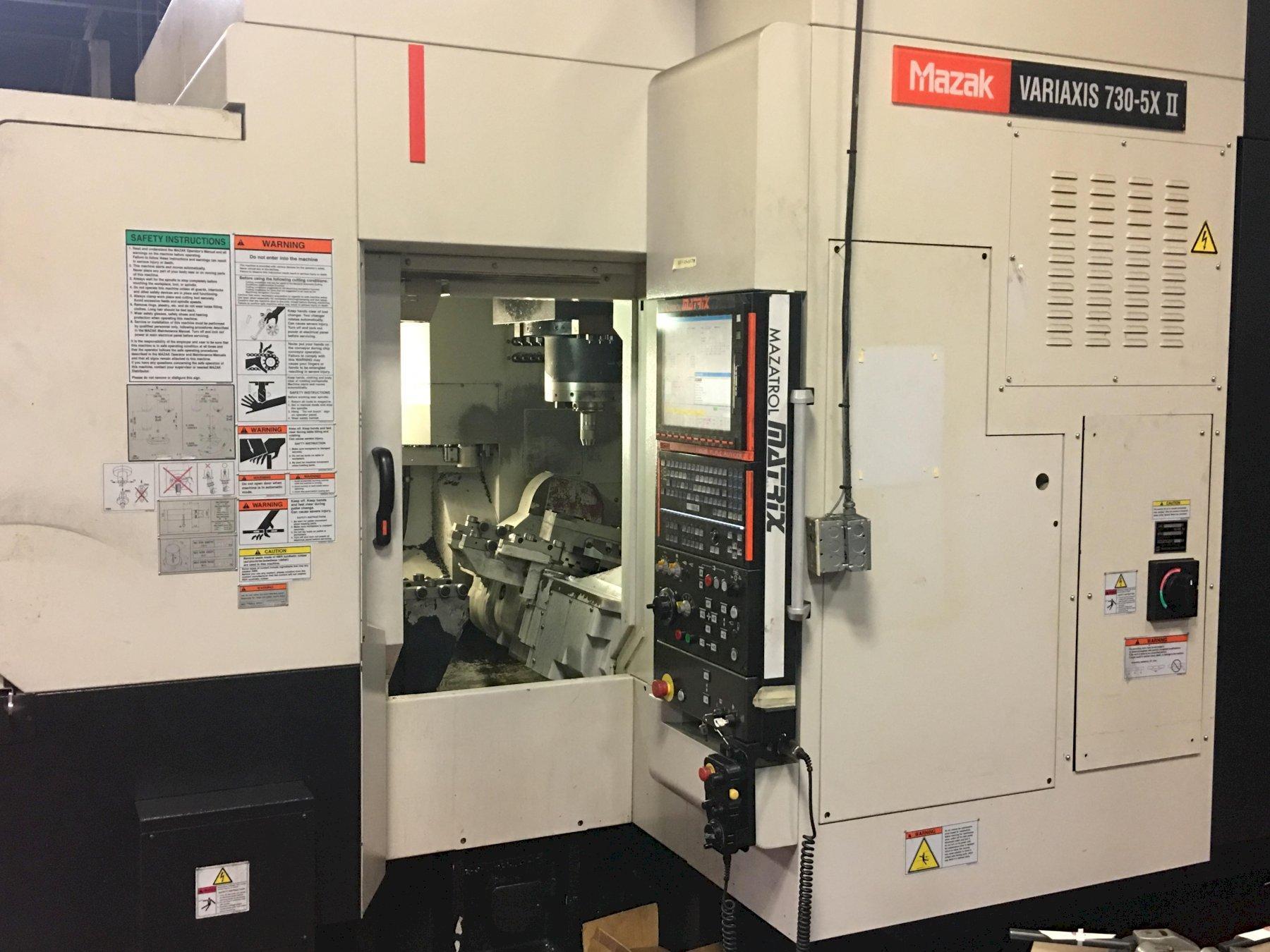

2008 Mazak Variaxis 730-5x II Vertical Machining Center

Equipped With:

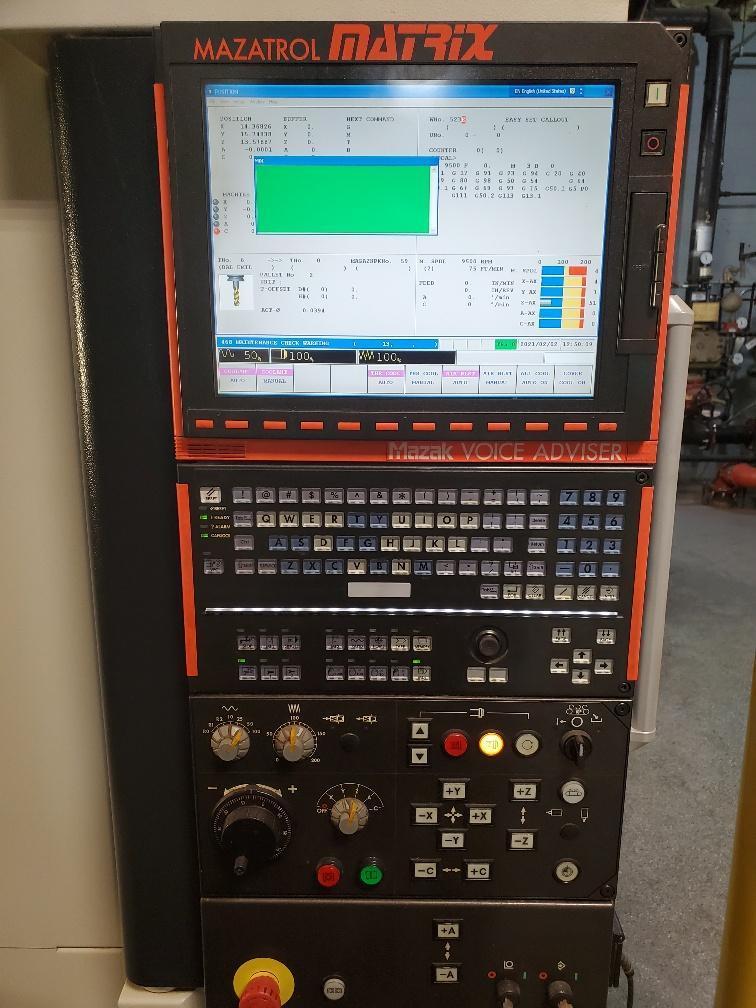

- Mazatrol Matrix Control
- Twin Pallet Shuttle System
- Chip Conveyor
- Coolant Tank & Pumps
- Handheld Manual Pulse Generator (MPG)
- Coolant Thru Spindle (Mazak Superflow V8-1000)
- (3) USB Ports
- PCMCIA Card Port
- Ethernet Port
- Scaling & Rotation
- High Speed
- Auto Tool Length Measurement (ATLM)
- 600 Variable Sets

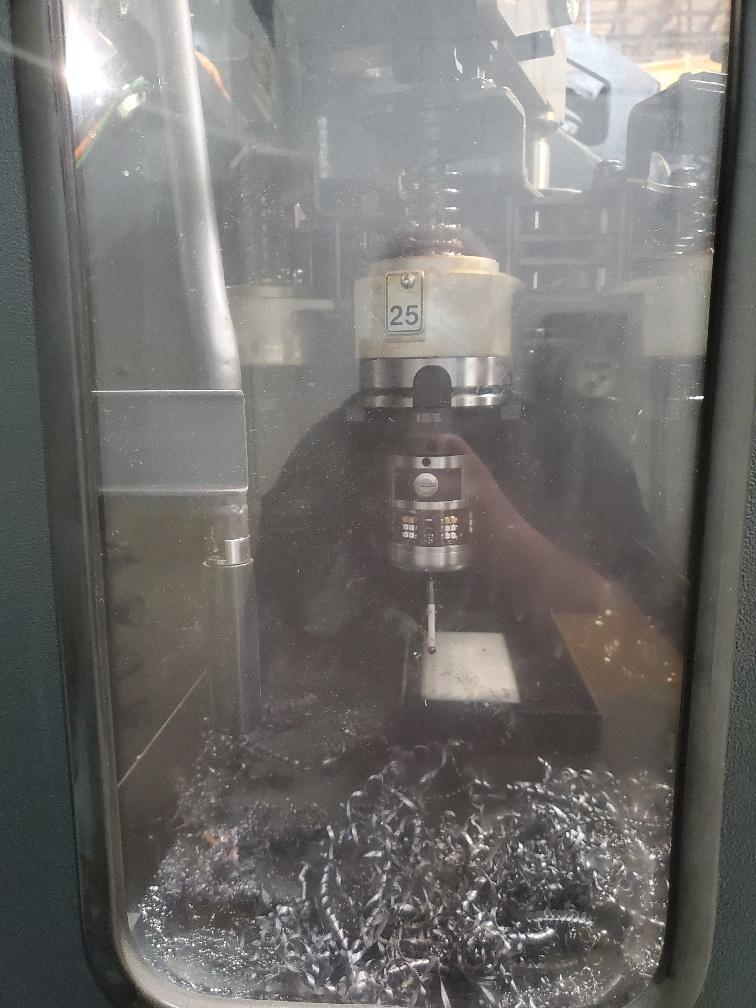

- Renishaw Probing
- Program Memory Expansion
- Misc. Tooling Available
- Available Manuals
- Simultaneous 5 Axis Machining

Machine Specifications

Inch

Metric

Machine Specifications:

CNC Control

yes

Control Type

Mazatrol Matrix

# Axis

Table Size

19.7 x 19.7

Table Capacity

1,102 pounds

X-Axis Travel

28.74"

Y-Axis Travel

33.46"

Z-Axis Travel

22"

A Axis Swivel

150°

C Axis Index

+/-360°

Rapid Traverse Rate (X/Y/Z)

1,654 ipm

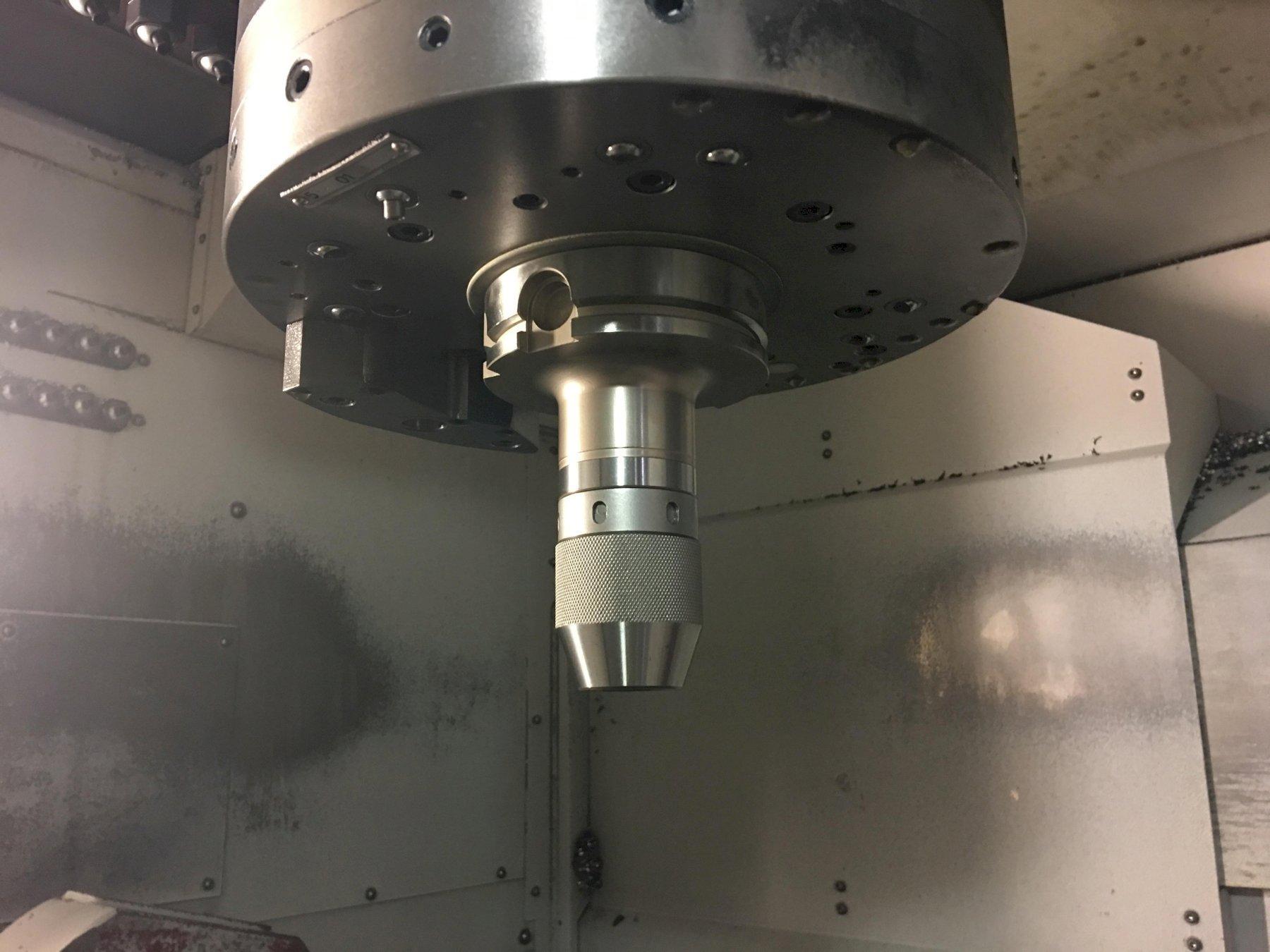

Spindle Taper

HSK 100

Spindle Speed

10,000 rpm

Main Motor

40 hp

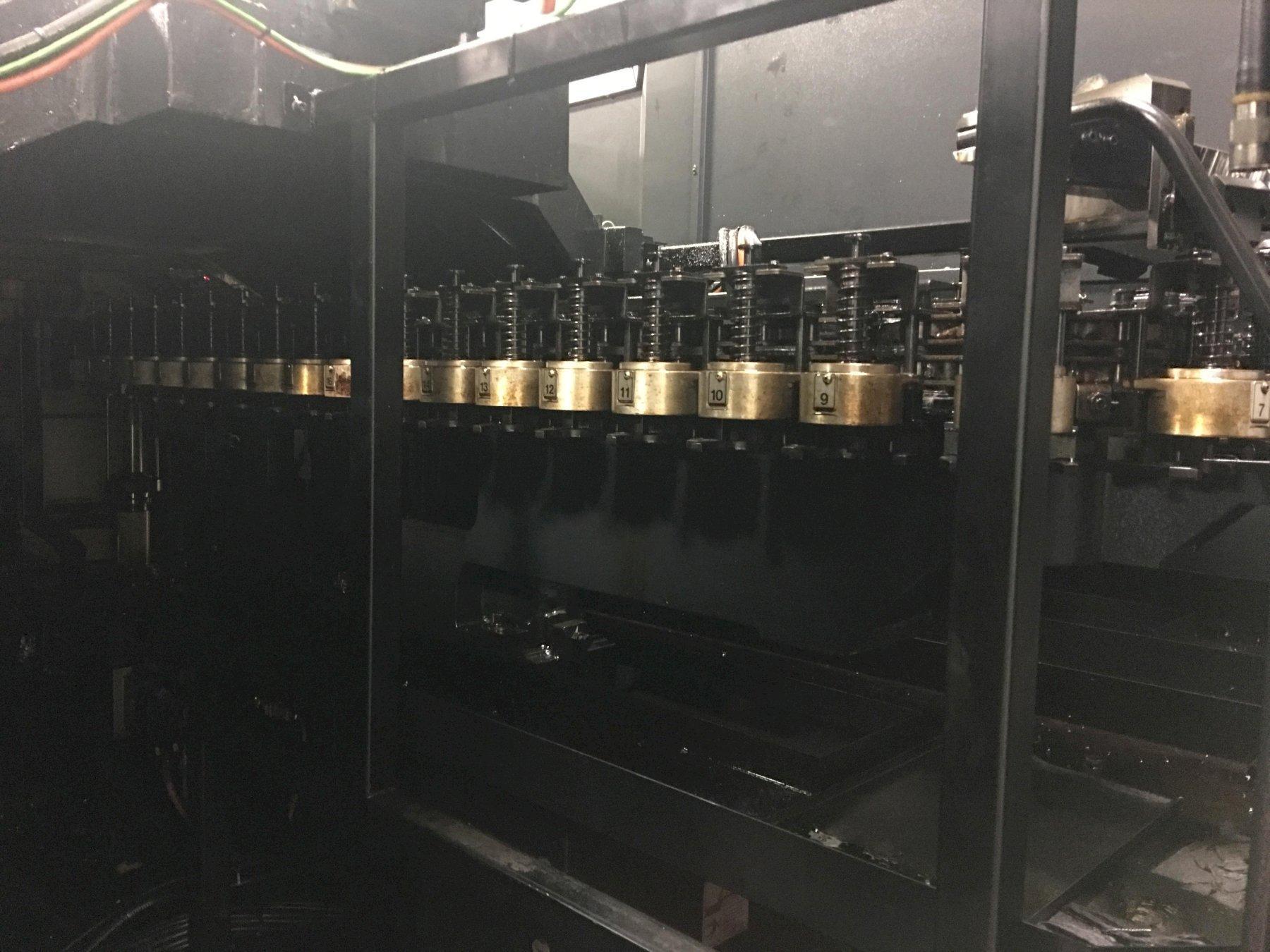

Tool Changer Capacity

Coolant Thru Spindle

yes

Machine Dimensions

236" x 144" x 142"

Machine Weight

50,600 pounds

Equipped With:

The Mazak Variaxis 730-5x II is an exclusive part of our Vertical Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
