Okuma LU-300 - Horizontal Lathes

Share Machine
Specifications Print Specs
Model: LU-300
Year: 2008
Stock #: 13024 Sold
Highlights:

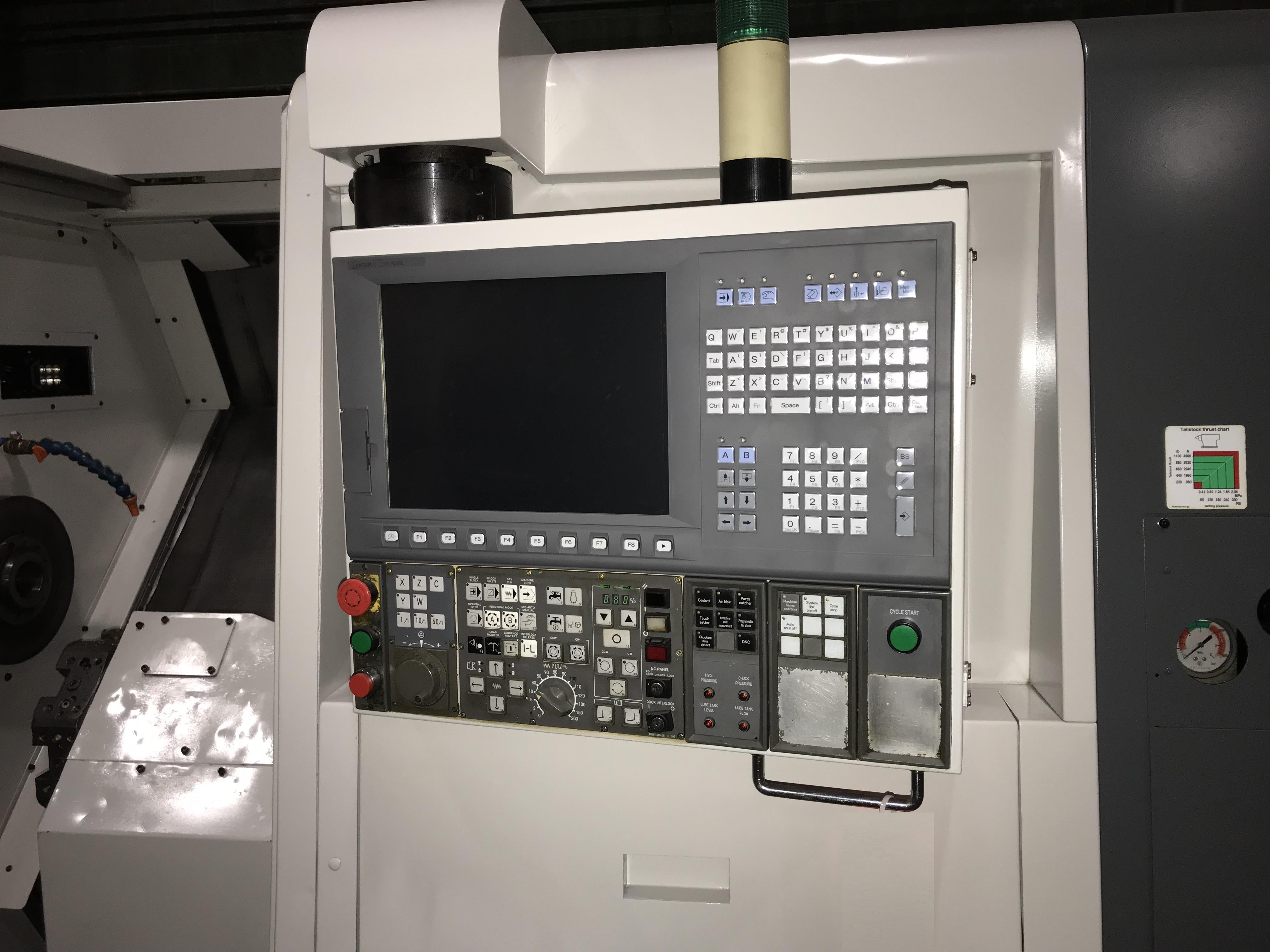

- Okuma OSP P200L Control

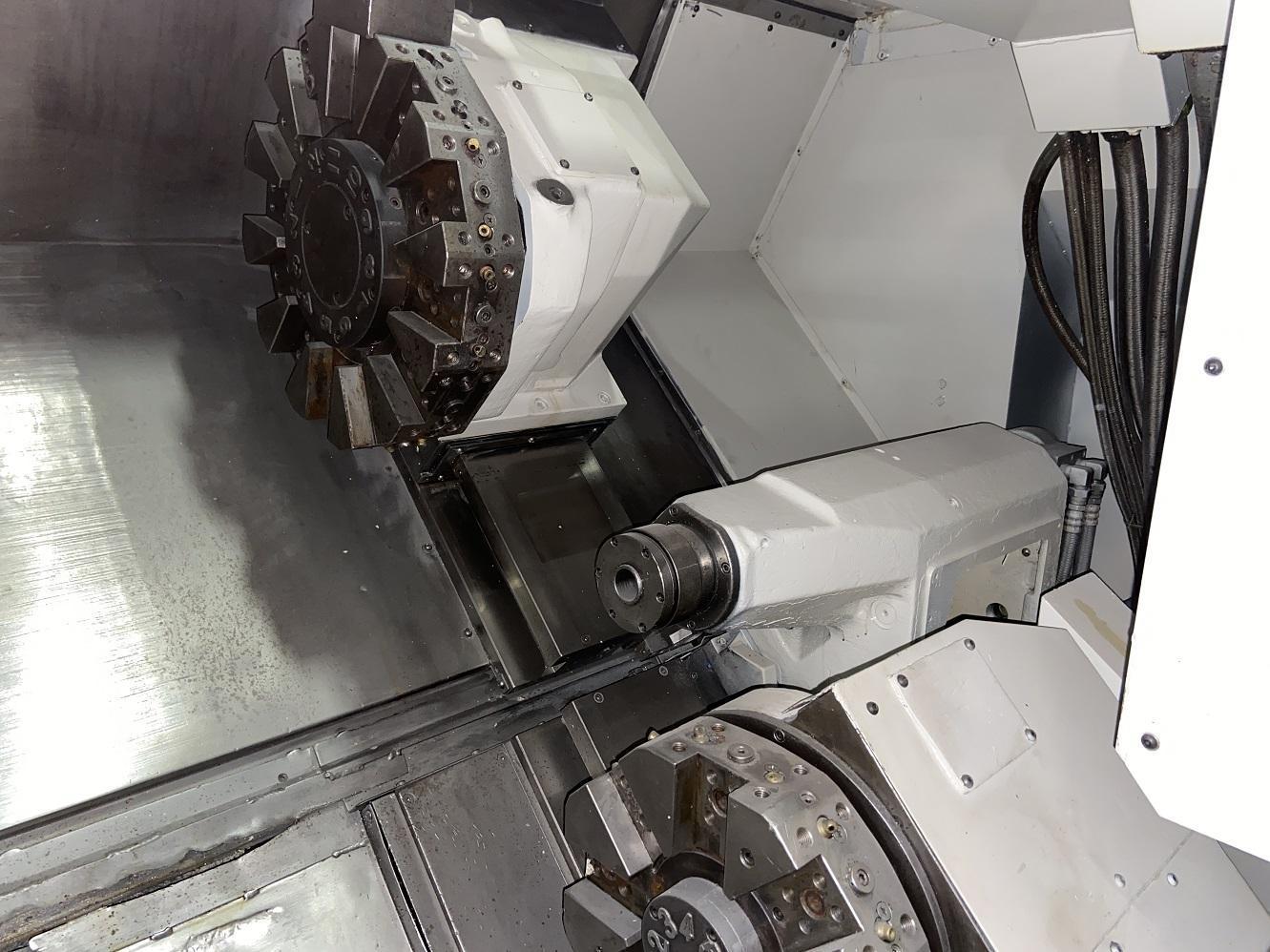

- Upper Turret (12) Stations
- Lower Turret (8) Stations
- Tailstock

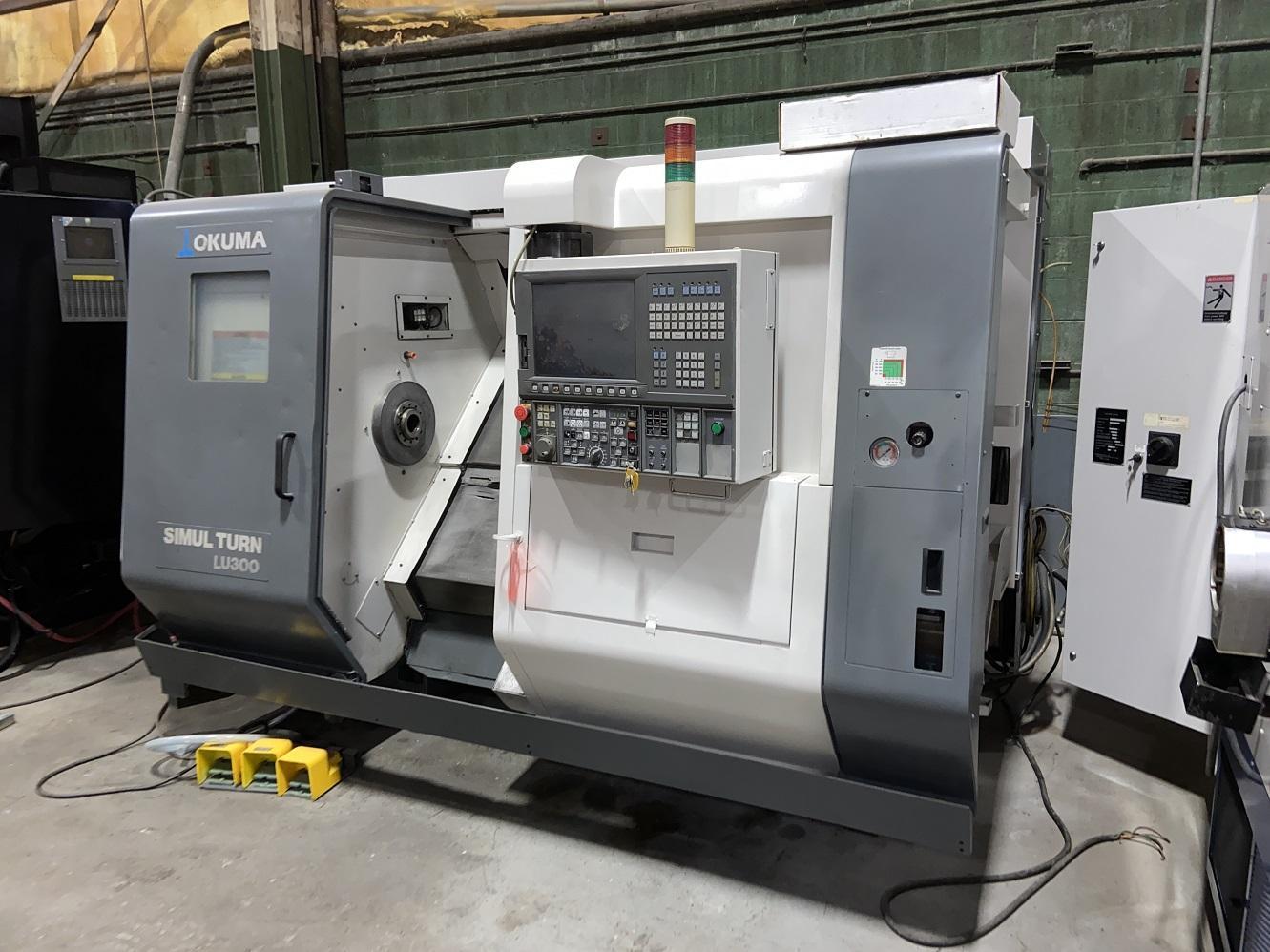

2008 OKUMA SimulTurn LU-300 - CNC Horizontal Lathe
Machine Specifications
CNC Control
yes
Control Type
OSP P200L
# Axis
4
Chuck Size
10"
Swing
20.87"
Turning Diameter
14.57"
Center Distance
23.6"
Bar Capacity
2.4"
X Axis Travel
10.23"
Z Axis Travel
25.2"
Rapid Traverse (X/Z)
984 IPM
Spindle Nose
A2-6
Spindle Speed (RPM)
5,000
Main Motor
30 HP
Turret Capacity
12 + 8
Live Tooling
no
Sub Spindle
no
Dimensions
126" x 86" x 76"
Weight
16,100 ounces

Equipped With:

- Okuma OSP P200L Control
- Chip Conveyor
- Coolant Tank
- 10" Chuck
- Tool Presetter
- Tailstock
- Upper Turret & Lower Turret
- Available Manuals



The Okuma LU-300 is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
