SNK Nissin BP130/3.5 - Table Type - Horizontal Boring Mills (Table)

Request Quote
Specifications Print Specs
Model: BP130/3.5 - Table Type
Year: 2008
Stock #: 13096
Highlights:
Fanuc 16i-MB Control
5.1" Spindle Size
Coolant Thru Spindle
Table Size 86" x 63"

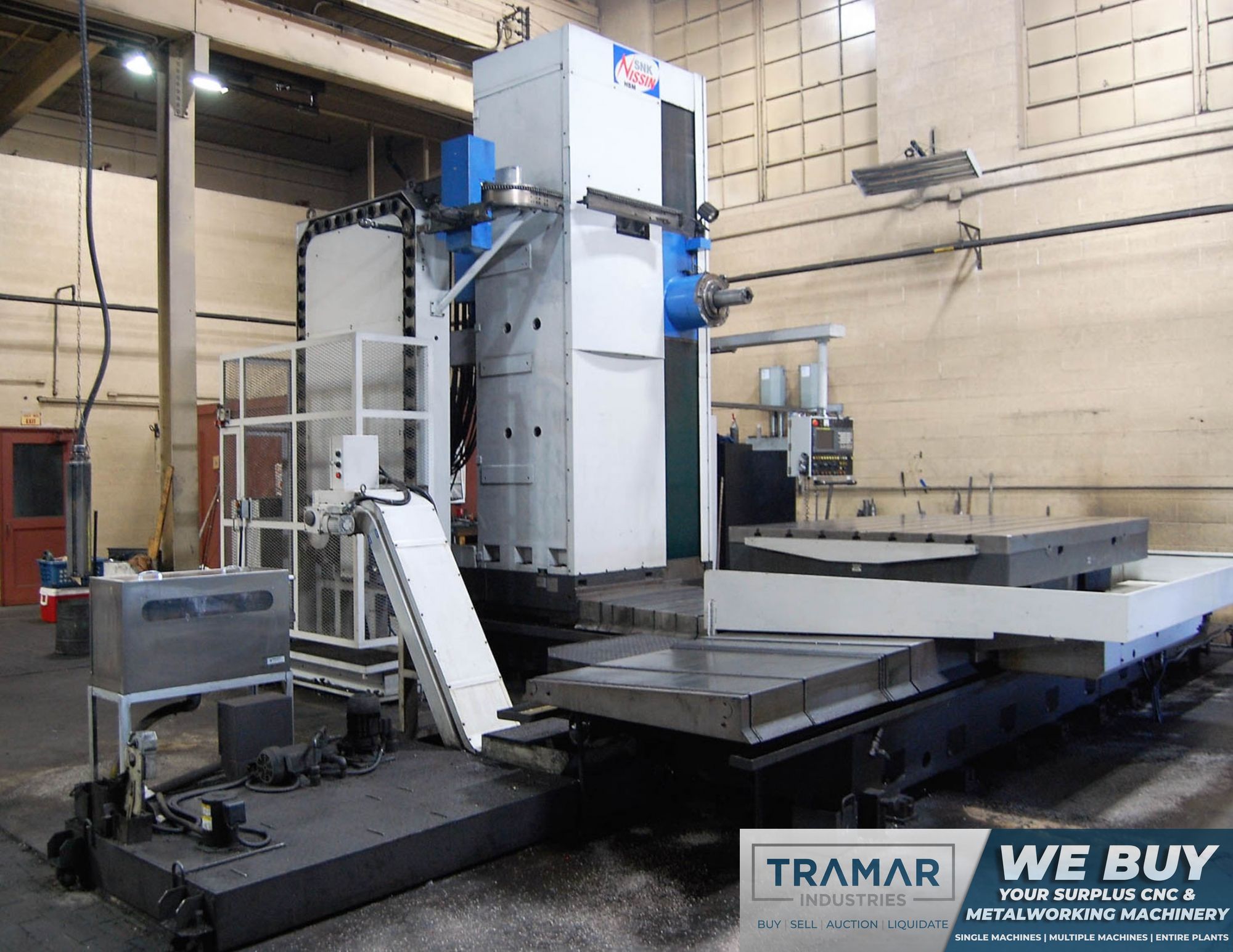

2008 SNK NISSIN BP130/3.5 - Table Type
Machine Specifications
Year
2008
Spindle Size
5.1"
Table Size
86" x 63"
Max Weight On Table
22,000 pounds
X-Horiz Tvl of Table
137.8"
Y-Vert Tvl of Head
98.42"
Z-Axis Travel
62.99"
W-Axis Travel (Quill)
27.55"
B-Axis (Pallet Indexing)
0.001°
Rapid Traverse Rate (X/Y/Z)
315
Spindle Speed
2,500
Spindle Motor
35
Spindle Taper
CAT 50
Tool Changer Capacity
60
Coolant Thru Spindle
yes
Control Type
Fanuc 16i-MB
Dimensions
264" x 288" x 196"
Weight
79,400 pounds

Equipped With:

- Fanuc 16i-MB CNC Control
- Chip Conveyor
- Coolant Tank & Pump
- Full 4th Axis Contouring
- Coolant Thru Spindle (Chip Blaster)
- Remote Handheld MPG
- Glass Scales
- Marposs Laser (Tool Measurement)


The SNK Nissin BP130/3.5 - Table Type is an exclusive part of our Horizontal Boring Mills (Table) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
