Doosan VT1100M - Vertical Lathes

Share Machine
Specifications Print Specs
Model: VT1100M
Year: 2009
Stock #: 31116 Sold
Yes
Highlights:
Fanuc 21i-TB Control
Live Tooling
40" chuck
Gearbox
Box Ways

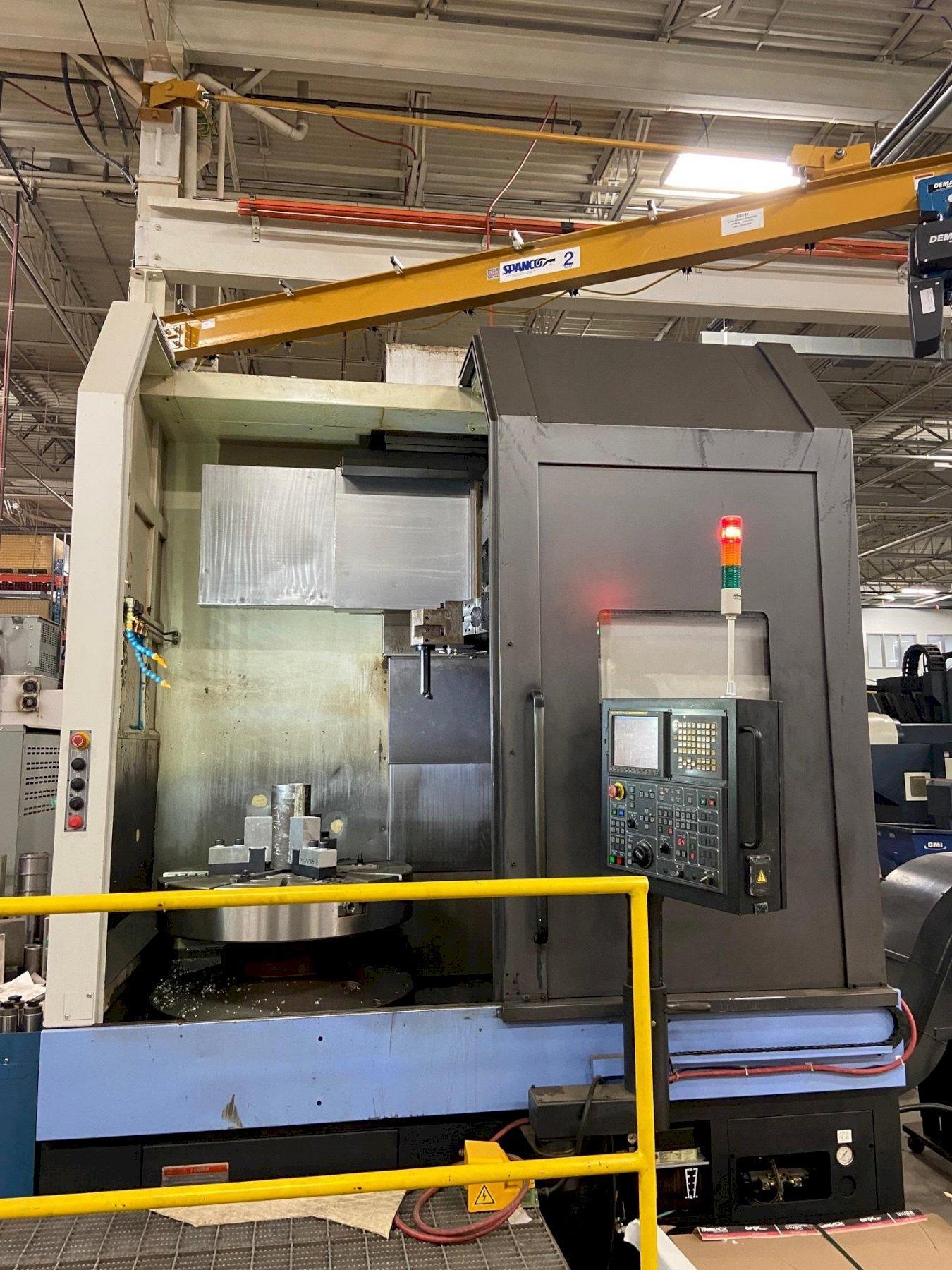

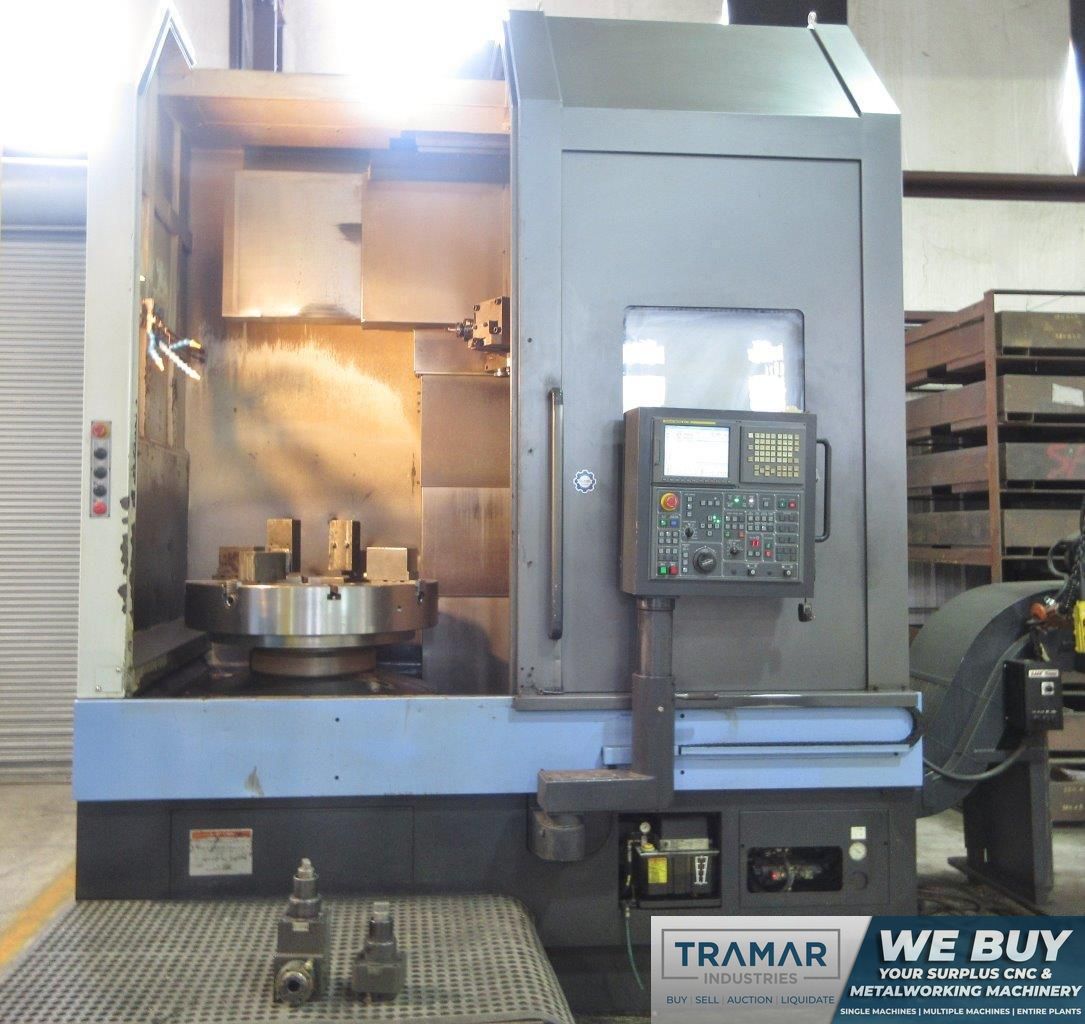

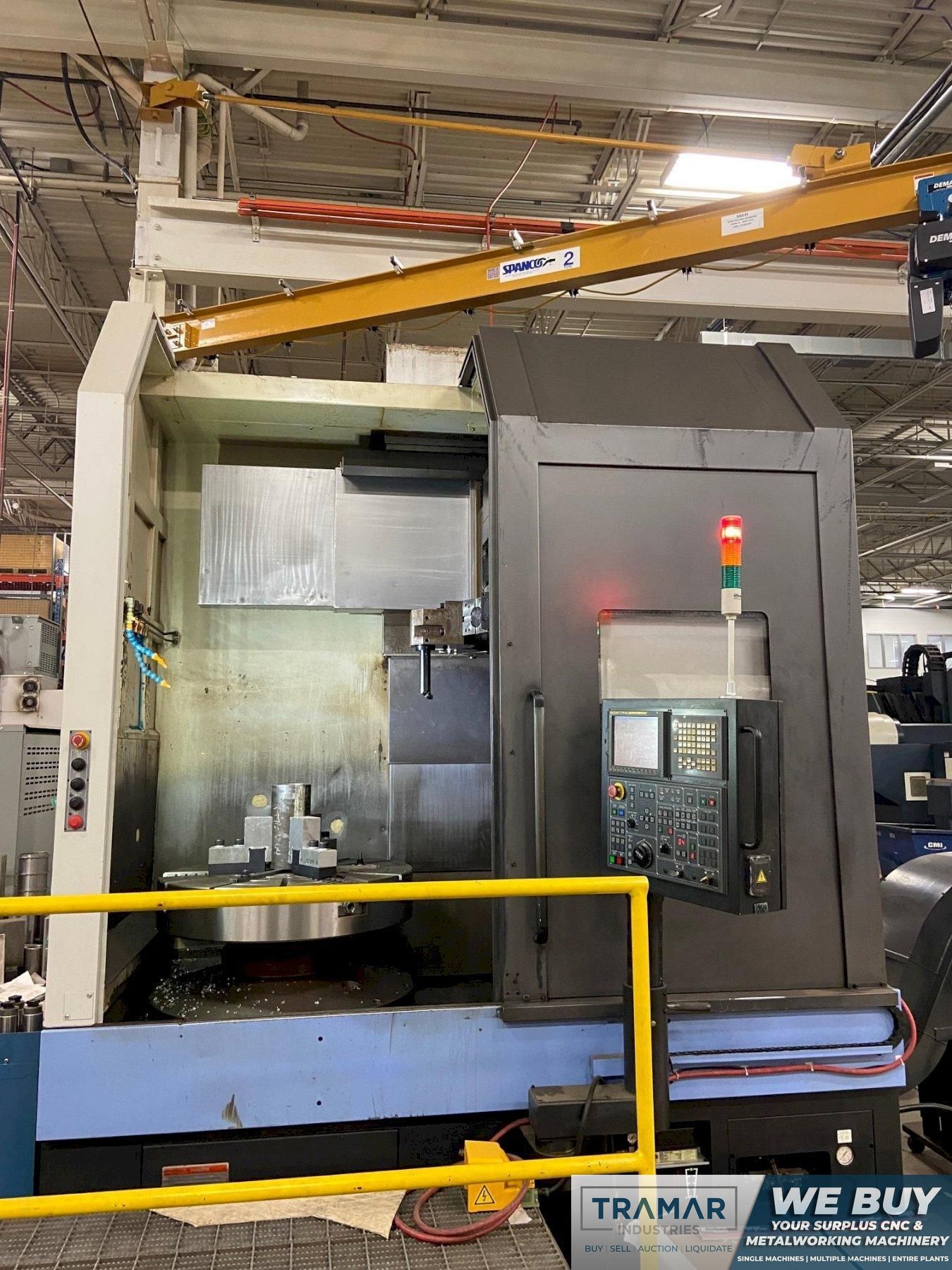

2009 Doosan Puma VT1100M - CNC Vertical Lathe
Machine Specifications
CNC Control
yes

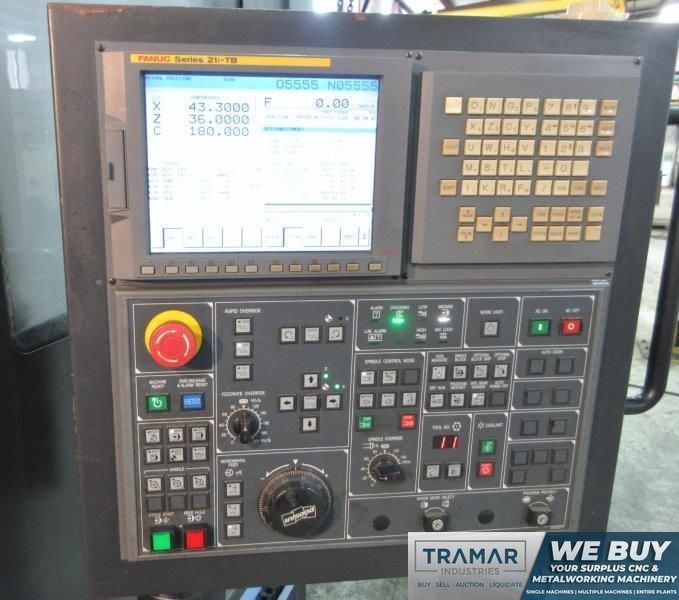

Control Type
Fanuc 21i-TB
Table Dia
40"
Max Table Load
4,400 pounds
Swing
50"
Turning Diameter
43.3"
Max Turning Length
39.37"

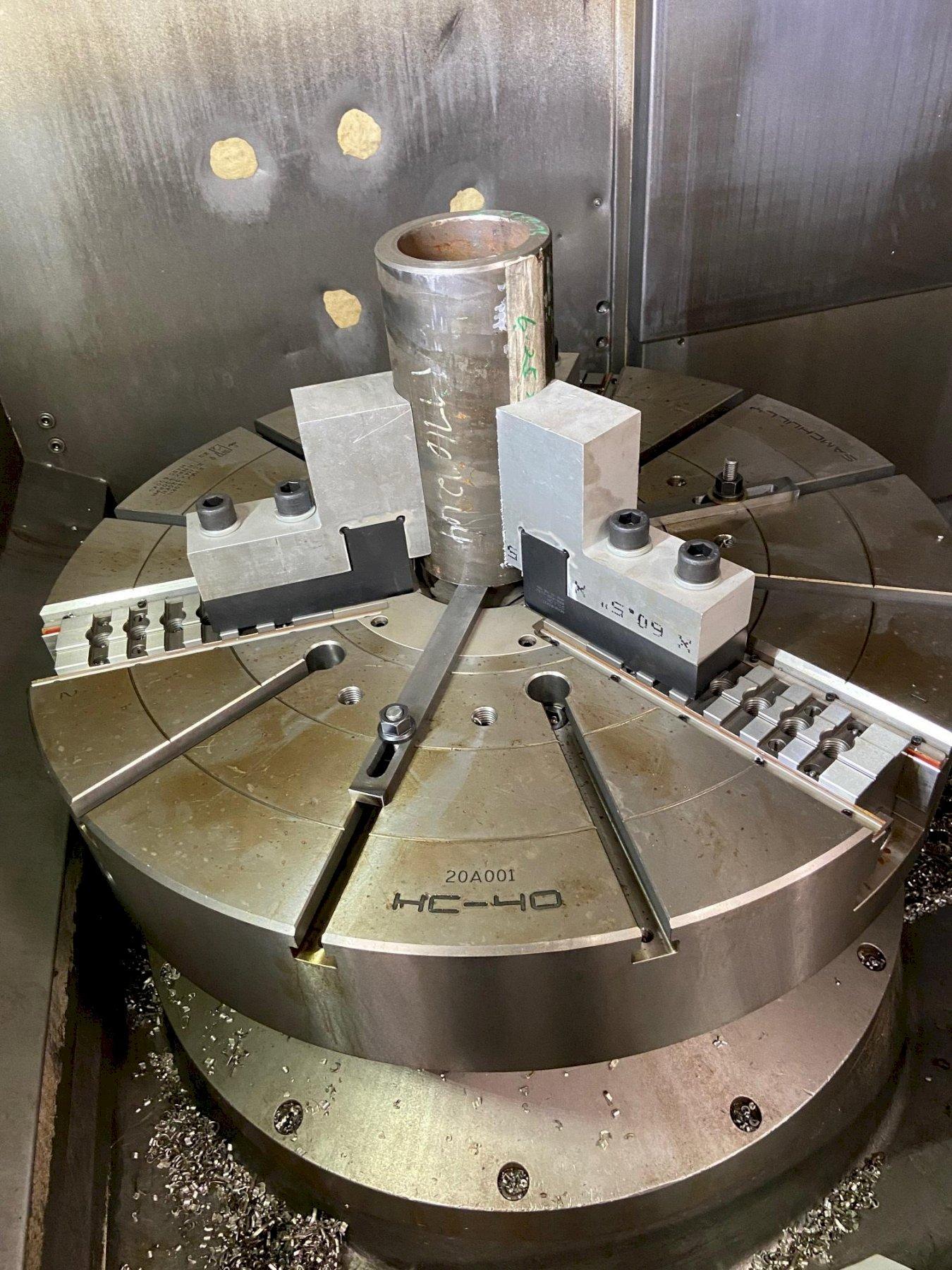

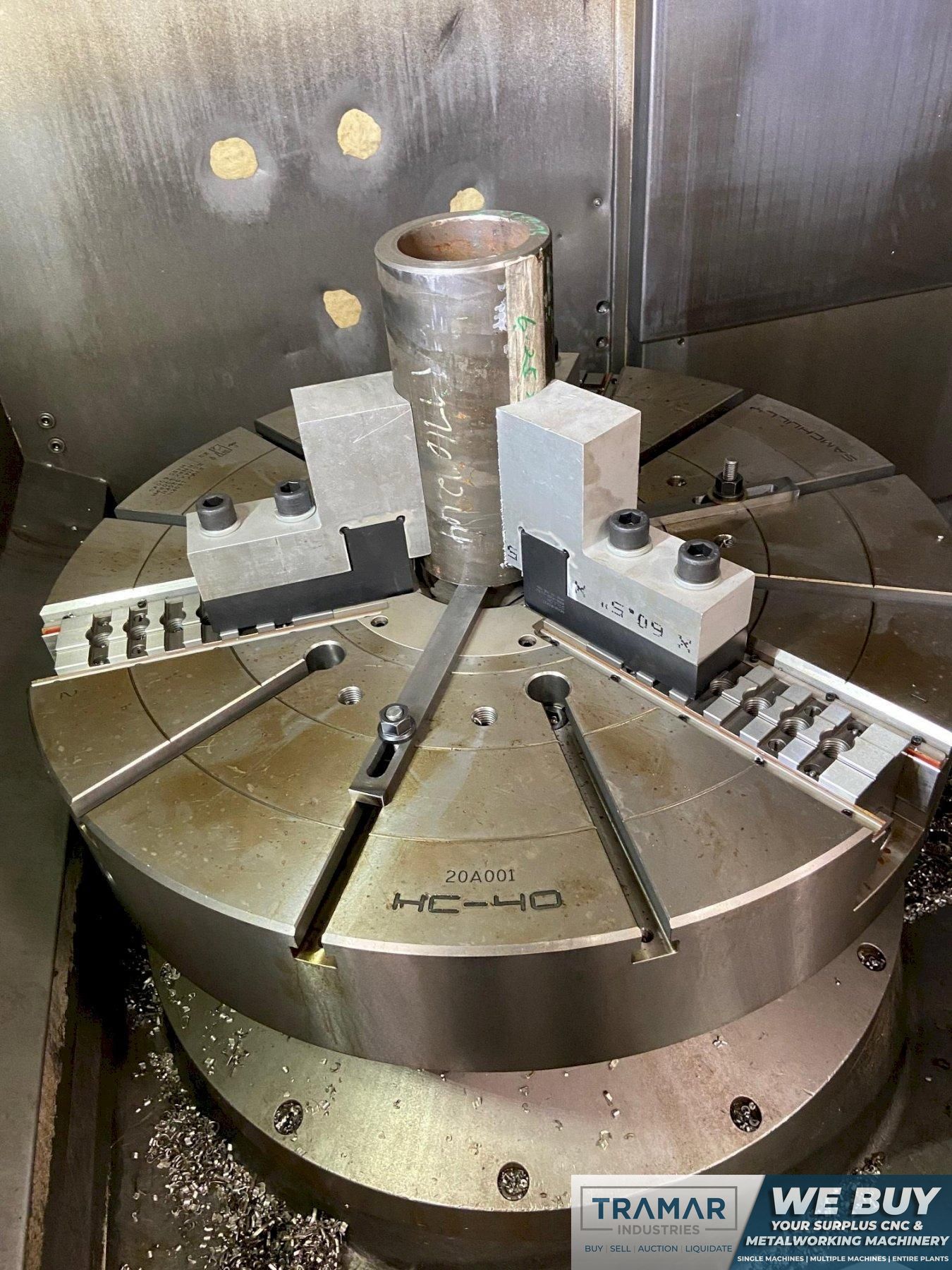

Chuck Size
40"
X-Axis Travel
22.8"
Z-Axis Travel
39.37"
Rapid Traverse (X/Z)
787 ipm
Spindle Nose
A2-15
Spindle Speed
850
Spindle Motor
75 horsepower
Live Tooling
yes
Live Tooling Speed
3,000 rpm
Live Tooling Motor
15 hp

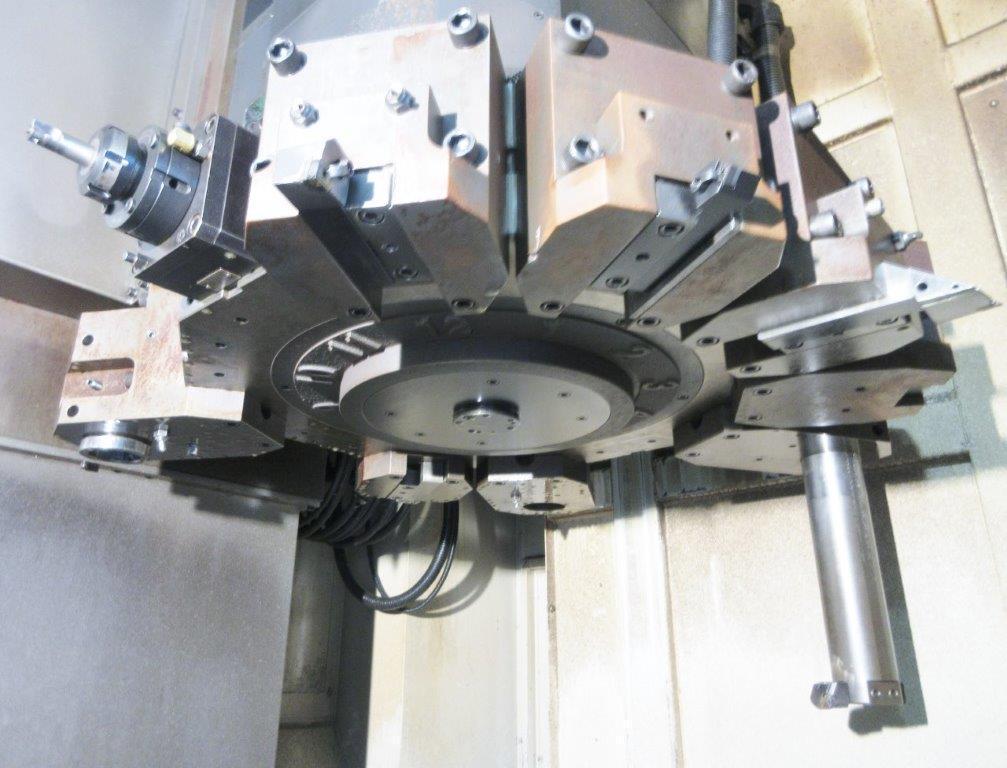

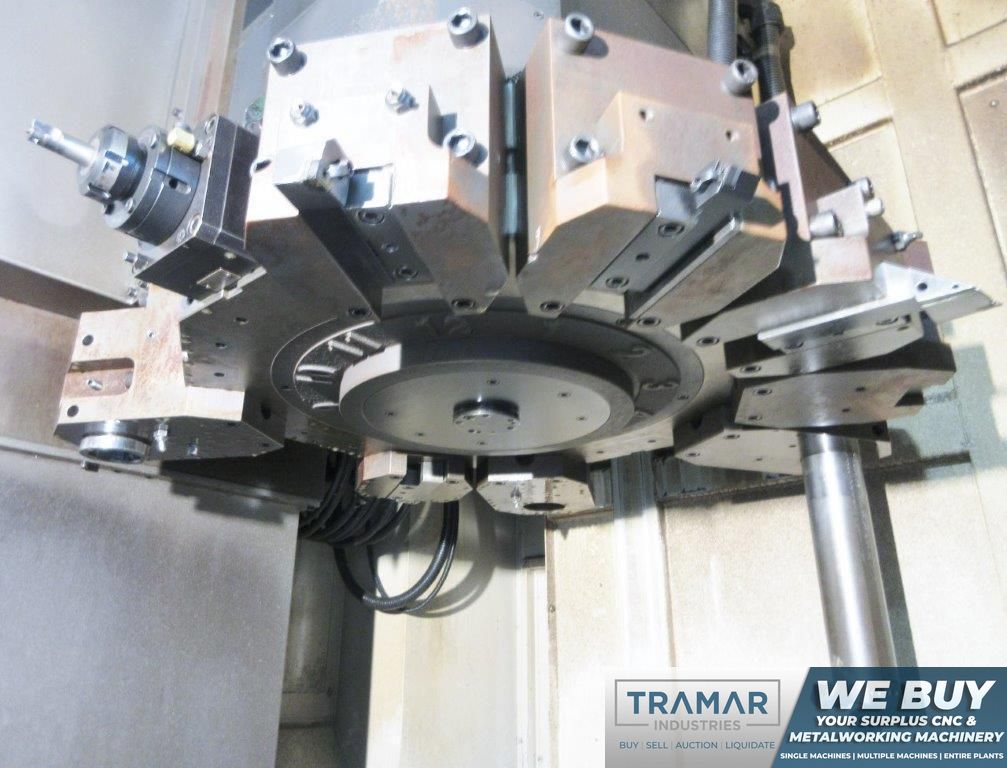

Turret Capacity
12
Machine Dimensions
110" x 130" x 159"
Machine Weight
48,500 pounds

Equipped With:

- Fanuc 21i-TB Control
- Live Milling
- 40" Chuck

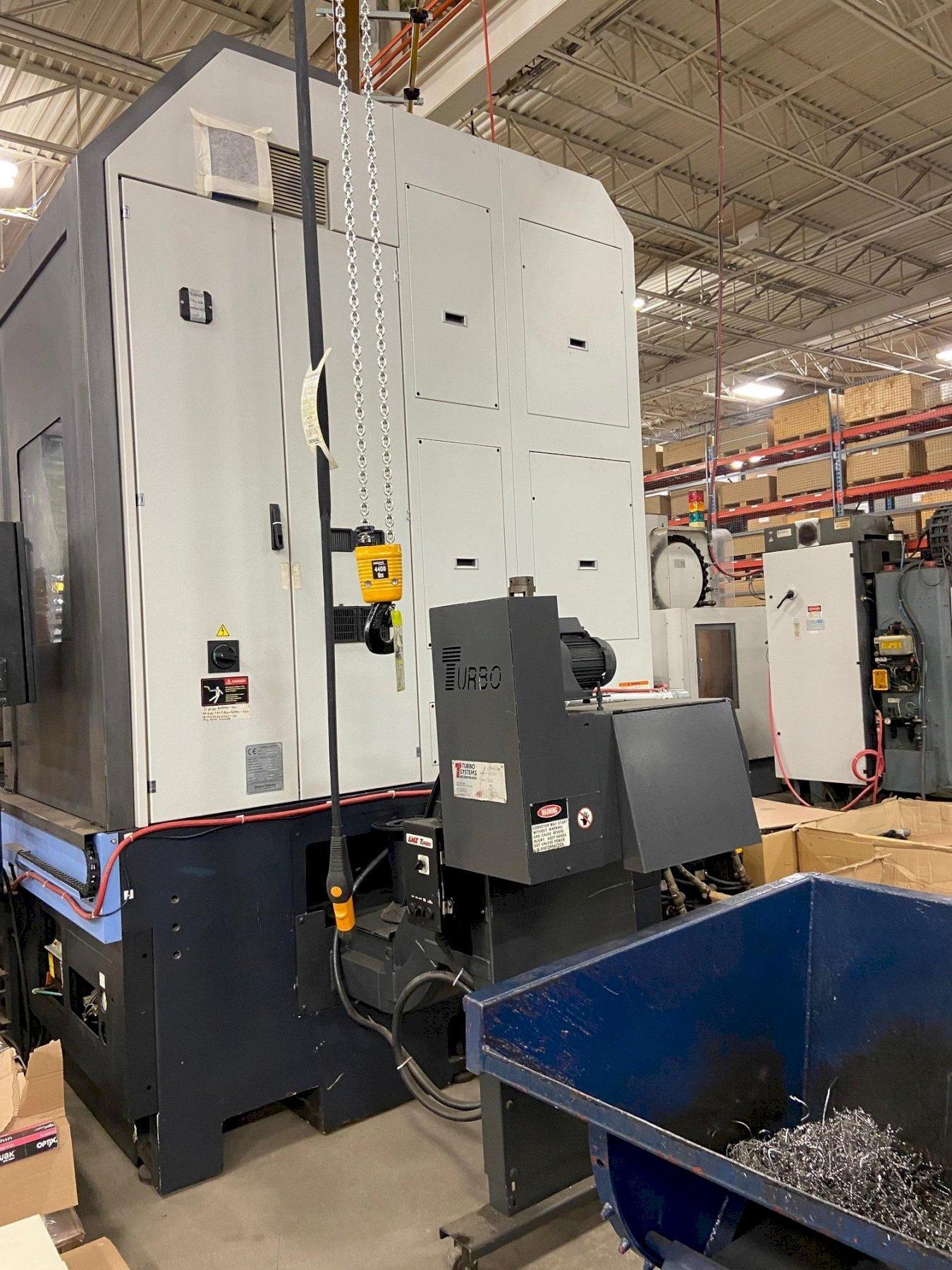

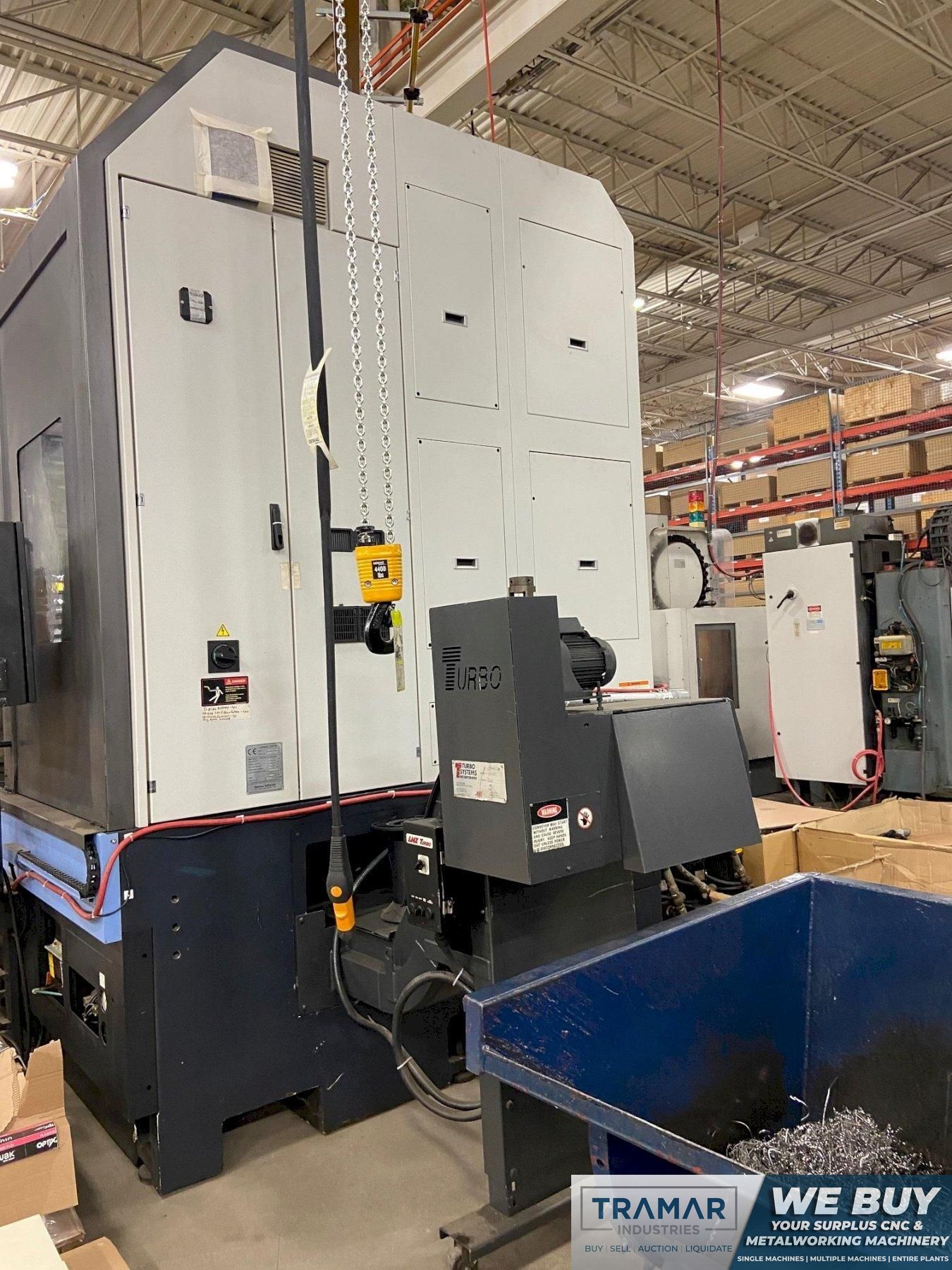

- Chip Conveyor (Turbo)
- Automatic Door
- Gearbox
- Box Way
- 145 psi Coolant Pump
- (2) Axial Live Tool Holders
- (1) Radial Live Tool Holders
- Face & Side Milling, Drilling and Tapping Capabilities

The Doosan VT1100M is an exclusive part of our Vertical Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
