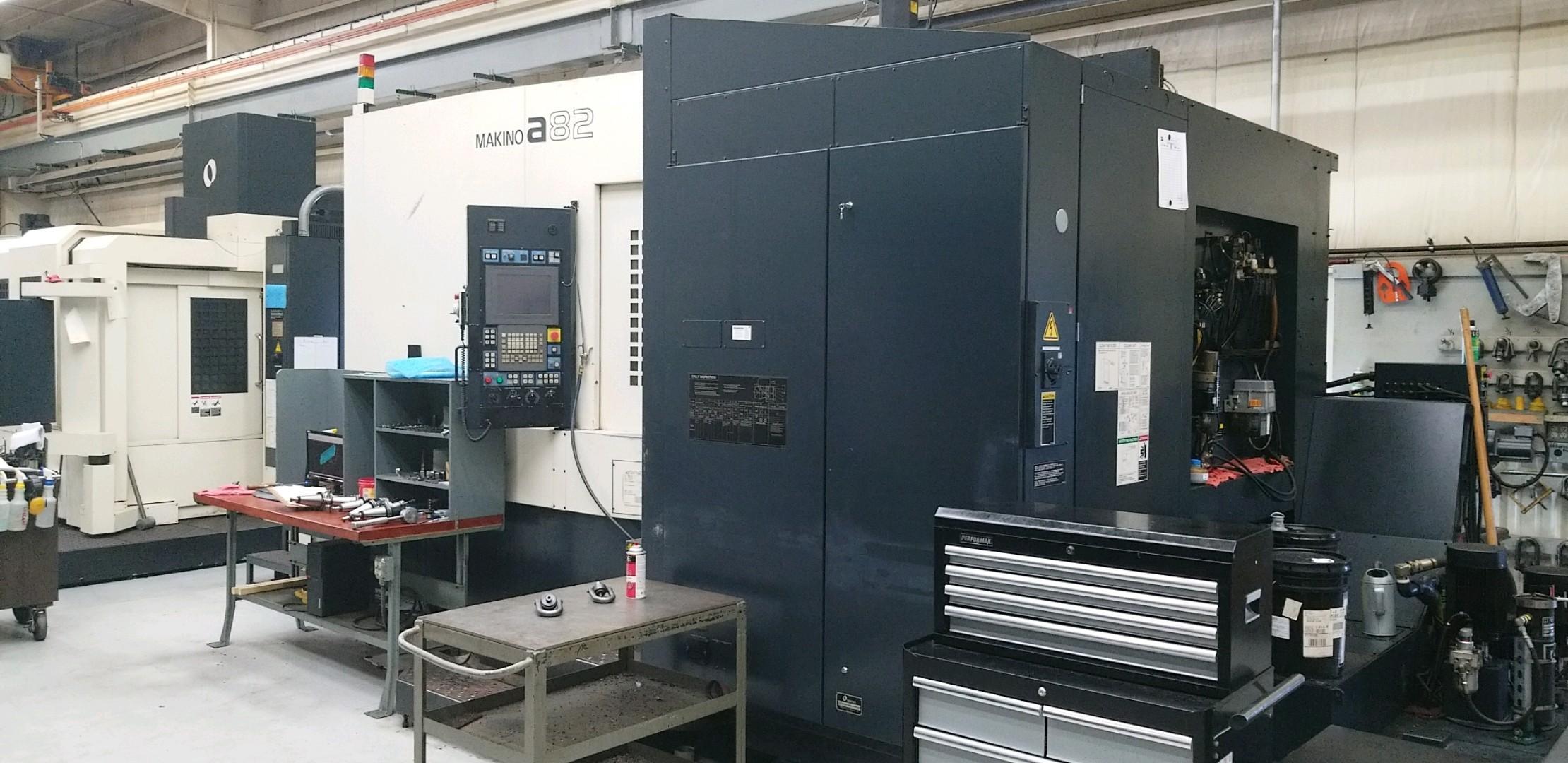

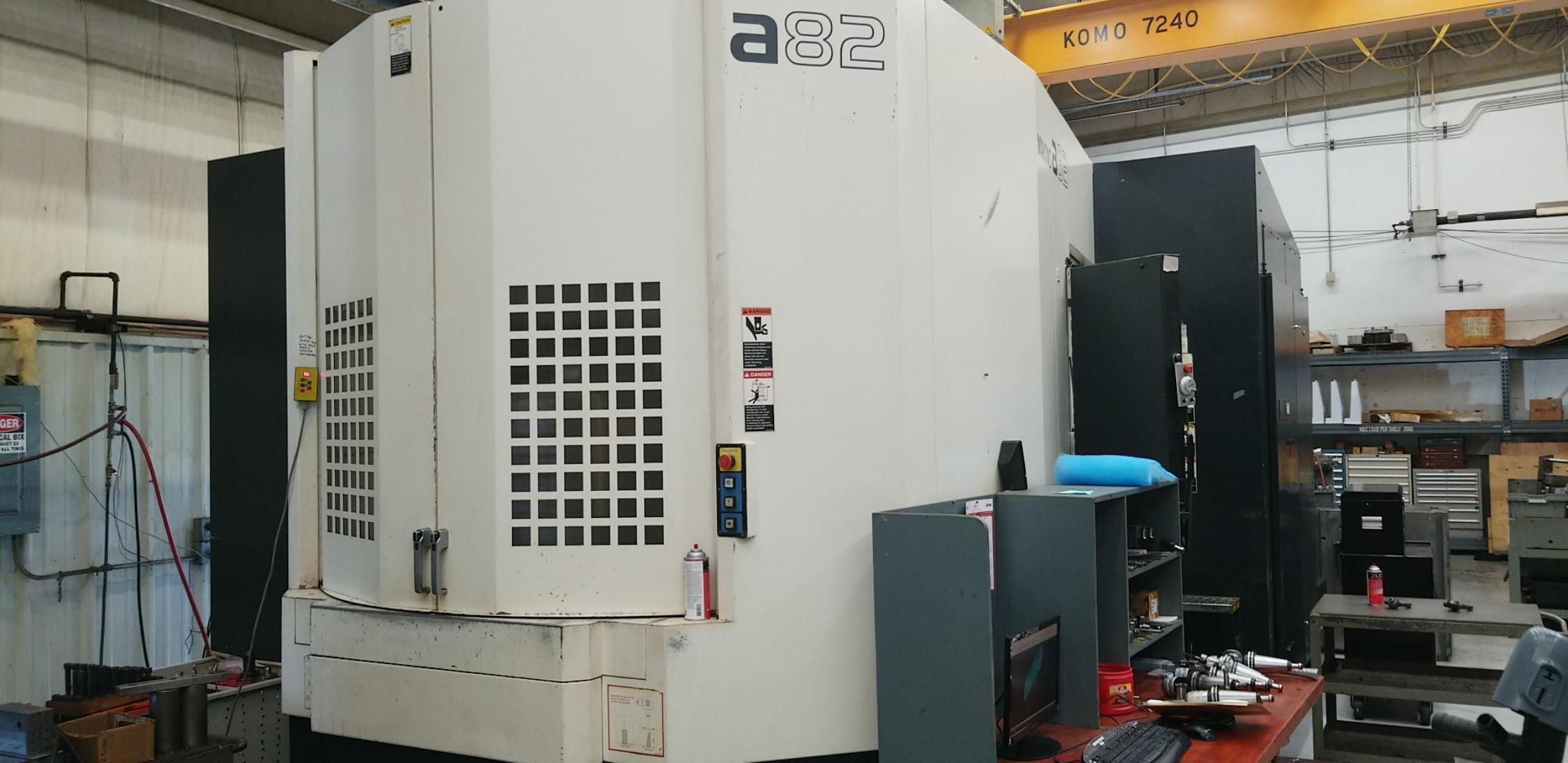

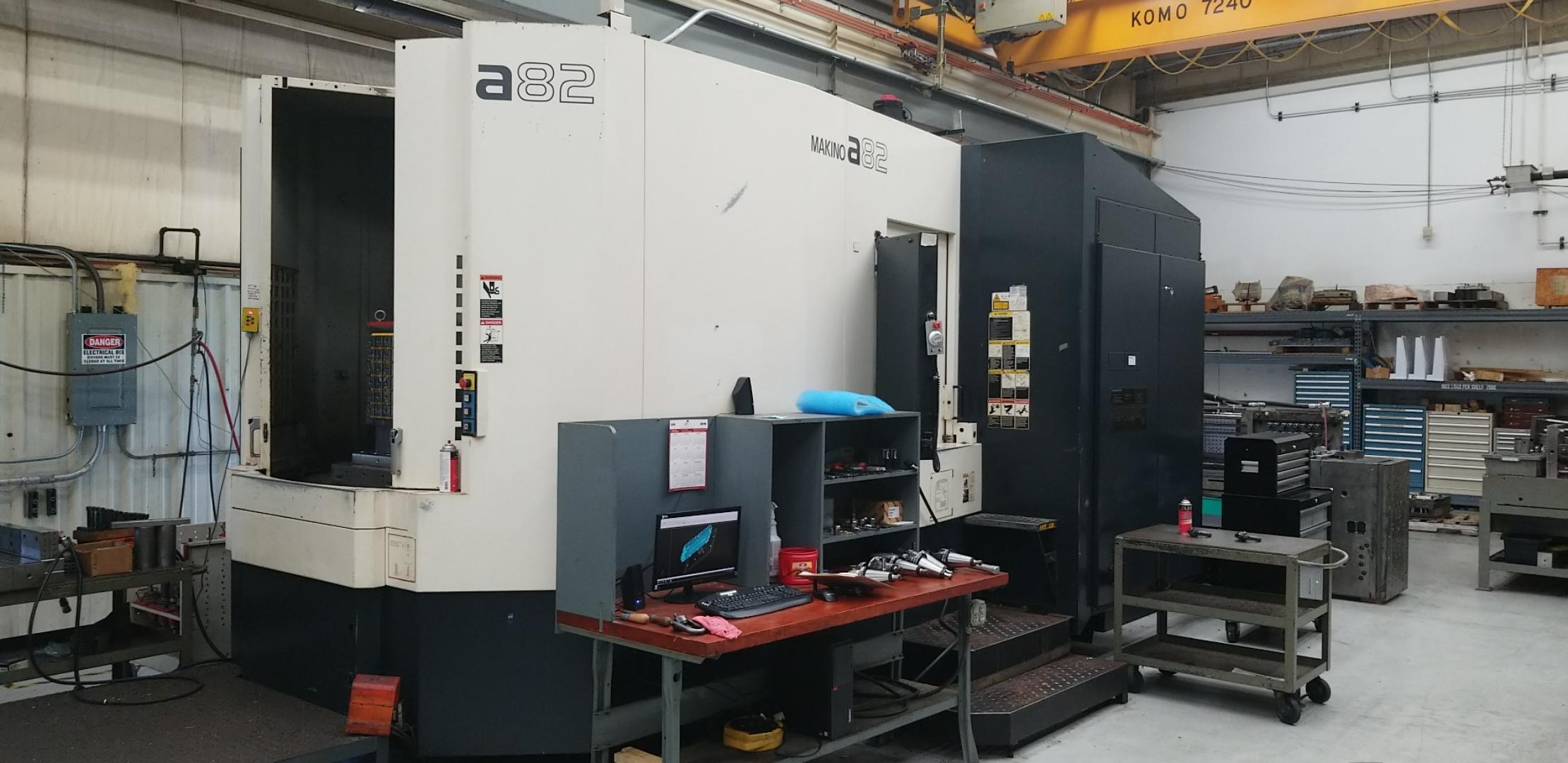

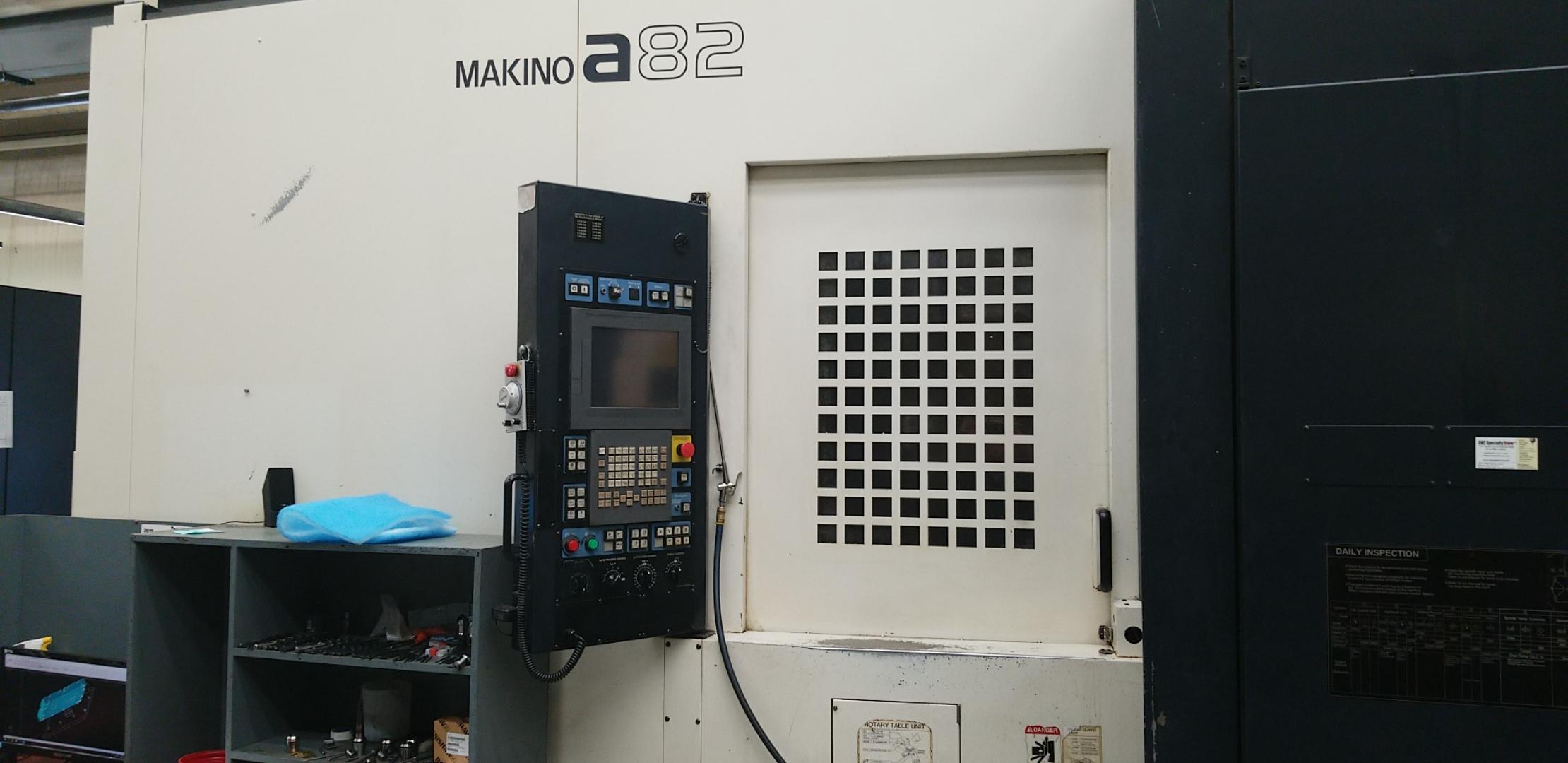

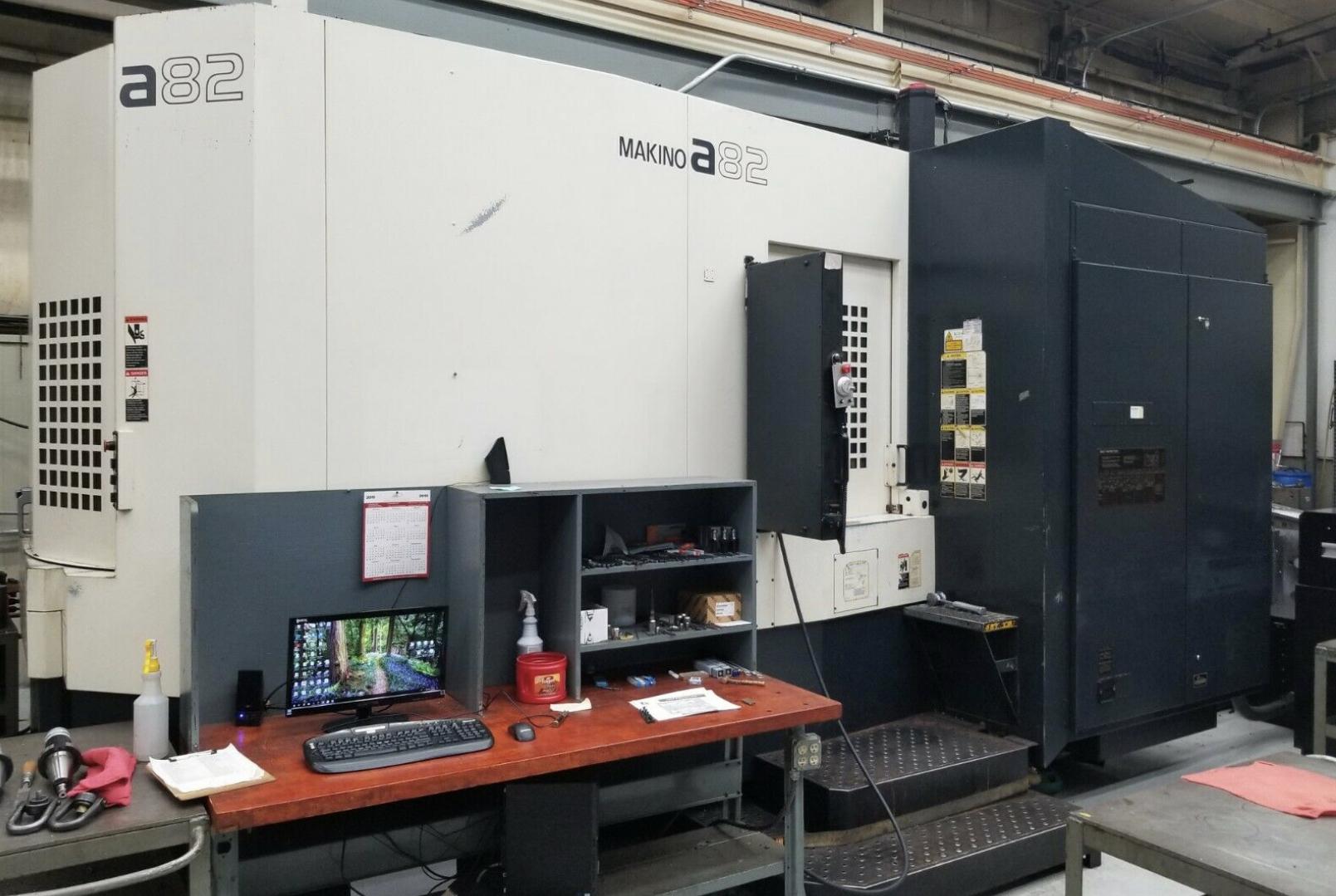

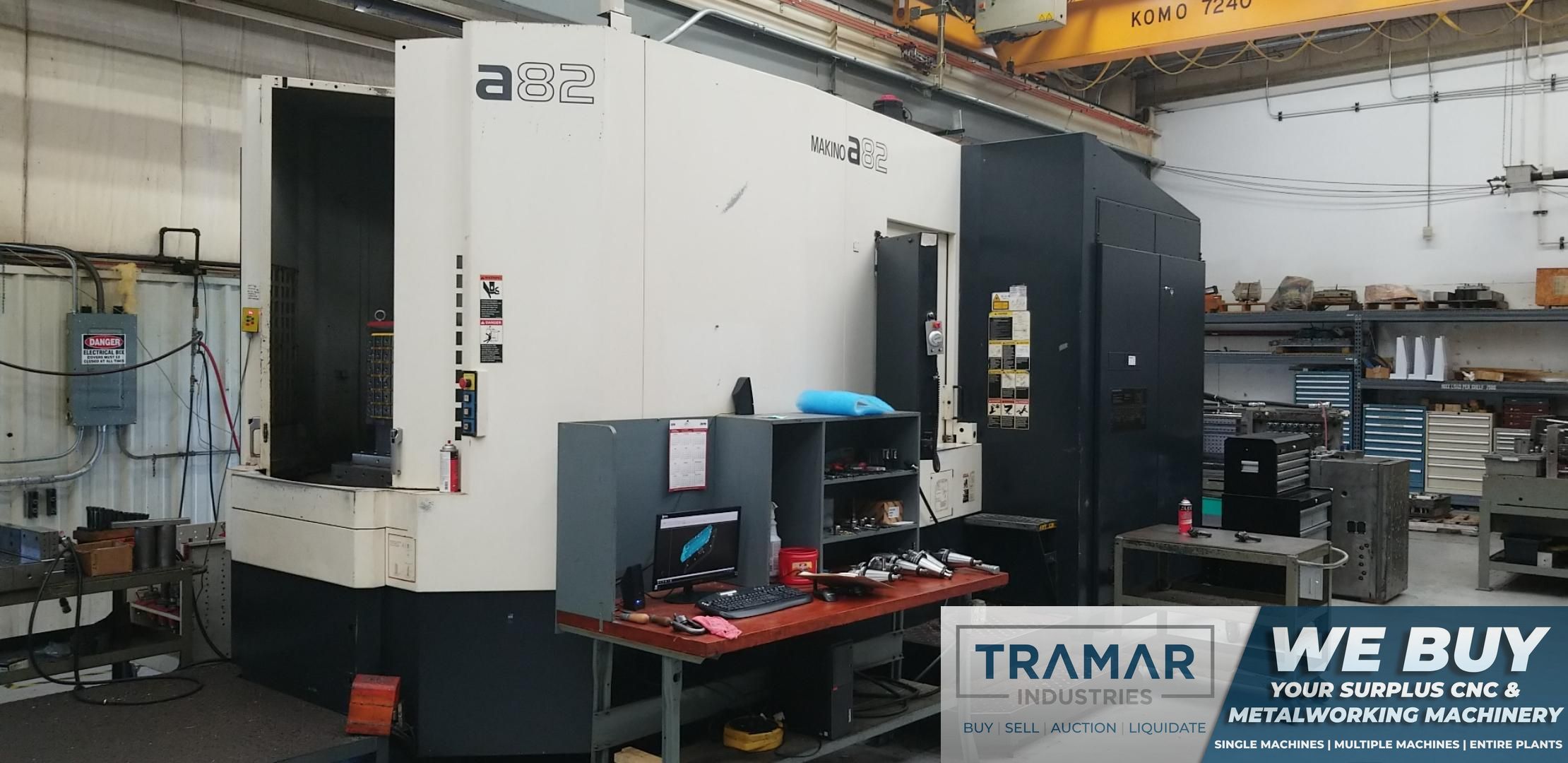

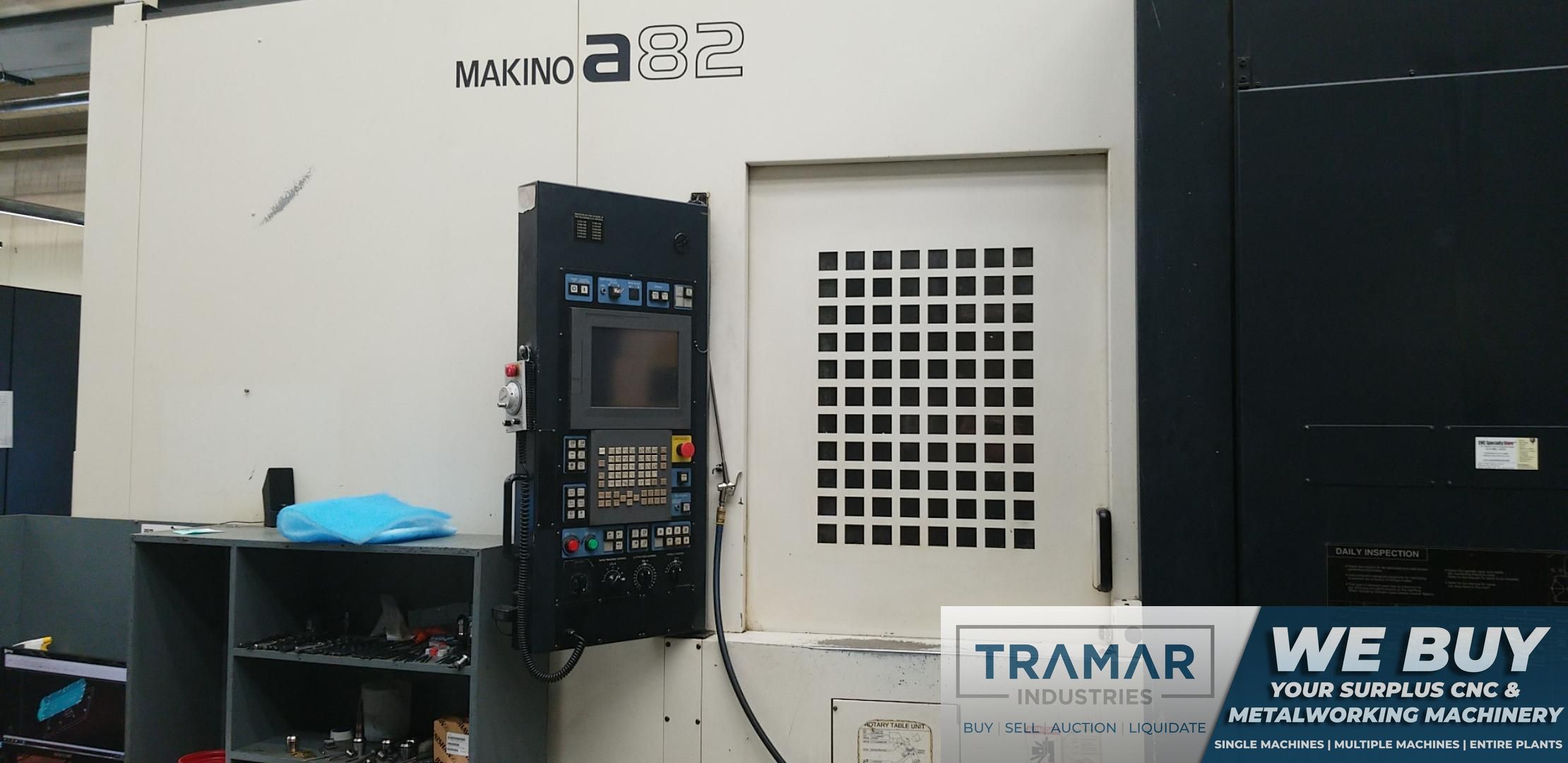

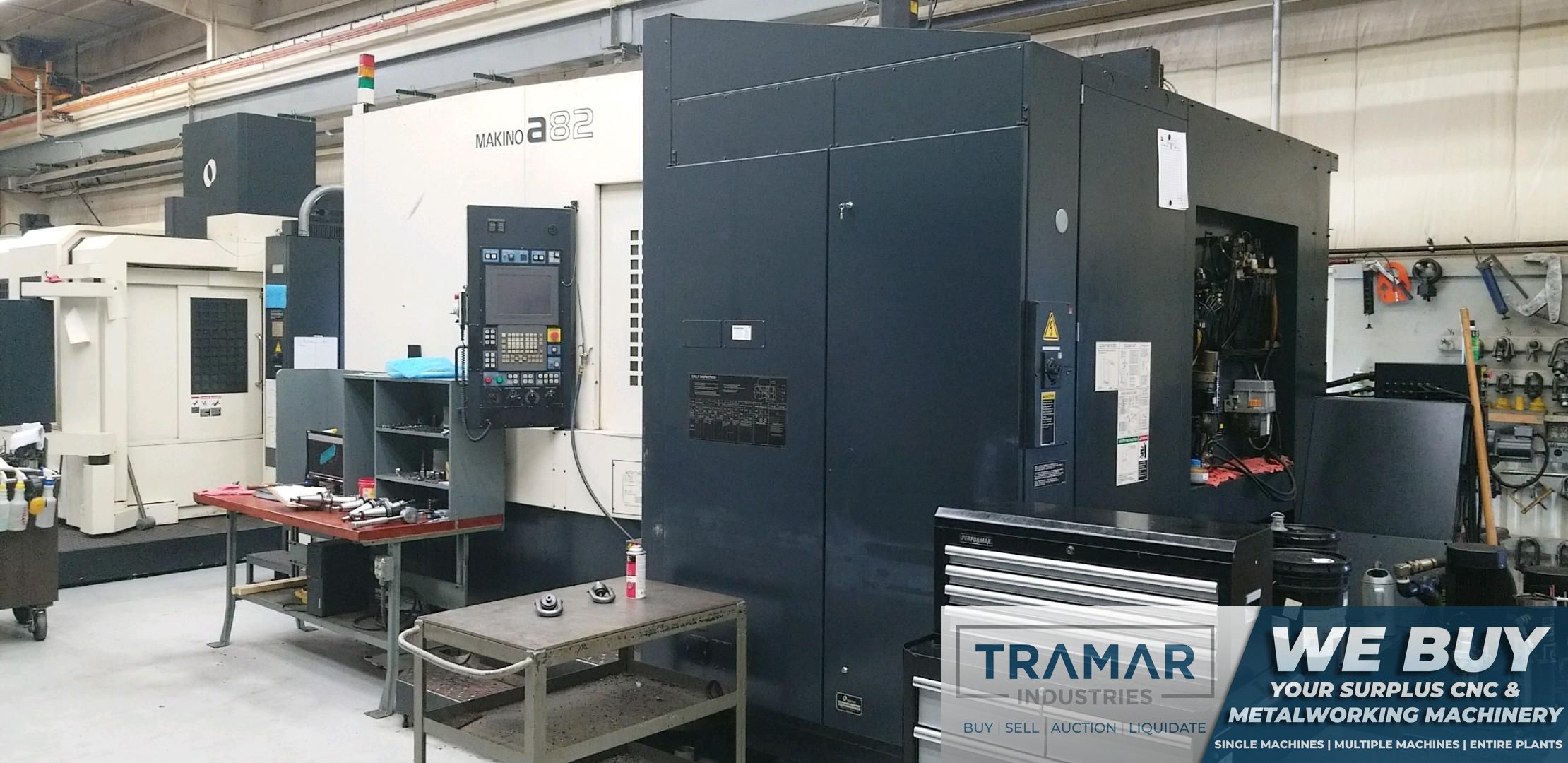

Makino A82 - Horizontal Machining Centers

Share Machine
Specifications Print Specs
Model: A82
Year: 2009
Stock #: BR12152 Sold
Highlights:
Makino Professional 5 Control
Full 4th Axis Contouring
Thru Spindle Coolant High Pressure (1,000psi)
60 Station ATC

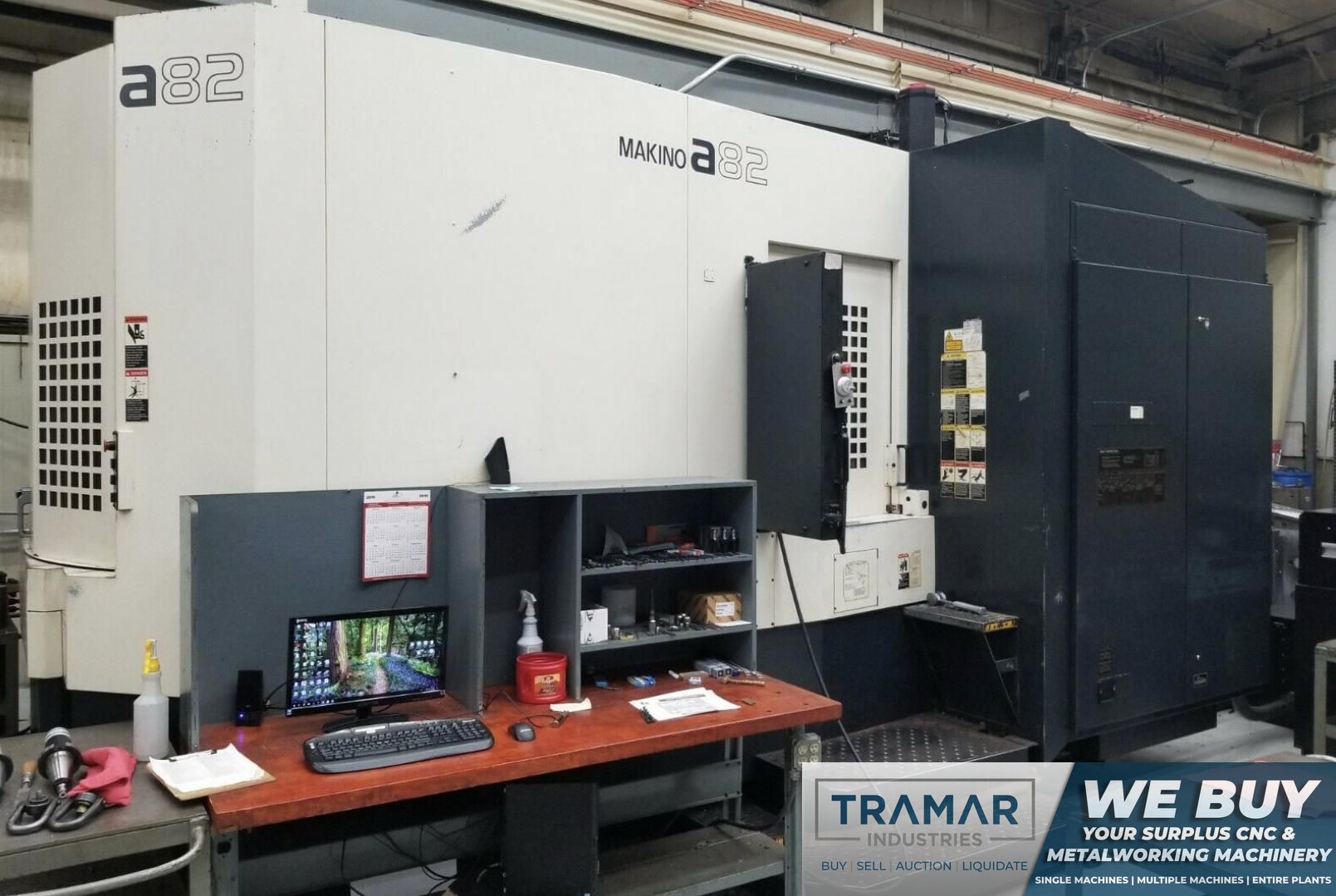

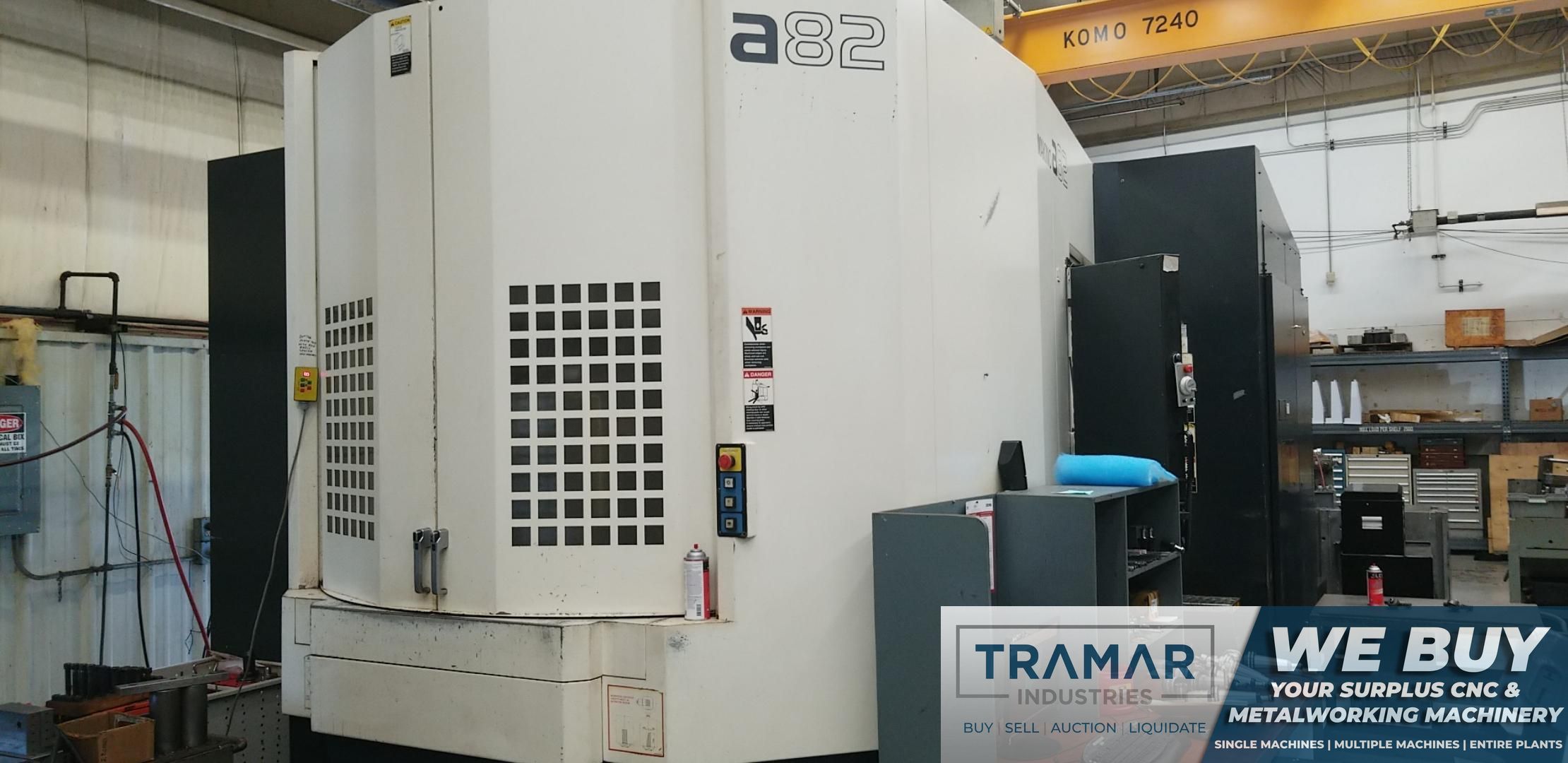

2009 Makino A82 - Horizontal Machining Center
Machine Specifications
CNC Control
yes

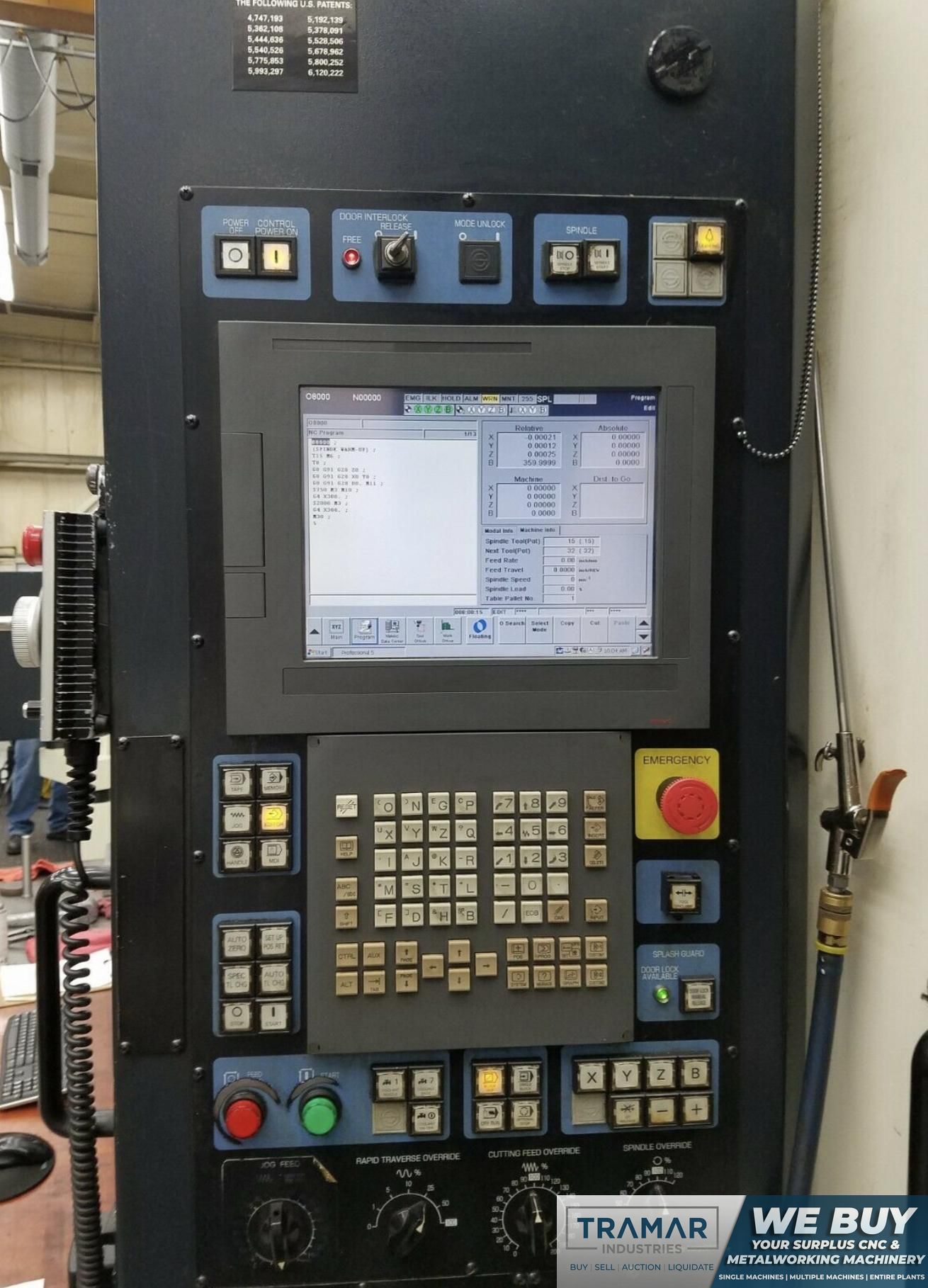

Control Type
Professional 5 (Fanuc 31iM)
# Axis
4

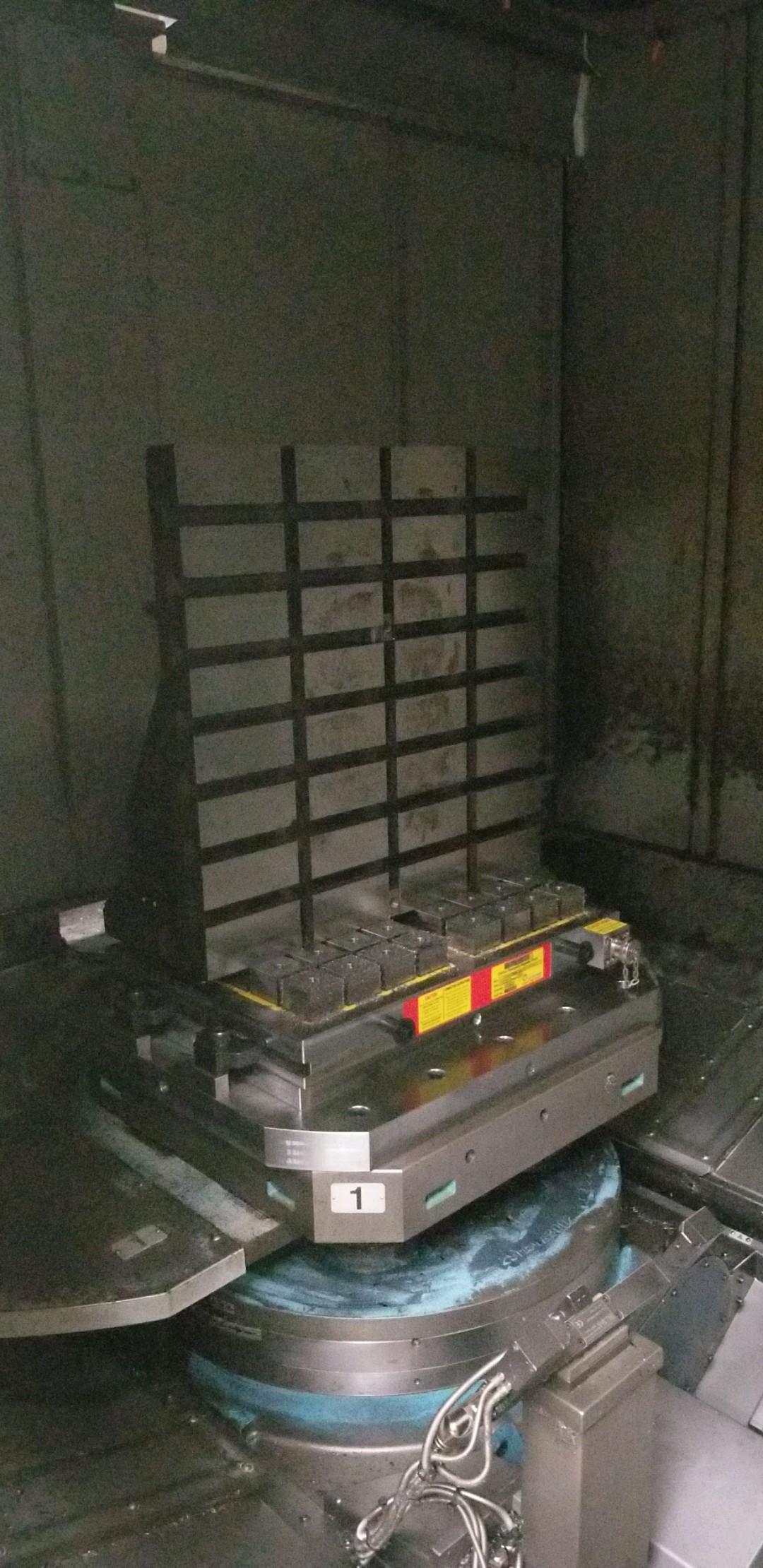

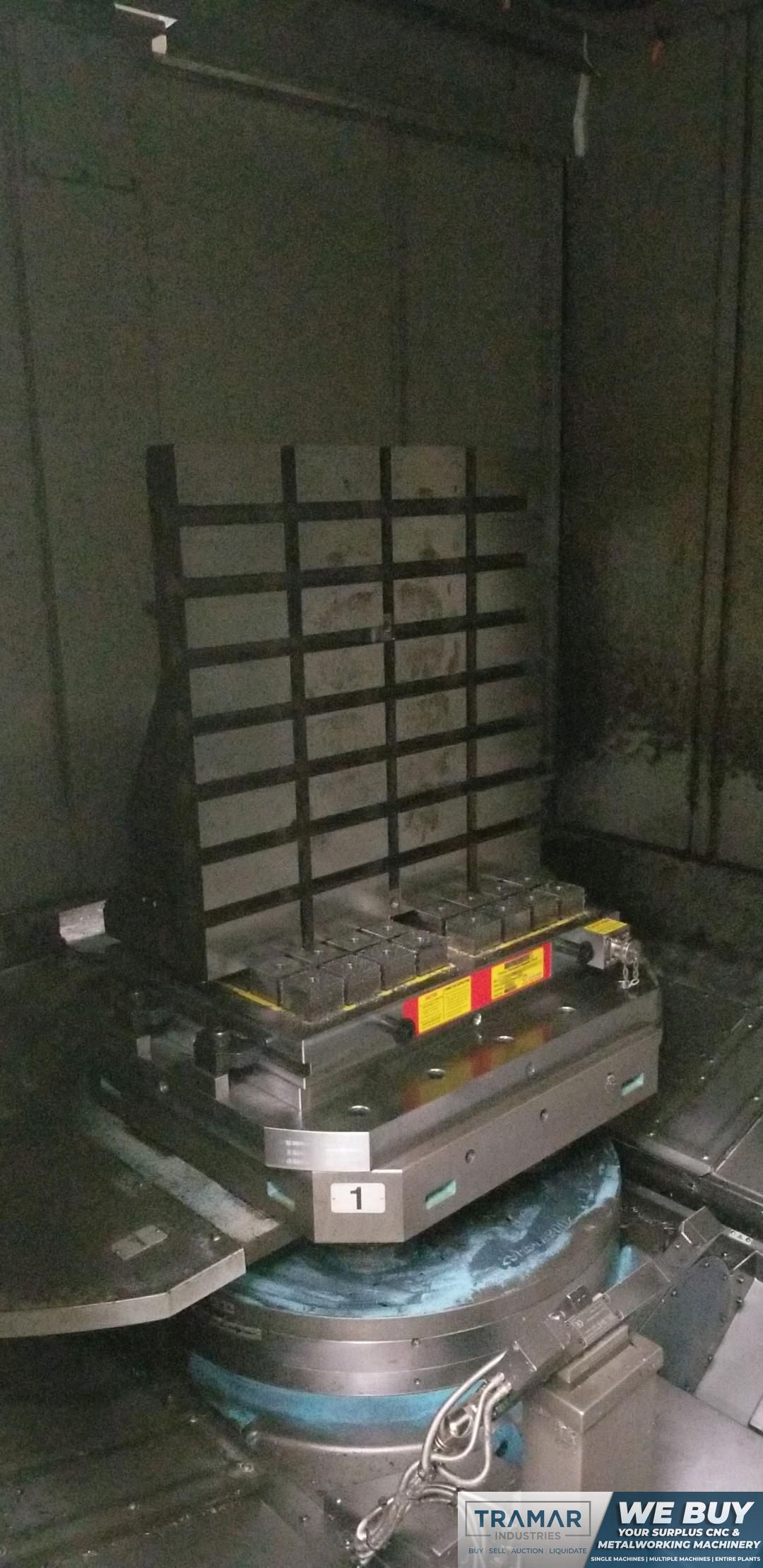

Pallet Length
24.8"
Pallet Width
24.8"
Pallet Capacity
2,640 pounds
Pallet Indexing (B-Axis)
0.001°
X-Axis Travel
43.3"
Y-Axis Travel
32.3"
Z-Axis Travel
40.1"

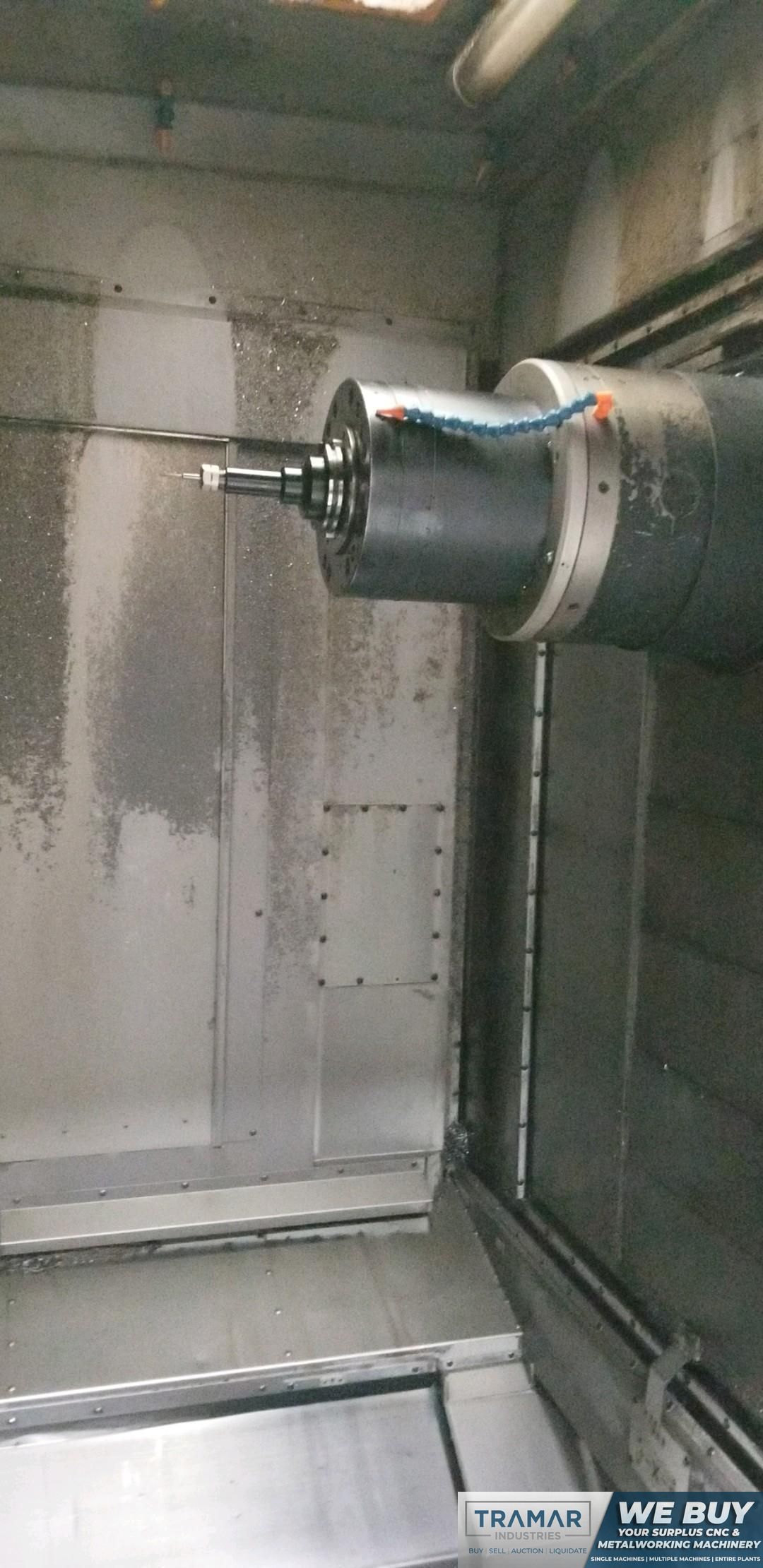

Spindle Taper
CAT 50
Spindle Speed (RPM)
10,000
Spindle Motor (HP)
40 horsepower
Tool Changer Capacity
60
Coolant Through Spindle
yes
Dimensions
210" x 127" x 146"
Weight
36,000 pounds

Equipped With:

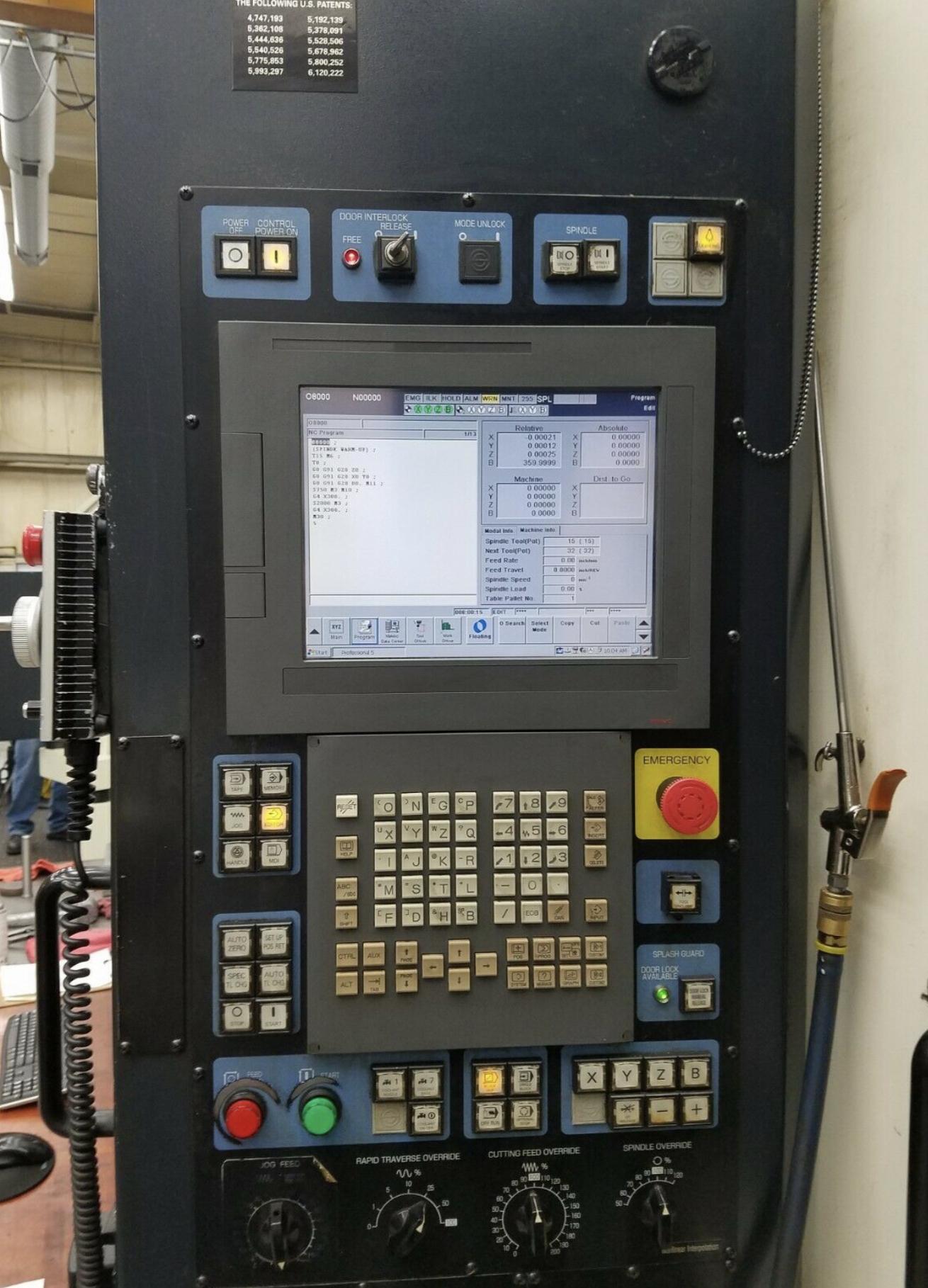

- Makino Professional 5 Control
- Full 4th Axis Contouring
- Renishaw Probing

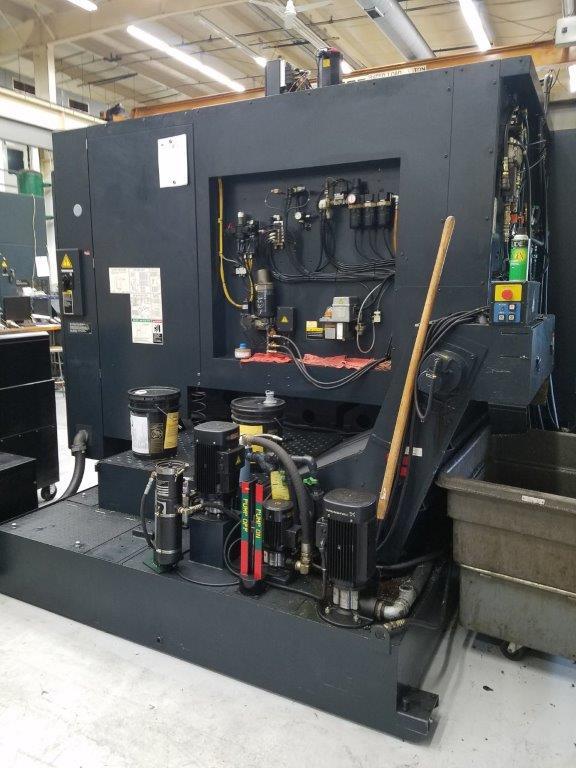

- Thru Spindle Coolant High Pressure (1000psi)

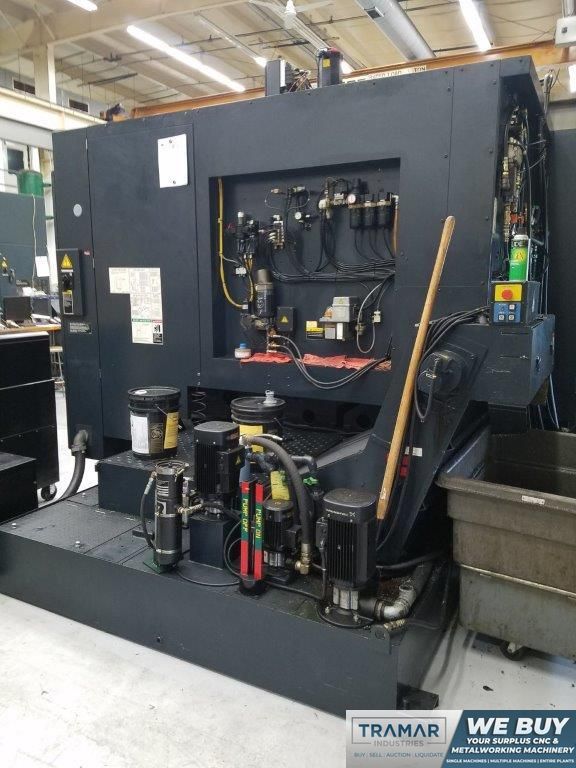

- Spindle Oil Chiller
- Chip Blaster

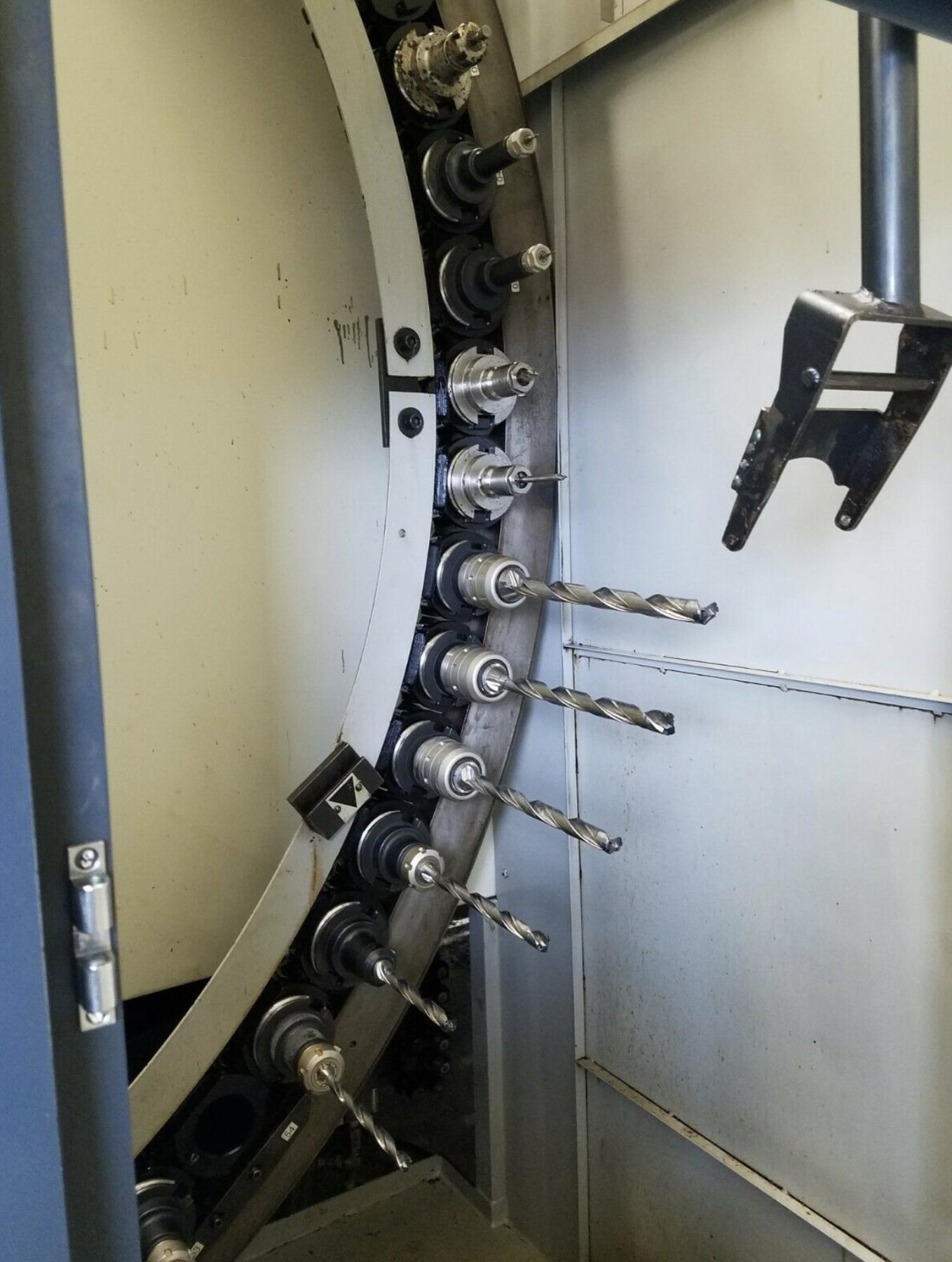

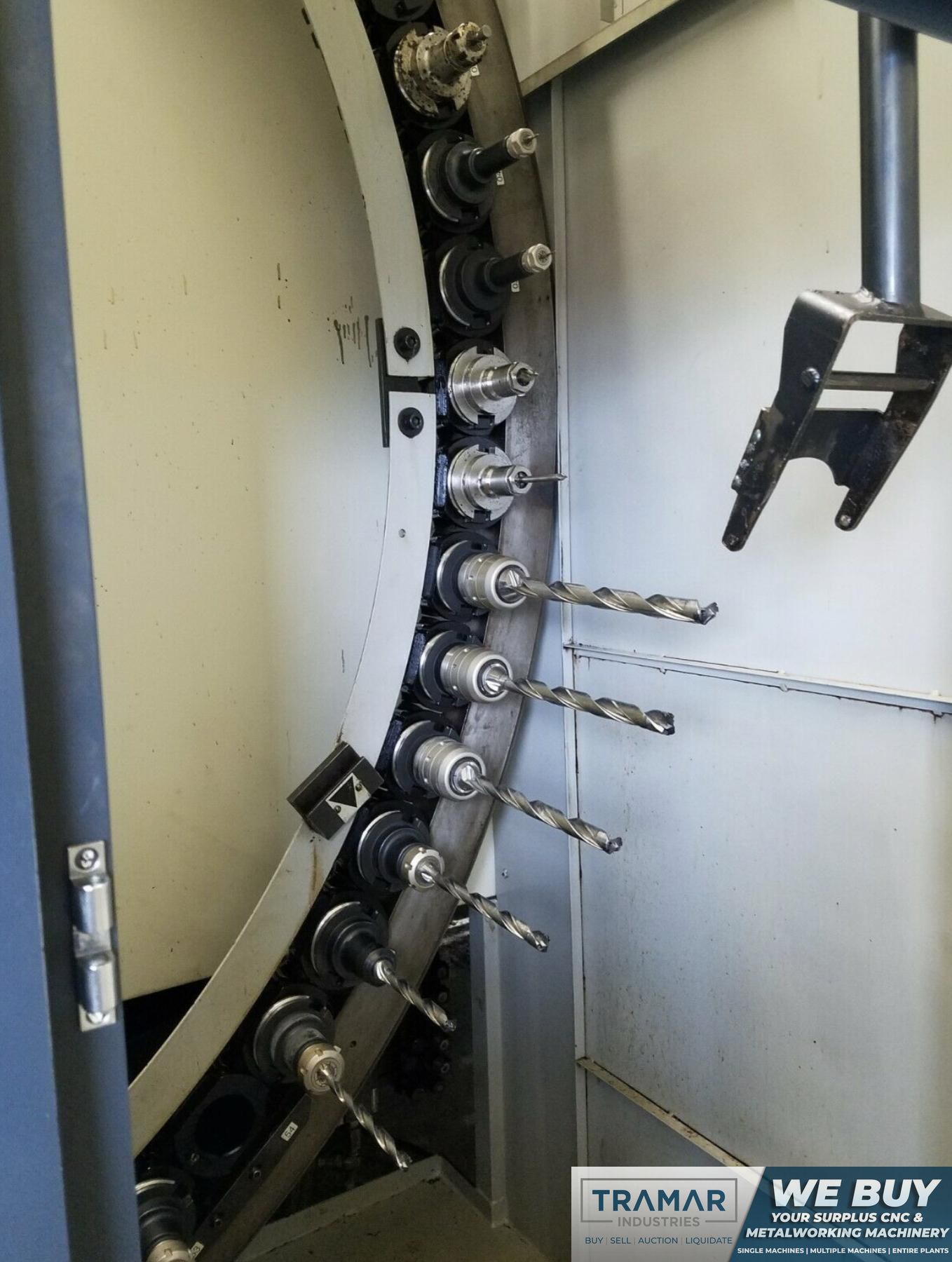

- 60 Station Automatic Tool Changer
- Chip Conveyor








The Makino A82 is an exclusive part of our Horizontal Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
