Mazak HCN 5000-II - Horizontal Machining Centers

Request Quote
Share Machine
Specifications Print Specs
Model: HCN 5000-II
Year: 2010
Stock #: 13570
Highlights:

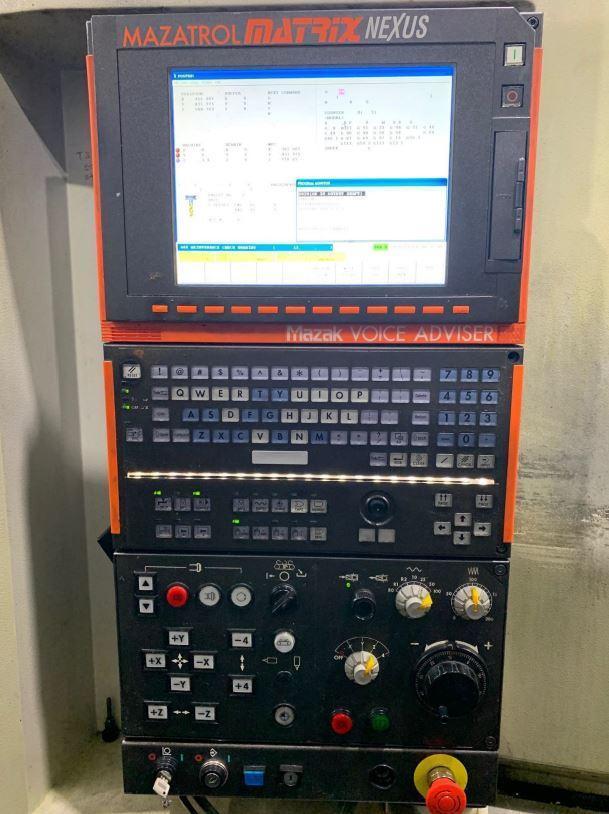

Mazatrol Matrix Nexus CNC Control
Pallet Size: 19.7" x 19.7" | Full 4th Axis
Travels: (X/Y/Z): 28.74"/28.74"/29.13"
CAT 40 | 12,000 rpm

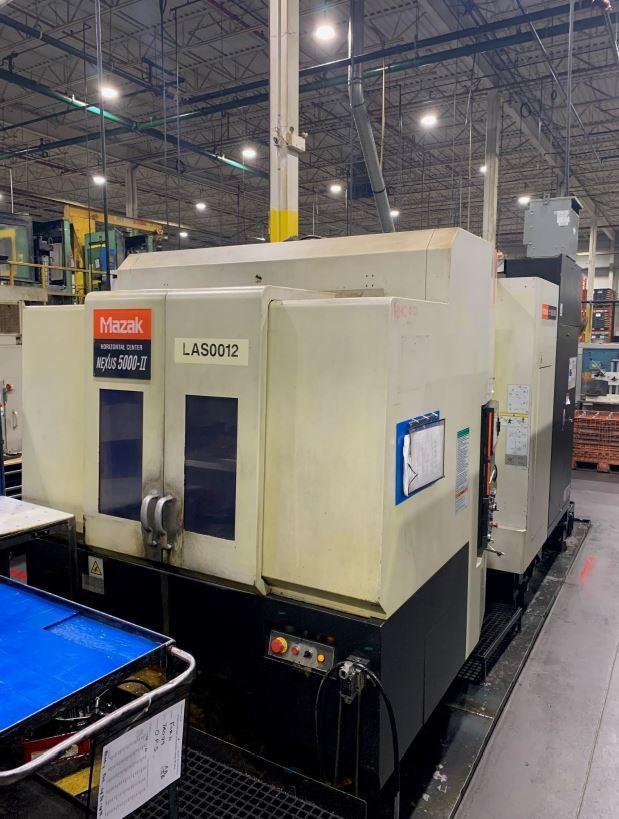

2010 Mazak HCN 5000-II Horizontal Machining Center
Machine Specifications
Year
2010
# Axis
4
Control Type
Mazatrol Matrix Nexus
Pallet Width
19.7"
Pallet Length
19.7"
Pallet Load Capacity
1,543 pounds
Pallet Indexing (B-Axis)
0.001°
X-Axis Travel
28.74"
Y-Axis Travel
28.74"
Z-Axis Travel
29.13"
Rapid Traverse Rate (X/Y/Z)
2,362 ipm
Spindle Taper
CAT 40
Spindle Speed (RPM)
12,000 RPM
Spindle Motor (HP)
40 horsepower
Tool Changer Capacity
43
Coolant Through Spindle
yes
Weight
25,000 pounds

Equipped With:

- Mazatrol Matrix Nexus CNC Control
- Chip Conveyor
- Coolant Tank & Pumps
- Coolant Thru Spindle


The Mazak HCN 5000-II is an exclusive part of our Horizontal Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
