Okuma Multus B400W - Lathes (3-Axis or More)

Request Quote
Share Machine
Specifications Print Specs
Model: Multus B400W
Year: 2010
Stock #: 13535
Highlights:

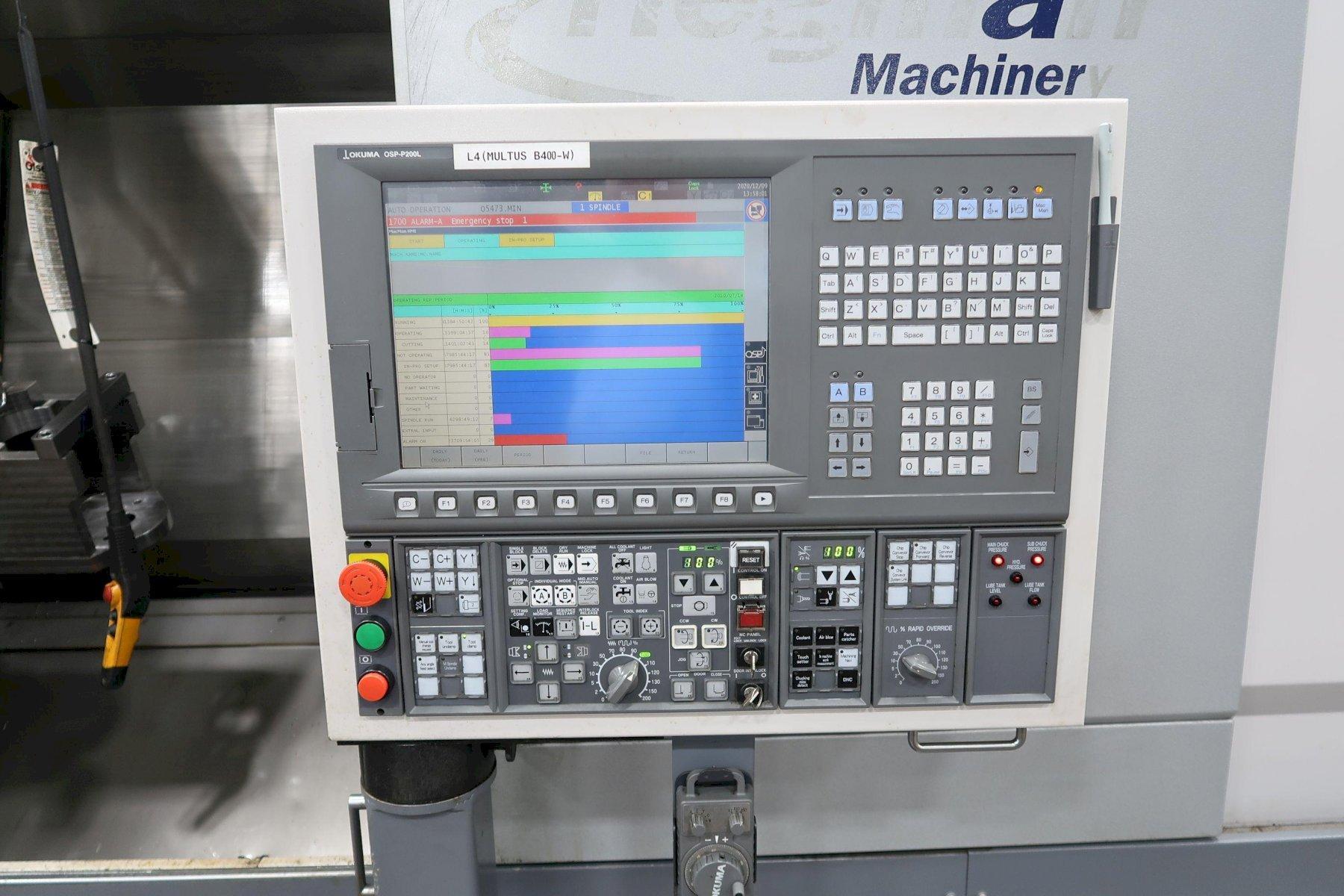

Okuma OSP-P200L Control
Tool Presetter
Live Tooling
Milling Spindle
Y Axis | Renishaw Probing

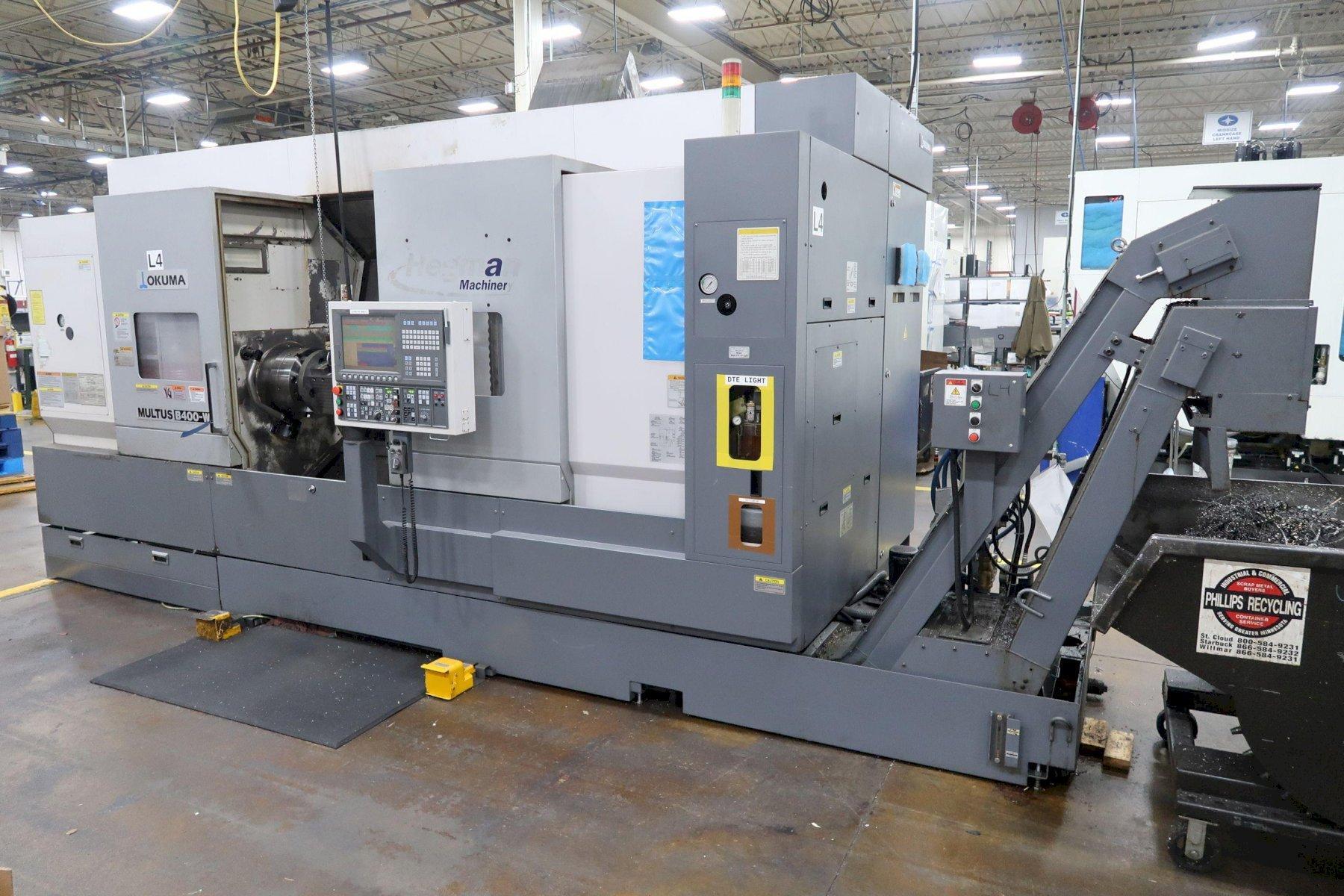

2010 Okuma Multus B400W - CNC Horizontal Lathe
Machine Specifications
Year
2010
Control Type
OSP-P200L
# Axis
6
Swing
27.95"
Turning Diameter
27.95"
Center Distance
59.06"
Chuck Size
15"
Bar Capacity
4.33"
X Axis Travel
27.17"
Y Axis Travel
9.06"
Z Axis Travel
60.83"
W Axis Travel
61.06"
B Axis Head Tilt
-30° to 195°
C Axis Index
0.001°
Rapid Traverse (X/Z/)
1,575 ipm
Rapid Traverse Y-Axis
1,024 ipm
Spindle Nose
A2-11
Spindle Speed
2,800 rpm
Main Motor
40 hp
Live Tooling
yes
Live Tooling Spindle Taper
CAPTO C6
Live Tooling Speed
10,000 RPM
Live Tooling Motor
27 hp
Tailstock
no
Y Axis
yes
Sub Spindle
yes
Coolant Thru Spindle
yes
ATC Capacity
80
Dimensions
227" x 107" x 118"
Weight
31,250 pounds

Equipped With:

- Okuma OSP-P200L Control
- Tool Presetter

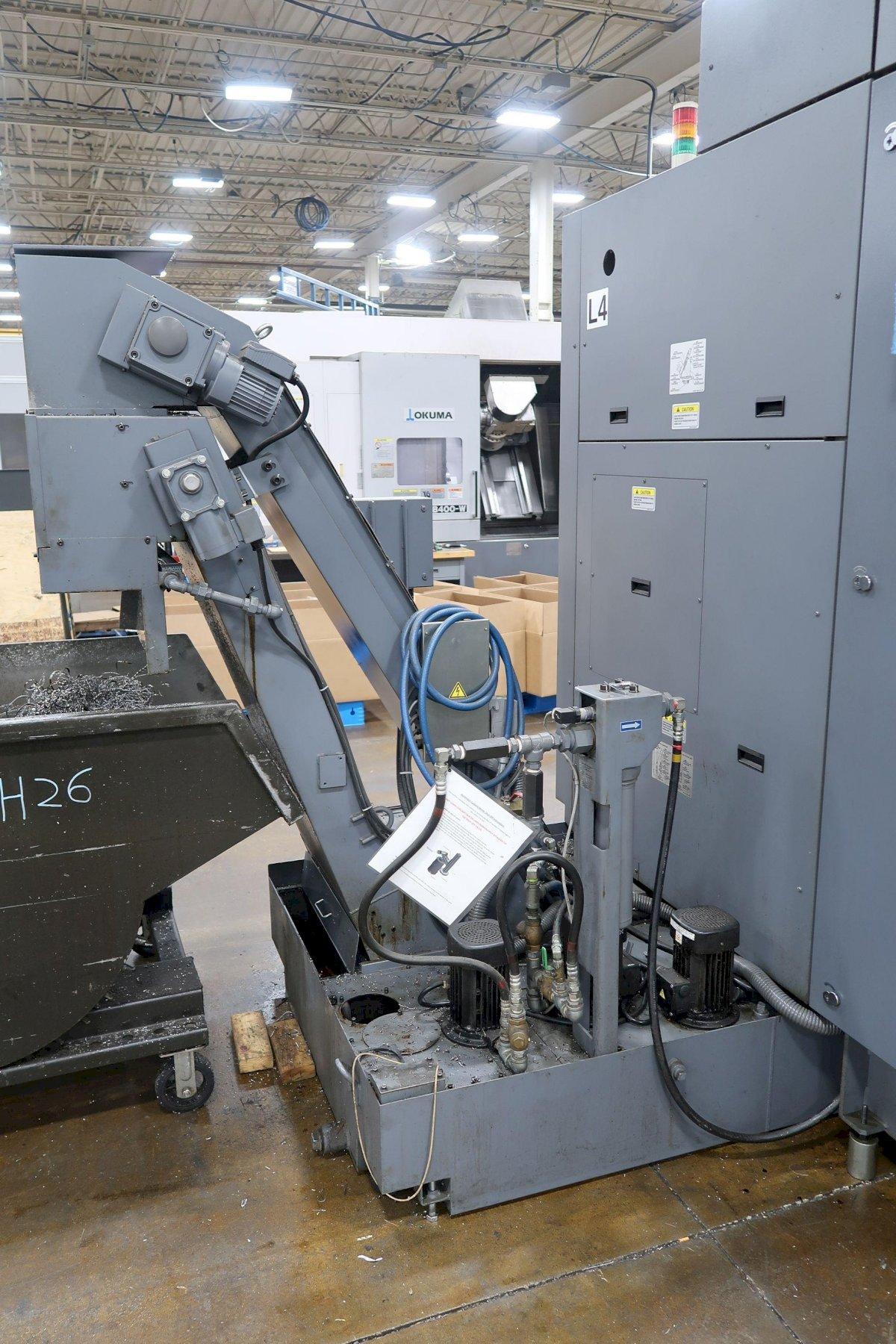

- Chip Conveyor
- Coolant Tank & Pumps
- CAPTO C6 Milling Spindle
- Coolant Thru Spindle

- B Axis 0.001°
- Renishaw Probing
- Misc. Tooling Available

The Okuma Multus B400W is an exclusive part of our Lathes (3-Axis or More) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
