Makino A61NX - Horizontal Machining Centers

Share Machine
Specifications Print Specs
Model: A61NX
Year: 2011
Stock #: 3789 Sold
Yes
Highlights:

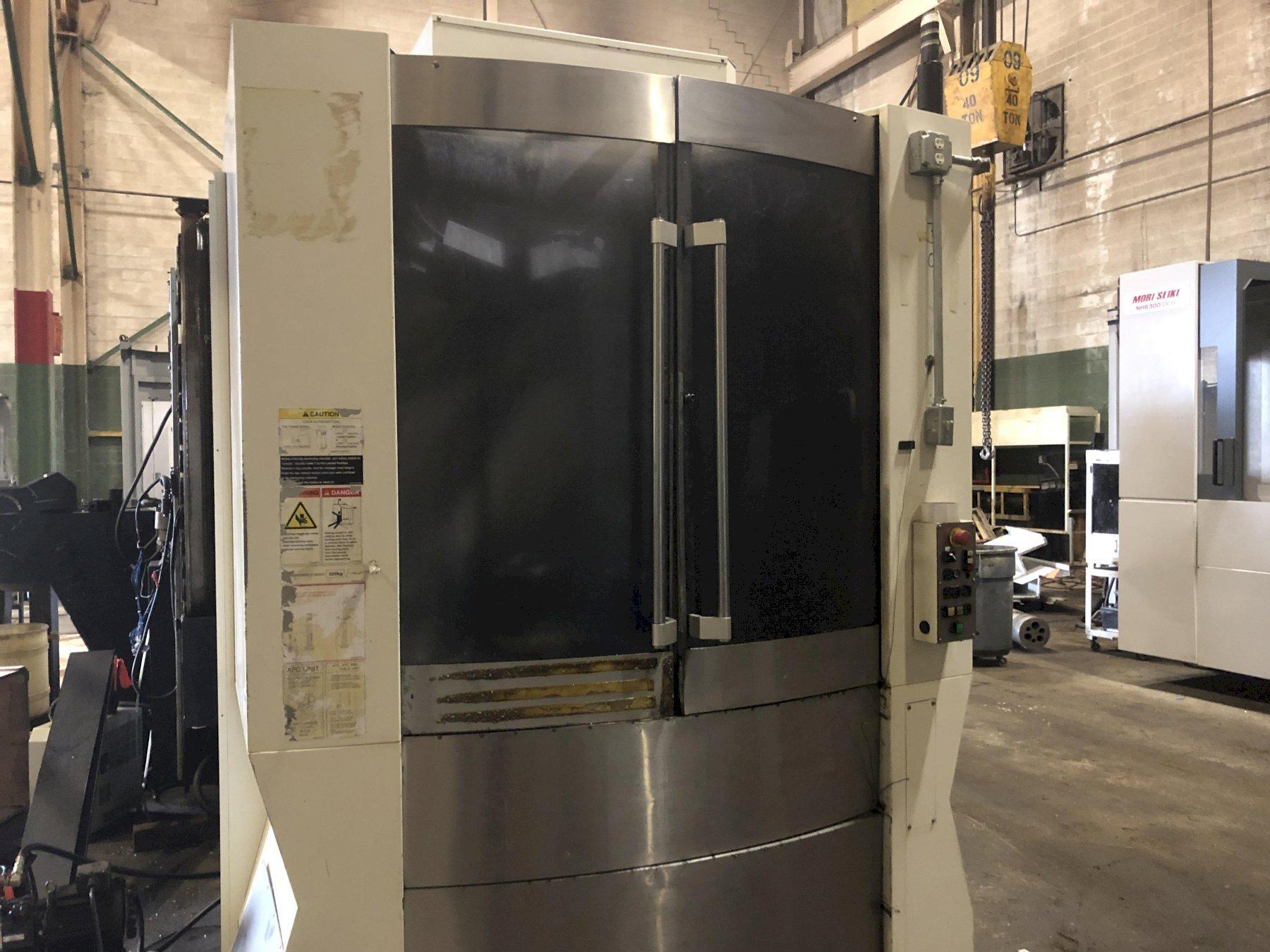

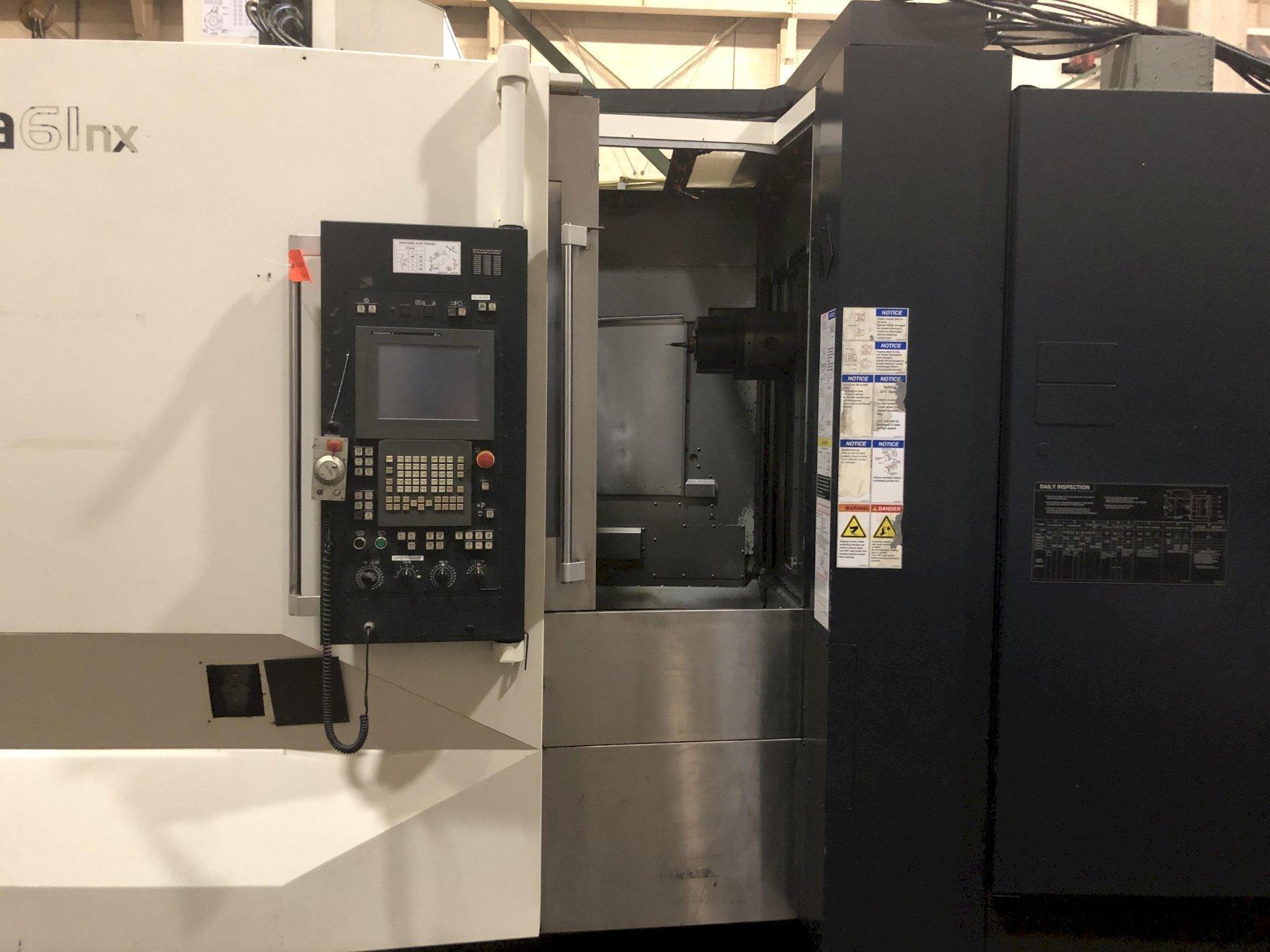

2011 Makino a61nx CNC Horizontal Machining Center
Machine Specifications
CNC Control
yes
Control Type
Professional 5
# Axis
4
Pallet Length
19.7
Pallet Width
19.7
Pallet Load Capacity
1,100
Pallet Indexing (B-Axis)
0.001 deg - Full 4th Axis
X-Axis Travel
28.7
Y-Axis Travel
25.6
Z-Axis Travel
31.5
Rapid Traverse Rate (X/Y/Z)
1,968 ipm
Spindle Taper
HSK-63
Spindle Speed
14,000 rpm
Spindle Motor (HP)
30 hp

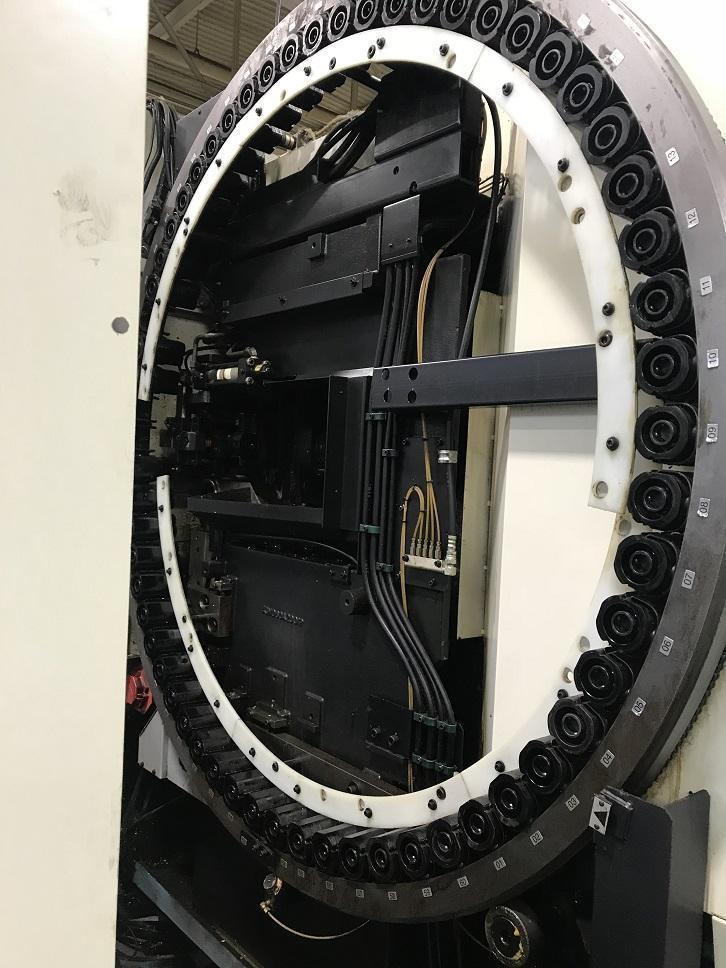

Tool Changer Capacity
60
Coolant Through Spindle
yes
Machine Weight
26,900

Equipped With:

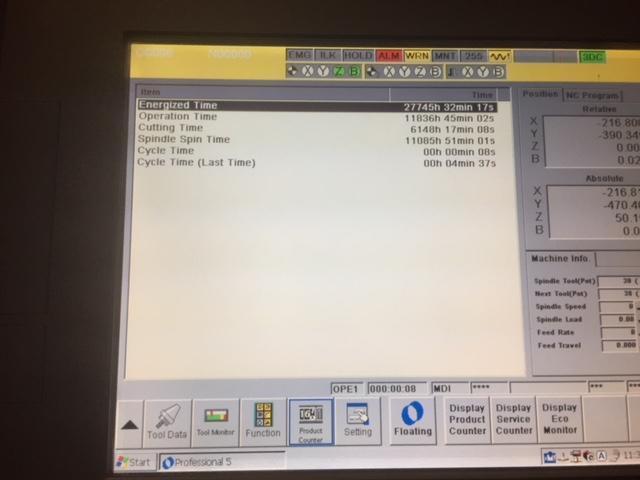

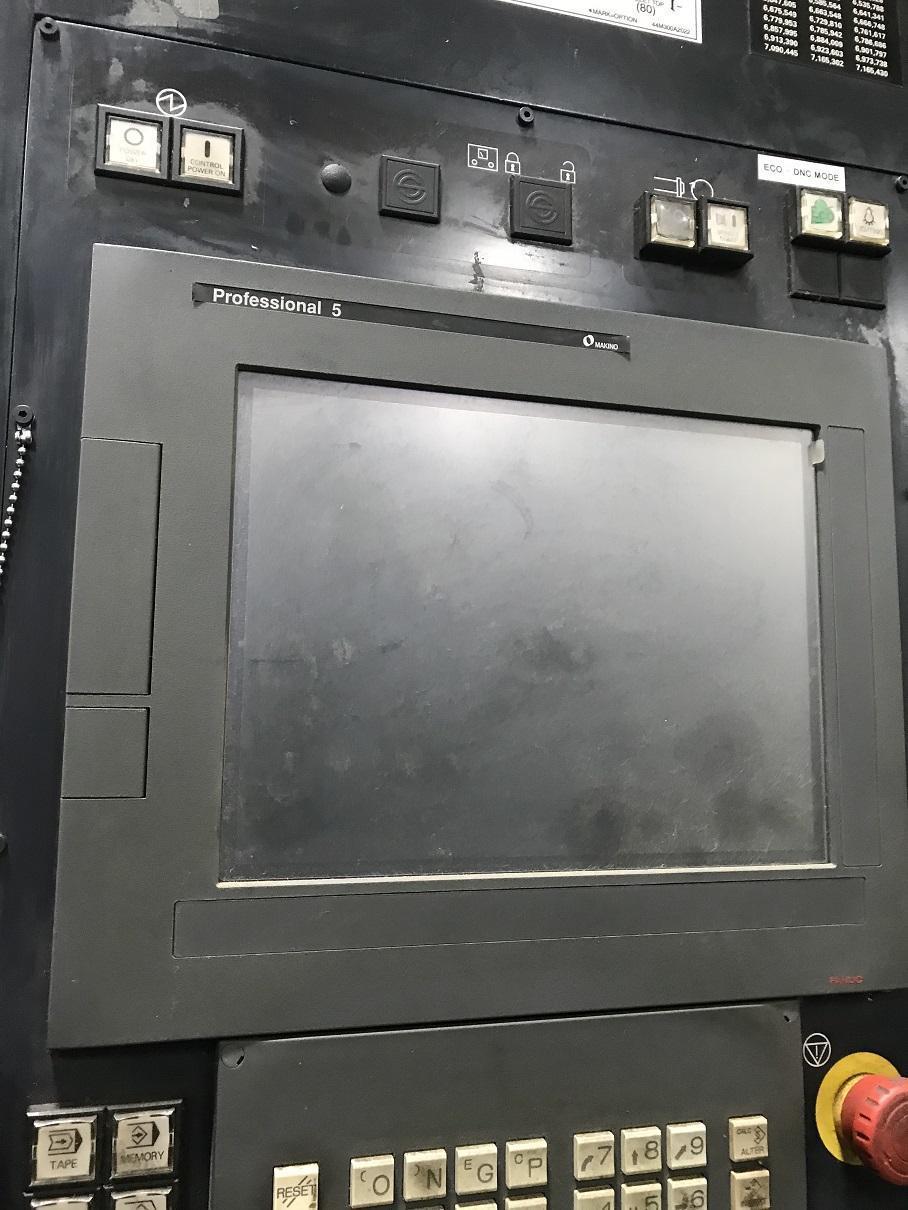

- Professional 5 Control (Fanuc)
- Hydraulic Clamping
- Data Center (1GB)
- Helical Interpolation
- Chip Coneyor
- Coolant Thru Spindle
- Full 4th Axis
- Coolant Tank & Pump
- Approx. 45 Tool Holders
- 1,050 Registered Programs

The Makino A61NX is an exclusive part of our Horizontal Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
