Milltronics ML22 - Horizontal Lathes

Share Machine
Specifications Print Specs
Model: ML22
Year: 2011
Stock #: 13147 Sold
Highlights:
Milltronics 7,200-B series CNC Control

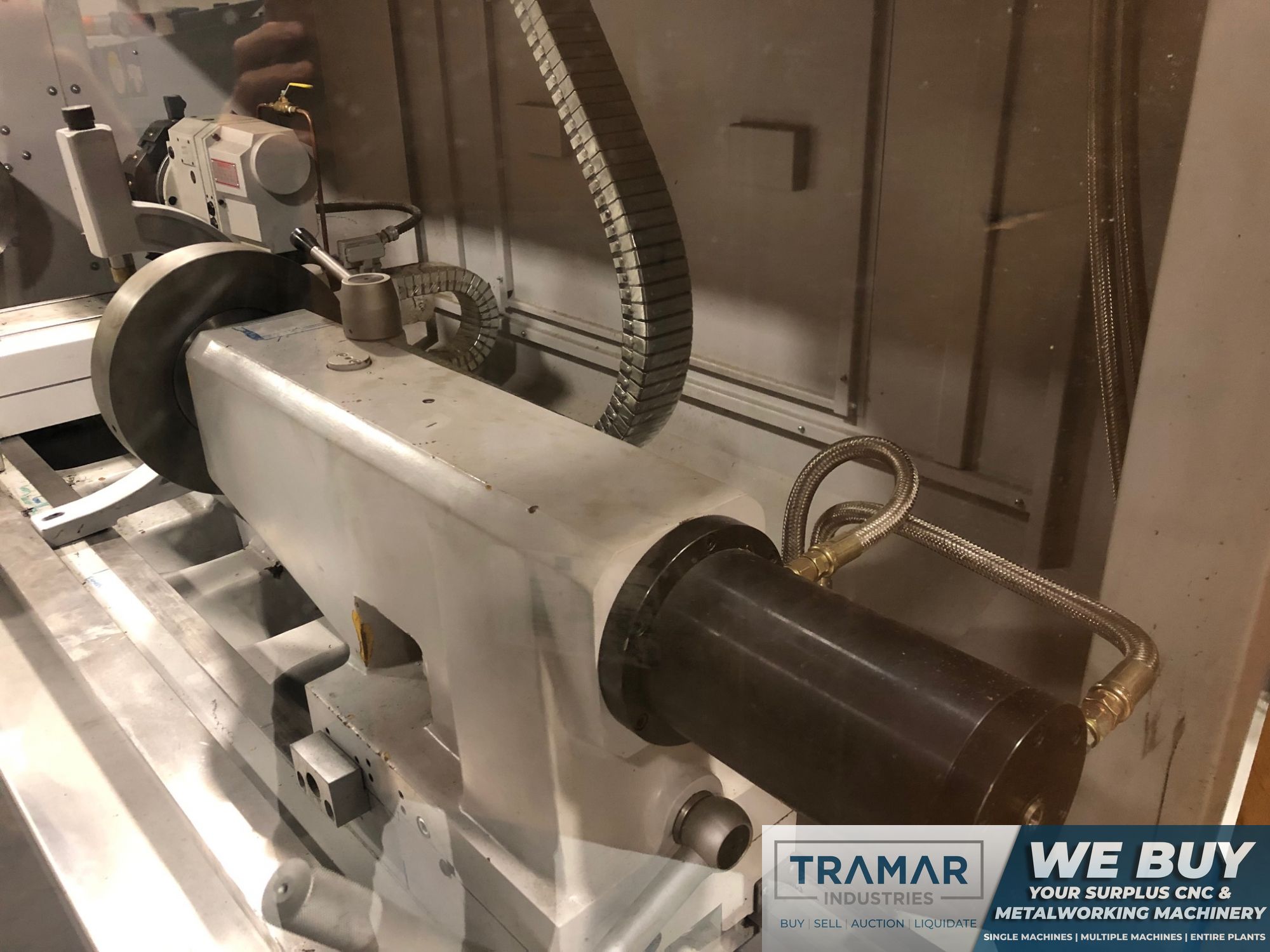

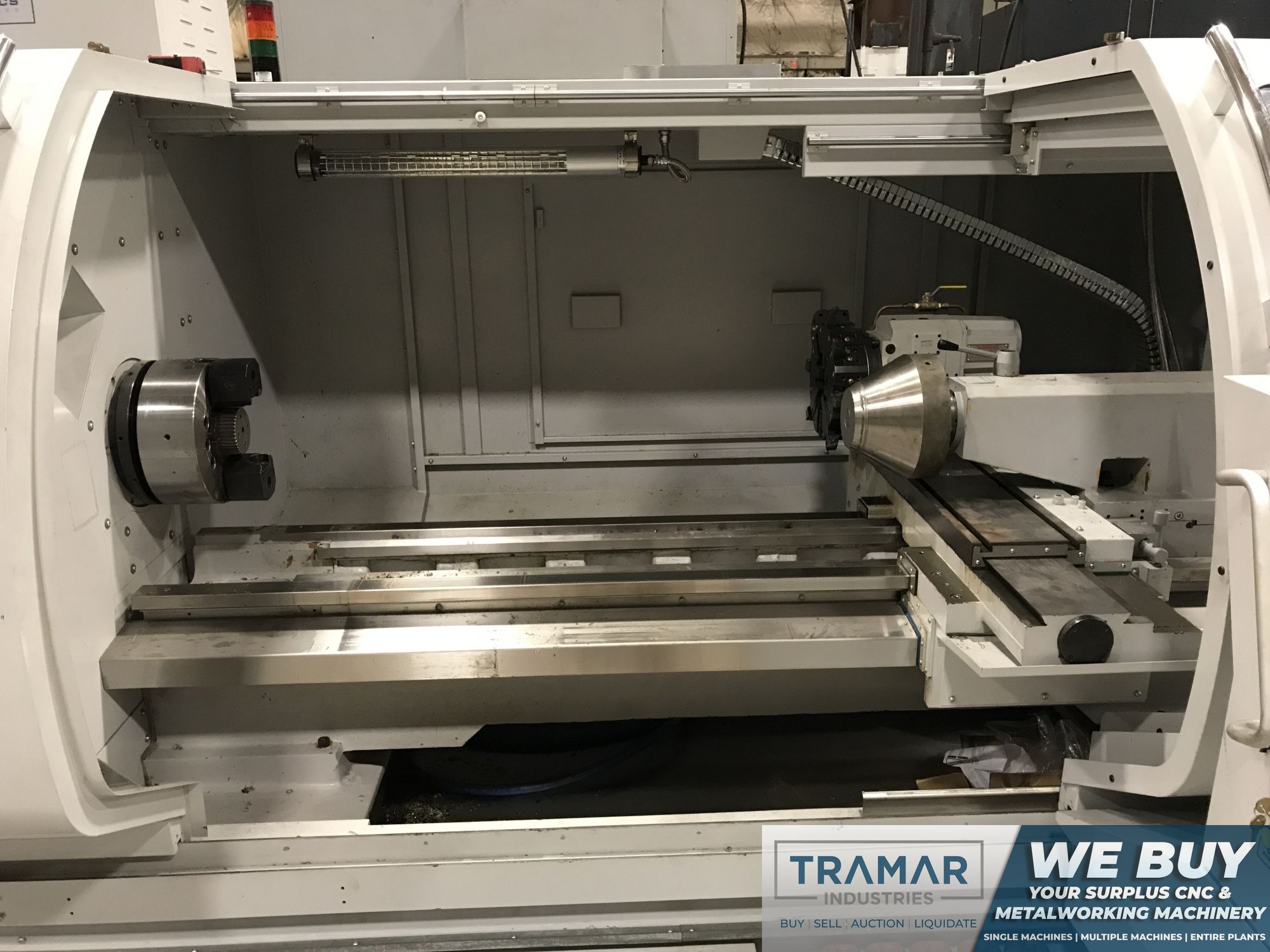

Hydraulic Tailstock

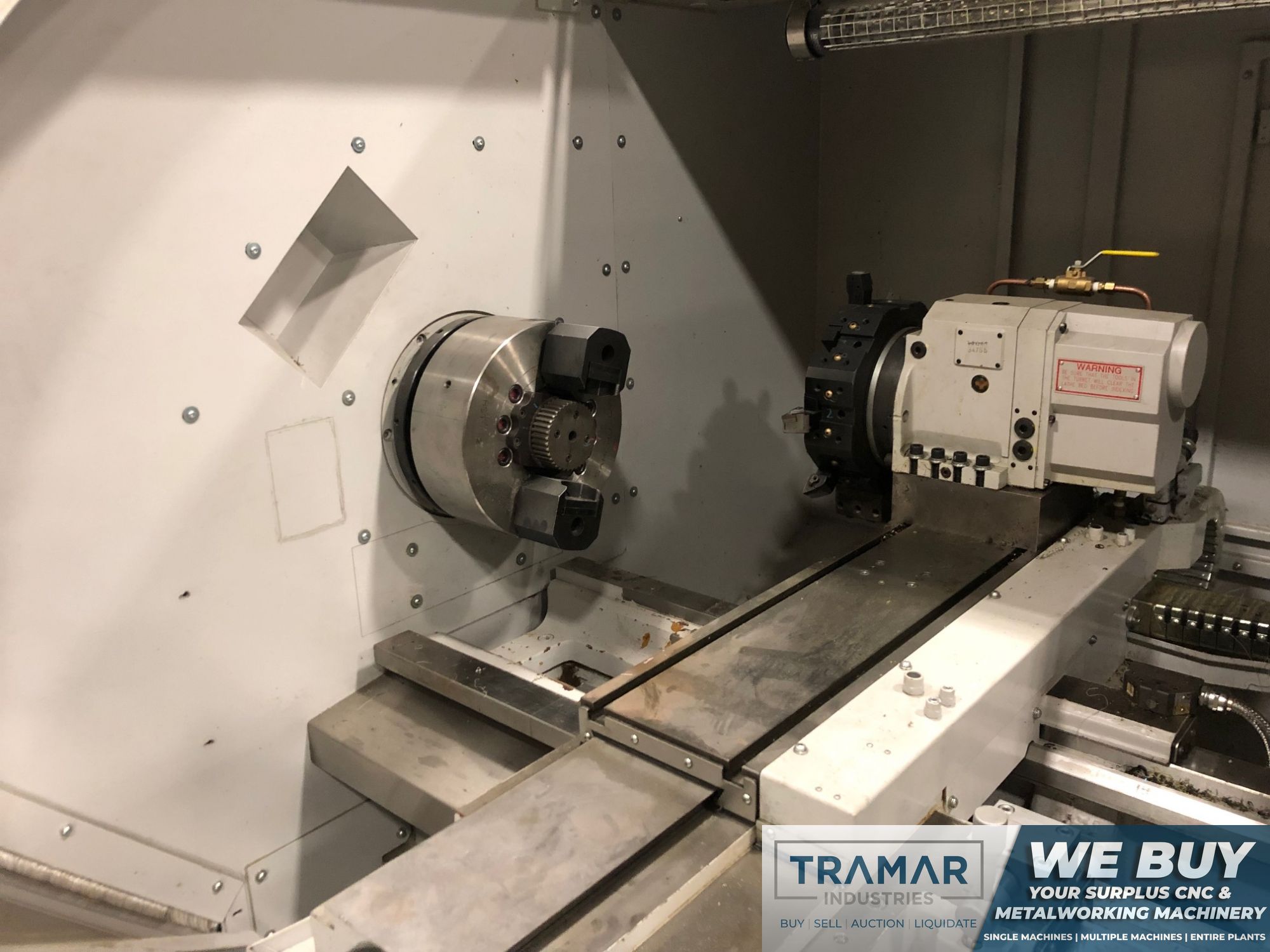

Hydraulic Chuck

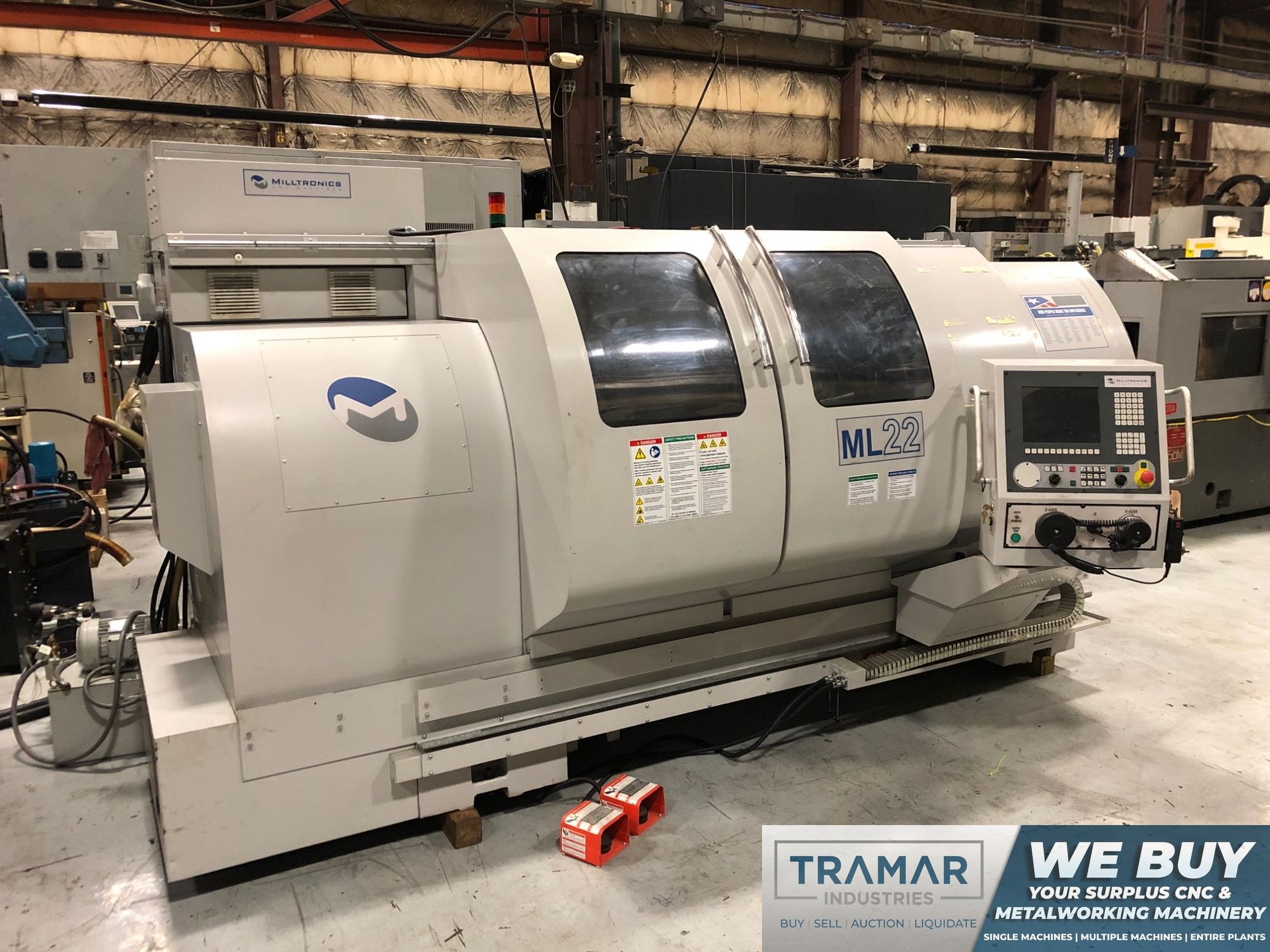

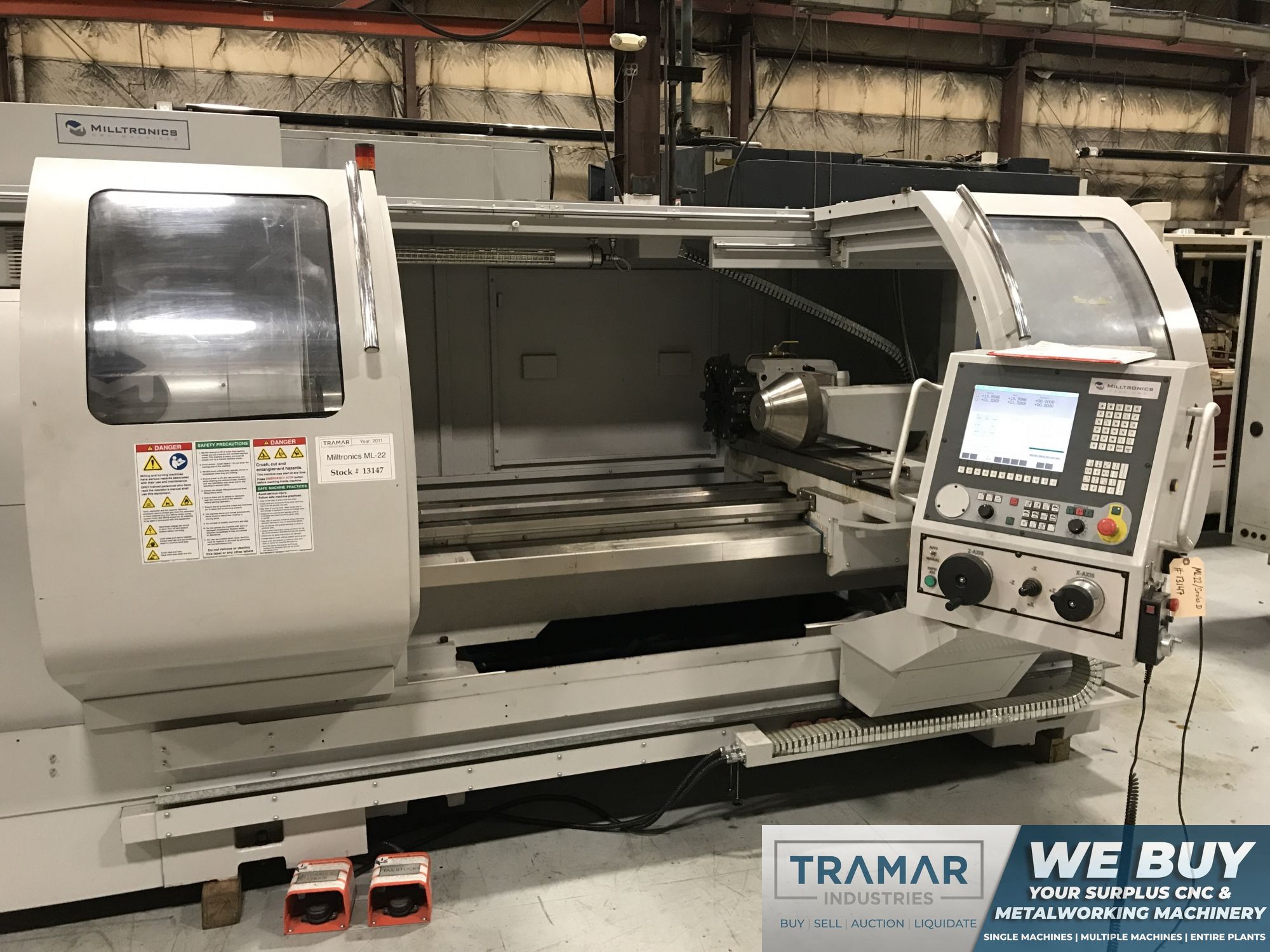

2011 MILLTRONICS ML22
Machine Specifications
CNC Control
yes
Control Type
Milltronics 7,200
Chuck Size
8"
Swing
23"
Turning Diameter
23"
Center Distance
60"
Bar Capacity
3"
X Axis Travel
13"
Z Axis Travel
63.5"
Rapid Traverse (X/Z)
500 IPM
Spindle Speed (RPM)
2,000
Main Motor
24 HP
Turret Capacity
8
Tailstock
yes
Y Axis
no
Dimensions
143" x 83" x 83"
Weight
10,000 pounds
Live Tooling
no
Sub Spindle
no
# Axis
2

Equipped With:

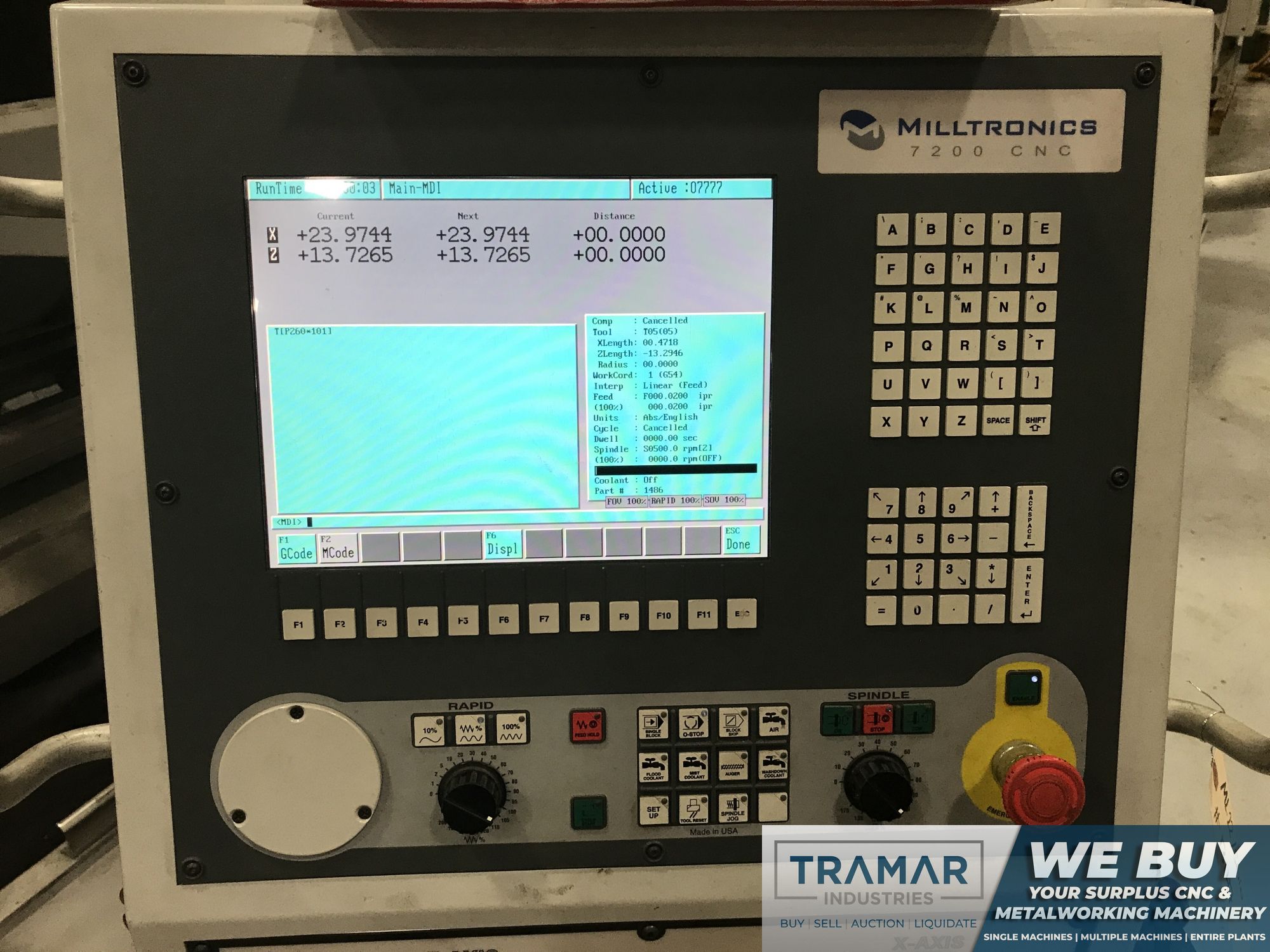

- Milltronics 7200-B series CNC Control
- Solid Box Way Bed Construction
- 2000 RPM Spindle
- Tailstock
- Auto Lubrication
- Full Enclosure w/ Sliding Doors
- 3.22" Spindle Bore
- A1-8 Spindle Nose
- 12" LCD Color Display
- Spindle Load Meter
- Flood Coolant
- Solid Model Graphic Display
- USB Port
- Gap Bed Design

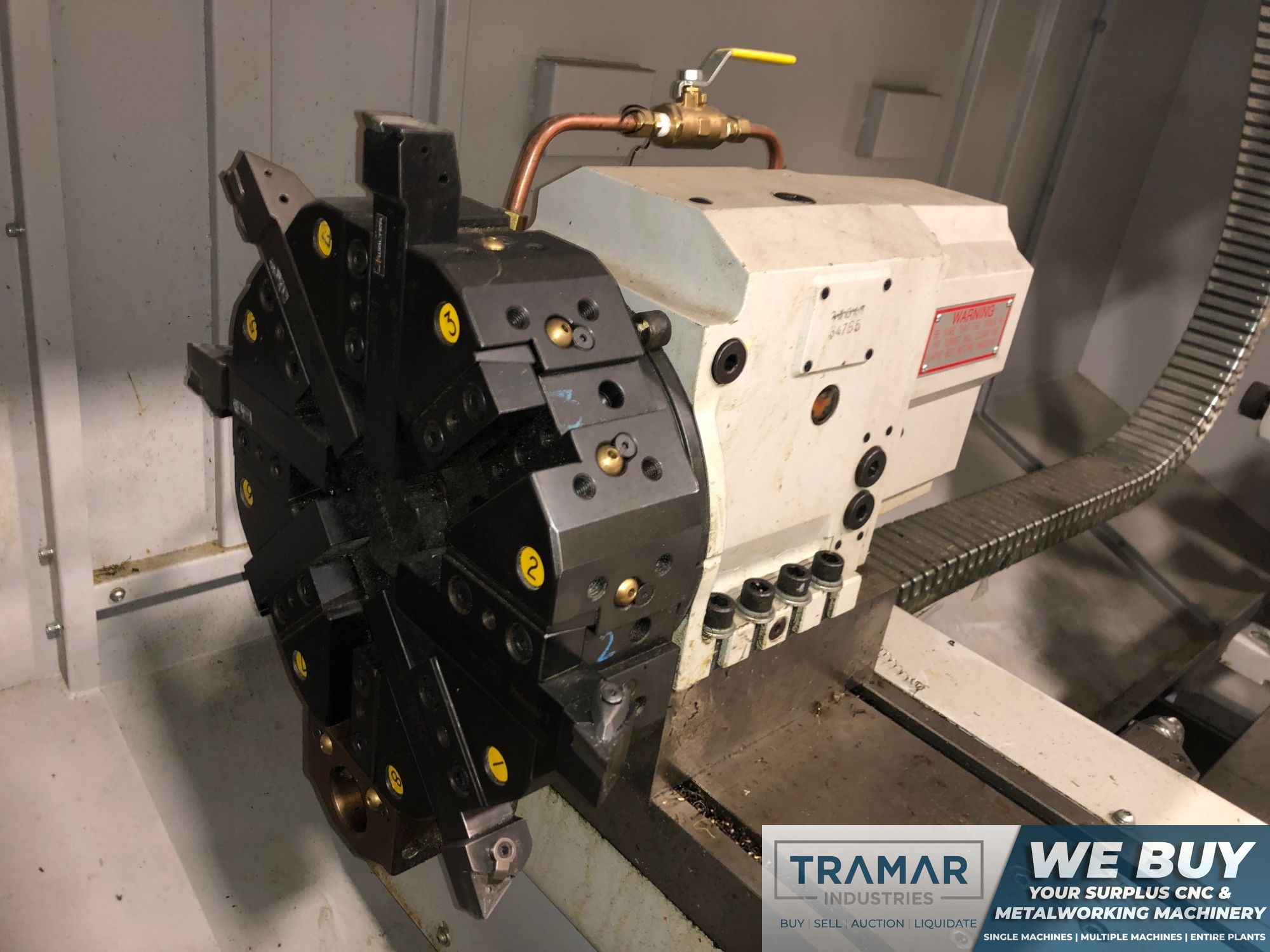

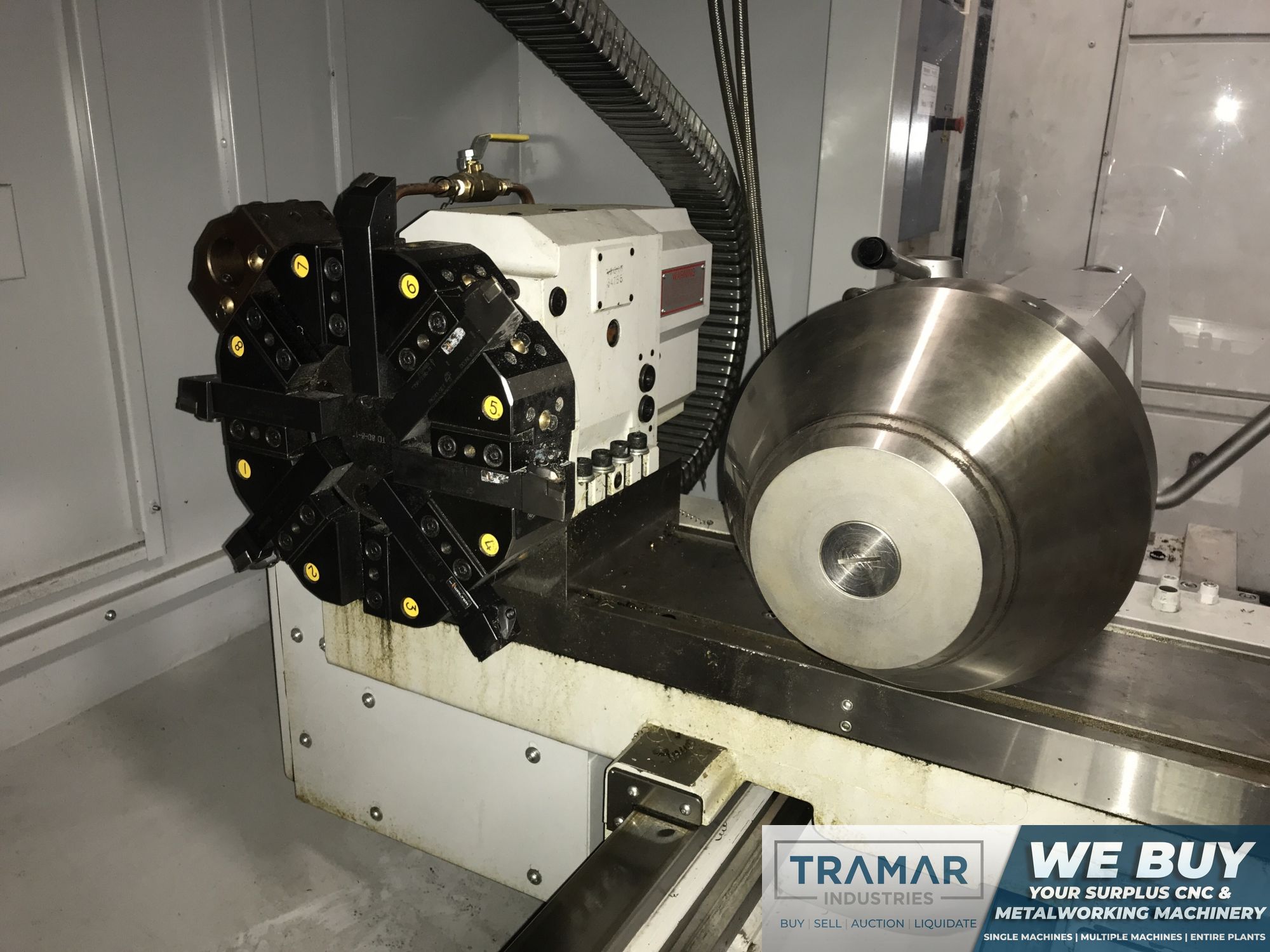

- 8 Station 1" Automatic Turret
- Thread Chasing Feature



Y Axis No

The Milltronics ML22 is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
