Okuma MB-4000H - Horizontal Machining Centers

Request Quote
Share Machine
Specifications Print Specs
Model: MB-4000H
Year: 2011
Stock #: 65700
Highlights:

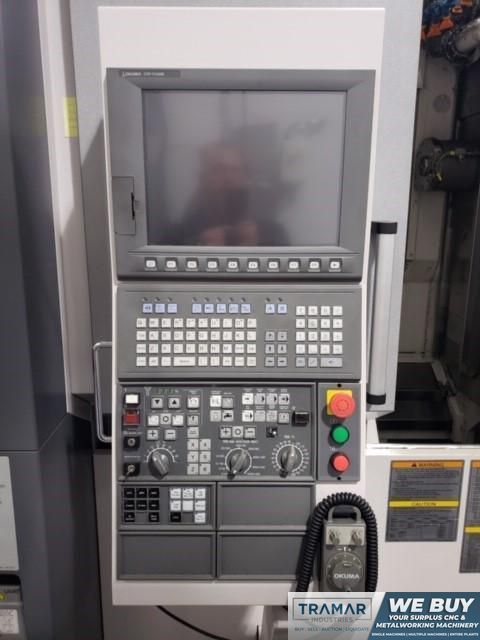

Okuma OSP-P200MA Control
Coolant Thru Spindle
15.75" x 15.75" Pallet Size
Full 4th Axis (0.001°)
CAT 40 Big Plus | 15k RPM | 40HP

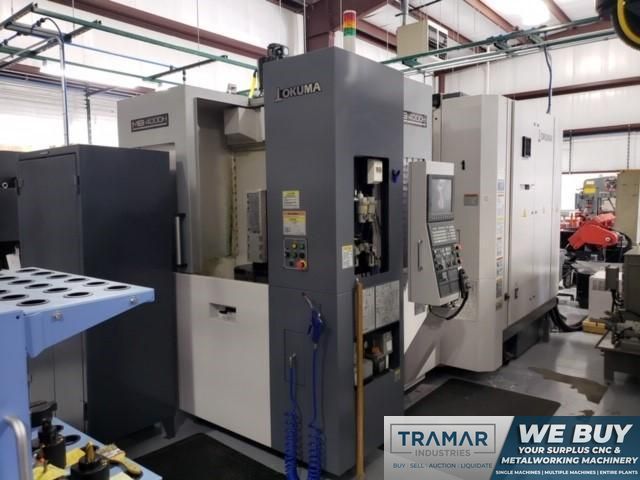

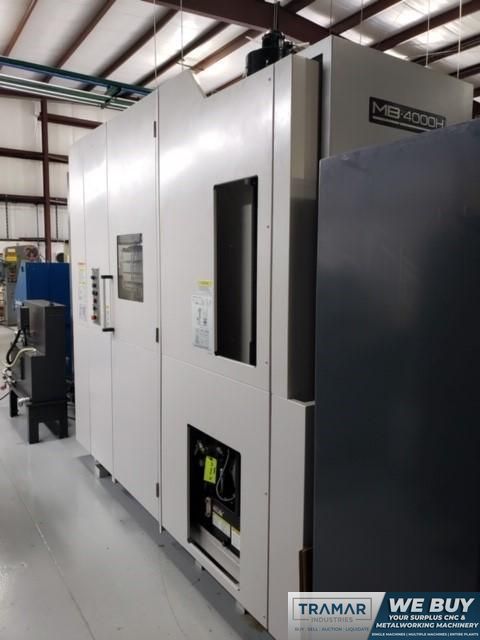

2011 OKUMA MB-4000H - Horizontal Machining Center
Machine Specifications
Year
2011
# of Axis
4
Control Type
OSP P200MA
Pallet Length
15.75"
Pallet Width
15.75"
Pallet Capacity
1,100 pounds
Pallet Indexing (B-Axis)
0.001°
X-Axis Travel
22"
Y-Axis Travel
22"
Z-Axis Travel
24.6"
Rapid Traverse Rate (X/Y/Z)
2,362 ipm
Spindle Taper
CAT 40
Spindle Speed (RPM)
15,000 rpm
Spindle Motor (HP)
40 horsepower
Tool Changer Capacity
64
Coolant Through Spindle
yes
Dimensions
186" x 106" x 114"
Weight
25,000 pounds

Equipped With:

- Okuma OSP-P200MA Control
- Coolant Tank
- Chip Conveyor
- Mist Collector
- Coolant Thru Spindle (200 psi)
- CAT 40 Big Plus Spindle
- Spindle Probe & Tool Probe

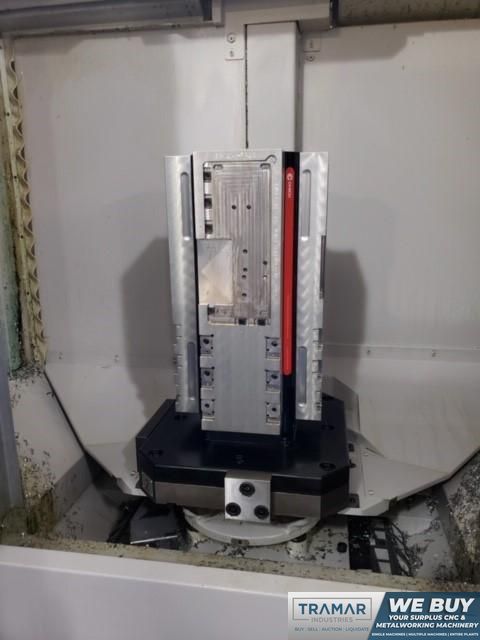

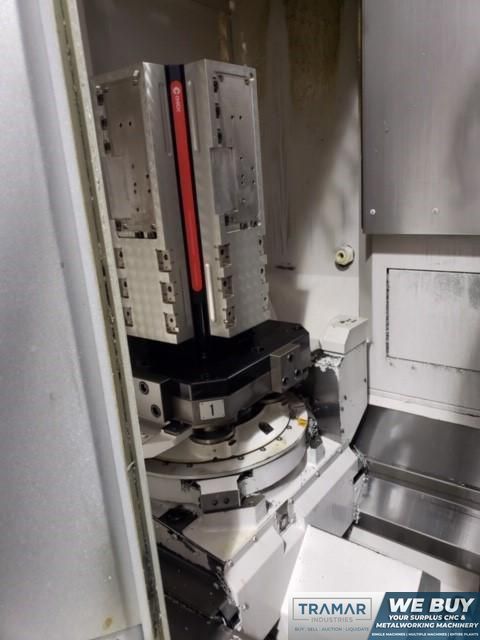

- (2) Chick Tombstones
- (2) Additional 15.75" x 15.75" Pallets
* (4) Pallets Total
- All Available Manuals



The Okuma MB-4000H is an exclusive part of our Horizontal Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
