Takisawa TCN-2000Y L6 - Horizontal Lathes

Request Quote

Share Machine

Specifications Print Specs

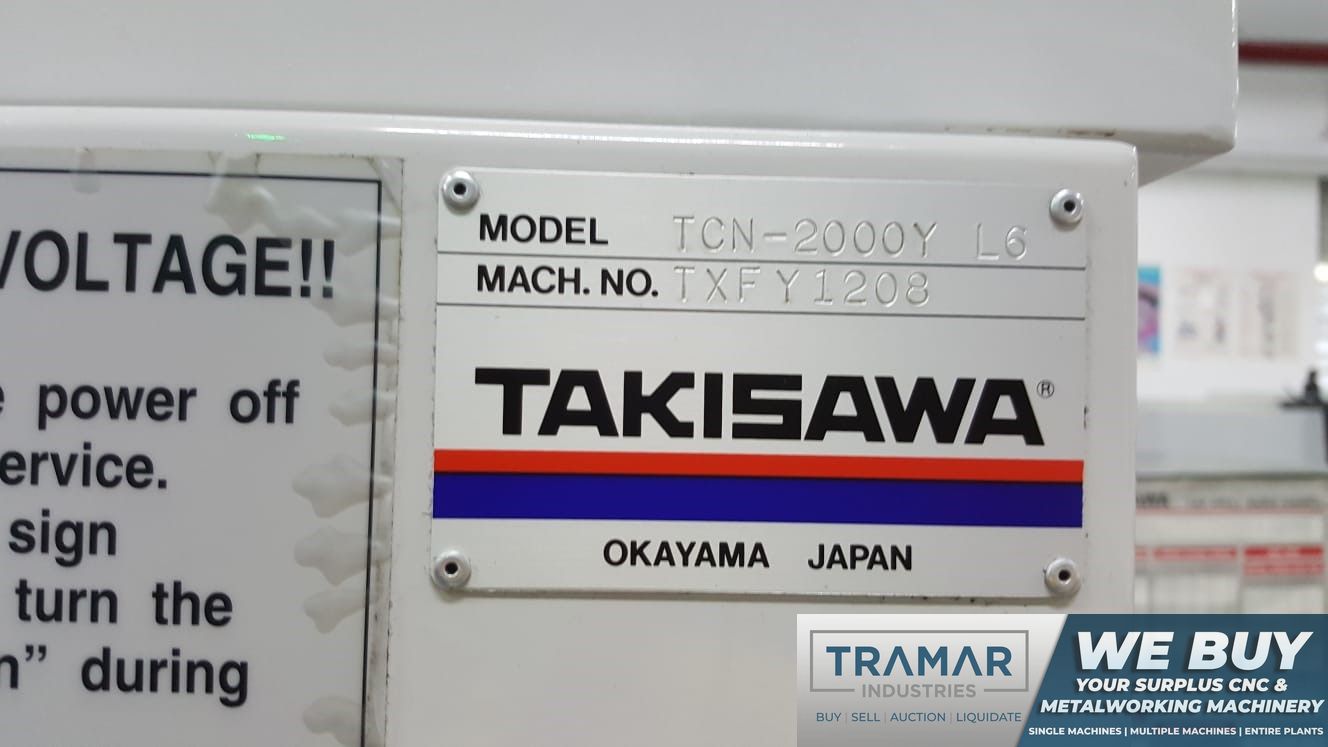

Model: TCN-2000Y L6

Year: 2011

Stock #: 13135

Type: Horizontal Lathes

Manufacturer: Used Takisawa Machines

Highlights:
Fanuc 32i-Model A Control
Live Tooling & Full C Axis (0.001°)
Y Axis Capabilities

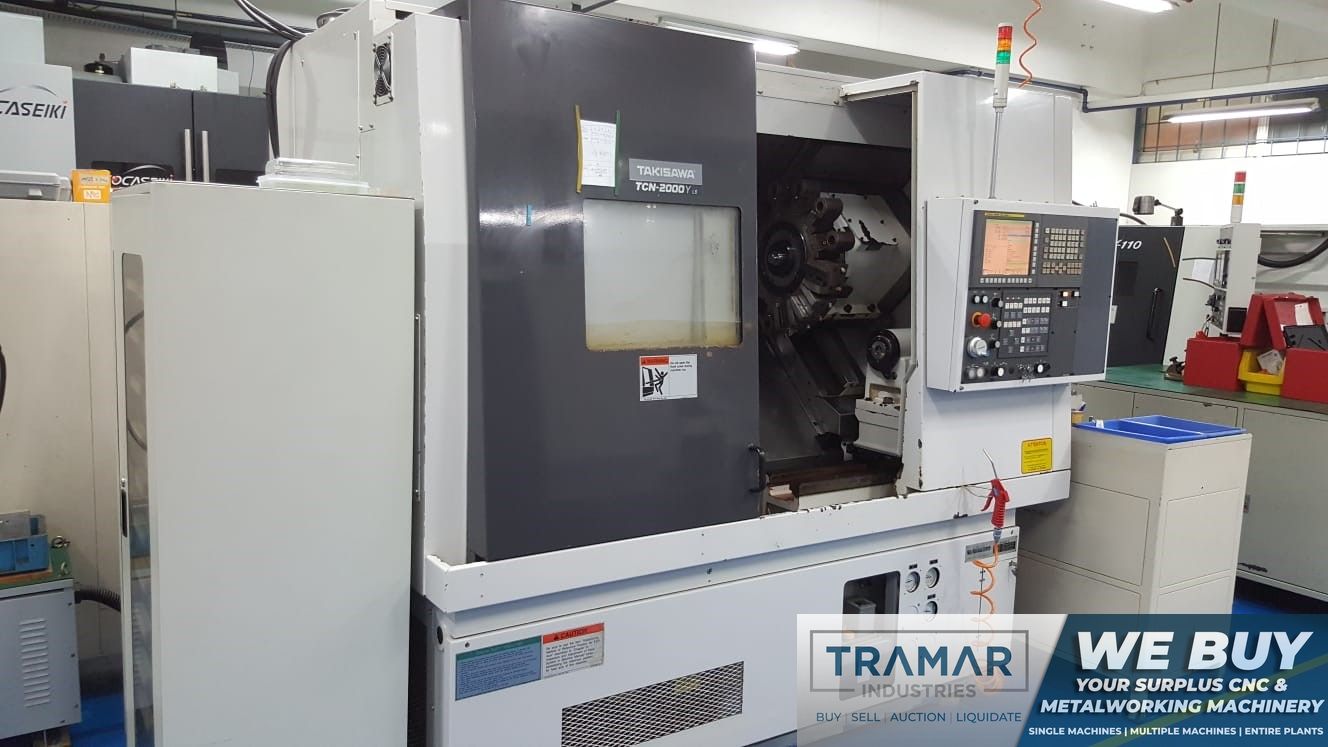

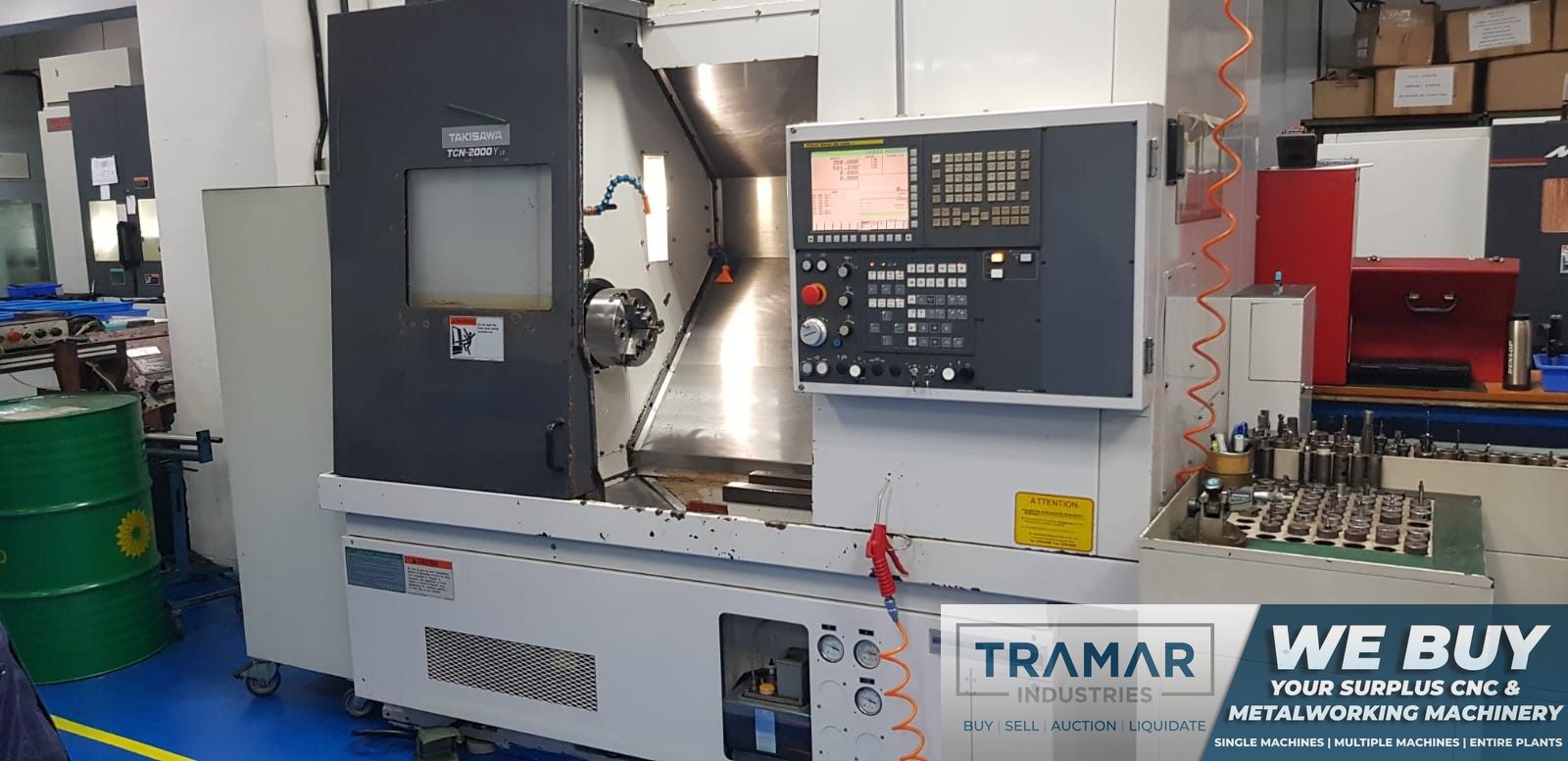

2011 TAKISAWA TCN-2000Y L6 - CNC Horizontal Lathe

Equipped With:

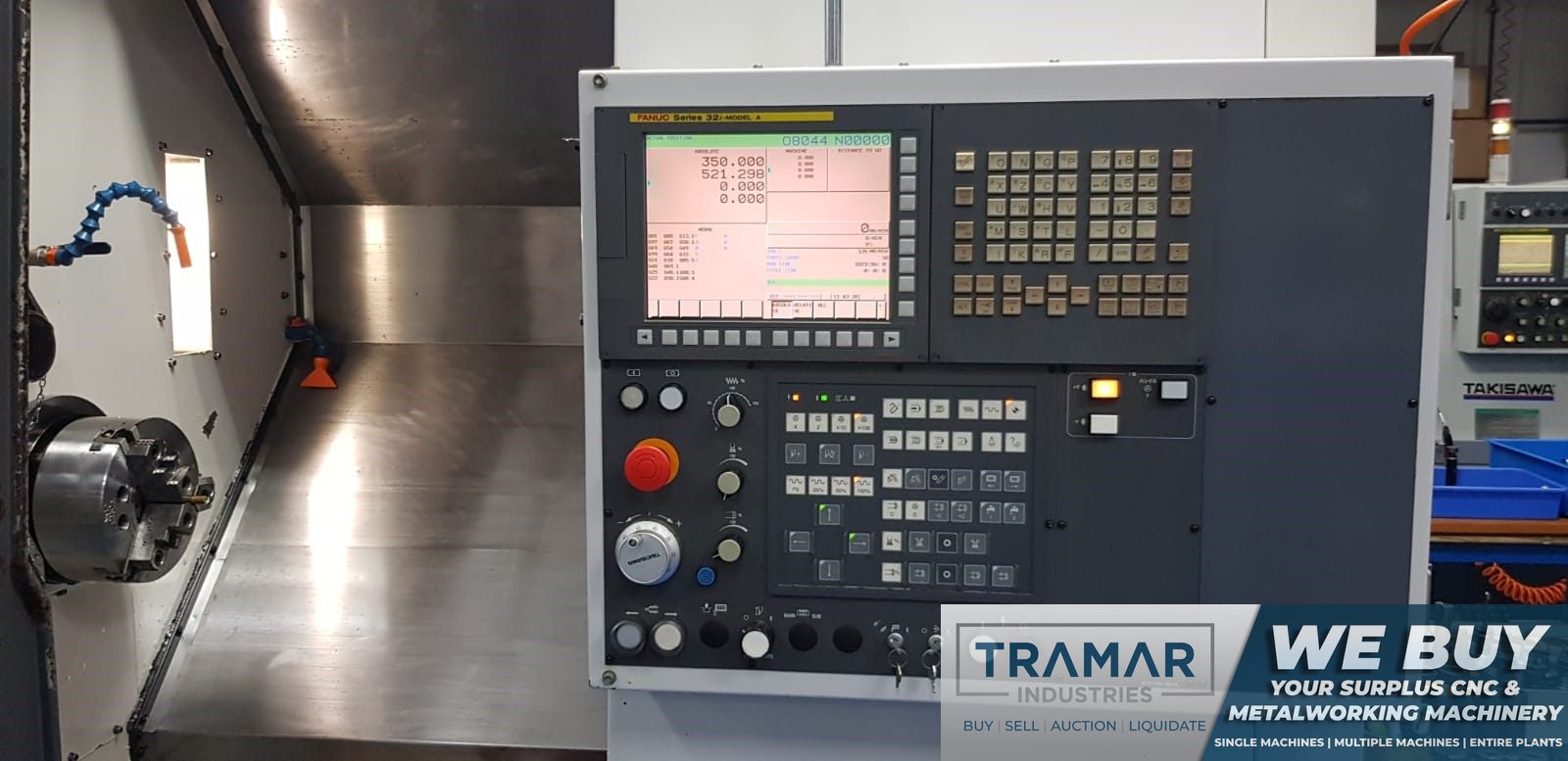

- Fanuc 32i-Model A Control

- Live Tooling

- Full C Axis 0.001°

- Y Axis

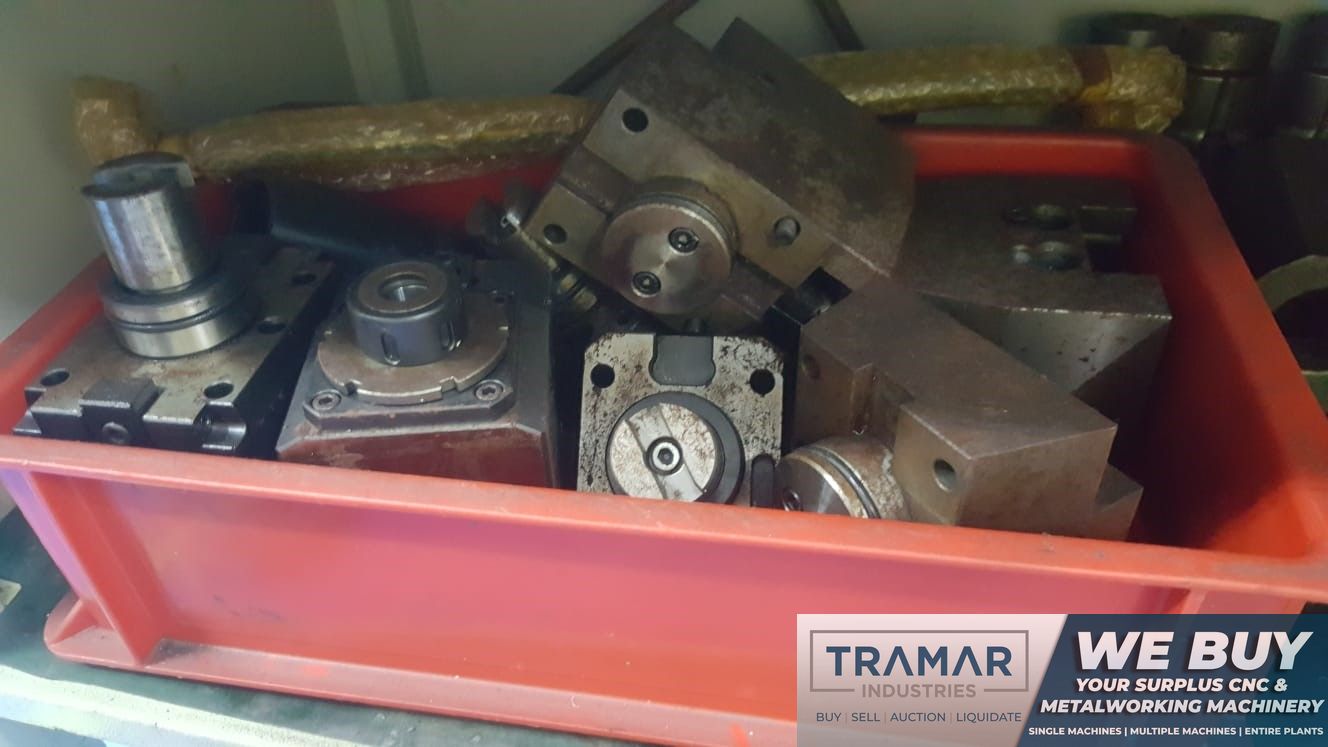

- Misc. Tooling Available

Machine Specifications

Inch

Metric

Machine Specifications:

Year

2011

Control Type

Fanuc 32i Model A

# Axis

Swing

16.53"

Turning Diameter

11.02"

Center Distance

20"

Chuck Size

Bar Capacity

X Axis Travel

9.05"

Z Axis Travel

23.62"

Y Axis Travel

+/-1.18"

C Axis Index

0.001°

Rapid Traverse (X/Z)

1,181 ipm

Spindle Nose

A2-6

Spindle Speed (RPM)

3,200

Main Motor

16 hp

Live Tooling

yes

Live Tooling Speed

6,000 rpm

Live Tooling Motor

7.5 hp

Tailstock

yes

Tailstock Travel

4.7"

Y Axis

yes

Sub Spindle

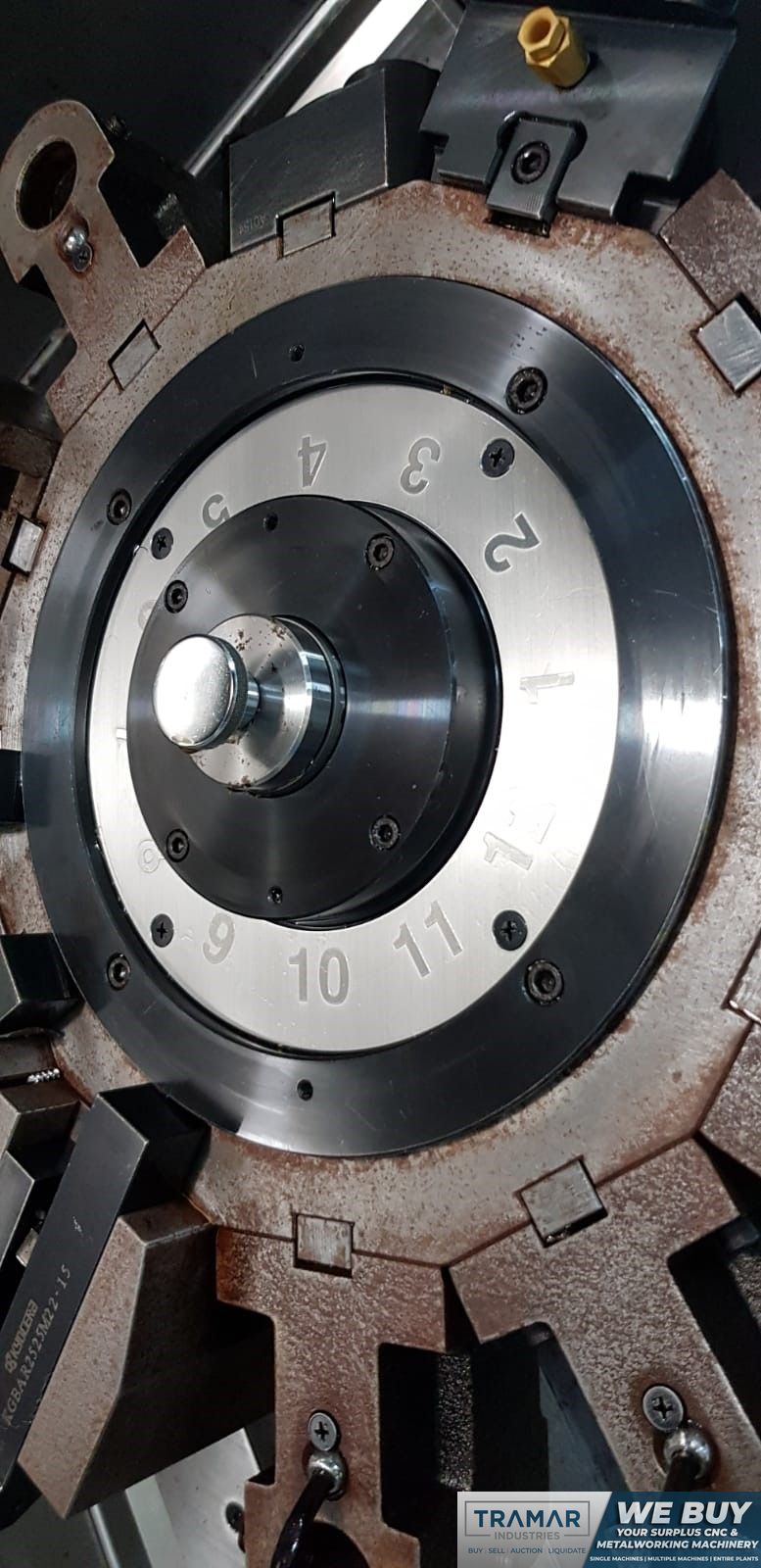

Turret Capacity

12 stations

Dimensions

83" x 65" x 67"

Weight

8,000 pounds

Equipped With:

- Fanuc 32i-Model A Control

- Live Tooling

- Full C Axis 0.001°

- Y Axis
- Misc. Tooling Available

The Takisawa TCN-2000Y L6 is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
