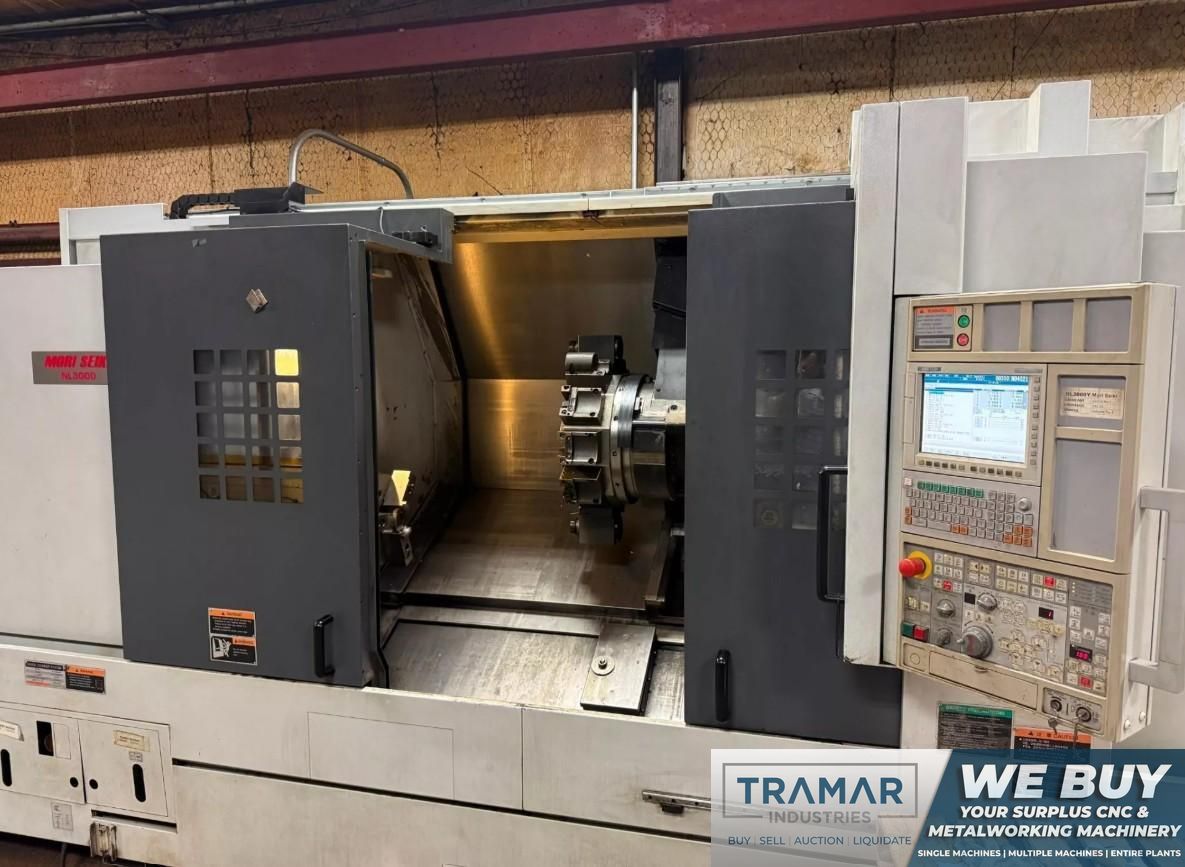

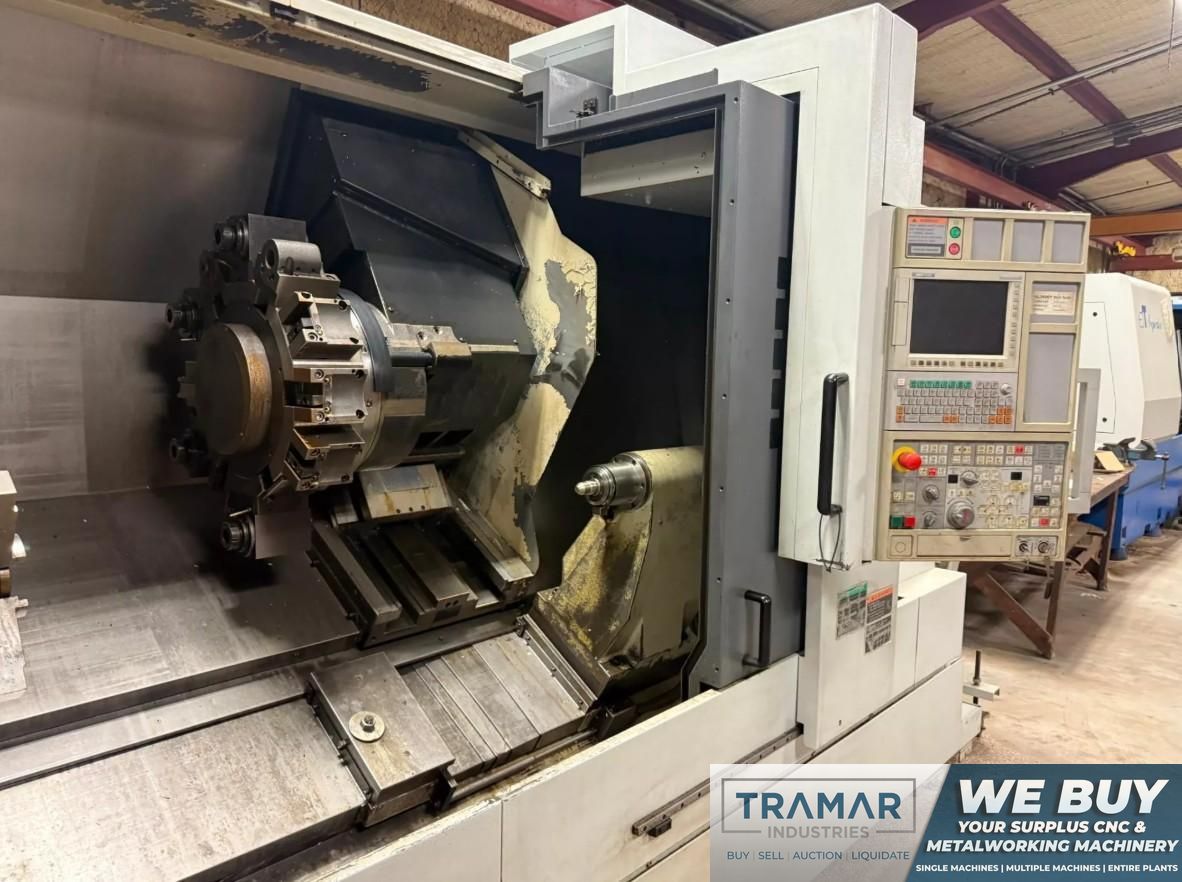

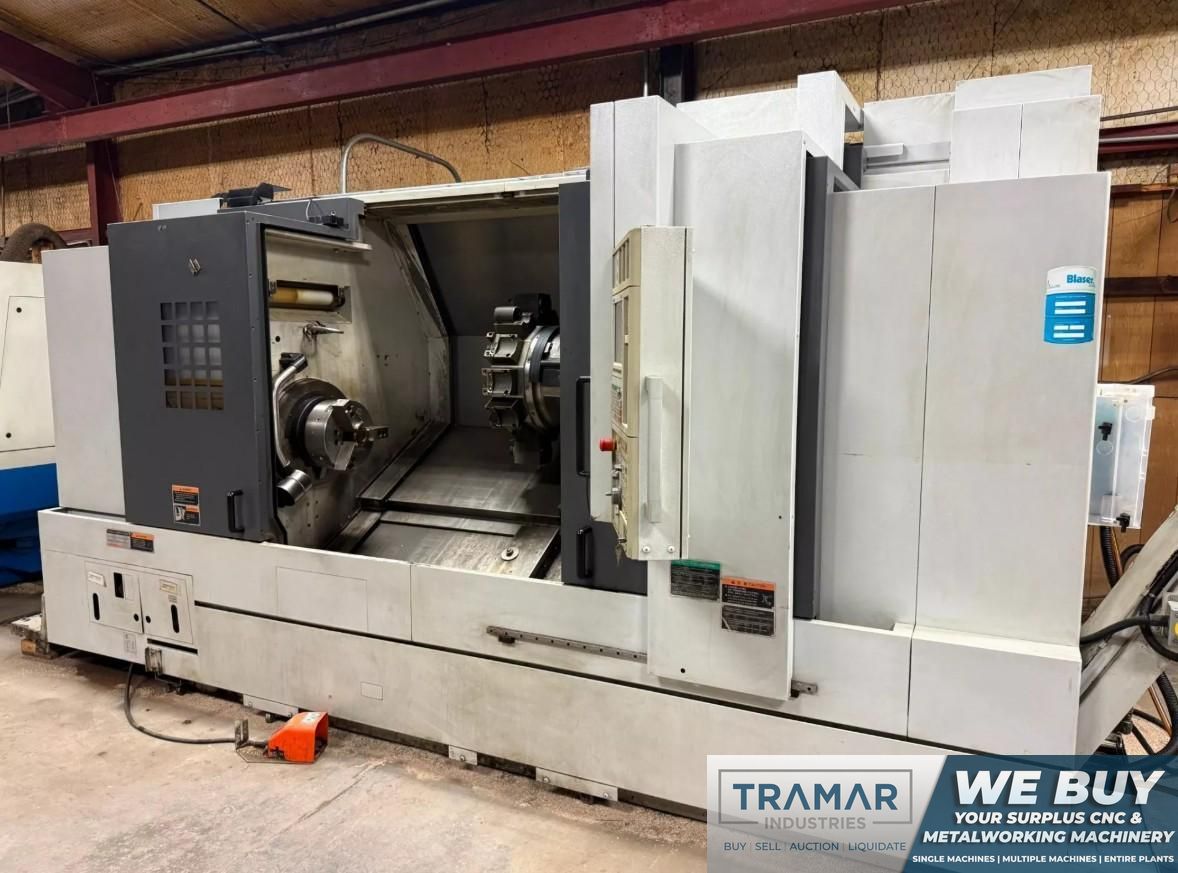

Mori Seiki NL3000Y/1250 - Lathes (3-Axis or More)

Request Quote

Share Machine

Specifications Print Specs

Model: NL3000Y/1250

Year: 2011

Stock #: 15378

Type: Lathes (3-Axis or More)

Manufacturer: Used Mori Seiki Machines

Highlights:
M720BM CNC Control
Live Tooling
Y Axis

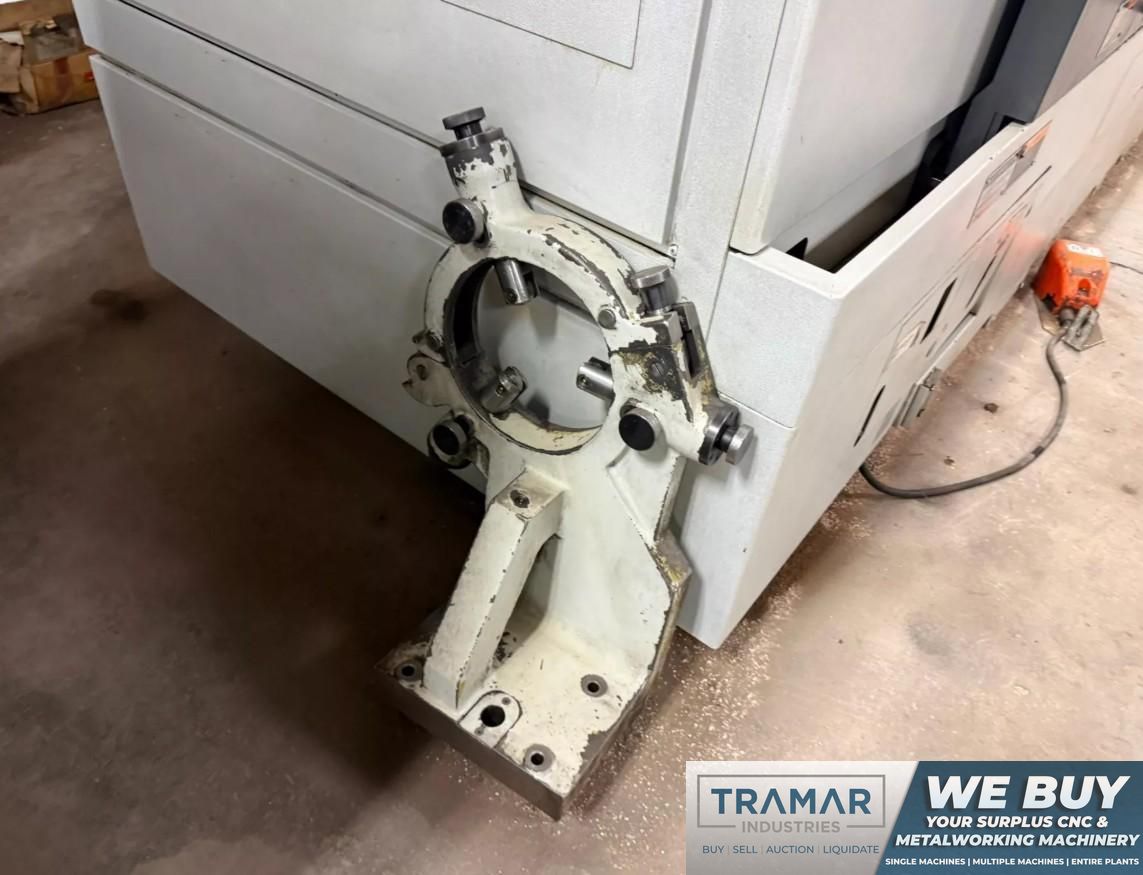

Manual Steady Rest
Programmable Tailstock
Tool Presetter

2011 Used Mori Seiki NL3000Y/1250 CNC Lathe For Sale

Equipped With:

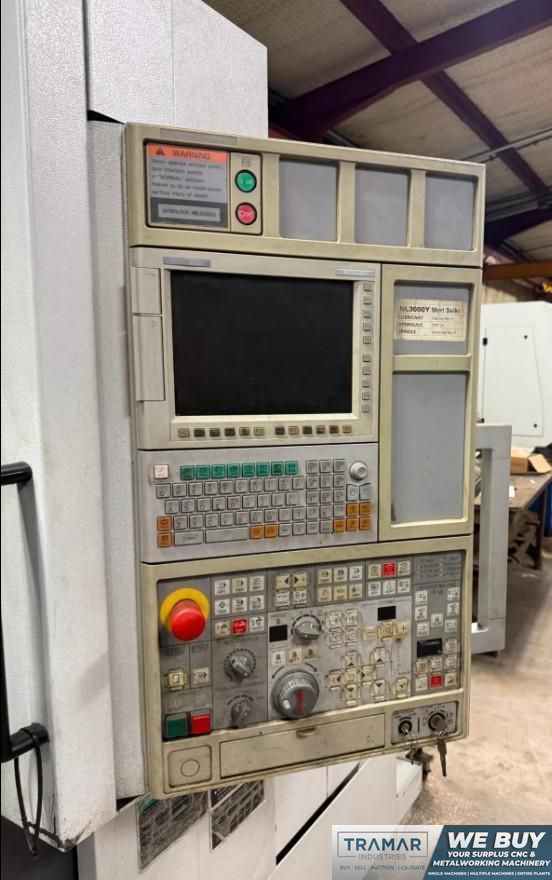

- Mori Seiki M720BM CNC Control
- Chip Conveyor
- Coolant Tank & Pump
- Tool Presetter

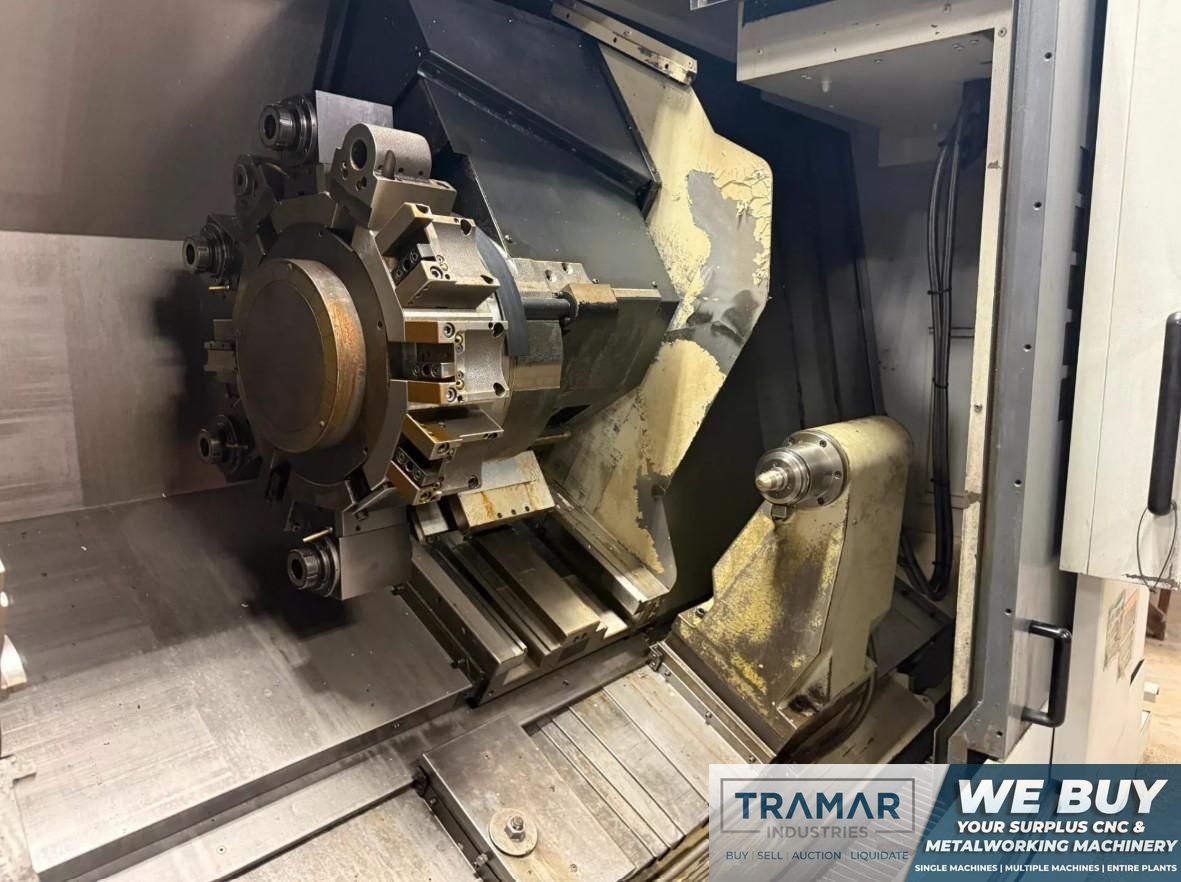

- Programmable Tailstock

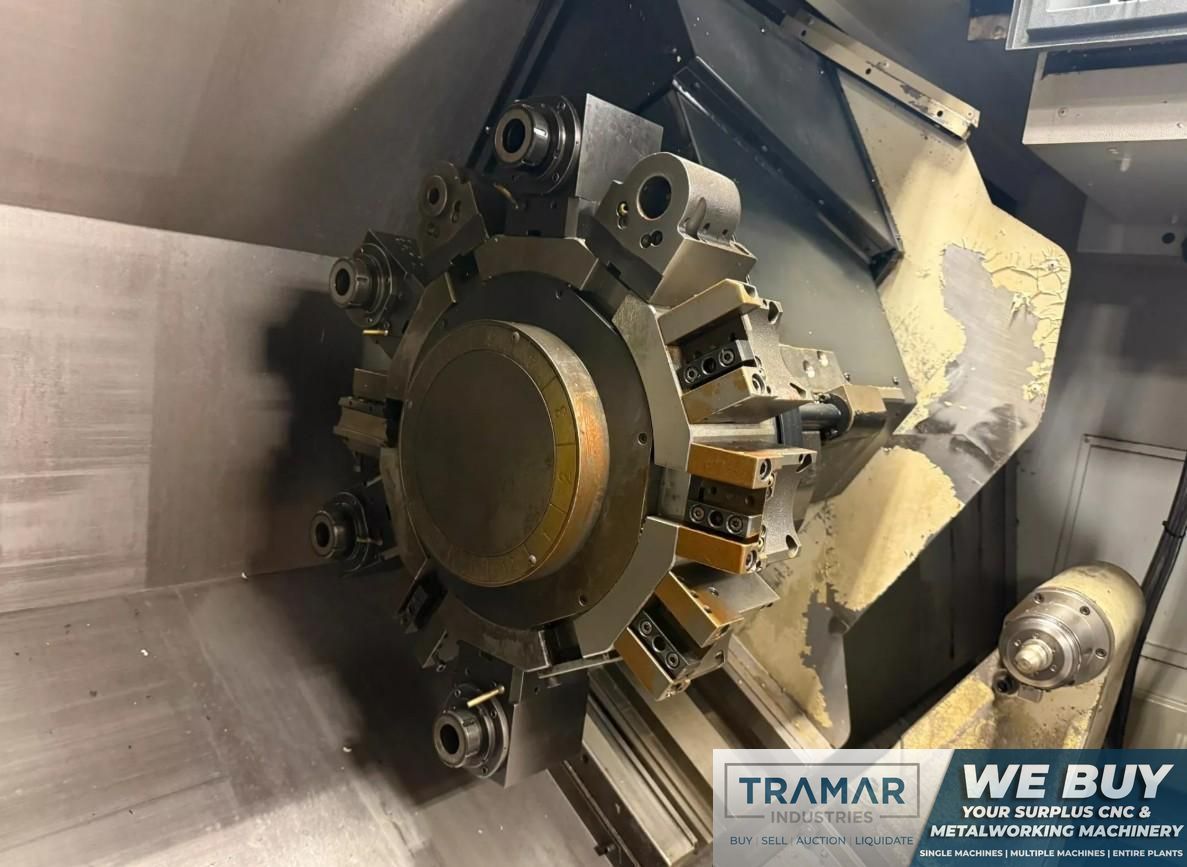

- Live Tooling
- Y Axis
- Manual Steady Rest

Machine Specifications

Inch

Metric

Machine Specifications:

CNC Control

yes

Control Type

M720BM

# Axis

Swing

39.2"

Turning Diameter

16.5"

Center Distance

49.6"

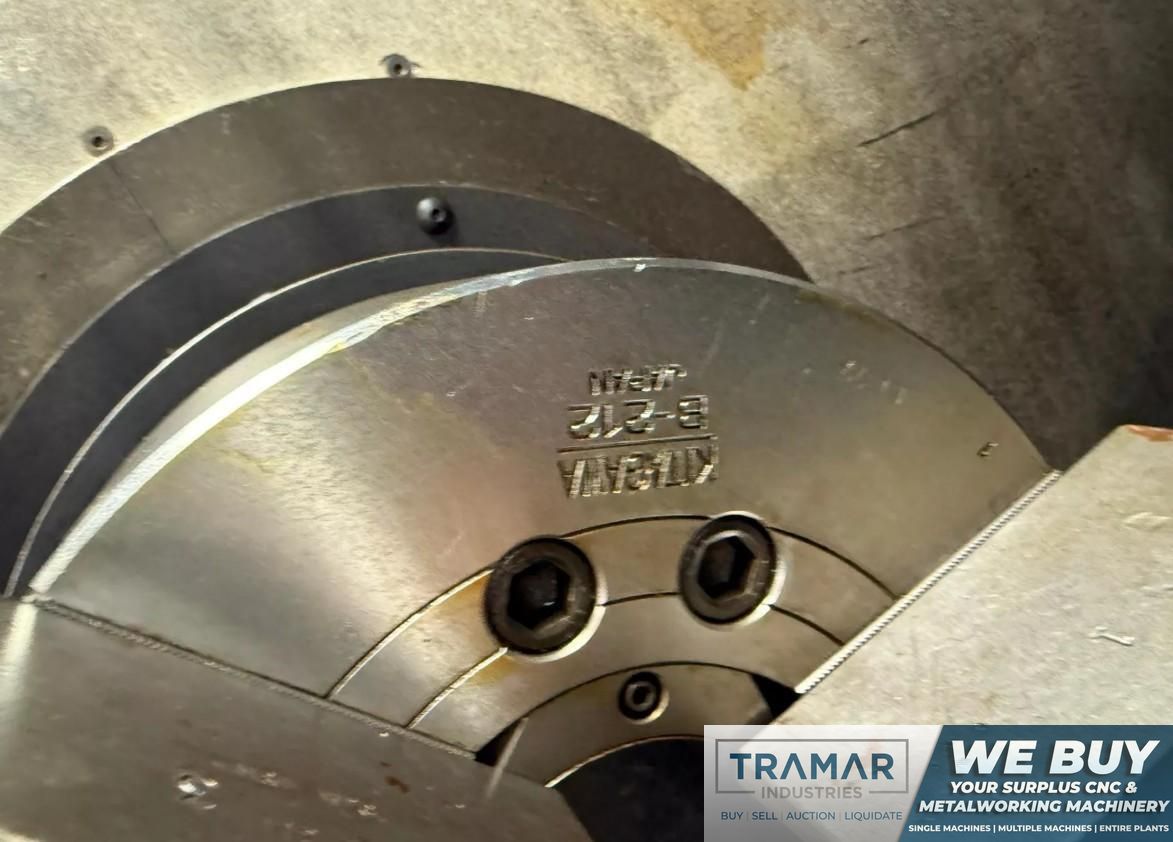

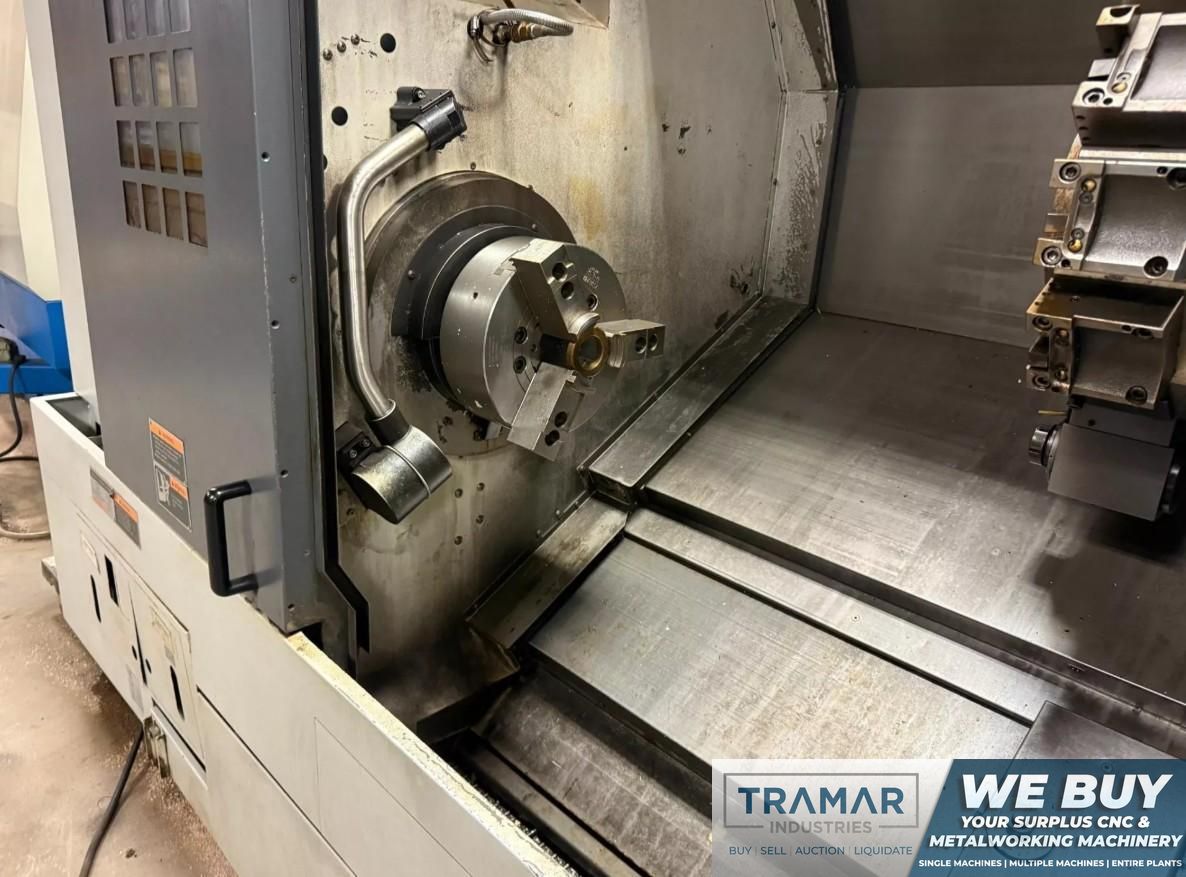

Chuck Size

10"

Bar Capacity

3.5"

X Axis Travel

11"

Y Axis Travel

4.7"

Z Axis Travel

53.9"

C Axis Index

0.001°

Rapid Traverse (X/Y/Z)

1,181/394/1,181 ipm

Spindle Nose

A2-8

Spindle Speed

3,000 rpm

Main Motor

30 hp

Tailstock

yes

Y Axis

yes

Live Tooling

yes

Live Tooling Speed

6,000 rpm

Live Tooling Motor

7.5 hp

Sub Spindle

Turret Capacity

Machine Dimensions

178" x 91" x 95"

Machine Weight

18,000 pounds

Equipped With:

- Mori Seiki M720BM CNC Control
- Chip Conveyor
- Coolant Tank & Pump
- Tool Presetter
- Programmable Tailstock
- Live Tooling
- Y Axis
- Manual Steady Rest

The Mori Seiki NL3000Y/1250 is an exclusive part of our Lathes (3-Axis or More) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
