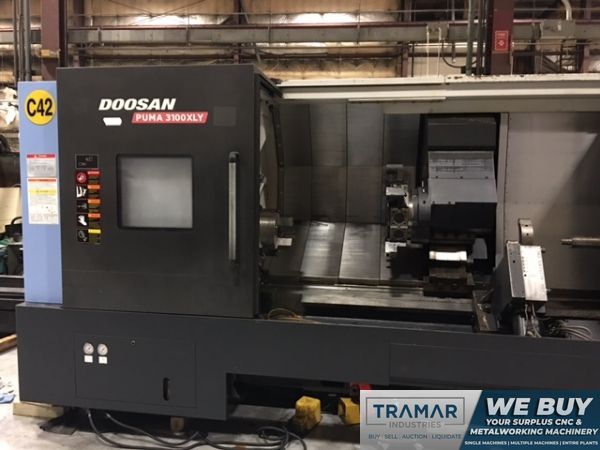

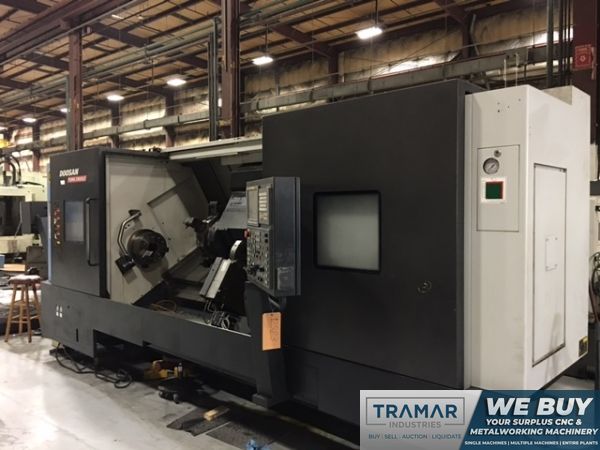

Doosan Puma 3100XLY - Horizontal Lathes

Request Quote
Specifications Print Specs
Model: Puma 3100XLY
Year: 2012
Stock #: 12523
Highlights:
Live Tooling | Full "C" Axis

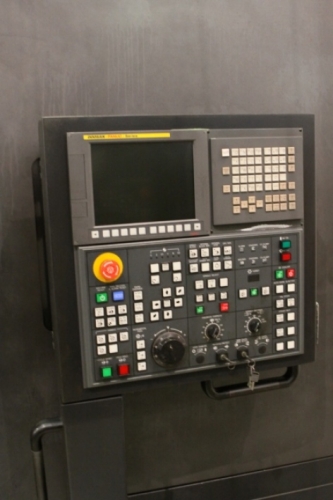

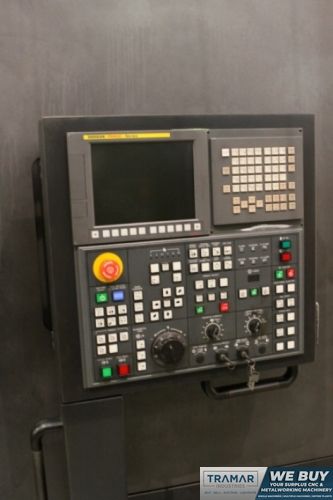

Fanuc 0i-TD CNC Control

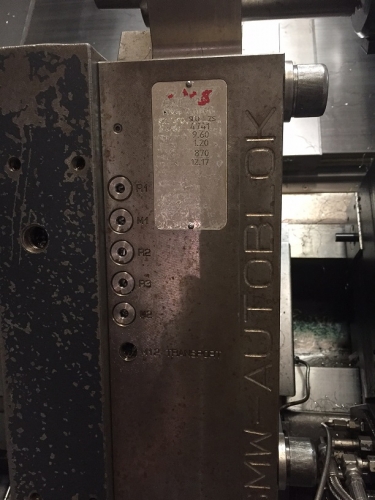

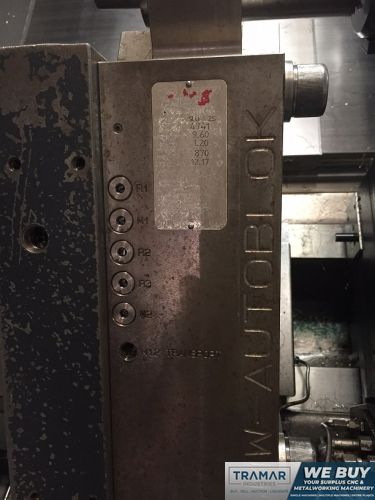

SMW Autoblok SLU-4.ZS Hydraulic Steady Rest (1.6" - 9.6")
83" Center Distance | 4" Bar Capacity

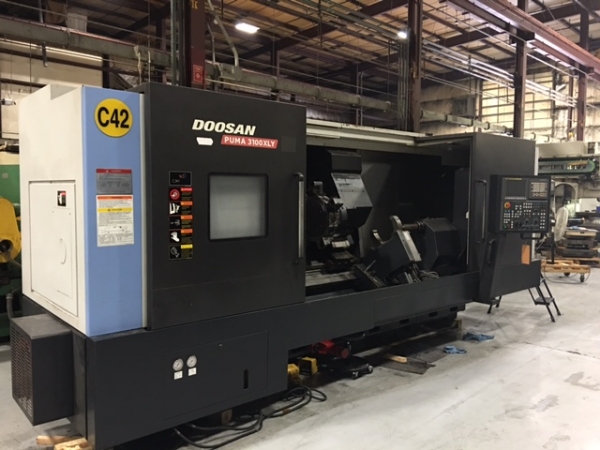

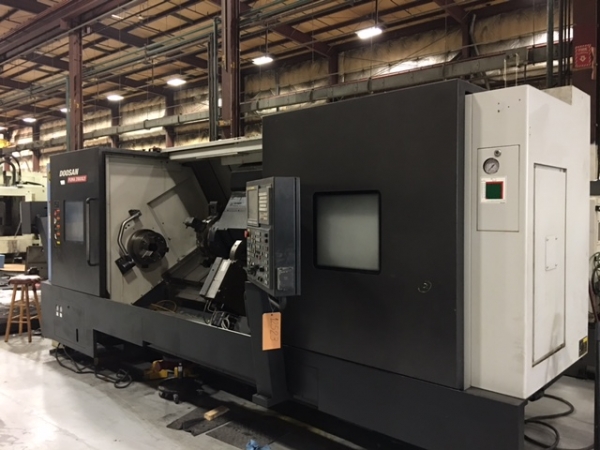

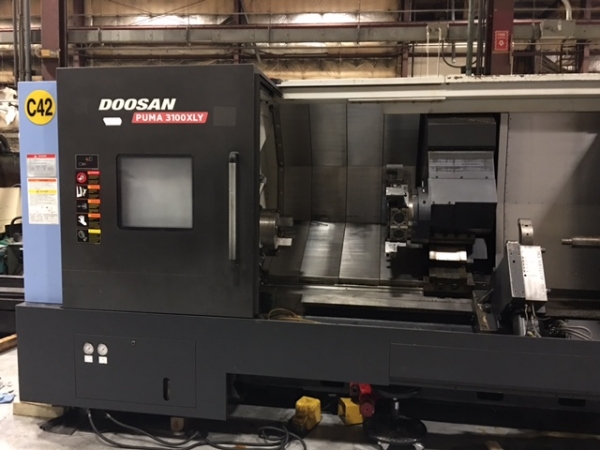

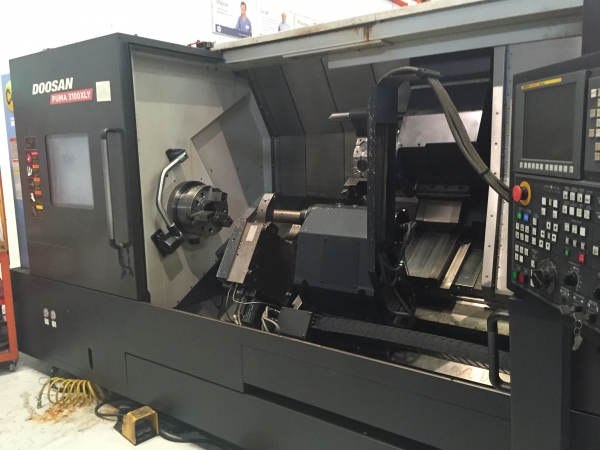

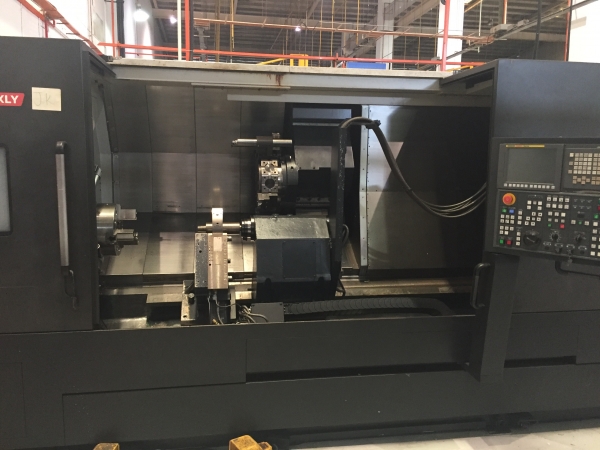

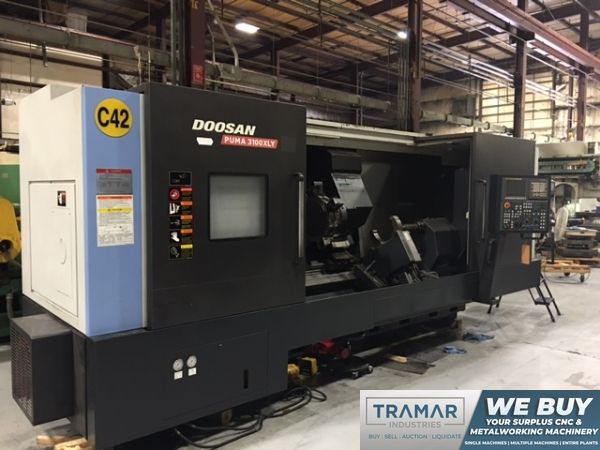

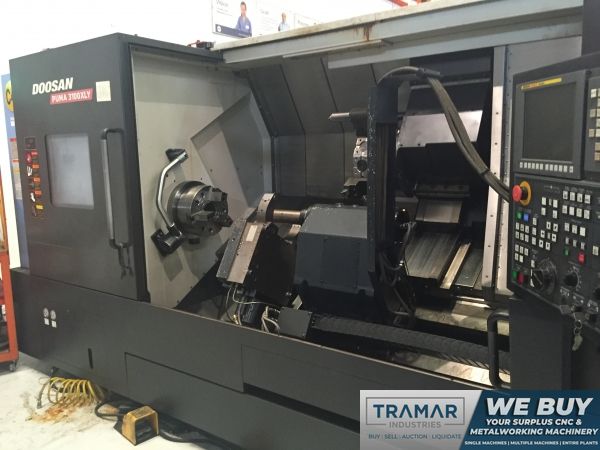

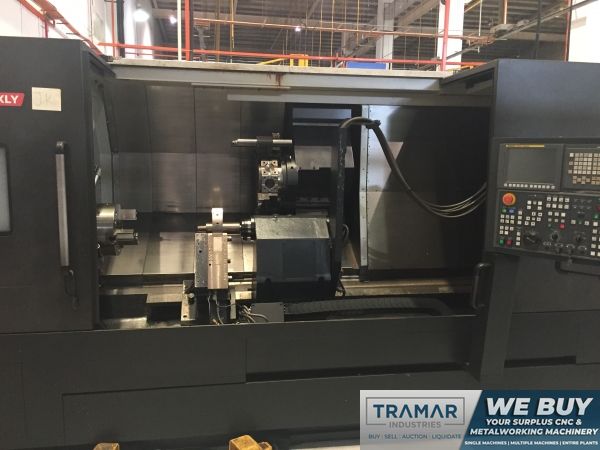

2012 Doosan Puma 3100XLY - CNC Horizontal Lathe
Machine Specifications
Year
2012
Control Type
Fanuc 0i-TD
Chuck Size
12"
Swing
33.5"
Turning Diameter
16.5"
Center Distance
83.7"
Bar Capacity
4"
X Axis Travel
11.5"
Z Axis Travel
86.2"
Rapid Traverse (X/Z)
1,181
Spindle Speed (RPM)
3,000
Main Motor
30
Turret Capacity
12
Tailstock
yes
Y Axis
yes
Dimensions
221" x 90" x 92
Weight
23,850 pounds
Live Tooling
yes
Sub Spindle
no
# Axis
4

Equipped With:

- LIVE MILLING
- Full "C" Axis
- Fanuc 0i-TD CNC Control
- Chip Conveyor

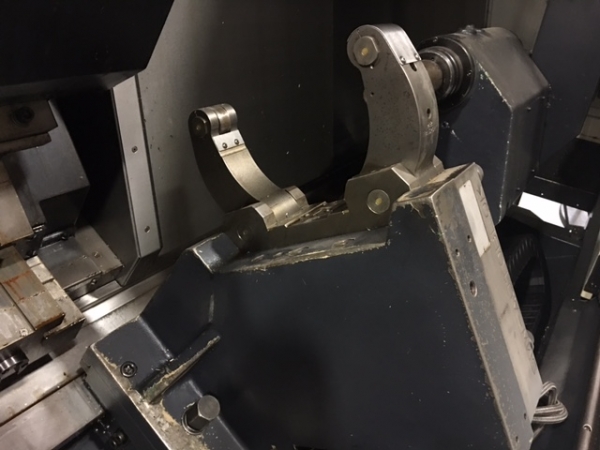

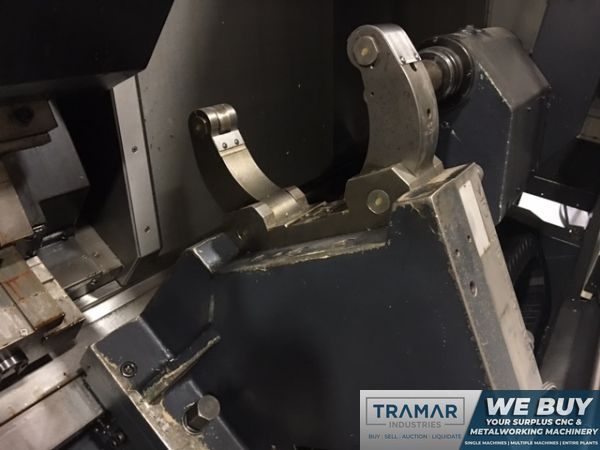

- SMW Autoblok SLU-4.ZS Hydraulic Steady Rest
- Programable Tailstock
- Tool Pre-setter

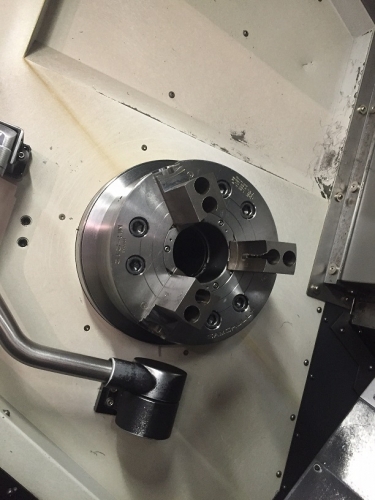

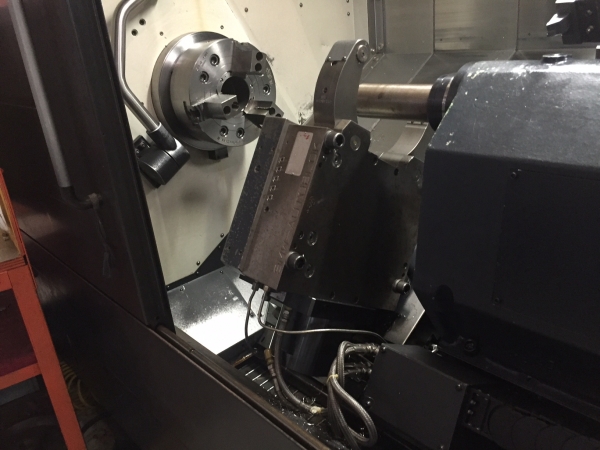

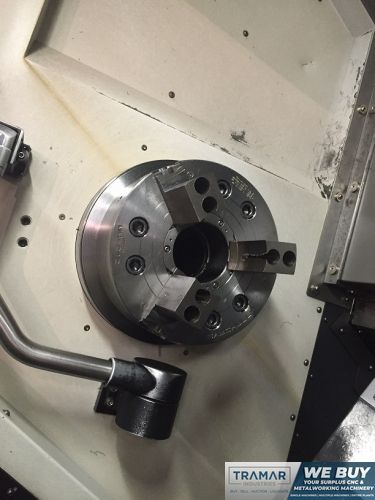

- 12" Hydraulic Chuck
- Embedded Ethernet
- 400 Part Program Storage
- 64 Tool Offset Pairs
- 8 Pairs Work Coordinate System
- Cooljet Option Through Turret (20 Bar)
- X Axis Linear Scale
- Bar Feeder Interface
- Tool Monitoring System
- 4 Static Holders
- 2 Live Tools (1 Axial / 1 Radial)

The Doosan Puma 3100XLY is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
