Doosan Puma 400LC - Horizontal Lathes

Request Quote
Specifications Print Specs
Model: Puma 400LC
Year: 2012
Stock #: 51451
Yes
Highlights:

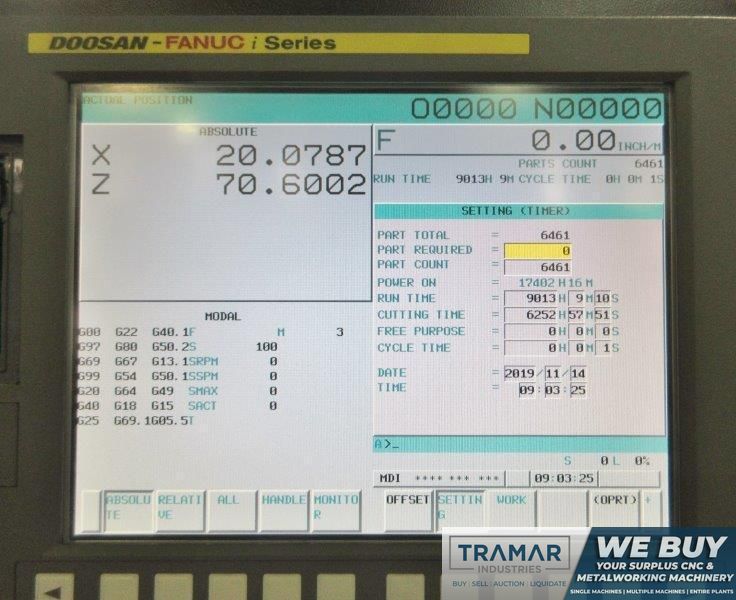

Fanuc 0i-TD Control
Gear Box
Box Ways
21" Samchully Chuck
30" Swing | 81.7" Center Distance

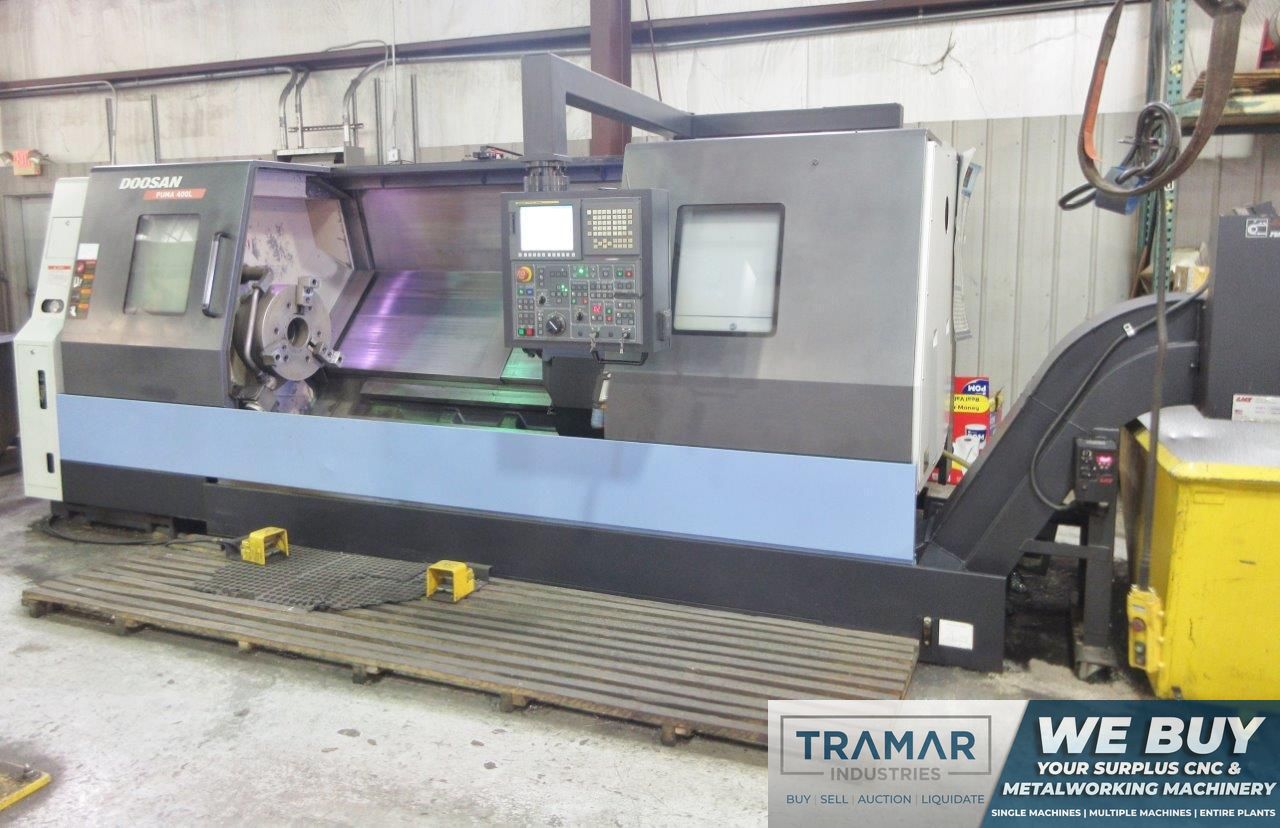

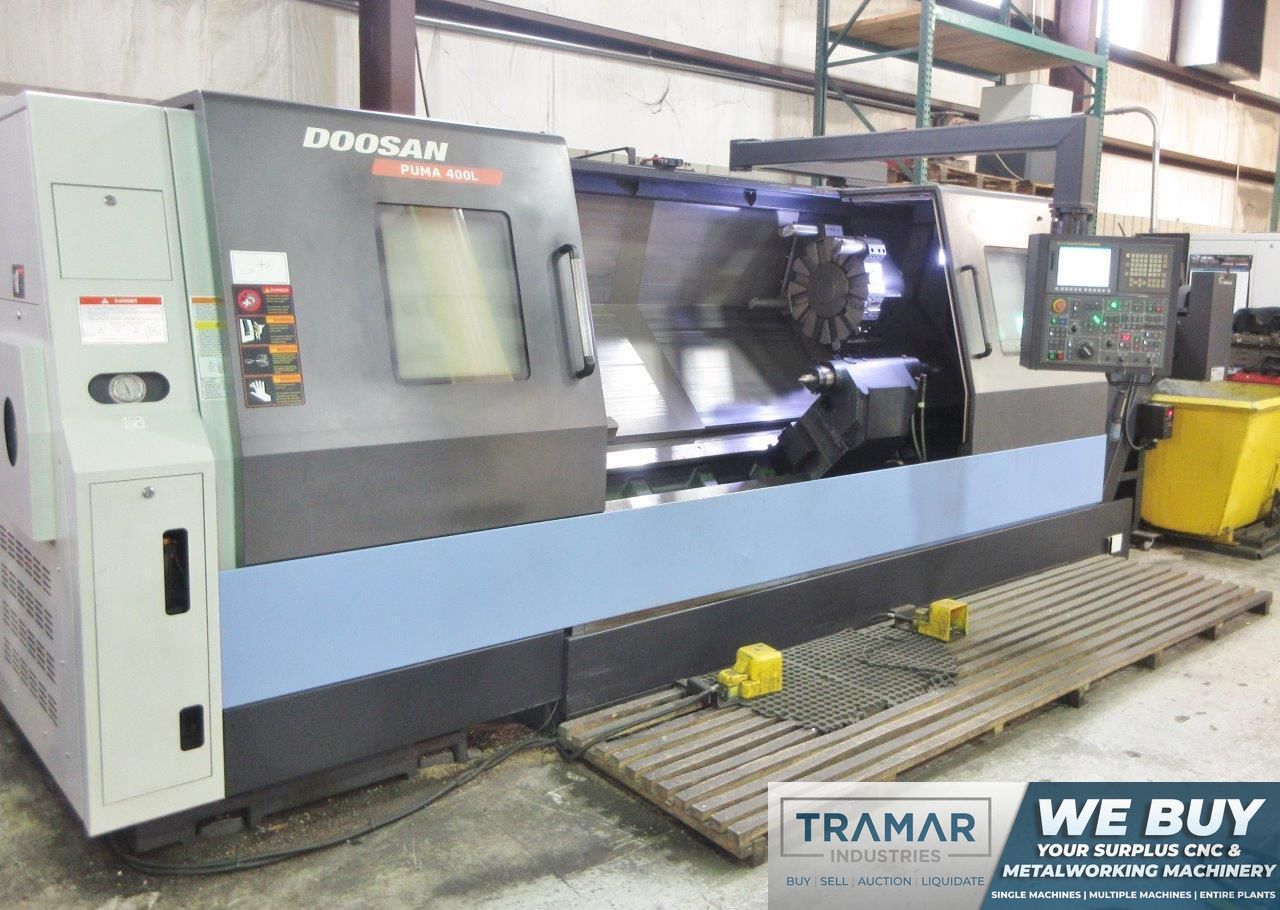

2012 Doosan Puma 400LC  CNC Horizontal Lathe
Machine Specifications
Year
2012
Control Type
Fanuc 0i-TD
# Axis
2
Swing
30.3"
Turning Diameter
21.7"
Center Distance
81.7"
Chuck Size
21"
Bar Capacity
6.5"
X Axis Travel
14.1"
Z Axis Travel
84.8"
Spindle Nose
A2-15
Spindle Speed (RPM)
1,500
Main Motor
50 hp
Turret Capacity
12
Tailstock
yes
Live Tooling
no
Sub Spindle
no
Y Axis
no

Equipped With:

- Fanuc 0i-TD Control

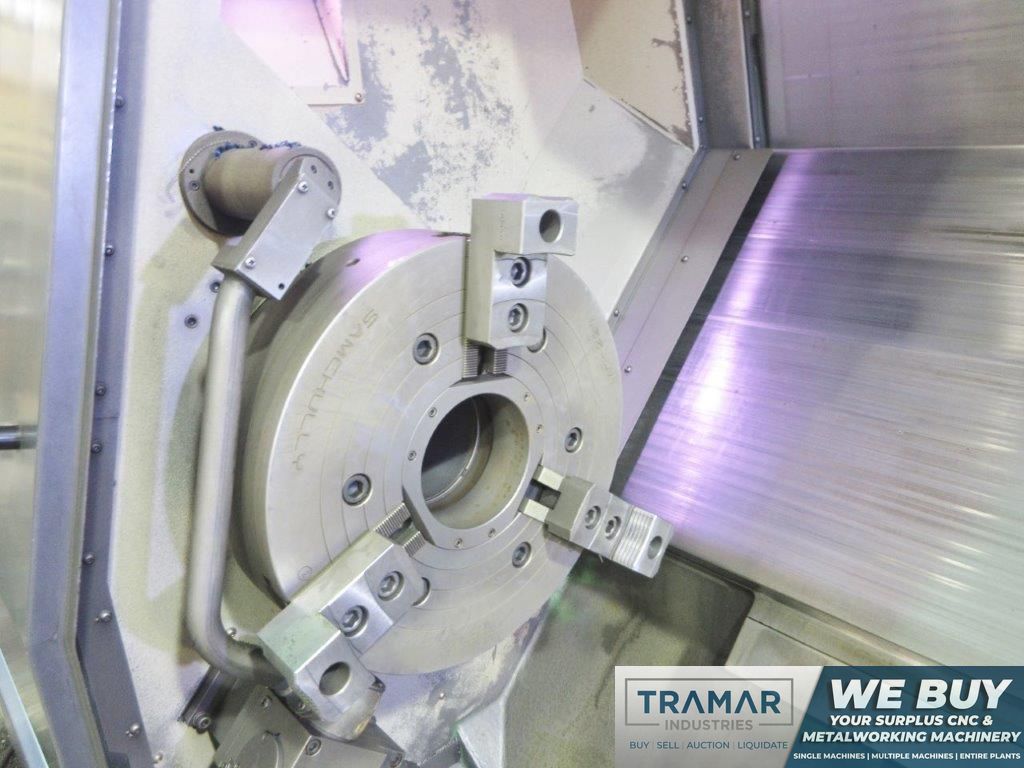

- 21" Samchully MH-221 Hydraulic Chuck
- Tailstock
- Tool Presetter
- Chip Conveyor
- Coolant Tank
- Gear Box
- Box Ways

The Doosan Puma 400LC is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
