Hankook Protec 11NF - Horizontal Lathes

Share Machine
Specifications Print Specs
Model: Protec 11NF
Year: 2012
Stock #: 12949 Sold
Highlights:

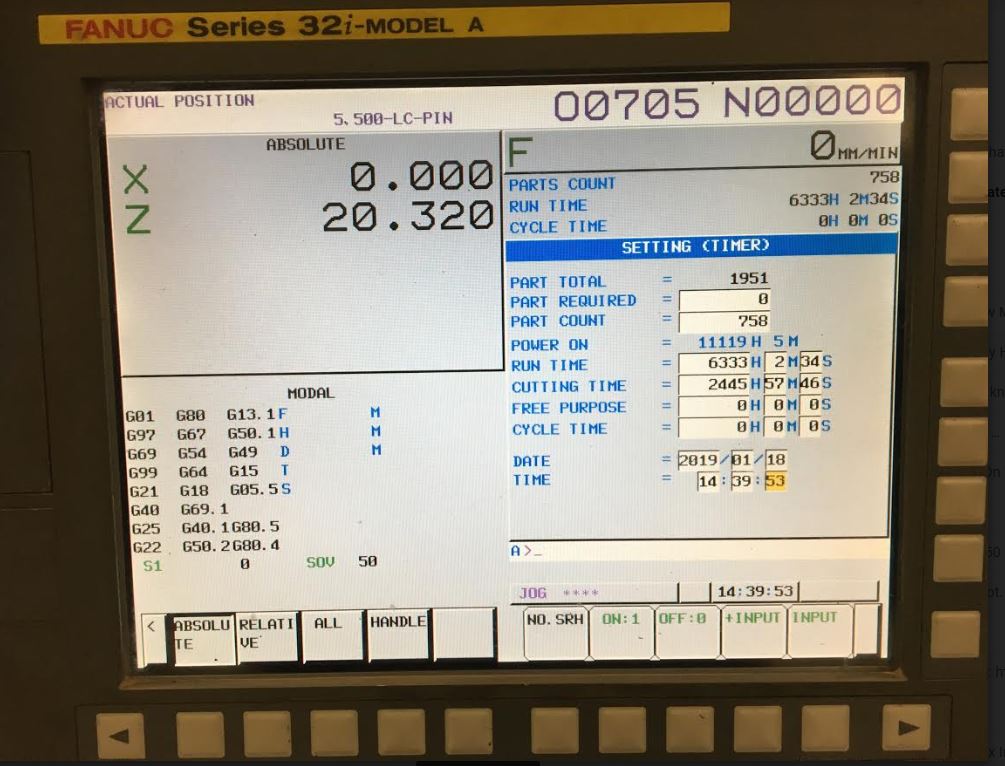

Fanuc 32i-Model A Control

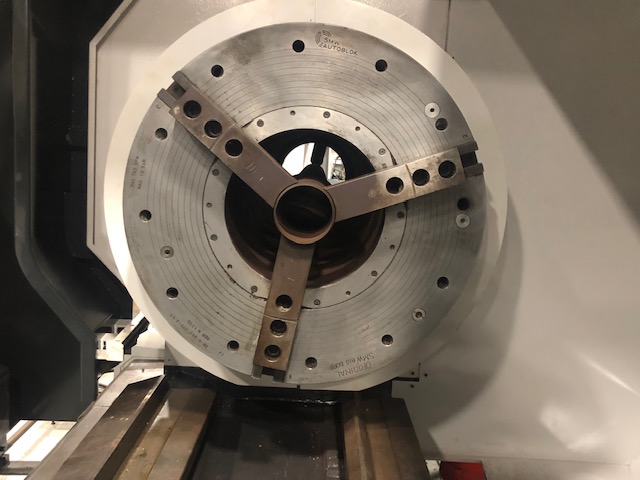

33" Front & Rear SMW 3-Jaw Chuck
15" Big Bore Option

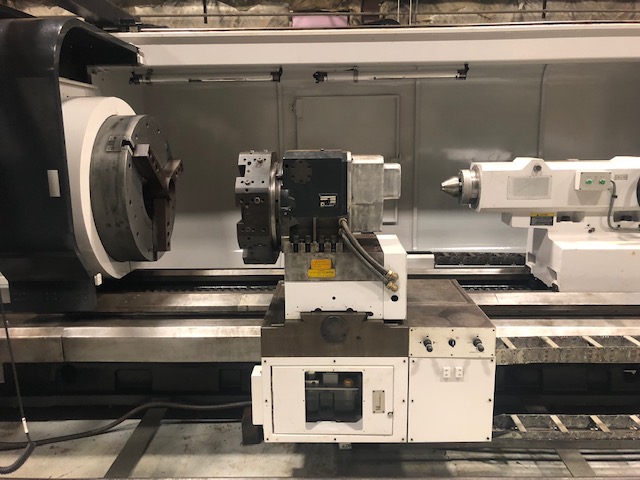

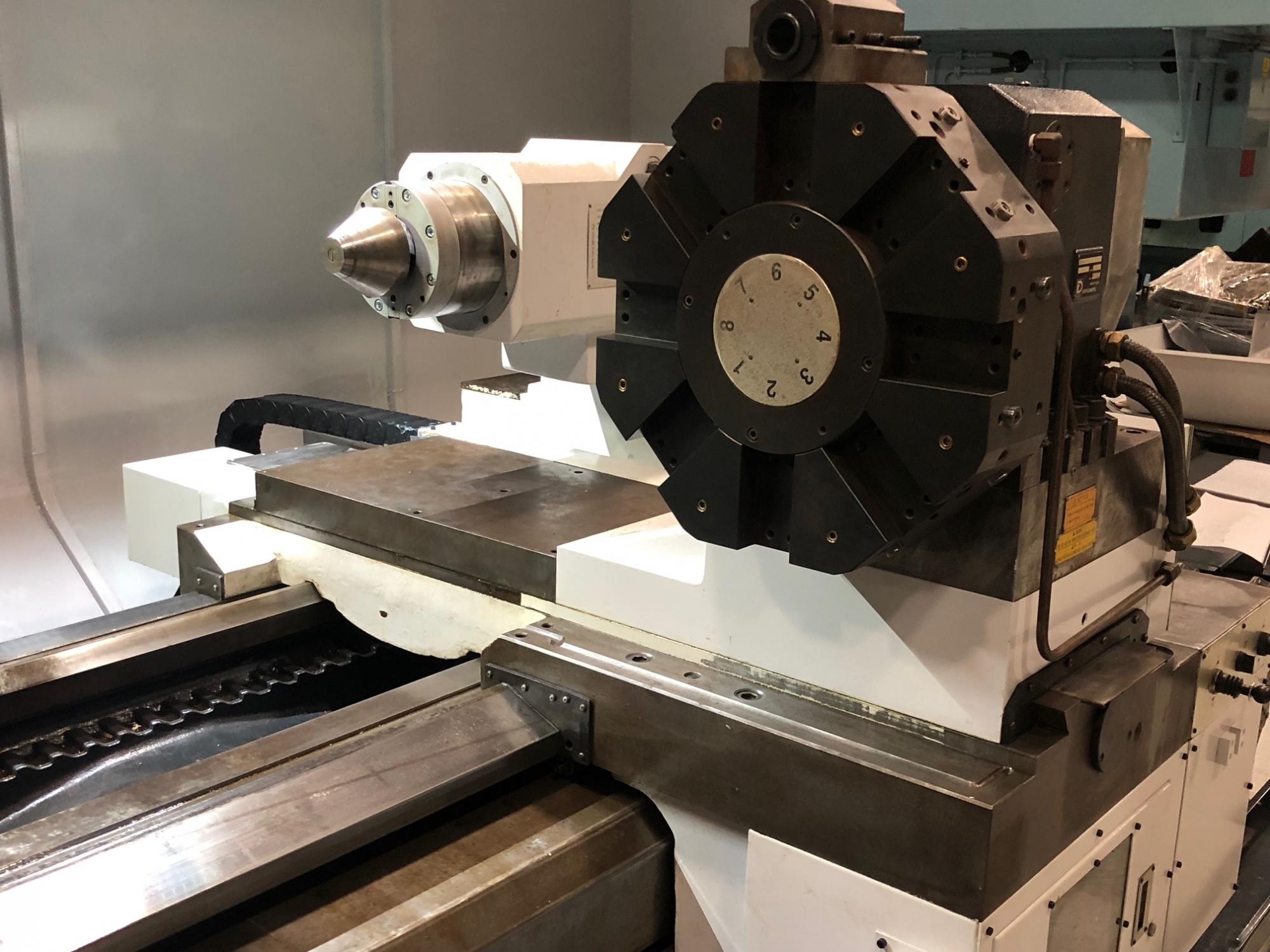

8 Station Duplomatic Turret

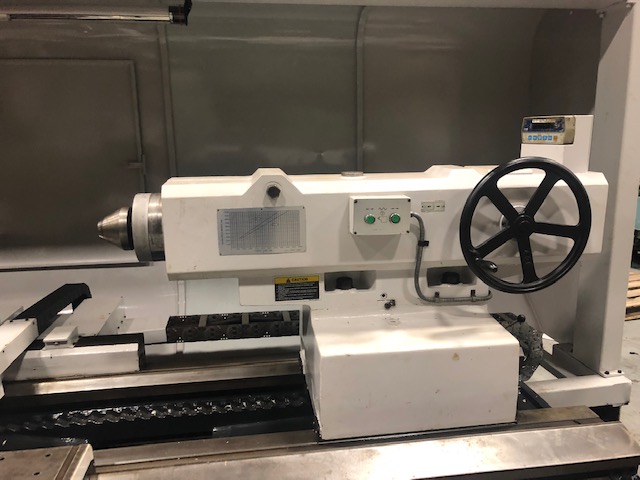

Heavy Duty Tailstock

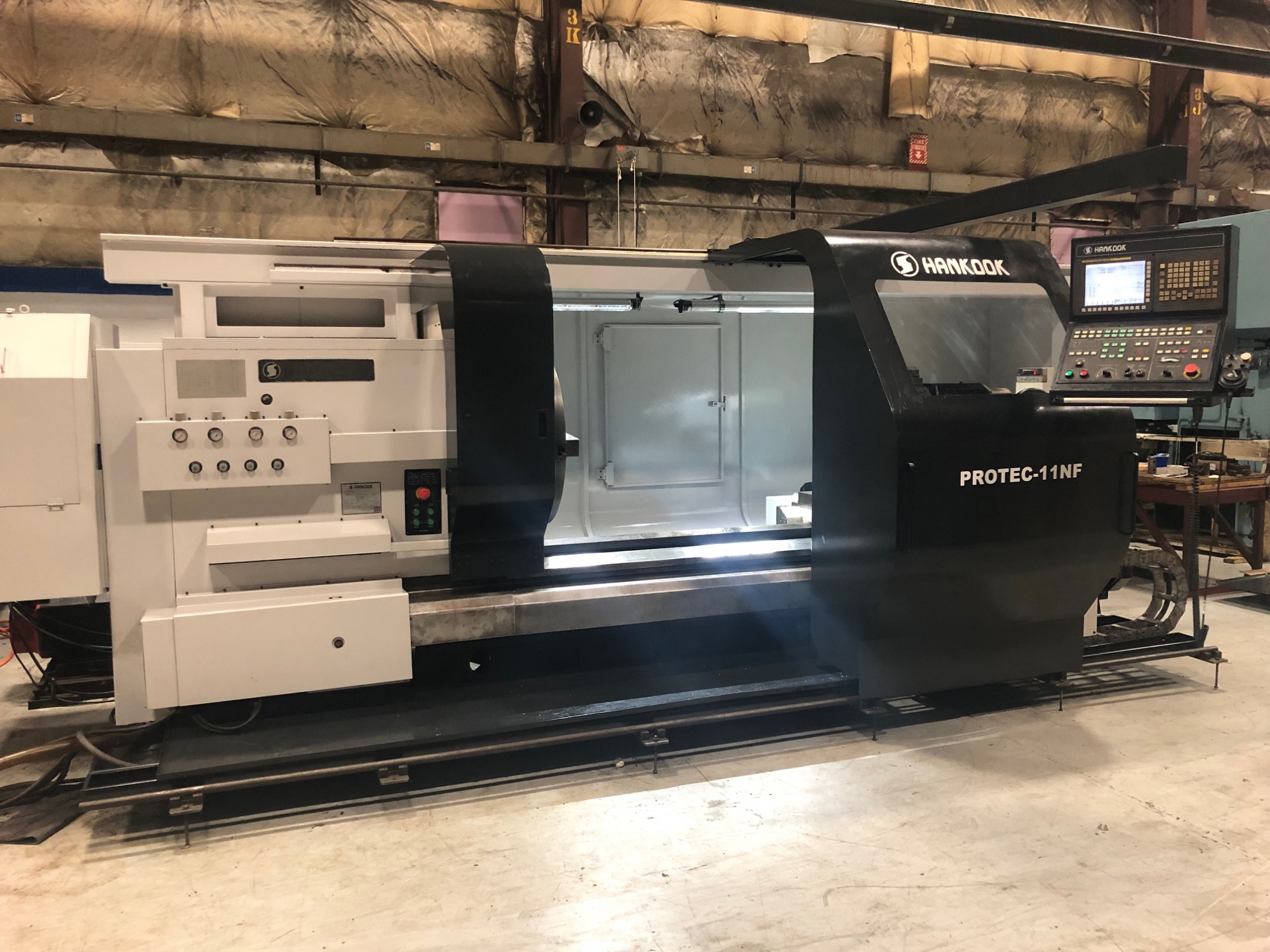

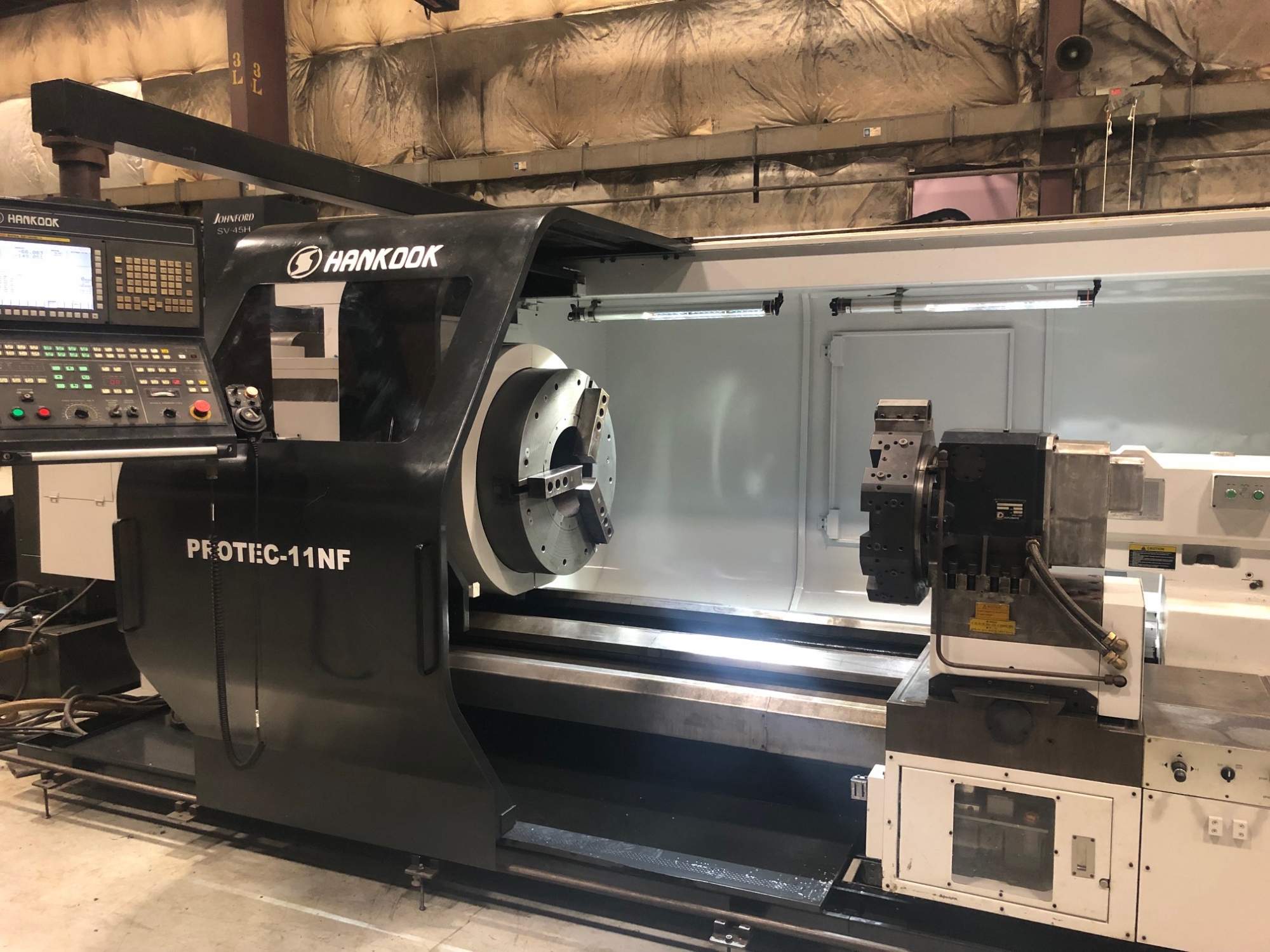

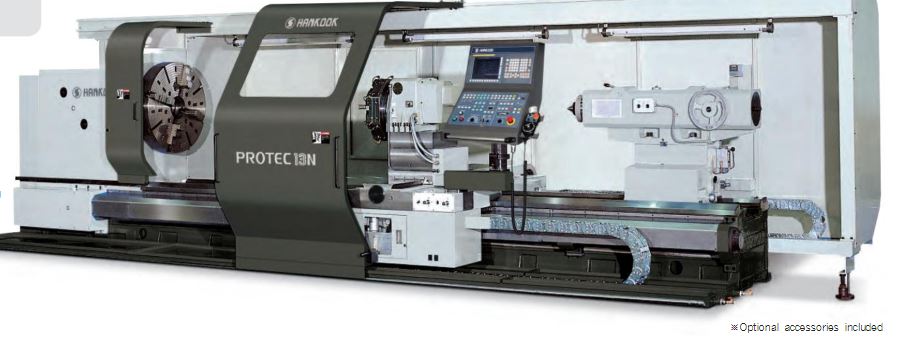

2012 HANKOOK Protec 11NF - CNC Horizontal Lathe
Machine Specifications
CNC Control
yes
Control Type
Fanuc 32i Model A
Chuck Size
33"
Swing
43.3"
Turning Diameter
43.3"
Center Distance
78.7"
Bar Capacity
15"
X Axis Travel
24.4"
Z Axis Travel
79"
Rapid Traverse (X/Z)
157 IPM
Spindle Speed (RPM)
400
Main Motor
50 HP
Tailstock
yes
Y Axis
no

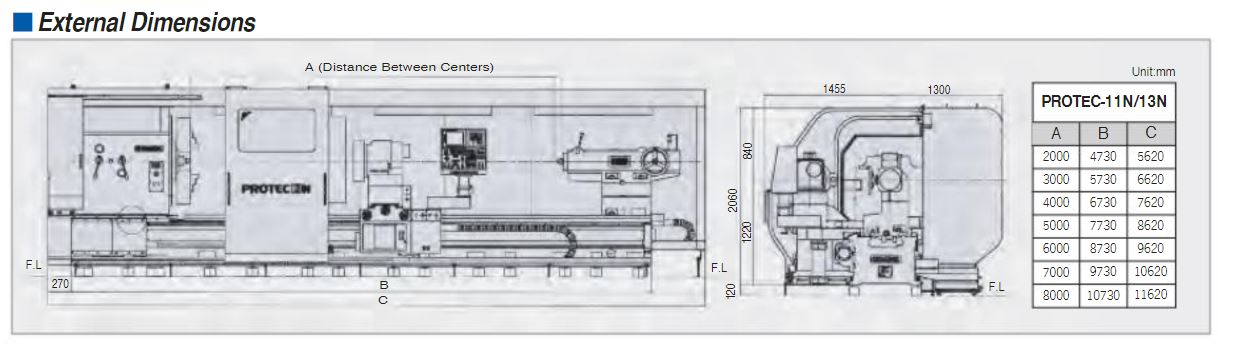

Dimensions
222" x 109" x 82"
Weight
30,000 pounds
Live Tooling
no
Sub Spindle
no
# Axis
2

Equipped With:

- Fanuc 32i-Model A Control
- Chip Conveyor
- Coolant Tank

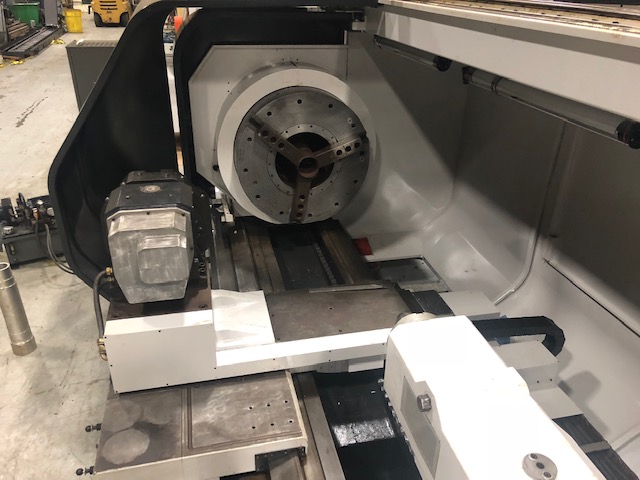

- 33" SMW 3-Jaw Chuck
    * Model BB-N-850-375-3-ES
- 15" Big Bore Option
- 33" 4 Jaw Manual Rear Chuck
- Tailstock
- Available Manuals


The Hankook Protec 11NF is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
