Hankook Proturn 60B - Horizontal Lathes

Request Quote
Share Machine
Specifications Print Specs
Model: Proturn 60B
Year: 2012
Stock #: 12942
Highlights:

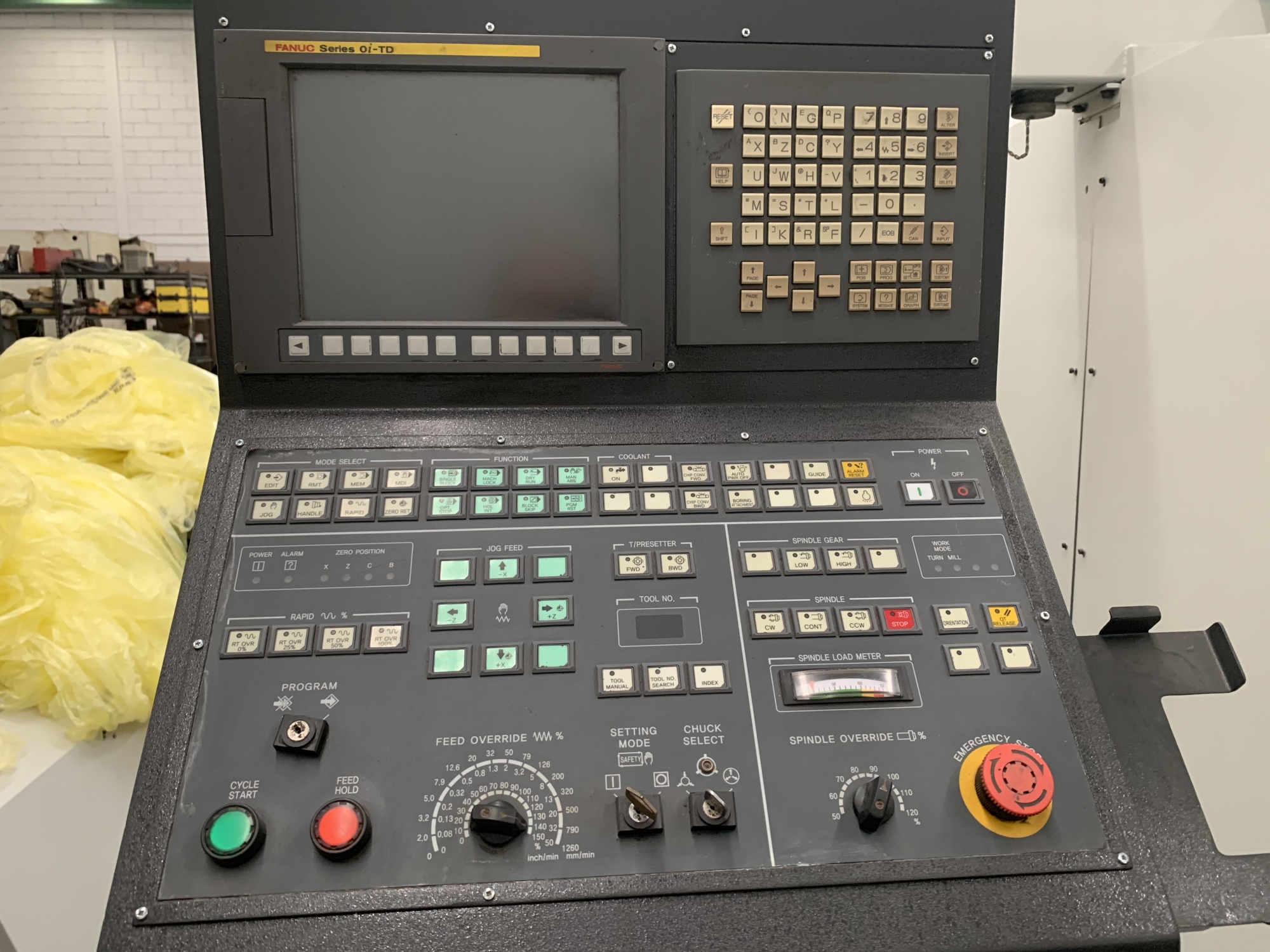

Fanuc 0i-TD Control

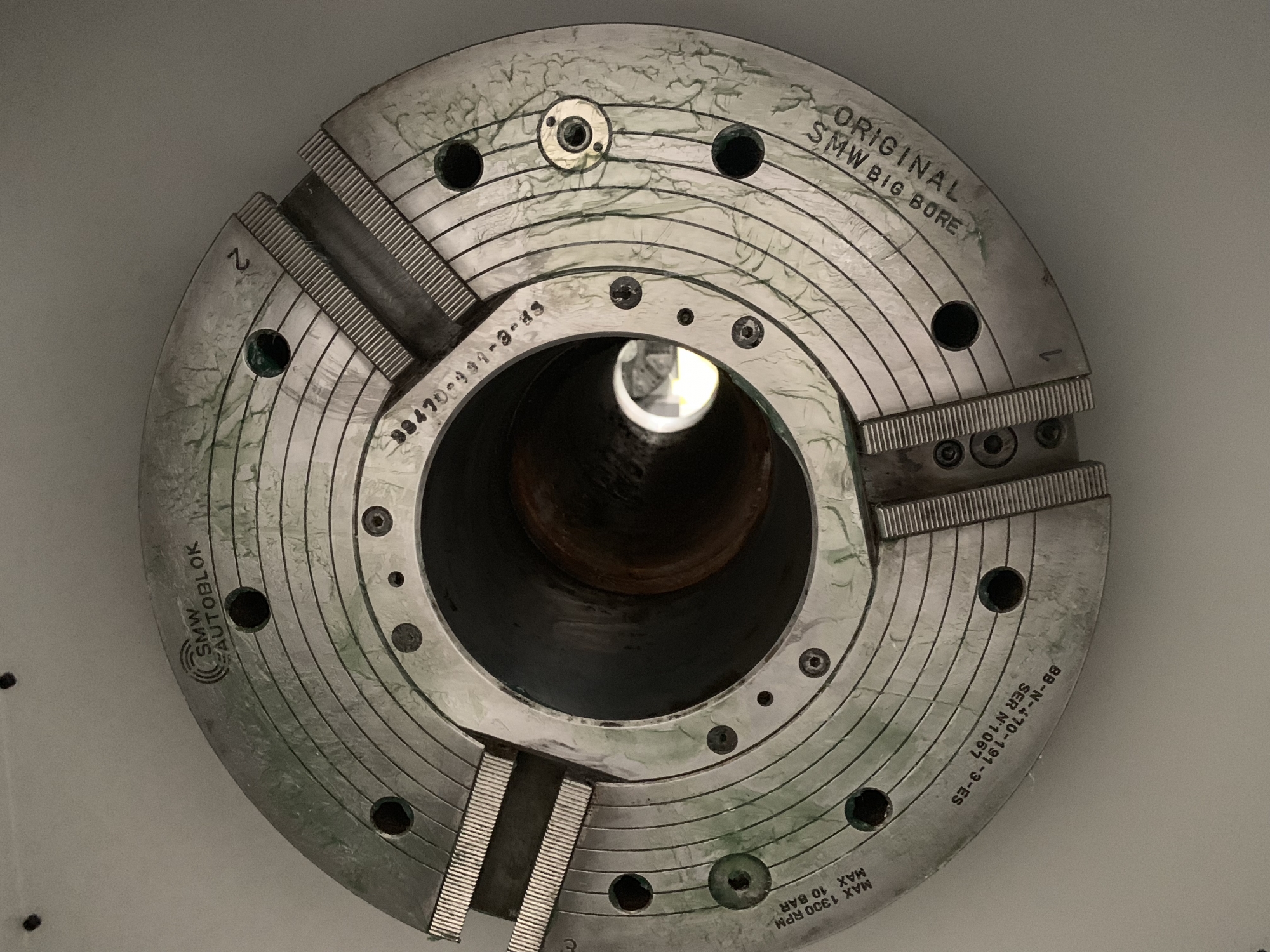

18" SMW Autoblok Neumatic Chucks (Front & Rear)
Automatic H4 Tool Post
8 Station Duplomatic Turret

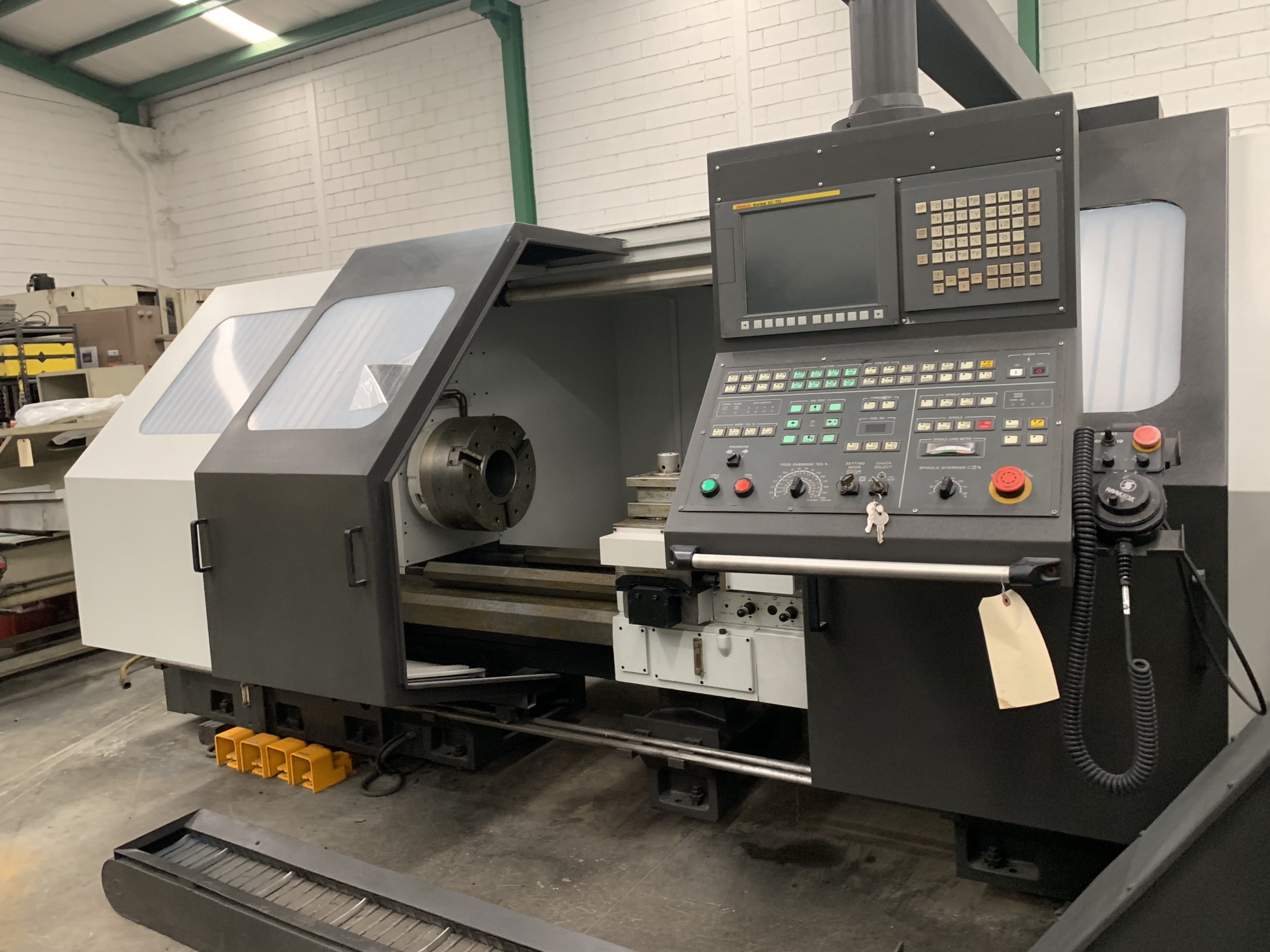

2012 HANKOOK Proturn 60B - CNC Horizontal Lathe
Machine Specifications
CNC Control
yes
Control Type
Fanuc 0i-TD
Chuck Size
18"
Swing
27.9"
Turning Diameter
23.6"
Center Distance
66.9"
Bar Capacity
6.9"
X Axis Travel
14.9"
Z Axis Travel
63"
Rapid Traverse (X/Z)
240 IPM
Spindle Speed (RPM)
1,000
Main Motor
30 HP
Turret Capacity
8
Tailstock
no
Weight
14,500 pounds
Sub Spindle
no
# Axis
2

Equipped With:

- Fanuc 0i-TD Control
- Chip Conveyor
- Coolant Tank
- 3 Jaw SMW 18" Front & Rear Chucks
     * Model BB-N-470-191-3-ES
- Horizontal (4) Position Tool Post
- Duplomatic 8 Station Turret
- Available Manuals

The Hankook Proturn 60B is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
