Hyundai WIA L200SY - Horizontal Lathes

Model: L200SY
Year: 2012
Stock #: 13151 Sold
Highlights:

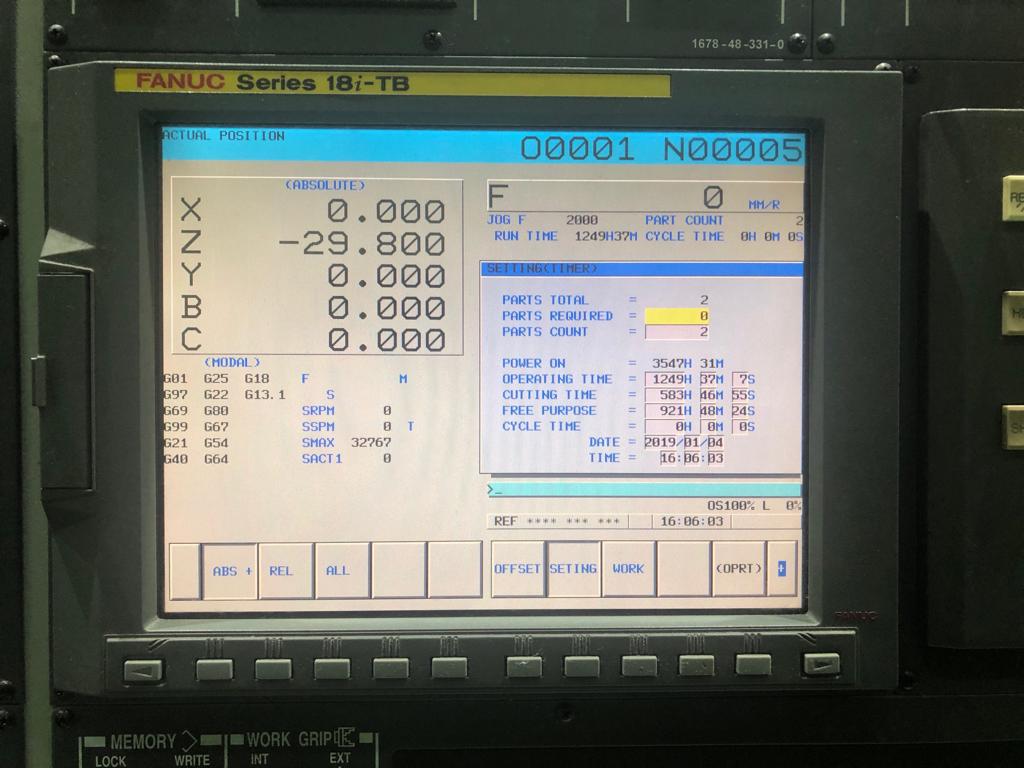

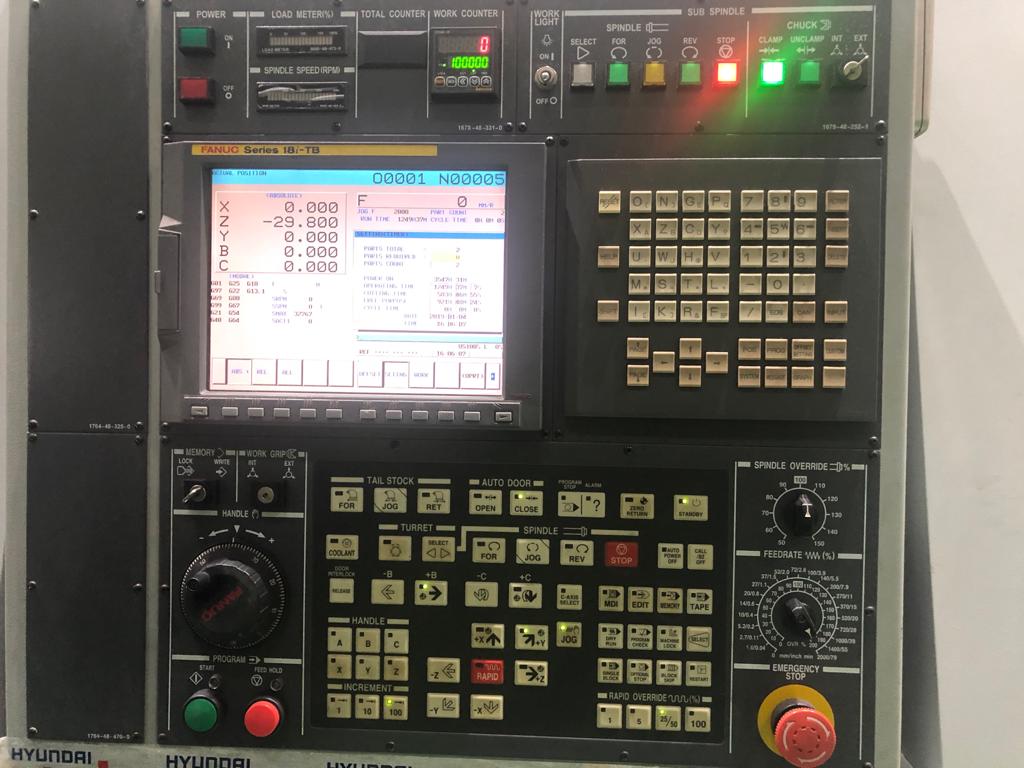

Fanuc 18i-TB CNC Control
Live Tooling | Y Axis
Sub Spindle
Parts Catcher
Tool Presetter

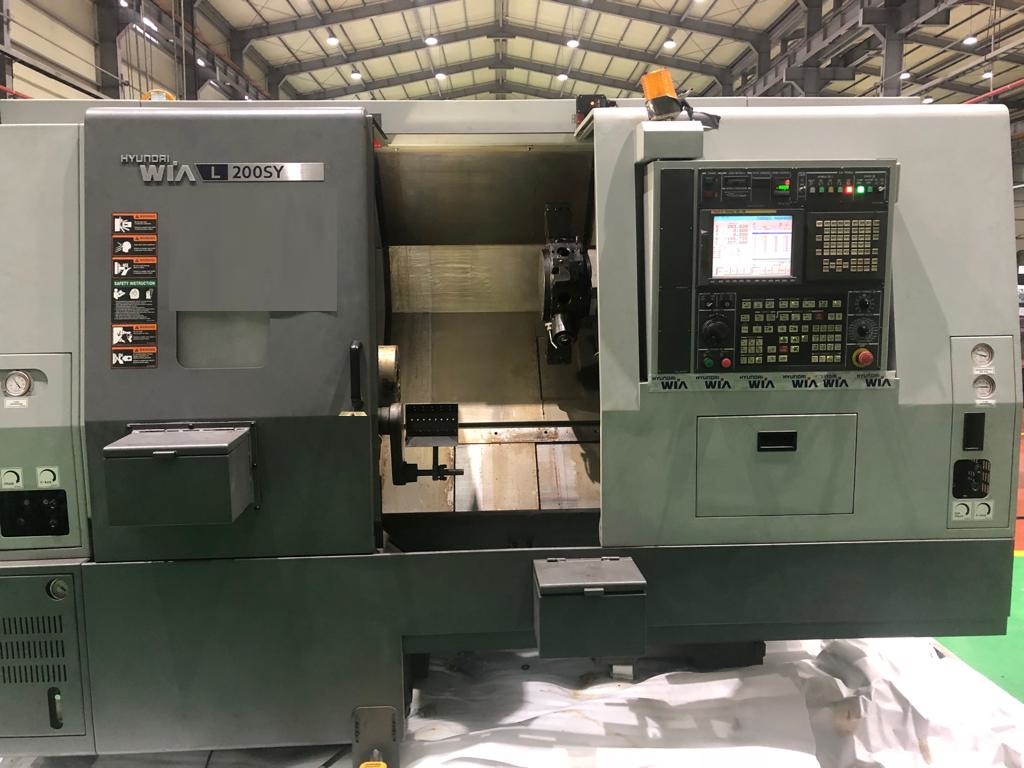

2012 HYUNDAI WIA L200SY - CNC Horizontal Lathe
Machine Specifications
Year
2012
Control Type
Fanuc 18i-TB
Chuck Size
8"
Swing
21.7"
Turning Diameter
9.4"
Center Distance
20.84"
Bar Capacity
2.6"
X Axis Travel
8.7"
Z Axis Travel
21.7"
Spindle Speed (RPM)
4,000
Main Motor
20 HP

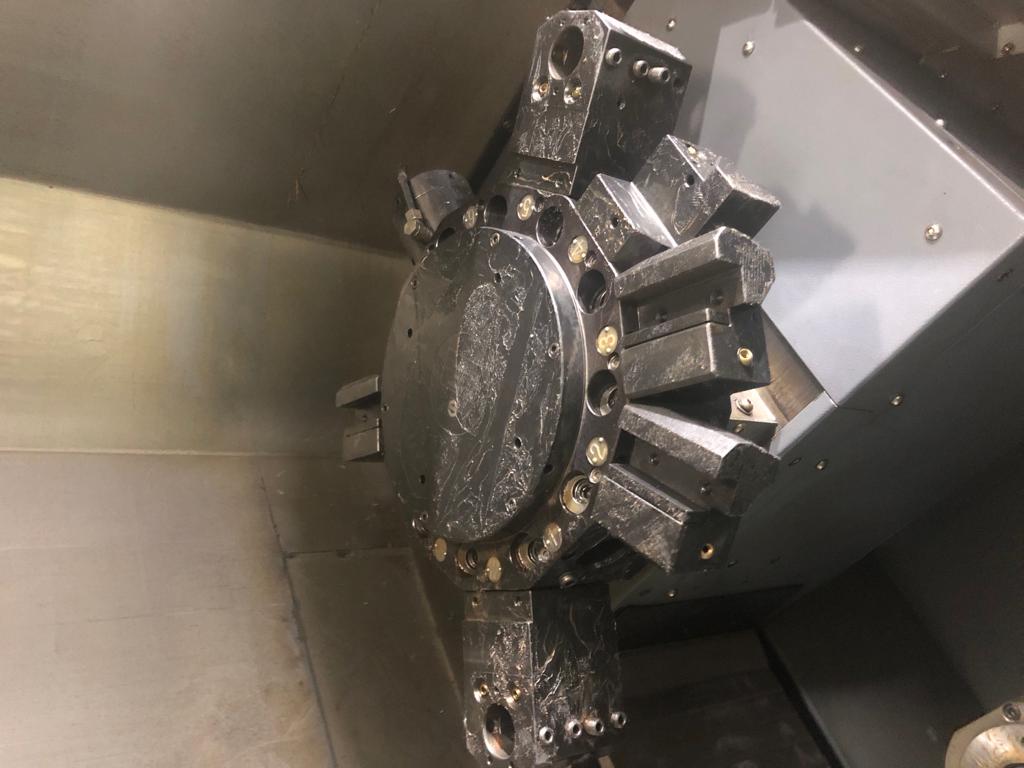

Turret Capacity
12
Tailstock
no
Y Axis
yes

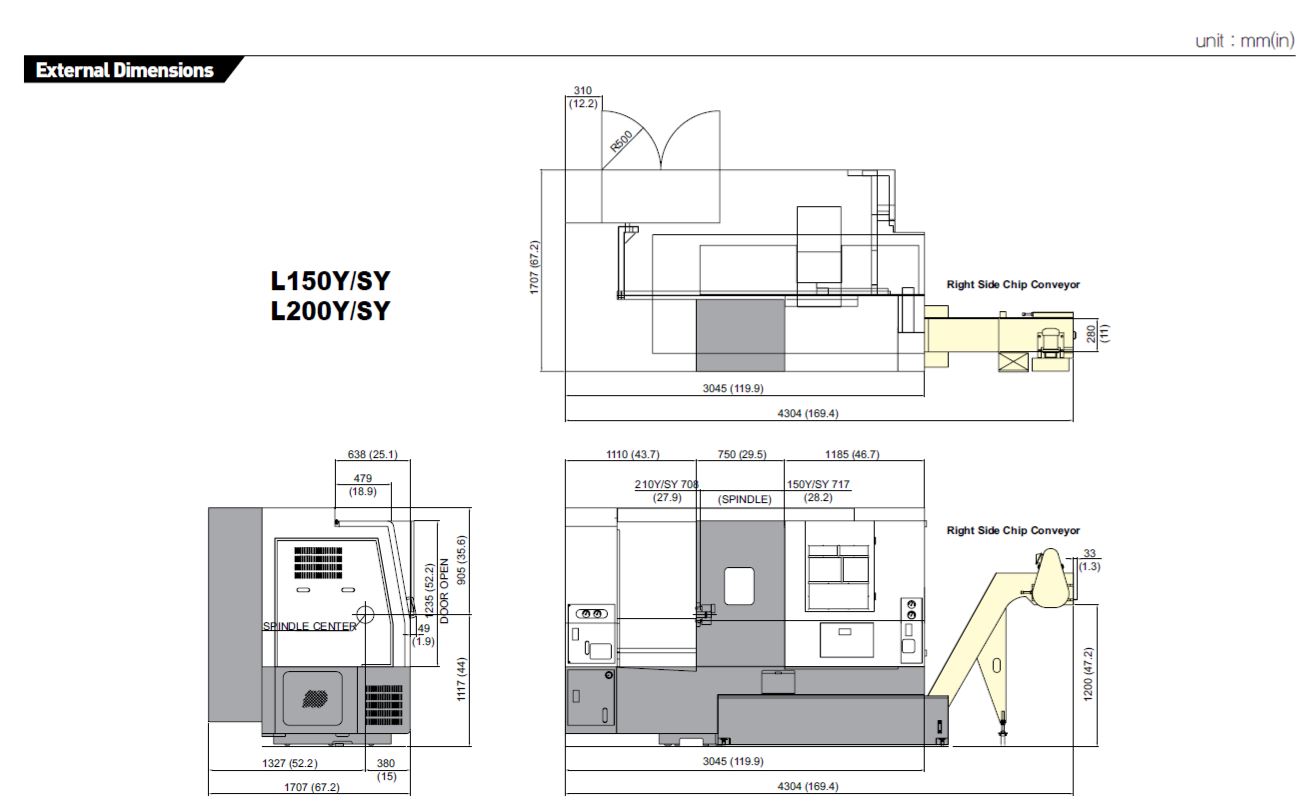

Dimensions
120" x 68" x 80"
Weight
10,500 pounds
Live Tooling
yes
Sub Spindle
yes
# Axis
5

Equipped With:

- Fanuc 18i-TB CNC Control
- Chip Conveyor

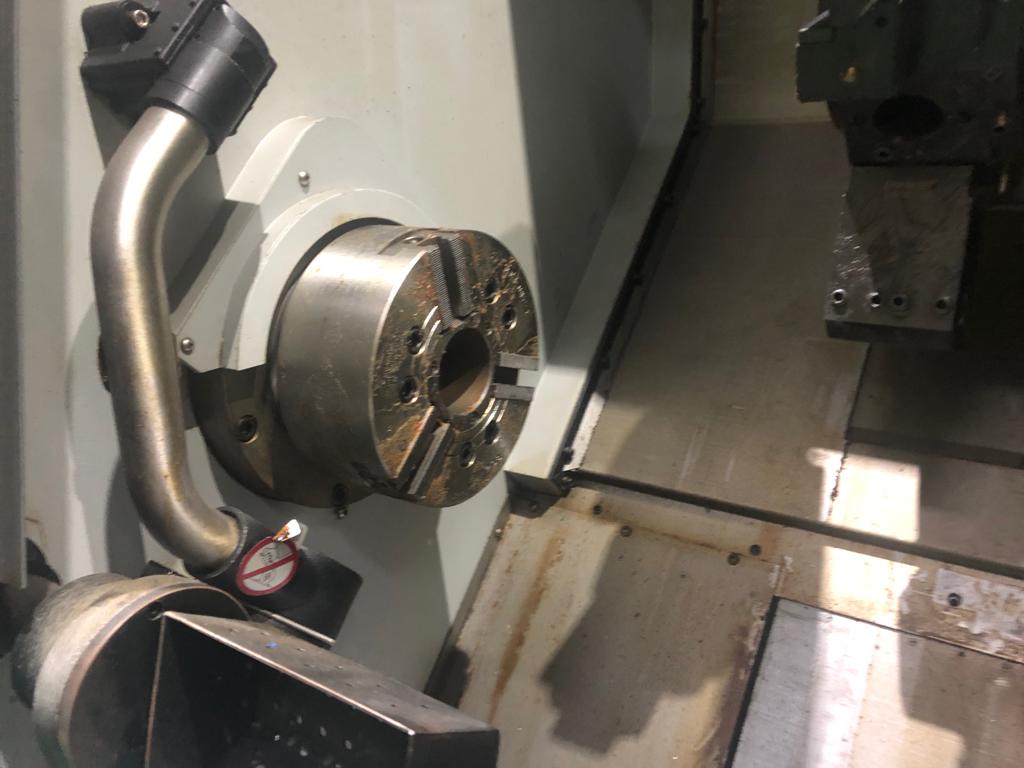

- 8" Chuck Main
- Coolant Tank & Pump
- Live Tooling

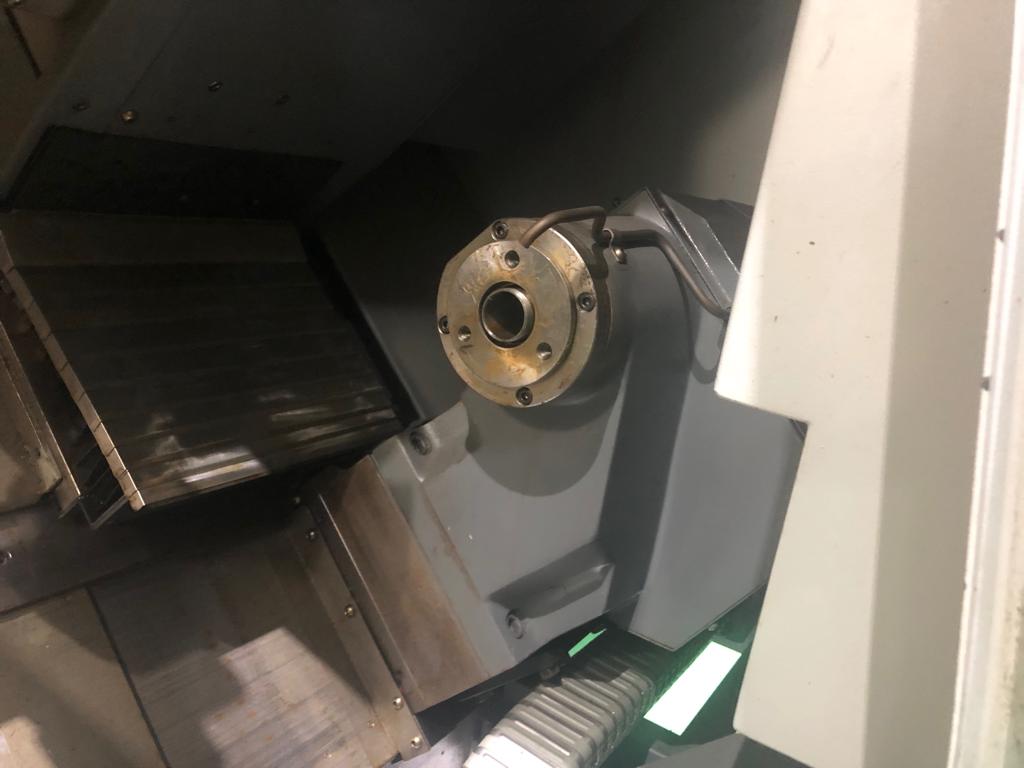

- Sub Spindle
- Y Axis
- Parts Catcher
- Tool Presetter
- Available Manuals

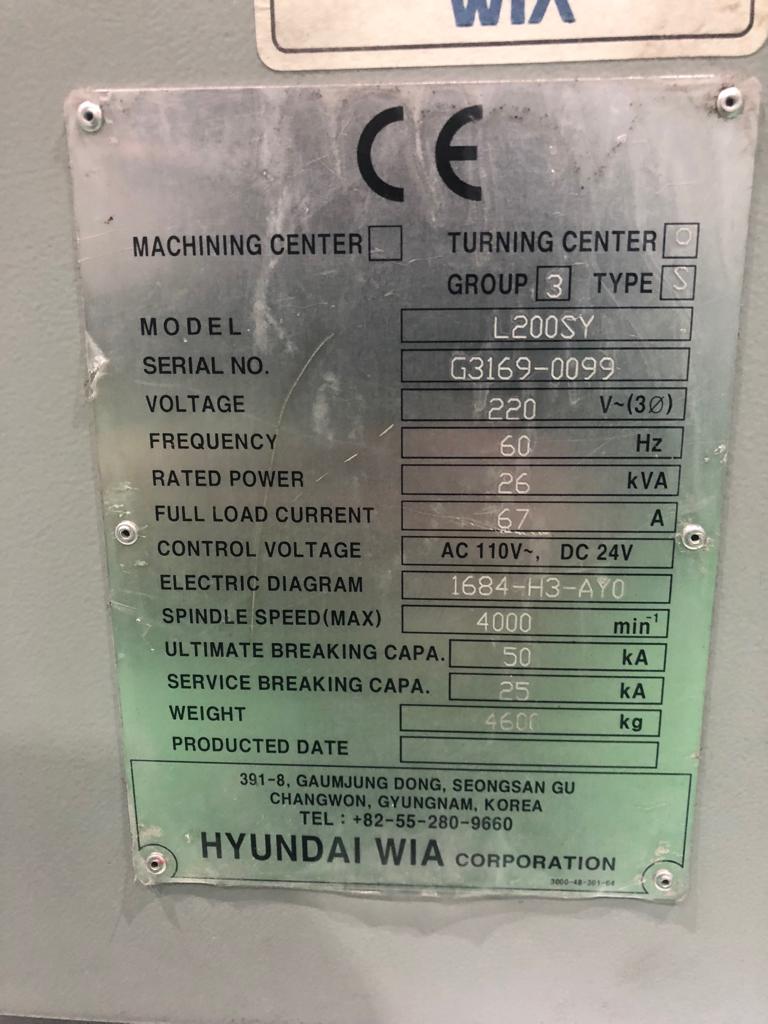

- 3 Phase | 60 Hz | 26 kVa | 220V







Bar Capacity 2.6
C Axis Index 0.001��
Center Distance 20.87
Chuck Size 8
Control Fanuc 18i-TB
Floor Space 170 x 68 x 80
Live Tooling Yes
Live Tooling Speed 4000
Machine Dimensions 120 x 68 x 80
Machine Weight 10500
Number of Axes 5
Rapid Traverse (B) 787
Rapid Traverse (X) 787
Rapid Traverse (Y) 394
Rapid Traverse (Z) 945
Spindle Motor 20
Spindle Nose A2-6
Spindle Speed 4000
Sub Spindle Yes
Sub Spindle Bar Capacity 1.3
Sub Spindle Chuck 5
Sub Spindle Motor 5
Sub Spindle Speed 6000
Swing 21.7
Tailstock (Y/N) No
Travel (B) 29.5
Travel (X) 8.7
Travel (Y) 3.1
Travel (Z) 21.7
Turning Diameter 9.4
Turret Stations 12
Y Axis Yes

The Hyundai WIA L200SY is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
