Kellenberger Kel-Vita R175/1000 - Cylindrical Grinders (Universal)

Request Quote
Share Machine
Specifications Print Specs
Model: Kel-Vita R175/1000
Year: 2012
Stock #: 15349
Highlights:

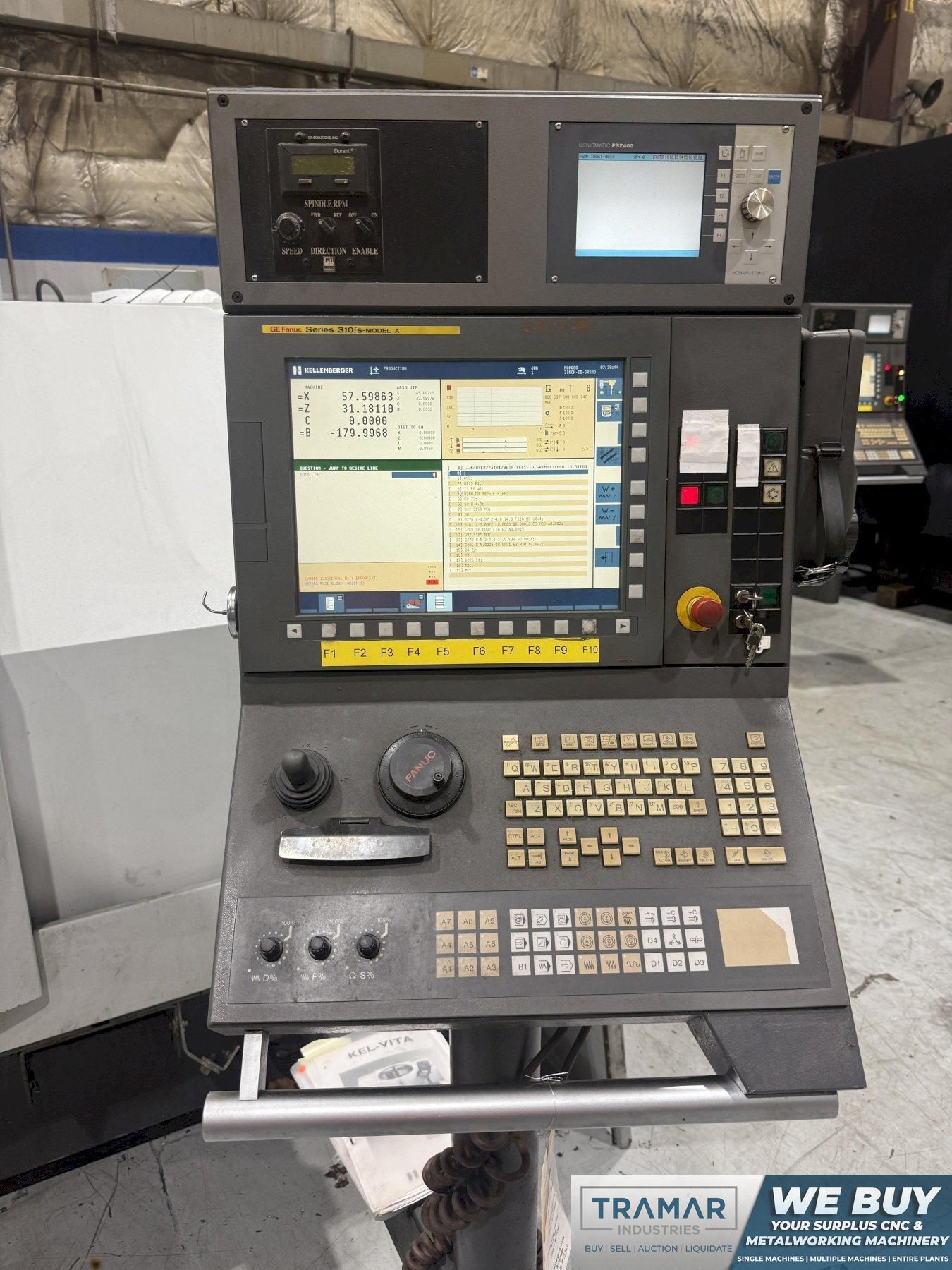

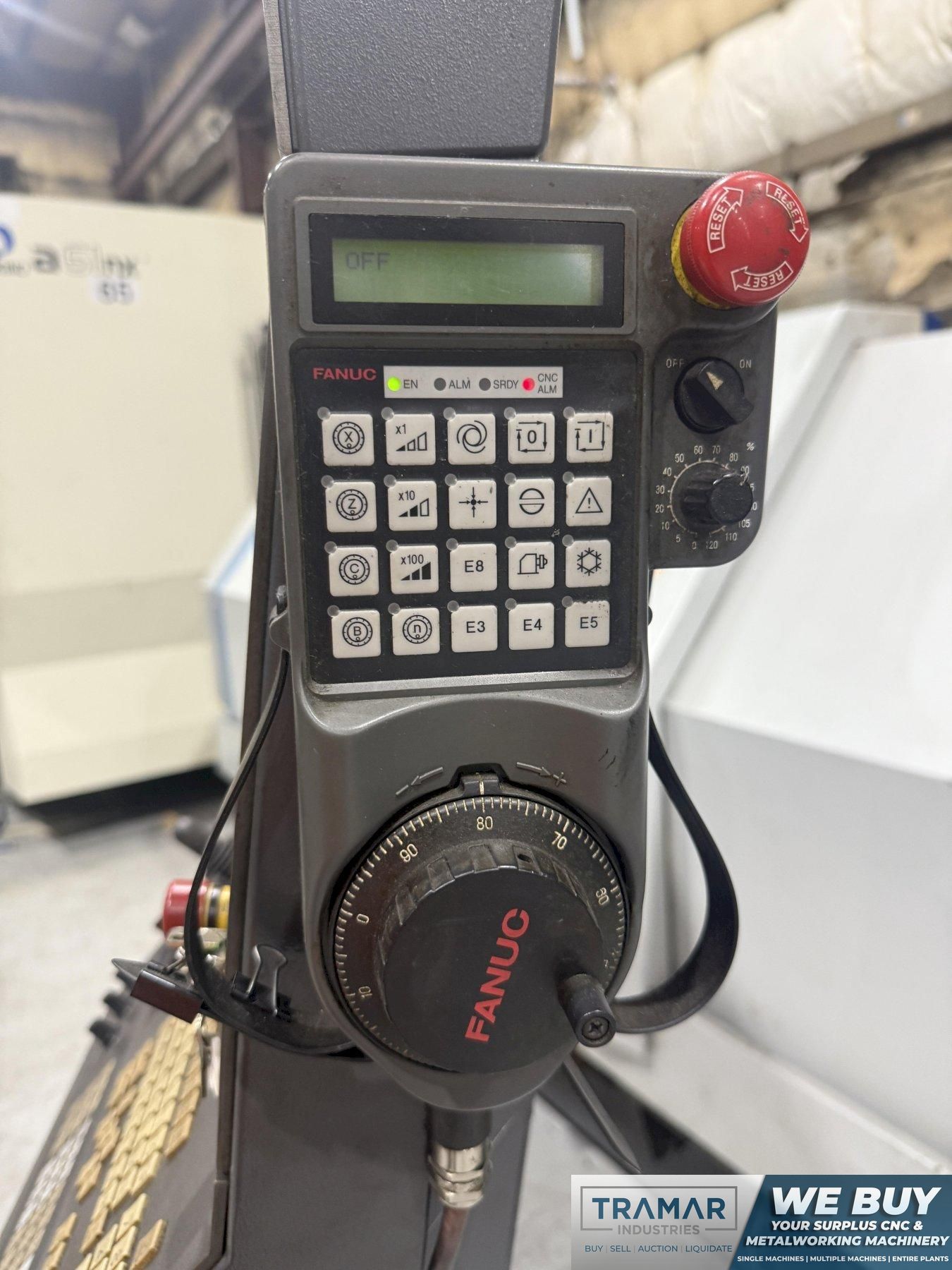

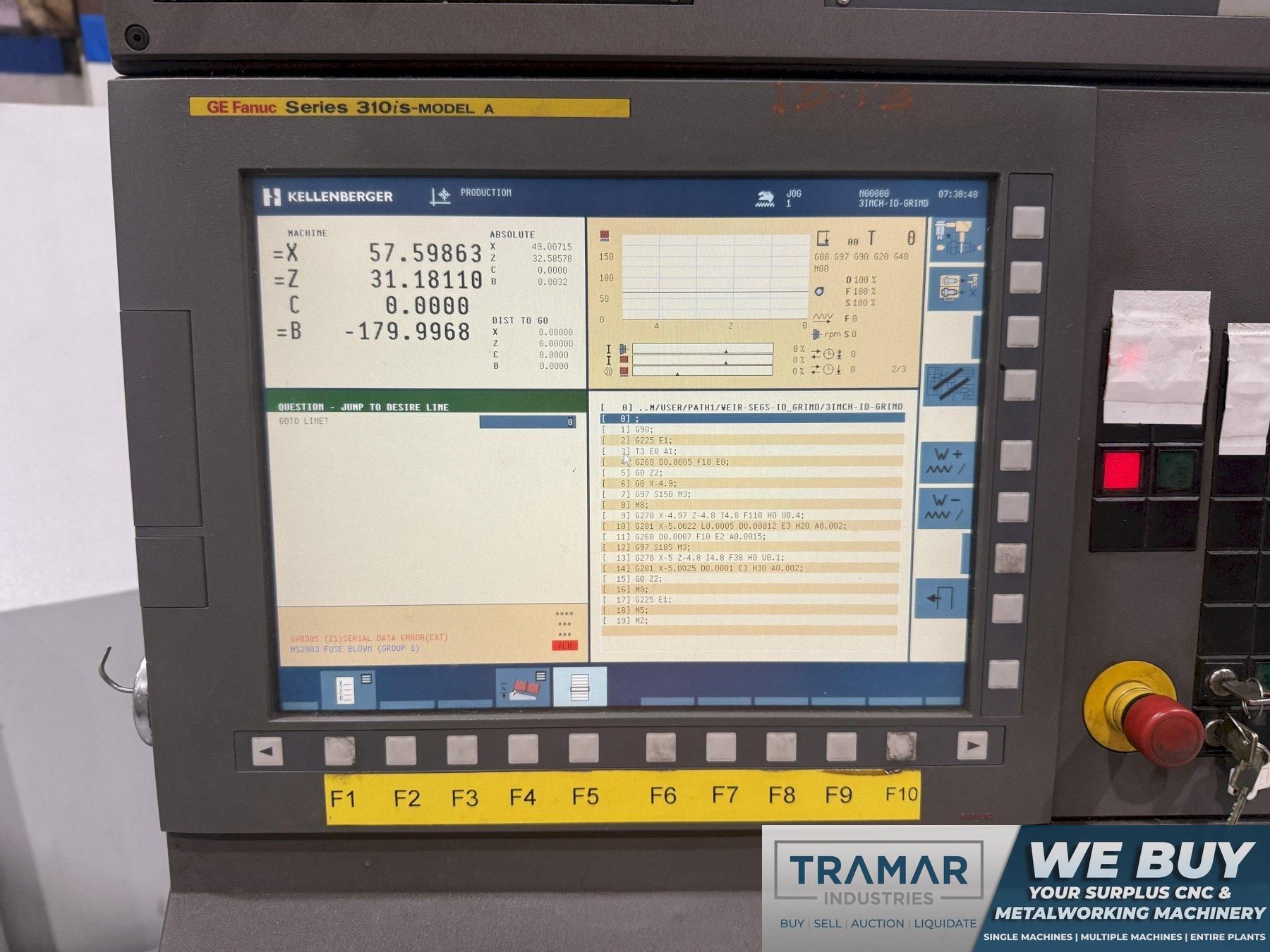

Fanuc 310is-Model A CNC Control

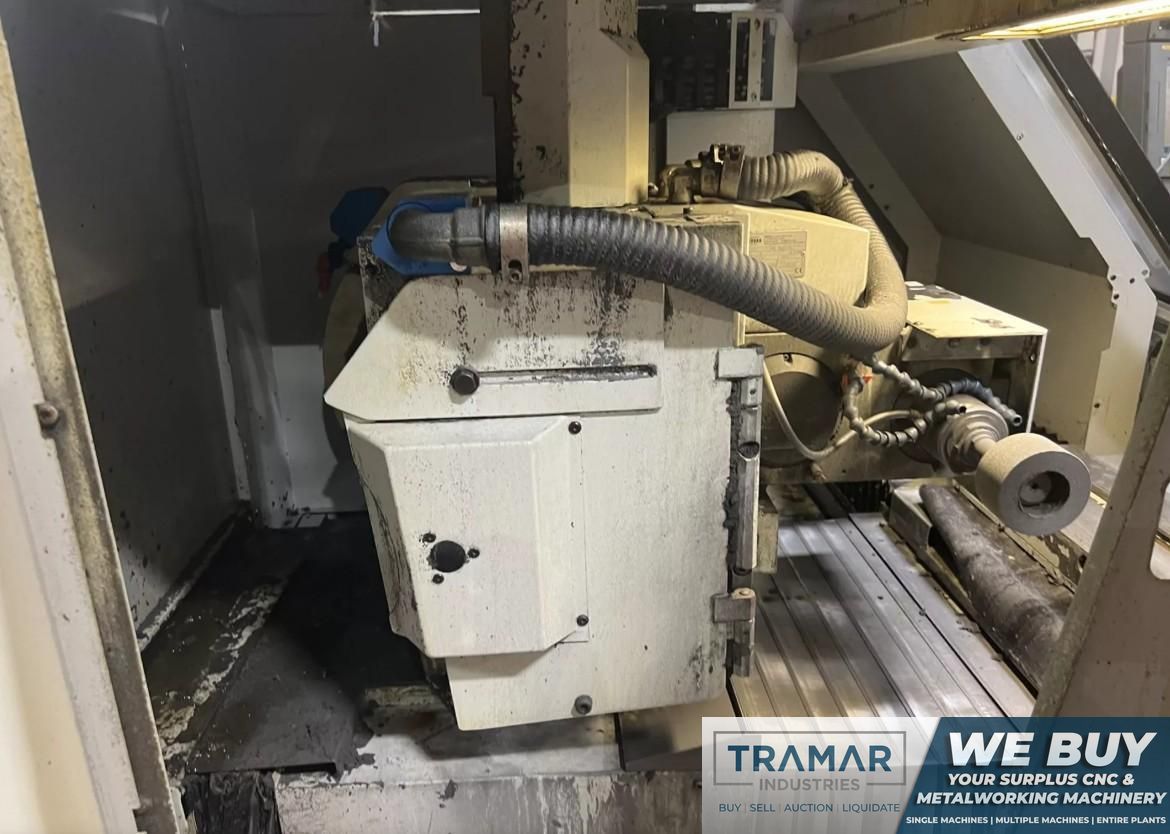

B-axis Swiveling Wheelhead
(2) OD Spindles | (1) ID Spindle
Tailstock

2012 Kellenberger Kel-Vita UR175/1000 Used CNC OD/ID Cylindrical Grinder For Sale
Machine Specifications
CNC Control
yes
Control Type
Fanuc 310is-Model A
Swing
13.78"
Center Distance
40"
Max Weight Between Centers
220 pounds
Grinding Wheel Dimensions
16" x 2.5" x 5"
Grinding Wheel Speed RPM
1,880 rpm
Grinding Wheel Spindle Motor
10.2 hp
Wheelhead (Angle / Straight / Universal)
Universal
Wheelhead Swivel
+90° to -190° CNC Controlled
Workhead Speed
1,000 rpm
Workhead (Live / Dead)
Live
X-Axis Travel
13.77"
Z-Axis Travel
45.27"
Internal Grinding Attachment
yes
I.D. Spindle Speed RPM
tbd
Machine Dimensions
118" x 67"
Machine Weight
11,000 pounds

Equipped With:

- Fanuc 310is-Model A CNC Control
- Automatic B-axis Wheelhead Swivel 1° Indexing

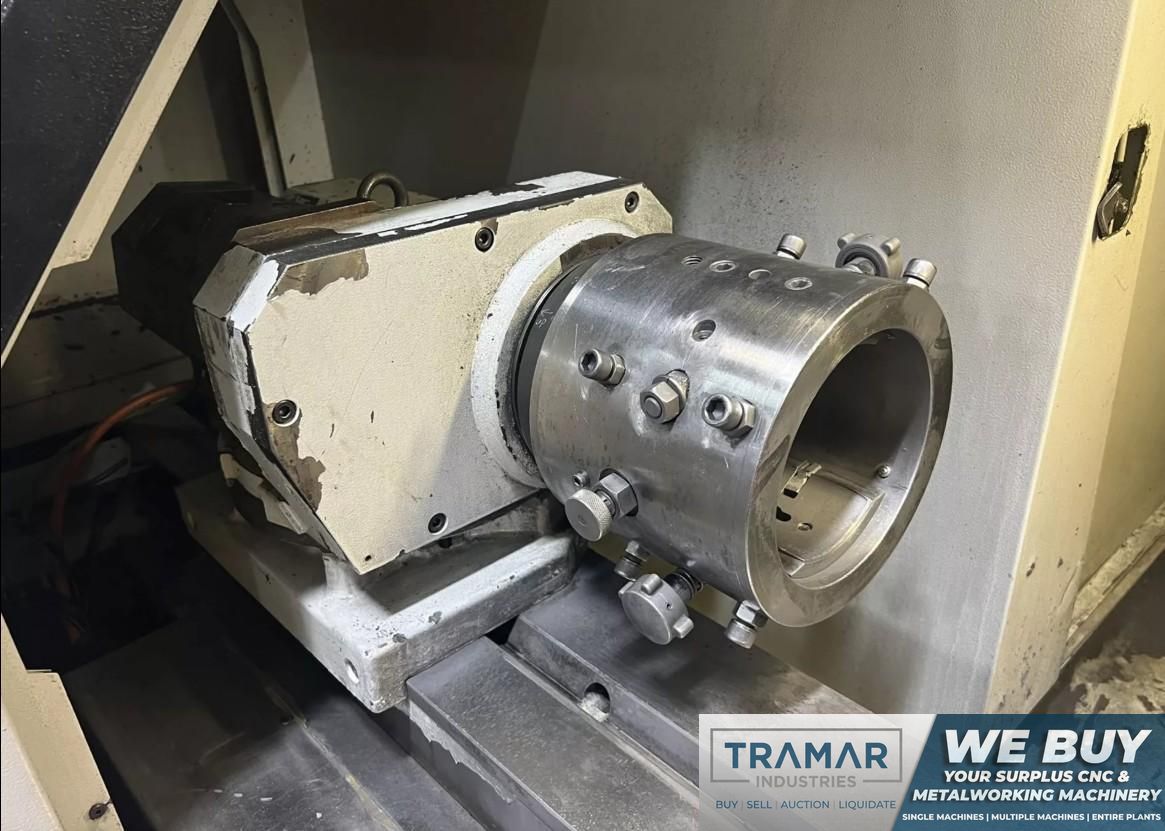

- C Axis Workhead

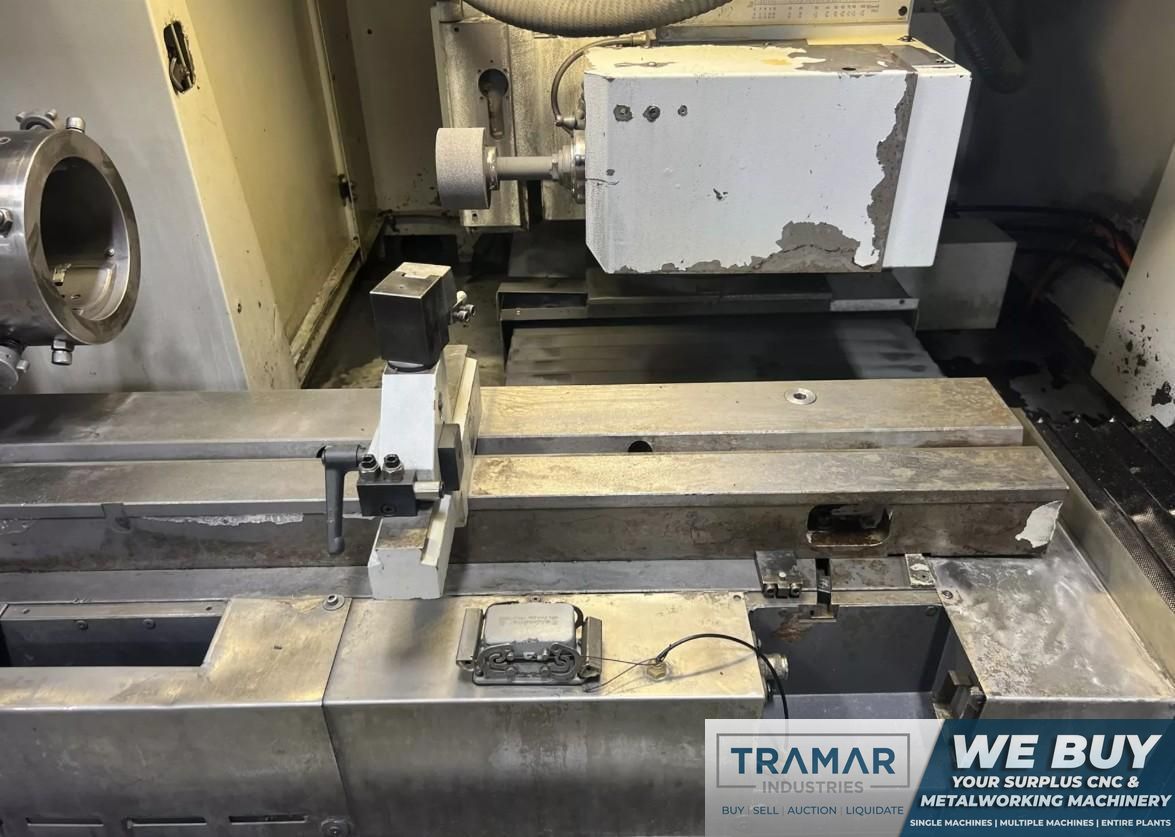

- Shoulder Gage

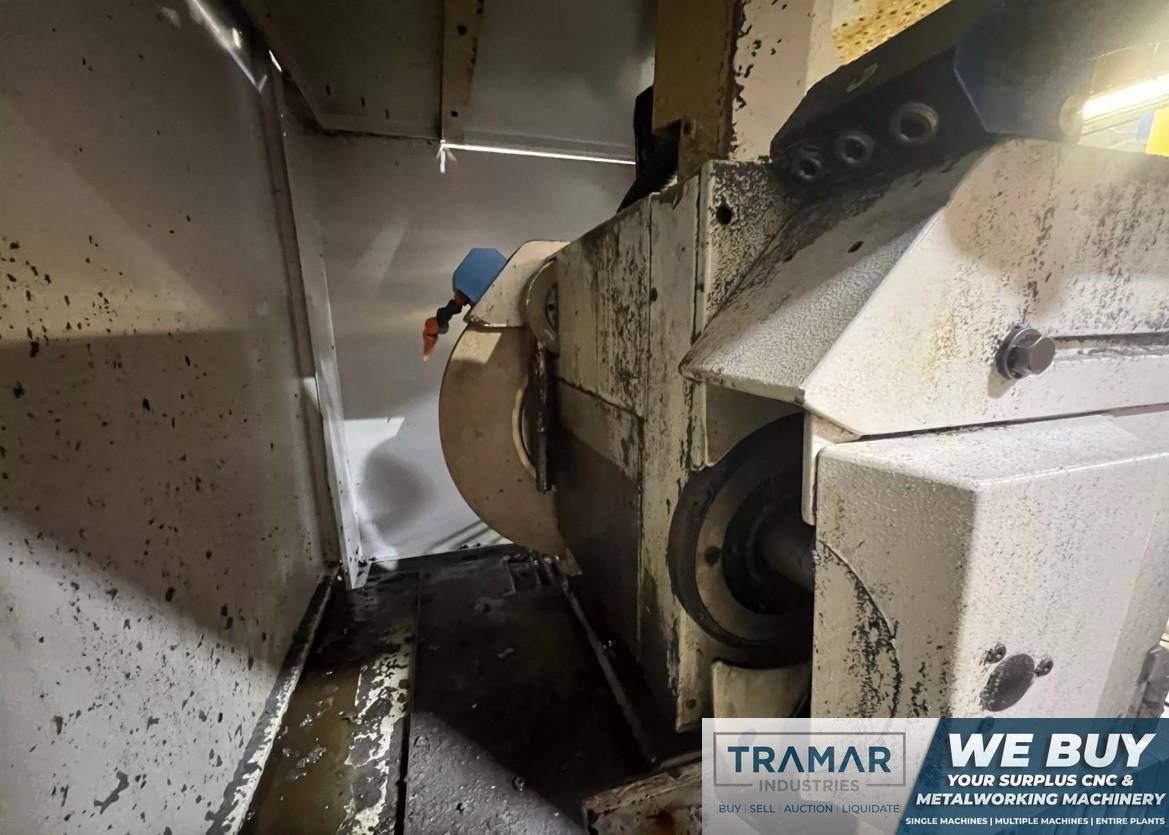

- (2) OD Spindles

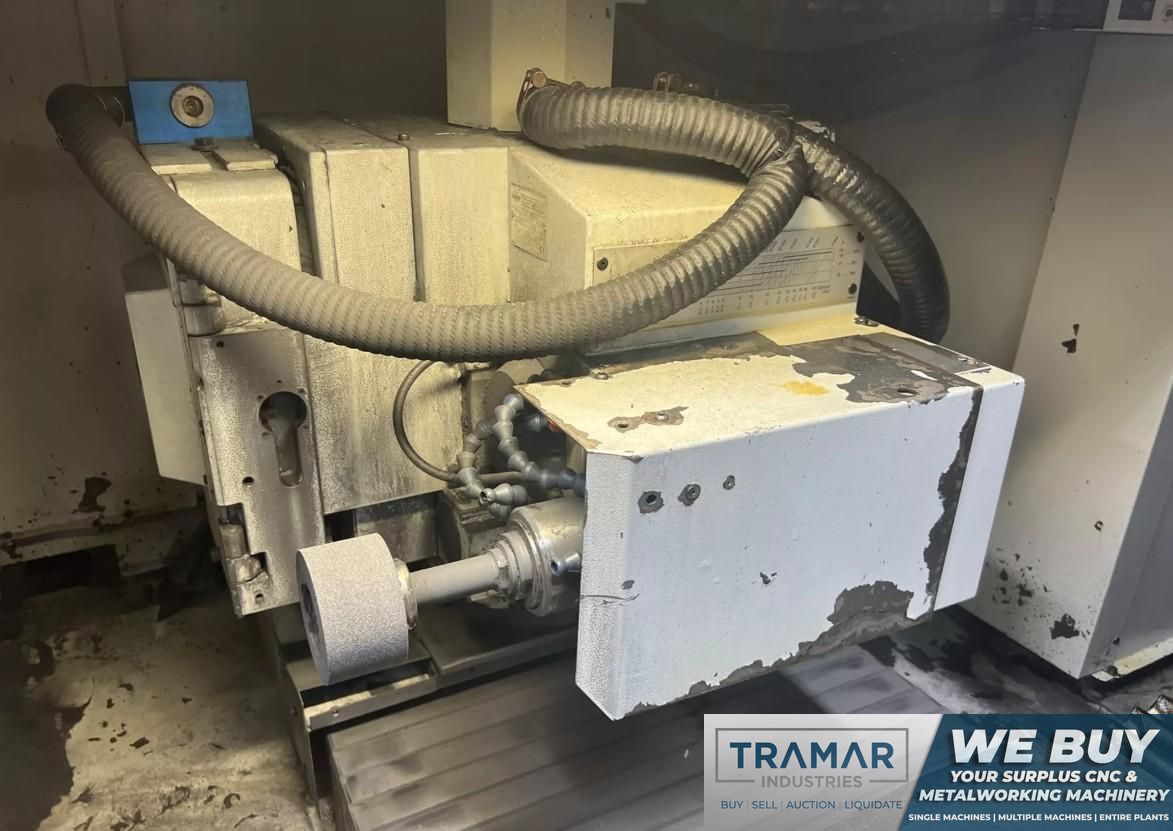

- (1) ID Spindle

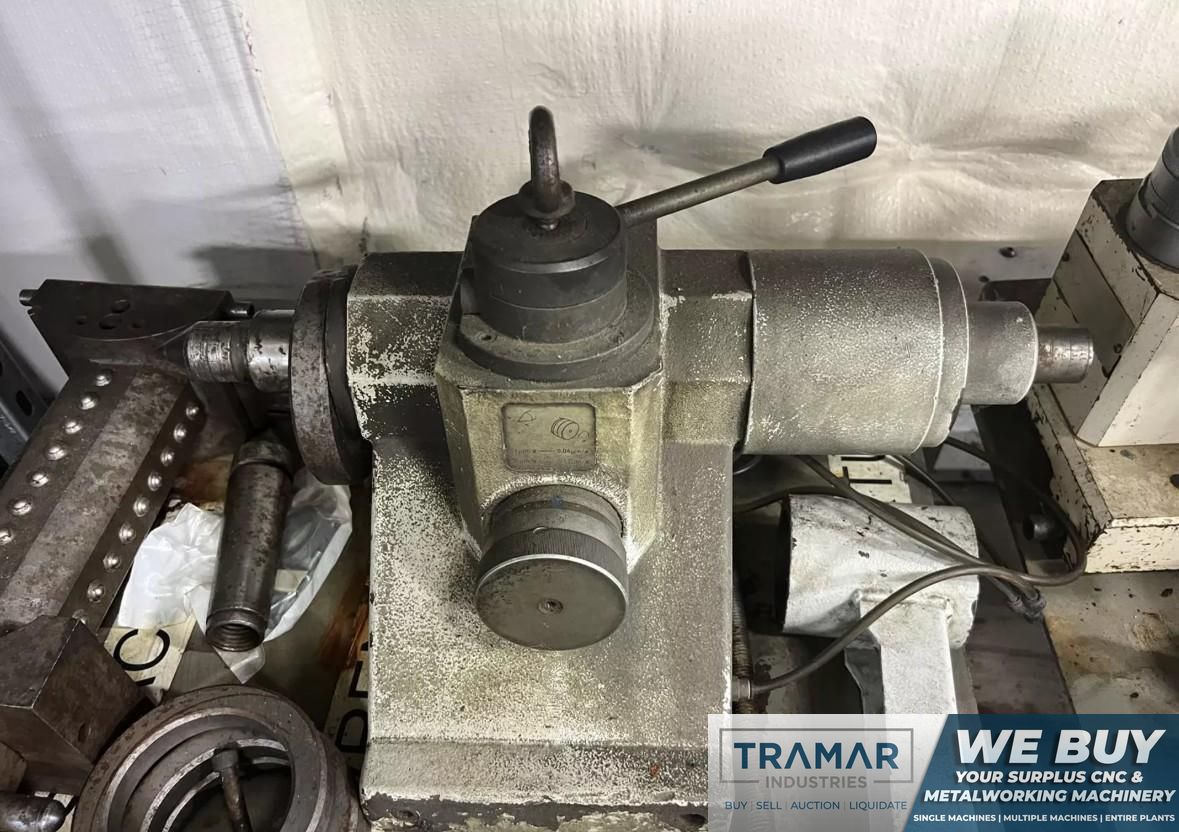

- Tailstock

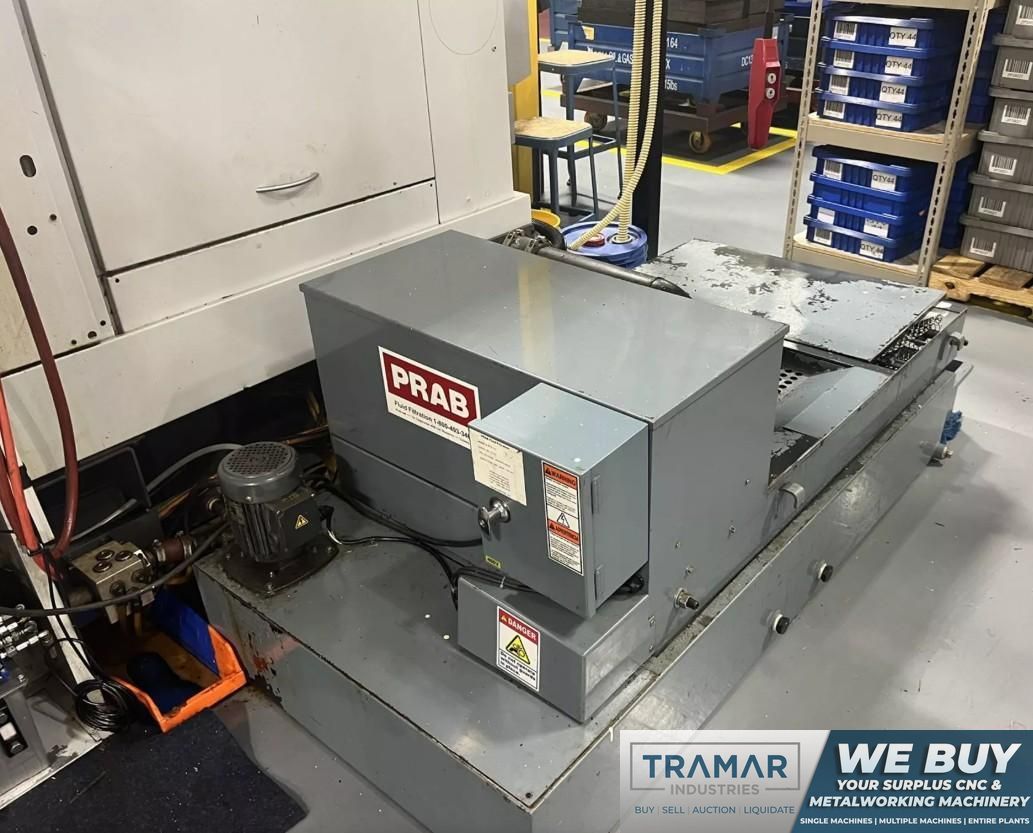

- Coolant System

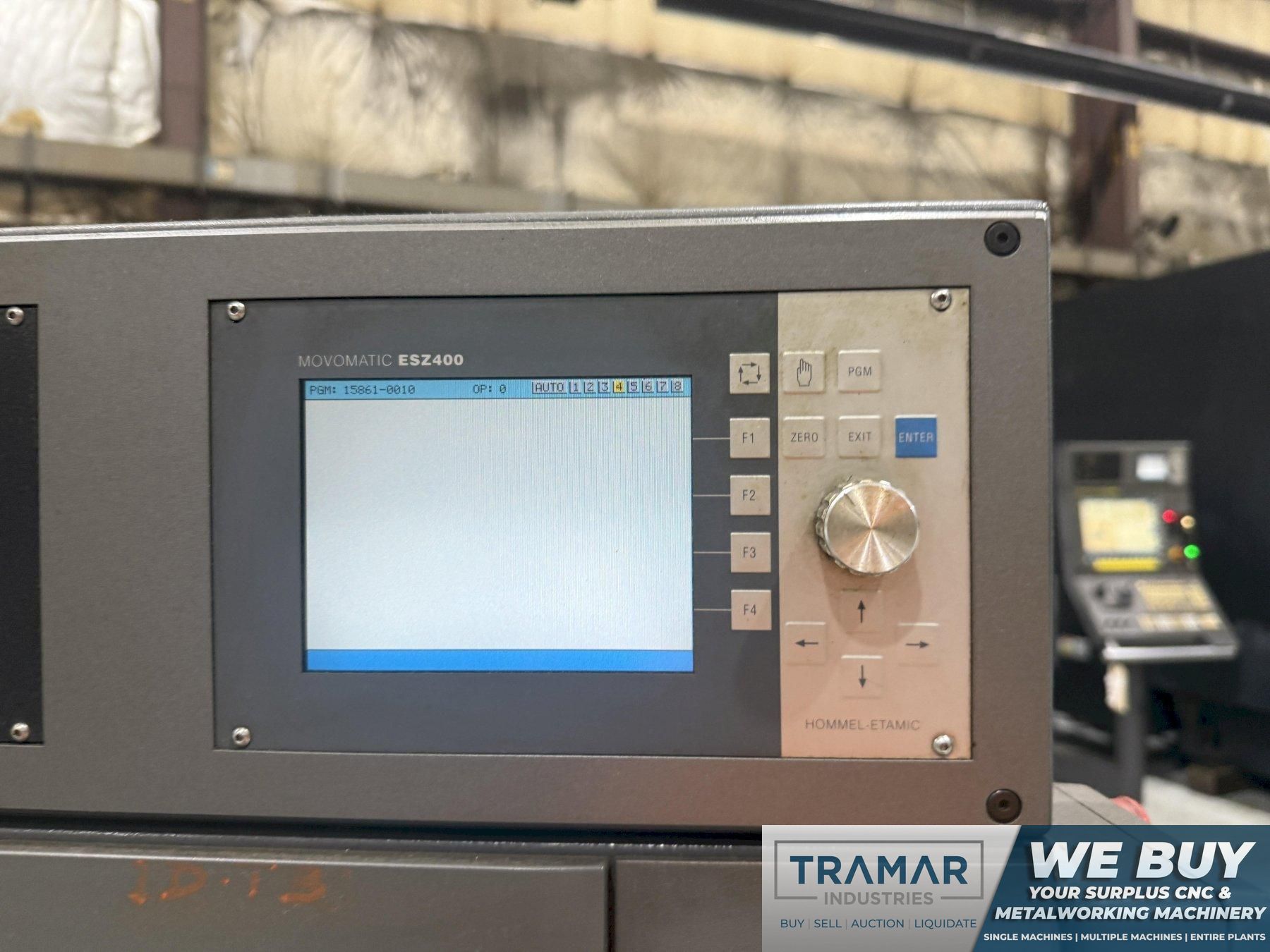

- Movomatic ESZ 400


The Kellenberger Kel-Vita R175/1000 is an exclusive part of our Cylindrical Grinders (Universal) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
