Tongtai HB-630 - Horizontal Machining Centers

Share Machine
Specifications Print Specs
Model: HB-630
Year: 2012
Stock #: 12899 Sold
Highlights:

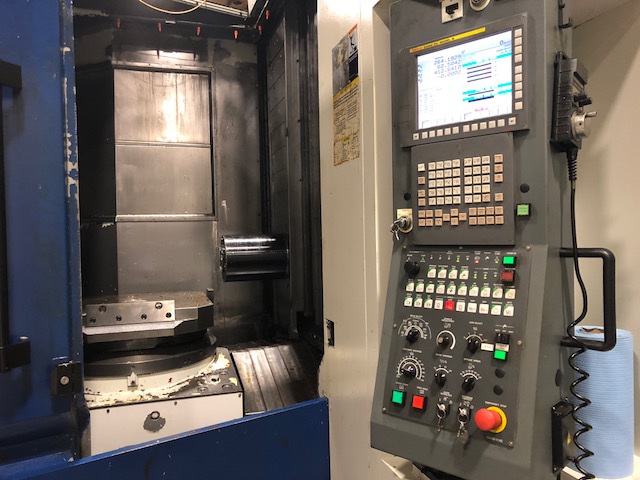

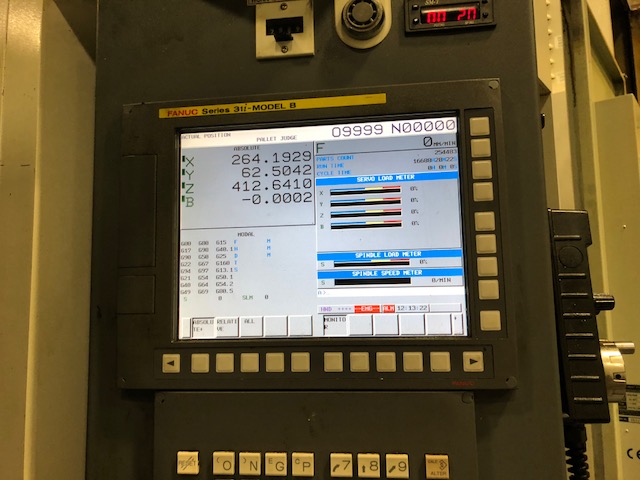

Fanuc 31i-MB Control
High Pressure Coolant Thru Spindle
24.8" x 24.8" Pallet Size
Full 4th Axis (0.001°)

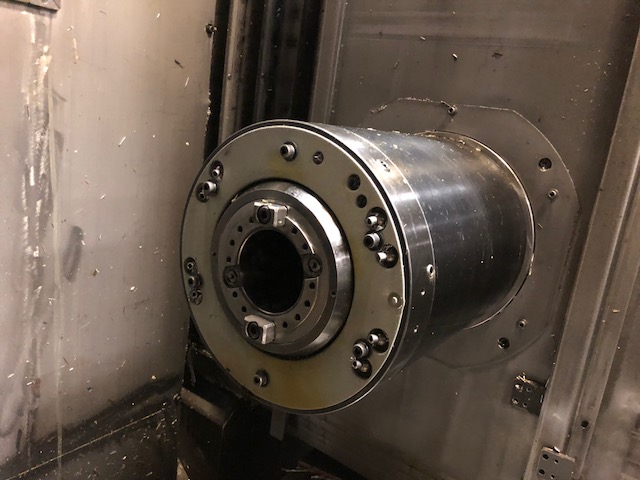

CAT 50 Big Plus | 10k RPM

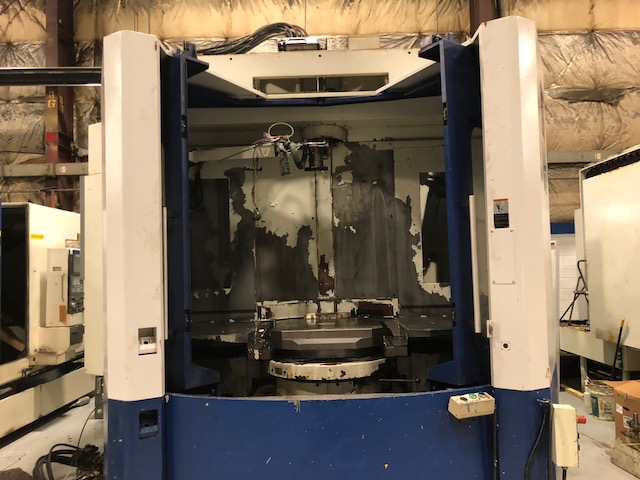

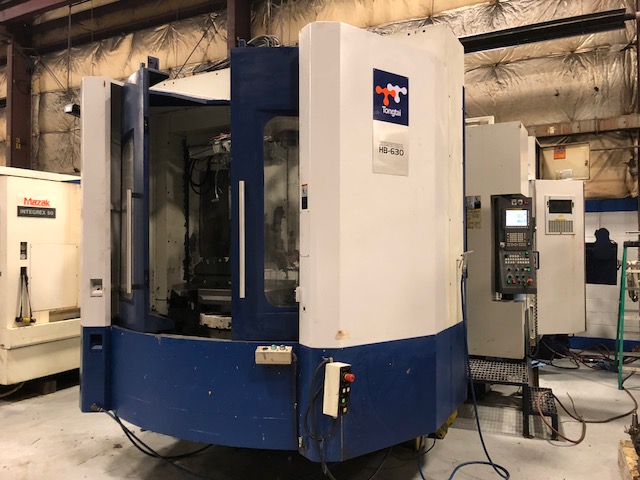

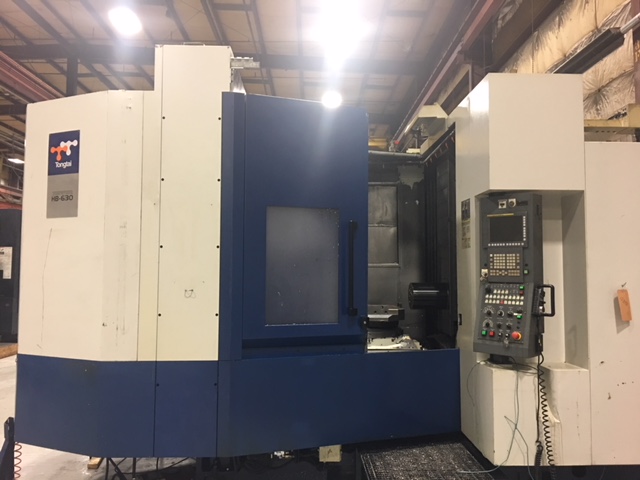

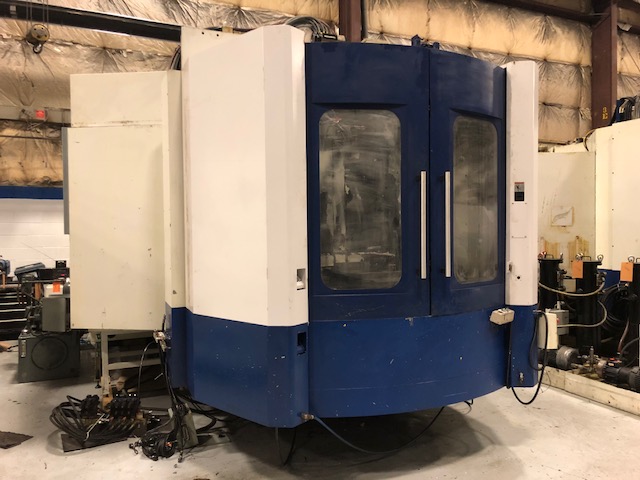

2012 TONGTAI HB-630 - Horizontal Machining Center
Machine Videos
Machine Specifications
CNC Control
yes
Control Type
Fanuc 31i-MB
# Axis
4
Pallet Length
24.8"
Pallet Width
24.8"
Pallet Load Capacity
2,646 pounds

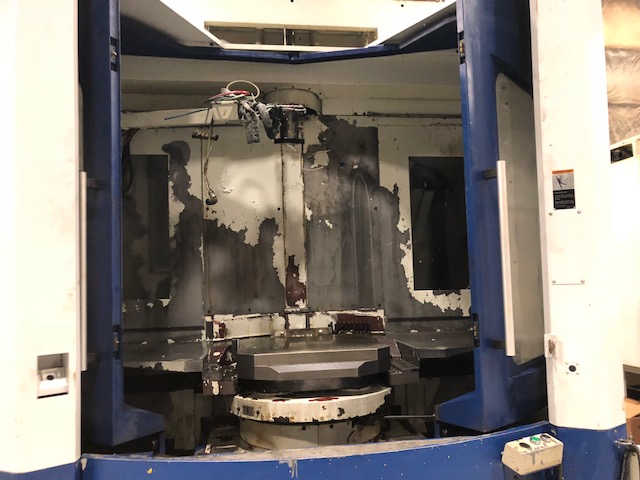

Pallet Indexing (B-Axis)
0.001°
X-Axis Travel
41.3"
Y-Axis Travel
33.5"
Z-Axis Travel
38.2"
X-Axis Rapid Feedrate
1,968
Y-Axis Rapid Feedrate
1,968
Z-Axis Rapid Feedrate
1,968
Spindle Taper
CAT 50
Spindle Speed (RPM)
10,000
Spindle Motor (HP)
40 horsepower
Tool Changer Capacity
60
Coolant Through Spindle
yes

Equipped With:

- Fanuc 31i- MB CNC Control
- CAT 50 Big Plus
- Coolant Tank
- Chip Conveyor
- Handheld Manual Pulse Generator (MPG)
- Dual Function Scrapper & Micro Fine Chip Conveyor (Rear D/C)
- Additional 20 Sets of M Codes
- Fanuc Tool Life Management
- High Pressure Coolant Thru Spindle (1000 psi)
- 5th & 6th Axis Fanuc Servo Modules & Cabling
- Hydraulic Clamping

* Video - Click Here *

The Tongtai HB-630 is an exclusive part of our Horizontal Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
