Brother TC-S2DN-0 - Vertical Machining Centers

Share Machine
Specifications Print Specs
Model: TC-S2DN-0
Year: 2013
Stock #: 13125 Sold
Highlights:
Brother B-0 Control

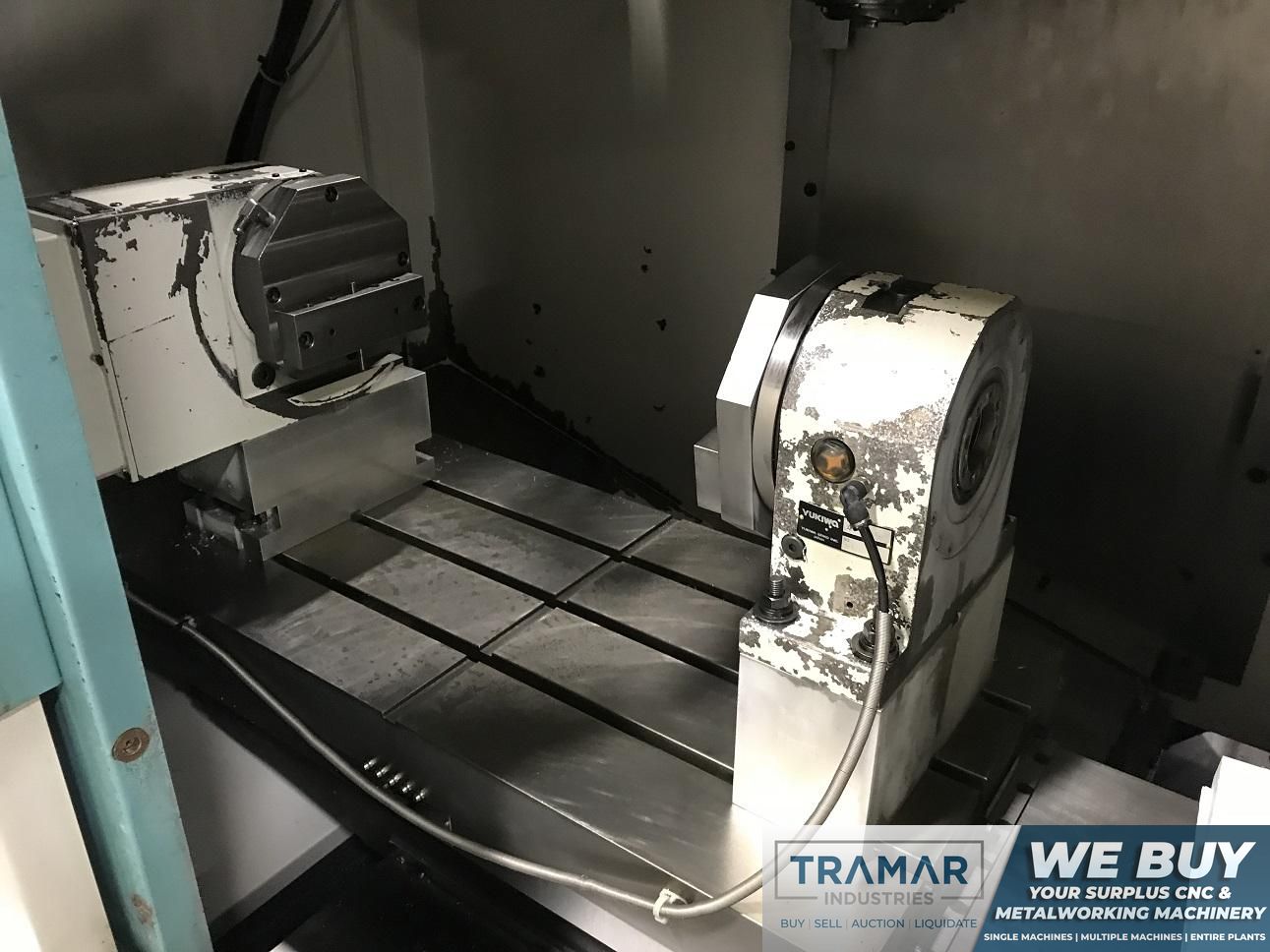

6" Yukiwa 4th Axis Rotary Table

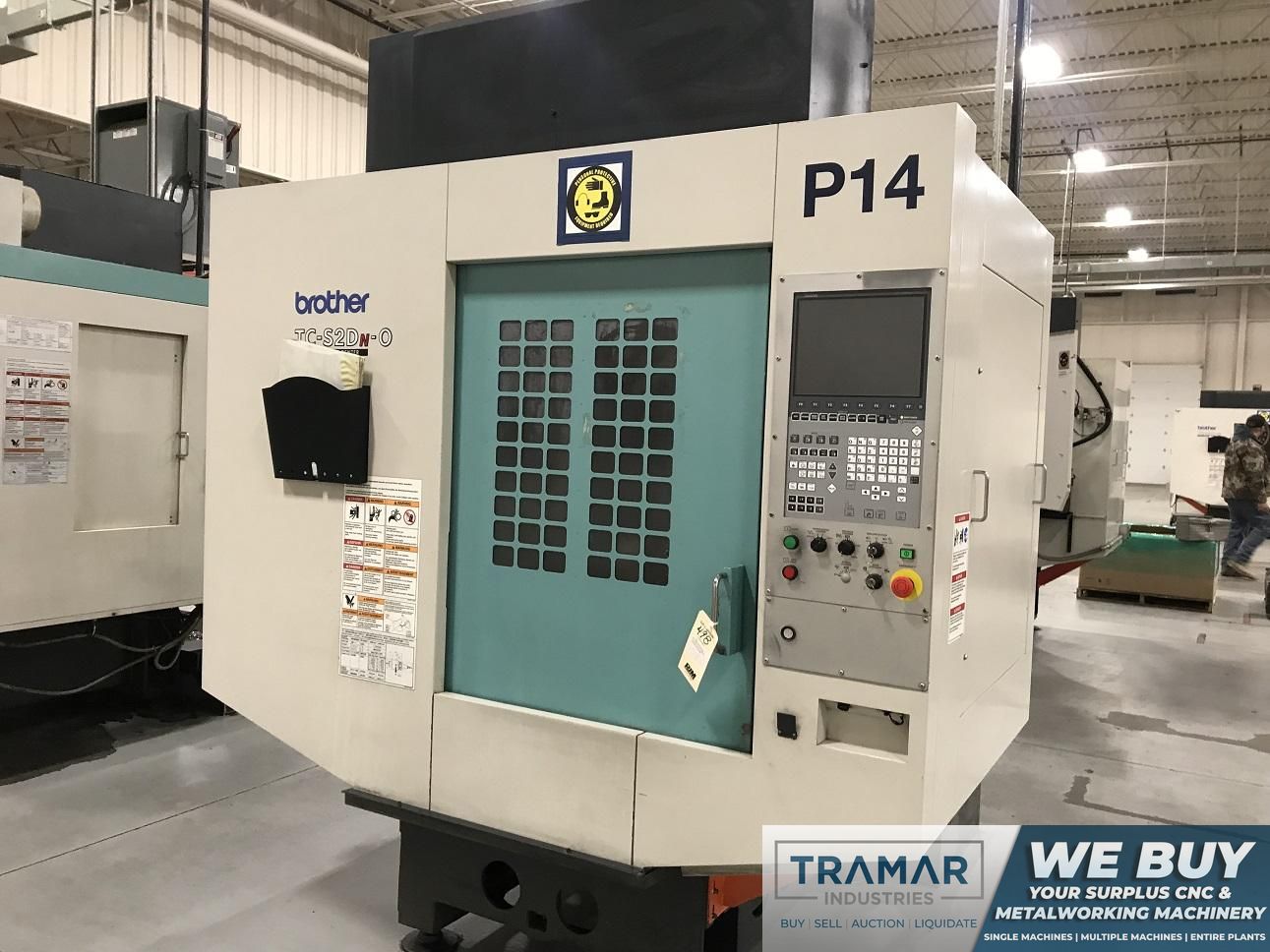

2013 BROTHER TC-S2DN-0 - Vertical Machining Center
Machine Specifications
Year
2013

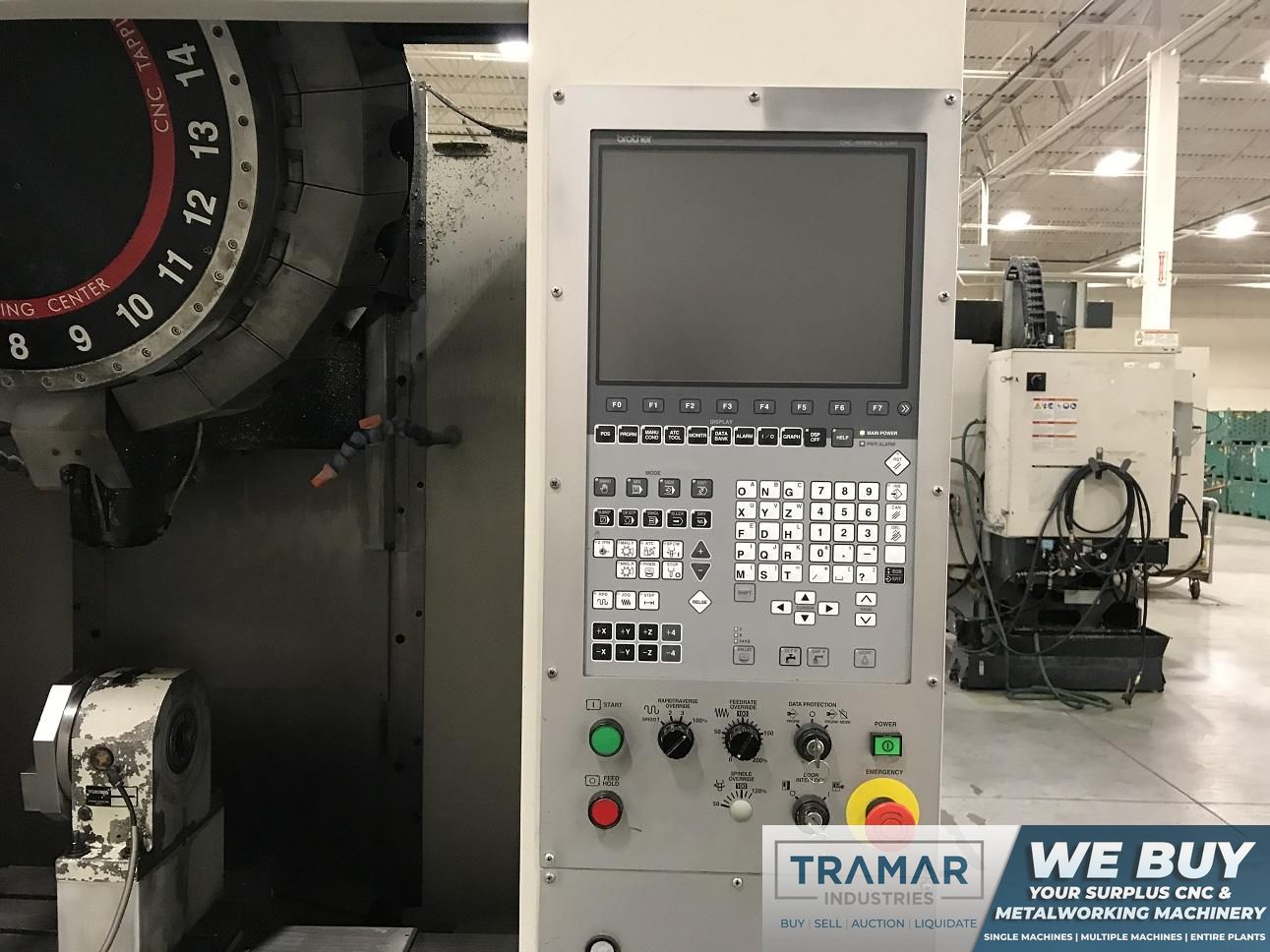

Control Type
Brother B-0
# Axis
4
Table Size
31.5" x 15.7"
Table Capacity
560 pounds
X-Axis Travel
27.6"
Y-Axis Travel
15.7"
Z-Axis Travel
11.6"
Rapid Traverse Rate (X/Y/Z)
1,989 ipm
Spindle Taper
CAT 30
Spindle Speed
10,000 RPM
Main Motor
10 hp

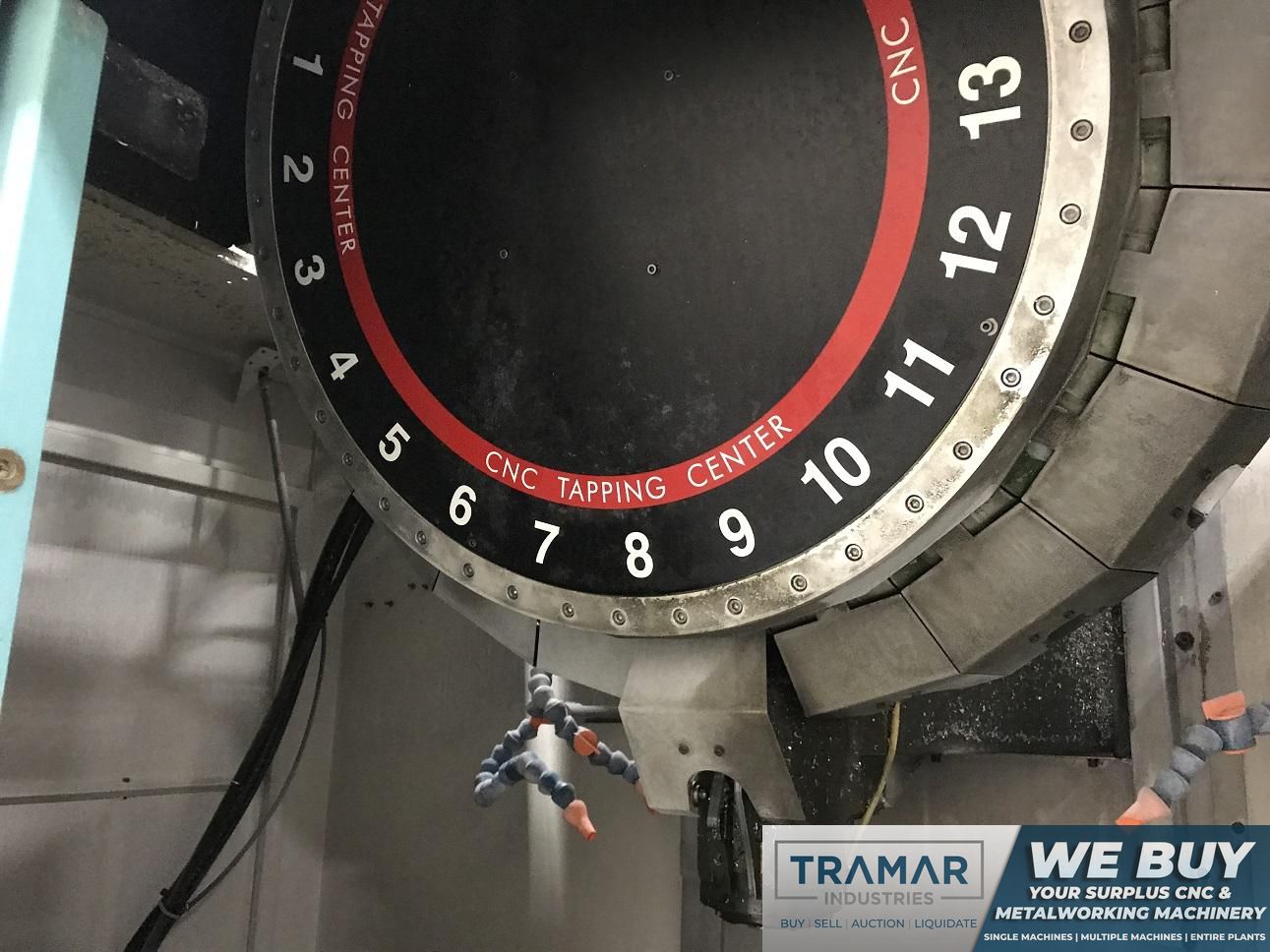

Tool Changer Capacity
21
Coolant Thru Spindle
yes
Weight
5,300 pounds

Equipped With:

- Brother B-00 Control
- 6" Yukiwa 4th Axis Rotary Table




The Brother TC-S2DN-0 is an exclusive part of our Vertical Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
