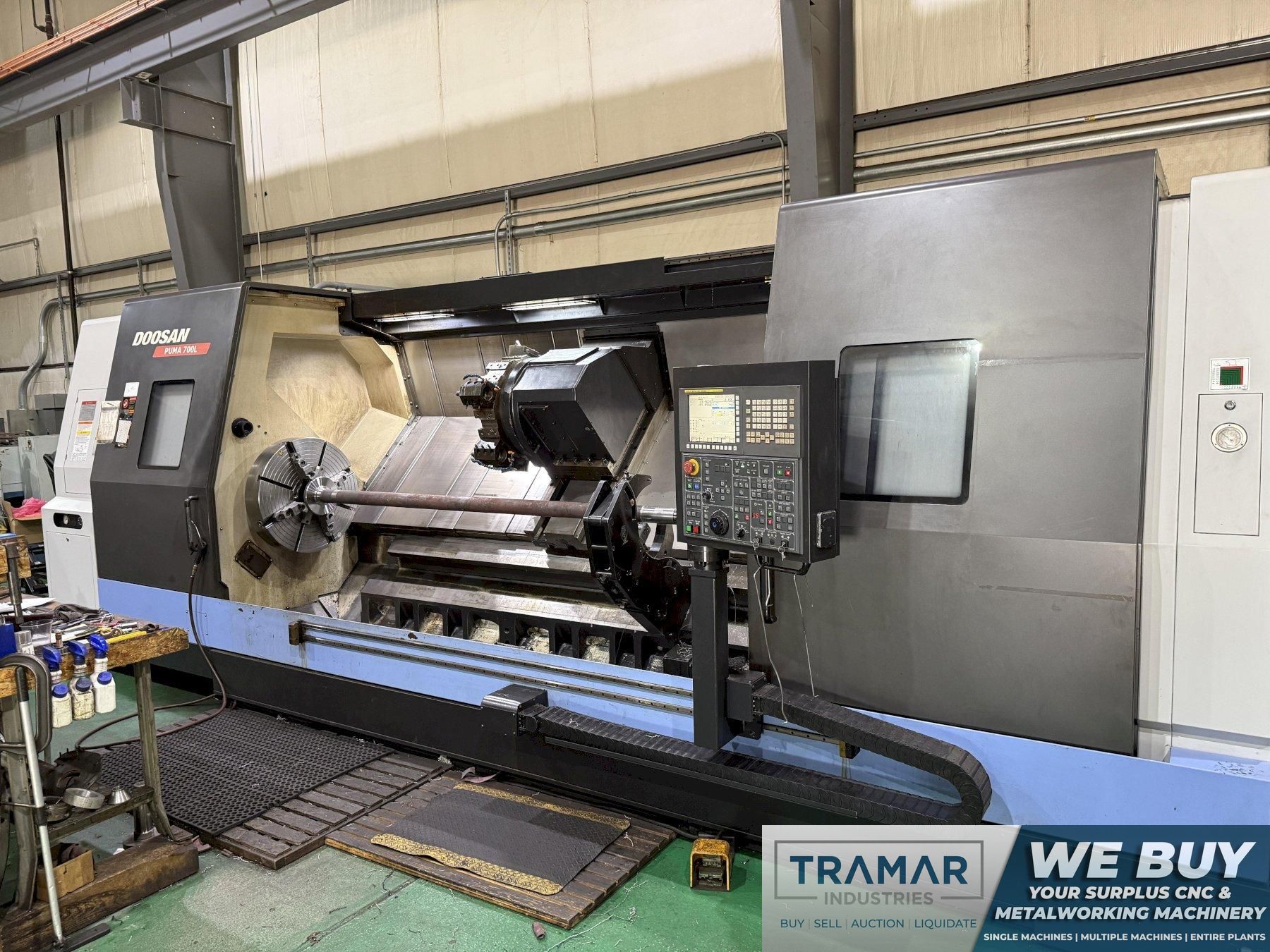

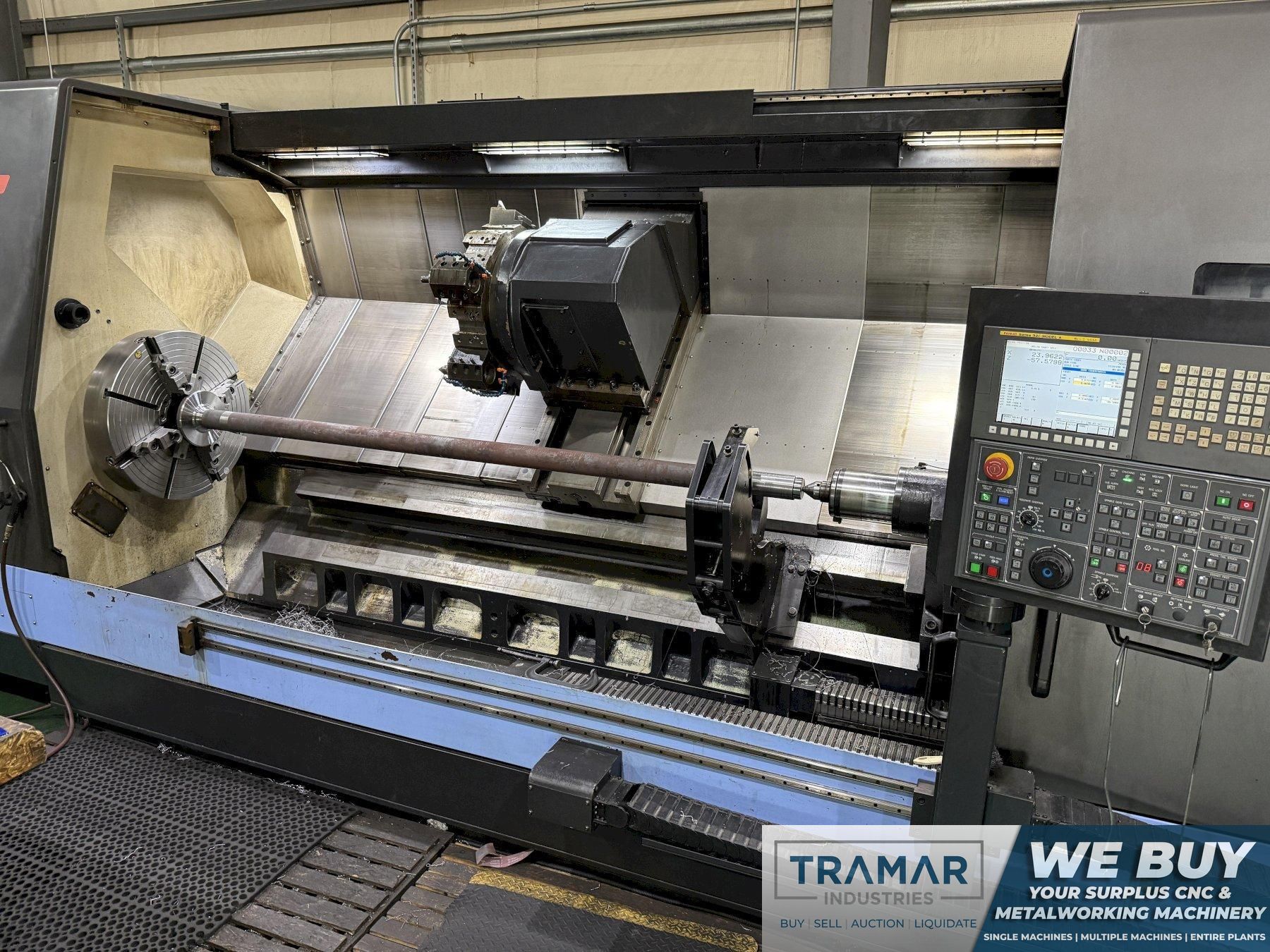

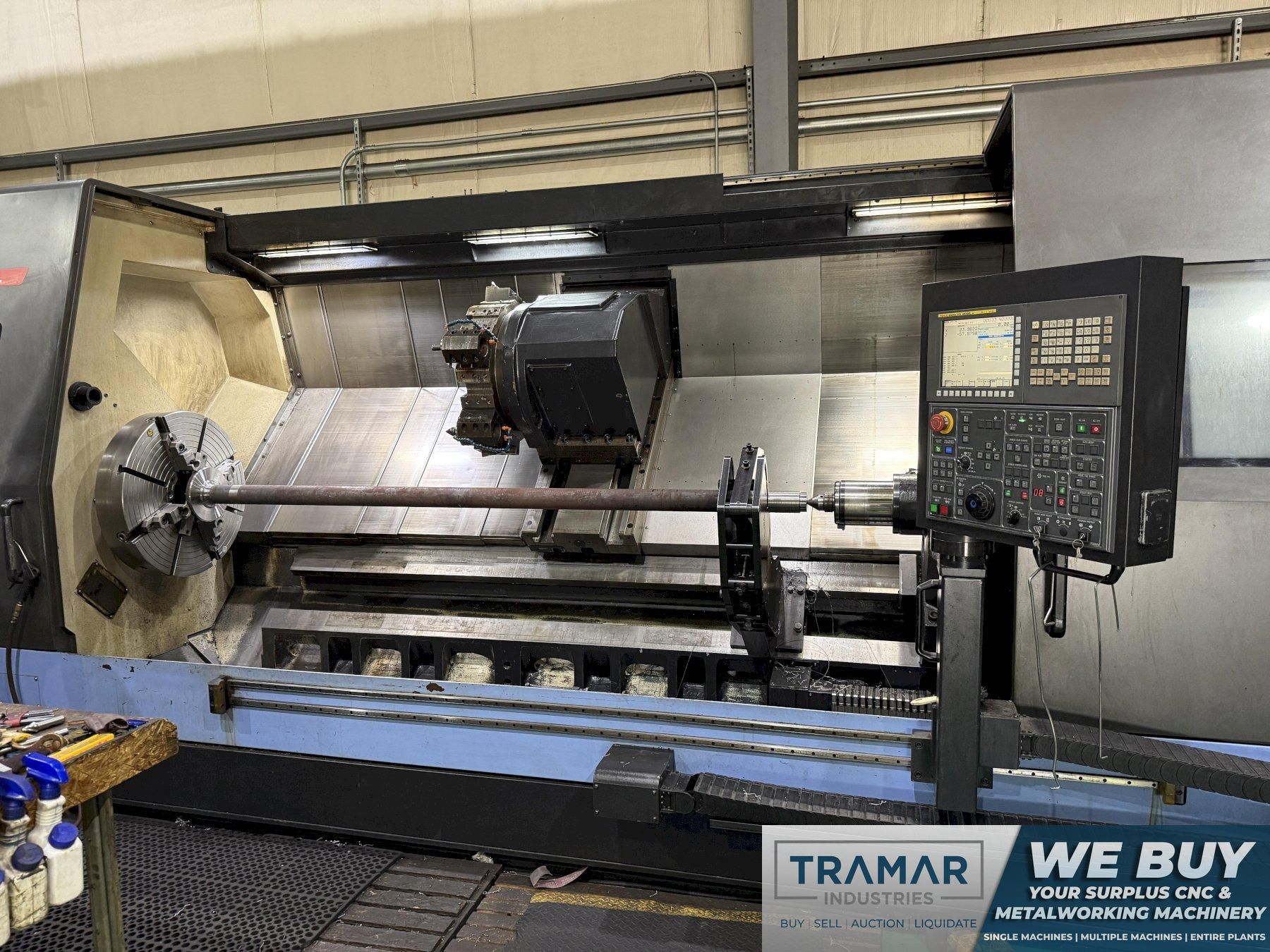

Doosan Puma 700L - Horizontal Lathes

Request Quote
Share Machine
Specifications Print Specs
Model: Puma 700L
Year: 2013
Stock #: MD63321
Highlights:

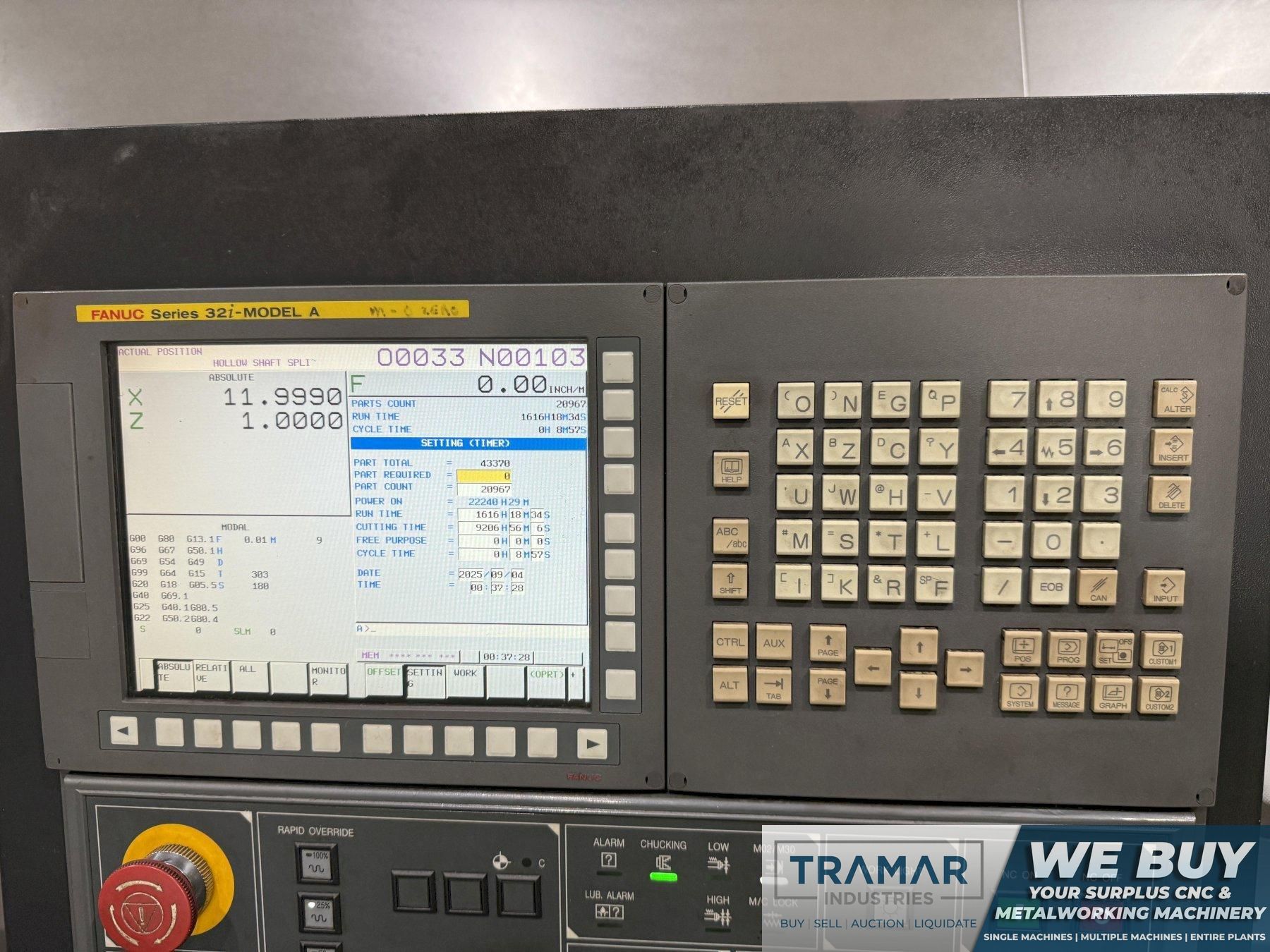

Fanuc Series 32i-Model A CNC Control
Hydraulic Tailstock
Chip Conveyor

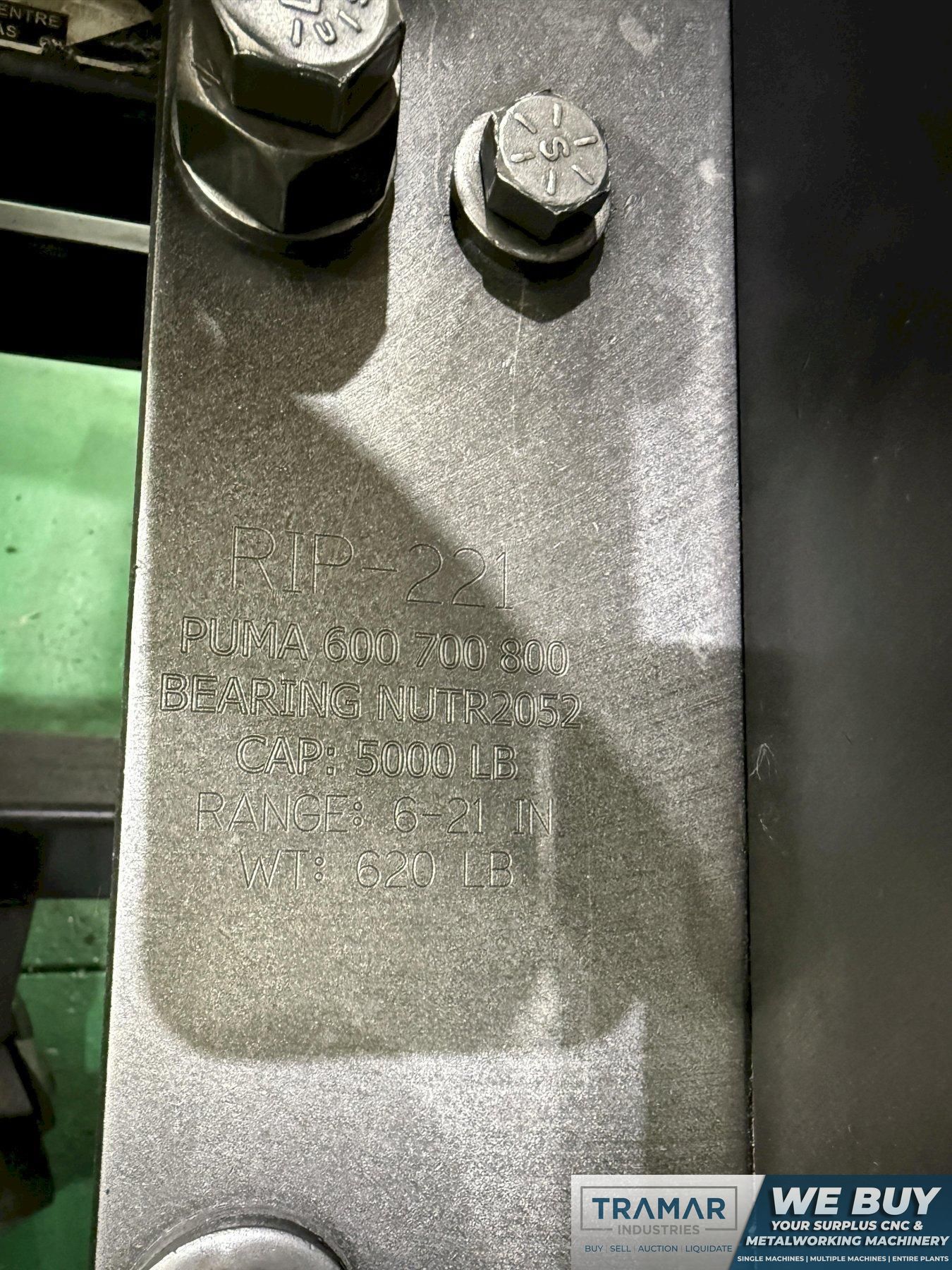

RIP 123 & 216 Manual Steady Rests
Misc. Tool Holders Available

2013 Doosan Puma 700L Used CNC Lathe For Sale
Machine Specifications
CNC Control
yes
Control Type
Fanuc Series 32i-Model A
# Axis
2
Swing
40.6"
Turning Diameter
35.4"
Center Distance
63"
Chuck Size
18"
Bar Capacity
6.5"
X-Axis Travel
18.5"
Z-Axis Travel
65"
Rapid Traverse (X/Z)
472/397 ipm
Spindle Nose
A1-15
Spindle Speed
1,500 rpm
Main Motor
60 hp

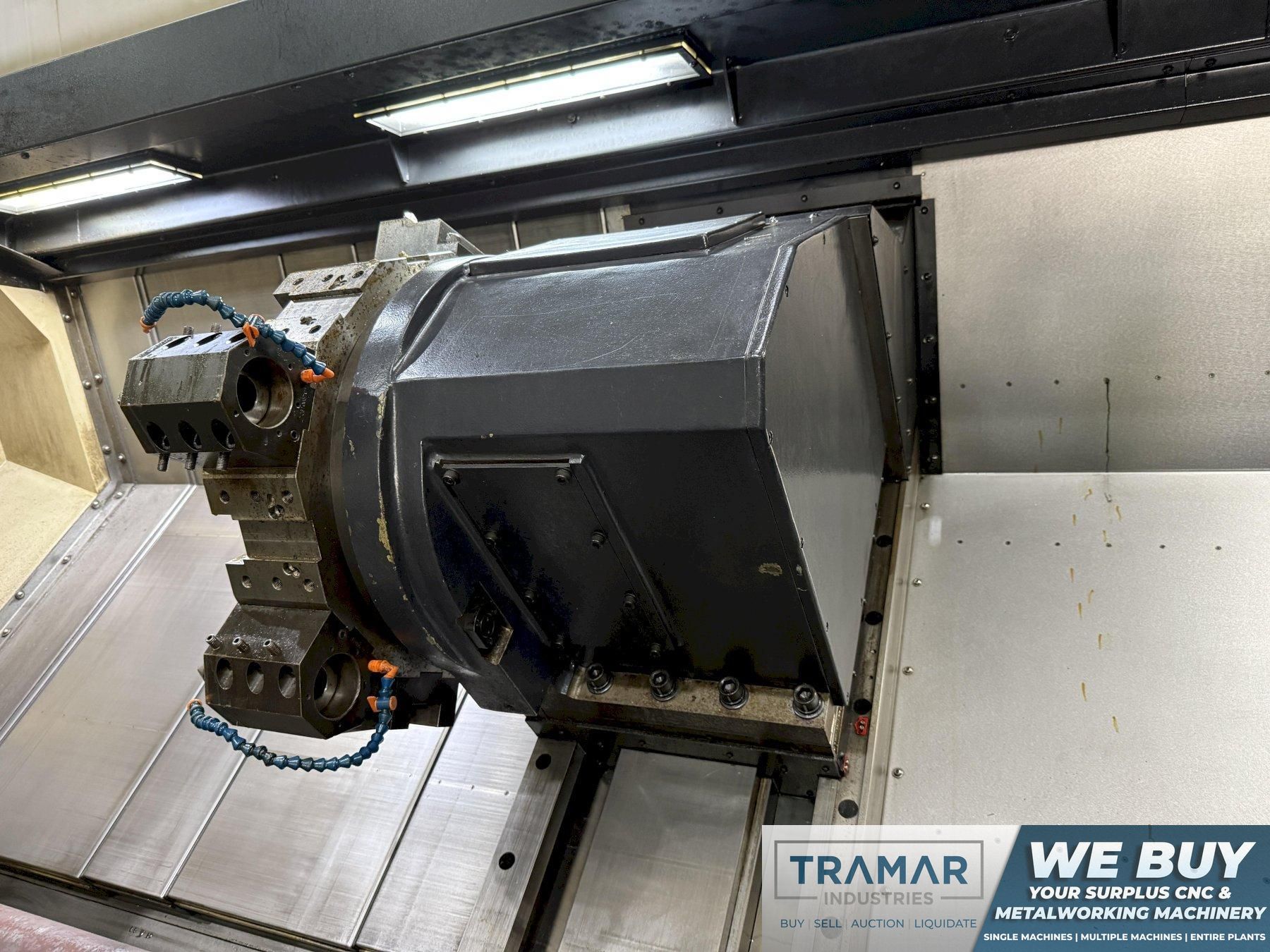

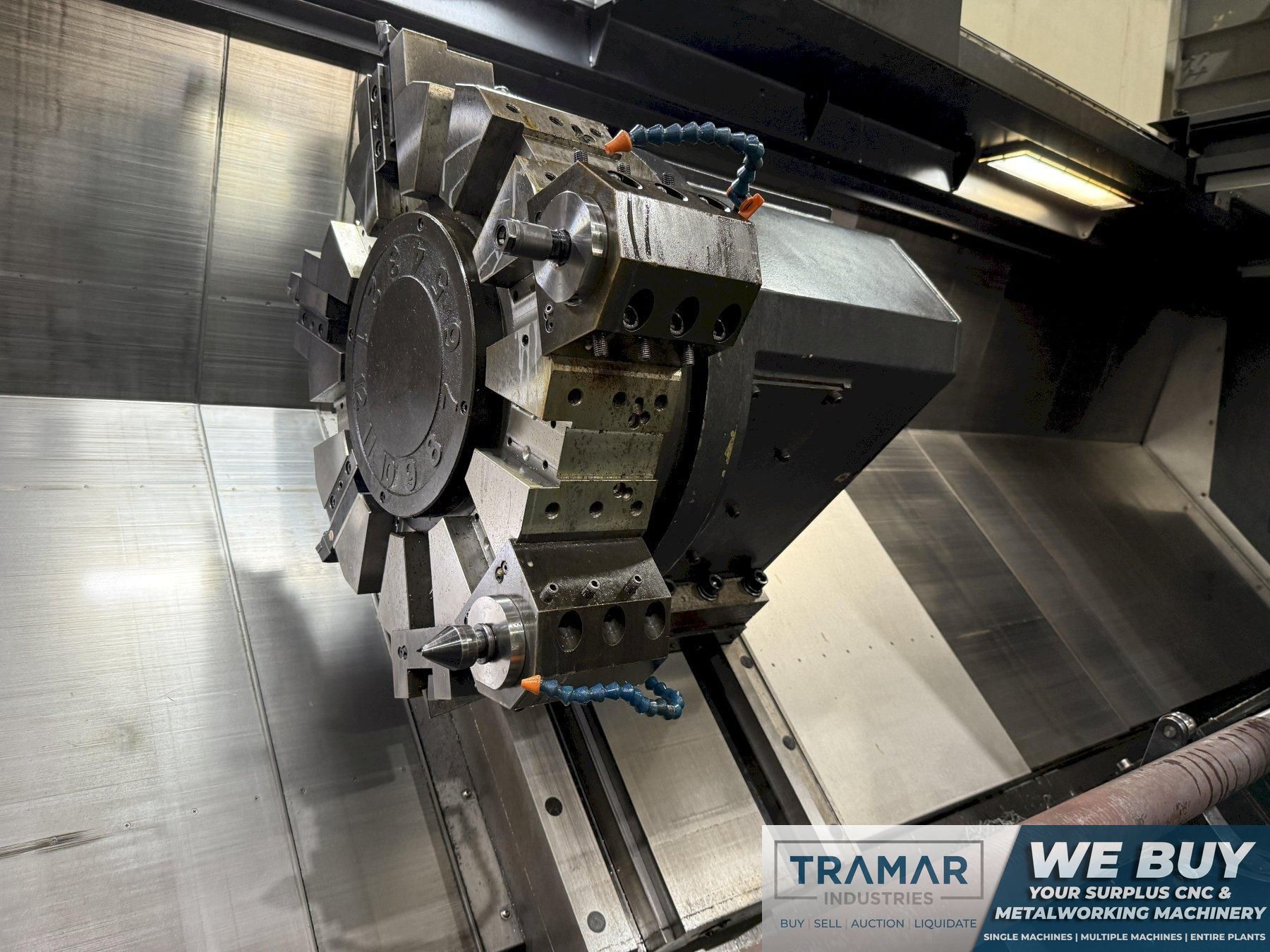

Turret Capacity
12
Tailstock (Yes/No)
yes
Live Tooling
no
Y Axis (Yes / No)
no
Sub Spindle
no
Machine Dimensions
227" x 124" x 110"
Machine Weight
37,000 pounds

Equipped With:

- Fanuc Series 32i-Model A CNC Control

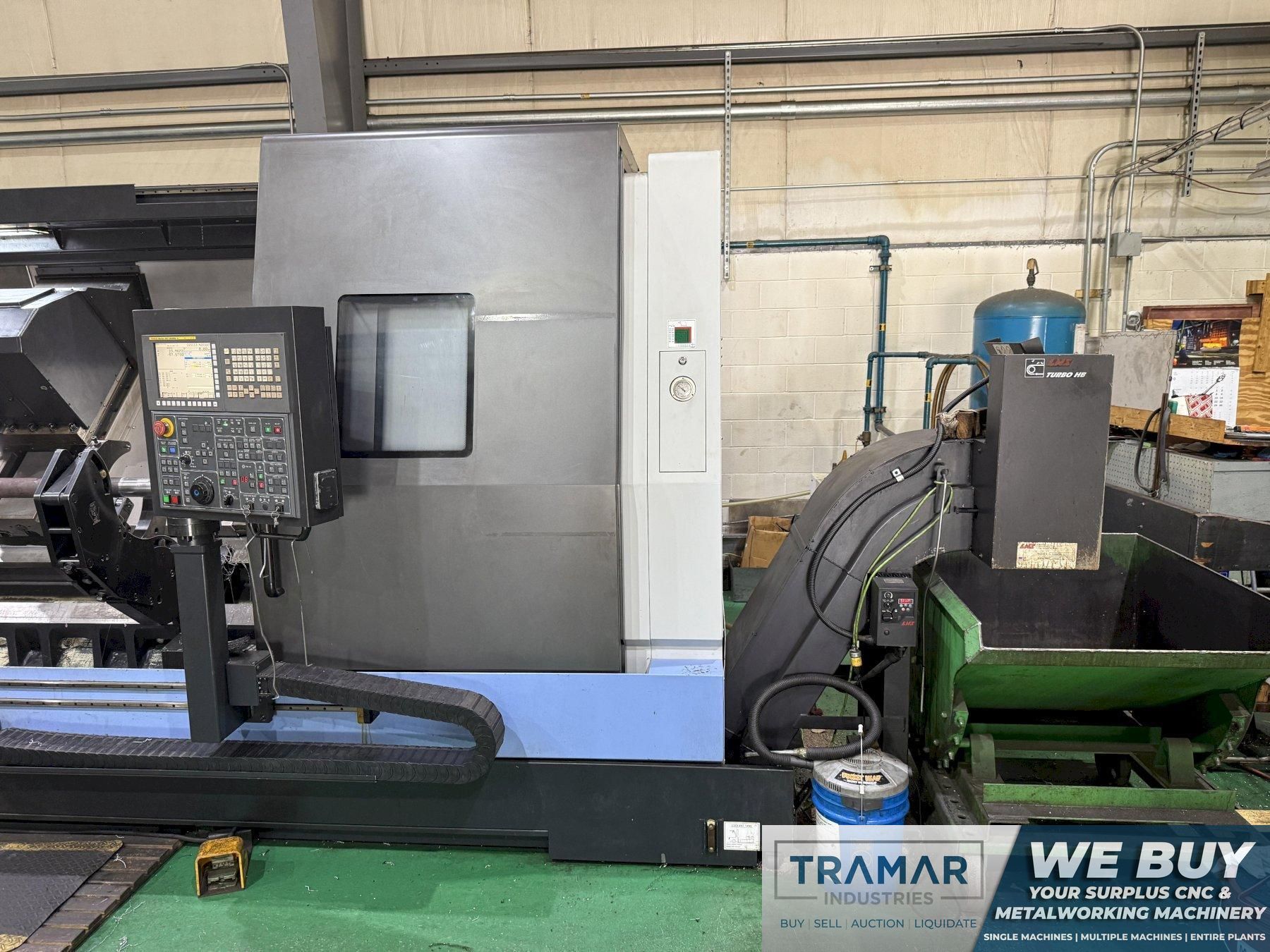

- Chip Conveyor
- Coolant Tank

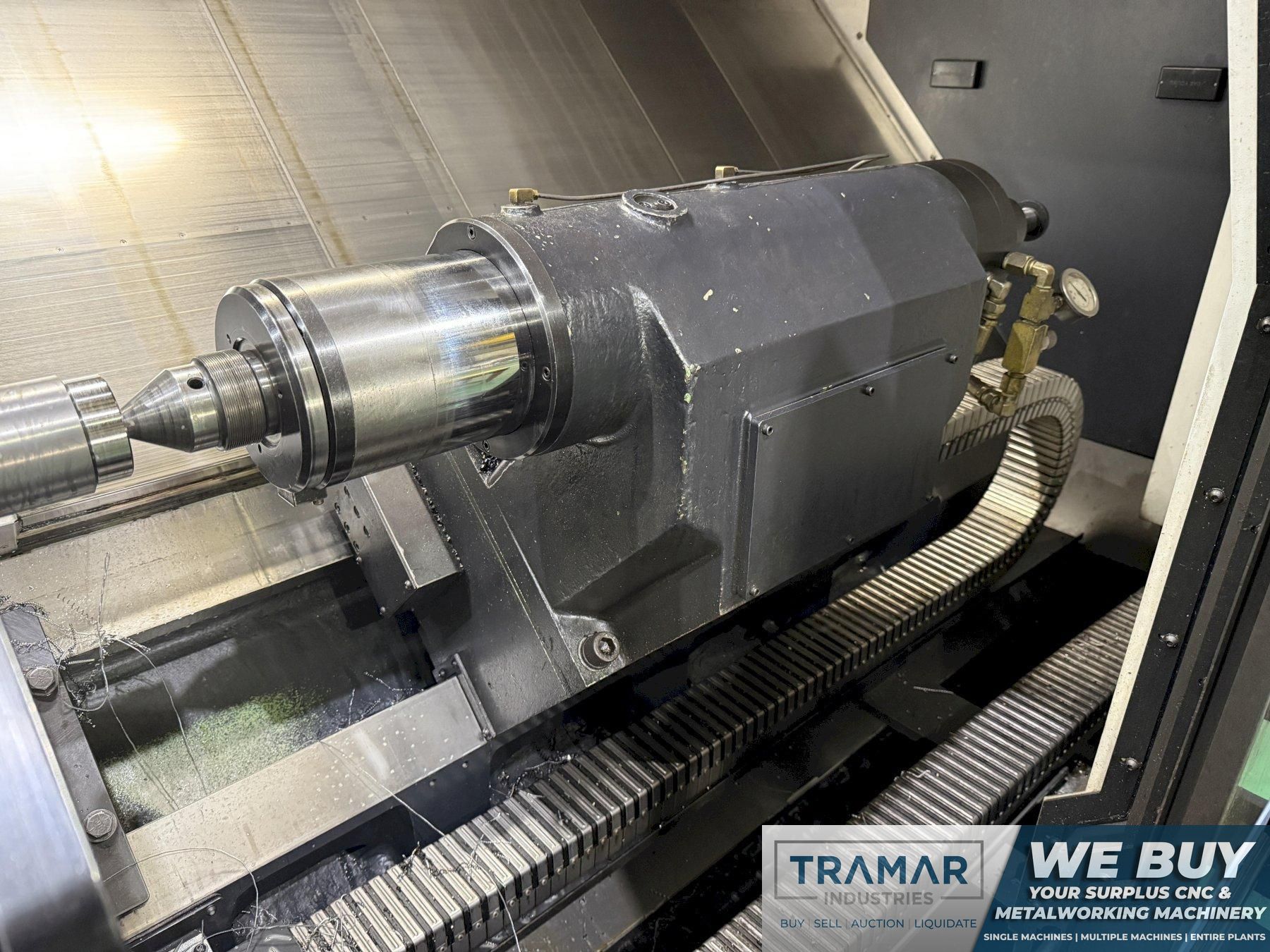

- Hydraulic Tailstock

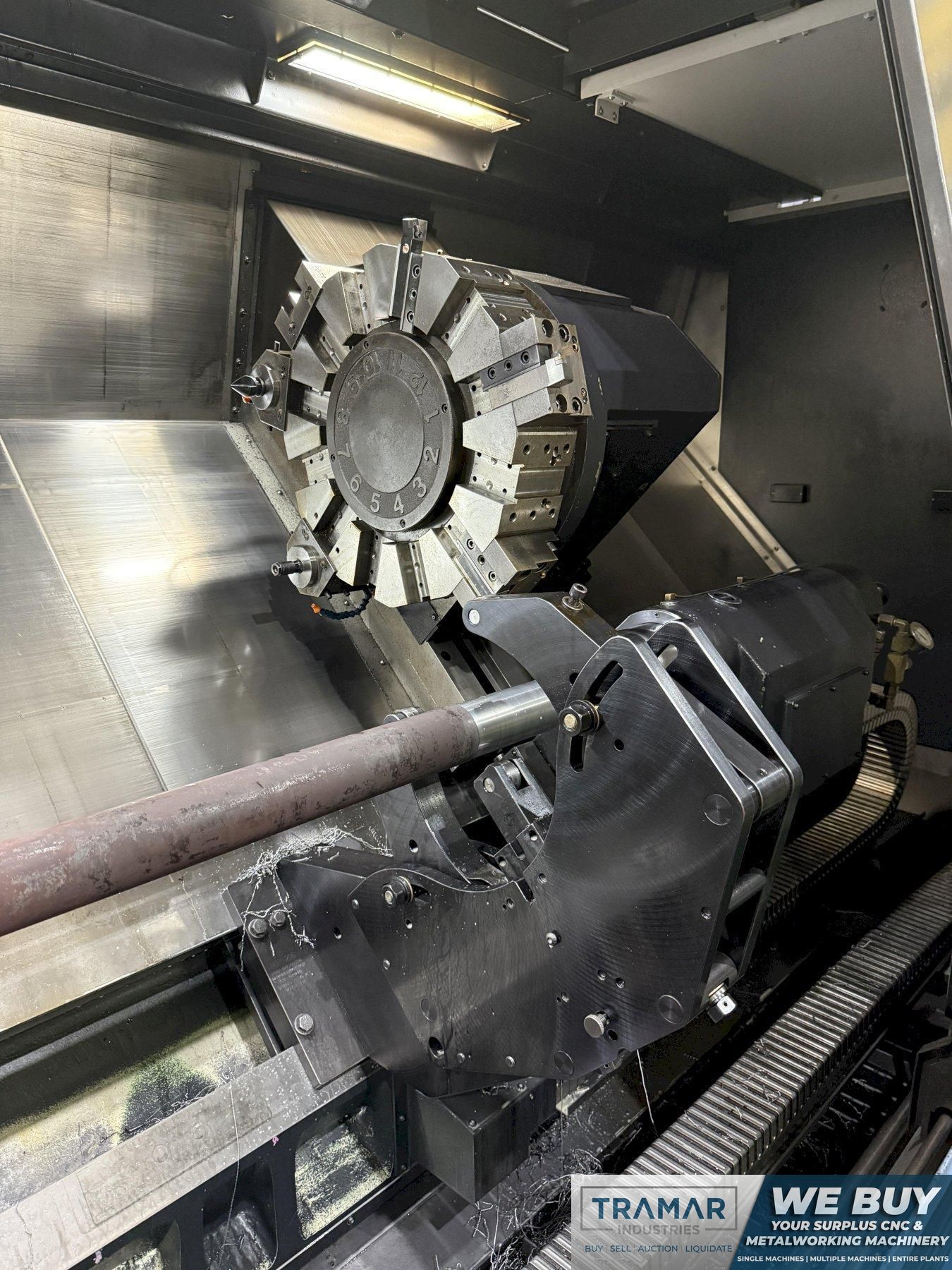

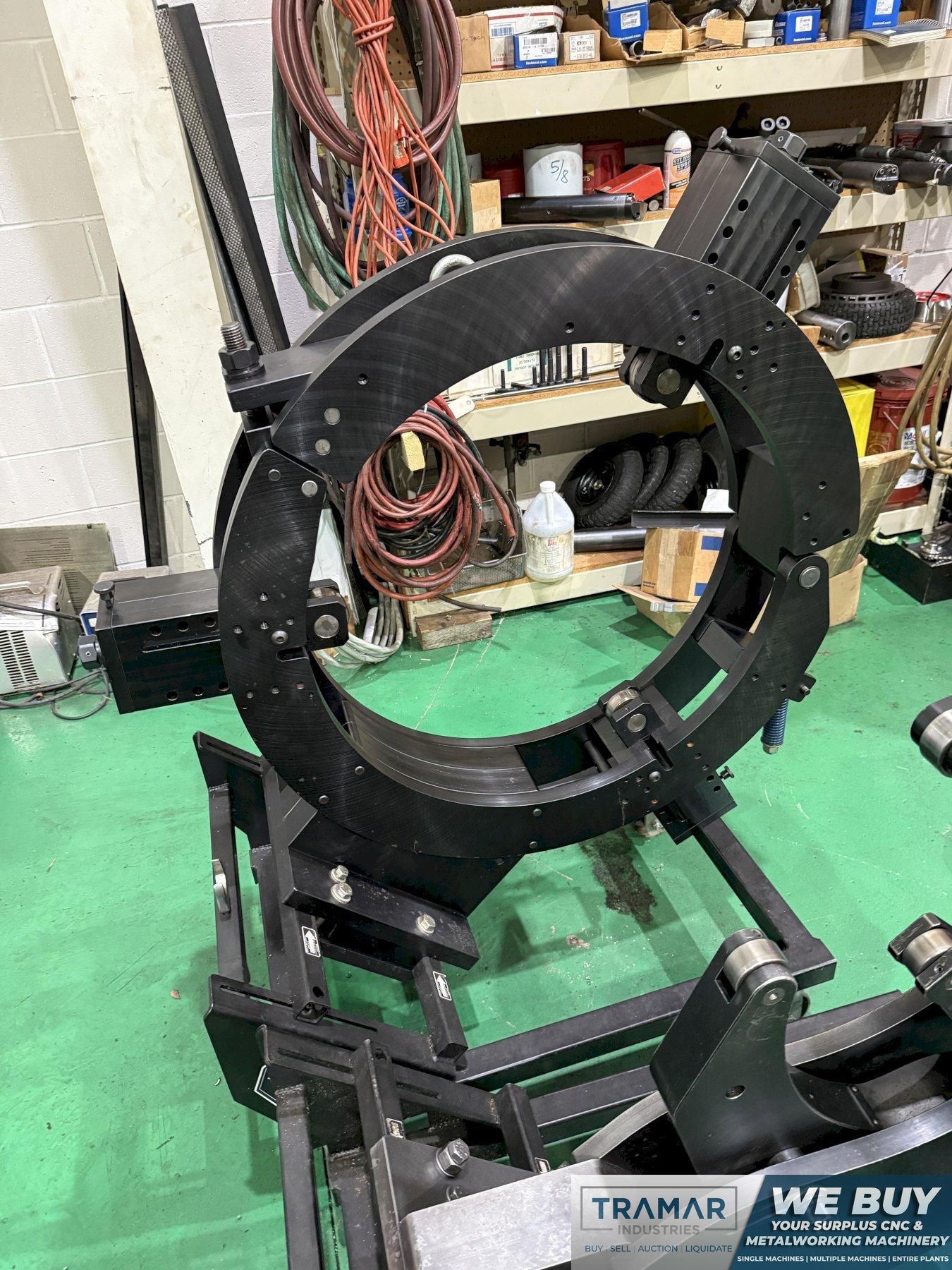

- Manual Steady Rest - RIP 123
- Manual Steady Rest - RIP 216
- Misc. Tool Holders Available

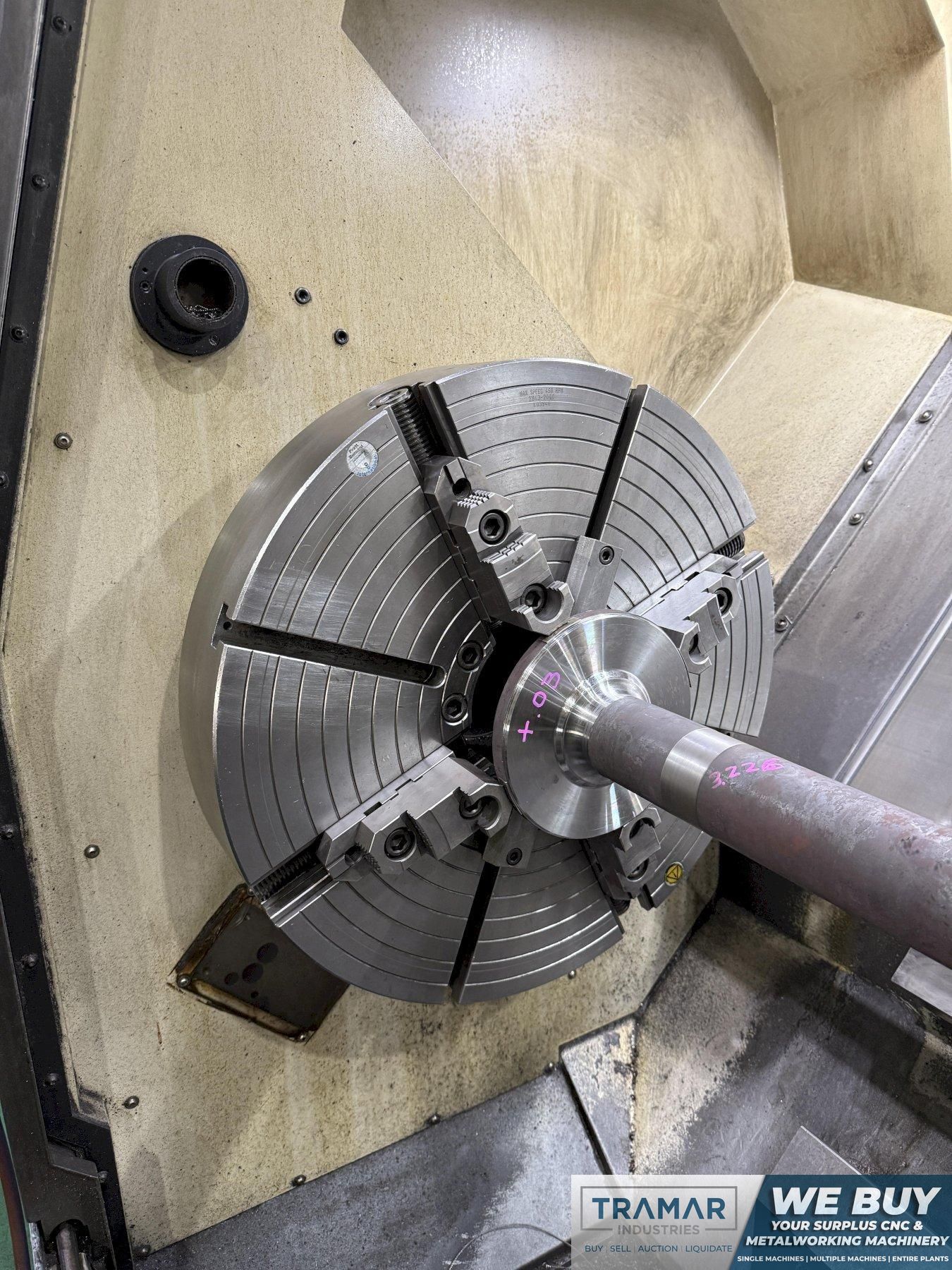

- 4-Jaw Manual Chuck Installed
- Machine Has Samchully Hydraulic Actuator

The Doosan Puma 700L is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
