Toyoda FA630S - Horizontal Machining Centers

Request Quote
Specifications Print Specs
Model: FA630S
Year: 2013
Stock #: FA630-1
Highlights:

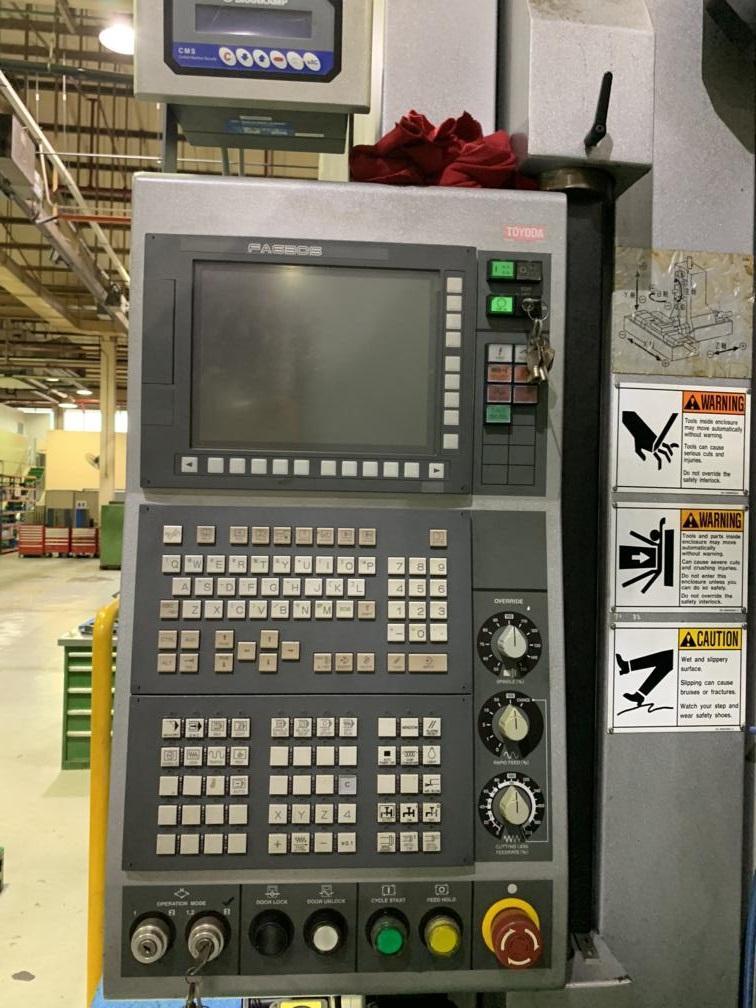

Fanuc 31i-MB CNC Control
Coolant Thru Spindle
24.8" x 24.8" Pallets (0.001° indexing)
BT 50 | 5,000 RPM | 40HP
60 Station Tool Changer

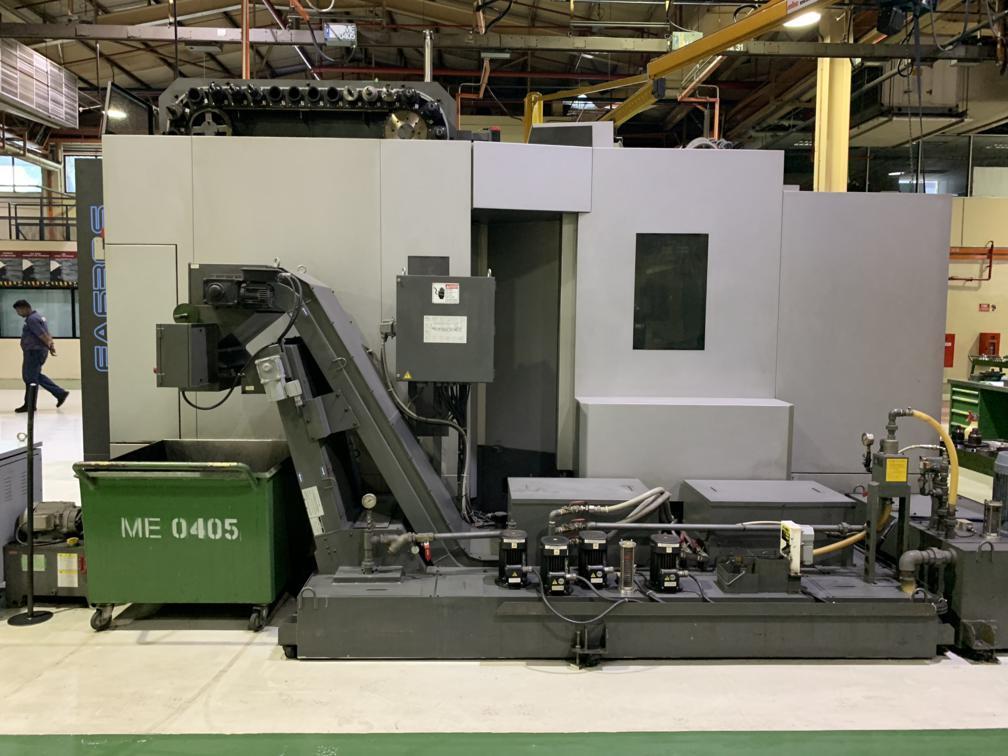

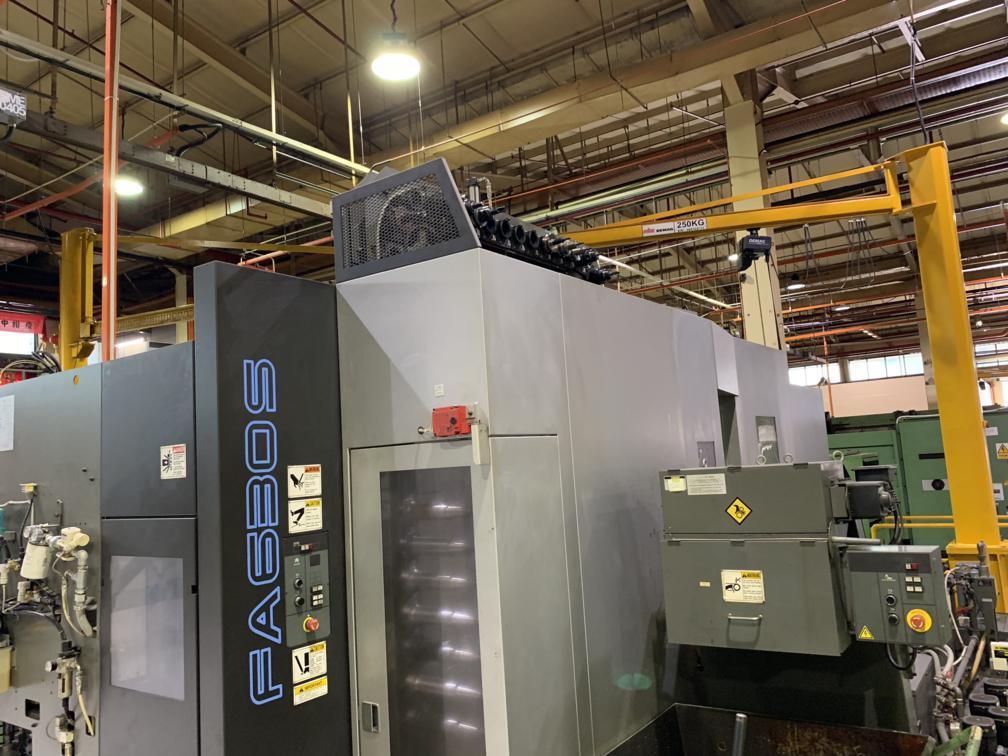

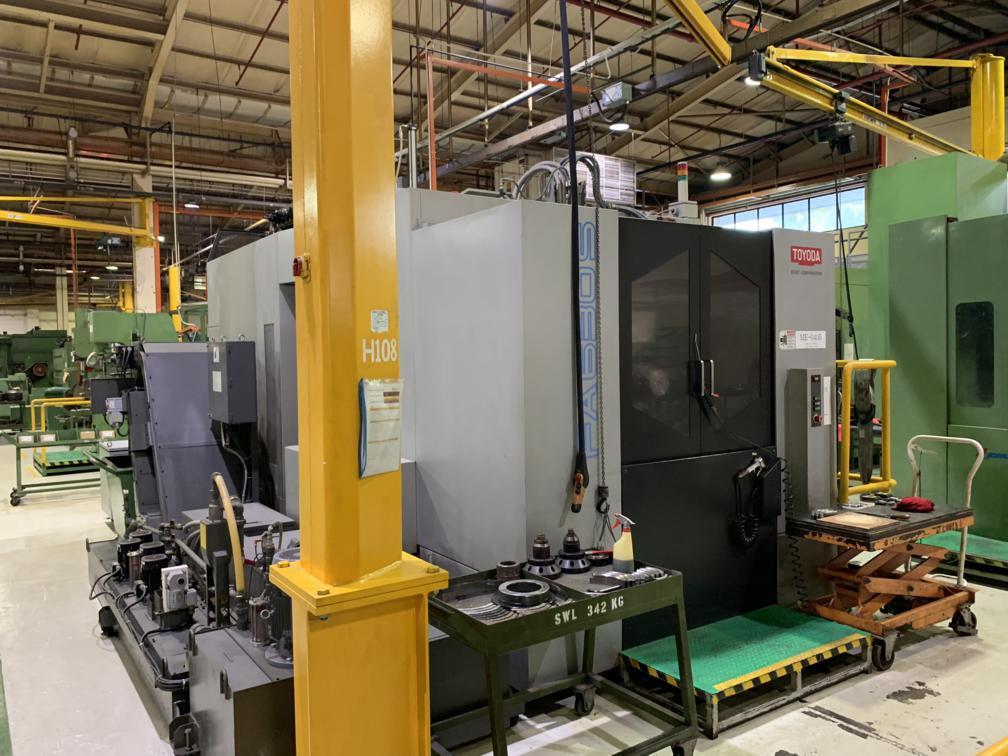

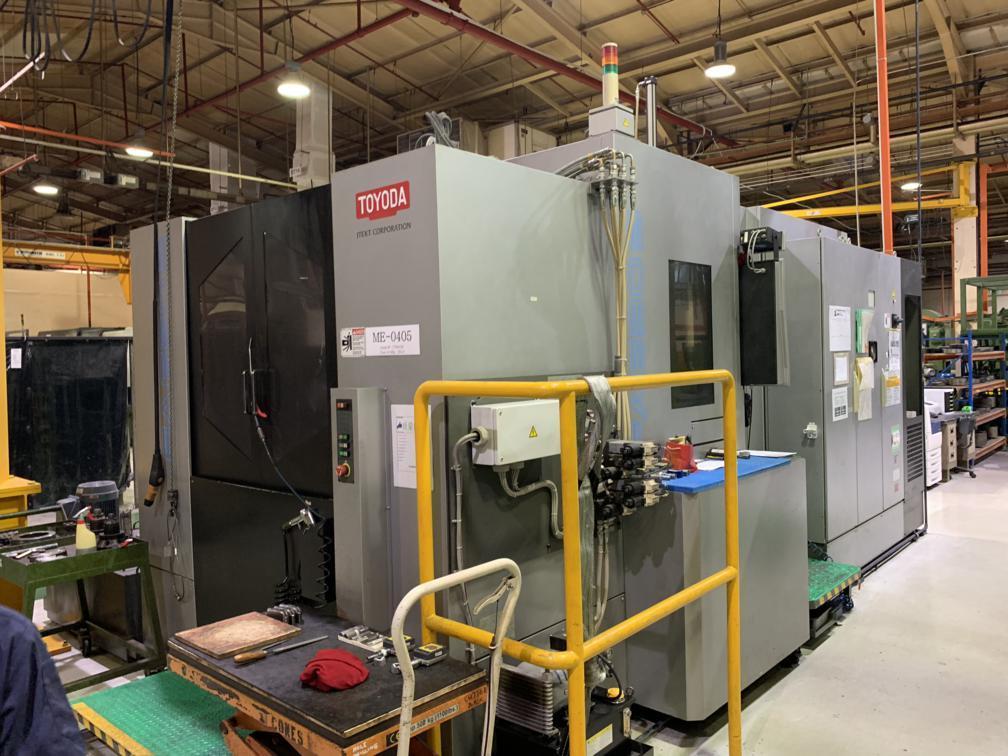

2013 TOYODA FA630s - Horizontal Machining Center
Machine Specifications
Year
2013
Control Type
Fanuc 31i-MB
# Axis
4
Pallet Length
24.8"
Pallet Width
24.8"
Pallet Load Capacity
2,800 pounds
Pallet Indexing (B-Axis)
0.001°
X-Axis Travel
39.4"
Y-Axis Travel
31.5"
Z-Axis Travel
33.5"
X-Axis Rapid Feedrate
944
Y-Axis Rapid Feedrate
944
Z-Axis Rapid Feedrate
944
Spindle Taper
BT 50
Spindle Speed (RPM)
5,000
Spindle Motor (HP)
40 horsepower
Tool Changer Capacity
60
Coolant Through Spindle
yes
Dimensions
TBD
Weight
35,200 pounds

Equipped With:

  • 5000min-1 BT50 gear spindle with through coolant
  • NC indexing table (0.001°) without encoder
  • 60-tool storage magazine
  • Standard pallet T-slotted
  • Shift type automatic pallet changer (with pallet 2pcs)
  • Closure type splash guard
  • Door interlock at operating (Electromagnetic type)
  • Area sensor at pallet changer access

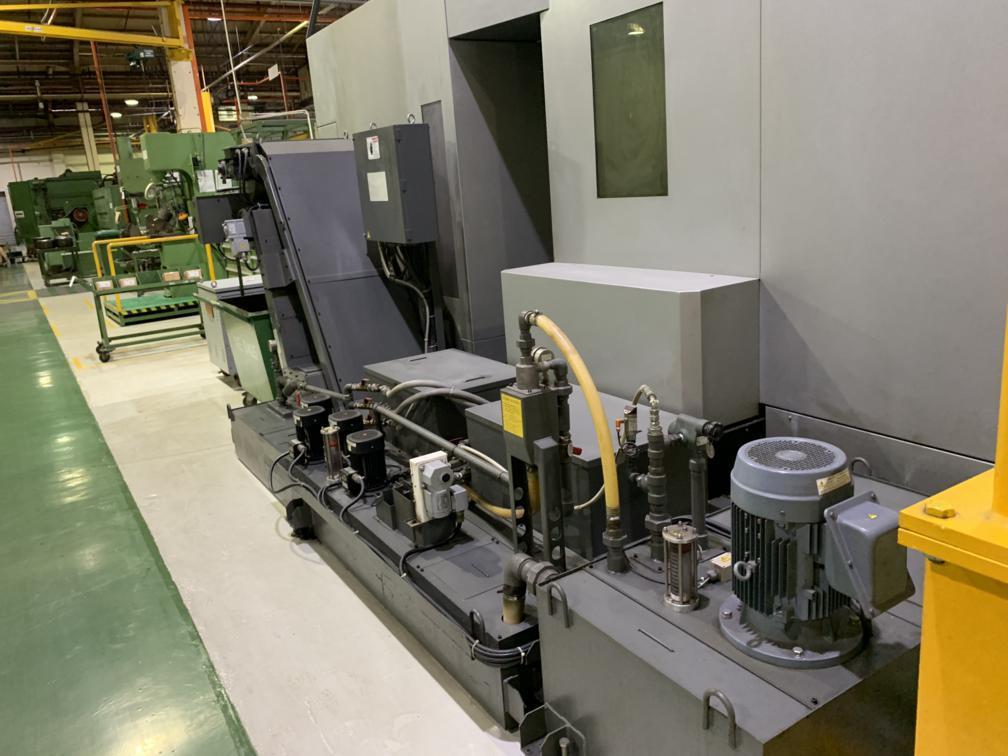

  • Coolant supply unit, 600L tank capacity, with magnetic scraper type chip conveyor, and 7MPa spindle though unit
  • Overhead shower coolant
  • Chip flushing coolant
  • Splash gun (at APC)
  • OP Supporter 20iP
  • Automatic power shutdown
  • 3 step signal tower
  • Air blower external nozzle type
  • Touch sensor function
  • Renishaw model: OMP60 (included Auto tool length measurement, auto tool length offset compensation and cutter breakage detection
  • Rigid taping

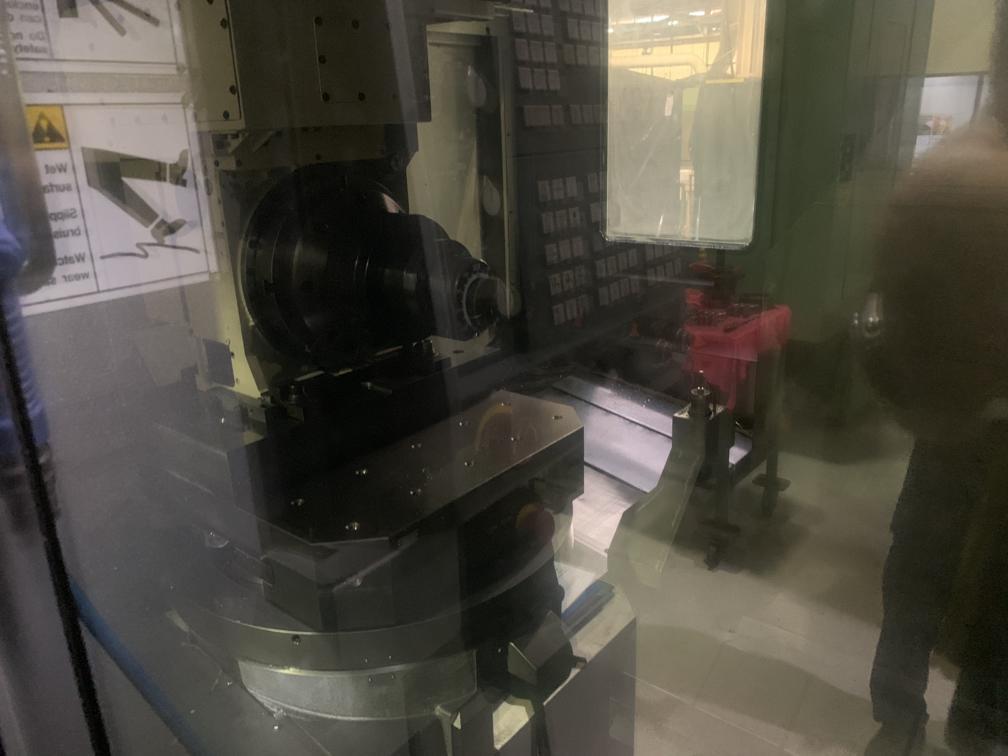

  • Rotary table with rotary point (Tsudakoma model: RBA-320K)
  • Programmable data input
  • Fast data server (including ethernet with 640MB Flash memory)
  • Hydraulic system arrangement:
  • Distributor
  • Operation panel for fixtures
  • Valve stand
  • Pump unit
  • Hydraulic unit

The Toyoda FA630S is an exclusive part of our Horizontal Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
